80W 24V Right DC Motor, DC Gear Motor, Electric Gear Motor for packaging, printing, textile, dyeing, chemical, medical, pharmaceutica
80W 24V Right DC Motor, DC Gear Motor, Electric Gear Motor for packaging, printing, textile, dyeing, chemical, medical, pharmaceutica
80W 24V Right DC Motor, DC Gear Motor, Electric Gear Motor for packaging, printing, textile, dyeing, chemical, medical, pharmaceutica
80W 24V Right DC Motor, DC Gear Motor, Electric Gear Motor for packaging, printing, textile, dyeing, chemical, medical, pharmaceutica
80W 24V Right DC Motor, DC Gear Motor, Electric Gear Motor for packaging, printing, textile, dyeing, chemical, medical, pharmaceutica
80W 24V Right DC Motor, DC Gear Motor, Electric Gear Motor for packaging, printing, textile, dyeing, chemical, medical, pharmaceutica
80W 24V Right DC Motor, DC Gear Motor, Electric Gear Motor for packaging, printing, textile, dyeing, chemical, medical, pharmaceutica
80W 24V Right DC Motor, DC Gear Motor, Electric Gear Motor for packaging, printing, textile, dyeing, chemical, medical, pharmaceutica
80W 24V Right DC Motor, DC Gear Motor, Electric Gear Motor for packaging, printing, textile, dyeing, chemical, medical, pharmaceutica
80W 24V Right DC Motor, DC Gear Motor, Electric Gear Motor for packaging, printing, textile, dyeing, chemical, medical, pharmaceutica
80W 24V Right DC Motor, DC Gear Motor, Electric Gear Motor for packaging, printing, textile, dyeing, chemical, medical, pharmaceutica
80W 24V Right DC Motor, DC Gear Motor, Electric Gear Motor for packaging, printing, textile, dyeing, chemical, medical, pharmaceutica
80W 24V Right DC Motor, DC Gear Motor, Electric Gear Motor for packaging, printing, textile, dyeing, chemical, medical, pharmaceutica
80W 24V Right DC Motor, DC Gear Motor, Electric Gear Motor for packaging, printing, textile, dyeing, chemical, medical, pharmaceutica

80W 24V Right DC Motor, DC Gear Motor, Electric Gear Motor for packaging, printing, textile, dyeing, chemical, medical, pharmaceutica

(0 reviews)
Ask a question
$65.55
  • Brand: CNCEST
  • Product Code: JZ8VBN-000200ND
  • Availability: In Stock
Quantity
- +
Estimated Delivery:
Free Fast Shipping:
On all orders
estimated delivery guarantee

Sturdy and Durable

The product is made of high-quality aluminum, copper, and iron, using baking paint technology, with high strength, wear resistance, and long service life.

Powerful Function

With 80W power and 220RPM speed, this product provides excellent work performance. The motor adopts PWM speed control technology, featuring high conversion efficiency and a wide speed control range, improving your work efficiency.

Stable Performance

Adopting the original semiconductor chip, brass turbine worm gears, and double ball bearings, the product has been tested by voltage, current, function, and many other tests before leaving the factory to ensure the stability and reliability of the circuit.

Easy & Safe to Use

By adjusting the positive and negative direction of the wiring, you can easily change the direction of rotation of the motor, increasing flexibility in use. The motor has a power failure self-locking function to enhance the safety of your use.

Outstanding Load Bearing

The gear can withstand up to 154.32 lbs, providing you with more powerful operating performance to use with confidence.

Easy to Carry & Store

Thanks to its compact size (2.48" in diameter) and lightweight (2.87 lbs), you can take it to the workplace and use it without taking up much space.

Easy to Clean

The smooth surface and simple structure allow you to easily remove dust from the surface of the product with a towel.

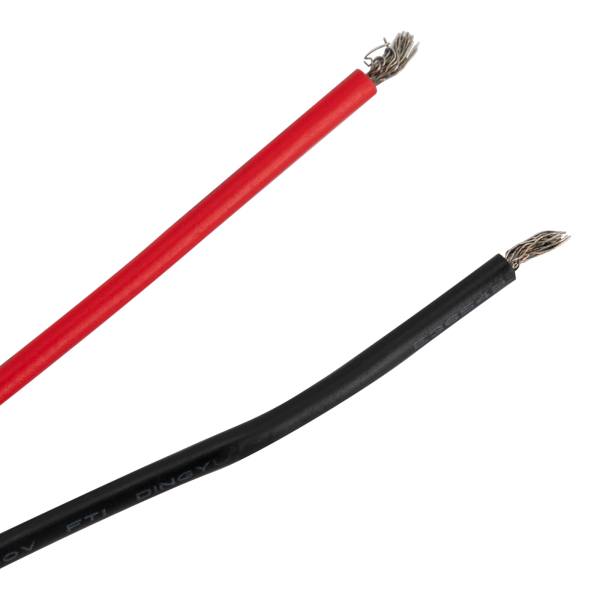

Power Cable

It has black and red distinct colors for easy connection without confusion.

Smooth Edge

The round and smooth edges not only add to the aesthetics of the product but also improve the safety of use.

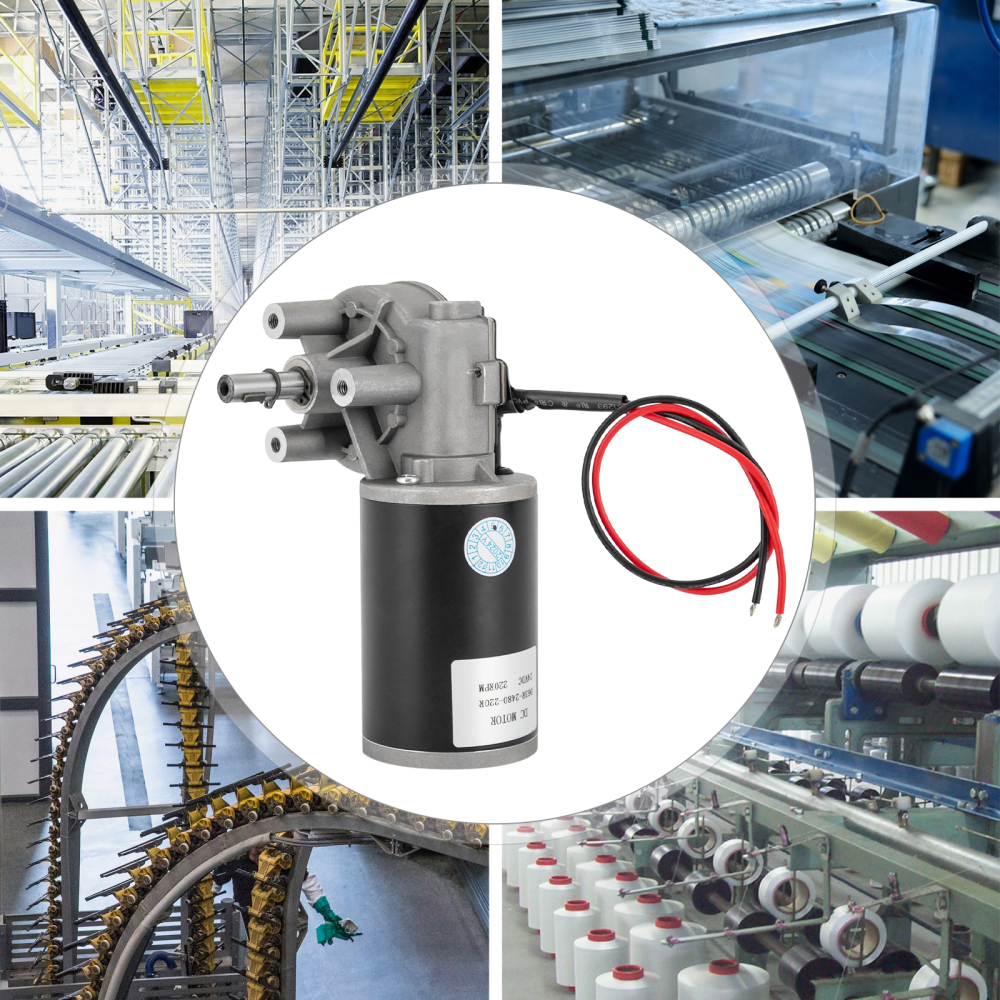

Application

It can be widely used in packaging, printing, textile, dyeing, chemical, medical, pharmaceutical, and other engineering work, as well as advertising, office, instrumentation, stage lighting, transmission, automatic warehouse, parking door security, automatic doors and windows, conveyor, vending machine, feeder, calender, extruder, peeling machine, blender, cargo lifts, food machinery, and other equipment.

Specifications
Style:  Modern
Shape:  Column
Color:  Black, Silver
Material:  Aluminum, Copper, Iron
Surface Treatment:  Baking Paint
Power Source:  Wire Connecting
Motor Position:  Right
Voltage:  24VDC
Power:  80W
Speed:  220 RPM
Load Capacity:  70kg/ 154.32 lbs

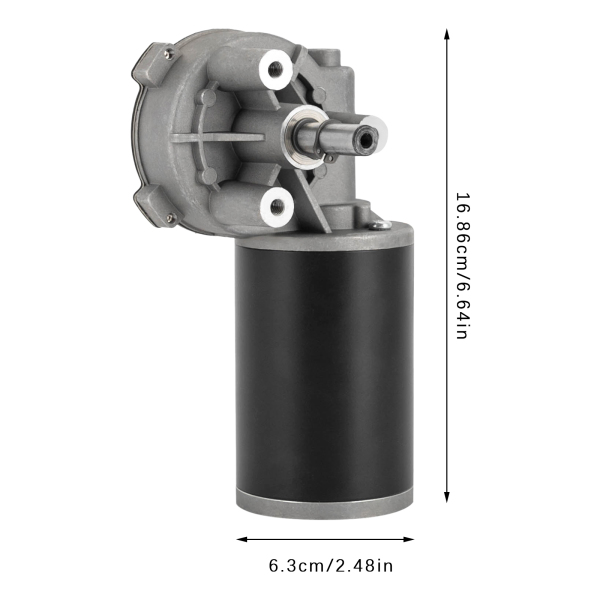

Motor Diameter:  63mm/2.48 in
Working Temperature Range:  -30~60°C/-22~140°F
Overall Product Height:  16.86cm/ 6.64 in
Package Size:  22*12*10cm/ 8.66*4.72*3.94 in
Gross Weight:  1.5kg/ 3.31lbs
Net Weight:  1.3kg/ 2.87lbs
Package Included
1* DC Reduction Motor

Specifications

Style Modern Shape Column
Color Black, Silver Material Aluminum, Copper, Iron
Surface Treatment Baking Paint Power Source Wire Connecting
Motor Position Right Voltage 24VDC
Power 80W Speed 220 RPM
Load Capacity 70kg/ 154.32 lbs Motor Diameter 63mm/2.48 in
Working Temperature Range -30~60°C/-22~140°F Overall Product Height 16.86cm/ 6.64 in
Package Size 22*12*10cm/ 8.66*4.72*3.94 in Gross Weight 1.5kg/ 3.31lbs
Net Weight 1.3kg/ 2.87lbs

Product Tips

Notes

1.Please note the compatibility of the product you purchased.
2.Please note that it is strictly prohibited to block the motor, long-time blocking makes it easy to burn the motor.
3.The motor will heat up after working for a while. This is a normal phenomenon and does not affect the life of the motor and normal use. Please do not touch the motor shell with your hands when the motor is working to avoid burning.
4.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
