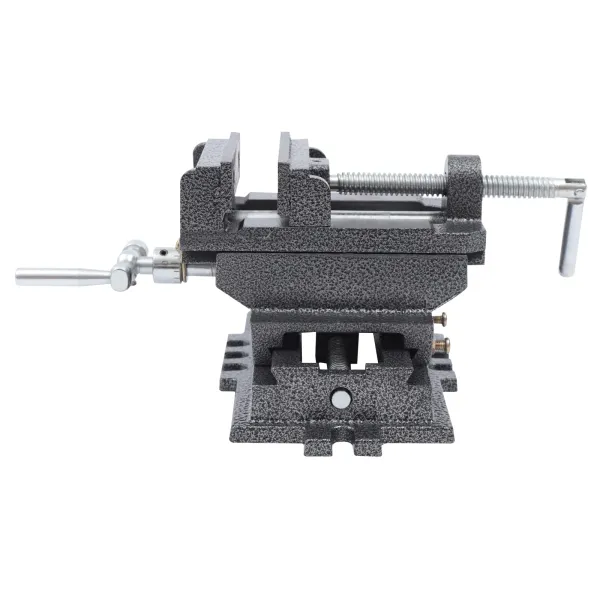

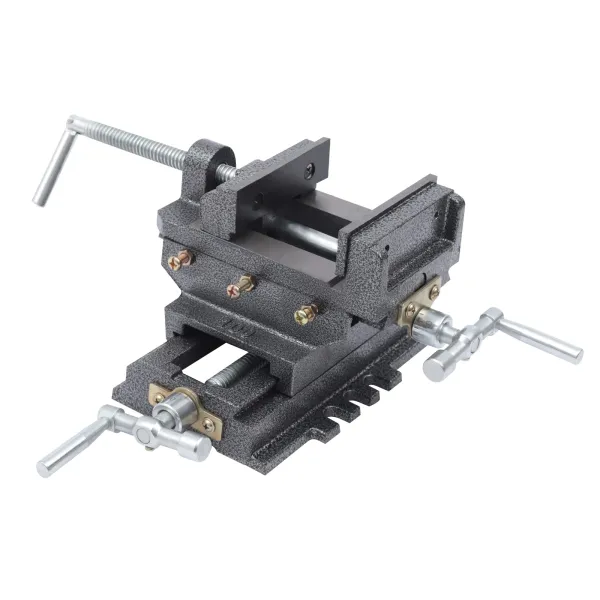

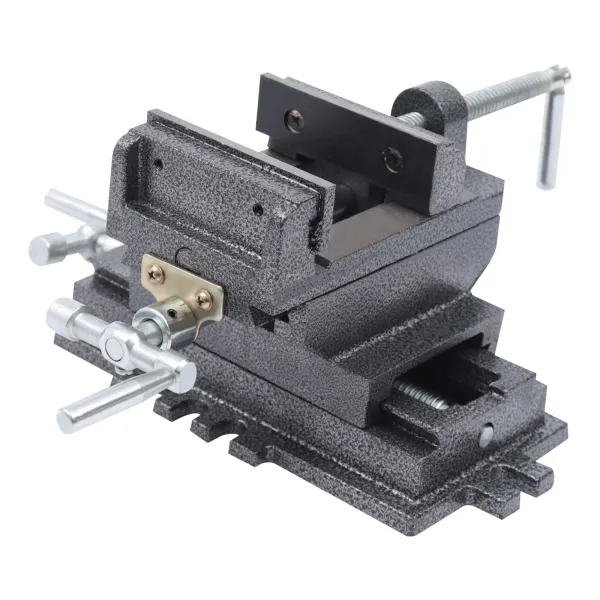

4-Inch Drill Press X-Y Compound Vise 2 Way Heavy Duty Cross Slide Vise Clamp Machine
4-Inch Drill Press X-Y Compound Vise 2 Way Heavy Duty Cross Slide Vise Clamp Machine
4-Inch Drill Press X-Y Compound Vise 2 Way Heavy Duty Cross Slide Vise Clamp Machine
4-Inch Drill Press X-Y Compound Vise 2 Way Heavy Duty Cross Slide Vise Clamp Machine
4-Inch Drill Press X-Y Compound Vise 2 Way Heavy Duty Cross Slide Vise Clamp Machine
4-Inch Drill Press X-Y Compound Vise 2 Way Heavy Duty Cross Slide Vise Clamp Machine
4-Inch Drill Press X-Y Compound Vise 2 Way Heavy Duty Cross Slide Vise Clamp Machine
4-Inch Drill Press X-Y Compound Vise 2 Way Heavy Duty Cross Slide Vise Clamp Machine
4-Inch Drill Press X-Y Compound Vise 2 Way Heavy Duty Cross Slide Vise Clamp Machine
4-Inch Drill Press X-Y Compound Vise 2 Way Heavy Duty Cross Slide Vise Clamp Machine
4-Inch Drill Press X-Y Compound Vise 2 Way Heavy Duty Cross Slide Vise Clamp Machine
4-Inch Drill Press X-Y Compound Vise 2 Way Heavy Duty Cross Slide Vise Clamp Machine
4-Inch Drill Press X-Y Compound Vise 2 Way Heavy Duty Cross Slide Vise Clamp Machine
4-Inch Drill Press X-Y Compound Vise 2 Way Heavy Duty Cross Slide Vise Clamp Machine

4-Inch Drill Press X-Y Compound Vise 2 Way Heavy Duty Cross Slide Vise Clamp Machine

(0 reviews)
Ask a question
$75.05
  • Brand: CNCEST
  • Product Code: BI-WMT4887-508
  • Availability: Out Of Stock
Quantity
- +
Estimated Delivery:
Free Fast Shipping:
On all orders
estimated delivery guarantee
4-Inch Drill Press X-Y Compound Vise 2 Way Heavy Duty Cross Slide Vise Clamp Machine

4-Inch Drill Press X-Y Compound Vise 2 Way Heavy Duty Cross Slide Vise Clamp Machine

  • Description
  • Reviews (0)
  • Recommer
  • Delivery and Return
  • High-quality Material: Our cross slide vise is made of high-quality cast iron. The pressure and wear-resistant cast iron make this product strong and durable.The jaws are made of strong carbon steel. The high hardness and toughness of the carbon steel provide the product with a strong clamping force. And the jaws are widened and raised, which makes the clamping more stable.
  • Detachable Design: The jaws are detachable, allowing for quick and easy replacement. And the removable jaws allow you not to replace the entire product, greatly reducing costs.

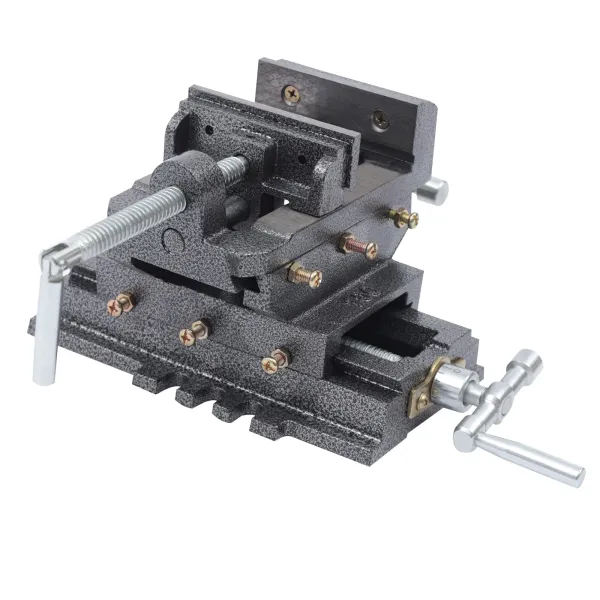

  • Easy to Adjust: The top and bottom rails are equipped with 6 screws for easy adjustment as needed. You only need to use a wrench to adjust the screws, which is very convenient and labor-saving.
  • Flexible Operation: The cross slide vise is designed to be bi-directional and can be moved horizontally or vertically, which is very convenient and flexible.The cross slide vise can be used with a benchtop drilling machine, which can act on multiple holes or keyways in one clamping by moving in two directions.
  • Wide Application:This cross slide vise makes it easy to produce high precision and quality wood and metal parts. It is suitable for most milling machines and drilling machines.

  • Details
    Smooth Handles: The smooth metal handles make the operation easier and more comfortable.
    High Hardness Screw: The screw is made of high-strength carbon steel, which is resistant to wear and tear and not easily deformed.
    Anti-slip Groove: The jaws are equipped with diamond-shaped anti-slip grooves, which can increase the friction between the workpiece and make the clamping more stable.
    Accurate Scale: The rocker is equipped with a clear scale to help you accurately adjust the track, which can effectively improve the accuracy of processing.

    Application
    This cross slide vise makes it easy to produce high precision and quality wood and metal parts. It is suitable for most milling machines and drilling machines.

    Specification
    Material: Carbon Steel, Cast Iron
    Process: Spraying
    Color: Black
    Opening Degree: 9cm/3.5in
    Jaw Width: 10cm/3.9in
    Jaw Depth:3.7cm/1.45in
    Maximum Clamping: 7.3cm/2.87in
    Base Plate Hole Distance: 12.5cm/4.9in
    Longitudinal Travel: 10cm/3.9in
    Transverse Travel: 12cm/4.72in
    Net Weight: 10kg/22.04lbs
    Gross Weight:10.5kg/23.14lbs
    Package Size:29*29*15.5cm/11.41*11.41*6.10in
    Product Height:13.7cm/5.39in

    Installation
    1. First, align the hole of the rocker with the screw rod and install the rocker.
    2. Tighten the screw cap with a wrench. (The nut should not be tightened too much, but leave a certain gap to ensure the smoothness of the screw.)

    Package Included
    1* Cross Slide Vise
    All Accessories Needed for Installation

    Notes
    Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement. Please make sure you do not mind before you order.
