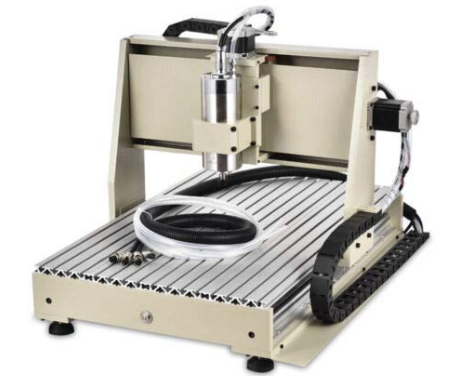

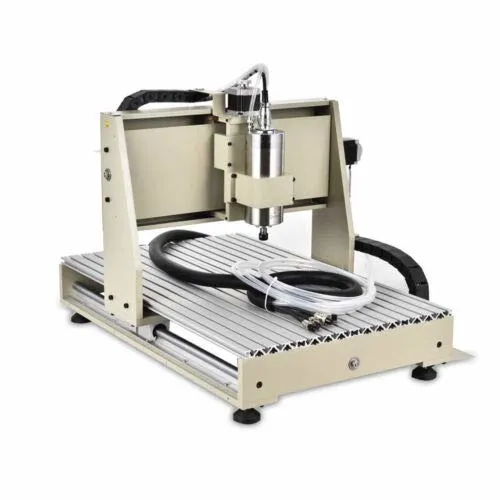

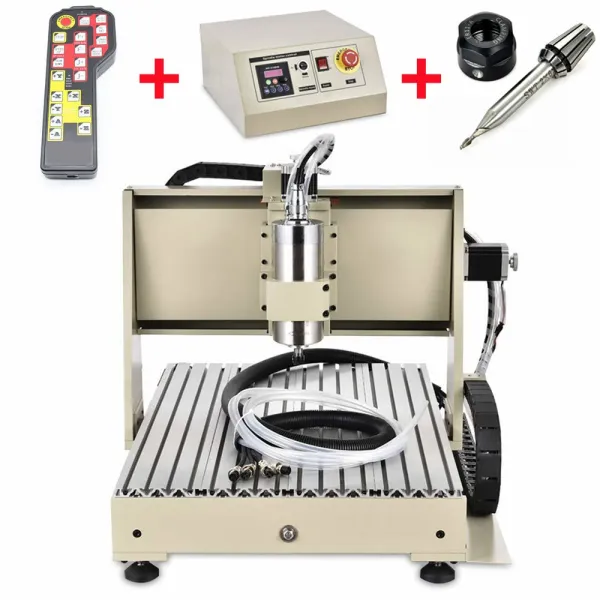

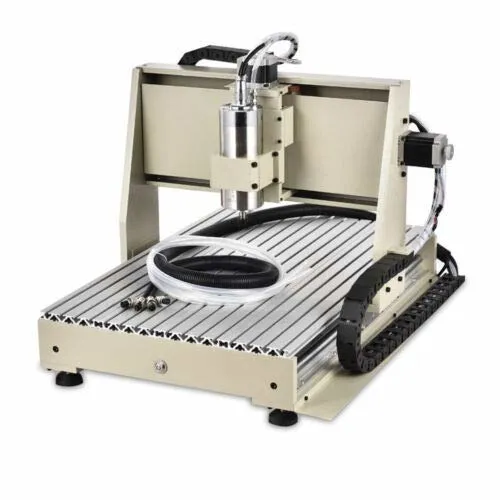

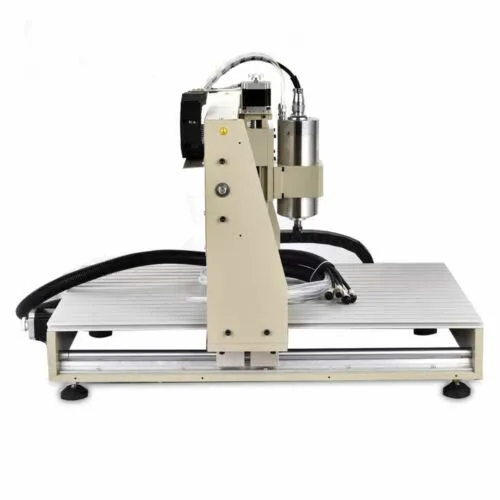

USB 3 AXIS CNC 6040 Router Engraver 1500W Milling Machine USB Port Drilling Suitable for PCB (Including Remote Controller)
- Brand: CNCEST
- Product Code: 3-1.5KW6040A-USB-2ITEM
- Availability: Out Of Stock

★ Suitable for PCB, wood, Plexiglass, PVC, Crystal Acrylic, RESIN, Plastic, SEALS, MDF, COMPOSITE, Aluminum material, Copper. This CNC 6040T machine is suitable for industry, Technology Research, Advertising Design.
★ Arts Creation, Teaching, Student Project and Hobby Purposes. It can work with various materials(metallic & non-metallic), such as: wood, pmma or other plastic, MDF board, native wood, PVC, Acrylic, wood, composite board plywood. and soft metal. like aluminum, copper and silver to engrave them into 3D/2D works etc.
★ It can used for engraving: advertising signs, PCB, nameplates, badges, seals, bronzing plate, aluminum alloy, acrylic plates, ABS resin double color plate, PVC foaming board, indentation plates, signs, construction models, instrument panels, wooden products, etc.
★ The mini CNC router Frame is movable. The machine can connect with computer as other external device such as printer, scanner. With the assist of the CNC ROUTER 6040T, your design idea will be real-time display.
★ Attention: This machine needs to connect to a computer through its controller box with a parallel cable (both included). It is not recommended to connect to a notebook through a parallel port as the power saving features tend to interrupt the data flow. It is also not recommended to connect to a computers with 64 bit versions of Windows due to problems with the Parallel port driver. These issues are detailed and fully explained on the Mach3 Software website.
★More Choice: CNCEST 6040 Engraving Machine is widely applied, you can look for more different types of Best Engraving Machine.
High quality accurate ball Screws drive make the engrving more precision. Anti-blackflash, high precision, long life circle.
★CNC engraving machine parameters:
X, Y, Z Working Area: 600(Y)*390(X)*120(Z)mm
Outside dimension: 865*680*570mm(L*W*H)
Table size: 770(Y)*490(X)mm
Lathe structure: 6061/6063 Aluminum alloy
Max. Feeding height: ≤100mm
★Drive unit:
X axis---1605 Ball Screws
Y axis---1605 Ball Screws
Z axis---1204 Ball Screws
★Sliding unit:
X axis---High intensity Chromeplate shaft
Y axis---High intensity Chromeplate shaft
Z axis---High intensity Chromeplate shaft
★Stepping motor:
57 two-phase 3A 150N.cm
★Spindle motor:
Outside dimension: 65*158mm
Material: 304 stainless steel, Copper coil, Pressure cast aluminum pipe water jacket
VOLTS, current, power: AC110 /60Hz, 10A, 1.5KW VFD
Spindle speed: 24000 rpm
Max working frequency: 60Hz

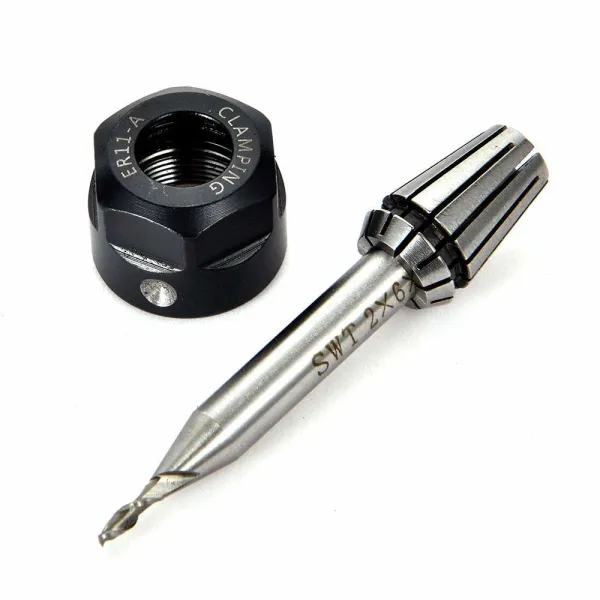

Principal axis collet: ER11collet,Standard configuration :6mm
Nut Model: ER11-A
Cooling: Water-cooling
Speed mode: By adjusting the VFD output voltage and operating frequency from 0-24000RPM
Lubrication way: lubricated by high grease
Repeat accuracy: 0.05mm
Spindle precision: radial beat acuities 0.03mm
Carving Instructions: G code / TAB files / nc file / NCC files
Communication interface: through USB connection with computer
support system: Windows XP/Win7
Maximum Idle speed:1500mm/min
Working Speed :50-1500mm / min (different material with different speed settings)

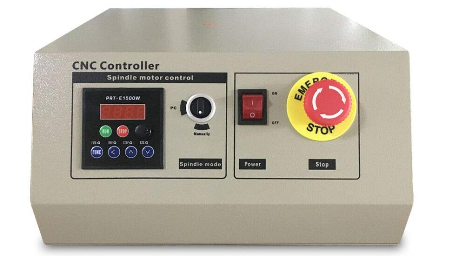

Control box parameters:
Operating Voltage: AC110V
Control unit: Toroidal transformer + PWM power supply module + TB6560 stepping motor drive
Computer connection: USB port
Command code: G code
Protection: Emergency stop button
NOTE:
Please close the firewall and antivirus software and don't update the software.

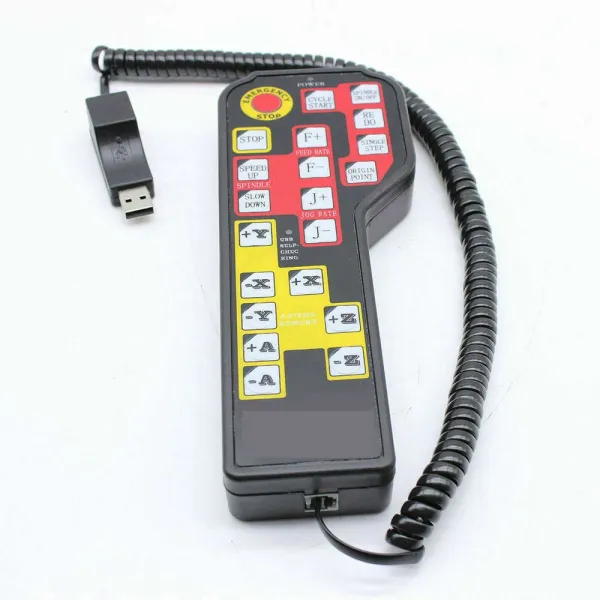

(Including Remote Controller)
