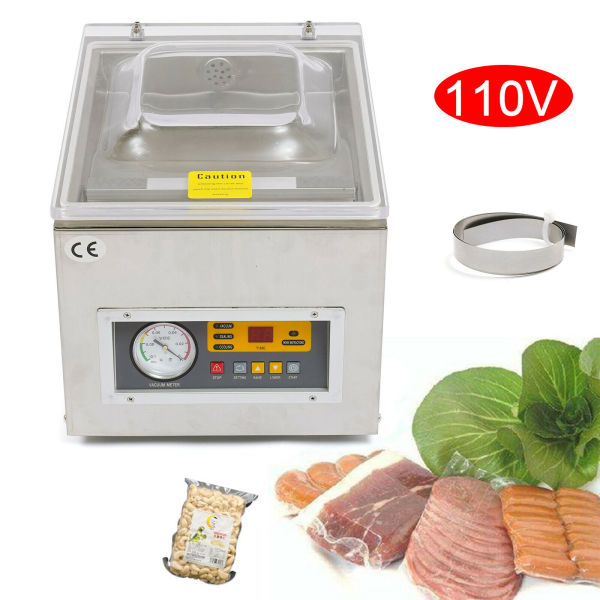

• 【 HIGH QUALITY】This desktop vacuum sealer is our updated type of popular common vacuum packaging machine. The machine is structured with tightness packaging materials with stick advanced seal technology, prevent food from going spoilage. It may packing various of ripe products, salted, bean products, fruit product to be fresh. After vacuum packaging, the food may keep it's original taste and stored much longer.
• 【FUNCTION】In the form of liquid, solid, powder or paste by using plastic film or plastic aluminum foil film. It can prevent the packed products from oxidizing, mildewing, worm-eating, rotting or damping, and prolong the shelf period.
• 【REMINDER】Pressing down and holding on the vacuum cover is very important, it will affect whether the vacuum can be good. Do not confuse the time setting of the seal and vacuum. If the sealing time set too long, and there will be sparks on both sides of the heating wire. ( There is no vacuum oil inside,please buy it on yourself !! )
• 【APPLICATION】 This vacuum sealer machine is applicable for vacuum packing of food, grain, fruit, pickle, preserved fruit, chemical medicine, medicinal materials, electronic elements, precise instrument, rare metal, etc. It especially applies to industries as tea, food, medicine, shop and research institute, etc. And has features as beautiful outline, compact structure, high efficiency and simple operation, etc.
• 【 BEST SERVICE】 100% Refund Guarantee, please be assured the purchase. Our products are sent from the US and can be delivered quickly. If you have any questions or quality issue,please feel free to contact us. CNCEST will do our best to help you solve the problem.

Details

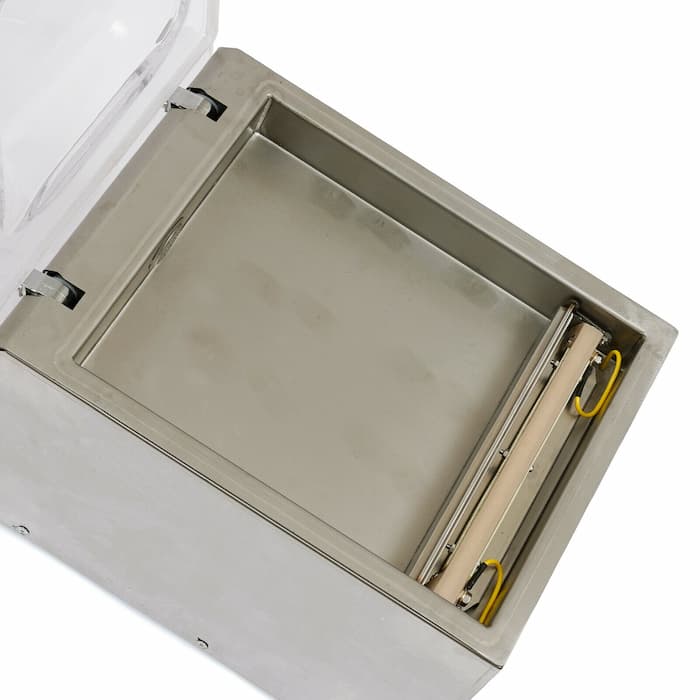

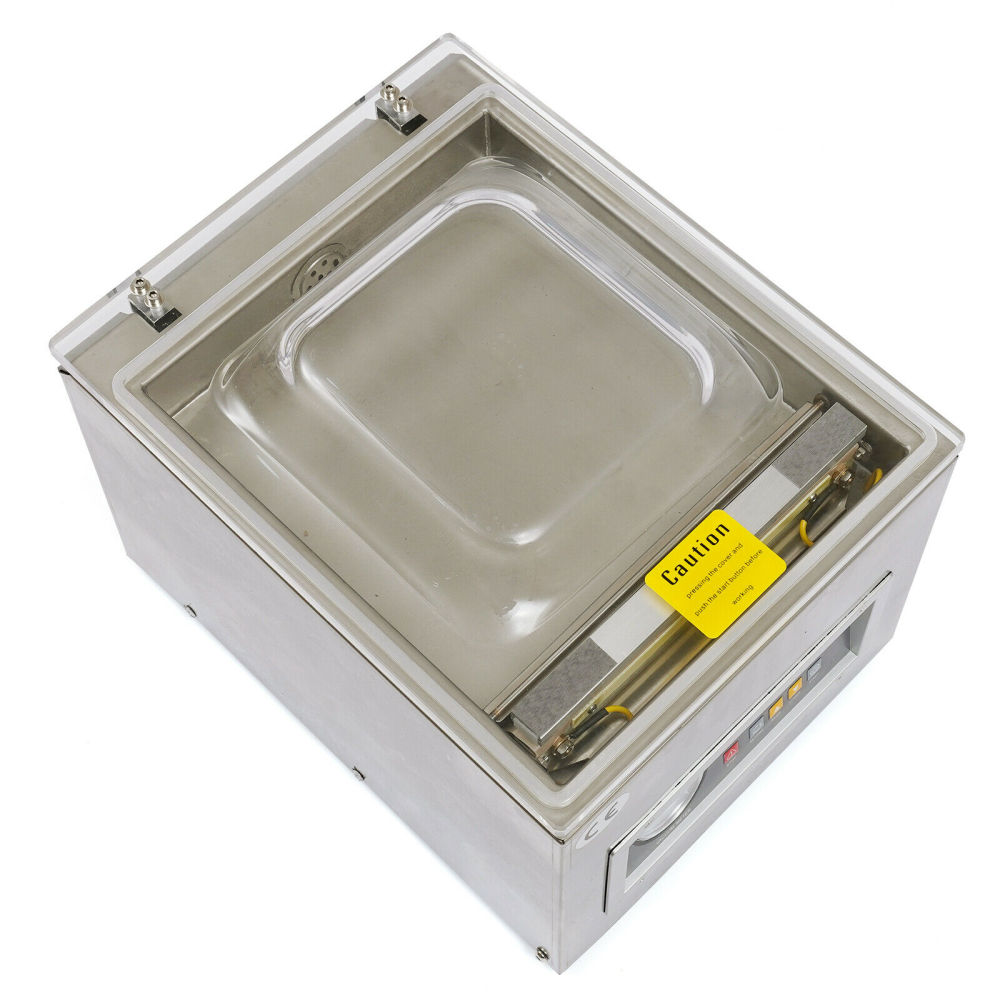

Heating Wire: The nickel complex gold heating wire with hook locks has a long lifespan and allows for easier and faster replacement.

Power Cable: The 3.9ft thickened power cable ensures safe and convenient use.

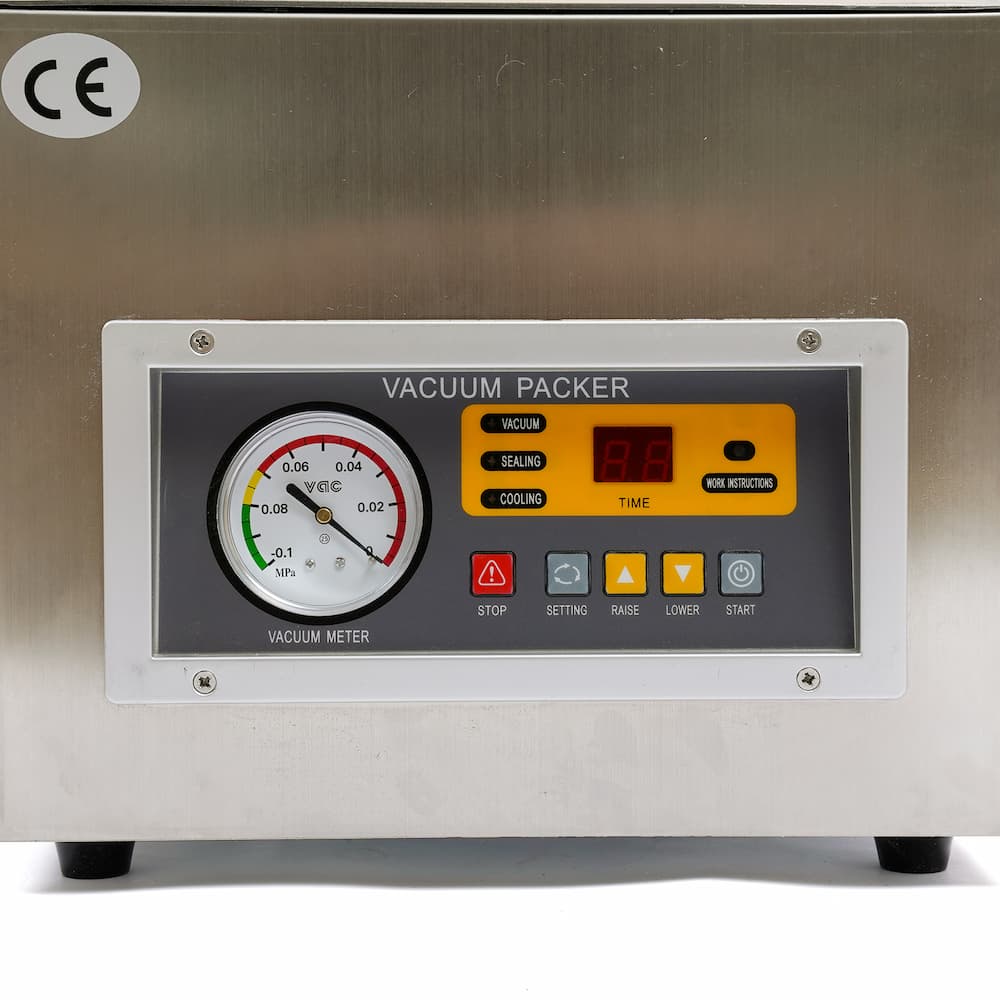

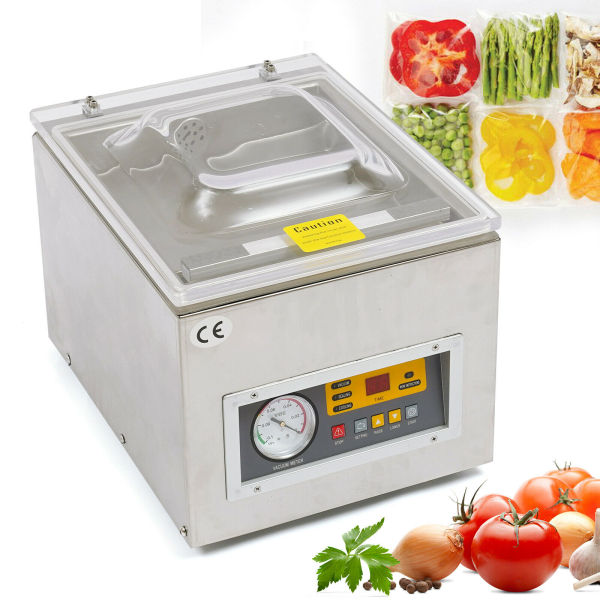

Simple Operation: The operation panel with clear letters, marks, work instructions, and a vacuum meter display allows for simple and convenient automatic control operation.

Application

It applies to foods, grains, fruits, kimchis, preserved fruits, chemicals, medicinal materials, electronic components, precision instruments, rare metals, and ERC vacuum packaging.



Reminder:
When you start the machine,please be sure to press the vacuum cover tightly.
Sparks or smoke would be happened when it is not completely vacuum. It is at your own risk.
Note:There is no vacuum oil inside,please buy it on yourself

Specifications:
Noise:<80 dB
Rate of exhausting:5.5L/s
Model:DZ-260S
Seal bar length: 10.2in(260mm)
Current: 5A
Power supply: 220V/50HZ
Machine Dimensions: 16in*12.2in*11.4in(410*310*290mm)
Motor Power: 120W
Shell material: Stainless steel

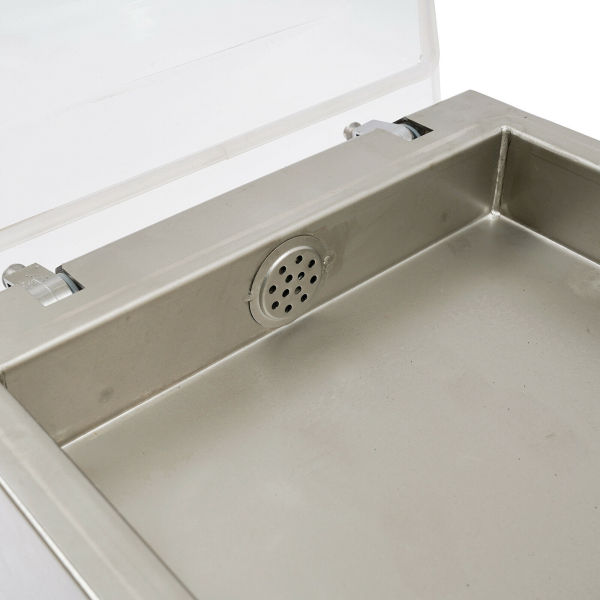

Workroom size: 12.9in*10.7in*2in(330*275*50mm)
Type: Vacuum packing machine
Packing speed: 1~4pcs/min
Workroom lowest absolute pressure: <=1KPa
Suction Speed:2 CFM
Max. sealing size: 260mm*10mm
Inlet air bore: 0.2

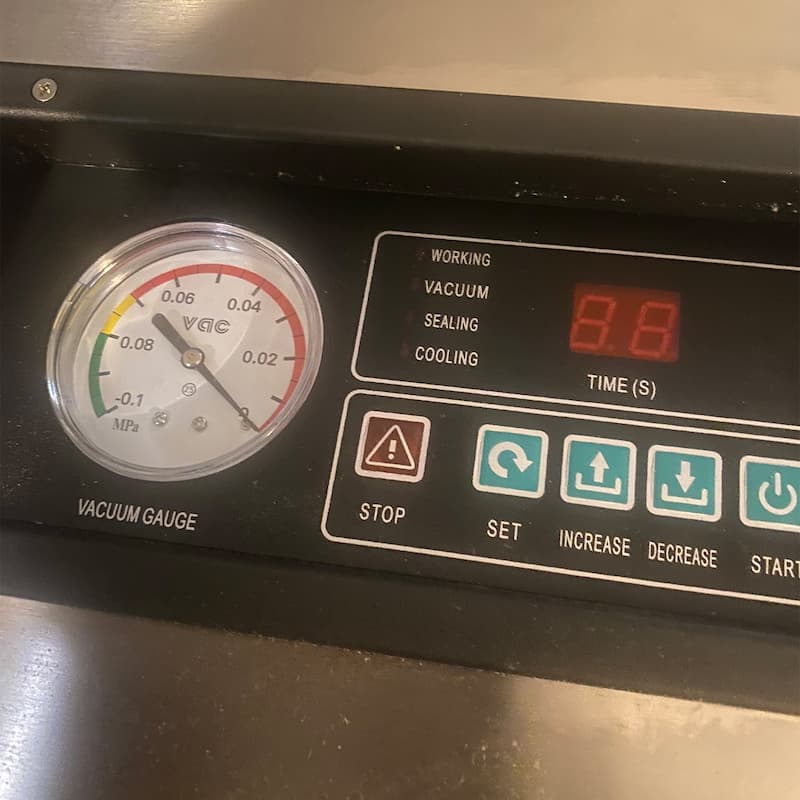

Black and yellow panel labels are delivered randomly

Steps:
1.Set the vacuuming time, first set for 30 seconds, according to the specific vacuum effect to set.
2.Set the sealing time, first set for 2 seconds, if it is a thick vacuum bag, increase the sealing time.
3.Set the cooling time, first set for 2 seconds.
4.Close the vacuum cover, press the vacuum cover manually, then press the start button, after the vacuum table is running to release the hand.
5.When the vacuum table is attained to the green area (0.06-0.08Mpa), it means that the vacuum has been completed.

Pay Attention:
1 Pressing down and holding on the vacuum cover is very important, it will affect whether the vacuum can be good, and there will be sparks on both sides of the heating wire.
2.Do not confuse the time setting of the seal and vacuum. If the sealing time set too long, and there will be sparks on both sides of the heating wire.

Warm tip: The manufacturer must refuel the machine in the factory inspection, there will be a little residue in the vacuum pump, which may lead to leakage during transportation, if the customer receives the oil leakage problem, just clean up, it will not affect the use
