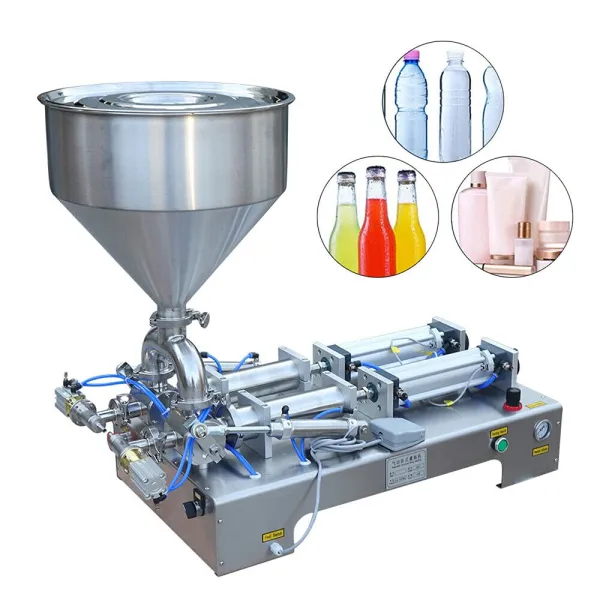

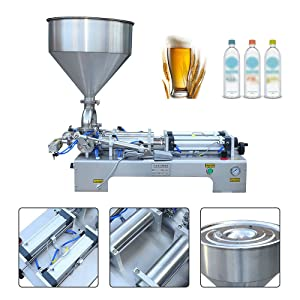

• ★WIDE APPLICATION -- This filling machine is designed for liquids , pasty fluid , oil , and thin food products. It can help you to fill a mount of quantitative liquids or pasty fluid.
• ★ANTI-DRIPPING DESIGN -- This liquid paste filling machine has an efficient filling performance. It is equipped with a 19.6"x19.6"x19.6" hopper with a large inlet volume at once. A rotary valve controls the transfer of paste material to the outlet, no dripping.
• ★CONVINIENT OPERATION PROCESS -- With cylinder homing knob, convenient operation, filling speed adjustment knob, combined with the principle of mechanics, the filling machine can keep durable and stable running.
• ★2 WAYS TO CONTROL -- The bottle filler has two ways to control, foot switch filling and continuous automatic filling, two filling methods can be Initially recommended to use foot switch filling.
• ★BASIC SPECIFICATION -- The filling volume range is between 50ml - 500ml.Filling speed: about 1-30 bottles/min.Filling accuracy: ≦±1%. Size: 43.3"x17.7"x11.8" .Hopper: 19.6"x19.6"x19.6".

ADVANCED AIR PRESSURE GAUGE

• Adopt air pressure gauge to accurately monitor air pressure change.
• Two models for operating the machine. You can choose automatic operation or pedal control.

EXCELLENT FILLING PERFORMANCE

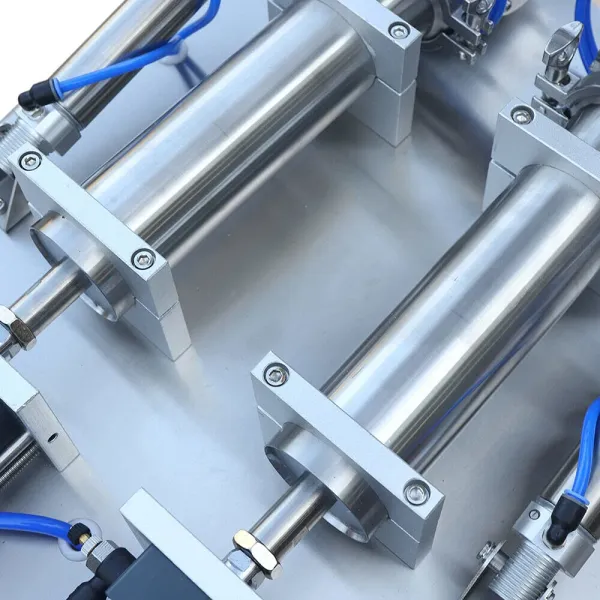

• Pneumatic filling with delicate filling device
• Including nozzle, conveying pipe and non-return valve
• It has high filling precision that can be controlled between 1%

HIGH ACCURACY NOT EASY TO DRIP

• Filling scalar scale, quantitative filling, accurate and efficient
• Independent rotary valve cylinder
• Not easy to drip

SPEED&QUANTITY ADJUSTABLE

• The whole filling process is arbitrarily controllable, including the operating speed of air cylinder, filling speed, and filling volume, to meet different needs.

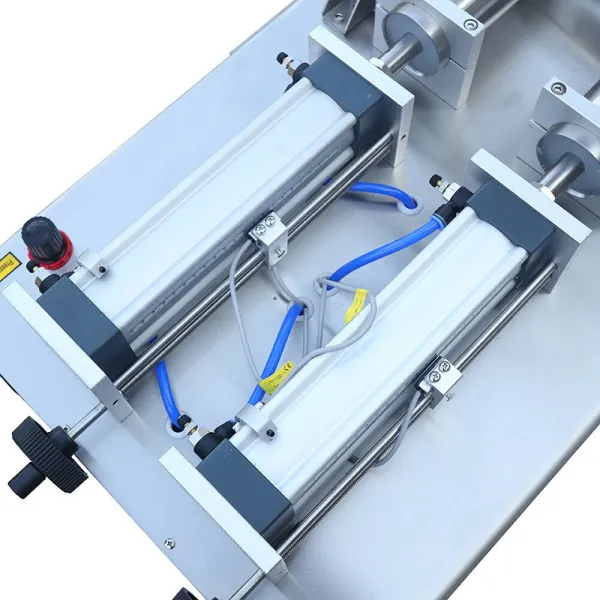

• Premium gas cylinder offers a large power and stable air pressure.

Product parameters:

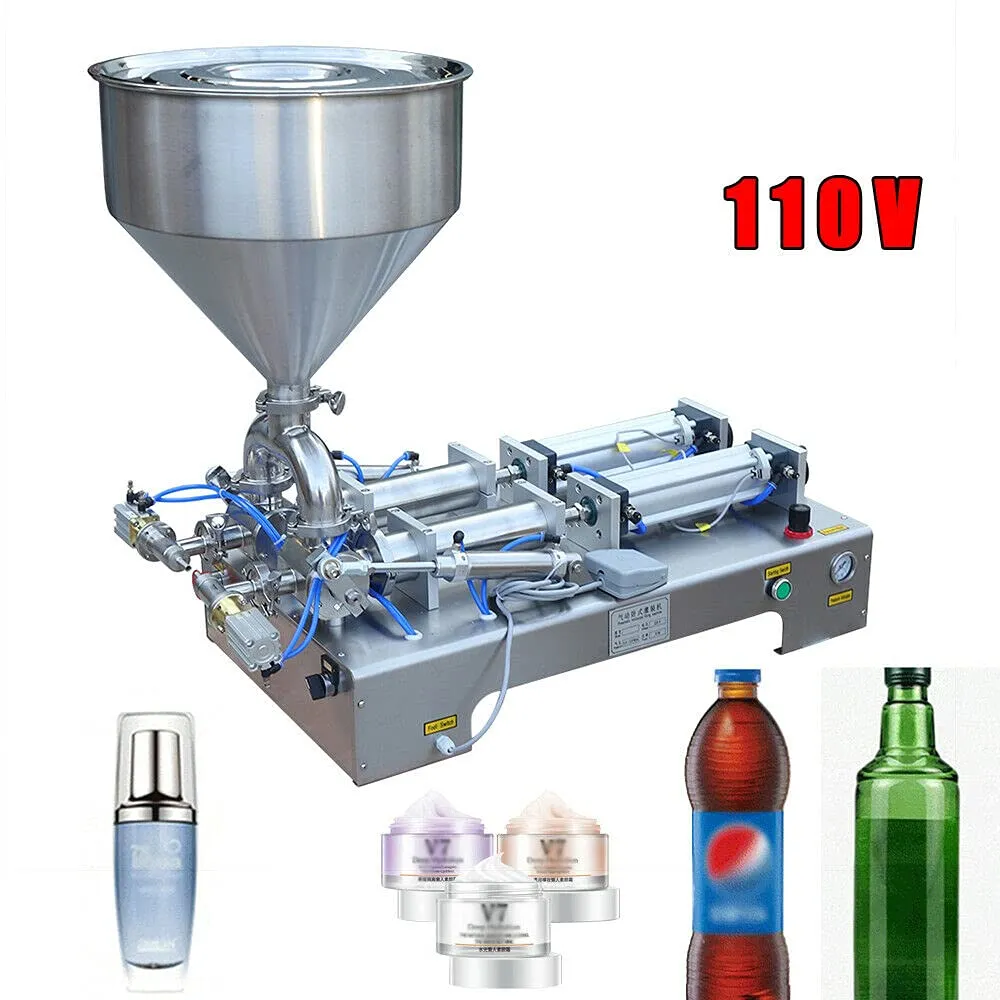

Voltage: 110V
Frequency: 60HZ
Size: 110*45*30cm
Hopper: 50*50*50cm
Weight: 55kg
Working method: pneumatic
Filling speed: about 1-30 bottles/min
Single filling range: 50-500ml
Air pump power: 800W
Working pressure: 0.6MPA
Filling accuracy: ≦±1%

• NOTE:This product needs to work with an air compressor(not included).

Notice:
1. Regarding cleaning: The rotary valve is made of wear-resistant, acid-resistant, and high-temperature resistant tetrafluoroethylene material, so you can't knock and collide at will
2. The main power of the machine is air source, customers need to prepare their own air pressure equipment
3. Influencing factors of filling speed: the viscosity of the material, the stroke of the cylinder, the size of the filling, the proficiency of the operator
4. Description of the viscosity of the filling material: the thickest can only be filled with the viscosity of toothpaste, and the viscosity is smaller than it.

Packing list:
Machine + hopper + sealing ring + wrench + manual
