Stairway Controller Lighting Smart Stairway Motion Sensor
- Brand: CNCEST
- Product Code: BI-LML041-770
- Availability: Out Of Stock
- Description
- Reviews (1)
- Recommer
- Delivery and Return
About this item
- 1: Trigger pattern: 7 options, 0-all off, 1-all on, 2-follow, 3-step ladder and light strip one by one On and off one by one, 4-step ladder gradually on and off one by one, light strip gradually on and off one by one, 5-step ladder. And the light strip will gradually turn on and off one by one, and the 6-step ladder light strip will gradually turn on and off as a whole.
- 2: Speed: 1~30 level adjustable, 1 is the fastest, 30 is the slowest.
- 3: The number of light strip segments: Can be adjusted within 0~600.
- 4: The number of steps: Adjustable within the range of 1-72, a single 36-way, 2 can be cascaded to 72 steps.
- 5: Light strip color: If rgb light strip is used, 7 colors can be adjusted, and the brightness of single-color light strip can be adjusted.
- 6: Minimum brightness: Brightness when no trigger (provides a night light effect), 0 is not bright, 10 is the brightest.
- 7: Maximum brightness: Adjustable within the range of 30 to 255, 30 is the lowest brightness, and 255 is the highest.
- 8: Constant light time: Adjust the time of full light after triggering, adjustable within the range of 0-120, 0.5 second interval, (0 seconds do not delay, 2 times 0.5 seconds is 1 second, and when adjusted to 1 20, the delay is 60 seconds).
- 9: Idle pattern: Pattern when no trigger, the light strip is a trailing effect, and the step ladder gradually brightens from bottom to top Fade out, 0 off, 1 on.
Corner Control System
The lower left corner control system Do1, Gnd, Do2, Gnd Has 2 parallel output terminals, which can be connected to the lights on the left side and the right side of the stairs.
Number Of Adjustable Light Strips
The output terminal controller on both sides uses 36-way stair steps on the single-color light strip, and the number of light strips can be adjusted. This selects the function settings of the sensor controller by pressing the button.
Product Description:

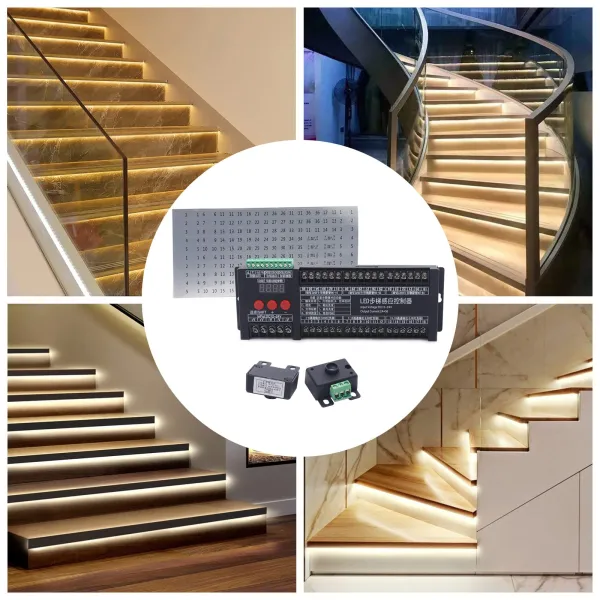

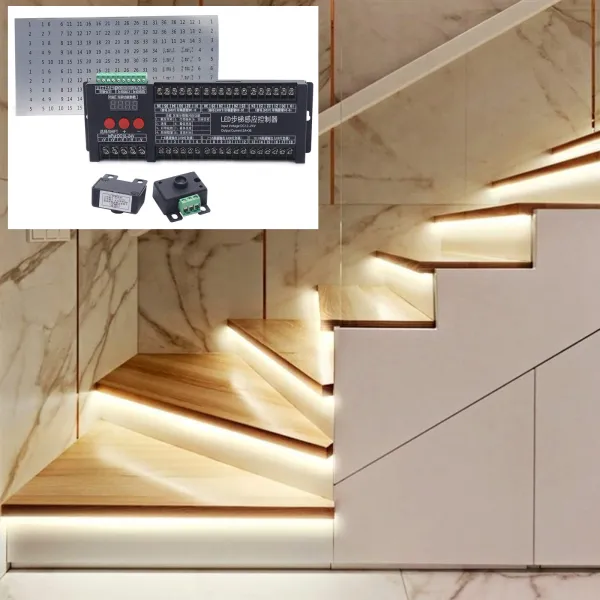

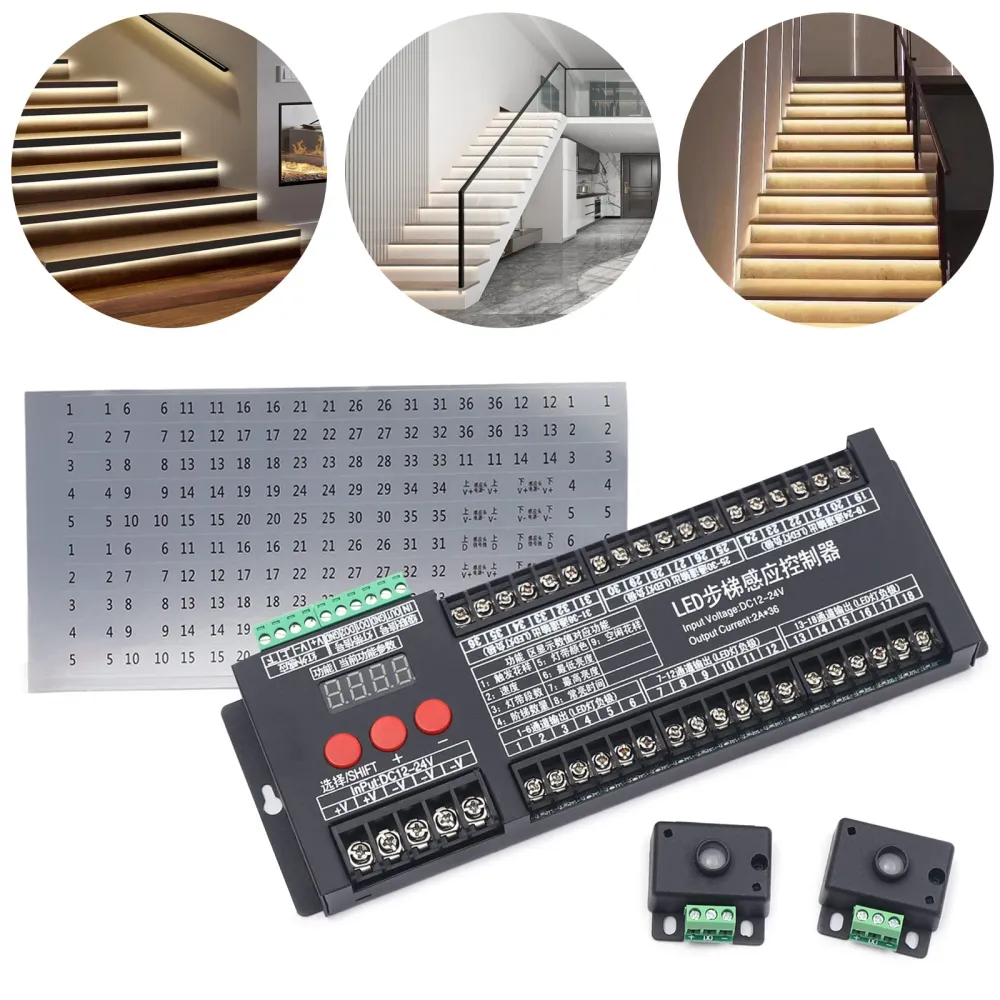

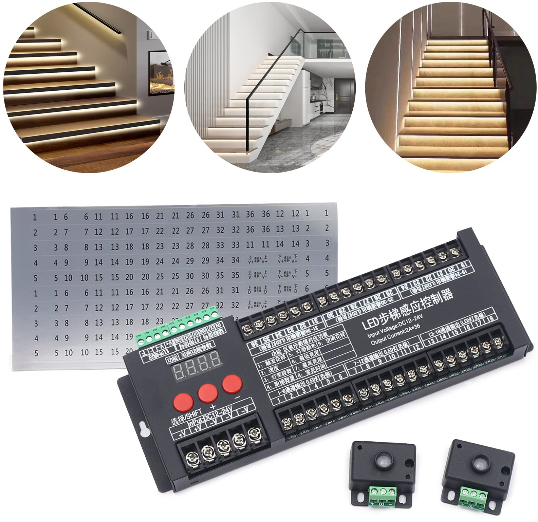

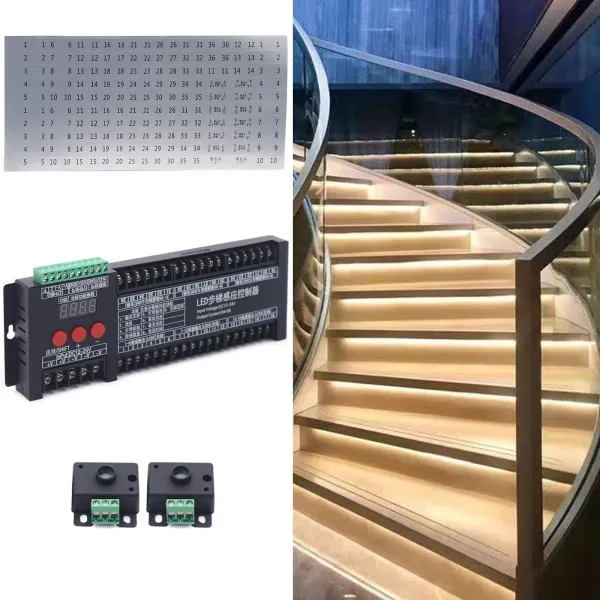

36-channel multi-function led controller with two sensors.
Can drive 2 kinds of led lights, support a general-purpose spi single-wire chip, such as general-purpose 1903, 1909, 1912, tm1812, ws2811, 16703, ws2812b, 8205, 8206 and other full-color pixel led lights.
The lower left corner control system do1, gnd, do2, gnd has 2 parallel output terminals, which can be connected to the lights on the left side and the right side of the stairs.
The output terminal controller on both sides uses 36-way stair steps on the single-color light strip, and the number of light strips can be adjusted. This selects the function settings of the sensor controller by pressing the button.
Product Specifications:
Voltage: Dc12-24V
Output Current: 2A*36Ch
Number Of Light Bars: 600

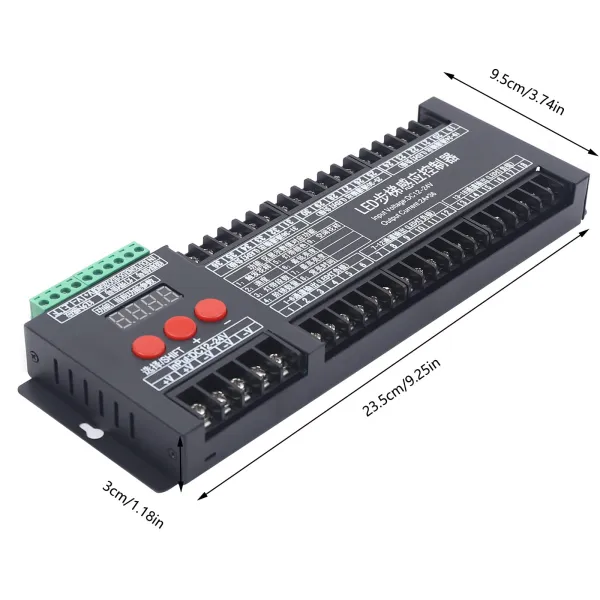

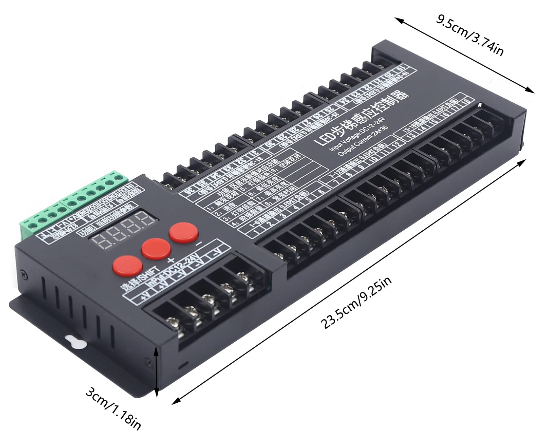

Product size (L*W*H): 23.5*9.5*3cm
Package size (L*W*H): 25.5*13.5*3cm
Gross weight: 0.6kg
Net weight: 0.4kg
Number Of Steps: 1 Is 36 Steps, 2 Controllers Can Be Connected To 72 Steps

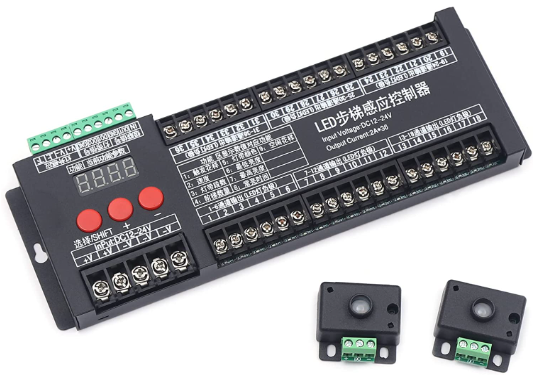

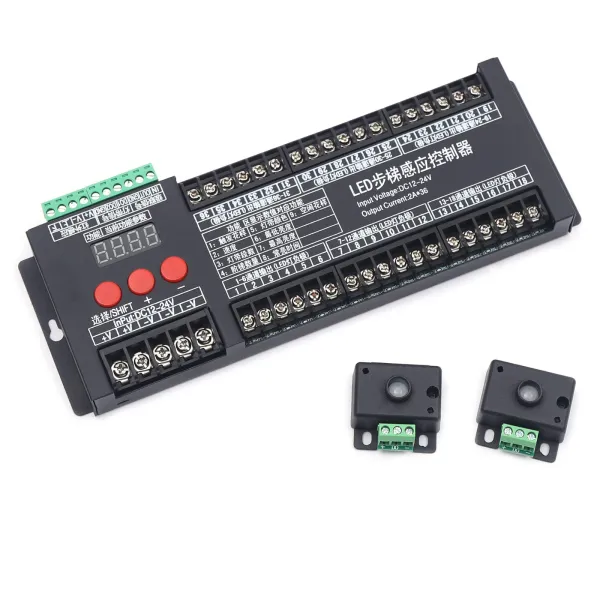

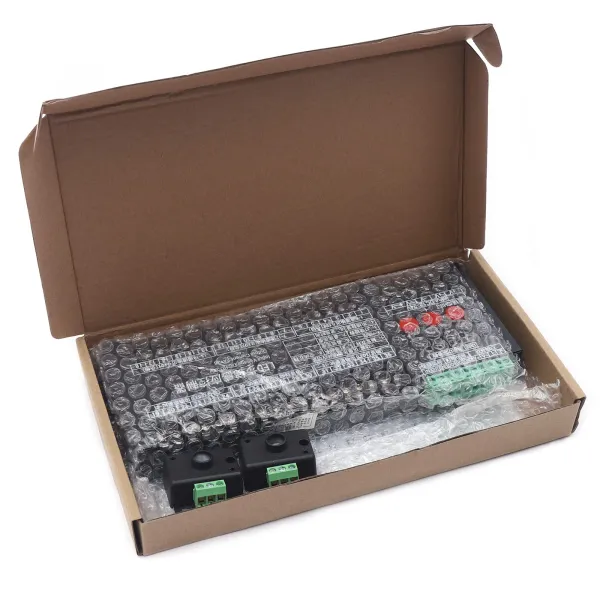

The Package Includes:
1X 36 Channel Led Controller
2X Motion Sensor
Notice:
1. The positive and negative terminals of the power input cannot be reversed. The red line v+ is connected to the positive pole of the switching power supply, and the blue (or black) line v- is connected to the negative supply of the switching power supply.
2. You need to buy power and white strips and addressable strips
