DC motor forklift motor 2.2KW-24V  DC-Motor mit hoher Leistung,
DC motor forklift motor 2.2KW-24V  DC-Motor mit hoher Leistung,
DC motor forklift motor 2.2KW-24V  DC-Motor mit hoher Leistung,
DC motor forklift motor 2.2KW-24V  DC-Motor mit hoher Leistung,
DC motor forklift motor 2.2KW-24V  DC-Motor mit hoher Leistung,
DC motor forklift motor 2.2KW-24V  DC-Motor mit hoher Leistung,
DC motor forklift motor 2.2KW-24V  DC-Motor mit hoher Leistung,
DC motor forklift motor 2.2KW-24V  DC-Motor mit hoher Leistung,
DC motor forklift motor 2.2KW-24V  DC-Motor mit hoher Leistung,
DC motor forklift motor 2.2KW-24V  DC-Motor mit hoher Leistung,
DC motor forklift motor 2.2KW-24V  DC-Motor mit hoher Leistung,
DC motor forklift motor 2.2KW-24V  DC-Motor mit hoher Leistung,
DC motor forklift motor 2.2KW-24V  DC-Motor mit hoher Leistung,
DC motor forklift motor 2.2KW-24V  DC-Motor mit hoher Leistung,
DC motor forklift motor 2.2KW-24V  DC-Motor mit hoher Leistung,
DC motor forklift motor 2.2KW-24V  DC-Motor mit hoher Leistung,

DC motor forklift motor 2.2KW-24V DC-Motor mit hoher Leistung,

(0 reviews)
Ask a question
1,560.00SEK
  • Brand: CNCEST
  • Product Code: JZ8VPZ-001500ND
  • Availability: In Stock
Quantity
- +
Estimated Delivery:
Free Fast Shipping:
On all orders
estimated delivery guarantee

High-quality Materials

This product is made of selected copper and aluminum, and undergoes high-temperature quenching and spraying treatment, which is rust-resistant, corrosion-resistant, and has a long service life.

High Efficiency

Pure copper coils have high conductivity, giving the motor a maximum speed of 2700 RPM and a torque of 8 N. m, providing stronger load force and improving work efficiency.

High Protection Level

The IP54 protection can prevent water or large amounts of dust from entering, together with F-grade insulation, extending the product's service life and allowing you to use it with more assurance.

Security Guard

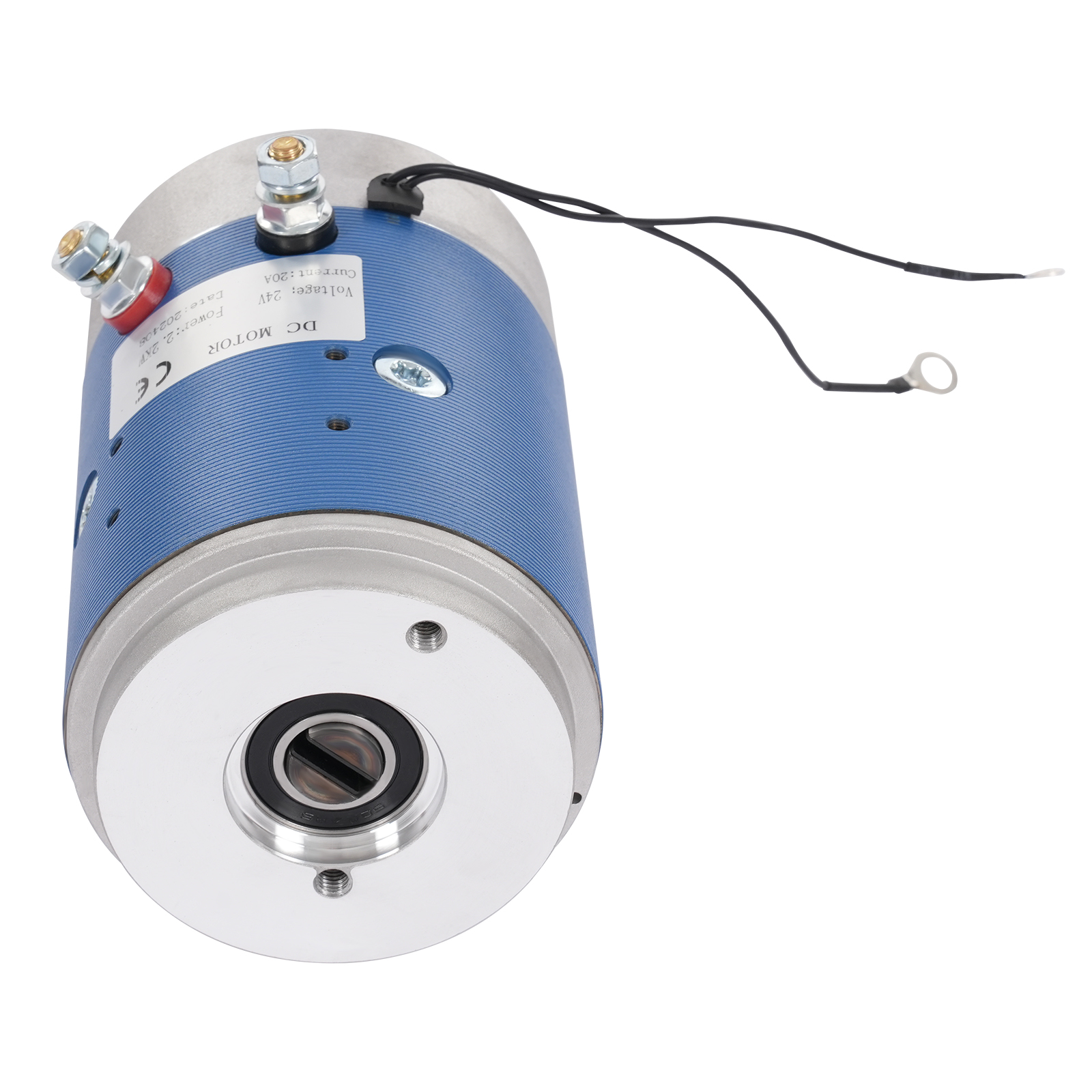

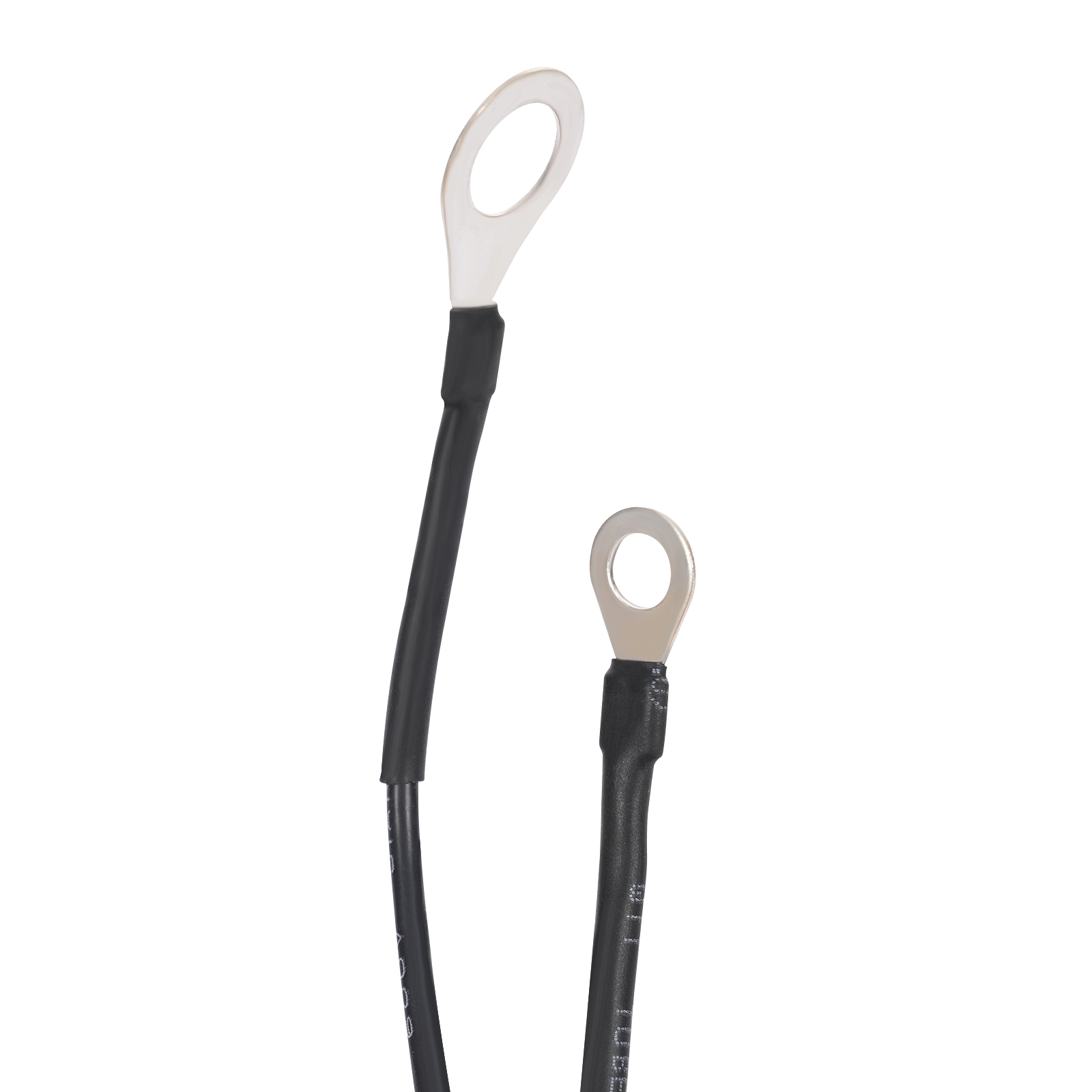

The product is equipped with overheat protection lines, avoiding potential hazards and effectively improving the safety and reliability of the motor.

Easy to Use

The product does not require a complex assembly process, and once you receive it, you can quickly wire and install it to start using.

Compact Design:

The compact size(7.15*4.09in) makes it easy to install, providing more operating space and load capacity for the vehicle.

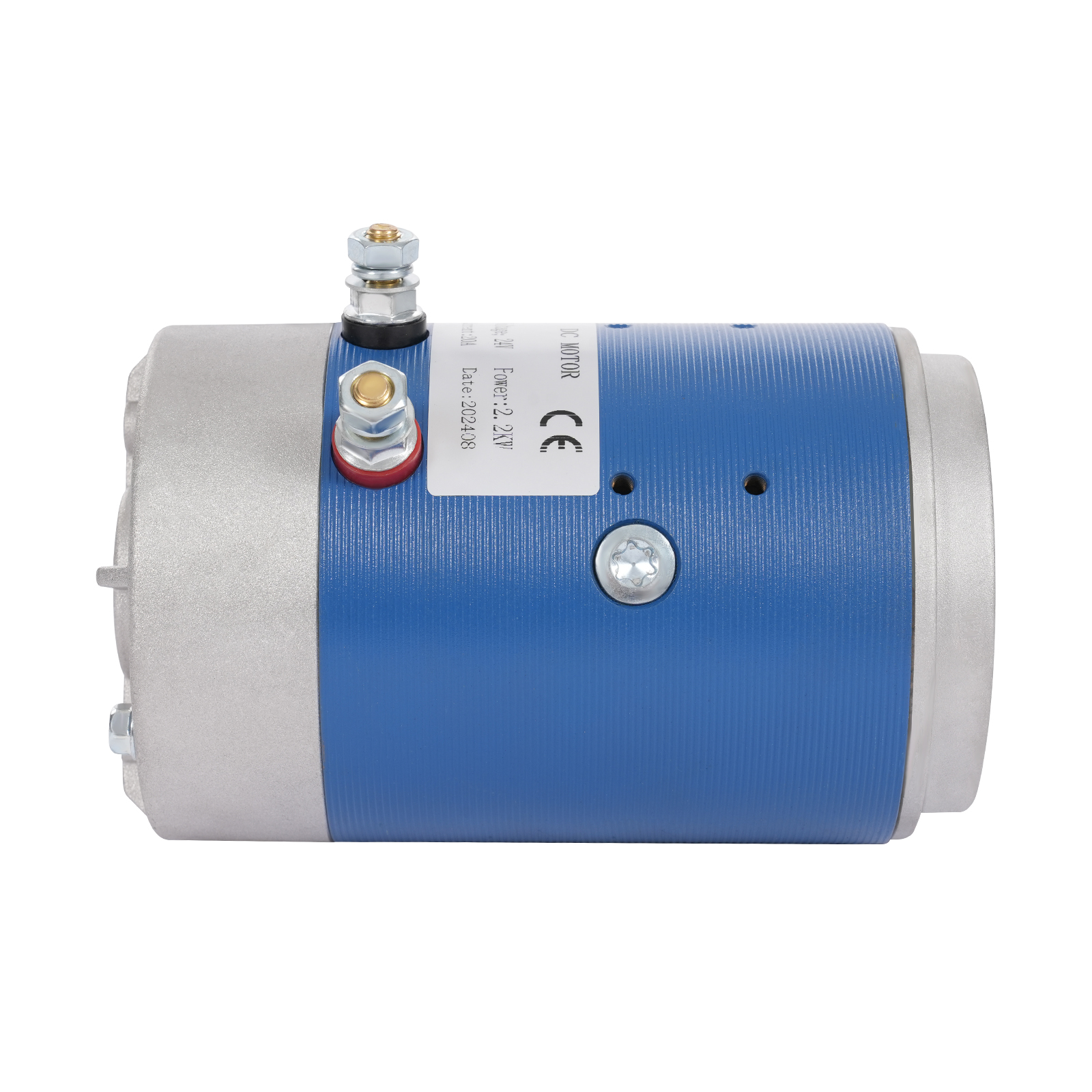

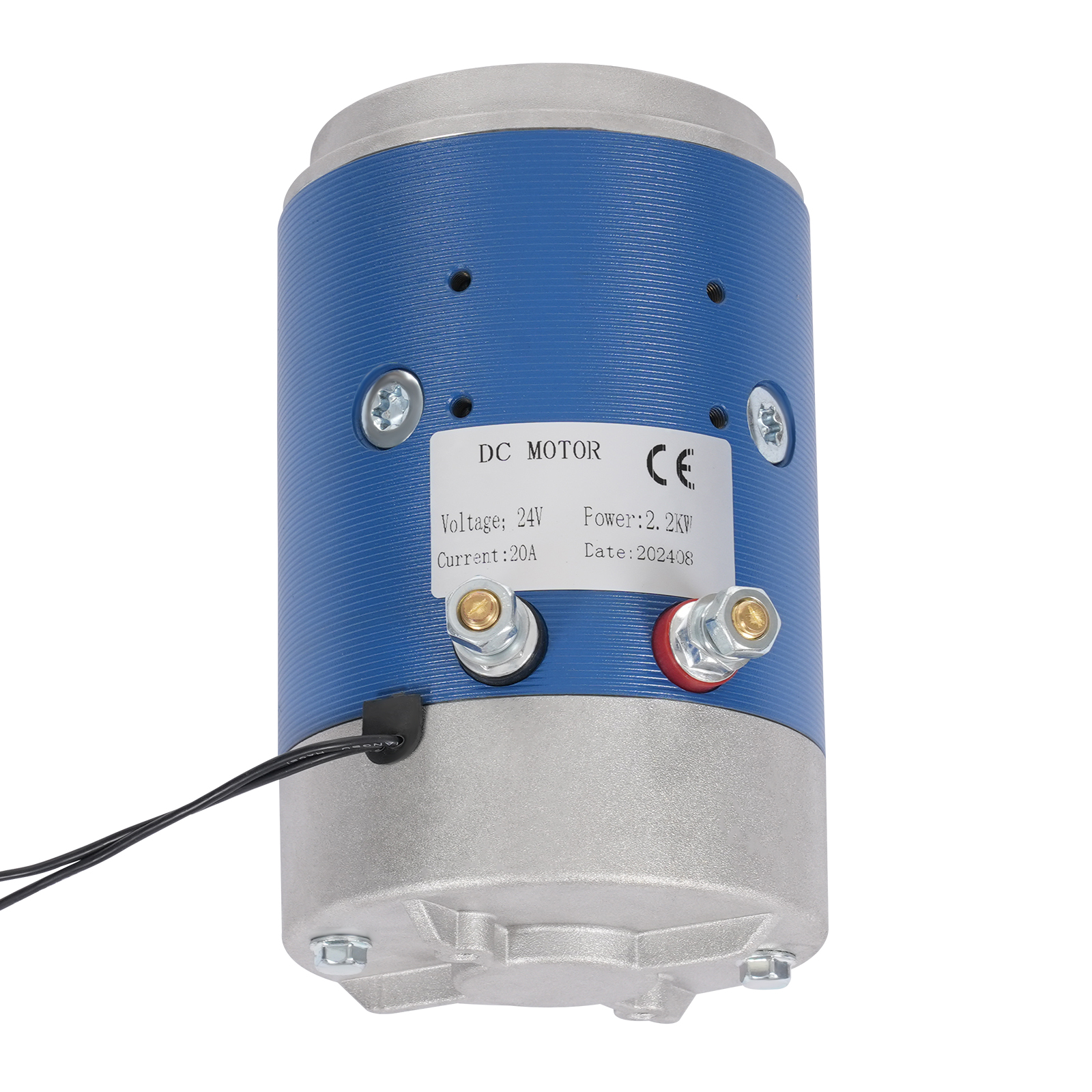

Wiring Posts:

They are used to connect the power supplies. The red is for positive, and the black is for negative.

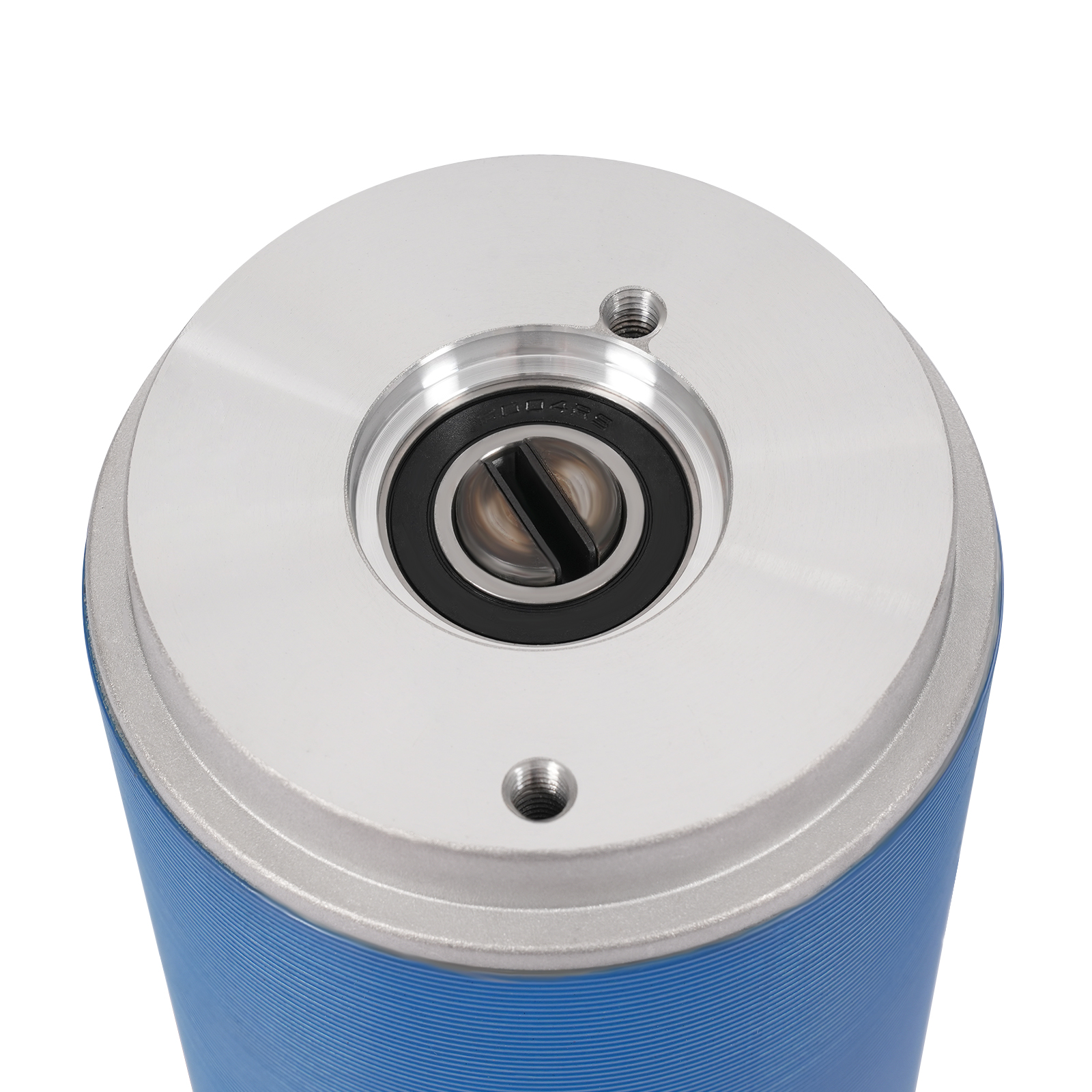

High-precision Rotor:

After moisture-proof and rustproof treatment, it ensures smooth operation, low noise, and reliability.

Specifications
Color:  Blue
Material:  Copper, Aluminum
Process:  High-temperature Quenching, Spraying
Motor Type:  Pure Copper Motor
Work Mechanism:  2min-7%ED S2min-S3%
Insulation Level:  F
Protection Level:  IP54
Number of Teeth:  2
Turning:  CW
Noise:  45-75dB
Max. Running Time:  3min
Voltage:  DC 24V
Current:  20A
Power:  2.2KW
Max. Speed:  2700RPM
Rated Torque:  8N.m

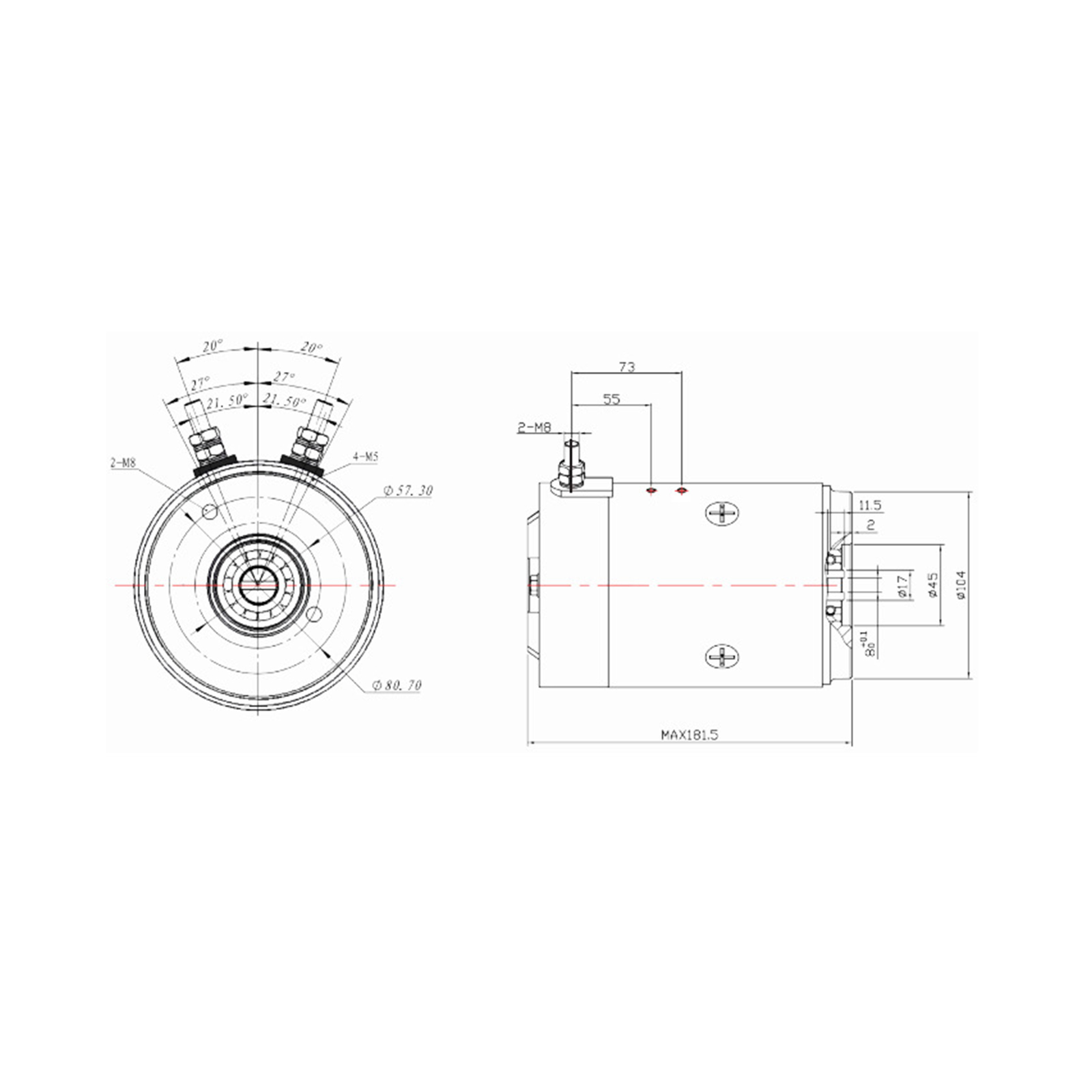

Product Size (D*L):  18.15*10.4cm/7.15*4.09in
Package Size:  18*14*14cm/7.09*5.51*5.51in
Gross Weight:  7kg/15.43lbs
Net Weight:  6.7kg/14.77lbs
Package Included
1* 24V DC Motor

Specifications

Color Blue Material Copper, Aluminum
Process High-temperature Quenching, Spraying Motor Type Pure Copper Motor
Work Mechanism 2min-7%ED S2min-S3% Insulation Level F
Protection Level IP54 Number of Teeth 2
Turning CW Noise 45-75dB
Max. Running Time 3min Voltage DC 24V
Current 20A Power 2.2KW
Max. Speed 2700RPM Rated Torque 8N.m
Product Size (D*L) 18.15*10.4cm/7.15*4.09in Package Size 18*14*14cm/7.09*5.51*5.51in
Gross Weight 7kg/15.43lbs Net Weight 6.7kg/14.77lbs

Product tips

Notes


1.Please note that this motor needs to be used in conjunction with a relay (not included).
2.To ensure product heat dissipation, please do not use it in a closed environment, or high temperatures and humidity.
3.This motor cannot work continuously for a long time. Please take a break after working for a period of time to ensure the normal lifespan of it.
Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
