• Tension : 220 V, 50 Hz
• Electric current: 1 A / 2 A
• Power: 130W
• Weight: 5kg

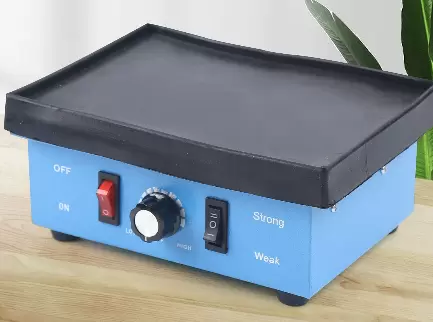

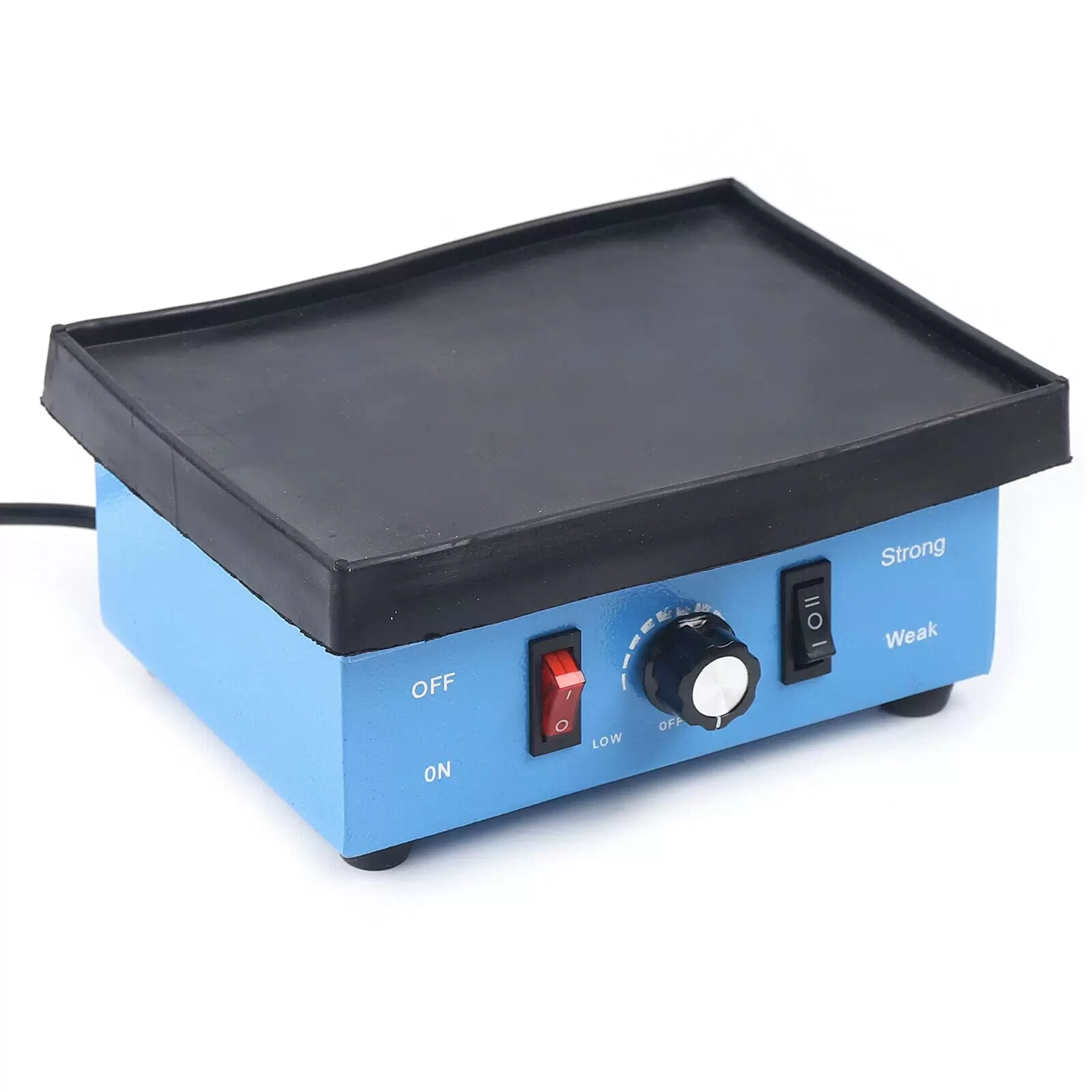

• Our MODEAL vibrator is used for making plaster models in the mechanical chamber of the oral area.

This is a high power, high efficiency vibrator, the unique heat radiation base design makes it always work in a long time.

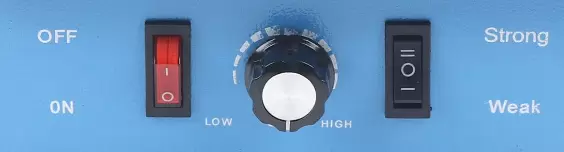

With buttons for easier handling.

There are four circular pillars at the bottom of the machine, which can greatly improve the stability of the machine.

1. Basic structure.
The vibrator mainly consists of a base and a vibration plate. It is also equipped with a node to adjust the vibration intensity.

2. Usage steps:
After connecting the power, place the plastic model on the plate and turn the adjustment knob. Clockwise increases the vibration intensity. Counterclockwise, the vibration intensity is reduced. Turn off the button to stop vibration after the model finishes vibration processing. Then remove it for use.

3. Note:
Make sure the power supply ground line is working properly. Do not adjust the button during vibration. Adjust it slowly from low intensity to high intensity or gradually from high intensity to low intensity. Turn off the power when finished. Wash the surface of the machine frequently to keep it clean to prolong its service life.
