• High Quality Material: The solar grid micro inverter has been patented by CEC and CE. And it is made of aluminum alloy, which is rust-proof, heat-resistant, cold-resistant and corrosion-resistant. It also uses imported industrial electronic components that you can use with confidence for a long time.
• Multiple protection: It has multiple protection functions such as overheating protection, undervoltage alarm, undervoltage alarm, overvoltage protection, short circuit protection, overload protection, etc. which provide you with a safer user experience.
• Smooth operation: It adopts full digital control, and the charging module adopts intelligent switching technology and built-in MCU. Its inverter module adopts high-frequency switching power supply technology and 32-bit DSP all-digital SPWM control technology. It has strong anti-interference ability, fast operating speed, high intelligence, etc., which allows you to control precisely.
• Stackable Connection: The inverters can be stacked in parallel at any number when connected to the grid or disconnected from the mains, and the synchronized output is made after the main monitoring system sends the main control signal and the The inverter receives the main control signal, which provides you with more convenient use.
• Safe and reliable: This product has electrical separation and a number of protection functions. With its solid shell and IP65 waterproof rating, it can better prevent rainwater from eroding, falling and colliding on the surface, so you can use it with confidence for a long time.

Environmentally friendly: This microinverter converts the direct current generated by the solar panel into alternating current and provides an environmentally friendly continuous energy source without harmful substances.

Pure sine wave: This product uses SPWM to directly generate a pure sine wave with good waveform, low distortion and low noise, making radio and other communication devices safer.

Optimization and Upgrade: Built-in MPPT algorithm can optimize the power consumption of the solar panel, accurately capture and lock the maximum output point, and power generation more than 25%.

Features :

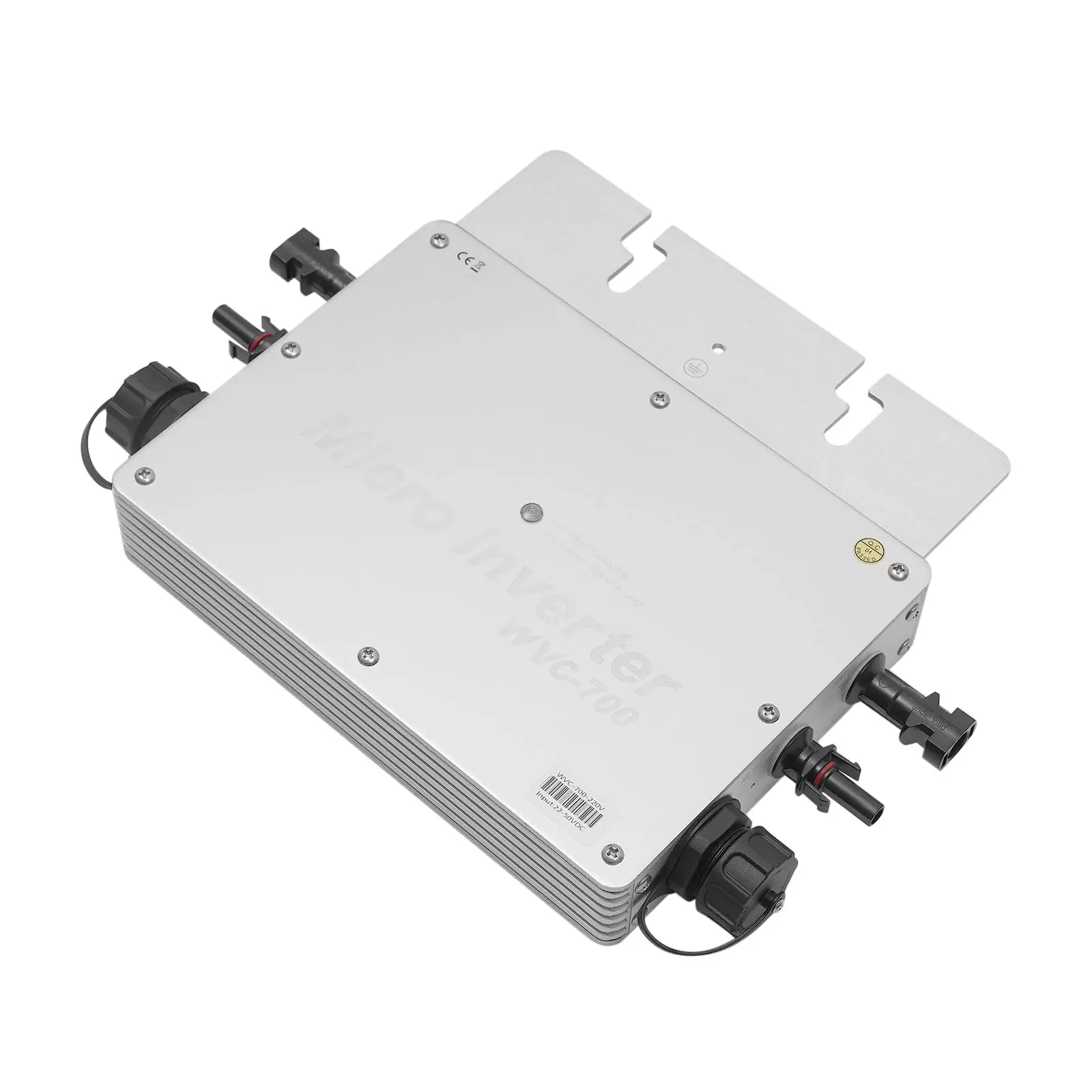

Model: WVC700W.
Color: silver.
Style: modern.
Material: aluminum alloy.
Surface treatment: sanding treatment.
Energy source: solar energy.
Sheet: European standard.
Output voltage: 220 V (180-260 VAC).
Input voltage: 22-50V DC.
Power: 700 W.
Maximum input power: 2 × 350 W.
Recommended solar panel: power 2 × 350 W, no-load voltage 36-50 VOC.
Solar panel no-load voltage range: 36-50 VOC.
Peak power: 22-45 V.
Minimum/maximum starting voltage: 22-50 V.
Maximum short circuit current: 40 A.
Maximum input current: 27.2A.
Output Settings: 230 VAC
Output power: 700W.
Rated output power: 650W.
Rated output current: 3.05A (230VAC).
Rated voltage range: 190-260 VAC
Rated frequency range: 57-62.5 Hz.
Power factor: >99%.
Number of connectors per series circuit: 10 (single phase)
Output efficiency: 230 VAC
MPPT static efficiency: 99.5%.
Maximum output efficiency: 90.5%.
Power loss at night: Total wave distortion: Operating temperature range: -40°C to +60°C.
Waterproof level: IP65.
Heat dissipation mode: self-cooling.
Electromagnetic compatibility: EN50081. Part 1 EN50082. Part 1.
Power grid failure: EN61000-3-2, EN62109 safety standards.
Network detection: DIN VDE 1026 UL1741.
Certificates: CEC, CE.

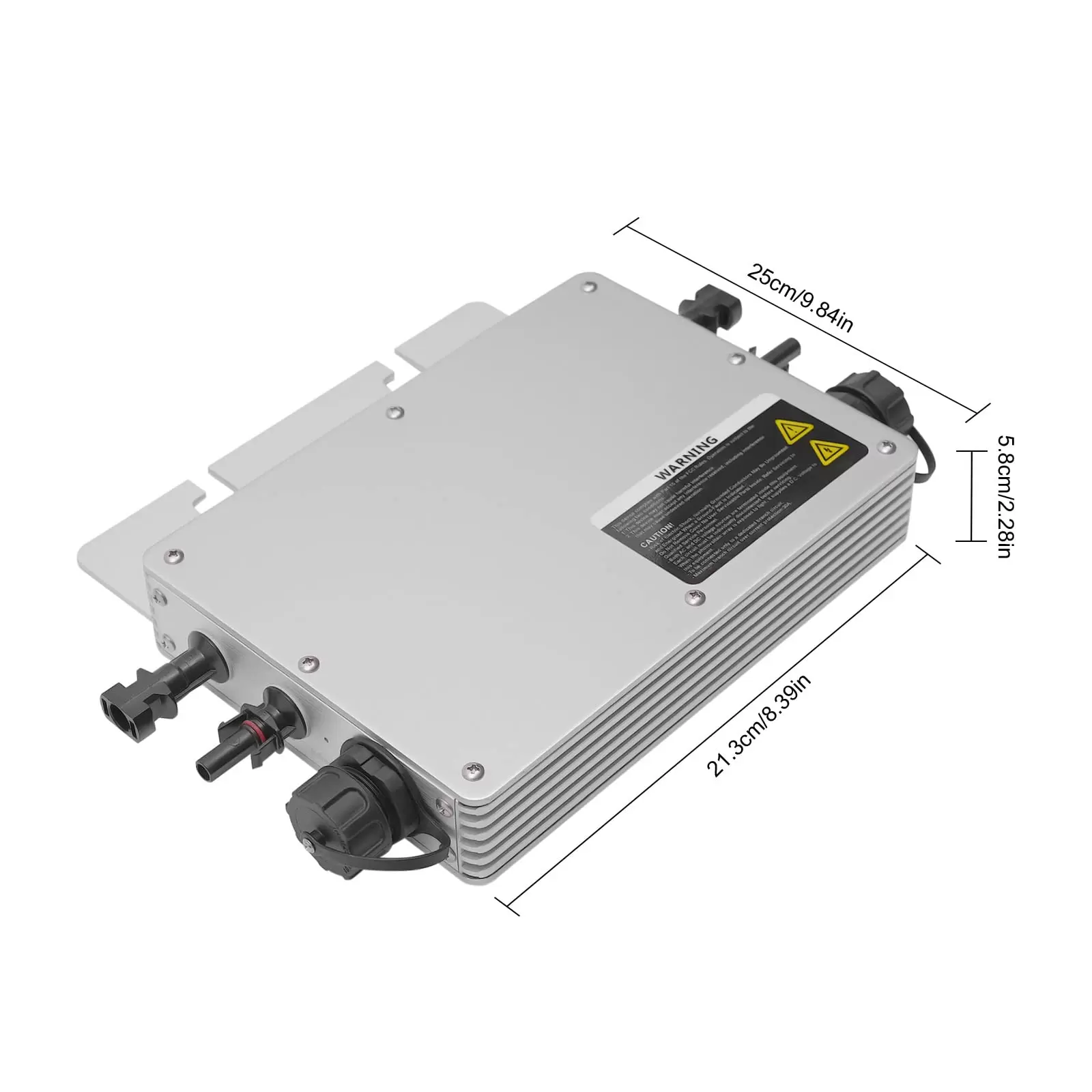

Product dimensions: 21.3 x 25 x 5.8 cm.
Package dimensions: 34 x 24 x 11.5 cm.
Net weight: 1.8 kg.
Gross weight: 2.45 kg.

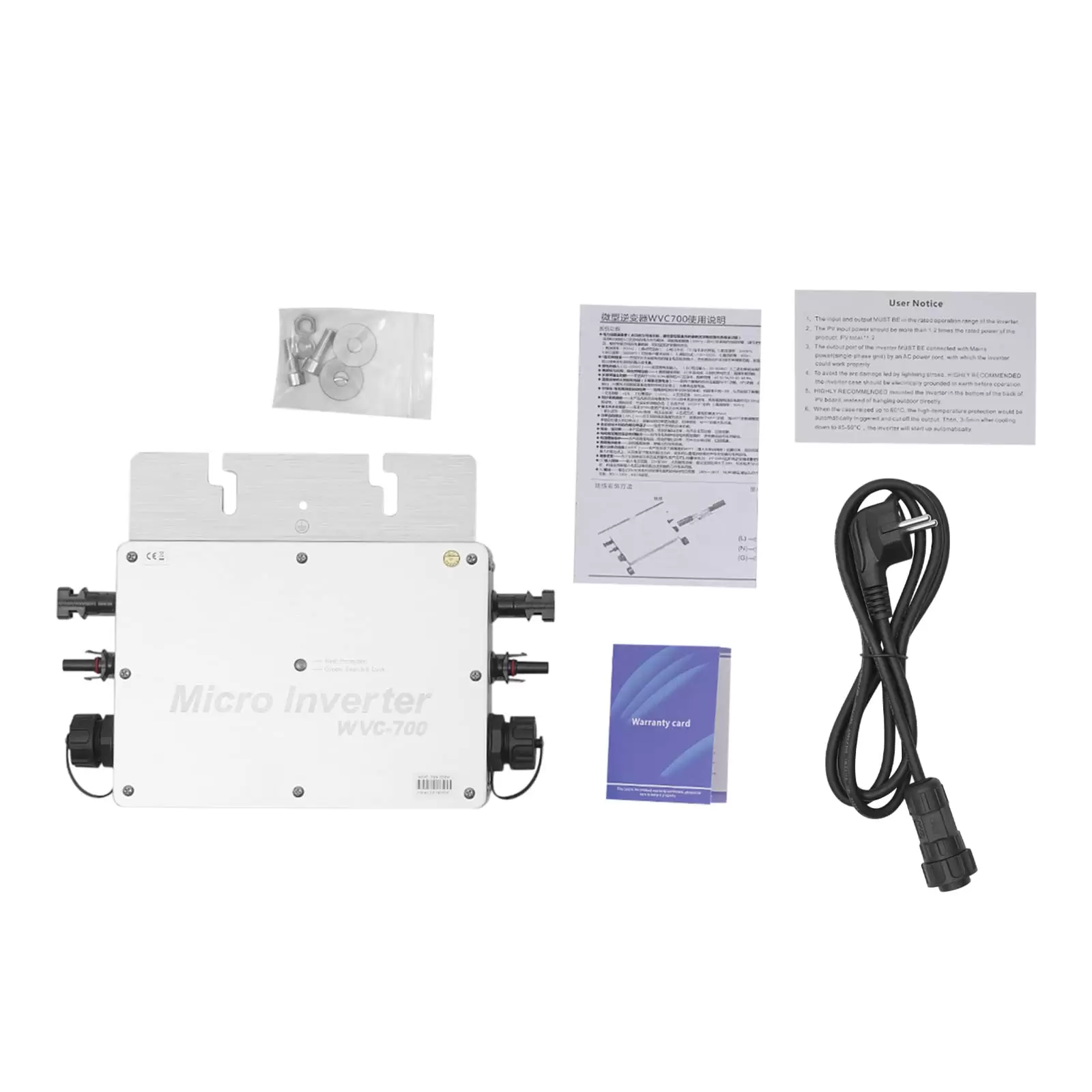

Box contents:
1 x Grid Tie micro solar inverter.
1 x power cable.
1 user manual in English and Chinese.
All necessary accessories
