• High quality product.

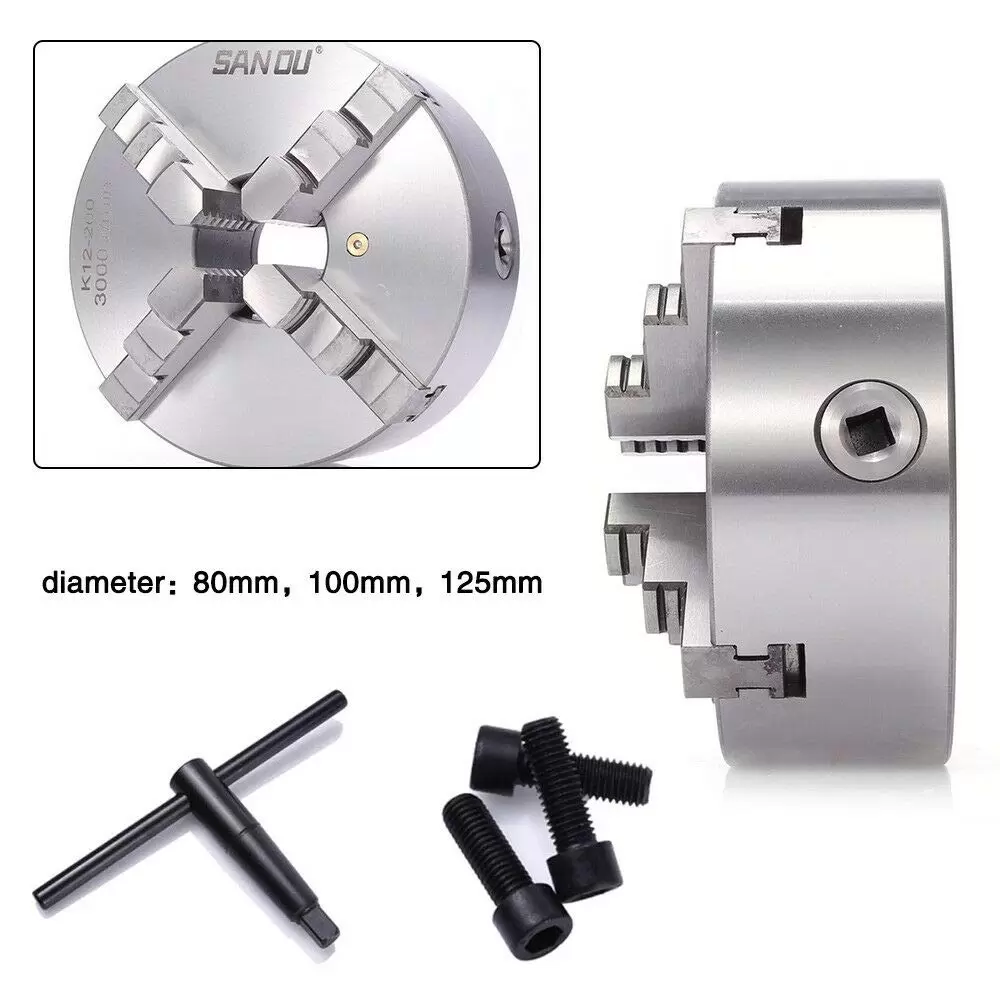

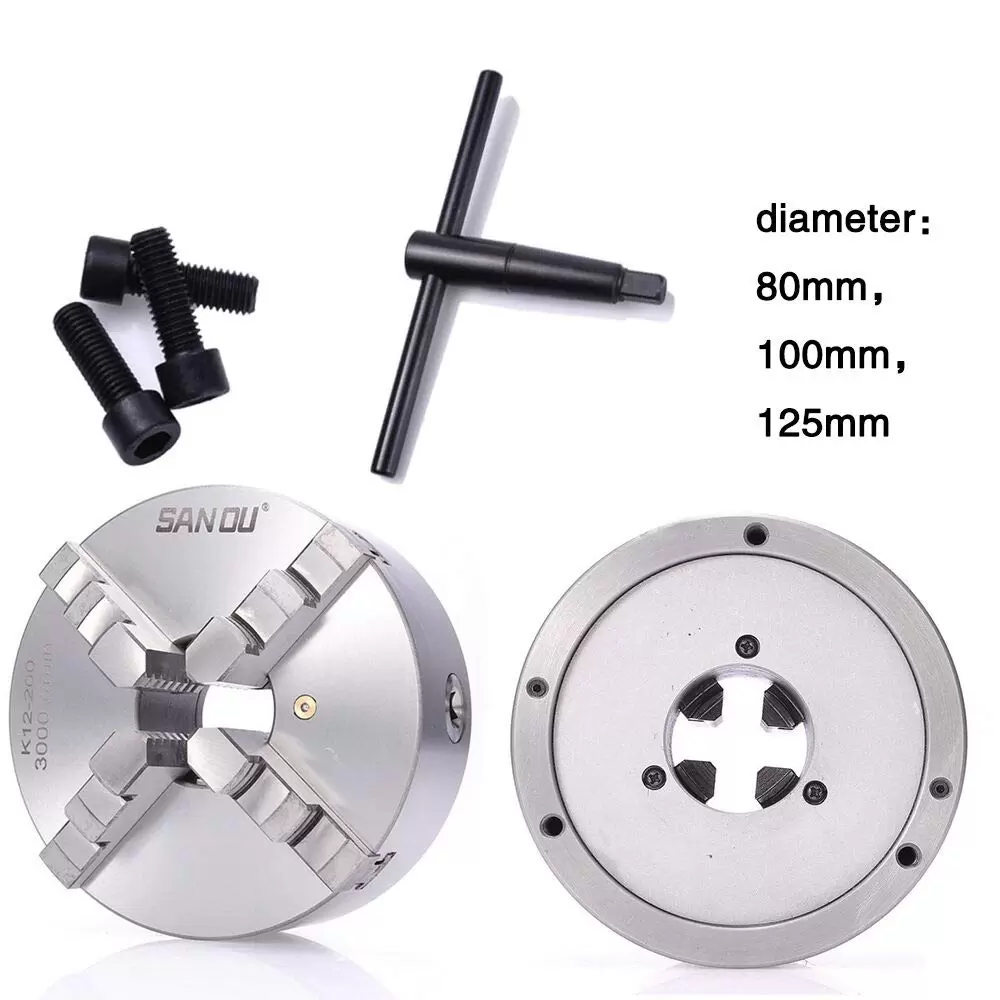

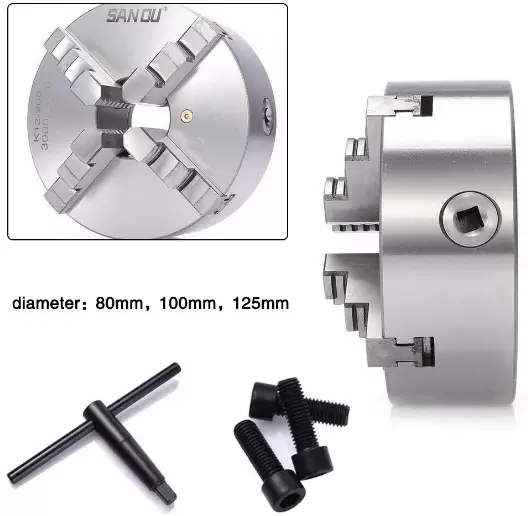

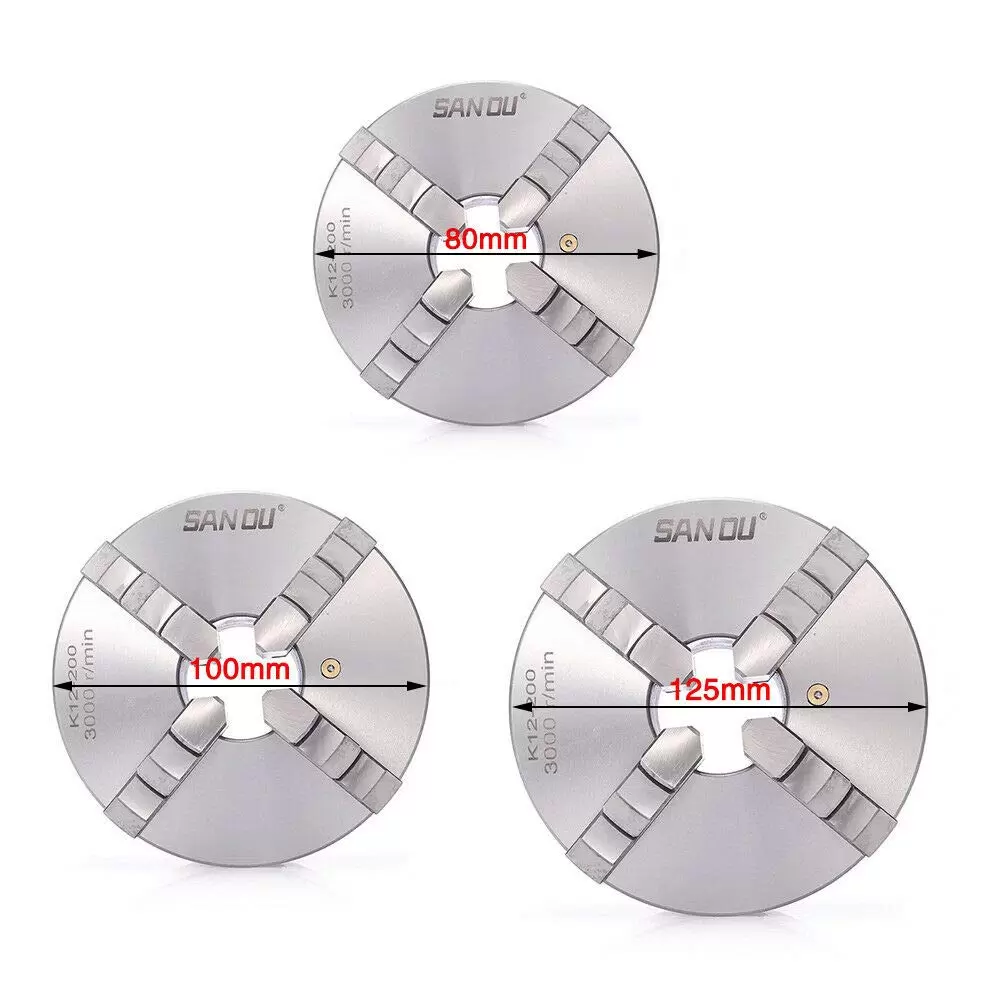

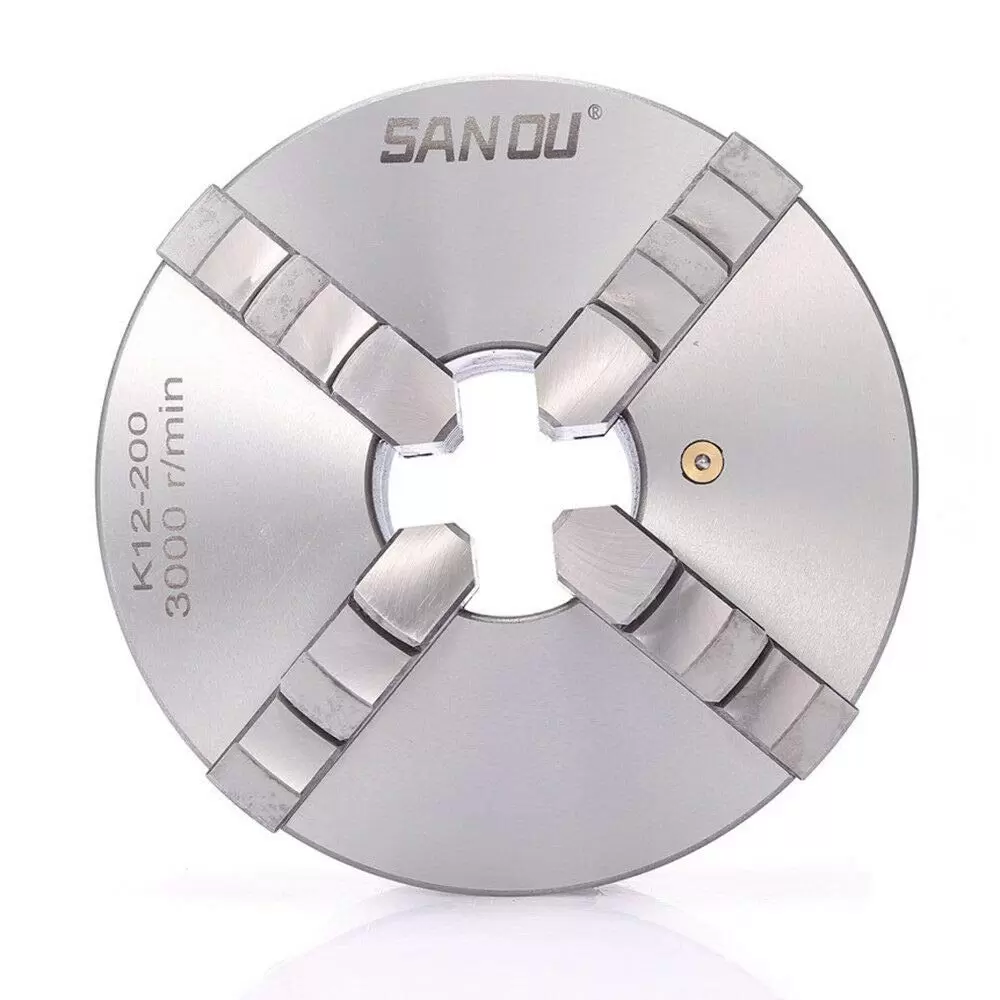

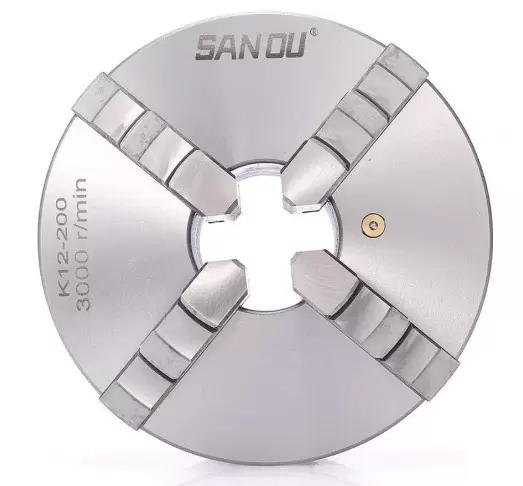

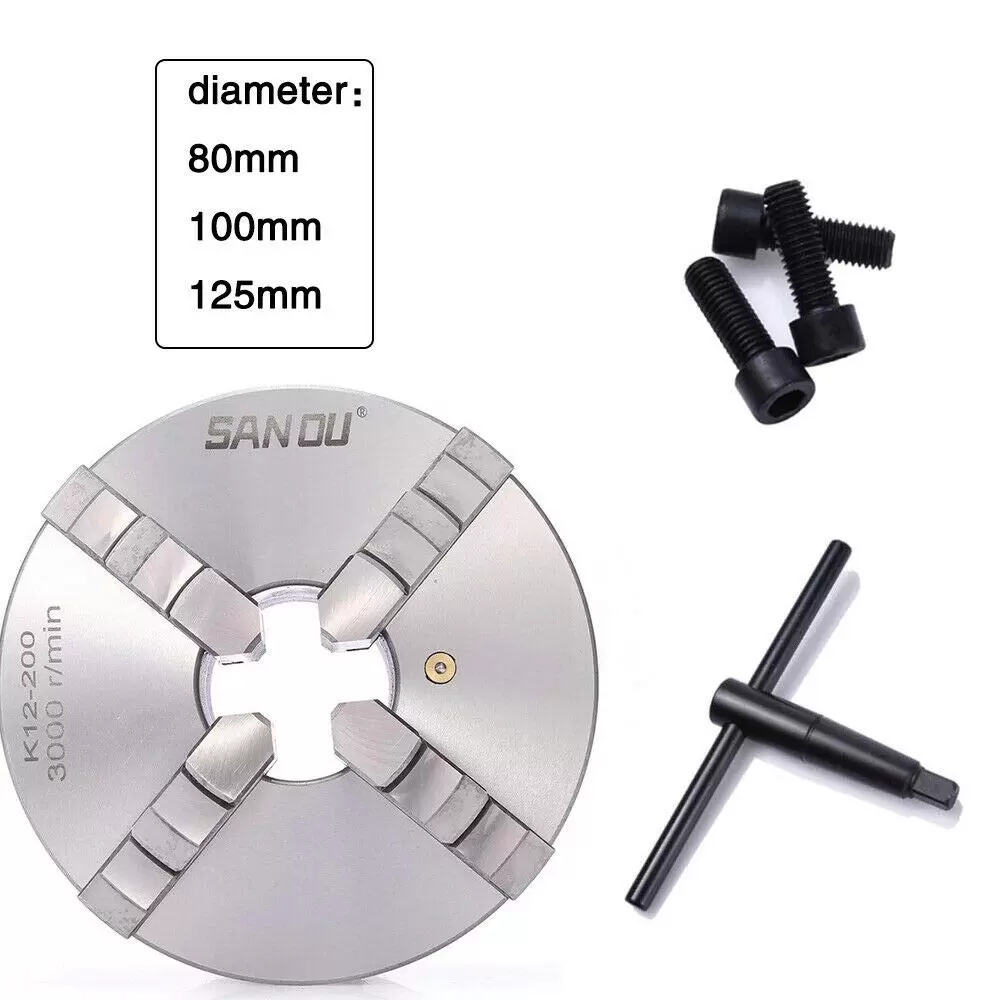

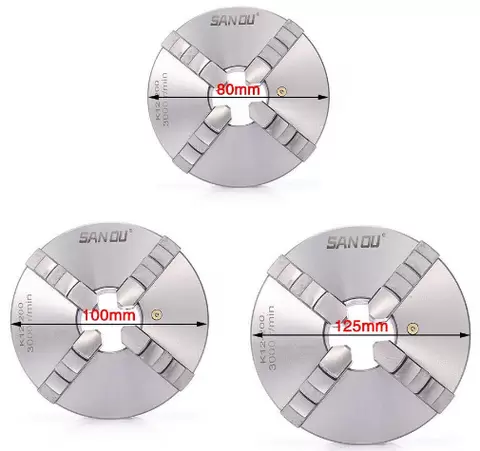

• Precision Ø 80/100/125 mm 4-jaw four-jaw lathe chuck.
• The compact liner is compact and easy to use.
• 1 x 4-jaw chuck with jaws, jaws and fixing screws.
• Suitable for screwdrivers, screwdrivers, sanders, milling machines, drilling and machine accessories, etc.

Quality steel chuck body. All guides and storage surfaces are precision machined for best performance.

Each jaw can be centered with high clamping force, which improves the flexibility of the rotary chuck, clamping of most castings can also be achieved.

Description (80 mm) :

Maximum. Input torque: 40 Nm (80 mm)

This product requires a flange to attach it to the lathe.

Very solid and stable design.

It is characterized by a low concentricity capacity.

Features :

Material: steel

Diameter: 80mm

Maximum. Input torque: 40 Nm (80 mm)

Maximum rotation speed: 4800 rpm.

Positive jaw clamping range: 2-22mm

Anti-jaw clamping area: 22-63 mm.

Dimensions : 80 x 80 x 66 mm.

Weight: 2.2 kg

Description (100 mm) :

Maximum. Input torque: 60 Nm (100 mm)

This product requires a flange to attach it to the lathe.

Very solid and stable design.

It is characterized by a low concentricity capacity.

Features :

Material: steel

Diameter: 100mm

Maximum. Input torque: 60 Nm (100 mm)

Maximum rotation speed: 4200 rpm.

Positive jaw clamping range: 2-30mm

Anti-jaw clamping area: 30-80 mm.

Dimensions : 10 x 100 x 74,5 mm.

Weight: 3.5 kg.

Description (125 mm) :

Maximum. Input torque: 100 Nm (125 mm)

This product requires a flange to attach it to the lathe.

Very solid and stable design.

It is characterized by a low concentricity capacity.

Features :

Material: steel

Diameter: 125mm

Maximum. Input torque: 100 Nm (125 mm)

Maximum rotation speed: 3800 rpm.

Positive jaw clamping range: 2.5-40mm

Anti-jaw clamping area: 38-110 mm.

Dimensions : 125 x 125 x 84 mm.

Weight: 5.4 kg

Content :

A pair of claws.

A pair of anti-claws.

1 adjustable wrench.

3 in total
