360° Shower System with 38°C Thermostat Black Rain Shower Shower Set with Lead-free Brass and Stainless Steel Pipe for Showers in Homes and Hotels
- Brand: CNCEST
- Product Code: FB-HJCXX-507
- Availability: Out Of Stock

Specifications
Material | Chrome-plated solid brass, stainless steel, high quality ABS. | Color | Black |

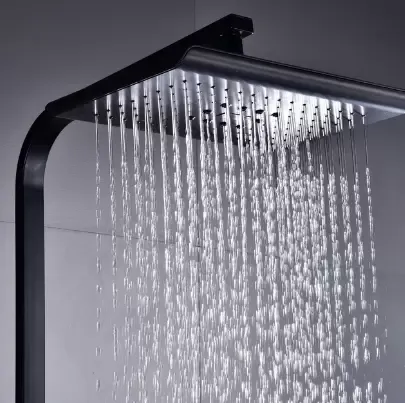

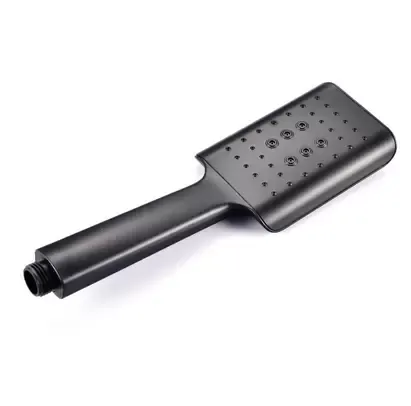

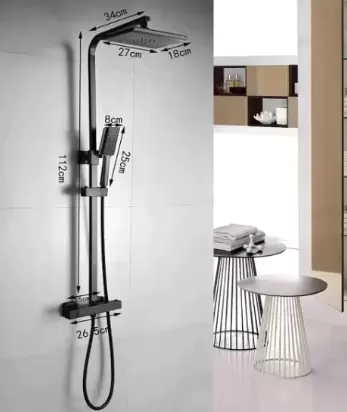

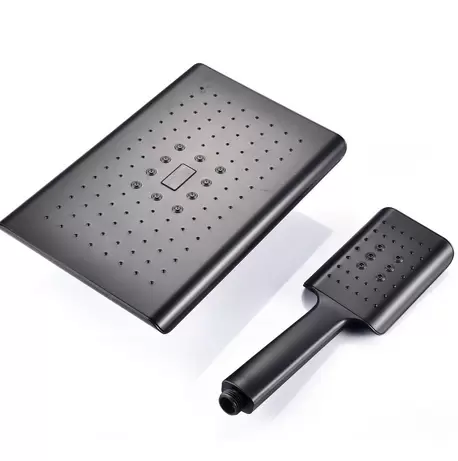

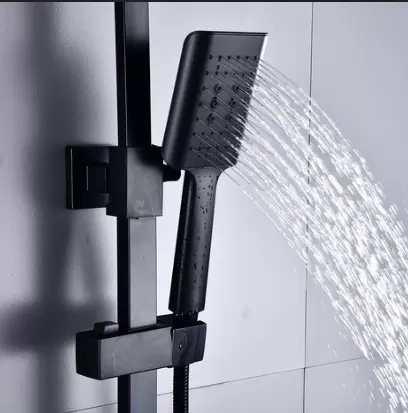

Rain shower | Square, 18x27cm (7.08x10.63in) | Hand shower | 8x25cm/3.15"x9.84". |

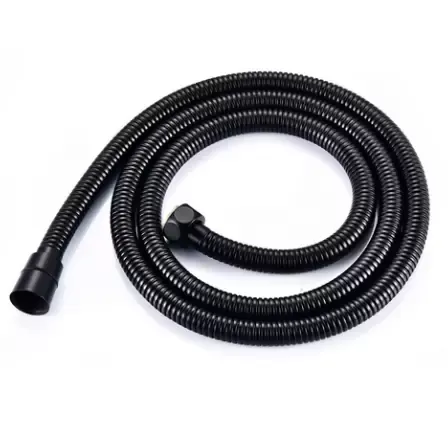

Rod length | 90cm(35.43") to 110cm(43.31") | Shower hose length | 150cm/59.06". |

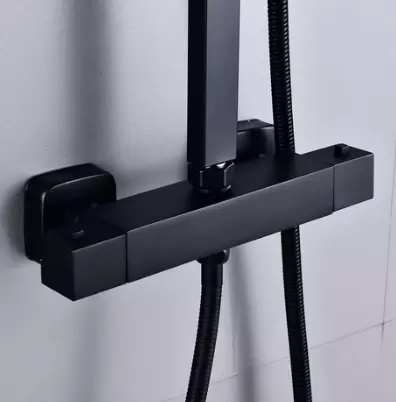

Diameter of thermostatic valves | 23mm/0.9". | Diverter tap diameter | 25mm/0.98". |
Sealing washer | 25mm(0.98") | Spool Life | Over 30,000 times |
Mounting hole spacing | 15cm/5.9" | Water pressure | 1-5Bar (1Bar=0.1Mpa) |
Flow rate per bar | 2.026 GPM (7.67 L/min) | Operating temperature | Cold water 4-29°C, Hot water 45-85°C |
Water saving function | Provided | Seals | Included (25mm ceramic cartridge) |
Notes:


Notes:
1. You need to pre-install the G1/2" interface. The center distance between the two threads should be 150±10mm.
2. Please note that the center of the shower switch (faucet) should preferably be 1-1.1m (39.37-43.3in) from the floor.
3. The installation height of the overhead shower should preferably be between 2.1-2.2m (82.68-86.61in) from the ground, and the overhead shower should be 22.86cm (9in).

Installation
The item needs to be installed by yourself. Please contact us if you have any questions. We will respond and resolve your issue as quickly as possible.
