MY6818 AC/DC 35-400v Cable Finder - Cable Detector - Cable Tester My6818 35-400v Ac And Dc Portable Design Easy To Install Cable Locator

MY6818 AC/DC 35-400v Cable Finder - Cable Detector - Cable Tester My6818 35-400v Ac And Dc Portable Design Easy To Install Cable Locator

(0 reviews)

Ask a question

2,148.00SEK

Brand: CNCEST
Product Code: BI-LML-6191
Availability: Out Of Stock

Estimated Delivery:

Free Fast Shipping:

On all orders

Description
Reviews (0)
Recommer
Delivery and Return

Portable Design

Wire Locator has portable design, compact structure and light weight; it comes with black bag and strip, convenient to carry and store.

Adjustable

The Cable Locator features high sensitivity, and the sensitivity of the receiver can be adjusted either manually or automatically, meet your different requirements.

Easy to Install

With its simple structure, and we provide a fully equipped installation kit , so you can install it easily.

Protective Package

To prevent the product from being damaged and bumped during transportation, we packed it with bubble bags, sponges, and cartons to protect your products to the maximum extent possible.

Customer Service

We aim to provide quality products and services. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

Time and Money Saver

Helpful-Locating & tracking buried and hidden wires.No more calls,no more cost, find and fix it by yourself.

Wide Application

This Cable can be widely used in communication cable construction, electrical cable construction, building pipeline construction, telecommunications cables, power supply circuits and electric line maintenance is an indispensable tool for maintenance personnel.

Function

The Cable Locator has many useful functions, transmitter and receiver display power level, code, battery, detected voltage type and value, and high-voltage alert. The transmitter has the function of self-inspection and both transmitter and receiver have mute function.

Underground Wire Locator

Detects breaks and shorts in underground cables and wires buried in walls or deep inside, built-in flashlight function, works in dark environments, adjustable sensitivity.

Specifications

Output signal: 125 kHz.

External voltage detection voltage range: DC 12 ~ 400 V ± 2.5%; AC 12~400V (50~60Hz) ±2.5%.

Temperature measurement accuracy: ±2.5.

Display: LCD with function display and bar graph.

Voltage resistance to extraneous voltage: maximum 400 V AC/DC.

Overvoltage category: Cat III 300 V

Degree of pollution: 2.

Batteries: 1 9V battery (not included).

Fusible : F 0,5 A 1000 V, 6,3 x 32 mm.

Operating temperature: -10 to 50°C, maximum relative humidity 80% (non-condensing).

Storage temperature: -20 ~ 60, maximum relative humidity 80% (non-condensing).

Height: up to 2000 m.

Item dimensions: 190 x 89 x 42.5 mm.

Product weight: 360g.

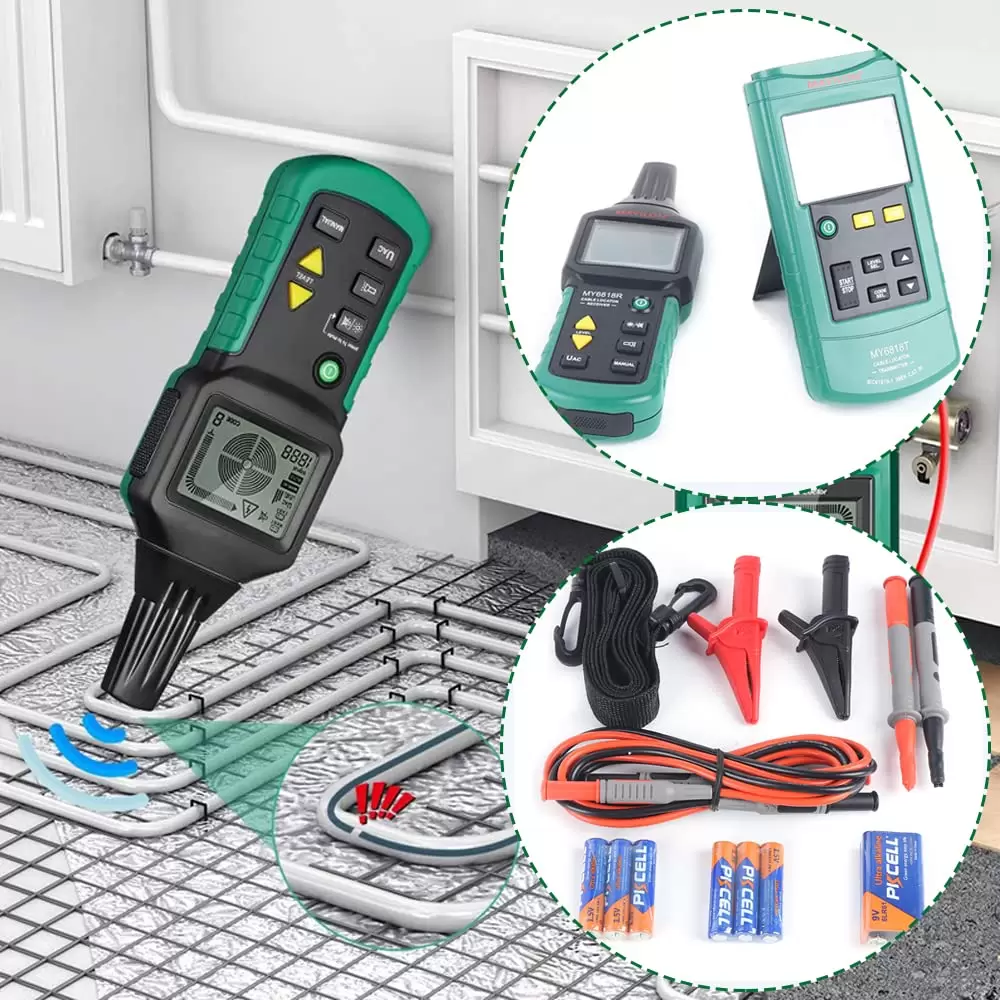

Package Included

1 transmitter.

1 receiver.

1 cloth bag.

1 earth bar.

2 test pens.

2 clips.

2 x 1.5m test cables.

Specifications

Output signal	125 kHz.	External voltage detection voltage range	DC 12 ~ 400 V ± 2.5%; AC 12~400V (50~60Hz) ±2.5%.
Temperature measurement accuracy	±2.5.	Display	LCD with function display and bar graph.
Voltage resistance to extraneous voltage	maximum 400 V AC/DC.	Overvoltage category	Cat III 300 V
Degree of pollution	2.	Batteries	1 9V battery (not included).
Fusible	F 0,5 A 1000 V, 6,3 x 32 mm.	Operating temperature	-10 to 50°C, maximum relative humidity 80% (non-condensing).
Storage temperature	-20 ~ 60, maximum relative humidity 80% (non-condensing).	Height	up to 2000 m.
Item dimensions	190 x 89 x 42.5 mm.	Product weight	360g.
