Solar Combiner Box Combiner Box Circuit Breaker for Solar Panels Solar Disconnect Switch For Networked Photovoltaic Solar Systems DC1000V 25A
Solar Combiner Box Combiner Box Circuit Breaker for Solar Panels Solar Disconnect Switch For Networked Photovoltaic Solar Systems DC1000V 25A
Solar Combiner Box Combiner Box Circuit Breaker for Solar Panels Solar Disconnect Switch For Networked Photovoltaic Solar Systems DC1000V 25A
Solar Combiner Box Combiner Box Circuit Breaker for Solar Panels Solar Disconnect Switch For Networked Photovoltaic Solar Systems DC1000V 25A
Solar Combiner Box Combiner Box Circuit Breaker for Solar Panels Solar Disconnect Switch For Networked Photovoltaic Solar Systems DC1000V 25A
Solar Combiner Box Combiner Box Circuit Breaker for Solar Panels Solar Disconnect Switch For Networked Photovoltaic Solar Systems DC1000V 25A
Solar Combiner Box Combiner Box Circuit Breaker for Solar Panels Solar Disconnect Switch For Networked Photovoltaic Solar Systems DC1000V 25A
Solar Combiner Box Combiner Box Circuit Breaker for Solar Panels Solar Disconnect Switch For Networked Photovoltaic Solar Systems DC1000V 25A
Solar Combiner Box Combiner Box Circuit Breaker for Solar Panels Solar Disconnect Switch For Networked Photovoltaic Solar Systems DC1000V 25A
Solar Combiner Box Combiner Box Circuit Breaker for Solar Panels Solar Disconnect Switch For Networked Photovoltaic Solar Systems DC1000V 25A
Solar Combiner Box Combiner Box Circuit Breaker for Solar Panels Solar Disconnect Switch For Networked Photovoltaic Solar Systems DC1000V 25A
Solar Combiner Box Combiner Box Circuit Breaker for Solar Panels Solar Disconnect Switch For Networked Photovoltaic Solar Systems DC1000V 25A
Solar Combiner Box Combiner Box Circuit Breaker for Solar Panels Solar Disconnect Switch For Networked Photovoltaic Solar Systems DC1000V 25A
Solar Combiner Box Combiner Box Circuit Breaker for Solar Panels Solar Disconnect Switch For Networked Photovoltaic Solar Systems DC1000V 25A
Solar Combiner Box Combiner Box Circuit Breaker for Solar Panels Solar Disconnect Switch For Networked Photovoltaic Solar Systems DC1000V 25A
Solar Combiner Box Combiner Box Circuit Breaker for Solar Panels Solar Disconnect Switch For Networked Photovoltaic Solar Systems DC1000V 25A

Solar Combiner Box Combiner Box Circuit Breaker for Solar Panels Solar Disconnect Switch For Networked Photovoltaic Solar Systems DC1000V 25A

(0 reviews)
Ask a question
157.17 204.99
  • Brand: CNCEST
  • Product Code: YLLNZ9-00040099
  • Availability: In Stock
Quantity
- +
Estimated Delivery:
Free Fast Shipping:
On all orders
estimated delivery guarantee

Safe and Reliable

It has surge protection, overload protection, and lightning protection, as well as reliable DC components so that you can use it with more assurance.

Waterproof and Impact Resistant

It has a high protection rating (IP65) and impact resistance rating (IK10) with flame retardant, which can effectively protect against water, dust, and UV rays, allowing it to be used in harsh environments.

Ideal Gift

Thanks to its practicality and powerful features, you can give it as a well-chosen gift to your family, relatives, and friends!

Easy to Install

With MC4 terminals, expansion screws, mounting holes, and grounding wire, you can install and use this product with more ease and convenience.

Customer Service

We aim to provide quality products and services. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

Made to Last

High-quality ABS and PC are not easy to wear, shock, and deform, giving this product robustness and longevity.

Powerful Functions

It protects the amplifier from damage caused by overload current or voltage and protects the power supply from short-circuiting causing battery rupture and explosion. In addition, it can be manually disconnected, which is convenient for circuit checking and maintenance.

Effective Output

It has three inputs and three outputs, together with a maximum current output of 25 amps, which greatly increases the efficiency of power utilization.

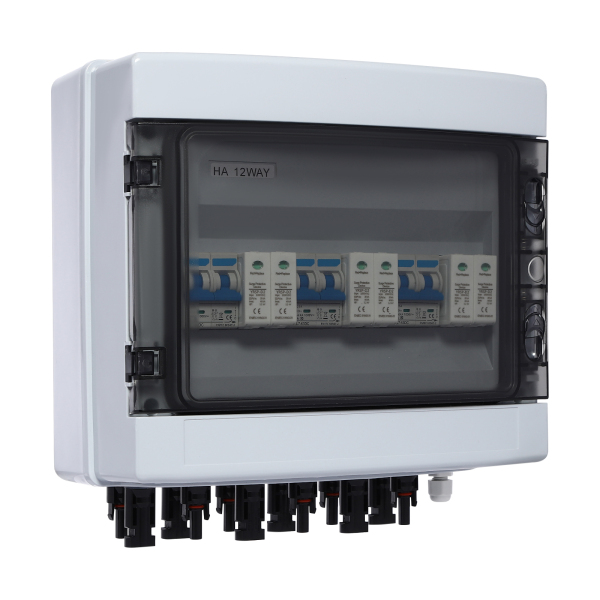

Clear Cover

Through it, you can check the status of the main switch and surge arrestor at any time. If the indicator light of the lightning protector turns red, it means that a lightning strike has occurred and you need to replace the lightning protection module in time.

Rounded Corners

Rounded and burr-free corners prevent your hands from being scratched during use.

Application

It is suitable for output protection of outdoor solar panels, motor homes, electric vehicles, UPS batteries, PV arrays, RV solar, and inverters, ideal for networked photovoltaic solar systems and off-grid solar power systems.

Specifications
Material:  PC, ABS
Color:  White, Black, Clear
Mount Type:  Wall-mounted
Protection Rating:  IP65
Impact Resistance Rating:  IK10
Working Temperature:  -25~55°C/-13~131°F
Maximum DC Short-circuit Current Per Input:  25A
Maximum Current Output / Rated Current (Ue):  25A
DC Circuit Breaker Model:  63DC 2P 25A 1000V
DC Surge Arrester Model:  SP-D2 2P 20-25KA 1000Vdc T2
Rated Insulation Voltage (Ui):  1000V
Circuit Breaker:  63DC 2P 25A 1000V
DC Surge Arrester:  SP-D2 2P 20-25KA 1000Vdc T2
Applicable Cable:  4-16mm²/10-5AWG Cable
Surge Protection:  20-25kA 2P DC1000V
Inputs:  3 Strings
Outputs:  3 Strings
Total Height:  29cm/11.41 in
Product Size:  29.5*14*25.5cm/11.61*5.51*10.04 in
Package Size:  30.5*30.5*14.6cm/12*12*5.75 in
Gross Weight:  4kg/8.82 lbs
Net Weight:  3.85kg/8.49 lbs

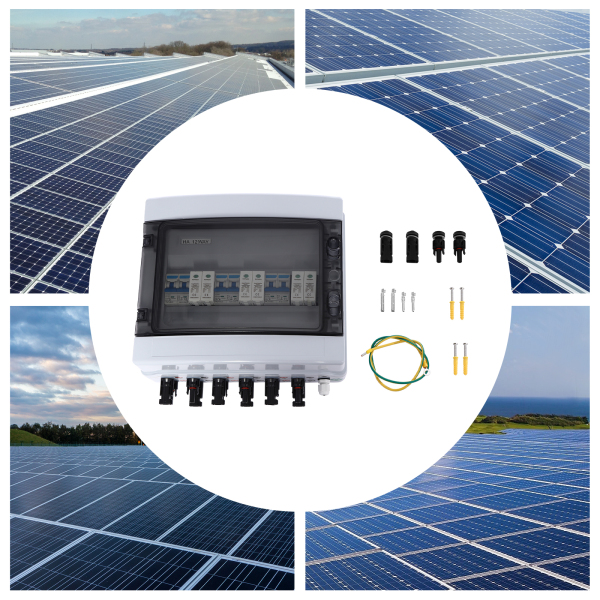

Package Included
1* Solar Combiner Box
12* MC4 Terminals
1* Ground Wire
All Accessories for Use

Specifications

Material PC, ABS Color White, Black, Clear
Mount Type Wall-mounted Protection Rating IP65
Impact Resistance Rating IK10 Working Temperature -25~55°C/-13~131°F
Maximum DC Short-circuit Current Per Input 25A Maximum Current Output / Rated Current (Ue) 25A
DC Circuit Breaker Model 63DC 2P 25A 1000V DC Surge Arrester Model SP-D2 2P 20-25KA 1000Vdc T2
Rated Insulation Voltage (Ui) 1000V Circuit Breaker 63DC 2P 25A 1000V
DC Surge Arrester SP-D2 2P 20-25KA 1000Vdc T2 Applicable Cable 4-16mm²/10-5AWG Cable
Surge Protection 20-25kA 2P DC1000V Inputs 3 Strings
Outputs 3 Strings Total Height 29cm/11.41 in
Product Size 29.5*14*25.5cm/11.61*5.51*10.04 in Package Size 30.5*30.5*14.6cm/12*12*5.75 in
Gross Weight 4kg/8.82 lbs Net Weight 3.85kg/8.49 lbs

Product Tips

Notes

1.Please check the specifications before purchasing.
2.Please press the button correctly to avoid damage to the circuit breaker and use it at the proper operating temperature to avoid overheating and stopping operation.
3.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement and make sure you do not mind before ordering.
