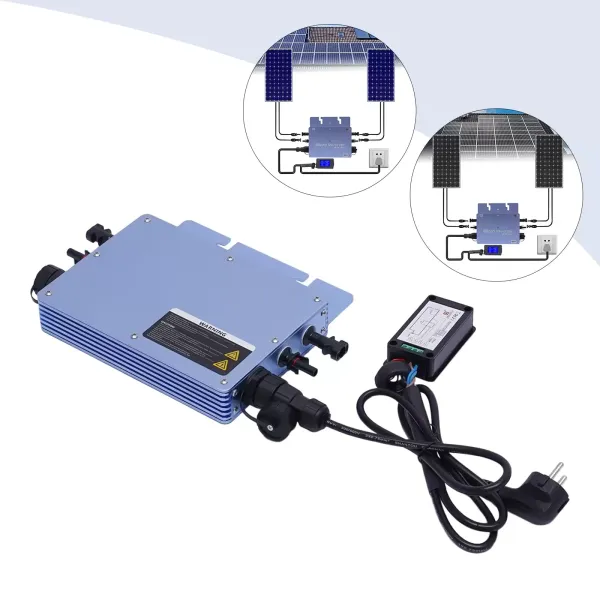

Inverter WVC-600W LCD Grid Tie Micro Inverter Waterproof IP65 Solar Panel Balcony Power Station MPPT Socket System Solar Grid Tie Micro Inverter
Inverter WVC-600W LCD Grid Tie Micro Inverter Waterproof IP65 Solar Panel Balcony Power Station MPPT Socket System Solar Grid Tie Micro Inverter
Inverter WVC-600W LCD Grid Tie Micro Inverter Waterproof IP65 Solar Panel Balcony Power Station MPPT Socket System Solar Grid Tie Micro Inverter
Inverter WVC-600W LCD Grid Tie Micro Inverter Waterproof IP65 Solar Panel Balcony Power Station MPPT Socket System Solar Grid Tie Micro Inverter
Inverter WVC-600W LCD Grid Tie Micro Inverter Waterproof IP65 Solar Panel Balcony Power Station MPPT Socket System Solar Grid Tie Micro Inverter
Inverter WVC-600W LCD Grid Tie Micro Inverter Waterproof IP65 Solar Panel Balcony Power Station MPPT Socket System Solar Grid Tie Micro Inverter
Inverter WVC-600W LCD Grid Tie Micro Inverter Waterproof IP65 Solar Panel Balcony Power Station MPPT Socket System Solar Grid Tie Micro Inverter
Inverter WVC-600W LCD Grid Tie Micro Inverter Waterproof IP65 Solar Panel Balcony Power Station MPPT Socket System Solar Grid Tie Micro Inverter
Inverter WVC-600W LCD Grid Tie Micro Inverter Waterproof IP65 Solar Panel Balcony Power Station MPPT Socket System Solar Grid Tie Micro Inverter
Inverter WVC-600W LCD Grid Tie Micro Inverter Waterproof IP65 Solar Panel Balcony Power Station MPPT Socket System Solar Grid Tie Micro Inverter
Inverter WVC-600W LCD Grid Tie Micro Inverter Waterproof IP65 Solar Panel Balcony Power Station MPPT Socket System Solar Grid Tie Micro Inverter
Inverter WVC-600W LCD Grid Tie Micro Inverter Waterproof IP65 Solar Panel Balcony Power Station MPPT Socket System Solar Grid Tie Micro Inverter
Inverter WVC-600W LCD Grid Tie Micro Inverter Waterproof IP65 Solar Panel Balcony Power Station MPPT Socket System Solar Grid Tie Micro Inverter
Inverter WVC-600W LCD Grid Tie Micro Inverter Waterproof IP65 Solar Panel Balcony Power Station MPPT Socket System Solar Grid Tie Micro Inverter
Inverter WVC-600W LCD Grid Tie Micro Inverter Waterproof IP65 Solar Panel Balcony Power Station MPPT Socket System Solar Grid Tie Micro Inverter
Inverter WVC-600W LCD Grid Tie Micro Inverter Waterproof IP65 Solar Panel Balcony Power Station MPPT Socket System Solar Grid Tie Micro Inverter

Inverter WVC-600W LCD Grid Tie Micro Inverter Waterproof IP65 Solar Panel Balcony Power Station MPPT Socket System Solar Grid Tie Micro Inverter

(0 reviews)
Ask a question
109.99€ 175.99€
  • Brand: CNCEST
  • Product Code: YLLNMV2YEUZFP
  • Availability: Out Of Stock
Quantity
- +
Estimated Delivery:
Free Fast Shipping:
On all orders
estimated delivery guarantee
Inverter WVC-600W LCD Grid Tie Micro Inverter Waterproof IP65 Solar Panel Balcony Power Station MPPT Socket System Solar Grid Tie Micro Inverter

Inverter WVC-600W LCD Grid Tie Micro Inverter Waterproof IP65 Solar Panel Balcony Power Station MPPT Socket System Solar Grid Tie Micro Inverter

  • Description
  • Reviews (0)
  • Recommer
  • Delivery and Return

Electrical Isolation

The complete electrical isolation of the machine's output and input makes the entire power distribution system well insulated and the use of fully isolated boost circuits makes it safer and more reliable to use.

Six-fold Protection

The product comes with over-temperature protection, under-voltage alarm, under-voltage protection, over-voltage protection, short-circuit protection, and overload protection, so you can use it with confidence.

Flexible Installation

This inverter can be stacked in any number of units, forming a single-phase parallel stacking system or easily forming a three-phase system to provide three-phase AC power, which you can install according to your specific needs.

Easy Maintenance

Once installed, this machine requires little maintenance and only needs to be cleaned of dust from the PV panels.

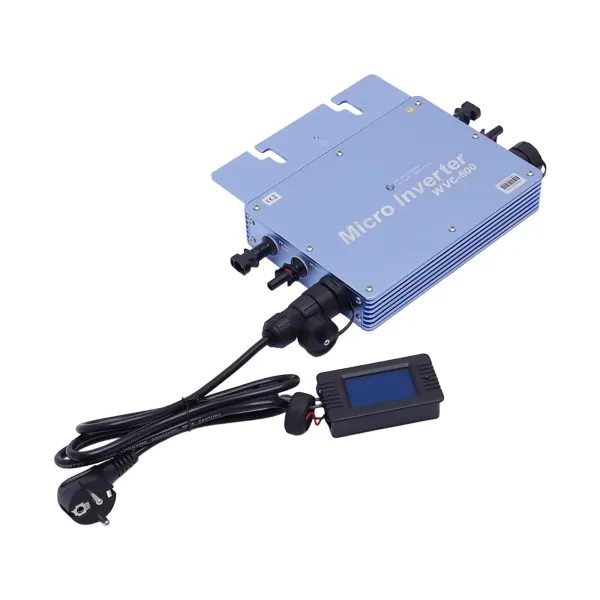

HD Display

This microinverter is equipped with an LCD display screen to monitor voltage, power, frequency, current, etc. so you can see the machine clearly in operation.

Good Waterproof Performance

IP65 waterproof design and aluminum alloy material can effectively prevent rain from eroding the surface, you can use it with confidence.

High-quality Material

The microinverter is made of aluminum alloy, which is durable, corrosion-resistant, and not easy to rust. You can use it for a long time without frequent replacement.

Reverse Power Transmission

This item adopts highly efficient reverse power transmission technology, in which the power is transmitted in the reverse direction when in grid-connected output mode, automatically detecting the load in the circuit and giving priority to its use, making the output more efficient in photovoltaic power generation application systems.

Maximum Power Point Tracking

A powerful maximum power point tracking algorithm to optimize power harvesting from solar panels that precisely captures and targets the maximum output power point, resulting in a significant increase in power generation.

Fixed Gasket&Washer

The gasket and washer in the package help you to mount the PV bracket with great ease.

Heat Dissipation Holes

The inverter body has multiple heat dissipation holes, which help the machine to dissipate heat and enable it to run smoothly.

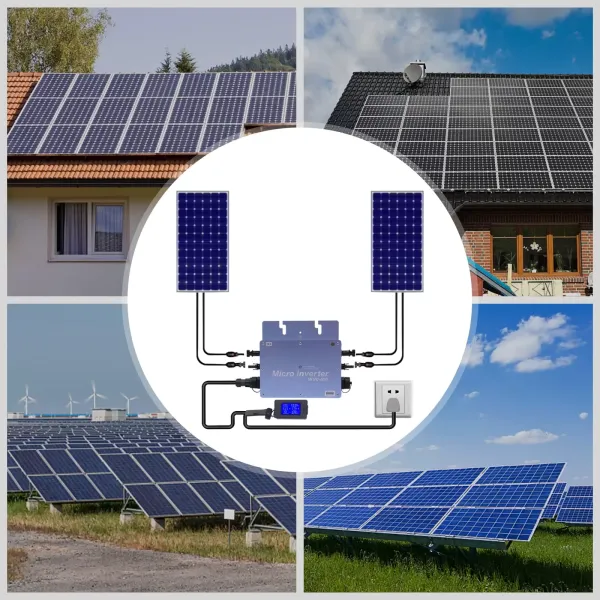

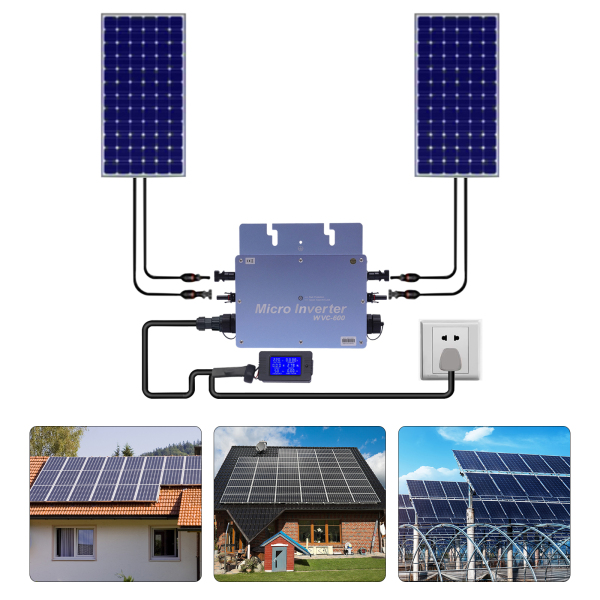

Application

This product is applicable to 30V or 36V solar panels, 36V batteries. It can be used in residential and small commercial environments. It is suitable for various household appliances. It can convert the DC power generated by solar panels into AC power available for household appliances.

Specifications
Model:  WVC-600W
Color:  Blue
Material:  Aluminium Alloy
Power:  600W
Voltage:  220V
Plug:  EU Standard
Operating Temperature Range:  -40℃~60℃/-40℉~140℉
Waterproof Rating:  IP65
Cooling Method:  Self-cooling
VOC Voltage Range:  36-48V
Maximum Output DC Voltage:  54V
Peak Power Tracking Voltage:  22-45V
Operating Voltage Range:  17-50V
Min/Max Startup Voltage:  22-50V
Maximum DC Short Circuit Current:  40A
Maximum Input Operating Current:  27.2A
Peak Output Power:  600W
Rated Output Power:  550W
Rated Output Current:  2.39A
Rated Voltage Range:  180-260VAC
Rated Frequency Range:  47-52.5Hz
Static MPPT Efficiency:  99.5%
Max. Output Efficiency:  92.5%
Nighttime Power Loss:  <1W
Total Flow Distortion:  <5%
Recommended Battery Parameters:  36V/20mah
Gross Weight:  2.48kg/5.47lbs
Net Weight:  1.63kg/3.59lbs

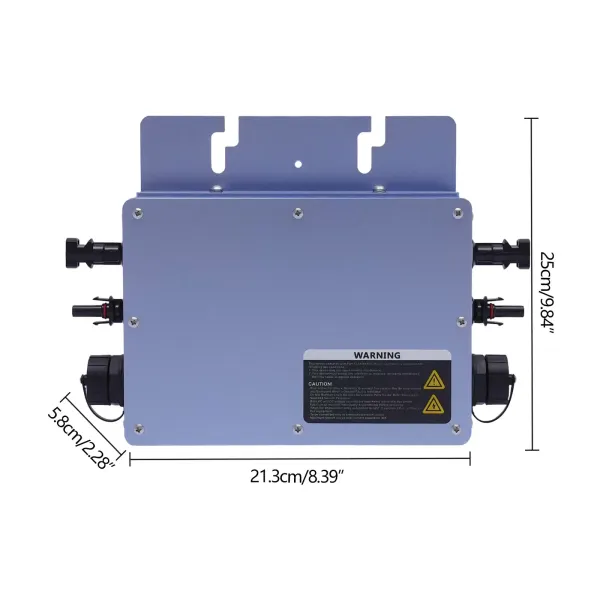

Product Size:  21.3*5.8*25cm/8.39*2.28*9.84inch
Package Size:  34*24*11.5cm/13.39*9.45*4.53inch

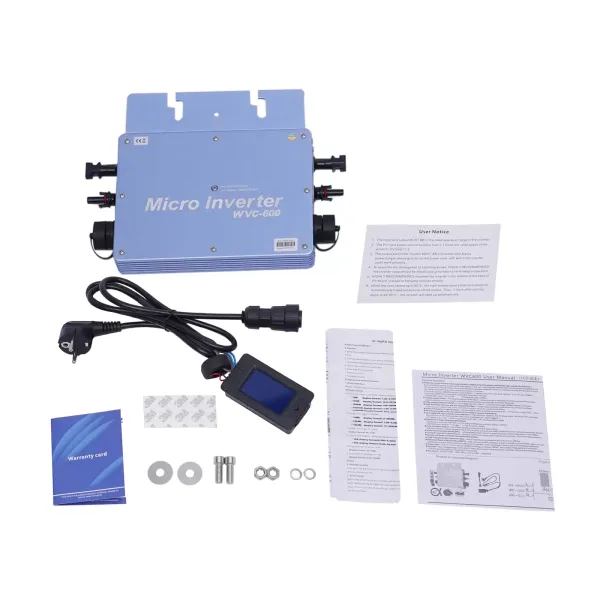

Package Included
1* Micro Inverter
1* LCD Display
1* AC Connection Cable
1* English Manual
Other Accessories for Installation

Specifications

Model WVC-600W Color Blue
Material Aluminium Alloy Power 600W
Voltage 220V Plug EU Standard
Operating Temperature Range -40℃~60℃/-40℉~140℉ Waterproof Rating IP65
Cooling Method Self-cooling VOC Voltage Range 36-48V
Maximum Output DC Voltage 54V Peak Power Tracking Voltage 22-45V
Operating Voltage Range 17-50V Min/Max Startup Voltage 22-50V
Maximum DC Short Circuit Current 40A Maximum Input Operating Current 27.2A
Peak Output Power 600W Rated Output Power 550W
Rated Output Current 2.39A Rated Voltage Range 180-260VAC
Rated Frequency Range 47-52.5Hz Static MPPT Efficiency 99.5%
Max. Output Efficiency 92.5% Nighttime Power Loss <1W
Total Flow Distortion <5% Recommended Battery Parameters 36V/20mah
Gross Weight 2.48kg/5.47lbs Net Weight 1.63kg/3.59lbs
Product Size 21.3*5.8*25cm/8.39*2.28*9.84inch Package Size 34*24*11.5cm/13.39*9.45*4.53inch

Product Tips

Notes

1.Please read the operating manual completely before use. And pay particular attention to the safety instructions included.
2.Please note that our products are grid-connected, the AC output port has to be connected to the home grid in order to achieve grid-connected power generation.

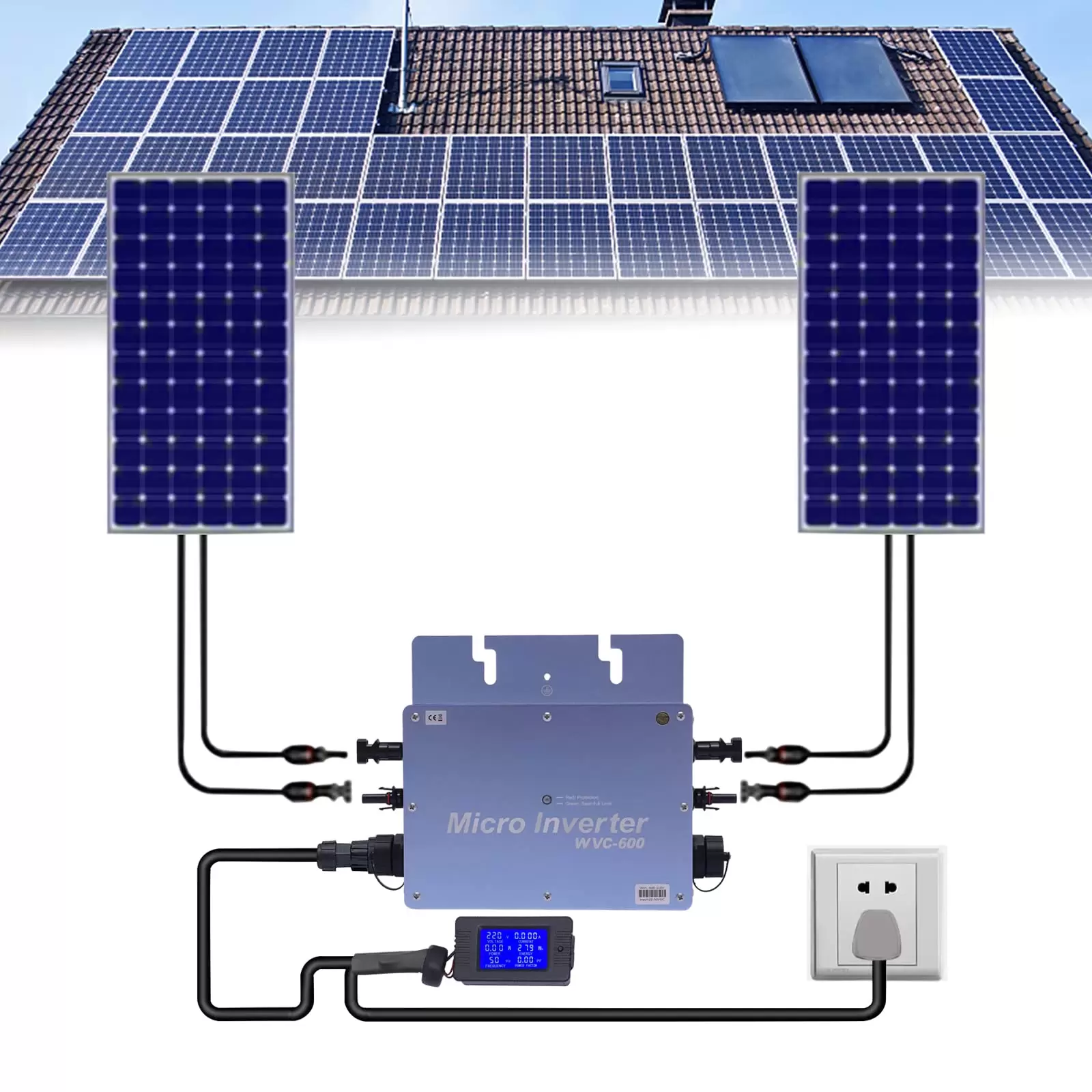

How to Use

1.Install the inverter on the bracket of the photovoltaic panel with the screws provided by the machine.
2.Connect the positive and negative poles of the DC connection plug on the photovoltaic board to the DC input terminal of the inverter.
3.Open the waterproof cover of the AC output connector of the inverter and connect the AC cable to the AC waterproof plug.
4. Connect the AC output cable to the AC main cable.
5.Repeat steps 1 to 3, install and connect all inverters.
6.Connect the AC main cable to the utility grid to start your green energy journey.
