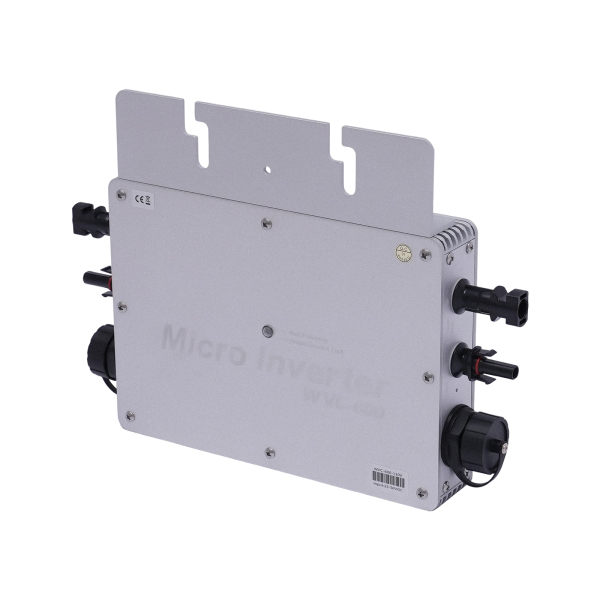

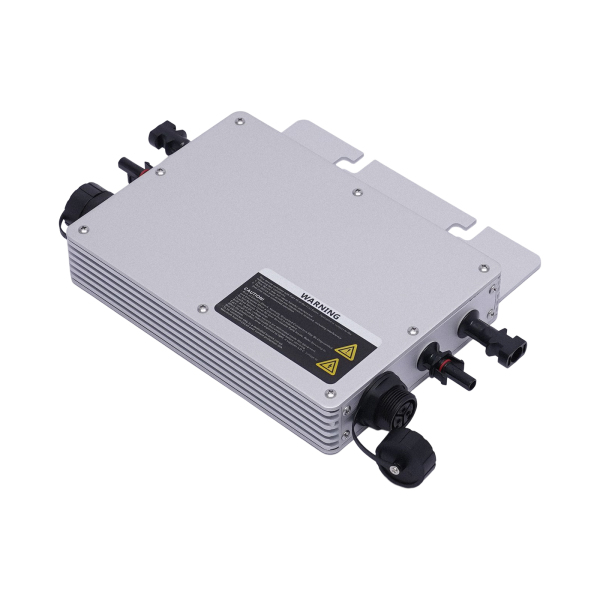

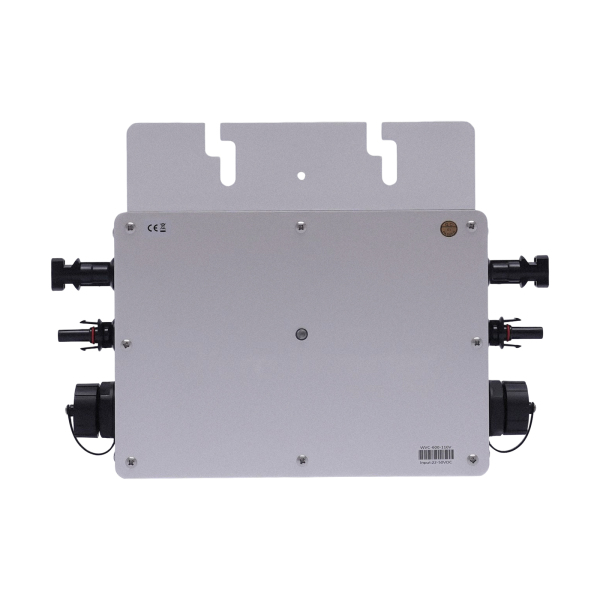

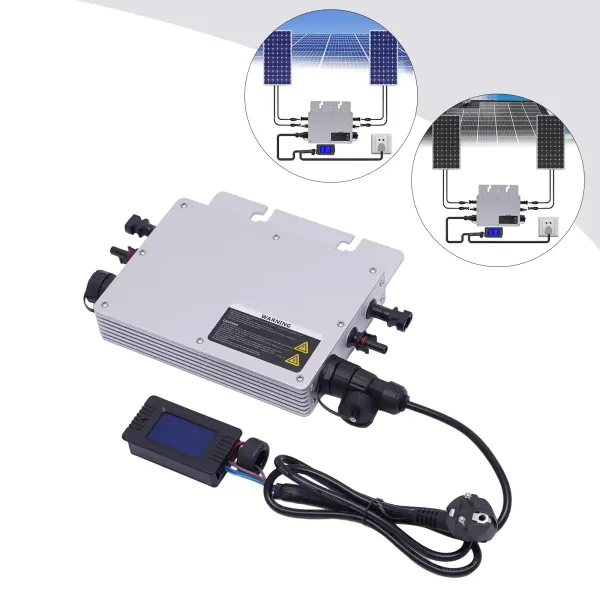

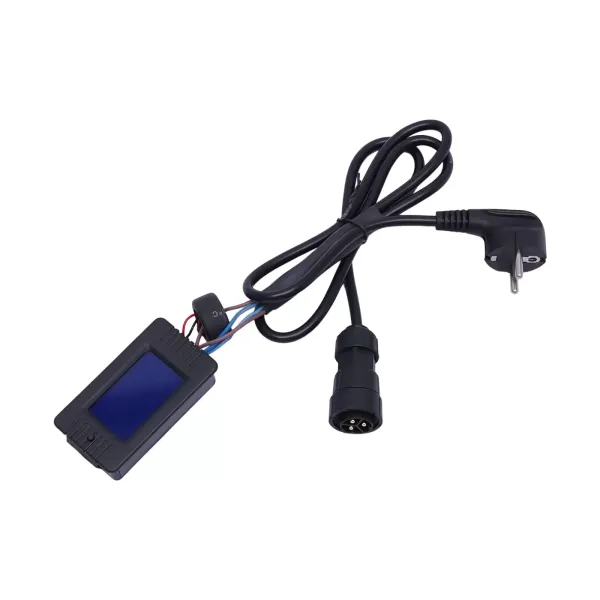

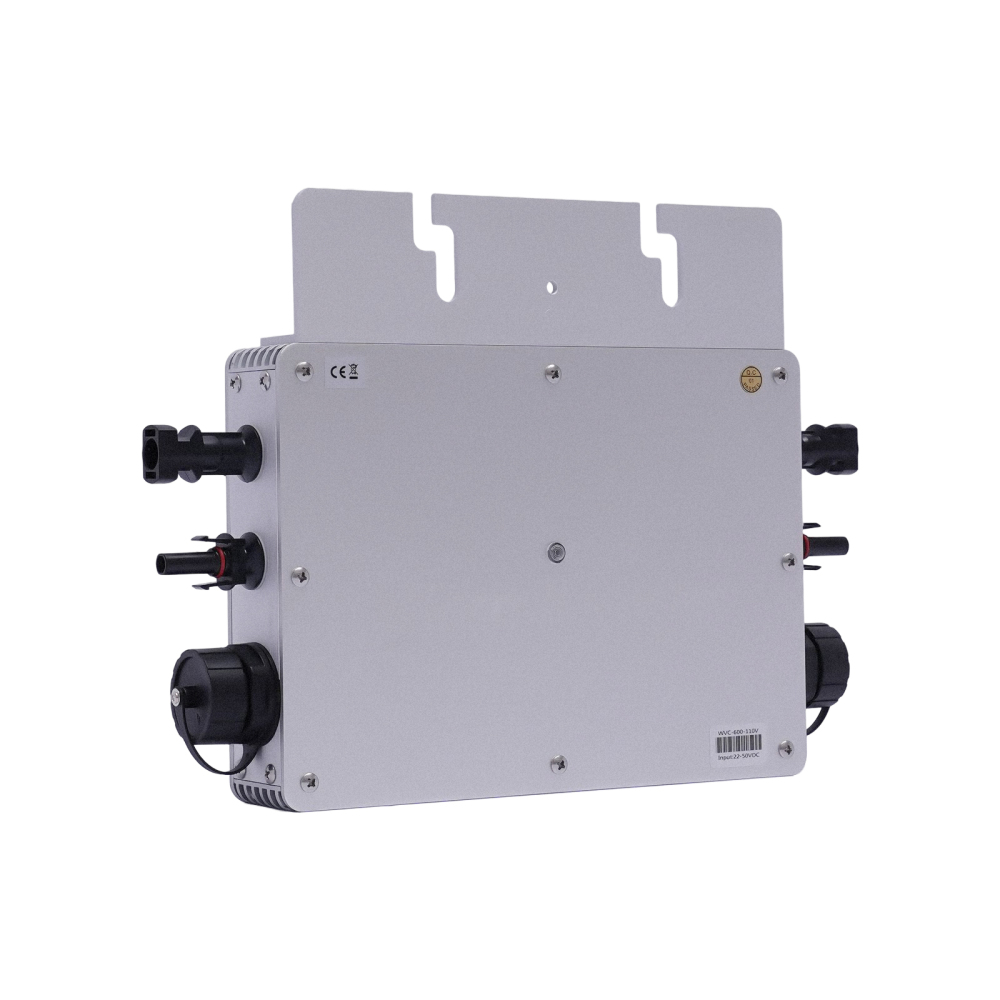

Micro Grid Tie Solar Inverter 600W IP65 Waterproof Micro Inverter Auto Identification DC to AC for Solar Panel with LCD Display
- Brand: CNCEST
- Product Code: YLLNMV8CEUZFP
- Availability: Out Of Stock

Specifications
Model | WVC-600W | Color | Silver |
Material | Aluminium Alloy | Power | 600W |
Voltage | 220V | Plug | EU Standard |
Operating Temperature Range | -40℃~60℃/-40℉~140℉ | Waterproof Rating | IP65 |
Cooling Method | Self-cooling | VOC Voltage Range | 36-48V |
Maximum Output DC Voltage | 54V | Peak Power Tracking Voltage | 22-45V |
Operating Voltage Range | 17-50V | Min/Max Startup Voltage | 22-50V |
Maximum DC Short Circuit Current | 40A | Maximum Input Operating Current | 27.2A |
Peak Output Power | 600W | Rated Output Power | 550W |
Rated Output Current | 2.39A | Rated Voltage Range | 180-260VAC |
Rated Frequency Range | 47-52.5Hz | Static MPPT Efficiency | 99.5% |
Max. Output Efficiency | 92.5% | Nighttime Power Loss | <1W |
Total Flow Distortion | <5% | Recommended Battery Parameters | 36V/20mah |
Gross Weight | 2.48kg/5.47lbs | Net Weight | 1.63kg/3.59lbs |
Product Size | 21.3*5.8*25cm/8.39*2.28*9.84inch | Package Size | 34*24*11.5cm/13.39*9.45*4.53inch |
Product Tips


Notes
1.Please read the operating manual completely before use. And pay particular attention to the safety instructions included.
2.Please note that our products are grid-connected, the AC output port has to be connected to the home grid in order to achieve grid-connected power generation.
3.When the input load is with solar panels, it is important that the VOC voltage is between 30-48V. We recommend that the solar panel is configured for 20% more power than the power of the product. For example, if the product is 600W, the total power of the solar panels should be between 700-750W.

How to Use

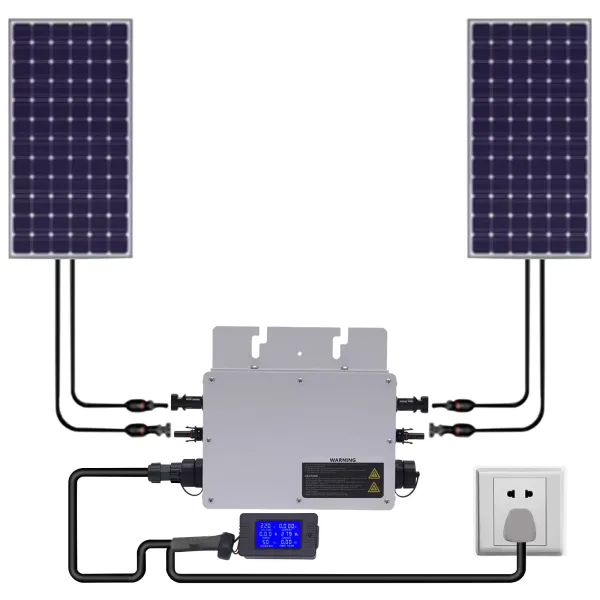

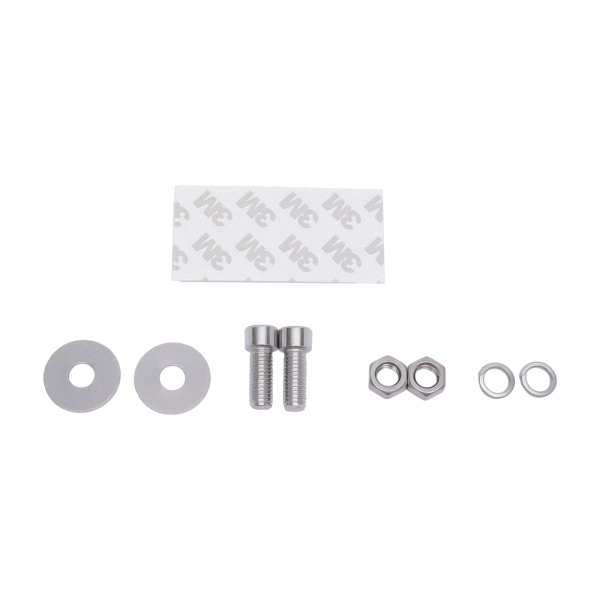

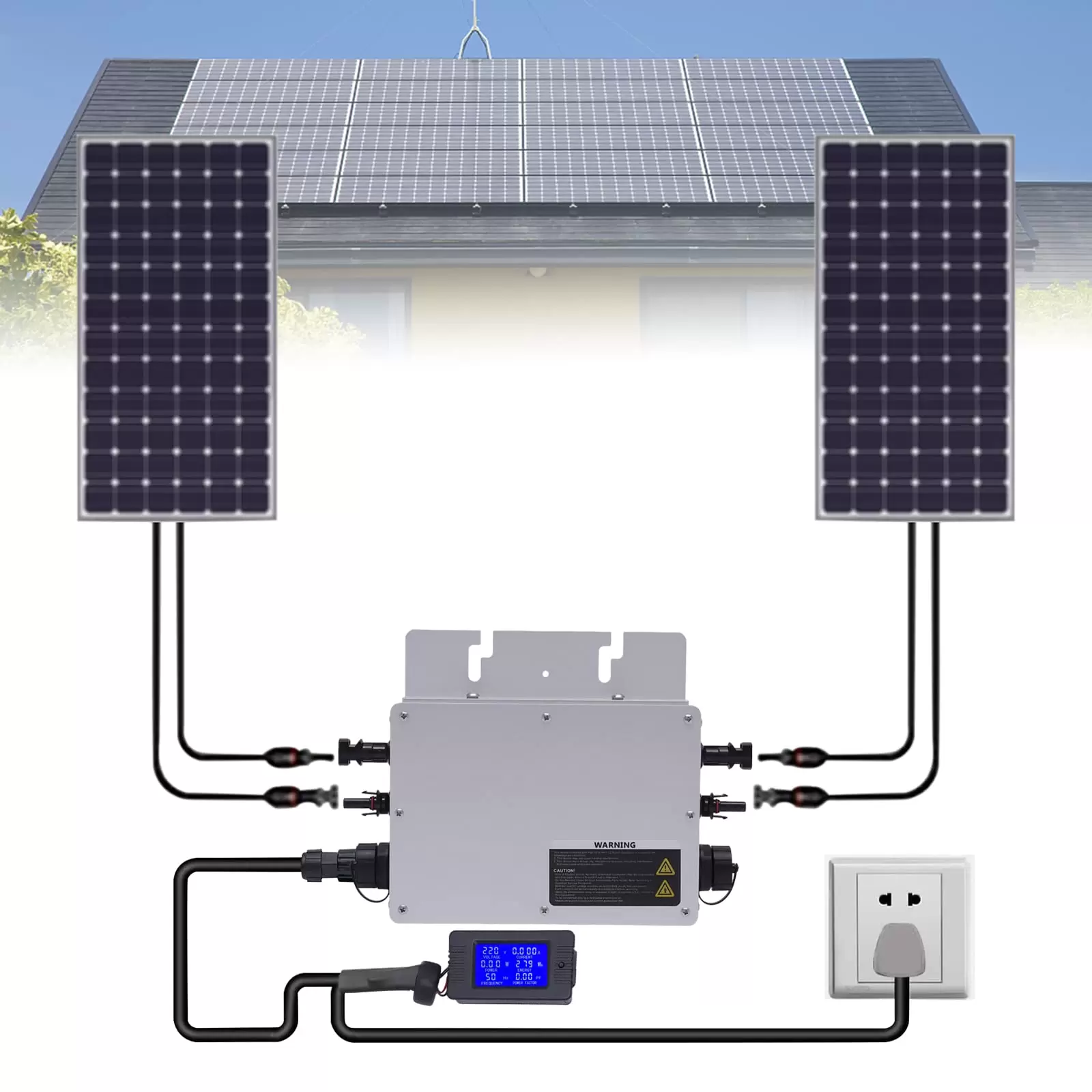

1.Install the inverter on the bracket of the photovoltaic panel with the screws provided by the machine.
2.Connect the positive and negative poles of the DC connection plug on the photovoltaic board to the DC input terminal of the inverter.
3.Open the waterproof cover of the AC output connector of the inverter and connect the AC cable to the AC waterproof plug.
4. Connect the AC output cable to the AC main cable.
5.Repeat steps 1 to 3, install and connect all inverters.
6.Connect the AC main cable to the utility grid to start your green energy journey.
