48V 1000W Electric Front Wheel Conversion Kit - E Bike Front Wheel Electric Conversion Kit - Brushless Hub Motor Kit

48V 1000W Electric Front Wheel Conversion Kit - E Bike Front Wheel Electric Conversion Kit - Brushless Hub Motor Kit

(0 reviews)

Ask a question

209.99€

Brand: CNCEST
Product Code: YDFKUA2QNDHJ8
Availability: In Stock

Estimated Delivery:

Free Fast Shipping:

On all orders

Description
Reviews (0)
Recommer
Delivery and Return

High quality materials

The spokes of the wheels are made of high quality 45 gauge steel and the rims are made of aluminum-magnesium alloy. These strong, impact and corrosion resistant materials provide excellent durability to this wheel.

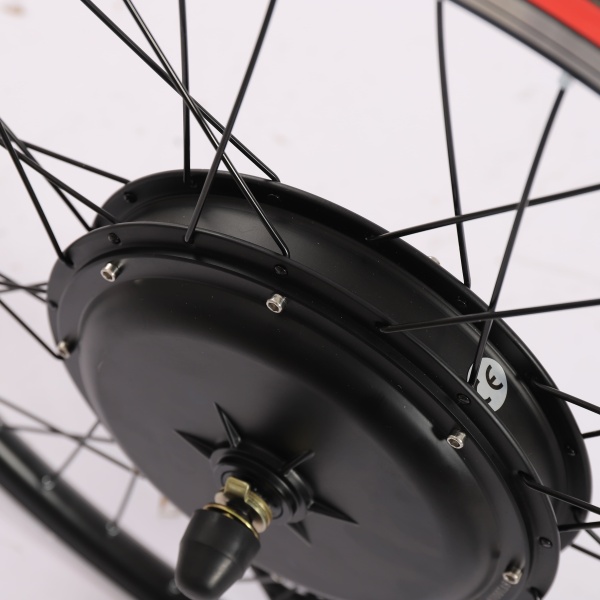

Brushless motor

Our kit uses an improved brushless motor that runs smoother and quieter than a brushed motor, providing consistent power to the bike. Additionally, brushless motors do not require brush replacement, making maintenance easier.

Easy to install

The kit includes detailed instructions. Just follow the instructions and you can easily complete the installation for your bike, saving you energy.

Efficient and energy saving

The motor efficiency greater than or equal to 82% and the power of 1000 watts of the kit allow you to benefit from great power while saving electricity.

Labor saving

The motor's 45Nm torque and 1:1 acceleration sensor save you labor when climbing, so you can ride effortlessly.

Excellent load capacity

With the high-quality 45 gauge steel and aluminum-magnesium alloy, the kit has a maximum load capacity of 264.55lbs, so the average adult can use it without worry.

Non-slip handles

The grips have an irregular, non-slip design that increases friction against the palm of your hand, improving driving safety.

Superb workmanship

The rim is manufactured using a superb plastic spraying process, which significantly improves resistance to corrosion, rust and wear while providing a shiny, smooth and stylish appearance.

Specifications

Rim material : Aluminum and magnesium alloy

District : 45 gauge steel

Main engine materials : Copper, iron, magnetic steel

Process : Plastic spraying

Suspension type : Before

Special feature : High speed, easy installation

Color : Noir

Voltage : 48V

Nominal power : 1000W

Couple nominal : 45N.M

Boost sensor system : 1

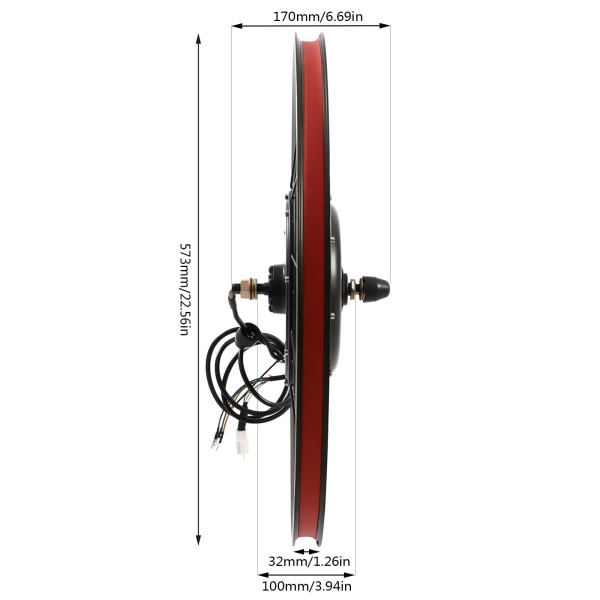

Motor diameter : 242mm/9.52in

Motor shaft diameter : M14

Motor shaft length : 170mm/6.69in

Motor cable length : 110cm/4.33in

Flat fork opening : 100mm/3.93in

Suitable wheel size : 26*1.75-2.125inch

Rated speed : 440RPM

Type of engine : Brushless, toothless motor

Yield : ≥ 82%

No-load speed : Environ 55km/h/34.17MPH

Brake : A six-hole disc brake can be installed.

Maximum load capacity : 120kg/264.55lbs

Gross weight : 11kg/24.25lbs

Package size : 60*60*23cm/23.62*23.62*9.05in

Axial length : 17cm/6.69in

Rim diameter : 57.3cm/22.56in

Thickness : 3.2cm/1.26in

Front bracket spacing : 10cm/3.94in

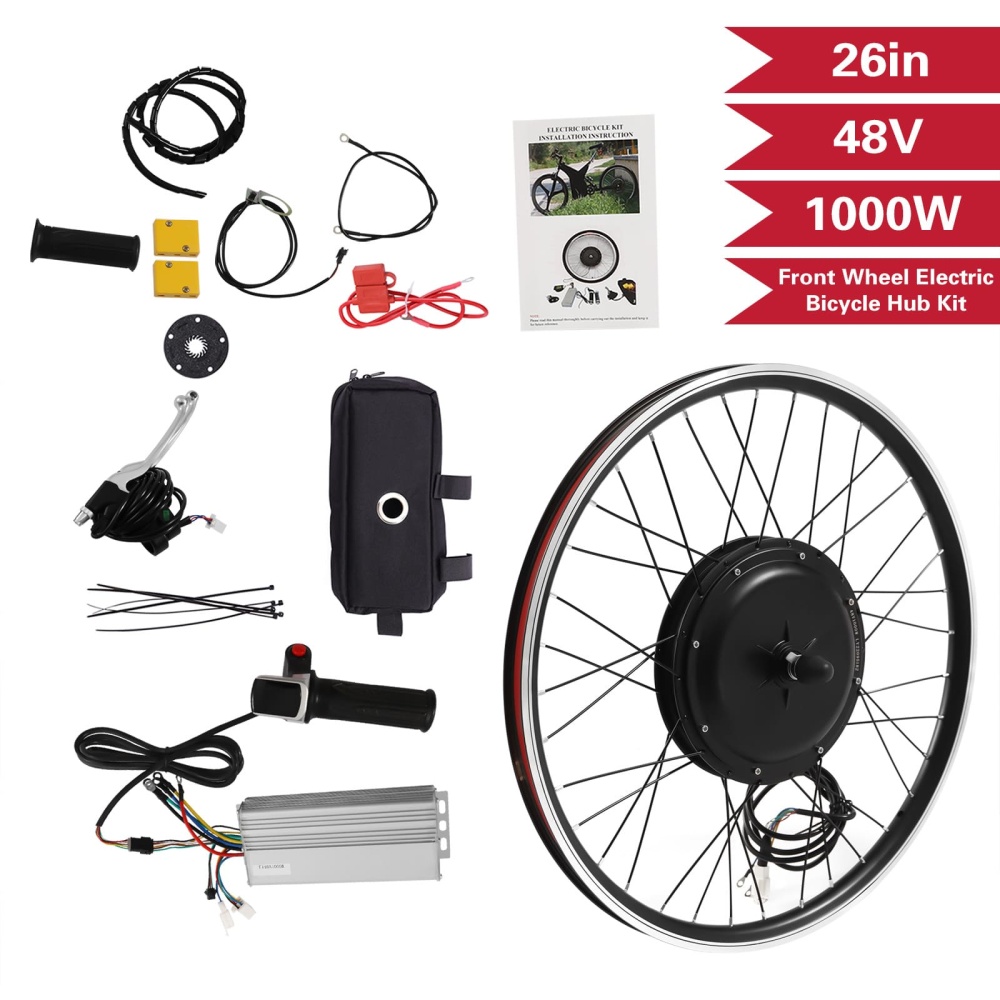

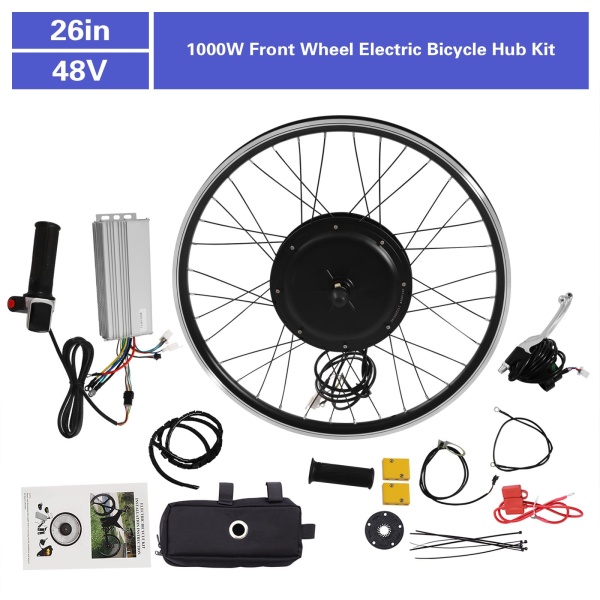

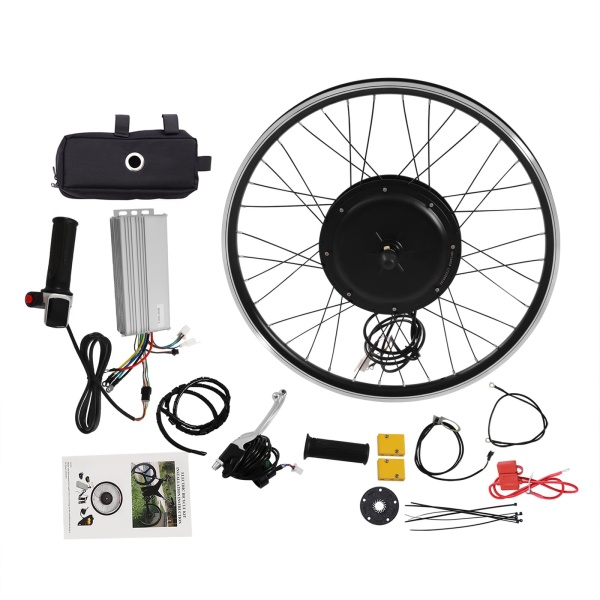

Package includes

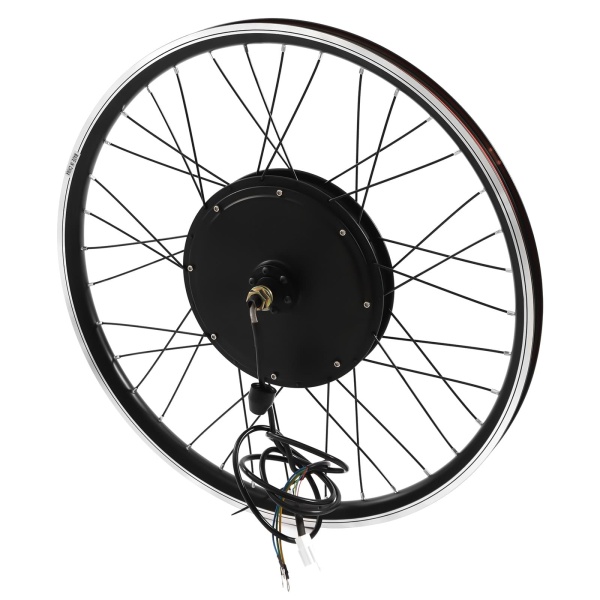

1 * Front drive wheel

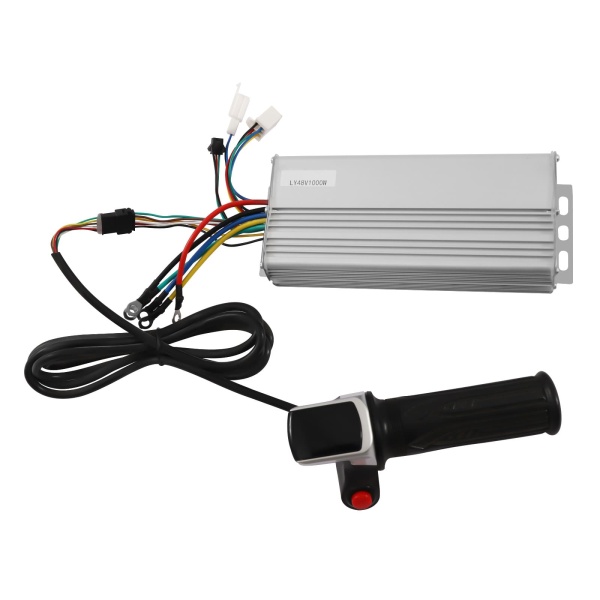

1 * Controller

1 * Handle

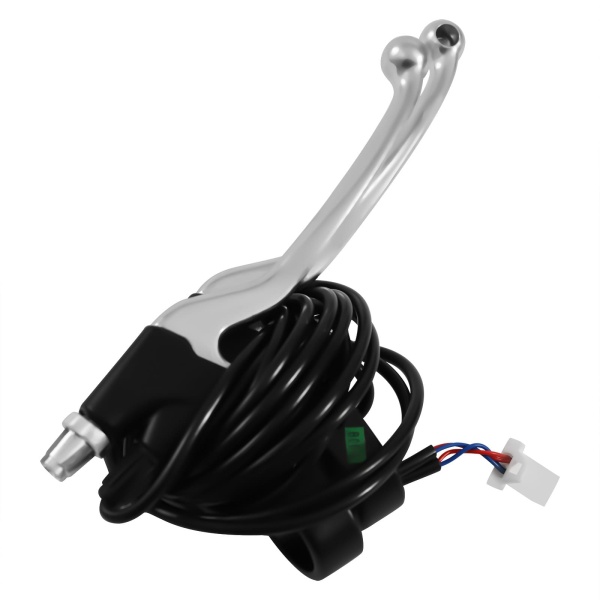

1 * Brake handle with battery indicator

1 * Check Bag

1 * Acceleration sensor

1 * English User Manual

All accessories needed for installation

Specifications

Rim material	Aluminum and magnesium alloy	District	45 gauge steel
Main engine materials	Copper, iron, magnetic steel	Process	Plastic spraying
Suspension type	Before	Special feature	High speed, easy installation
Color	Noir	Voltage	48V
Nominal power	1000W	Couple nominal	45N.M
Boost sensor system	1	Motor diameter	242mm/9.52in
Motor shaft diameter	M14	Motor shaft length	170mm/6.69in
Motor cable length	110cm/4.33in	Flat fork opening	100mm/3.93in
Suitable wheel size	26*1.75-2.125inch	Rated speed	440RPM
Type of engine	Brushless, toothless motor	Yield	≥ 82%
No-load speed	Environ 55km/h/34.17MPH	Brake	A six-hole disc brake can be installed.
Maximum load capacity	120kg/264.55lbs	Gross weight	11kg/24.25lbs
Package size	606023cm/23.6223.629.05in	Axial length	17cm/6.69in
Rim diameter	57.3cm/22.56in	Thickness	3.2cm/1.26in
Front bracket spacing	10cm/3.94in

Notes

1. This set does not include tires and must be purchased by the customer. The suitable tire size is 6*1.75-2.125in.
2. This product is suitable for 2-wheel bikes, not for 3-wheel bikes or multi-wheel bikes. 3. This product does not include battery or tire.
4. Please be sure to use lead-acid or lithium batteries of the corresponding voltage. Speed varies depending on road conditions, battery, charging, wind speed, etc.
5. The kit is not waterproof, so be sure to protect the interface when riding in the rain. It is not recommended to ride in the rain all the time.
