• Powerful Pumping Power: The vacuum pump has a power of 180 Watts, a pumping rate of 1 L/S (3 CFM), excellent pumping capacity and a vacuum of 5 kPa.
• Removal of impurities: The machine is equipped with an air filter to ensure air purity. The extracted air is therefore healthy and unpolluted.
• Selected materials: high quality cast iron and conventional bearings for stable operation, durable, corrosion resistant and longer service life.
• Easy to use/maintain: This vacuum pump is plug - and - play with detailed instructions, saving the trouble of drilling separately. It uses an integrated pump body to provide higher vacuum and easier maintenance than the traditional split pump.
• Safety and reliability: our special motors are CE certified and equipped with built-in overheating self-recovery fuses for thermal protection. When the pump temperature is too high, the power supply is automatically cut off.

Low noise: Pure copper motor and equipped muffler make it less noisy than 65 DB, giving you a quiet working environment.

Compact structure: This vacuum pump has a size of 10.24*4.33*9.45 inches and a compact volume that does not take up too much space and is easy to store when not in use.

Strong heat dissipation: The machine is equipped with a large-capacity cooling fan, which can dissipate the heat generated by motor operation in a timely manner, to further maintain the stability of the machine.

details
Oil observation window: The oil observation window allows you to monitor the quantity and quality of oil to avoid oil shortages.
Oil drain valve: located at the bottom of the oil tank and angled for faster and more complete drainage.
Filling port: it facilitates oil filling because it is possible to access the filling port from the front or from any side.
Portable handle: The vacuum pump is equipped with a portable handle for easy use and transportation.

Application

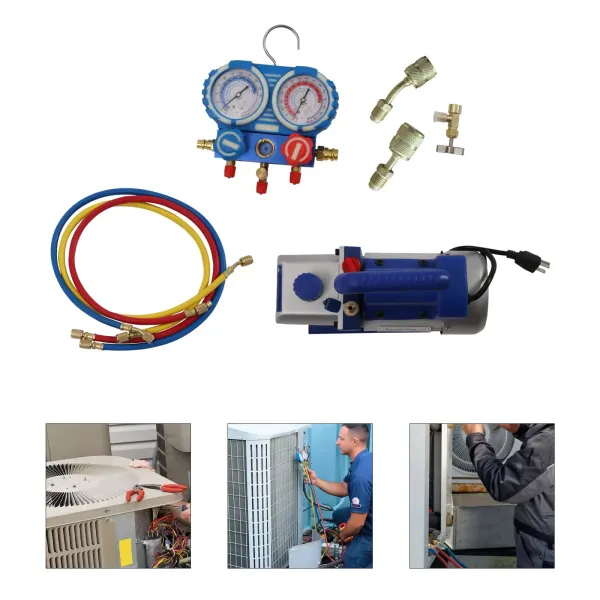

For maintenance of automobile air conditioners, household air conditioners, Split type air conditioners, etc., with R134a R410A and 1/4" hoses.

Specifications
Vacuum pump:
Model: vk125
Material: Cast iron
Blue color
Free Air Displacement (FAD): 1l/S (3cfm)
Power: 1/4 HP
Phase: 1
Plug type: EU
Voltage/frequency: 220V/50hz
Motor power: 180w
Ultimate vacuum: 150 microns / 29.91 Hg
Noise:＜65DB
Vide: 5kpa
Outer Torch: 1/4 inch
Acme male: 1 / 2 inch
Tank Capacity: 200ml / 7.04oz
Vacuum pump size: 26*11*24cm/10.24*4.33*9.45in

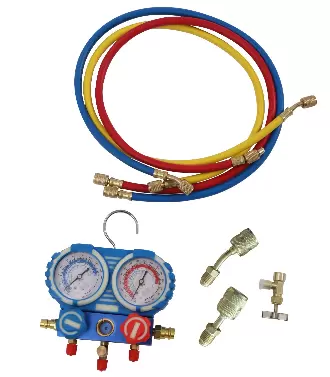

Collector:
Gauge Diameter: 7CM/2.75"
Instrument level: 1.6
Pressure: 800 - 4000psi (800 working pressure, 4000 burst pressure)
Fittings and header pipes: 0.64cm / 1/4"

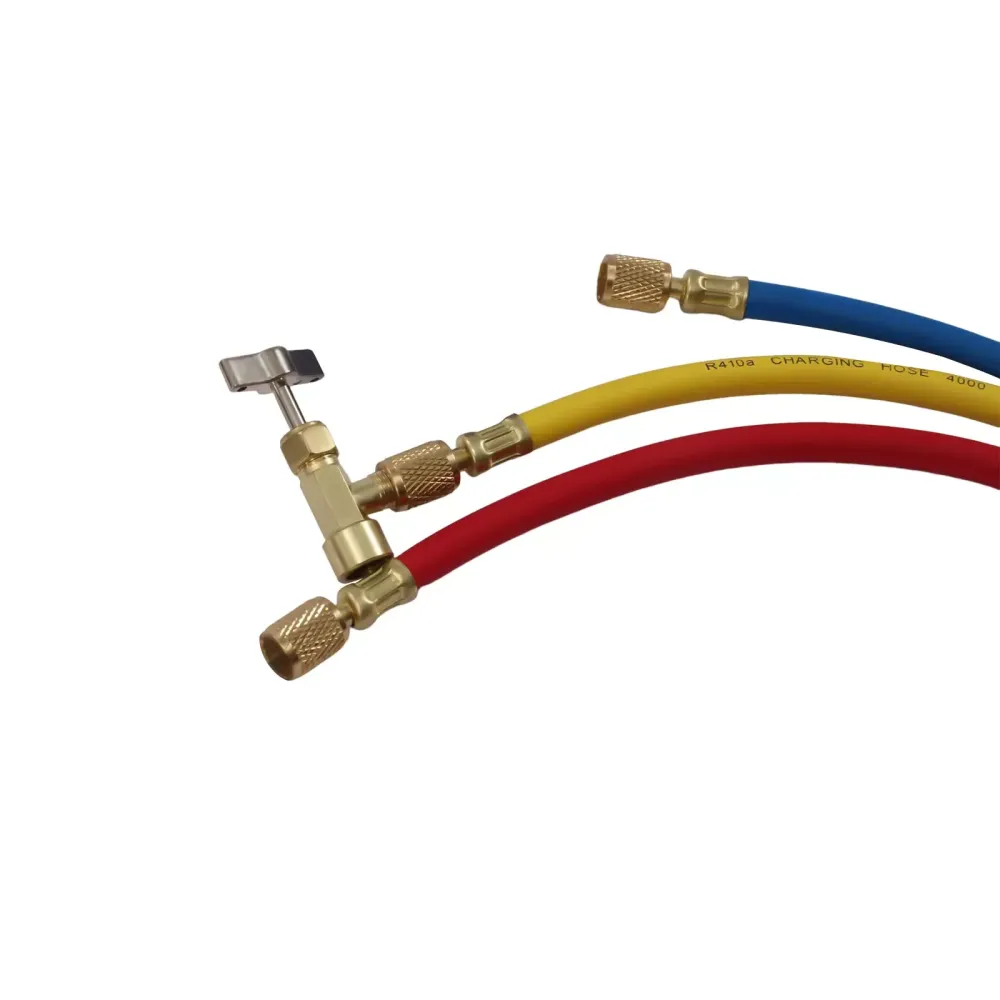

Hose: Red, yellow and blue 0.64cm/1/4" 1.2m/4ft long each
Package size: 34*33*20cm/13.39*12.99*7.87in
Gross weight: 8 kg / 17.78 LBS

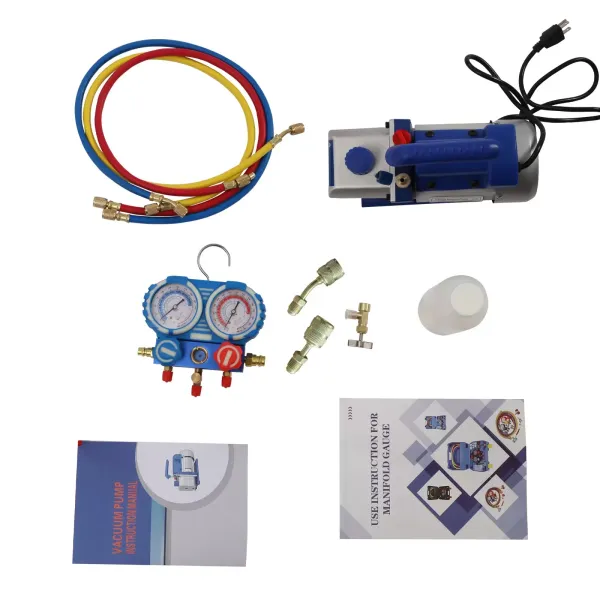

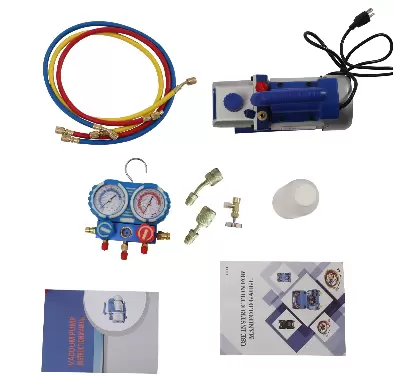

Packages included
1x vacuum pump
1x automatic air conditioning manifold
Tricolor hose 3x 4ft
1 collector pressure gauge
1 bottle of drip
1x British vacuum pump Manual
1x English Collector's Manual
