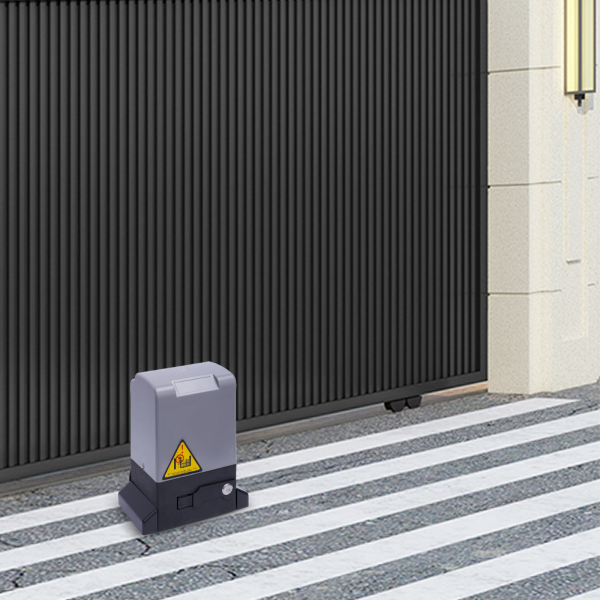

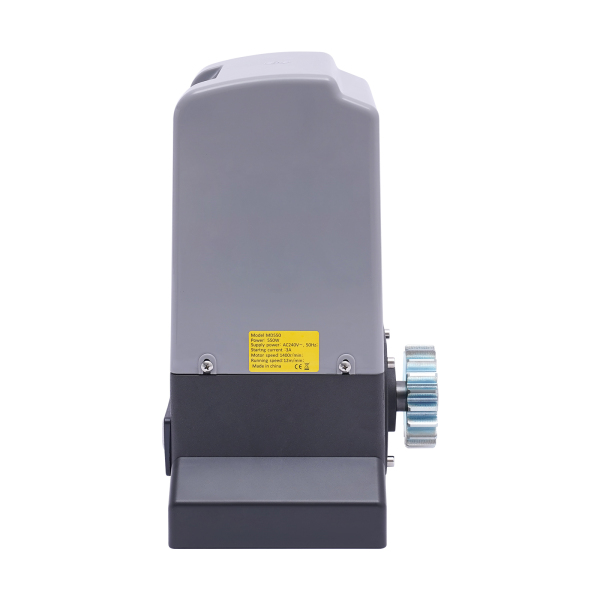

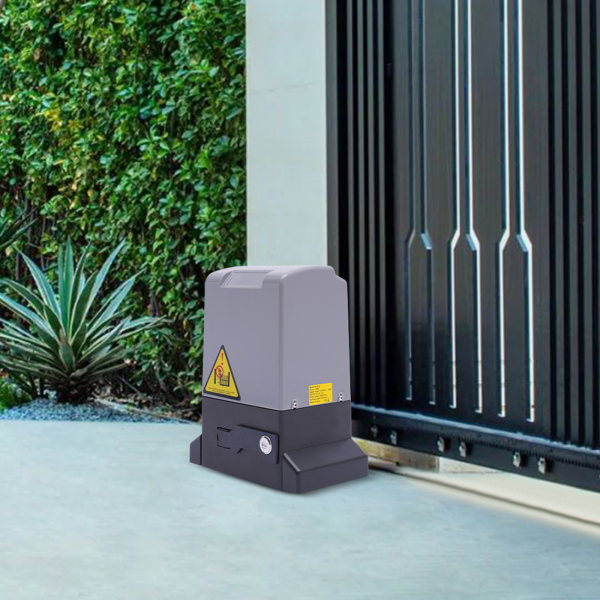

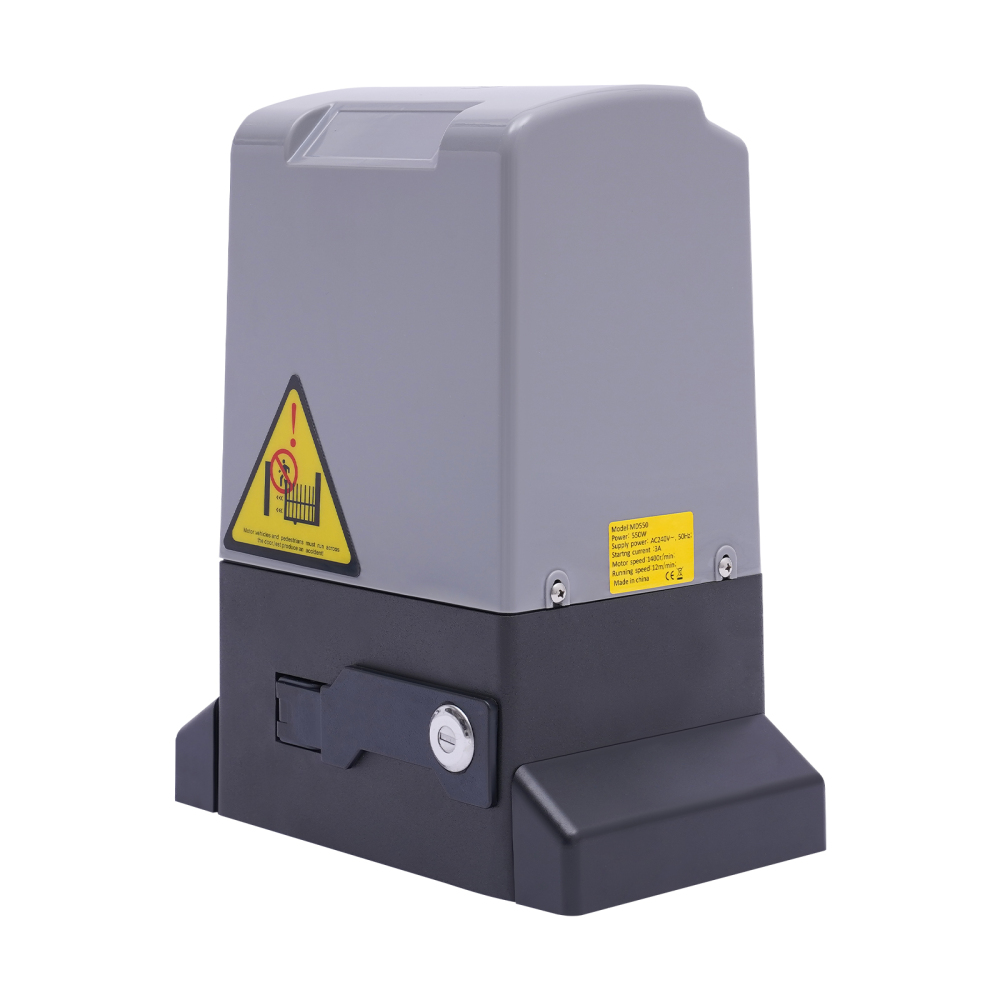

12.6*10.24*15.35in Electric Sliding Gate Operator 1200 Kg With 2 Remote Controls 220 V 550 W For Stainless Steel Doors Iron Doors Bronze Doors
12.6*10.24*15.35in Electric Sliding Gate Operator 1200 Kg With 2 Remote Controls 220 V 550 W For Stainless Steel Doors Iron Doors Bronze Doors
12.6*10.24*15.35in Electric Sliding Gate Operator 1200 Kg With 2 Remote Controls 220 V 550 W For Stainless Steel Doors Iron Doors Bronze Doors
12.6*10.24*15.35in Electric Sliding Gate Operator 1200 Kg With 2 Remote Controls 220 V 550 W For Stainless Steel Doors Iron Doors Bronze Doors
12.6*10.24*15.35in Electric Sliding Gate Operator 1200 Kg With 2 Remote Controls 220 V 550 W For Stainless Steel Doors Iron Doors Bronze Doors
12.6*10.24*15.35in Electric Sliding Gate Operator 1200 Kg With 2 Remote Controls 220 V 550 W For Stainless Steel Doors Iron Doors Bronze Doors
12.6*10.24*15.35in Electric Sliding Gate Operator 1200 Kg With 2 Remote Controls 220 V 550 W For Stainless Steel Doors Iron Doors Bronze Doors
12.6*10.24*15.35in Electric Sliding Gate Operator 1200 Kg With 2 Remote Controls 220 V 550 W For Stainless Steel Doors Iron Doors Bronze Doors
12.6*10.24*15.35in Electric Sliding Gate Operator 1200 Kg With 2 Remote Controls 220 V 550 W For Stainless Steel Doors Iron Doors Bronze Doors
12.6*10.24*15.35in Electric Sliding Gate Operator 1200 Kg With 2 Remote Controls 220 V 550 W For Stainless Steel Doors Iron Doors Bronze Doors
12.6*10.24*15.35in Electric Sliding Gate Operator 1200 Kg With 2 Remote Controls 220 V 550 W For Stainless Steel Doors Iron Doors Bronze Doors
12.6*10.24*15.35in Electric Sliding Gate Operator 1200 Kg With 2 Remote Controls 220 V 550 W For Stainless Steel Doors Iron Doors Bronze Doors
12.6*10.24*15.35in Electric Sliding Gate Operator 1200 Kg With 2 Remote Controls 220 V 550 W For Stainless Steel Doors Iron Doors Bronze Doors
12.6*10.24*15.35in Electric Sliding Gate Operator 1200 Kg With 2 Remote Controls 220 V 550 W For Stainless Steel Doors Iron Doors Bronze Doors
12.6*10.24*15.35in Electric Sliding Gate Operator 1200 Kg With 2 Remote Controls 220 V 550 W For Stainless Steel Doors Iron Doors Bronze Doors
12.6*10.24*15.35in Electric Sliding Gate Operator 1200 Kg With 2 Remote Controls 220 V 550 W For Stainless Steel Doors Iron Doors Bronze Doors

12.6*10.24*15.35in Electric Sliding Gate Operator 1200 Kg With 2 Remote Controls 220 V 550 W For Stainless Steel Doors Iron Doors Bronze Doors

(0 reviews)
Ask a question
178.28 224.99
  • Brand: CNCEST
  • Product Code: CE-WWHZBY-692
  • Availability: In Stock
Quantity
- +
Estimated Delivery:
Free Fast Shipping:
On all orders
estimated delivery guarantee

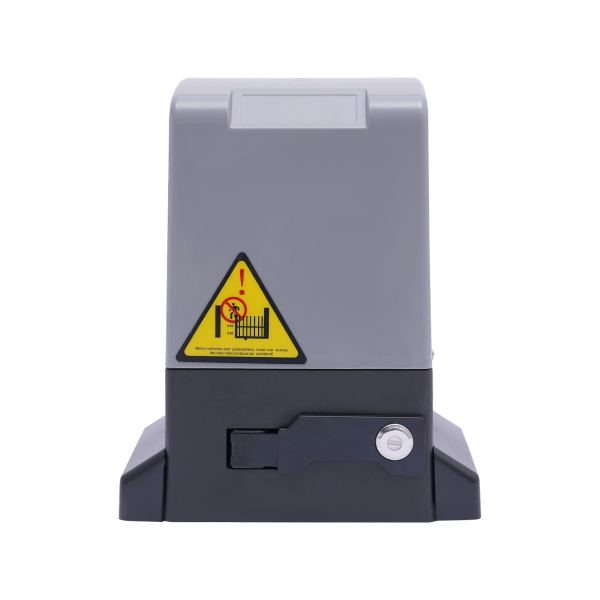

Manual Clutching

It has the function of manual clutching. When the power is out, you can manually disengage the clutch, which is very convenient to use.

Anti-stroke Design

When the door body reaches the stroke, you can only press the opposite direction of the button motor to work, which effectively prevents the stroke out of the stroke and is also more secure.

Automatic Closing

It also has the function of automatic closing. Closing time can be adjusted between 1 and 250 seconds. This eliminates the need for you to frequently open and close the door.

Strong Power

It uses a pure copper-core motor that can reach 550w, so it has full power. You don't have to worry about it not being able to control the door opening and closing.

High Precision

It uses imported chip 30A large relay as well as high and low double limit, which makes its control more precise.

Waterproof and Explosion-proof

It has an IP44 protection level and also has a good explosion-proof function. You can use it outdoors as well as in hot conditions in summer without worry.

Good Performance

This door opener has slow heat generation. It can start smoothly with high safety. It is a device with excellent performance.

Safe and Secure

Its motor has a built-in temperature protector. When the temperature is too high, the motor will automatically cut off the power. In addition, there are time protection and automatic limit adjustment motor strength function. You can use it with more confidence.

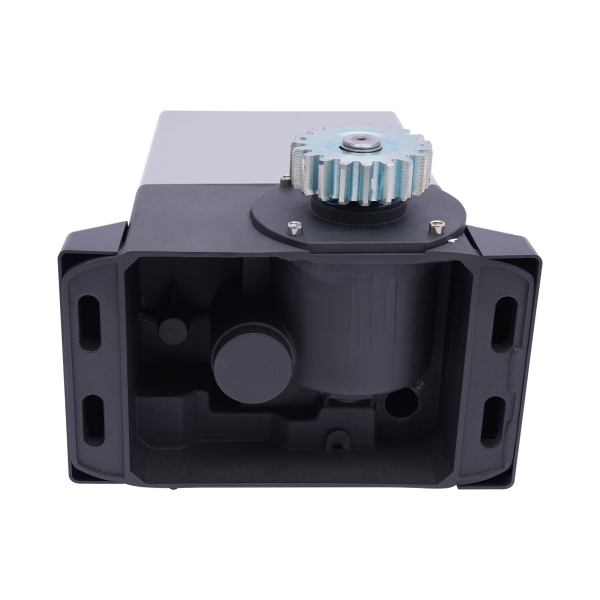

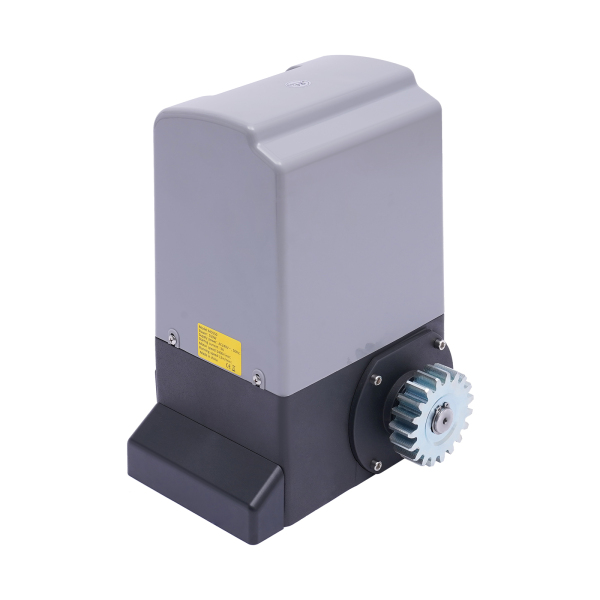

High Strength Gear

Its gears are quenched at high temperatures, so it is more wear-resistant and durable.

Application

It is suitable for stainless steel doors, iron doors, bronze doors, solid wood doors, etc. weighing less than 2645.55lbs.

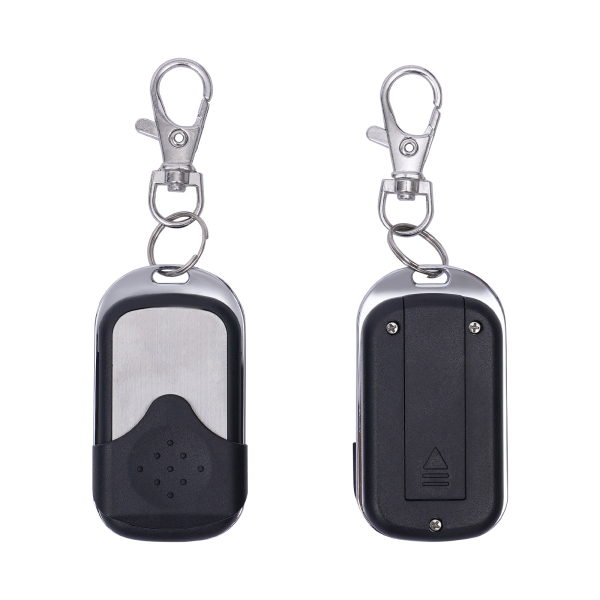

Remote Control

You can open the gate remotely because of the remote control. You don't have to open or close the gate in the heavy rain, which is more labor-saving and convenient.

Aluminum Base

Its base is made of high-quality aluminum so it has excellent corrosion resistance and good strength. The widened design makes it more stable on the table and not easy to slide.

Specifications
Model:  DW-550
Material:  ABS+Aluminum
Suitable for Door Weight:  ≤1200kg/2645.55lbs
Suitable for Door Width:  2-12mm/0.0787-0.472in
Latch Strength:  Adjustable
Limit Mode:  Spring Switch
Working Voltage:  AC220v, 50Hz
Working Power:  550w
Working Temperature:  -250C-+550C
Running Speed:  12m(472.44in)/min
Protection Class:  IP44 (Outdoor Waterproof)
Product Size:  32*26*39cm/12.6*10.24*15.35in
Net Weight:  About 12.5kg/27.56lbs
Package Included
1*Door Opener
1*Fixed Base Plate
2*Limiting Brackets
2*Metal Remote Controls
2*Limiting Magnets
2*Manual Clutch Keys
2*Infrared Sensors
2* Base Fixing Pieces
4*Pull the Screws
1*English Manual
Other Accessories for Assembly

Specifications

Model DW-550 Material ABS+Aluminum
Suitable for Door Weight ≤1200kg/2645.55lbs Suitable for Door Width 2-12mm/0.0787-0.472in
Latch Strength Adjustable Limit Mode Spring Switch
Working Voltage AC220v, 50Hz Working Power 550w
Working Temperature -250C-+550C Running Speed 12m(472.44in)/min
Protection Class IP44 (Outdoor Waterproof) Product Size 32*26*39cm/12.6*10.24*15.35in
Net Weight About 12.5kg/27.56lbs

Product Tips

Notes

1. Please read the manual completely before installation and use. And pay particular attention to the safety instructions included.
2. Please note that the battery is not included in the package, so you need to prepare one 27A 12V battery by yourself.
3. Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
