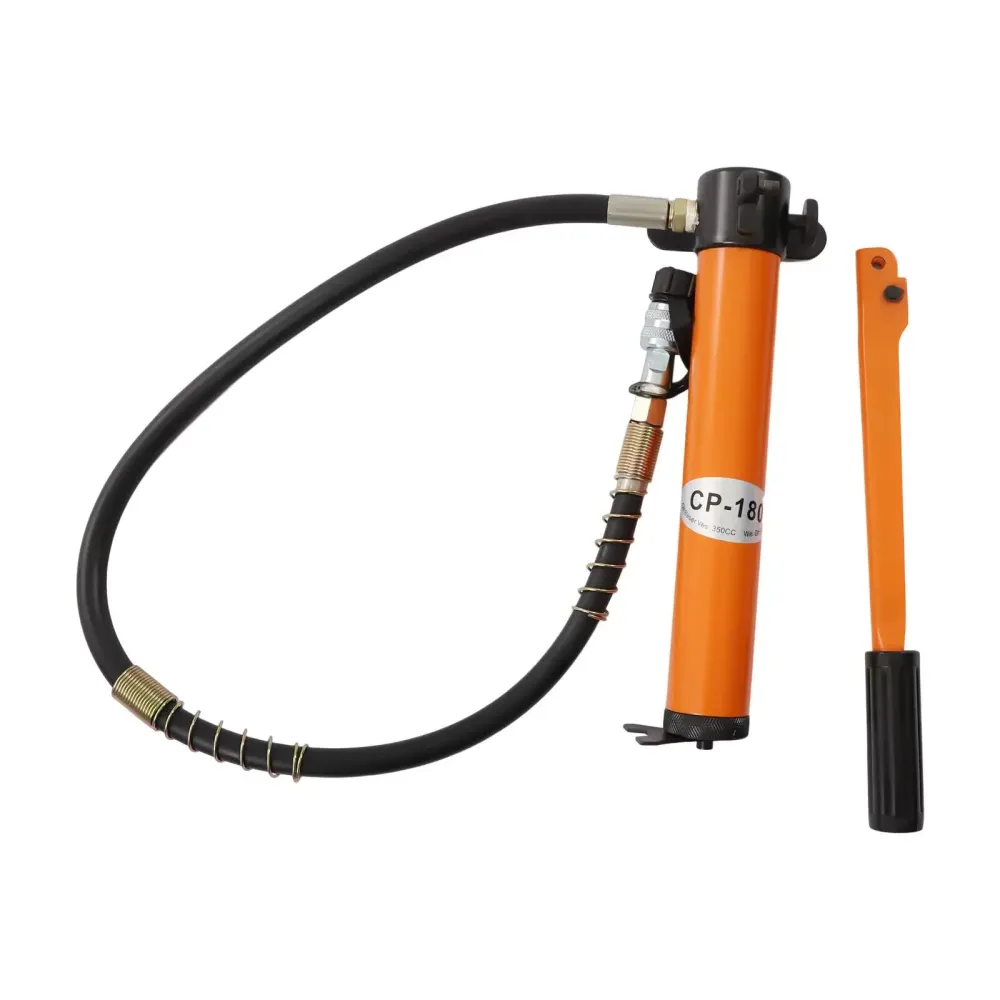

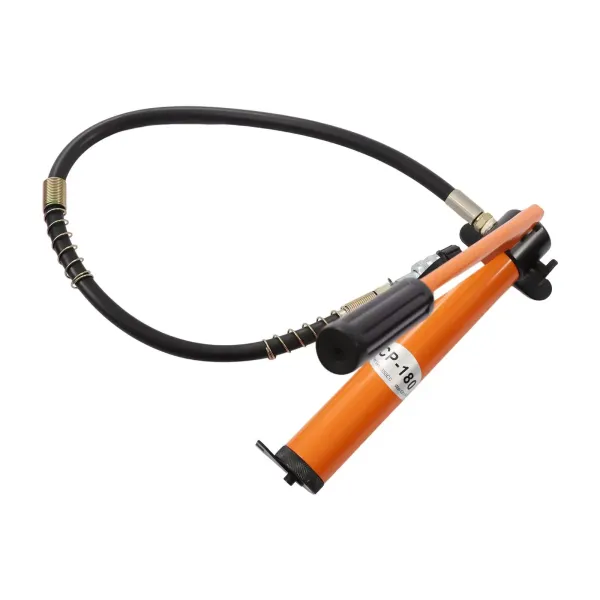

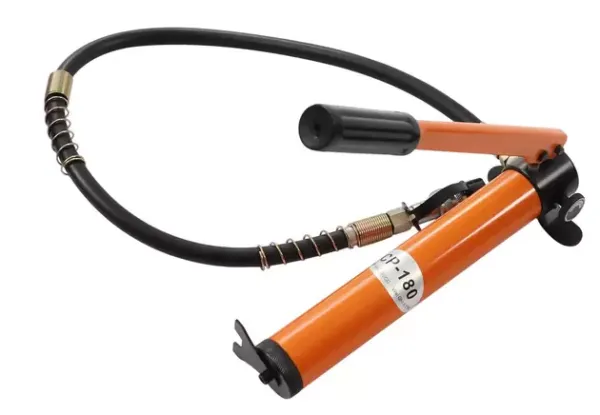

CP-180 70Mpa High Pressure Portable Hydraulic Hand Pump with Hose (1m)

CP-180 70Mpa High Pressure Portable Hydraulic Hand Pump with Hose (1m)

(5 reviews)

Ask a question

AU $123.99 AU $125.00

Brand: CNCEST
Product Code: GY42YFS7WDWMT
Availability: In Stock

Estimated Delivery:

Free Fast Shipping:

On all orders

Description
Reviews (5)
Recommer
Delivery and Return

Large Reservoir Capacity

It has a reservoir capacity of 350cc, so you can use it easily without frequent refilling.

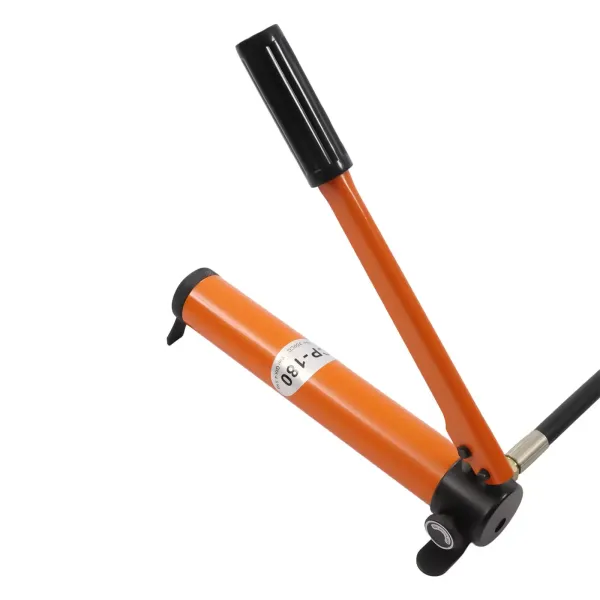

User-friendly

The manual hydraulic pump has a long ergonomic operating handle for a smoother, more comfortable grip during use. Its thickened insulation feature also provides non-slip protection for long-term use.

Easy to Operate

Its structure is not complicated and does not require tedious operation steps, so you can easily master it. And it does not need to be plugged in and can be used with a variety of split products, making it easier to use.

Strong Power

Its maximum operating pressure can reach 70Mpa, making it more powerful than other similar machines, and making it easier for you to use. It not only has a smooth surface, but also has good sealing and no oil leakage.

Compact and Lightweight

Its proper size and weight (3.5kg/7.72lbs) allow it to follow you through various operations.

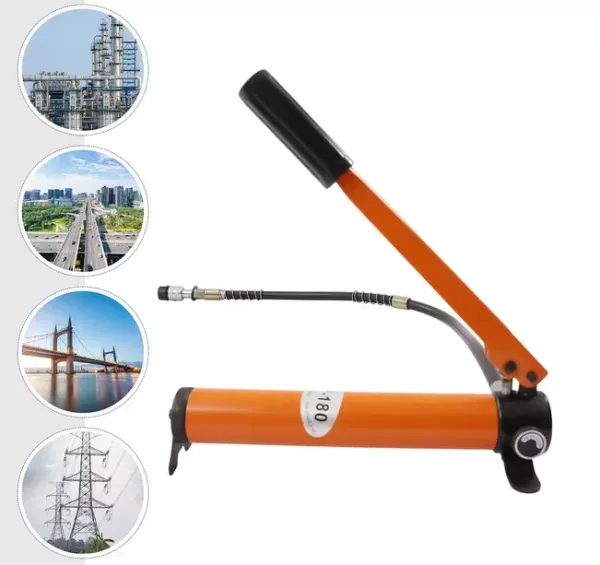

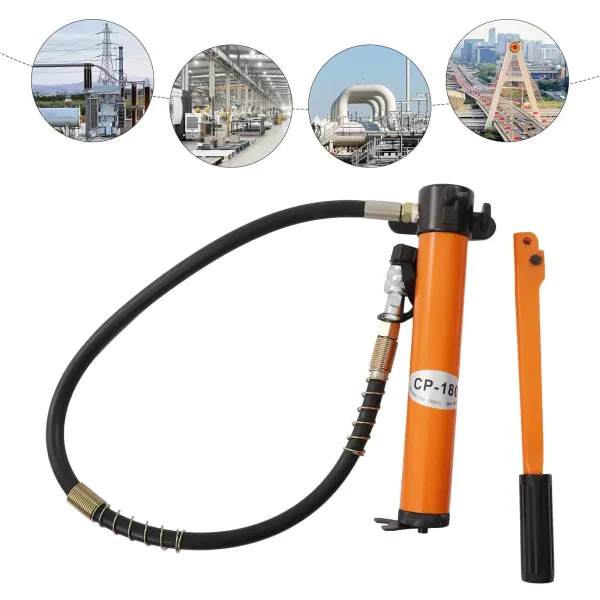

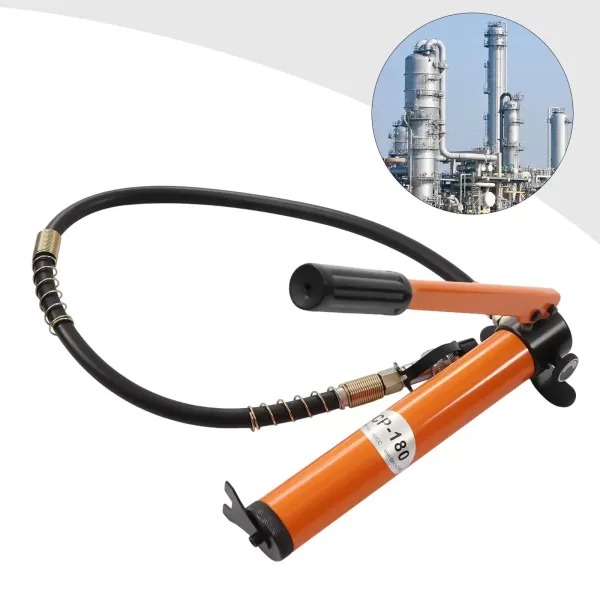

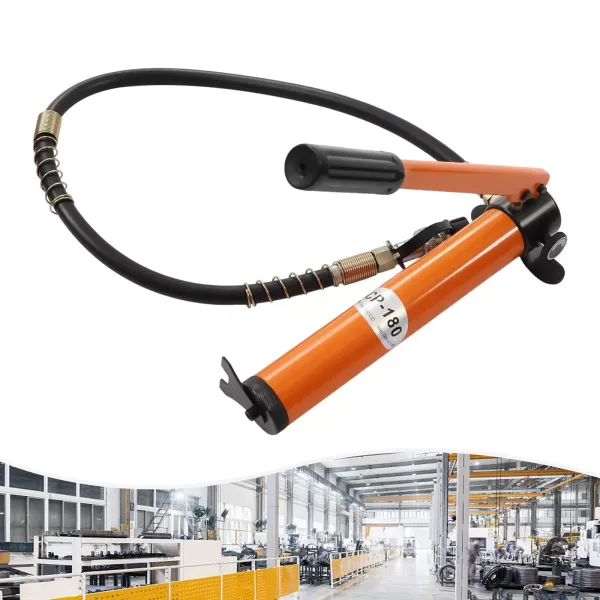

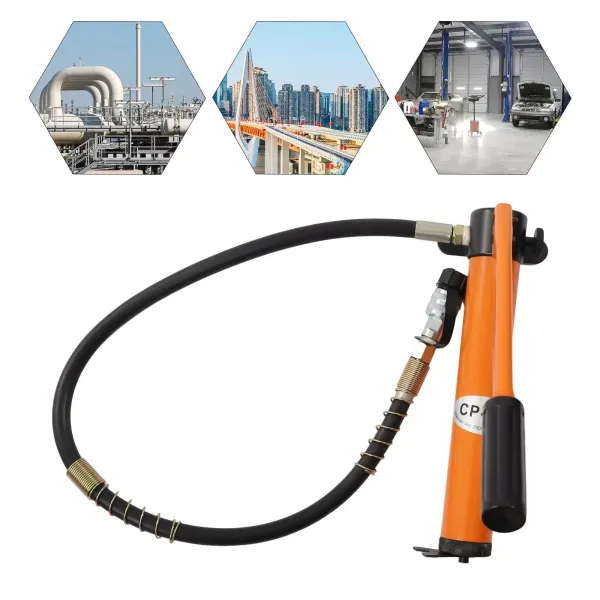

Application

It can be used with hydraulic punches, hydraulic cutting machines, hydraulic cylinders, hydraulic tongs, etc. to perform various operations, such as lifting, bending, straightening, shearing, riveting, assembly, disassembly, etc.

Durable Material

The item is made of steel, which is relatively strong and stable. It is also not easy to damage or rust under proper use and is very durable.

Smooth Surface

Its steel surface with plastic spraying can resist corrosion and does not rust. The smooth surface greatly reduces the friction between machines.

Steel Wire Joint Sheath

Its joint is equipped with steel wire protection, which can effectively avoid damage caused by excessive bending of the joint oil pipe so that it can be used for a long time.

Specifications

Name: Manual Hydraulic Pump

Model: CP-180

Color: Orange

Material: Steel

Surface Treatment: Plastic Spraying

Condition: Brand New

Type: Manual

Oil Reserves: 350CC

Maximum Pressure: 70Mpa（700kg/ cm²）

Low-Pressure Speed: 2L/ s (0.44Gal/ s)

High-Pressure Speed: 0.2L/ s (0.044Gal/ s)

Tubing Connector: ZG3/8''

Pump Body Length: 33cm/ 13in

Pump Body Height: 11cm/ 4.3in

Handle Length: 34cm/ 13.4in

Hose Length: 1m/ 3.3ft

Package Size: 37.5*22.5*16cm/ 14.76*8.86*6.3in

Net Weight: 3.5kg/ 7.72lbs

Gross Weight: 4kg/ 8.82lbs

Package Included:

1* Manual Hydraulic Pump

1* 1m Hose

1* Handle

Specifications

Name	Manual Hydraulic Pump	Model	CP-180
Color	Orange	Material	Steel
Surface Treatment	Plastic Spraying	Condition	Brand New
Type	Manual	Oil Reserves	350CC
Maximum Pressure	70Mpa（700kg/ cm²）	Low-Pressure Speed	2L/ s (0.44Gal/ s)
High-Pressure Speed	0.2L/ s (0.044Gal/ s)	Tubing Connector	ZG3/8''
Pump Body Length	33cm/ 13in	Pump Body Height	11cm/ 4.3in
Handle Length	34cm/ 13.4in	Hose Length	1m/ 3.3ft
Package Size	37.522.516cm/ 14.768.866.3in	Net Weight	3.5kg/ 7.72lbs
Gross Weight	4kg/ 8.82lbs

Product Tips

Notes:

1.Please note that there is a pressure-reducing valve on the cylinder head, which should be loosened during use to avoid sealing the hydraulic cylinder.
2.Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.

How to Use

1.Open the dust cover and connect it to the male connector of other tools.
2.Connect the connectors tightly to avoid leakage.
3.Tighten the pressure relief valve switch clockwise before use.
4.Press the handle back and forth.
5.Then the piston of the cylinder will rise.
6.Loosen the pressure relief valve switch counterclockwise.
