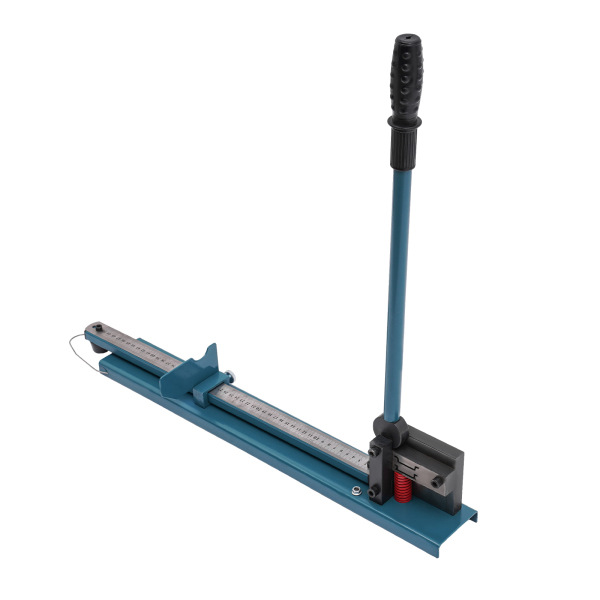

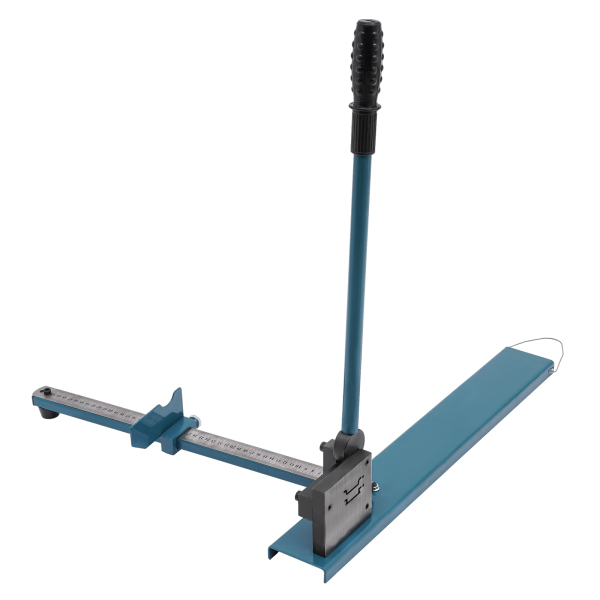

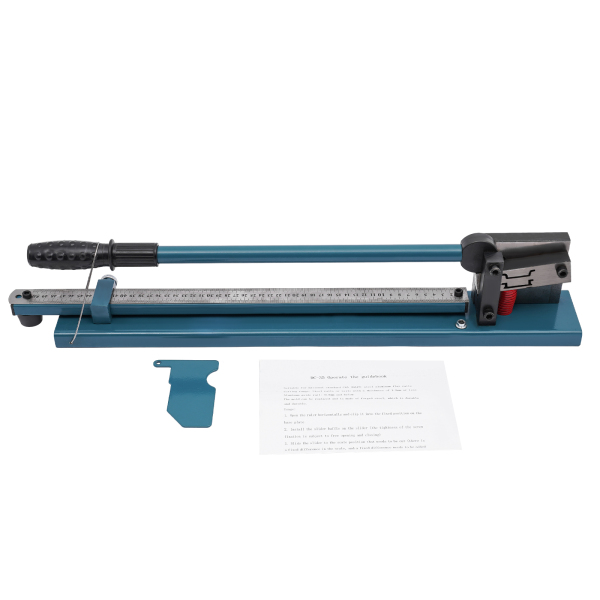

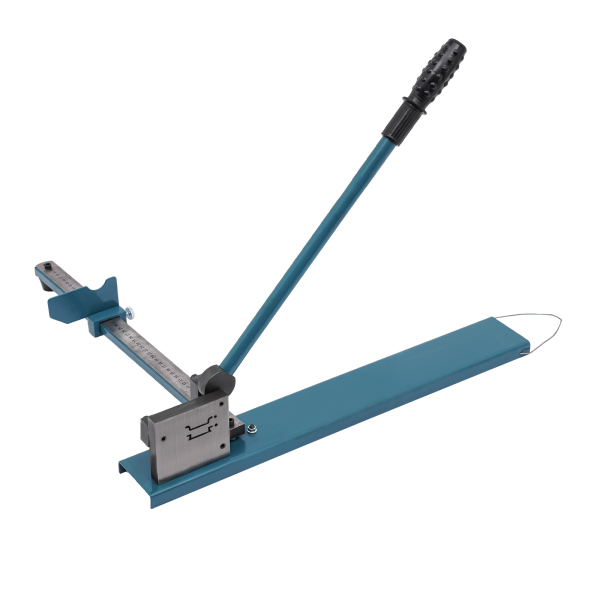

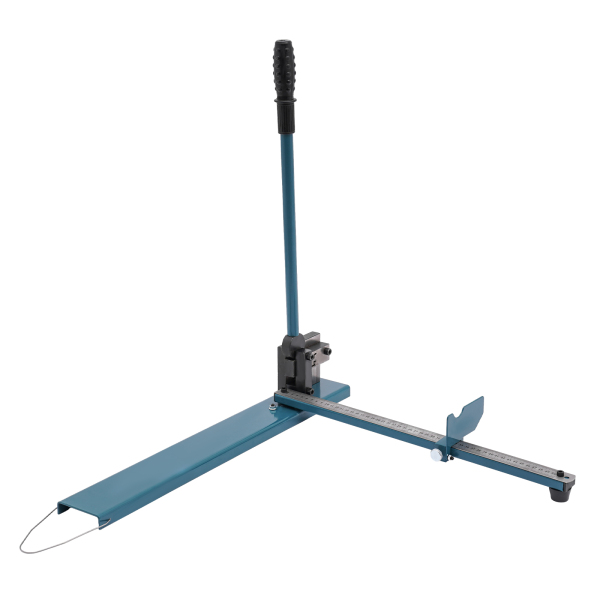

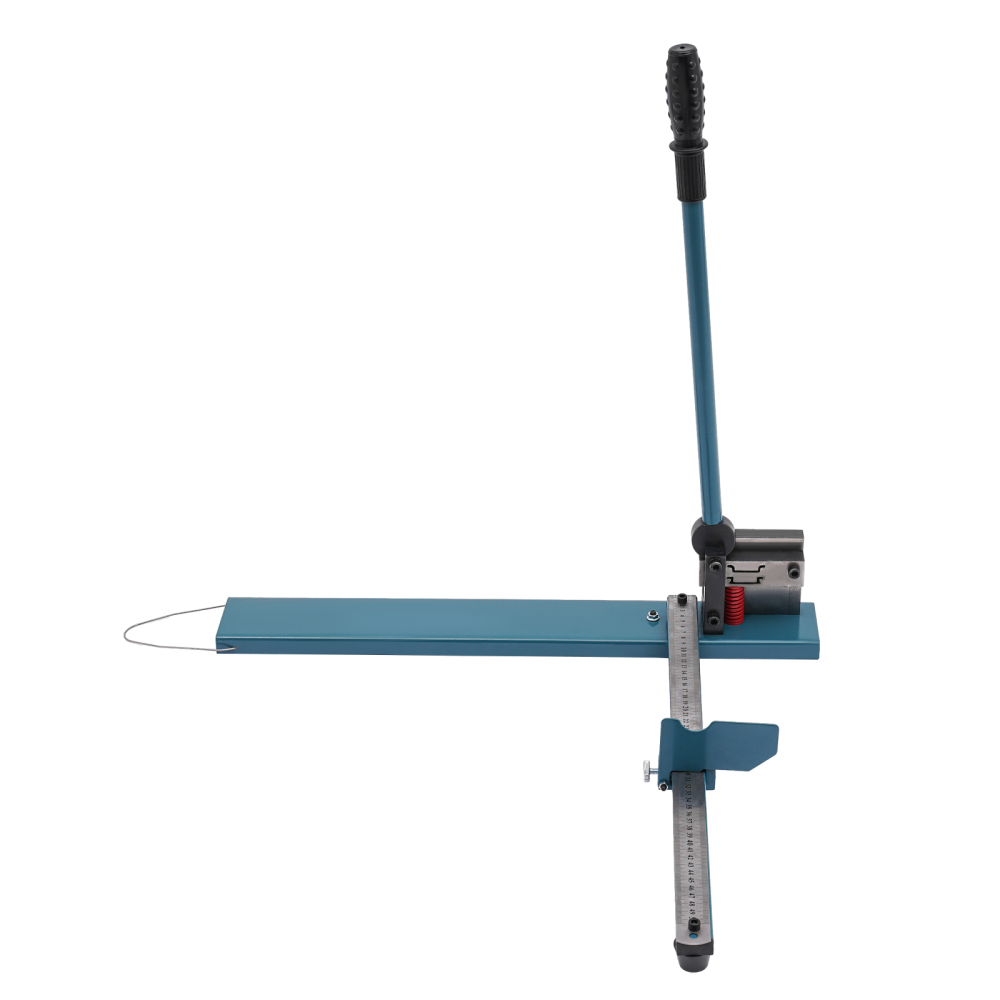

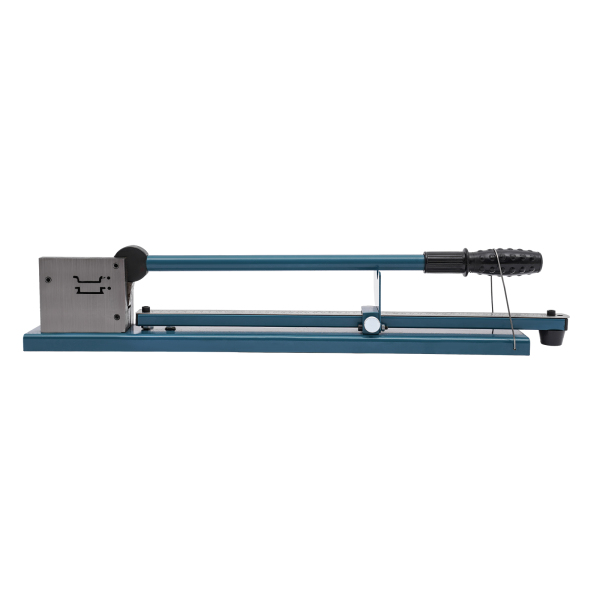

Rail Cutter Rail Cutting Machine Wide Cutting Range Guide Rail Cutter with Measuring Ruler for Power and Construction Industries
- Brand: CNCEST
- Product Code: JZONPS-000200
- Availability: In Stock

Specifications
Model | DC-35 | Material | 40CR, 45# Steel, A13 Steel , Iron Wire, Rubber |
Color | Blue | Cutting Object | Aluminum Rail, Iron Rail |
Cutting Model | C 45 | Work Form | Manual |
Cutting Width | 35-40cm/13.8-15.7in | Cutting Height | 7mm/0.3in |
Cutting Thickness | ≤ 1mm/0.04in | Handle Length | 64cm/25.in |
Folded Size | 65*8.5*13.5cm/25.6*3.3*5.3in | Unfolding Size | 60*8.5*64cm/23.6*3.3*25.2in |
Gross Weight | 5.5kg/12.13lbs | Package Size | 70*17*10cm/27.6*6.7*3.94in |
Product Tips
.jpg)

Notes
Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.

How to Operate
1. Rotate the ruler 90° to fix it, move the slider to the length to be cut, and turn the screw to fix it.
2. Insert the guide rail from the left side and push it to the fixed position of the slider.
3. Hold the handle and press down to cut the guide rail.
4. After the guide rail is cut, gently open the handle and check the length by measuring it with a ruler.
