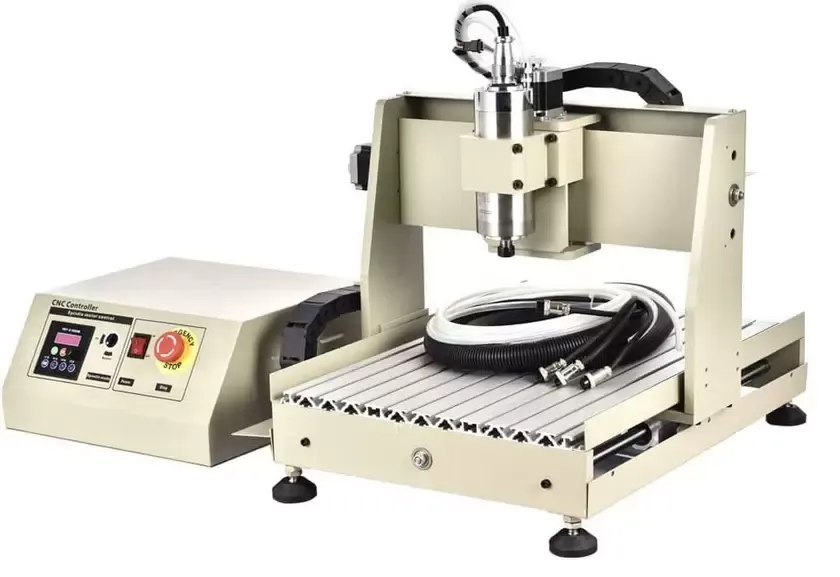

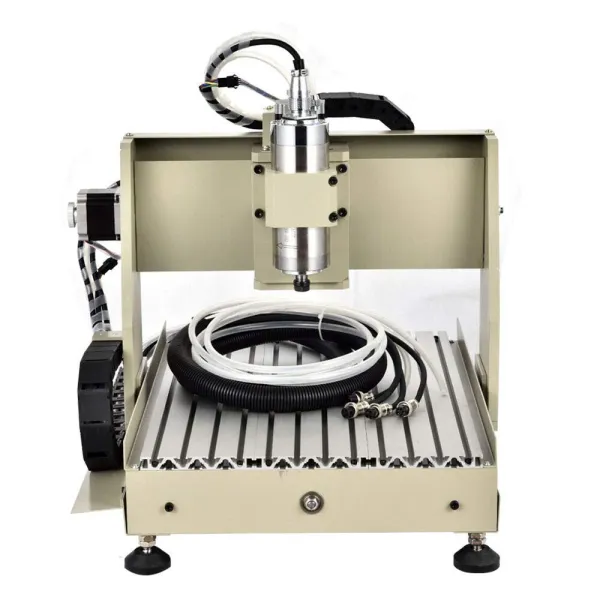

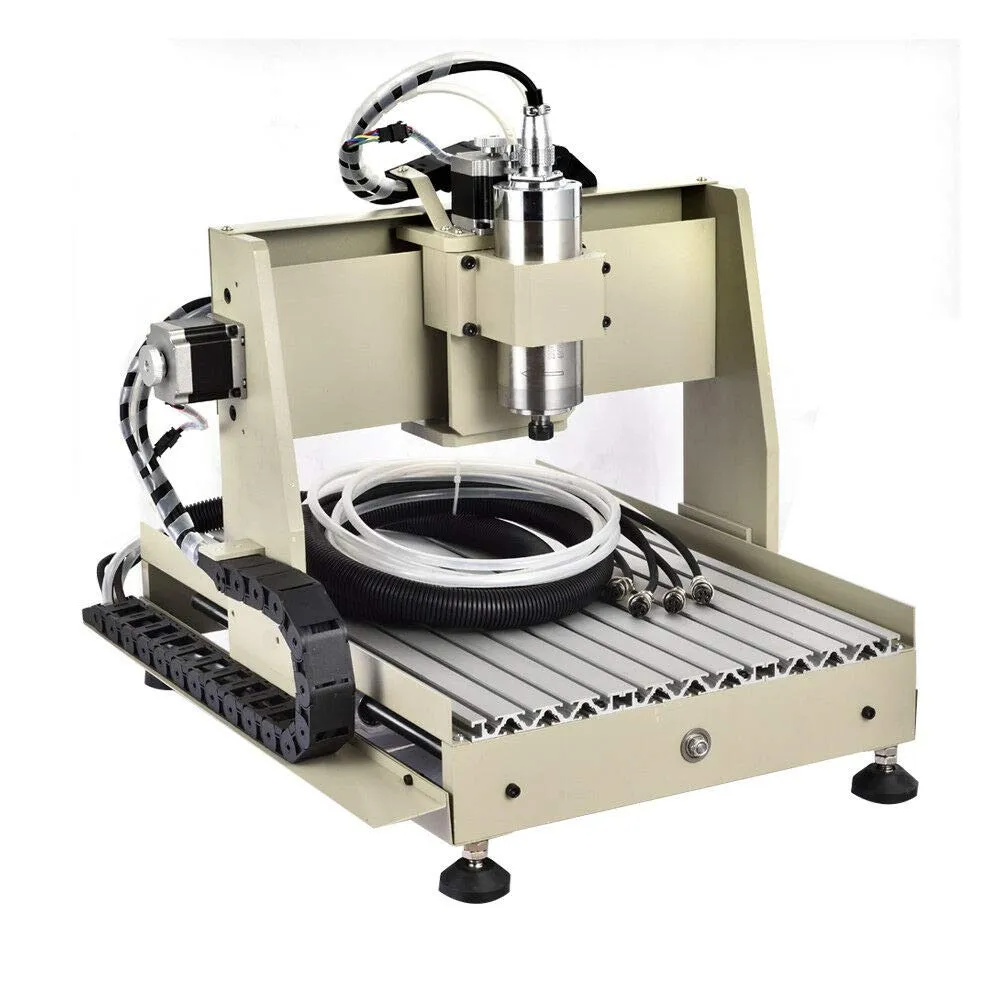

4 Axis Router Engraver CNC 3040 Desktop Engraving Milling Tool Drilling Engraving Machine

Free Shipping for All Products with UK Local Warehouse! Fast Delivery!

Hello, Sign In

Account & Order

Track Order Browsing History Contact Us

4 Axis Router Engraver CNC 3040 Desktop Engraving Milling Tool Drilling Engraving Machine

4 Axis Router Engraver CNC 3040 Desktop Engraving Milling Tool Drilling Engraving Machine

(3 reviews)

Ask a question

£789.00 £824.00

Brand: CNCEST
Product Code: TS001USB-2ITEM
Availability: Out Of Stock

Estimated Delivery:

Free Fast Shipping:

On all orders

Description
Reviews (3)
Recommer
Delivery and Return

High Quality

High quality precision ball screw, more precise engraving. Anti-black edge, high precision and long life.

Durable and Reliable

The 0.8KW water-cooled VFD is available for a long time, which enhances the machinability of the machine and can be used to process aluminum alloys and hardwoods.

Flexible in use

It can be made of different materials (metal and non-metal), such as

Powerful

Advertising signs, PCB, nameplates, badges, gaskets, bronzing plates, aluminum alloys, acrylic plates, ABS resin two-color plates, PVC foam plates, impression boards, signs, architectural models, dashboards, wood products, etc. . The mini CNC router frame is removable.

Wide application

Suitable for industry, technical research, advertising design, art creation, teaching, student projects and hobbies.

High quality

More steady and strong equipped with aluminum alloy frame materials. The reinforced and thickened machine body makes transportation absolutely to be a safer and longer lifetime. High Precision Stepping motor makes engraving more precise.

Stable and durable

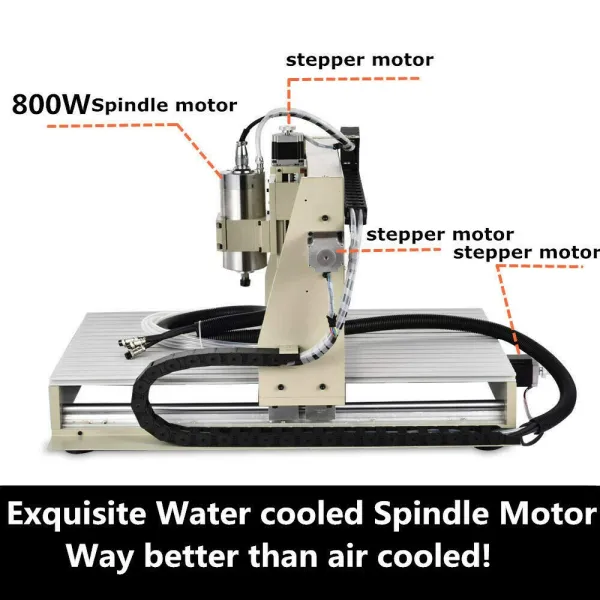

The water-cooled spindle is more stable and durable.

Specifications

X,Y,Z Working Area: 400(Y)*295(X)*80(Z)mm

Outside dimension: 630*505*495mm(L*W*H)

Table size: 550(Y)*360(X)mm

Lathe structure: 6061/6063 Aluminium alloy

Max. Feeding height: ≤ 60mm

Drive unit: SFU01204-4 Ball Screws

Sliding unit: High intensity Chromeplate shaft

Stepping motor: 57 two-phase 3A 150N.cm

Outside dimension: 65*158mm

Material: 304 stainless steel，Copper coil，Pressure cast aluminum pipe water jacket VOLTS

VOLTS power: AC 220V/50Hz，5A,0.8KW VFD

Spindle speed: 24000 rpm

Max working frequency: 400Hz

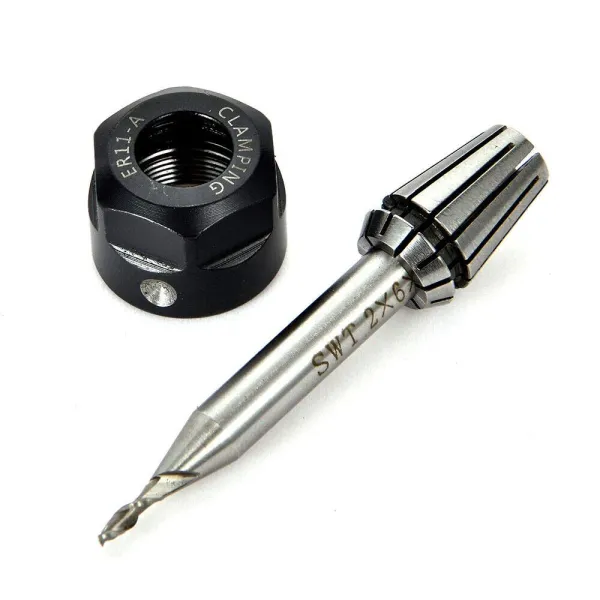

Principal axis collet: ER11collet，Standard configuration

Nut Model: ER11-A

Cooling: Water-cooling

Package Included

1X main unit (Frame)

1X main unit (working base)

2X Fence baffle

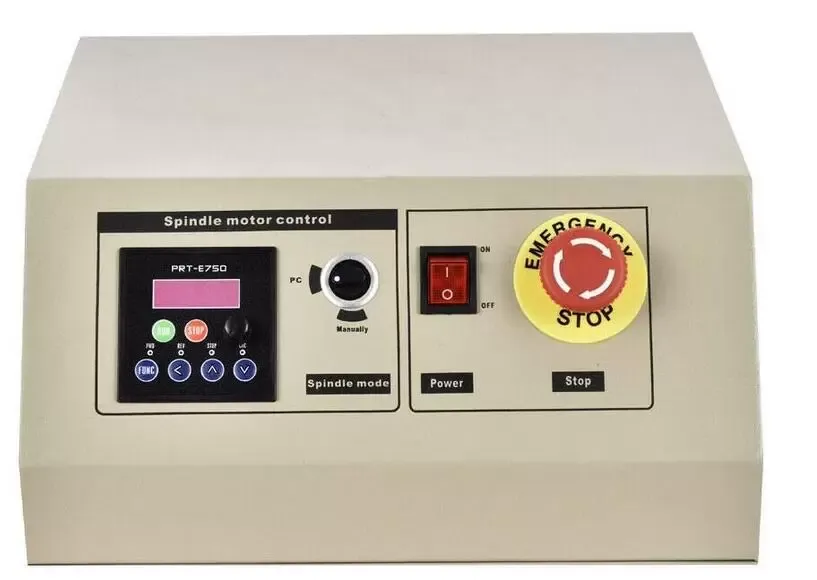

1X control box

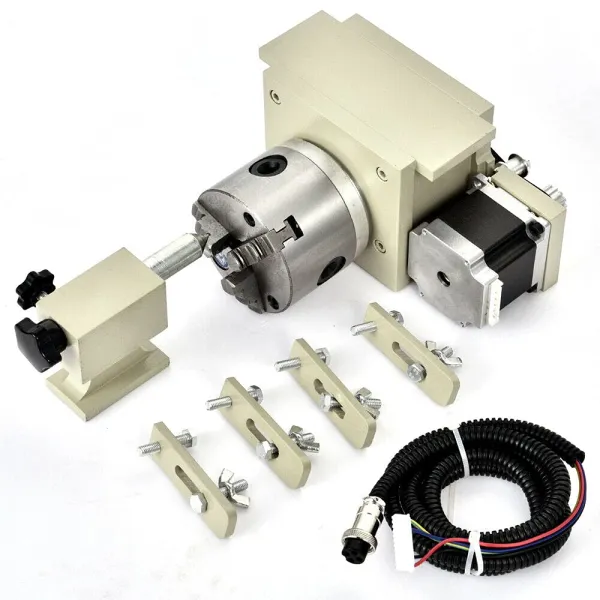

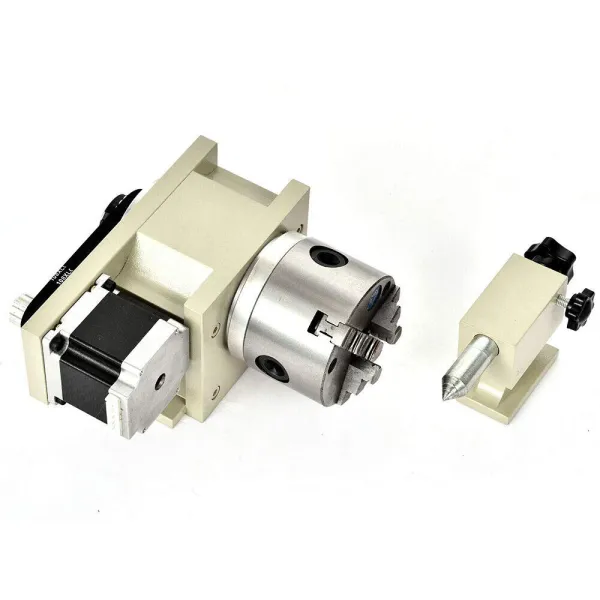

1X A axis

1X Sinal cable for A axis

1X pump

1X USB line

2X Fuse (5A)

1X Power cable

1X Manual

2X CD

and other accessories necessary for installation

Specifications

X,Y,Z Working Area	400(Y)295(X)80(Z)mm	Outside dimension	630505495mm(LWH)
Table size	550(Y)*360(X)mm	Lathe structure	6061/6063 Aluminium alloy
Max. Feeding height	≤ 60mm	Drive unit	SFU01204-4 Ball Screws
Sliding unit	High intensity Chromeplate shaft	Stepping motor	57 two-phase 3A 150N.cm
Outside dimension	65*158mm	Material	304 stainless steel，Copper coil，Pressure cast aluminum pipe water jacket VOLTS
VOLTS power	AC 220V/50Hz，5A,0.8KW VFD	Spindle speed	24000 rpm
Max working frequency	400Hz	Principal axis collet	ER11collet，Standard configuration
Nut Model	ER11-A	Cooling	Water-cooling

Notes:

Please don't update the software when installed, then it will not need the license Numbers.
