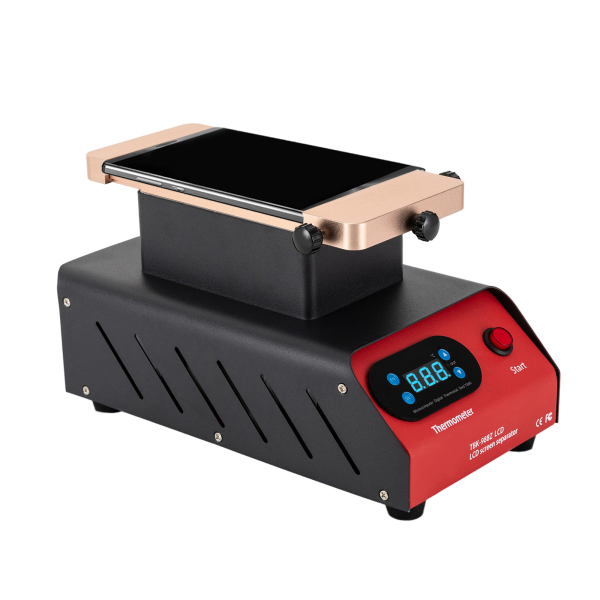

Screen Separator Dual Vacuum Pump Mobile Phone Repair, Low Noise and High Efficiency Screen Separation
Specifications
Material | Iron, Aluminum | Color | Black, Red |
Mounting Type | Free Standing, Tabletop | Input | AC220V |
Power | 250W | Plug Type | UK Plug |
Applicable Cell Phone Screen | 7 inches or Less | Temperature Range | 40-120℃/104-248℉ |
Product Size | 13.5*24.2*14.2cm/5.31*9.52*5.59in | Heated Surface Size | 19*8cm/7.48*3.15 in |
Package Size | 29.5*21.5*18cm/11.61*8.46*7.09 in | Net Weight | 2.6kg/5.73lbs |
Gross Weight | 3.18kg/7.01 lbs |
Product Tips
.jpg)

How to Use:
1. Turn on the power: plug the power cord into the power connector at the back of the separator and turn on the power switch.
2. Preset temperature: press the SET key to preset the temperature, press the up-regulation key to set the temperature at about 85 degrees, and press ENT to save.
3. Prepare wire puller: Equipped with a wire puller to separate the screen.
4. Place the silicone anti-slip pad: placed on the panel of the separator, and align the pad with the panel hole position.
5. Screen separation preparation: put the screen to be separated into the center of the panel, press the start button to begin vacuum adsorption, and ensure that the screen is sucked.
6. Start cutting screen: screen preheats for 3-5 minutes to start cutting.
7. After separating the burst screen, turn off the power to separate the machine, if it is dry glue, you can directly tear it down by hand, such as water glue will need to remove with the help of a blade and glue removal solution.

Notes:
Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
