Name: X3 White with Wind Wheel 24V 100W Vertical Wind Turbine, Vertical Wind Generator with Auxiliary Wind Wheel
Brand: CNCEST
SKU: YLLNTC-000900
Price: 2459.88 SEK
Availability: InStock

Free Shipping for All Orders! Fast Delivery!

Hello, Sign In

Account & Order

Track Order Browsing History Contact Us

X3 White with Wind Wheel 24V 100W Vertical Wind Turbine, Vertical Wind Generator with Auxiliary Wind Wheel

X3 White with Wind Wheel 24V 100W Vertical Wind Turbine, Vertical Wind Generator with Auxiliary Wind Wheel

(0 reviews)

Ask a question

2,459.88SEK

Brand: CNCEST
Product Code: YLLNTC-000900
Availability: In Stock

Estimated Delivery:

Free Fast Shipping:

On all orders

Description
Reviews (0)
Recommer
Delivery and Return

Long Service Life

The product adopts nylon fiber, aluminum, copper, stainless steel, and the plastic spraying process, making the product resistant to corrosion and impact, making it hard to deform, and keeping it glossy and practical for long-term use.

Green Energy

Wind power is a clean and renewable source of energy, so generating electricity with this product produces no harmful emissions or greenhouse gases, and is kinder to the environment, making your life more economical and environmentally friendly.

High Efficiency

The 5.59mph low starting wind speed, 100W high power, and powerful copper wire permanent magnetic levitation motor allow this product to efficiently utilize wind energy to generate electricity. In addition, the wind-assisted wheel makes the product easier to start, further improving its efficiency.

Reliable Design

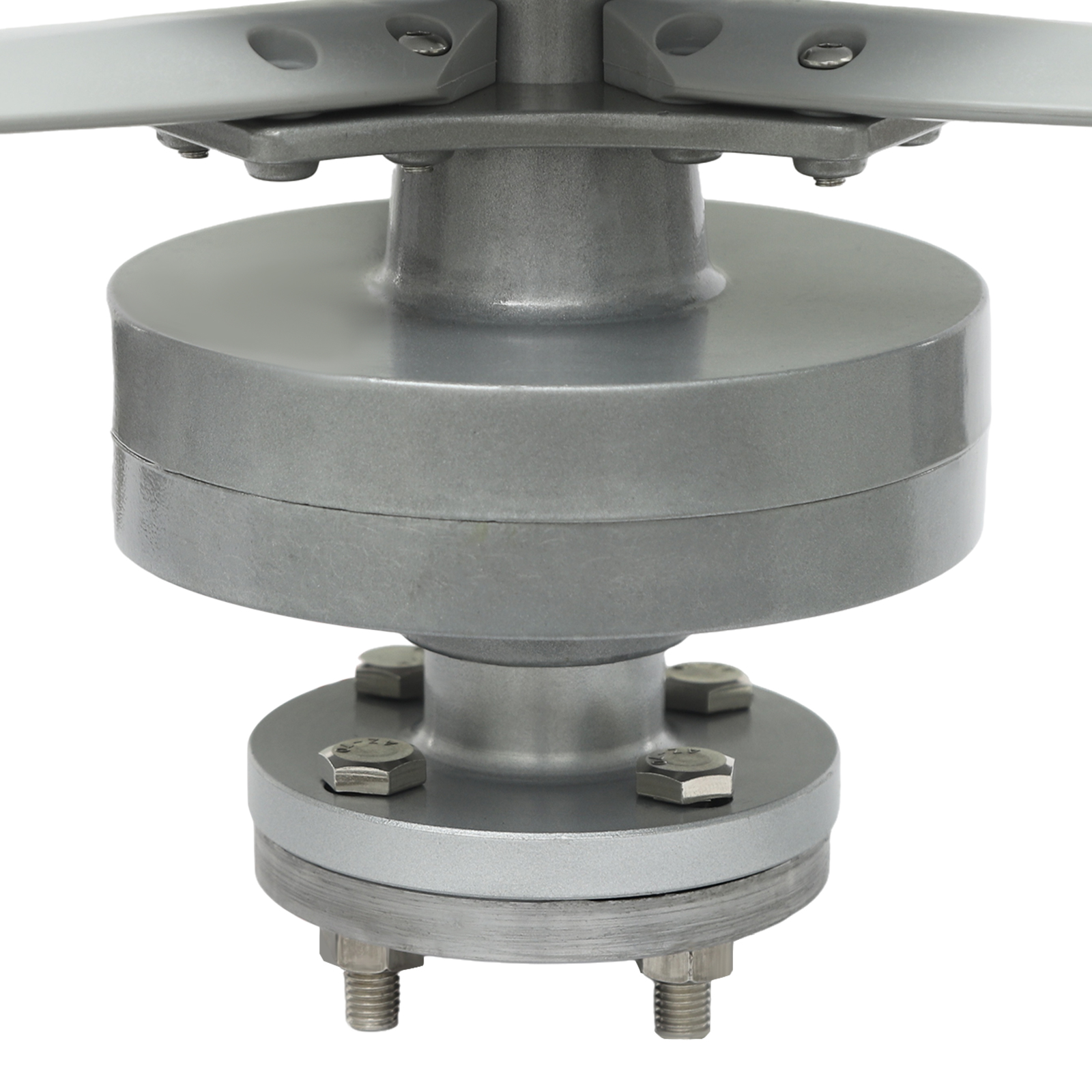

The permanent magnet levitation generator is characterized by low loss, high power, and low torque during start-up, ensuring high power conversion efficiency and smooth and reliable operation.

Low Noise Operation

The product adopts a double bearing design to ensure a low noise(30dB) and stable operation, giving you a quiet and comfortable living environment.

Thoughtful Design

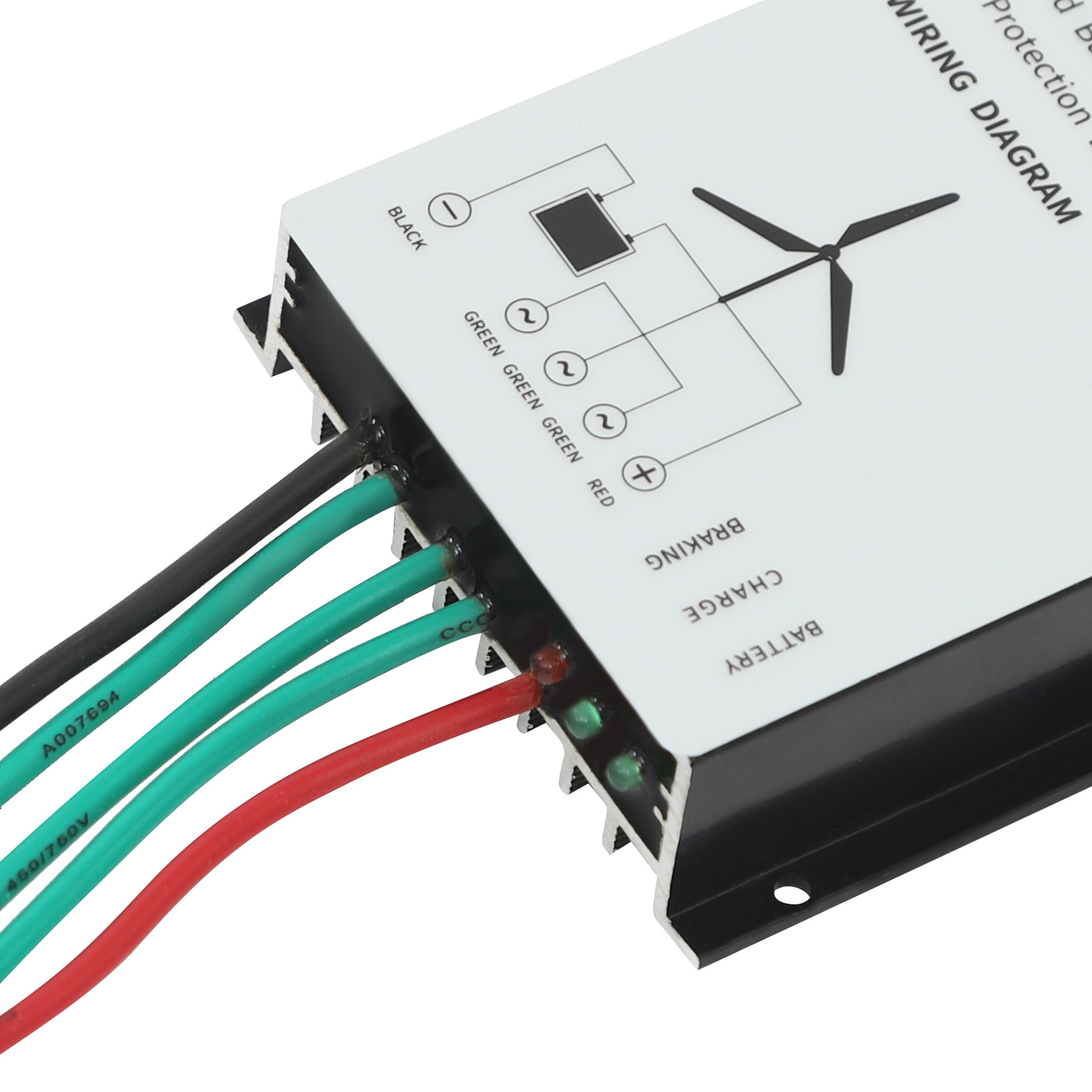

The product adopts an intelligent microprocessor controller to effectively regulate the current and voltage. In addition, the product comes with an automatic braking design. When the product reaches the braking voltage (28.8V), the speed will be reduced, until the voltage drops to about 24V and then speed up, and so on and so forth to ensure stable and safe operation.

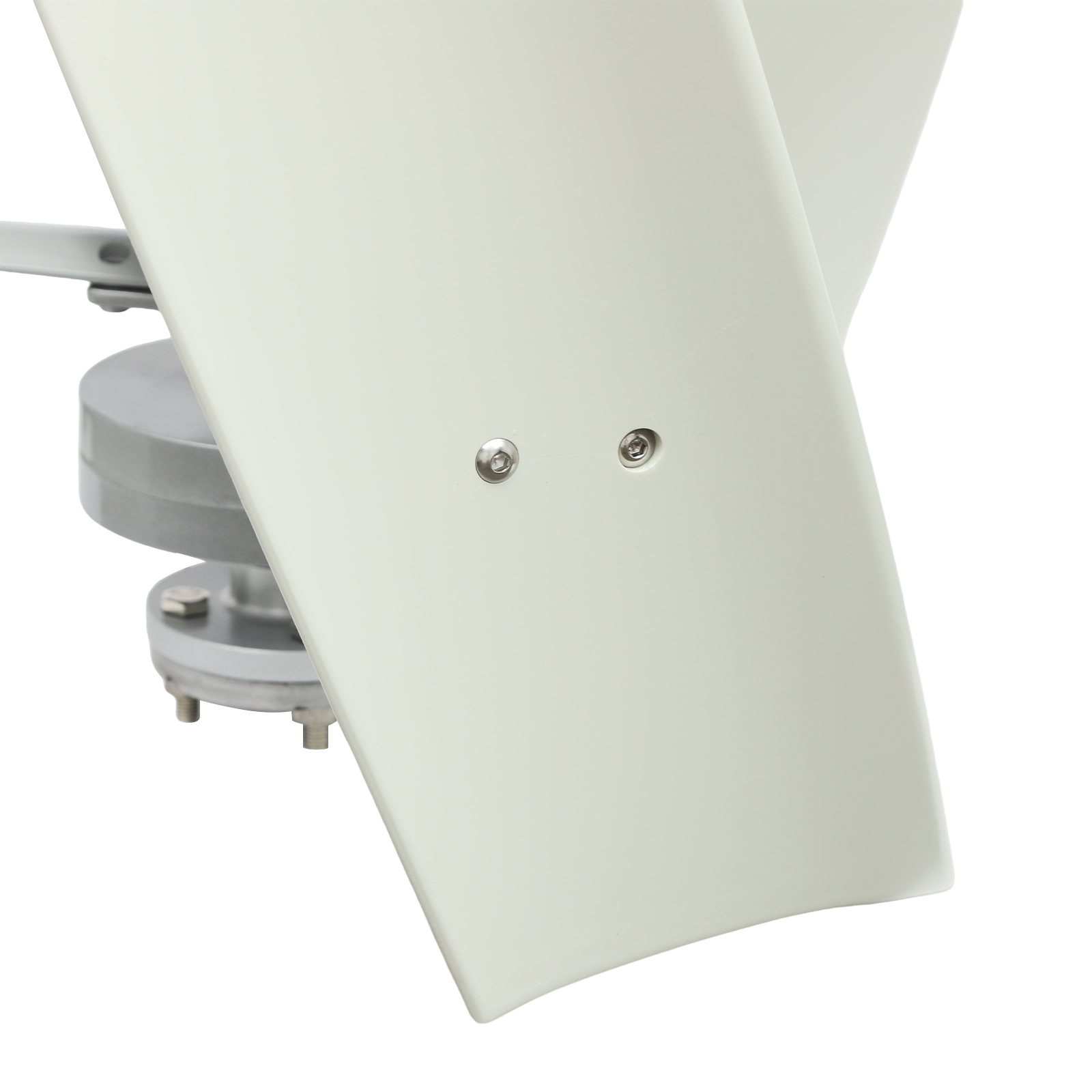

Nylon Fiber Blades

The blades are made of premium nylon fiber, which is strong and durable with excellent aerodynamic shape design, reducing the starting wind speed and improving the efficiency of wind energy conversion.

Spiral Structure

The product adopts the spiral structure, making the product rotate in the horizontal plane to bring low wind pressure to withstand strong typhoons.

Application

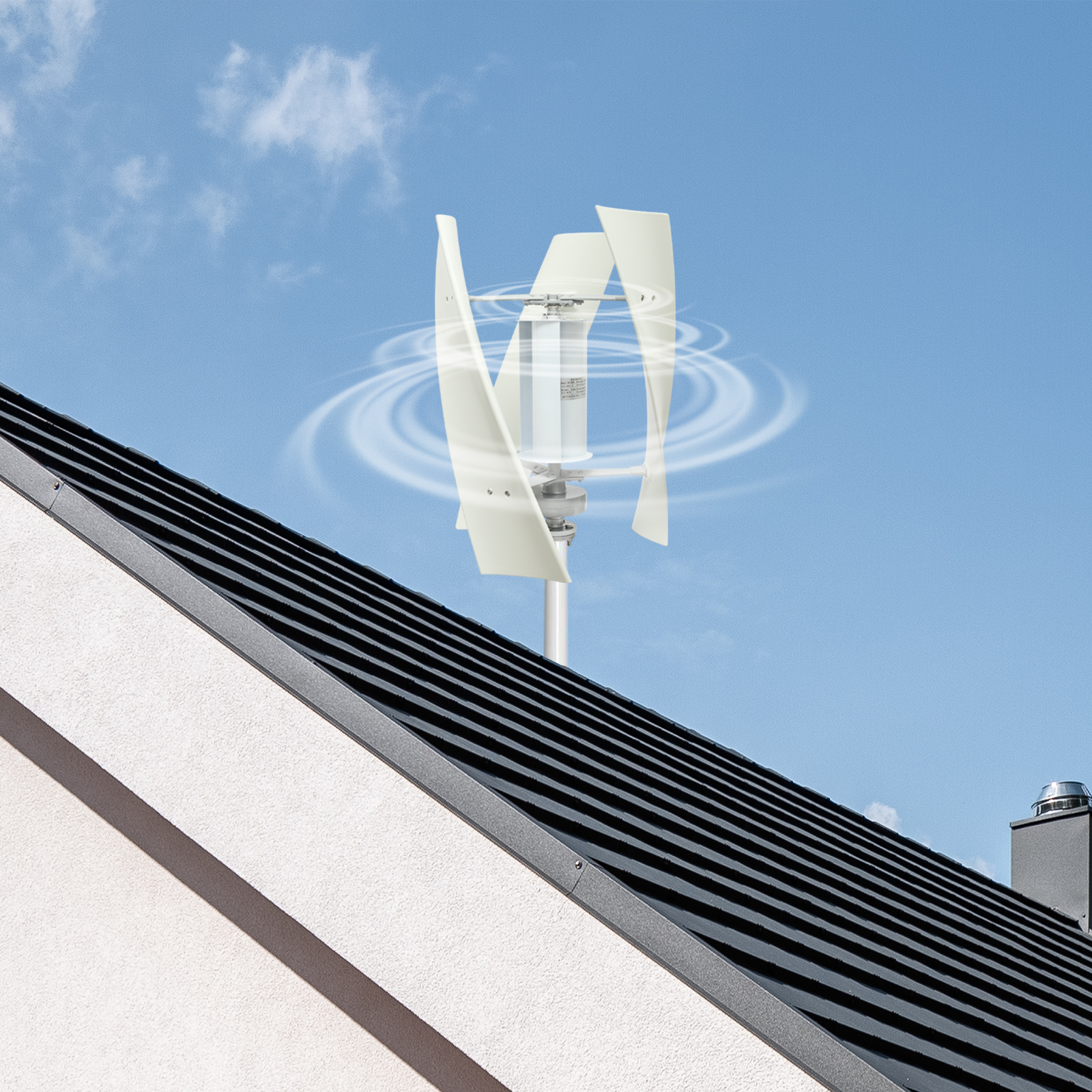

This product is suitable for home, business, and industrial energy supply for boats, gazebos, cabins or mobile homes, and the tops of streetlights.

Specifications

Color: White

Material: Nylon Fiber, Aluminum, Copper, Stainless Steel

Process: Plastic Spraying

Generator Type: Copper Wire Permanent Magnet Levitation Generator

Braking Type: Electro-mechanical Brake

Controller IP Protection Level: IP67

Power Source: Wind Powered

Rated Battery Voltage: 12V/24V

Fan Blades: 4

Maximum Power: 100W

Rated Voltage: 24V

Wheel Diameter: 53cm/20.87in

Rated Wind Speed: 13m/s/29.08mph

Safe Wind Speed: 35m/s/78.29mph

Start-up Wind Speed: 2.5m/s/5.59mph

Working Temperature: -40-80℃/-40-176℉

Noise: 30dB

Flange: DN20

Flange Outer Diameter: 10.5cm/4.13in

Flange Inner Diameter: 7.5cm/2.95in

Flange Hole Quantity: 4

Flange Hole Diameter: 1.4cm/0.55in

Rod Connection Diameter: 5.6-6.2cm/2.2-2.44in

Assembly Required: Yes

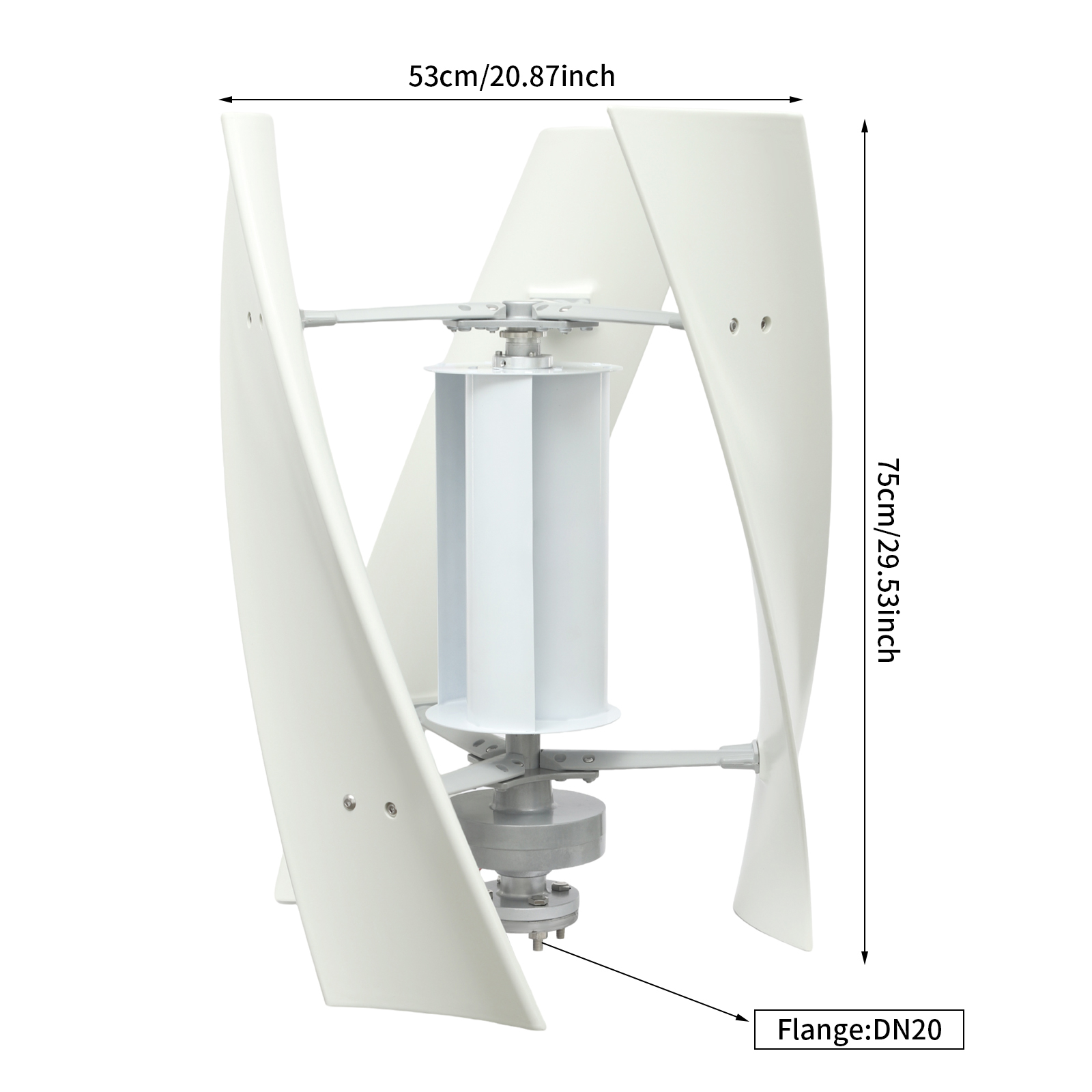

Product Size(D*H): 53*75cm/20.87*29.53in

Package Size: 86*38*20cm/33.86*14.96*7.87in

Gross Weight: 12kg/26.46lbs

Net Weight: 10.5kg/23.15lbs

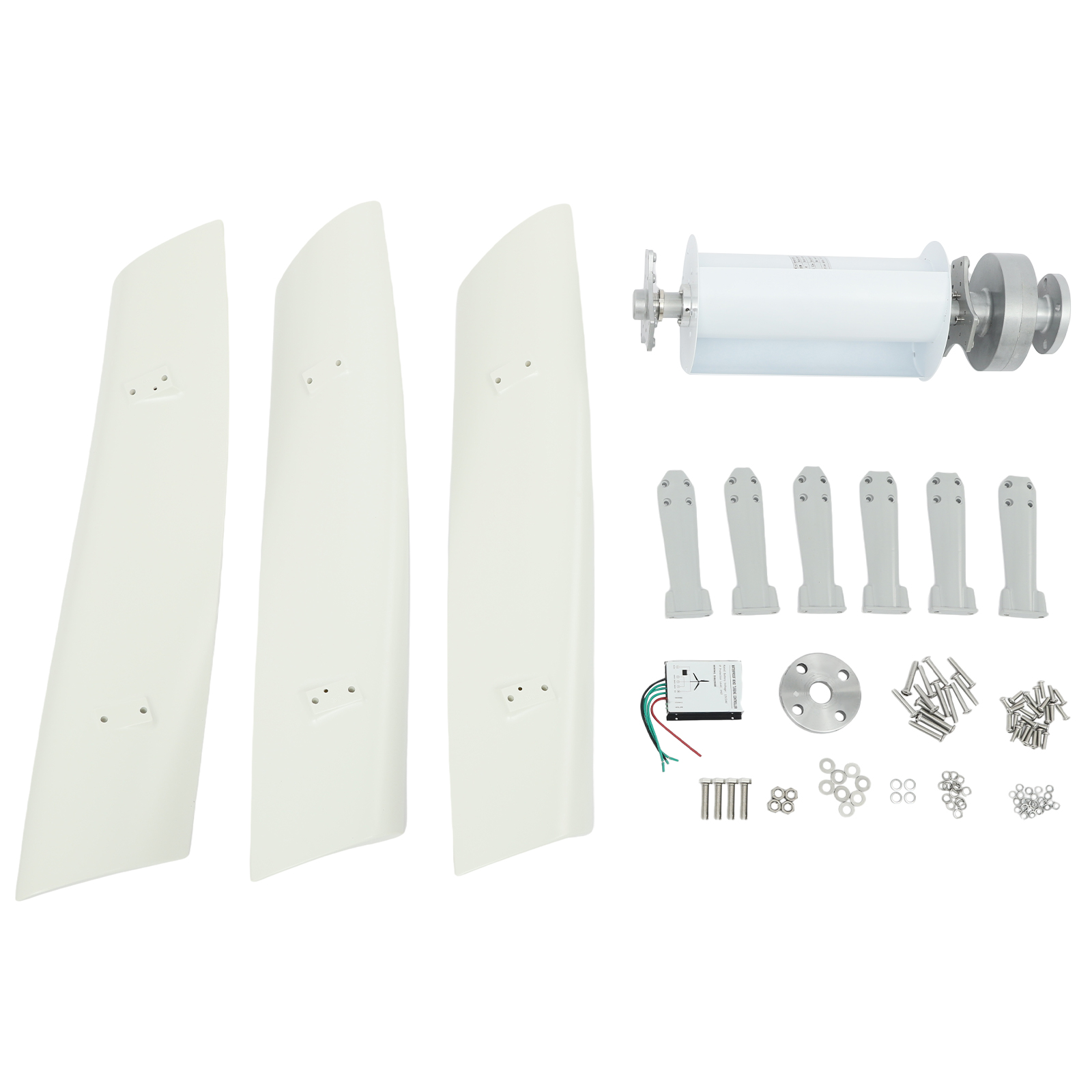

Package+Included

1* Vertical Wind Turbine Generator

1* Controller

Other Needed Accessories

Specifications

Color	White	Material	Nylon Fiber, Aluminum, Copper, Stainless Steel
Process	Plastic Spraying	Generator Type	Copper Wire Permanent Magnet Levitation Generator
Braking Type	Electro-mechanical Brake	Controller IP Protection Level	IP67
Power Source	Wind Powered	Rated Battery Voltage	12V/24V
Fan Blades	4	Maximum Power	100W
Rated Voltage	24V	Wheel Diameter	53cm/20.87in
Rated Wind Speed	13m/s/29.08mph	Safe Wind Speed	35m/s/78.29mph
Start-up Wind Speed	2.5m/s/5.59mph	Working Temperature	-40-80℃/-40-176℉
Noise	30dB	Flange	DN20
Flange Outer Diameter	10.5cm/4.13in	Flange Inner Diameter	7.5cm/2.95in
Flange Hole Quantity	4	Flange Hole Diameter	1.4cm/0.55in
Rod Connection Diameter	5.6-6.2cm/2.2-2.44in	Assembly Required	Yes
Product Size(D*H)	5375cm/20.8729.53in	Package Size	863820cm/33.8614.967.87in
Gross Weight	12kg/26.46lbs	Net Weight	10.5kg/23.15lbs

Product+Tips

Notes

1.Please check the size carefully before ordering.
2.Please be sure to use it with a gel battery or a lead-acid battery. The lithium batteries are not suitable for the product.
3.The mounting height depends on the installation environment. Please make sure that there is no obstruction around to ensure that the product receives wind energy in 360°.
