Welding Rotating Positioner, Rotating Table, Welding Positioner, 10kg (Horizontal)/5kg (Vertical)
Welding Rotating Positioner, Rotating Table, Welding Positioner, 10kg (Horizontal)/5kg (Vertical)
Welding Rotating Positioner, Rotating Table, Welding Positioner, 10kg (Horizontal)/5kg (Vertical)
Welding Rotating Positioner, Rotating Table, Welding Positioner, 10kg (Horizontal)/5kg (Vertical)
Welding Rotating Positioner, Rotating Table, Welding Positioner, 10kg (Horizontal)/5kg (Vertical)
Welding Rotating Positioner, Rotating Table, Welding Positioner, 10kg (Horizontal)/5kg (Vertical)
Welding Rotating Positioner, Rotating Table, Welding Positioner, 10kg (Horizontal)/5kg (Vertical)
Welding Rotating Positioner, Rotating Table, Welding Positioner, 10kg (Horizontal)/5kg (Vertical)
Welding Rotating Positioner, Rotating Table, Welding Positioner, 10kg (Horizontal)/5kg (Vertical)
Welding Rotating Positioner, Rotating Table, Welding Positioner, 10kg (Horizontal)/5kg (Vertical)
Welding Rotating Positioner, Rotating Table, Welding Positioner, 10kg (Horizontal)/5kg (Vertical)
Welding Rotating Positioner, Rotating Table, Welding Positioner, 10kg (Horizontal)/5kg (Vertical)
Welding Rotating Positioner, Rotating Table, Welding Positioner, 10kg (Horizontal)/5kg (Vertical)
Welding Rotating Positioner, Rotating Table, Welding Positioner, 10kg (Horizontal)/5kg (Vertical)
Welding Rotating Positioner, Rotating Table, Welding Positioner, 10kg (Horizontal)/5kg (Vertical)
Welding Rotating Positioner, Rotating Table, Welding Positioner, 10kg (Horizontal)/5kg (Vertical)

Welding Rotating Positioner, Rotating Table, Welding Positioner, 10kg (Horizontal)/5kg (Vertical)

(0 reviews)
Ask a question
3,959.88SEK
  • Brand: CNCEST
  • Product Code: QCJLBN-000000EU
  • Availability: In Stock
Quantity
- +
Estimated Delivery:
Free Fast Shipping:
On all orders
estimated delivery guarantee

Built to last

It is made of high-quality steel through blackening and spray molding processes, which has strong high temperature resistance and can ensure long service life.

Precise positioning

It features a 2.56 inch three-jaw chuck with a clamping range of 0.08-2.28 inch and a support range of 0.87-1.97 inch, which effectively prevents movement and falling of welds, thus significantly improving welding precision.

High stability

It features a 20W DC drive motor that operates at low speeds with stepless speed regulation from 1 to 12 rpm for stable operation. Additionally, it has a load capacity of up to 11.02 pounds (vertical) or 22.05 pounds (horizontal) and forward and reverse functions, providing excellent stability to support efficient and precise welding.

Accurate design

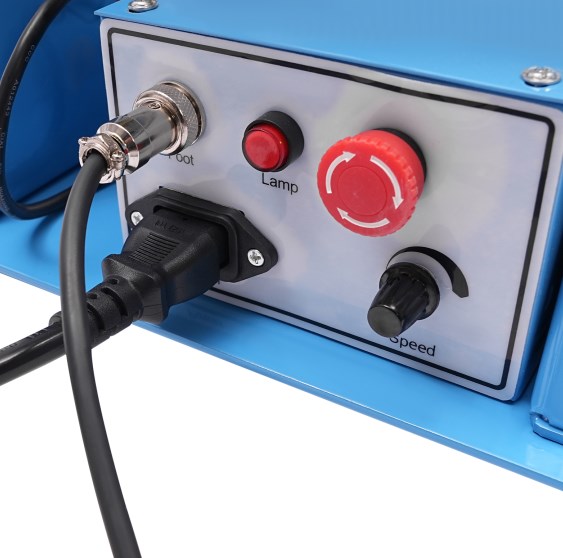

It can be tilted from 0 to 90° and securely fixed at the desired angle with butterfly bolts. The clear operator station makes it easy to adjust speed, connect power and more. 2 chuck keys make adjusting the tightness of the jaws a breeze.

Safety protection

The product is equipped with conductive carbon brushes which can effectively avoid the risk of electrical leakage, so you can use it with peace of mind.

Power indicator

will light up when the product is plugged in and working.

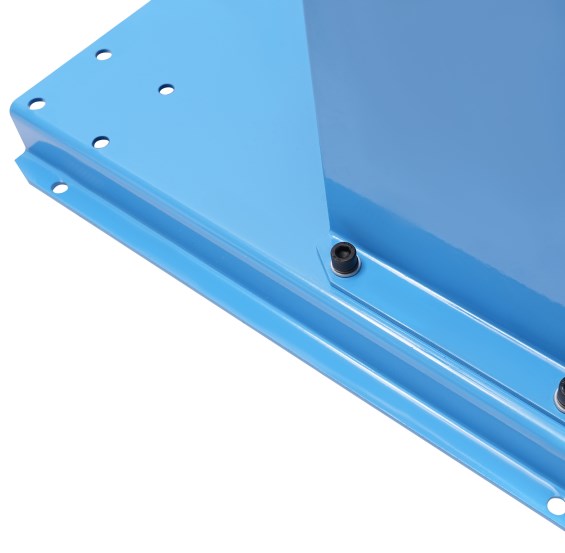

Stable base

the square base and holes on the bottom stabilize the product well. Additionally, the hole on the bottom can also be used to place a gun holder to hold the flashlight (not included).

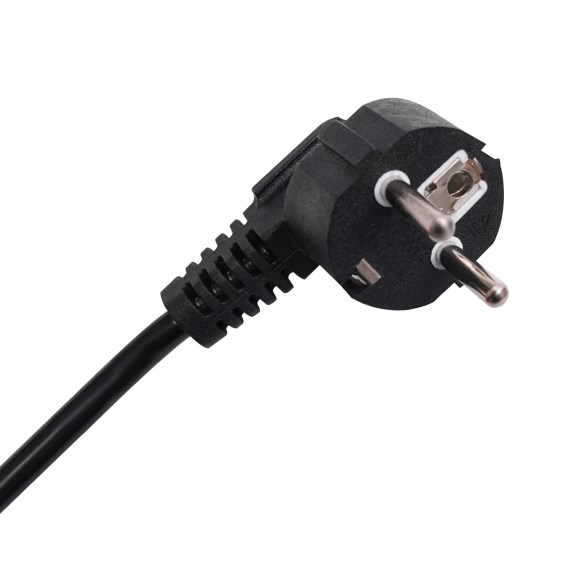

Long power cord

4.92 feet long power cord reduces usage limitations.

Specifications
Color:  Blue
Style:  modern
Material:  steel
Process:  blackening, spray molding
Mounting type:  false ceiling
Engine type:  DC drive motor
Assembly required:  Yes
Diet:  electric with cable
Spina:  EU standard
Flipping method:  manual flipping
Input voltage:  CA 220 V
Motor voltage:  CC 24 V
Speed:  continuous speed control from 1 to 12 rpm
Power:  20 W
Horizontal reach:  10kg/22.05lbs
Vertical reach:  5kg/11.02lbs
Tilt angle:  0-90°
Three-jaw chuck diameter:  65mm/2.56in
Tightening range:  2-58mm/0.08-2.28in
Support range:  22-50mm/0.87-1.97in
Power cable length:  1.5m/4.92ft
Gross weight:  11kg/24.25lbs

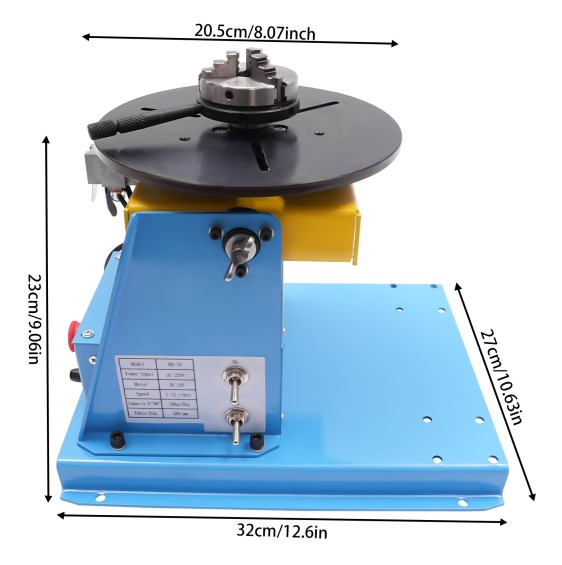

Product dimensions:  32*27*23cm/12.6*10.6*9.1in
Worktop diameter:  20.5cm/8.07in
Package format:  36*34*31cm/14.2*13.4*12.2in

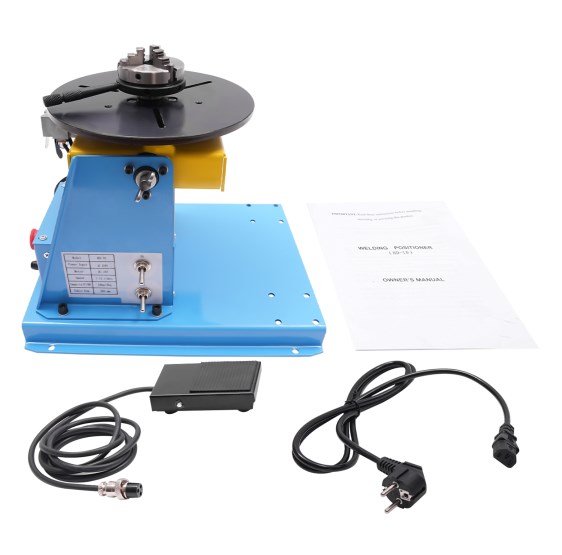

Package Included
1 * Welding Positioner
1*pedal
1 x Power Cable
1 * English Manual
2 chuck keys

Specifications

Color Blue Style modern
Material steel Process blackening, spray molding
Mounting type false ceiling Engine type DC drive motor
Assembly required Yes Diet electric with cable
Spina EU standard Flipping method manual flipping
Input voltage CA 220 V Motor voltage CC 24 V
Speed continuous speed control from 1 to 12 rpm Power 20 W
Horizontal reach 10kg/22.05lbs Vertical reach 5kg/11.02lbs
Tilt angle 0-90° Three-jaw chuck diameter 65mm/2.56in
Tightening range 2-58mm/0.08-2.28in Support range 22-50mm/0.87-1.97in
Power cable length 1.5m/4.92ft Gross weight 11kg/24.25lbs
Product dimensions 32*27*23cm/12.6*10.6*9.1in Worktop diameter 20.5cm/8.07in
Package format 36*34*31cm/14.2*13.4*12.2in

Product Tips

NOTE

1. Strictly follow the manual for installation and use, and pay attention to safety issues inside.
2. To avoid electrical safety risks, we recommend customers use this tool with an electrician's license or welding experience.
3. Please note that this product cannot be used to weld plastic products
4. Please allow slight color difference caused by shooting light and 1-3cm error due to manual measurement and make sure not do you mind before ordering.
