Name: 3018 PRO DIY Milling Machine GRBL Engraving Device 3 Axis Laser Engraving ER11
Brand: CNCEST
SKU: OT-HSYXF-2971-EU
Price: 2399.88 SEK
Availability: InStock

Free Shipping for All Orders! Fast Delivery!

Hello, Sign In

Account & Order

Track Order Browsing History Contact Us

3018 PRO DIY Milling Machine GRBL Engraving Device 3 Axis Laser Engraving ER11

3018 PRO DIY Milling Machine GRBL Engraving Device 3 Axis Laser Engraving ER11

(0 reviews)

Ask a question

2,399.88SEK

Brand: CNCEST
Product Code: OT-HSYXF-2971-EU
Availability: In Stock

Estimated Delivery:

Free Fast Shipping:

On all orders

Description
Reviews (0)
Recommer
Delivery and Return

control system

The control system is Open Source (technology that provides the control system) for some players who like DIY mini engraving machine for carving and are cheaper than normal engraving machines.

Support software

Support our professional English design software for Win 7, XP, Win 8, Win 10.

Long life

Optional laser module with heat sink, high performance laser engraving and long lifespan.

size

300 x 180 x 45 mm large working space, control software: GRBL (including ER11 chuck).

interesting to install

Very interesting to install and use, perfect gift for engraving DIY enthusiasts.

DIY Installation

This DIY laser CNC engraving machine is specially designed for DIY, learning and research, with professional GRBL control software, it can be used for printing, hand tools and industrial processing .

High Quality

Optional laser module with heat sink, high laser engraving performance, long working time. Aluminum alloy and nylon material, fine workmanship, excellent quality and long service life.

control system

The control system is Open Source (technology that provides the control system) for some players who like DIY mini engraving machine for carving and are cheaper than normal engraving machines.

Application

Support our professional English design software for Win 7, XP, Win 8, Win 10.

Specifications

Model: CNC3018PRO

Laser power: optional.

Material: Aluminum alloy phenolic resin.

Main color: black/silver.

Power supply: AC 100-240 V - Output 24 V 5.6 A

Supported operating systems: Windows XP/Win 7/Win 8/Win 10 (32/64)

Formats pris en charge : JPG / BMP / png

Communication connection: Micro USB.

Engraving area: 300 x 180 x 45 mm.

Frame dimensions: 400 x 330 x 240 mm (without motor rebound).

Tray dimensions: 300 x 180 mm.

Spindle: 775 24V spindle motor

Spindle liner: ER11.

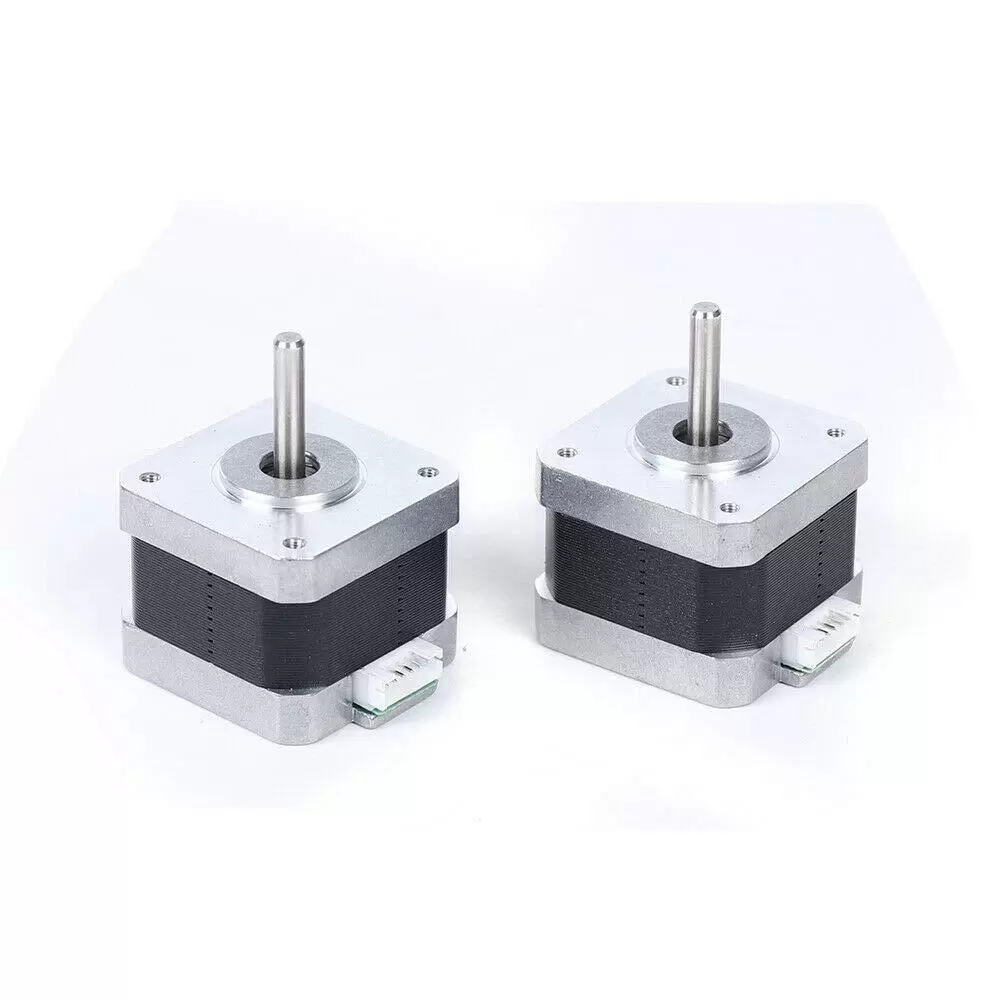

Stepper motor: fuselage length 34mm, current 1.33A, 12V. Torque 0.25N/M.

Drill bit: 0.1mm tip, 30 degrees, diameter 3.175mm (contains 10 pieces).

Software: GRBL command.

Quick Laser Replacement: Supported.

Engraving mode: image engraving, text carving, scanning, outlines, pixel carving.

Cannot carve objects: all metals, glass, stone, ceramics, jewelry, silver, reflective material, transparent and transparent.

Can carve objects: all wood, bamboo, paper, plastics, leather, rubber, horn, sponge sheet, etc.

Package size: 45 x 23 x 17 cm.

Package weight: 8000 g.

Package Included

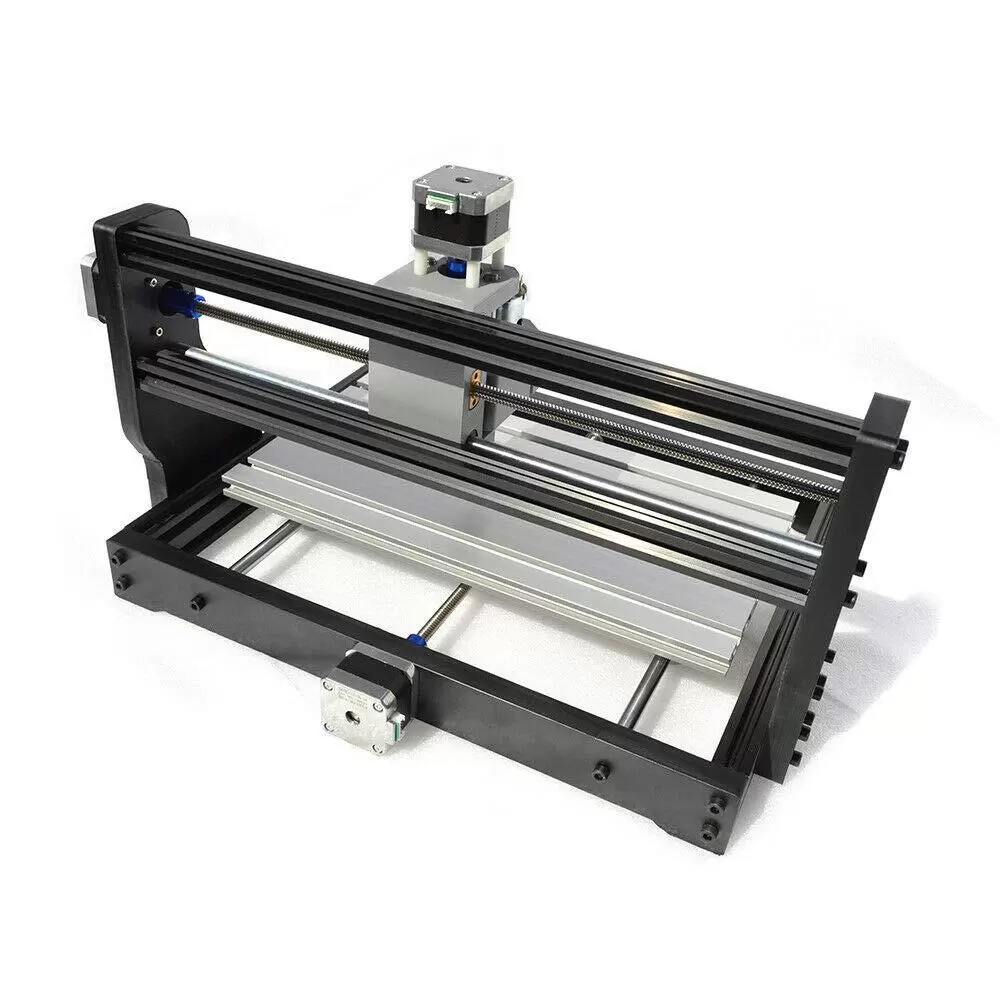

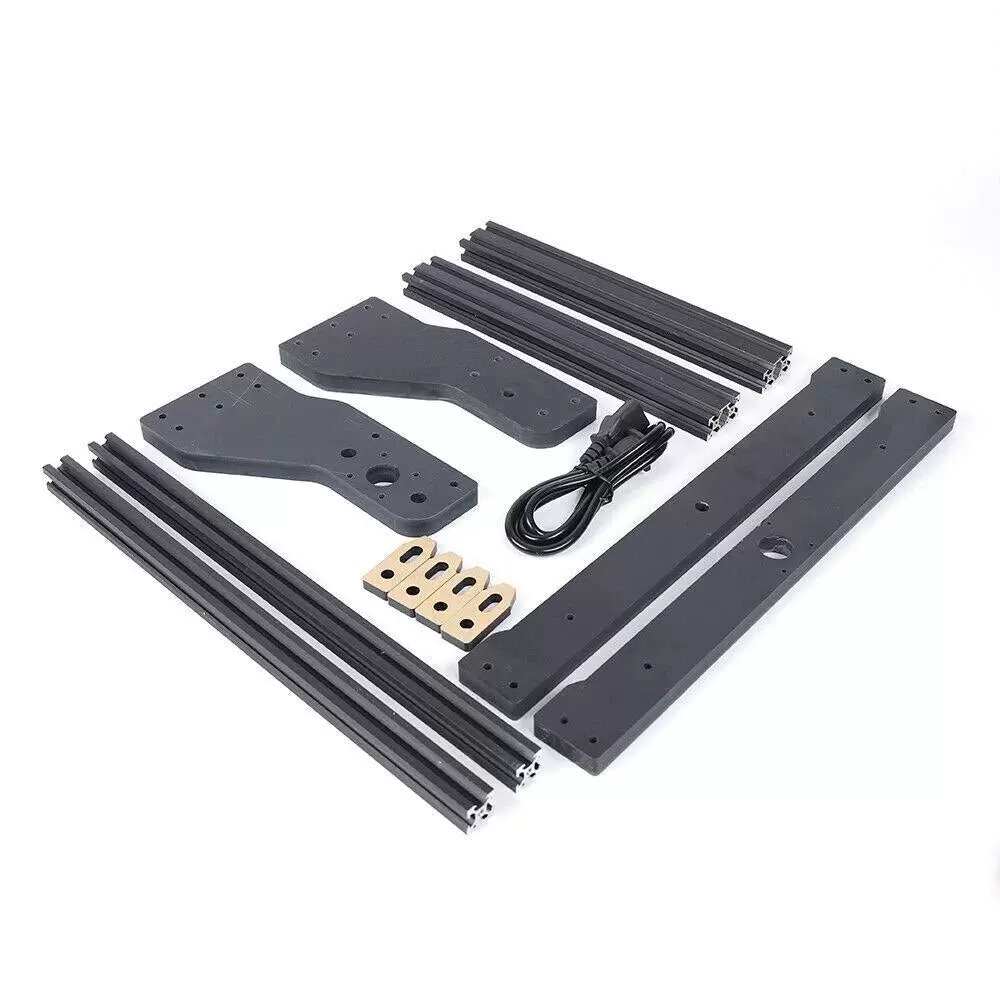

1 x DIY CNC engraving machine kit.

10 drills.

1 ER11 chuck.

European plug.

Specifications

Model	CNC3018PRO	Laser power	optional.
Material	Aluminum alloy phenolic resin.	Main color	black/silver.
Power supply	AC 100-240 V - Output 24 V 5.6 A	Supported operating systems	Windows XP/Win 7/Win 8/Win 10 (32/64)
Formats pris en charge	JPG / BMP / png	Communication connection	Micro USB.
Engraving area	300 x 180 x 45 mm.	Frame dimensions	400 x 330 x 240 mm (without motor rebound).
Tray dimensions	300 x 180 mm.	Spindle	775 24V spindle motor
Spindle liner	ER11.	Stepper motor	fuselage length 34mm, current 1.33A, 12V. Torque 0.25N/M.
Drill bit	0.1mm tip, 30 degrees, diameter 3.175mm (contains 10 pieces).	Software	GRBL command.
Quick Laser Replacement	Supported.	Engraving mode	image engraving, text carving, scanning, outlines, pixel carving.
Cannot carve objects	all metals, glass, stone, ceramics, jewelry, silver, reflective material, transparent and transparent.	Can carve objects	all wood, bamboo, paper, plastics, leather, rubber, horn, sponge sheet, etc.
Package size	45 x 23 x 17 cm.	Package weight	8000 g.

Product Tips

Notes

Please note that there may be a 1-3cm difference between the product and the size chart
