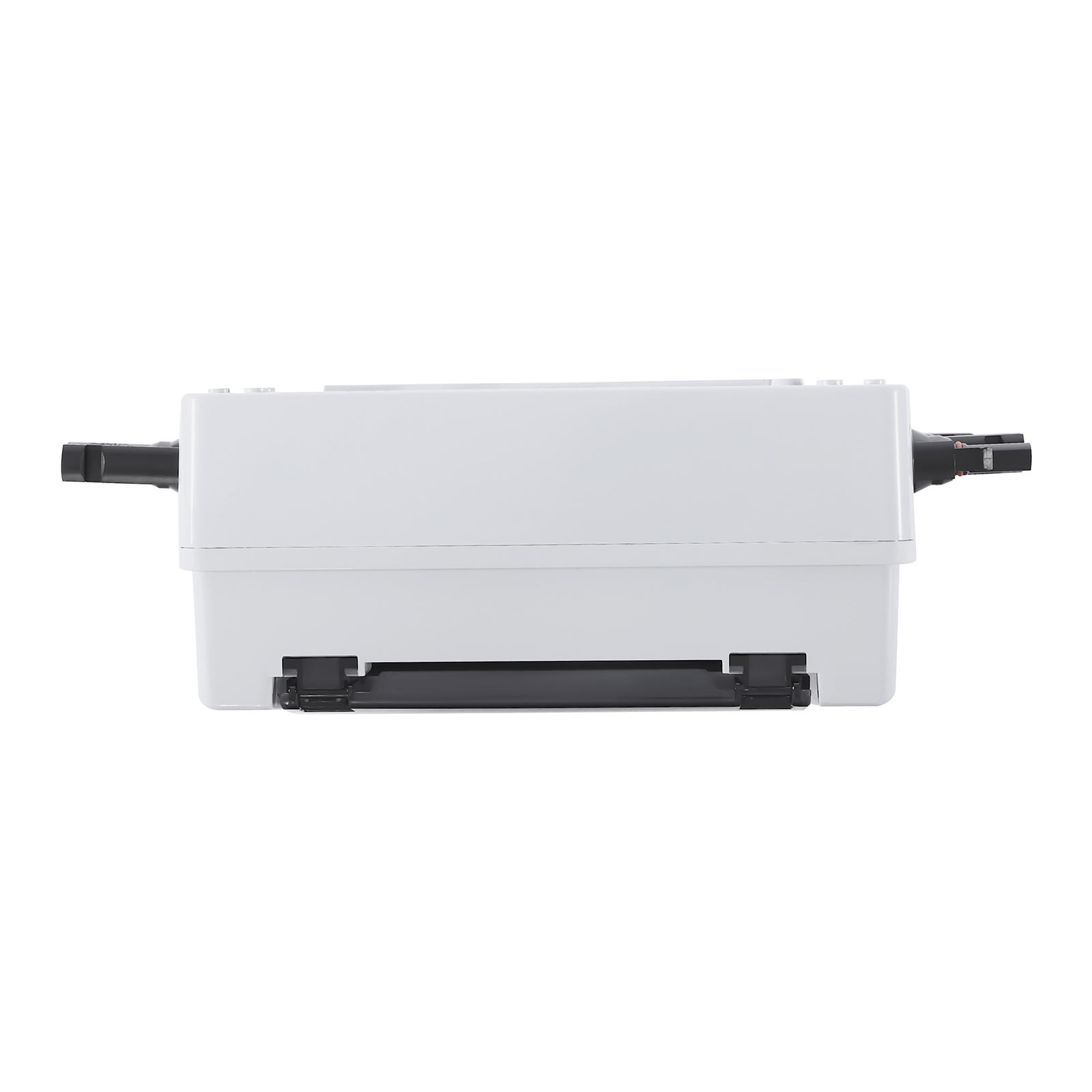

Solar Combiner Box, Combiner Box Circuit Breaker for Solar Panels, Solar Disconnect Switch, 21*10*21cm

Solar Combiner Box, Combiner Box Circuit Breaker for Solar Panels, Solar Disconnect Switch, 211021cm

(0 reviews)

Ask a question

1,439.88SEK

Brand: CNCEST
Product Code: YLLNZ9-00020099
Availability: In Stock

Estimated Delivery:

Free Fast Shipping:

On all orders

Description
Reviews (0)
Recommer
Delivery and Return

Made to last

High quality ABS and PC are not easy to wear, hit or deform, giving this product sturdiness and longevity.

Powerful features

Protects the amplifier from damage caused by current or voltage overloads and protects the power supply from short circuits that cause battery rupture and explosion. Additionally, it can be disconnected manually, which is convenient for circuit testing and maintenance.

Effective output

It has two inputs and two outputs, along with a maximum current output of 25 amps, which greatly increases the efficiency of power utilization.

Safe and reliable

It has surge protection, overload protection and lightning protection, as well as reliable DC components so you can use it more safely.

Water and shock resistant

It has a high degree of protection (IP65) and shock resistance (IK10) with flame retardant, which can effectively protect against water, dust and UV rays, allowing it to be used in difficult environments.

Easy to install

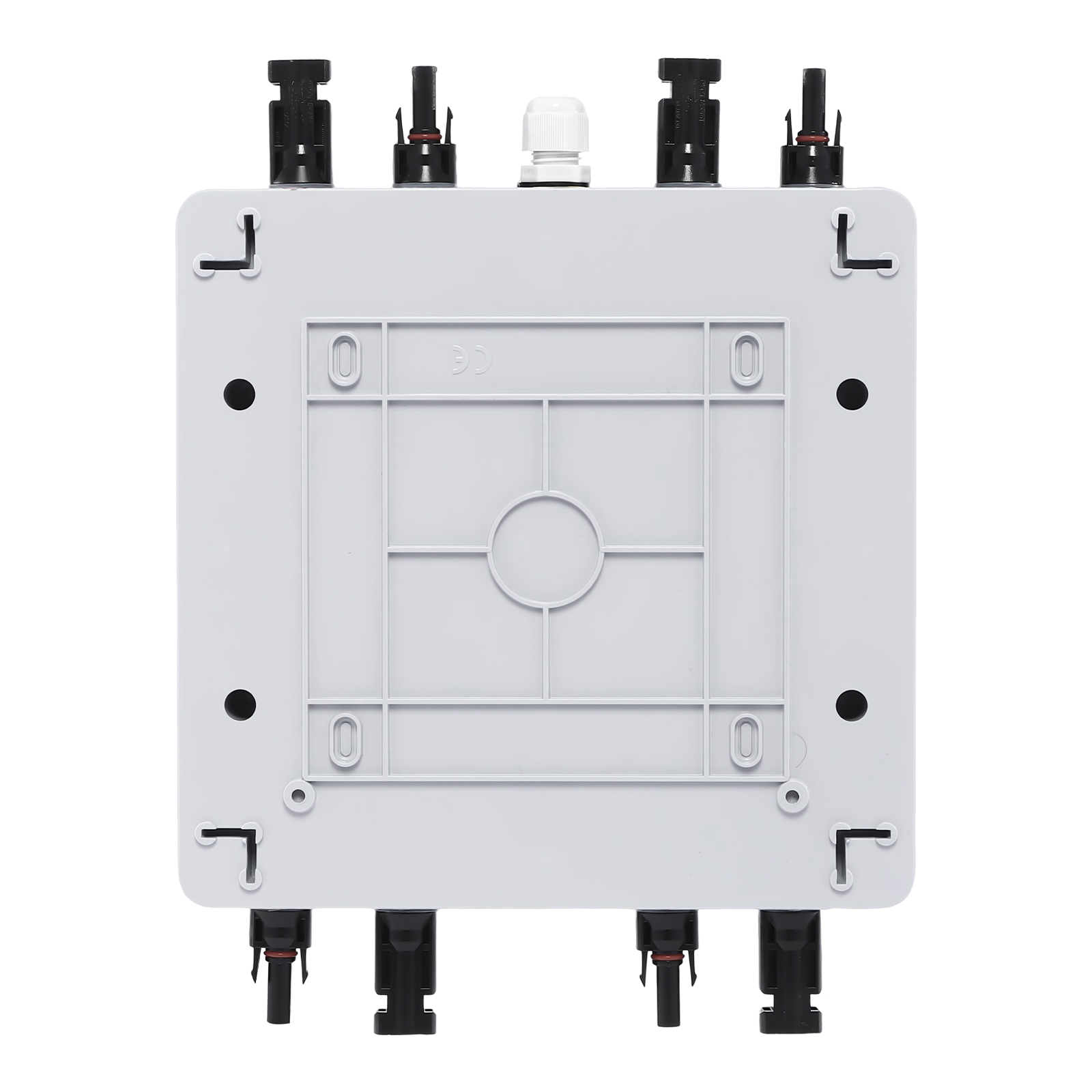

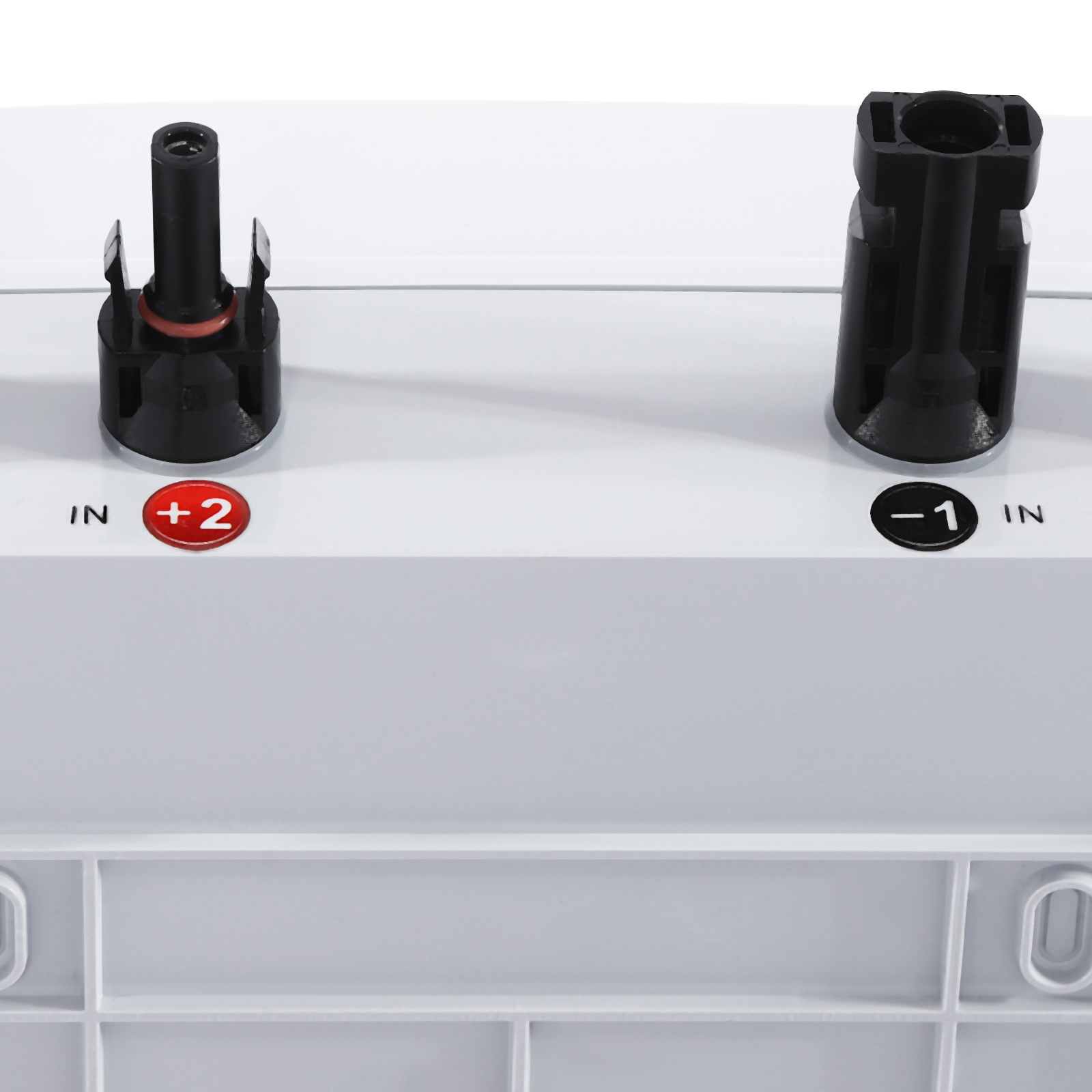

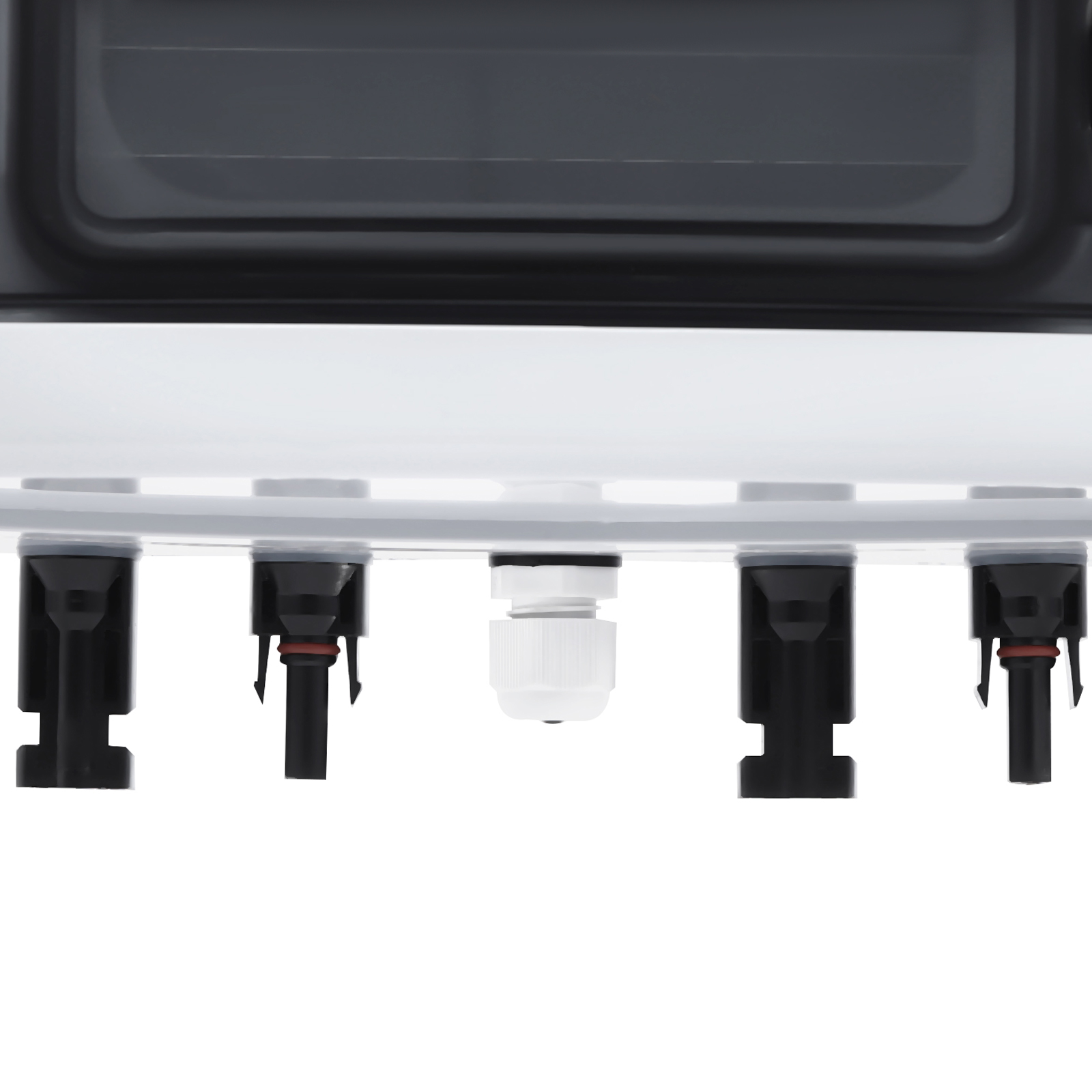

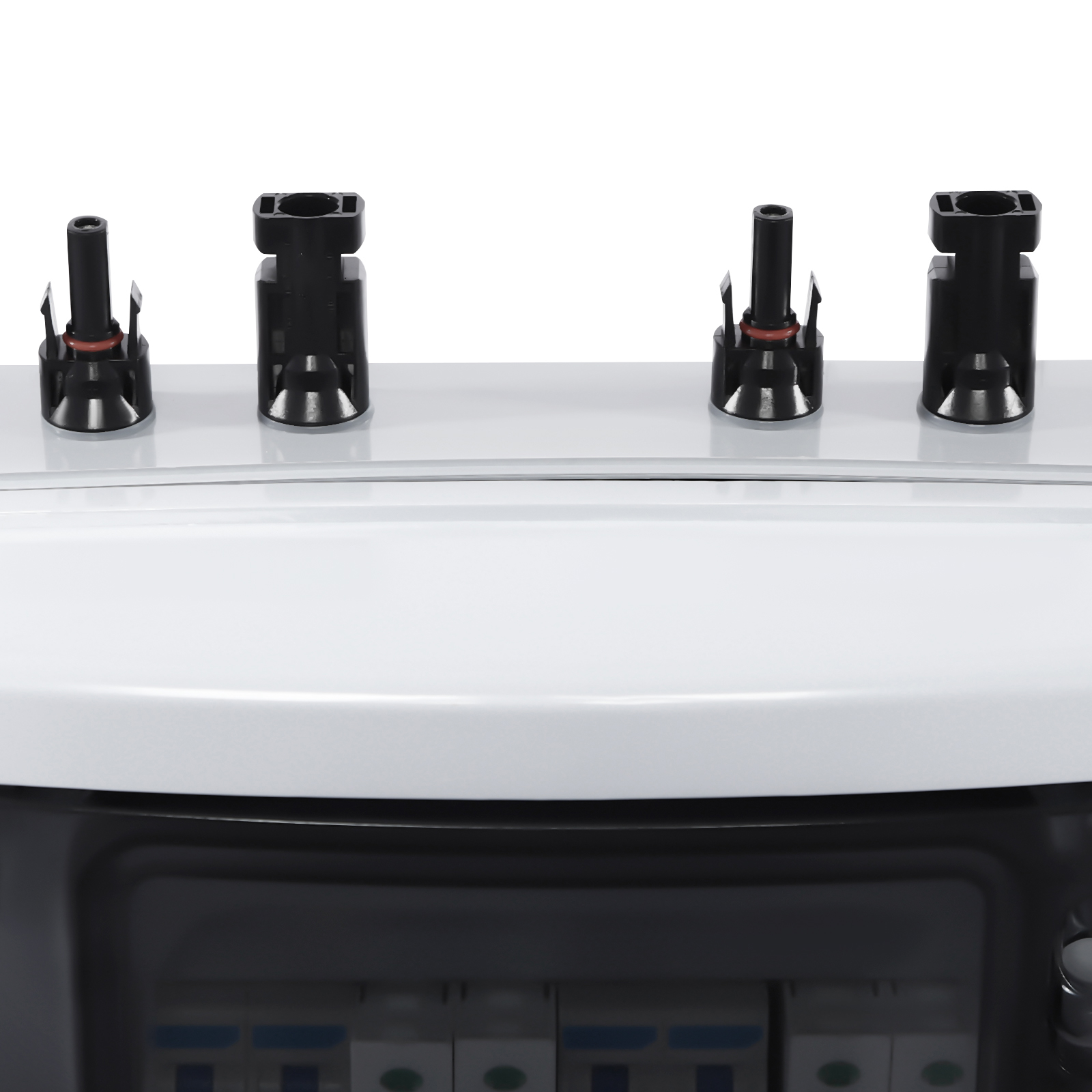

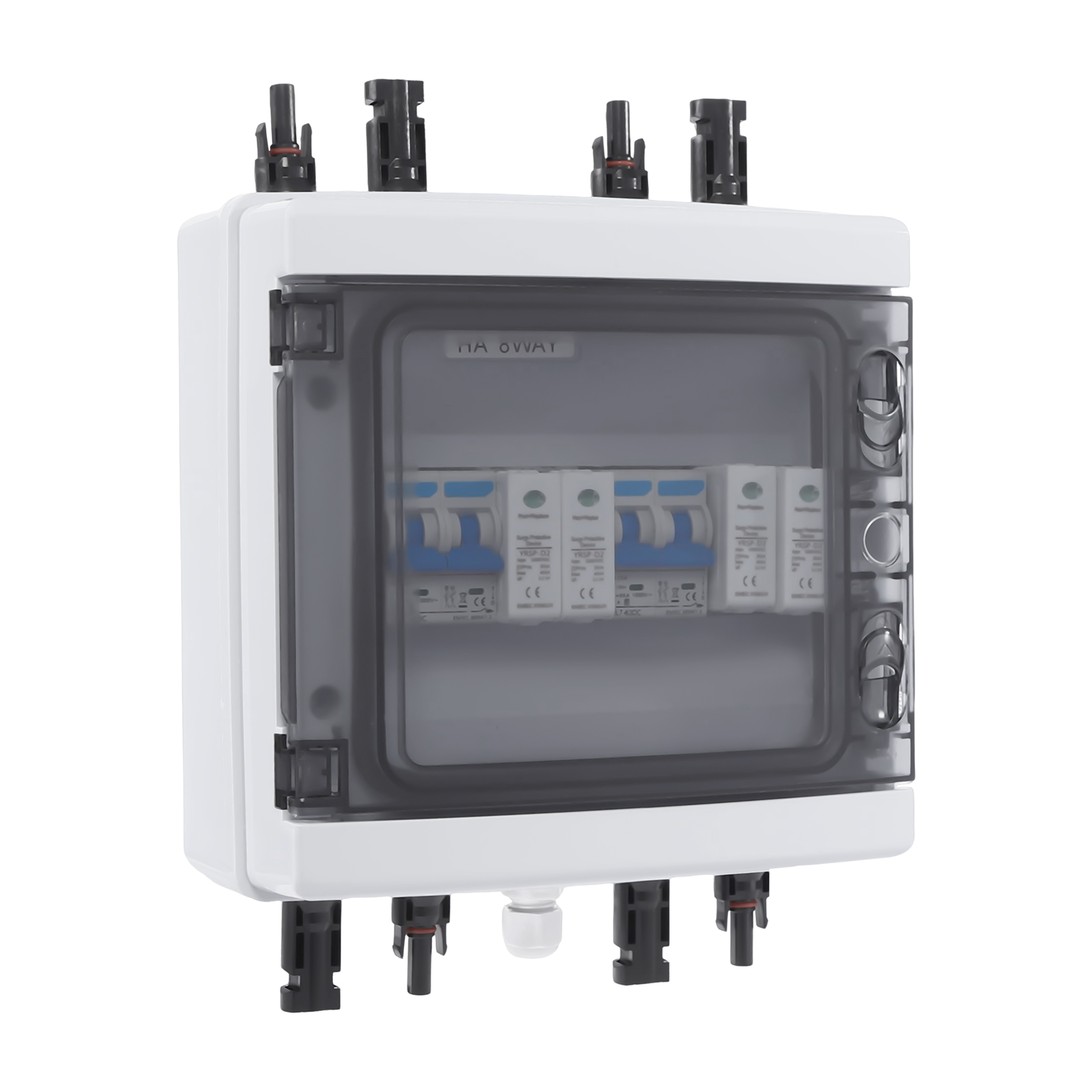

With MC4 terminals, expansion screws, mounting holes and ground wire, you can install and use this product more easily and conveniently.

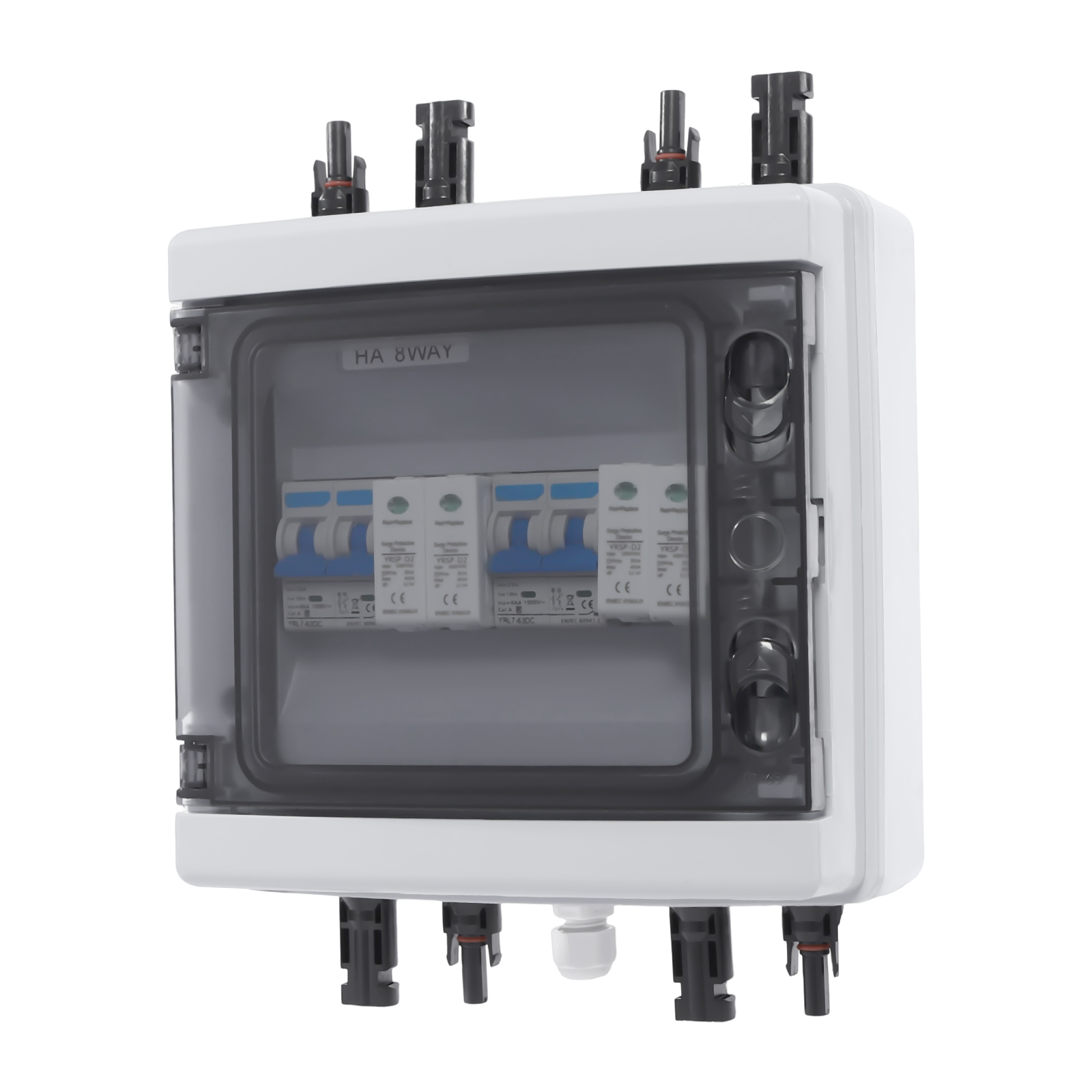

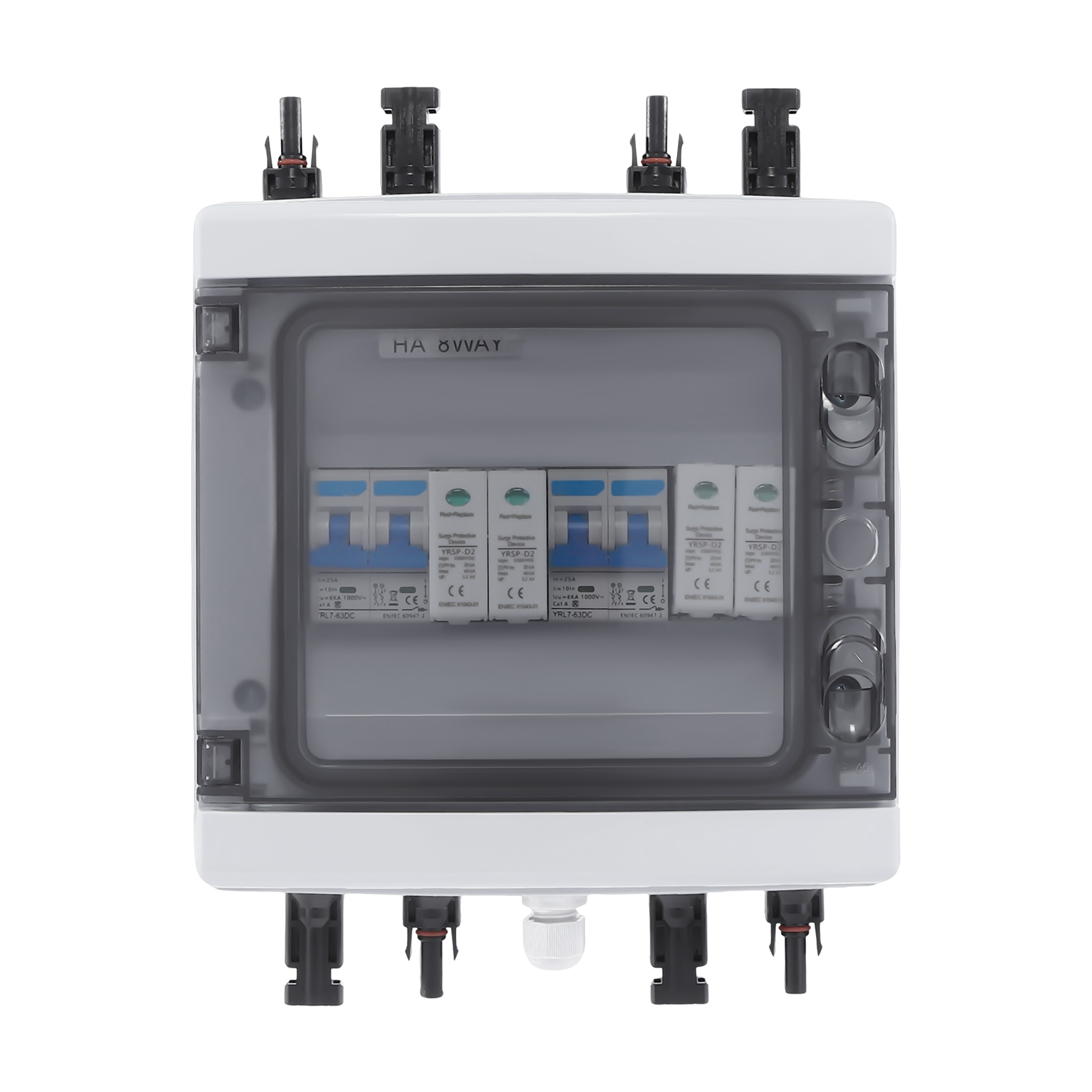

Transparent cover

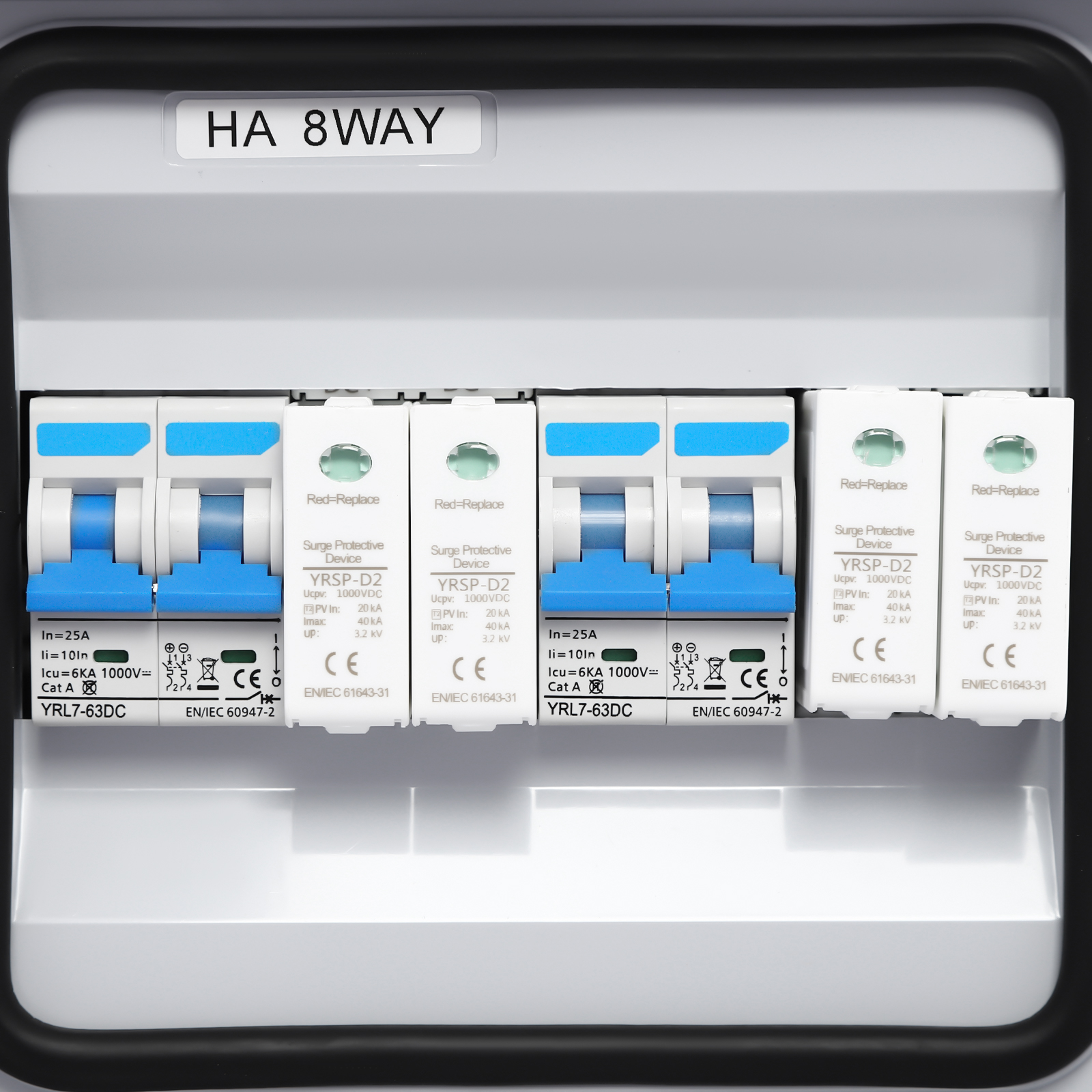

Through it, you can check the status of the main switch and surge arrester at any time. If the indicator light of the lightning arrester turns red, it means that lightning has struck and you need to replace the lightning protection module in time.

Rounded corners

Rounded and burr-free corners prevent your hands from being scratched during use.

Specifications

Material: PC, ABS

Color: White, Black, Transparent

Mounting type: wall mounting

Degree of protection: IP65

Impact resistance index: IK10

Operating temperature: -25~55°C/-13~131°F

Maximum DC short circuit current per input: 25A

Maximum/rated output current (Ue): 25A

DC Circuit Breaker Model: 63DC 2P 25A 1000V

DC Surge Arrester Model: SP-D2 2P 20-25KA 1000Vdc T2

Nominal insulation voltage (Ui) : 1000V

Circuit breaker: 63DC 2P 25A 1000V

DC Surge Suppressor: SP-D2 2P 20-25KA 1000Vdc T2

Applicable cable: Cable de 4-16mm²/10-5AWG

Surge Protection: 20-25kA 2P CC1000V

Appetizer: 2 chains

Departures: 2 chains

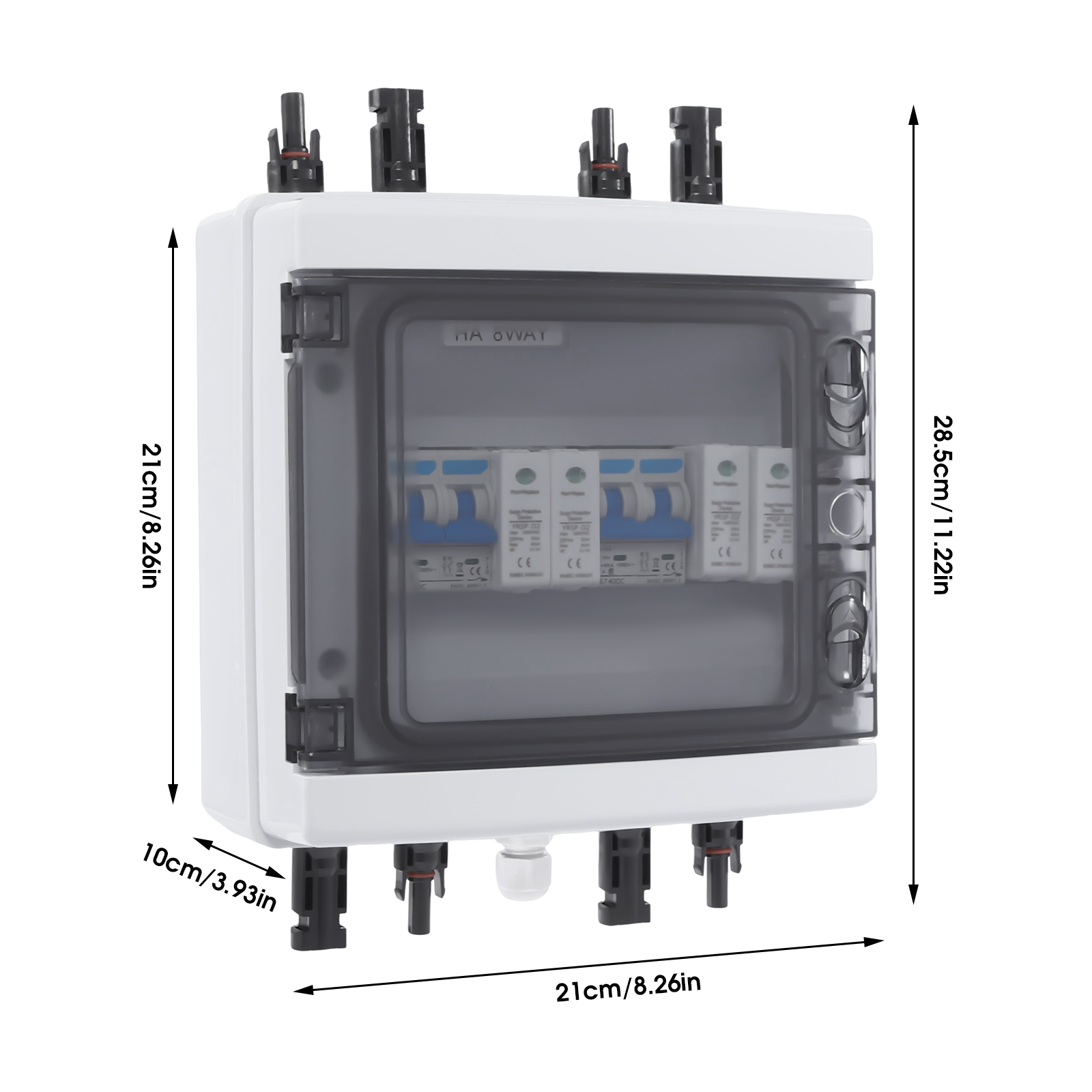

Total height: 28.5cm/11.22 in

Product size: 21*10*21cm/8.26*3.93*8.26 in

Package size: 25.8*22*12cm/10.16*8.66*4.72 in

Gross weight: 3kg/6.61 lbs

net weight: 2,8 kg/6,17 lbs

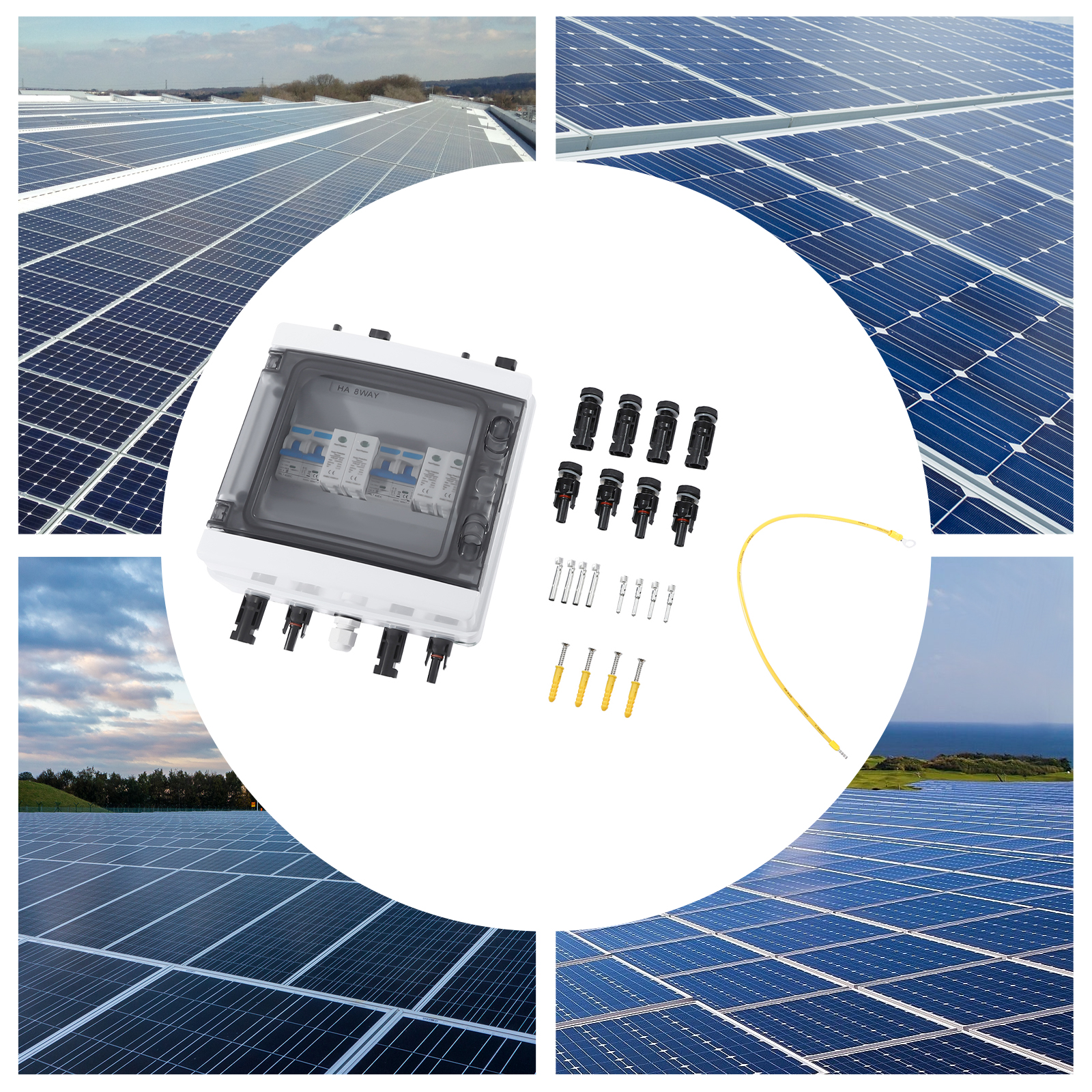

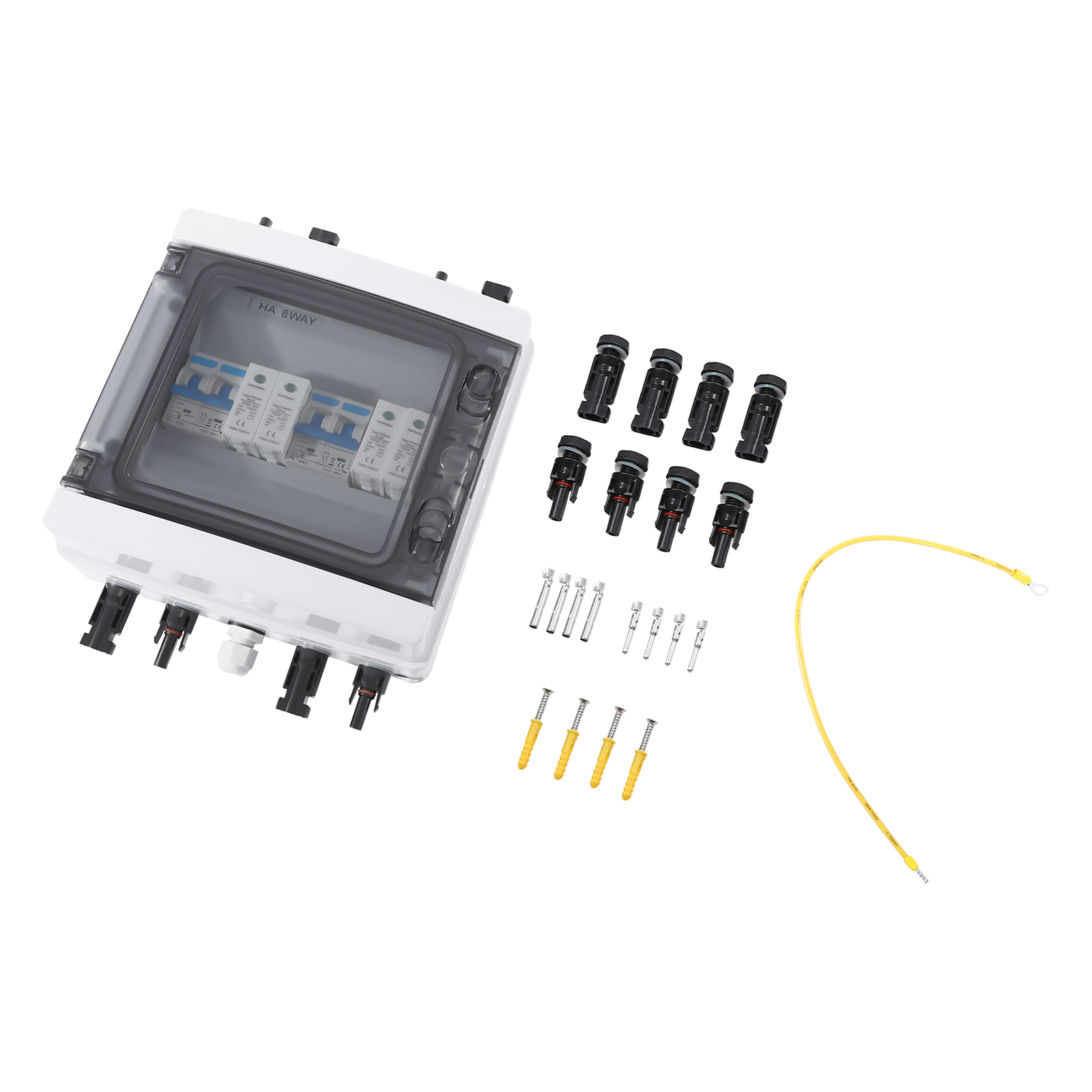

Package Included

1*Solar combiner box

8* MC4 Terminals

1* Ground Wire

All accessories for use

Made of high quality PC and ABS, it is resistant and durable

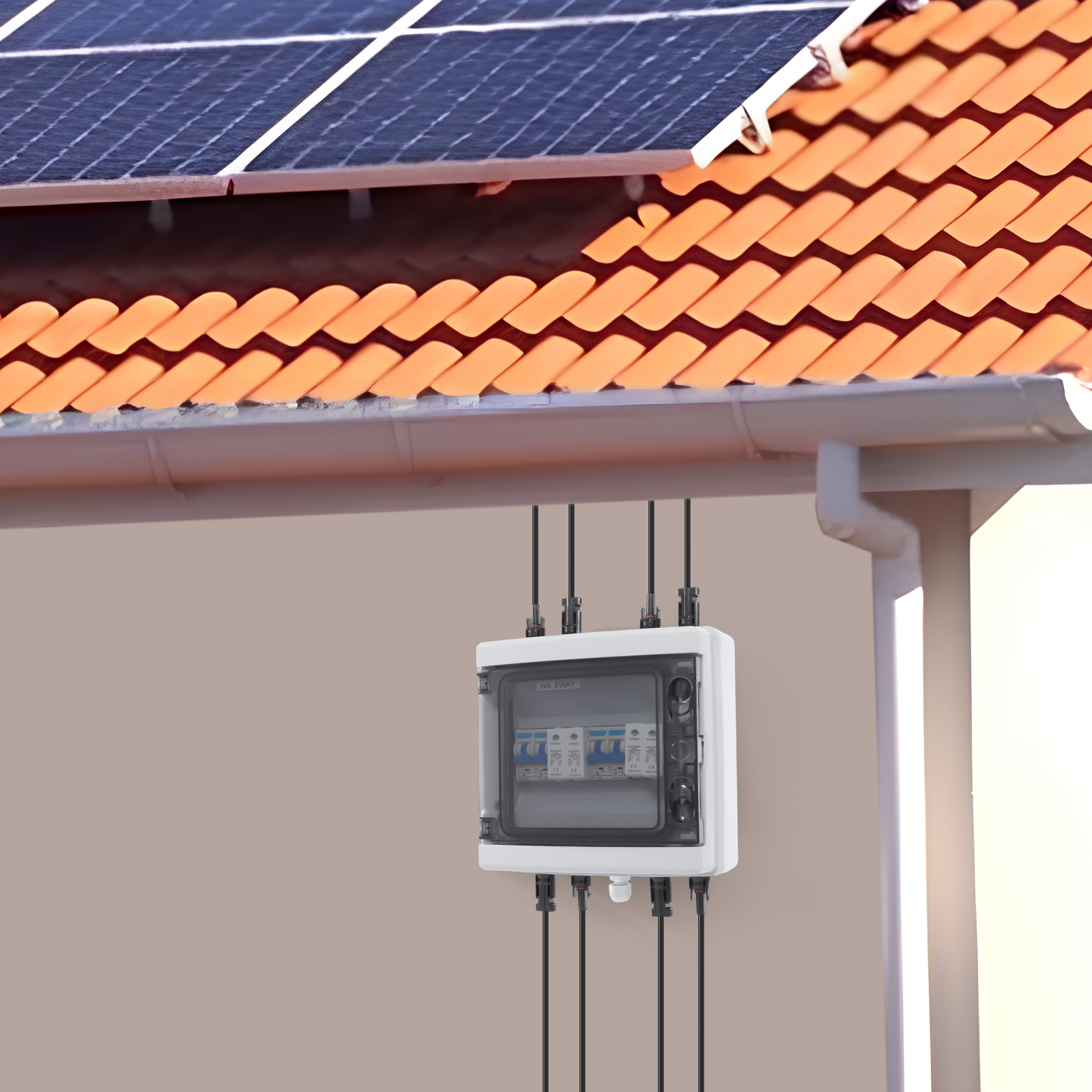

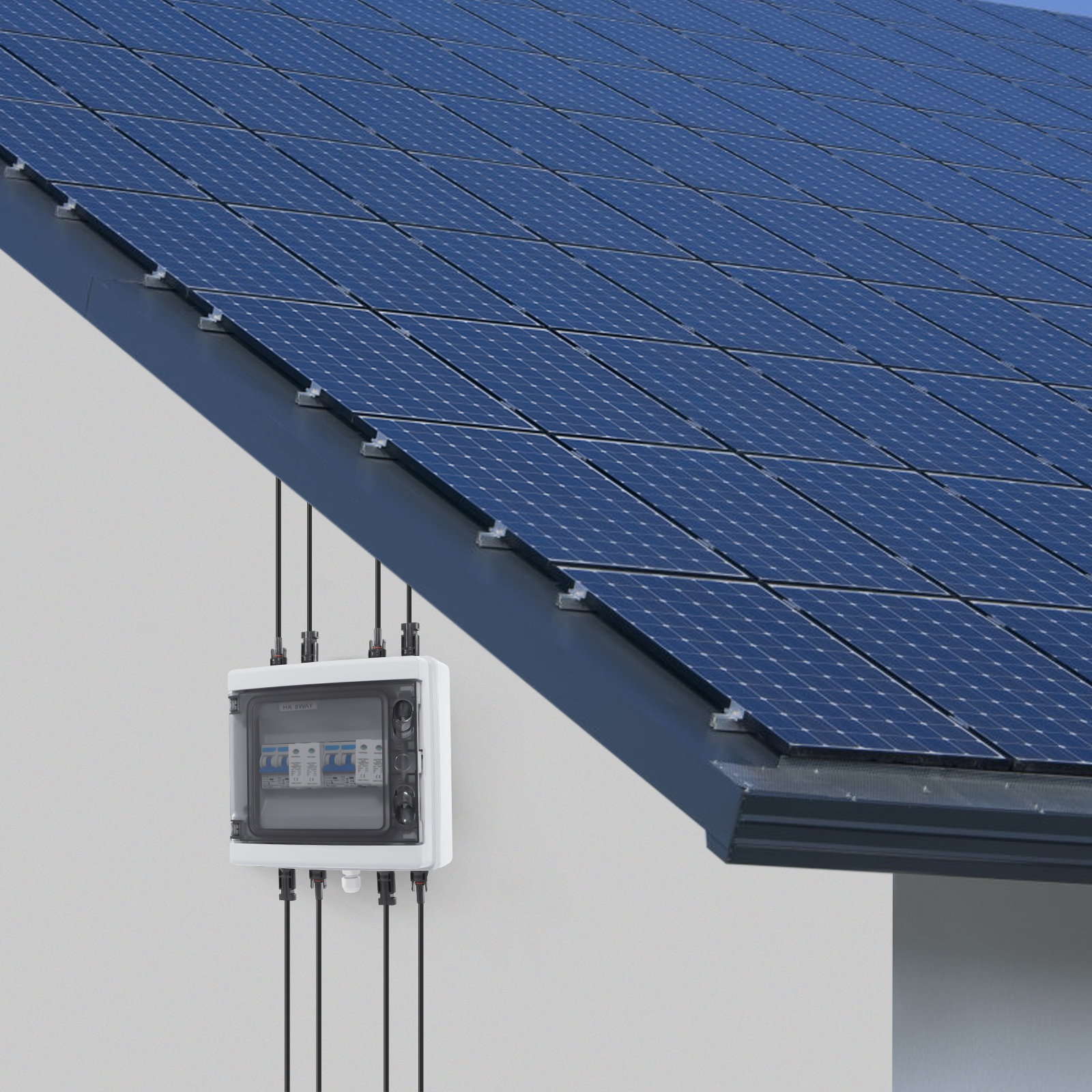

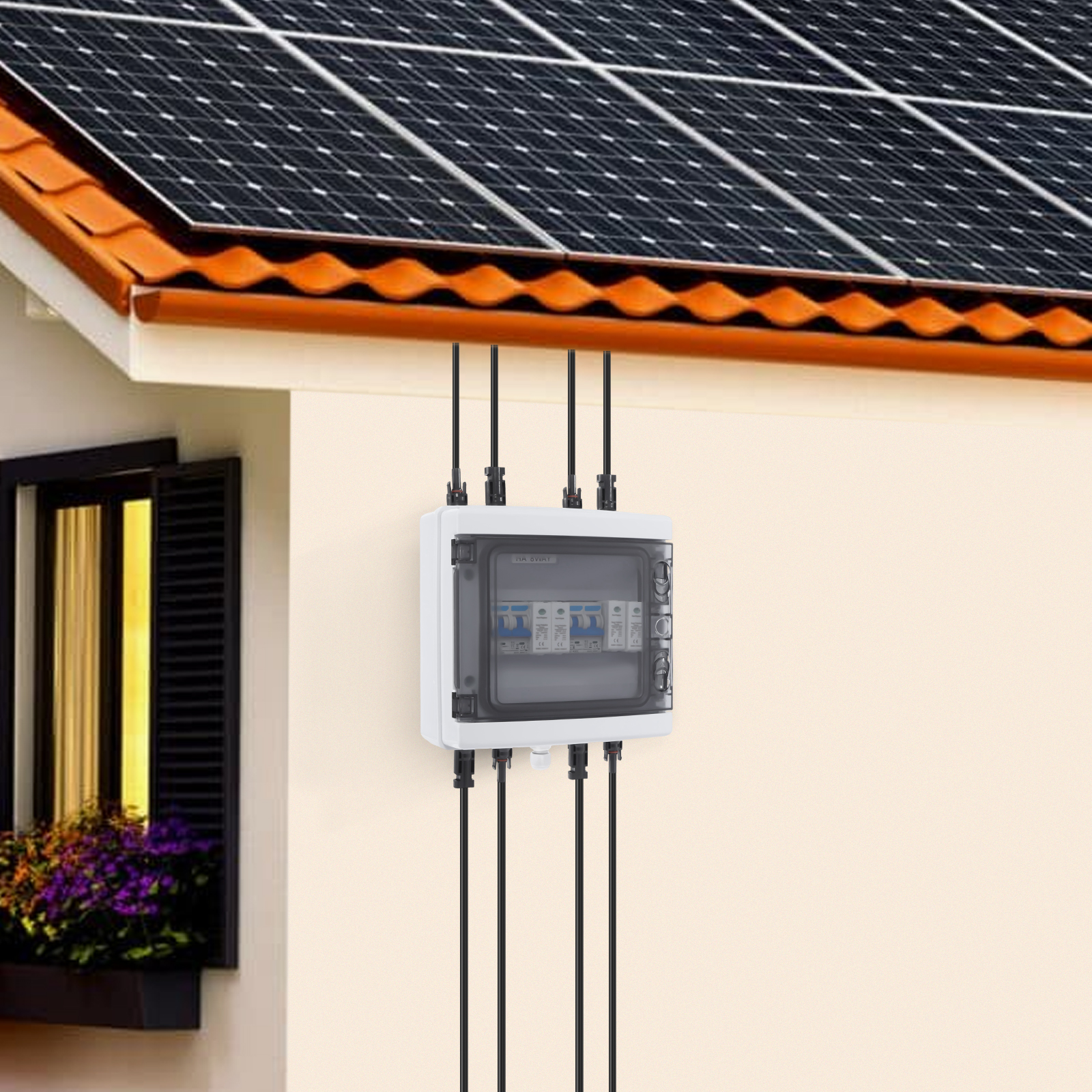

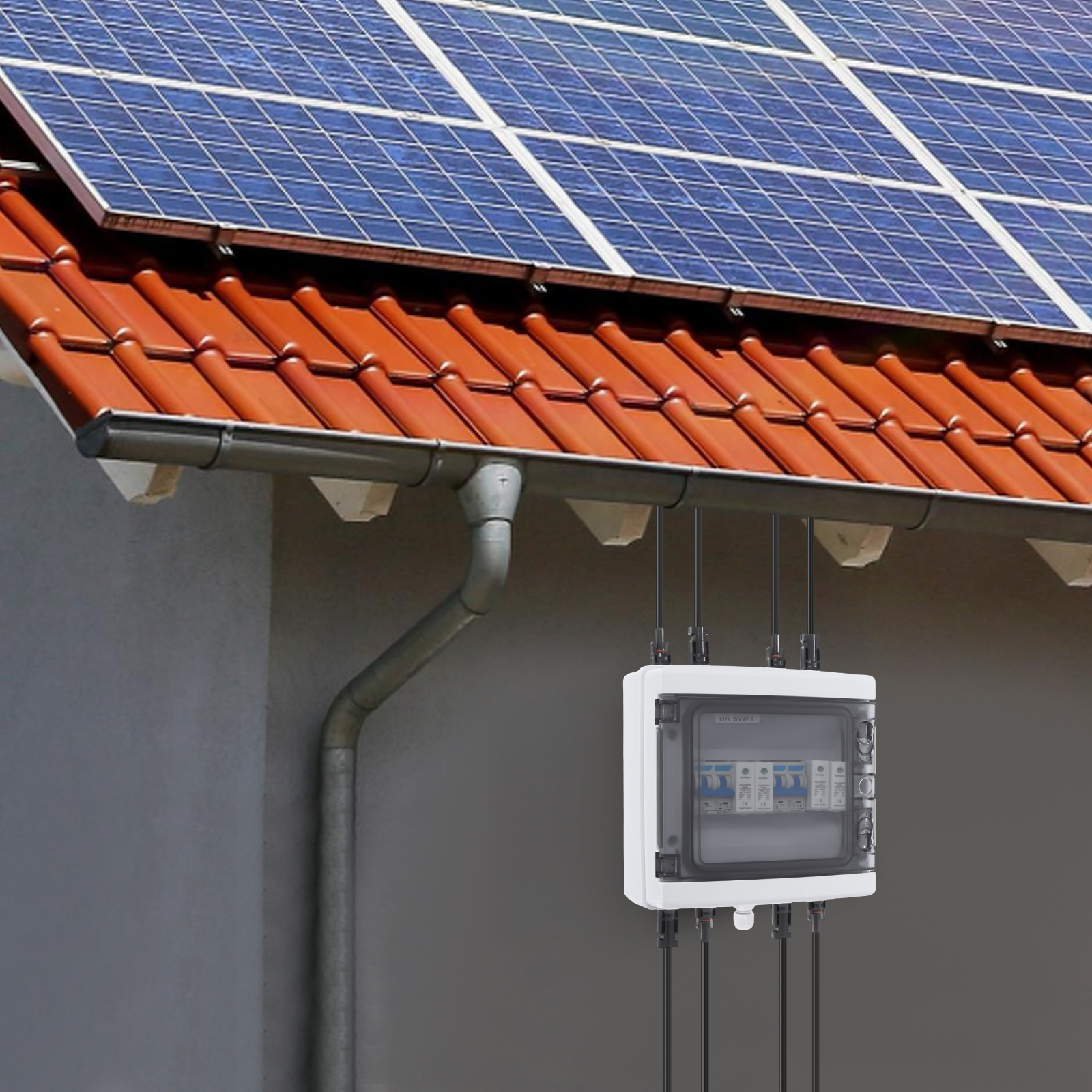

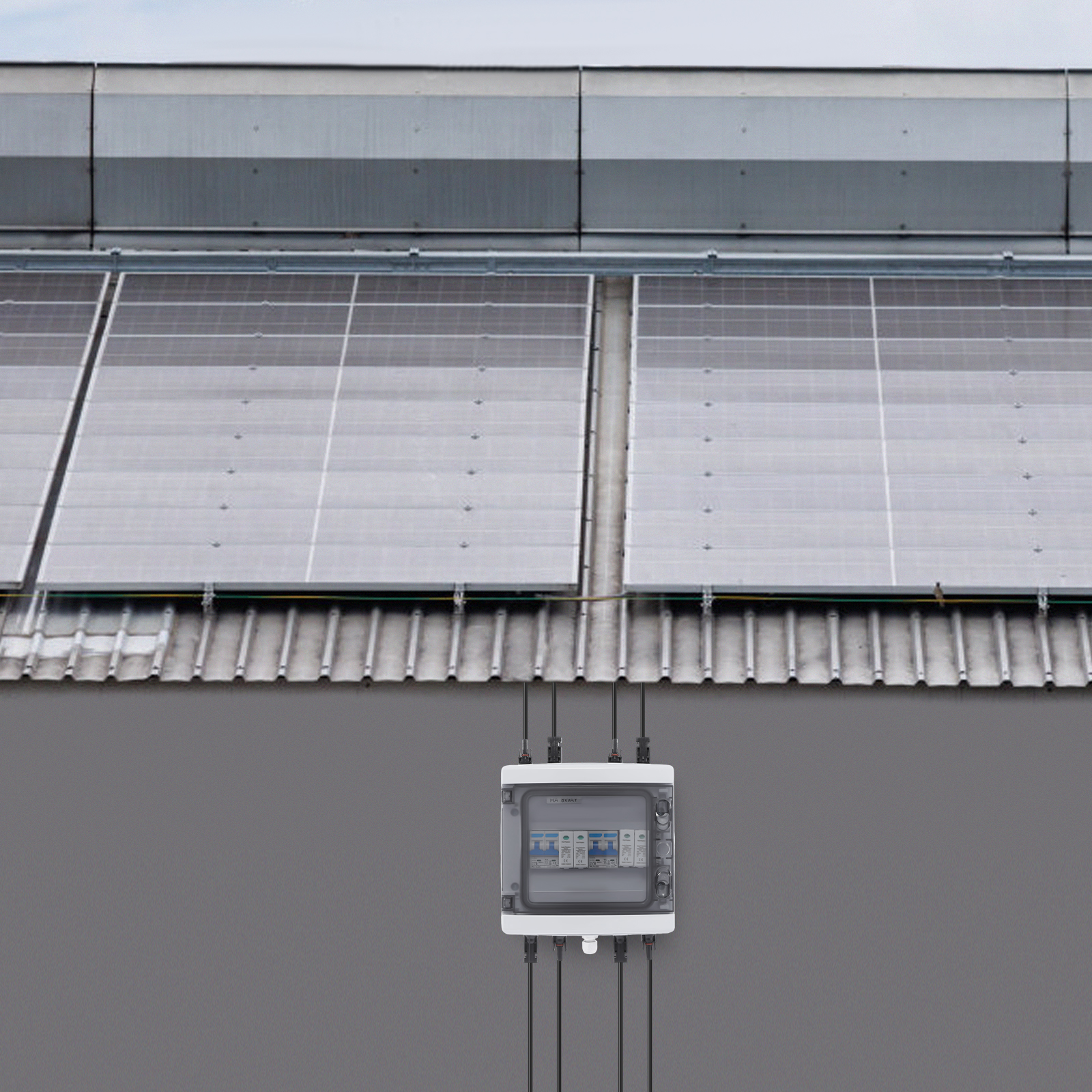

It is suitable for output protection of outdoor solar panels, motorhomes, electric vehicles, UPS batteries, PV arrays, RV solar and inverters, ideal for on-grid solar PV systems and off-grid solar power systems.

Specifications

Material	PC, ABS	Color	White, Black, Transparent
Mounting type	wall mounting	Degree of protection	IP65
Impact resistance index	IK10	Operating temperature	-25~55°C/-13~131°F
Maximum DC short circuit current per input	25A	Maximum/rated output current (Ue)	25A
DC Circuit Breaker Model	63DC 2P 25A 1000V	DC Surge Arrester Model	SP-D2 2P 20-25KA 1000Vdc T2
Nominal insulation voltage (Ui)	1000V	Circuit breaker	63DC 2P 25A 1000V
DC Surge Suppressor	SP-D2 2P 20-25KA 1000Vdc T2	Applicable cable	Cable de 4-16mm²/10-5AWG
Surge Protection	20-25kA 2P CC1000V	Appetizer	2 chains
Departures	2 chains	Total height	28.5cm/11.22 in
Product size	211021cm/8.263.938.26 in	Package size	25.82212cm/10.168.664.72 in
Gross weight	3kg/6.61 lbs	net weight	2,8 kg/6,17 lbs

Product Tips

Grades

1. Please check the specifications before purchasing. 2. Please press the button correctly to avoid damage to the circuit breaker and use it at the proper operating temperature to prevent it from overheating and stopping working. 3. Please allow slight color difference caused by shooting light and 1-3cm error due to manual measurement and make sure you do not mind before ordering.
