Hidden table socket with 2 EU sockets 16A, LAN, HDMI and 5V 2A USB Typec
- Brand: CNCEST
- Product Code: DZAIVV9LN2ZY8
- Availability: In Stock
- Description
- Reviews (0)
- Recommer
- Delivery and Return
- Recessed worktop socket: With two 16A European standard sockets, a set of USB-A+C sockets, a LAN socket, and an HDMI socket, this retractable floor box can meet your daily and professional needs.
- Sturdy and durable: Its shell is made of a solid aluminum alloy, which is very strong, wear-resistant, waterproof, and flame-retardant, providing good protection for the internal socket.
- Protective function: The USB charging port has overload, short-circuit, over-current, over-voltage, and over-temperature protection to ensure safety during use.
- Thoughtful design: The protective cover can be opened by the button on the panel to effectively prevent children's fingers or small objects from being inserted and avoid the danger of electric shock. When not in use, press the cover to prevent dust from entering the socket. Space saving: When closed, the panel surface is almost flush with the table top, which does not affect the use of desktop space.

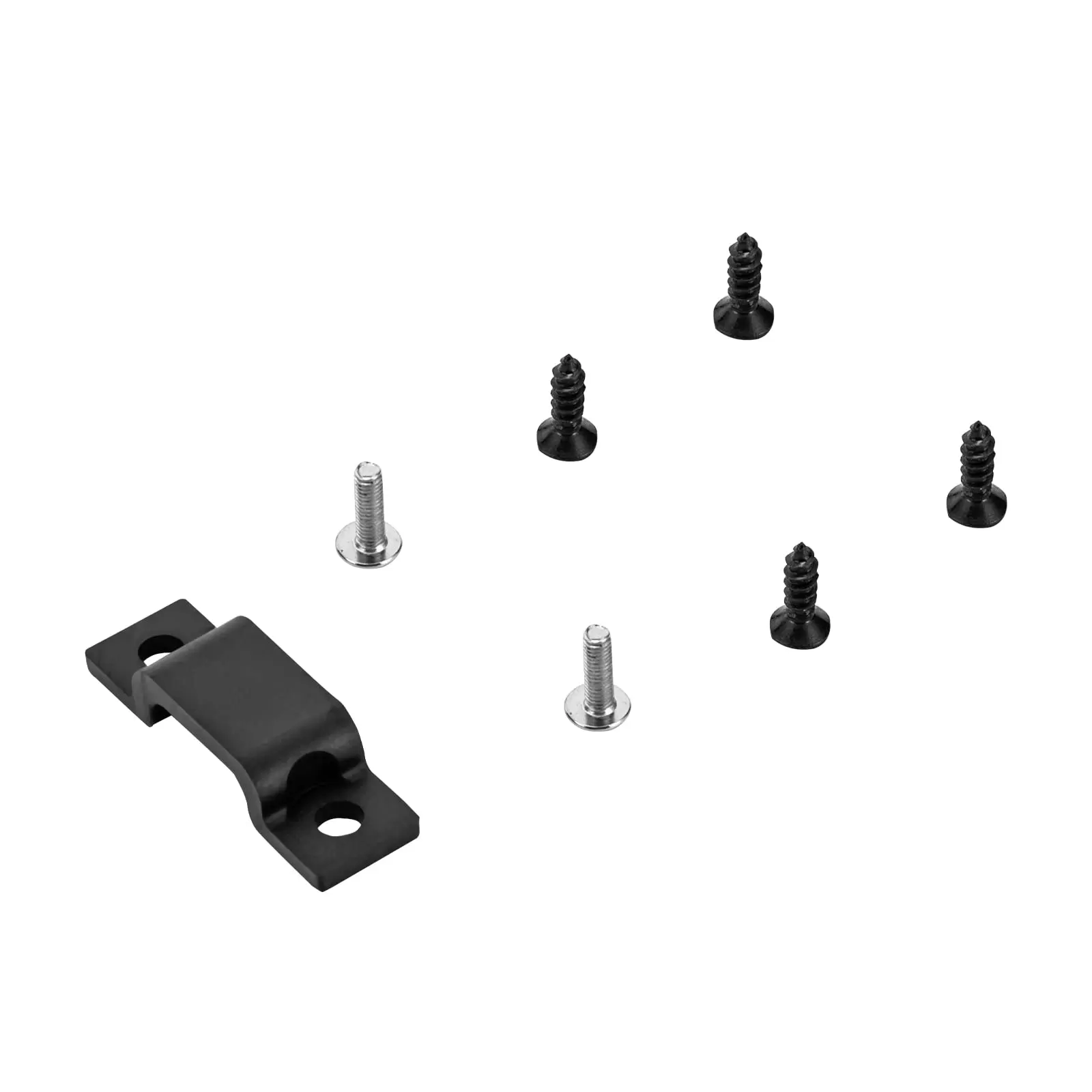

Fixing Clip: The fixing clip provided in the package can be installed at the bottom to fix the power cord and prevent it from getting tangled.
It is ideal for hardwood, carpet, and tile floors, as well as granite/marble countertops. It can be installed on floors, countertops, and decks in kitchens, living rooms, offices, public places, etc.
Product Description
How to Install
1. Drill a 10.43" L x 4.64" W hole in the tabletop.
2. Place the socket in the hole.
3. Secure it with screws and plug in the power supply. Finished!
Specifications
Material: Aluminum Alloy
Color: Silver
Rated Voltage: AC250V
Rated Current: 16A
Total Power Outputs: 6 (2 x 16A EU Standard + 1 x USB-A + C + 1 x LAN + 1 x HDMI)
USB Output Parameter: 5V 3A
Rated Frequency: 50/60Hz
Rated Power: 2500W
Package Size: 28 x 14 x 8cm / 11 x 5.5 x 3.1inch

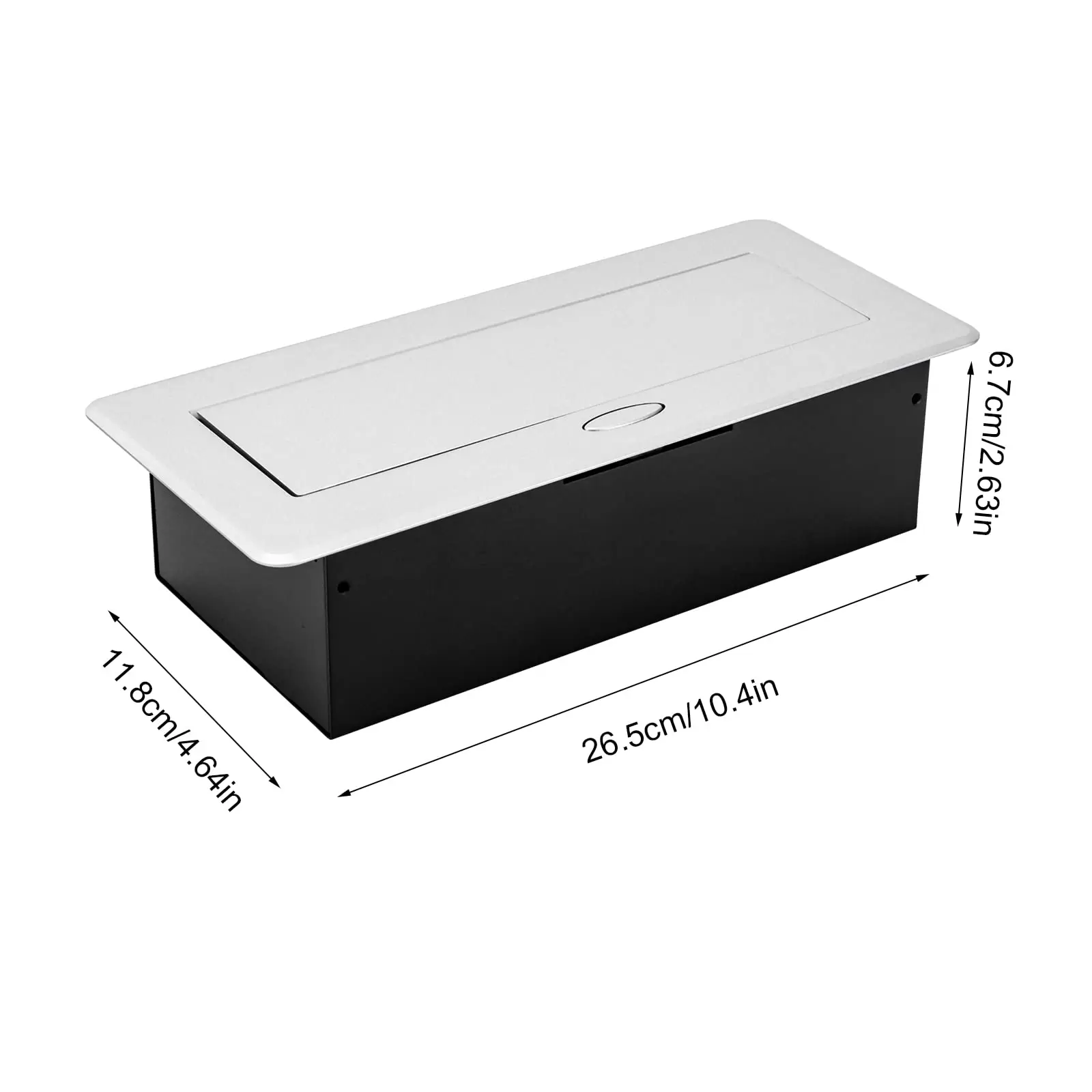

Product Size: 26.5 x 11.8 x 6.7cm / 10.43 x 4.64 x 2.63inch
Gross Weight: 1.3kg / 2.9lbs
Net Weight: 1.2kg / 2.6lbs

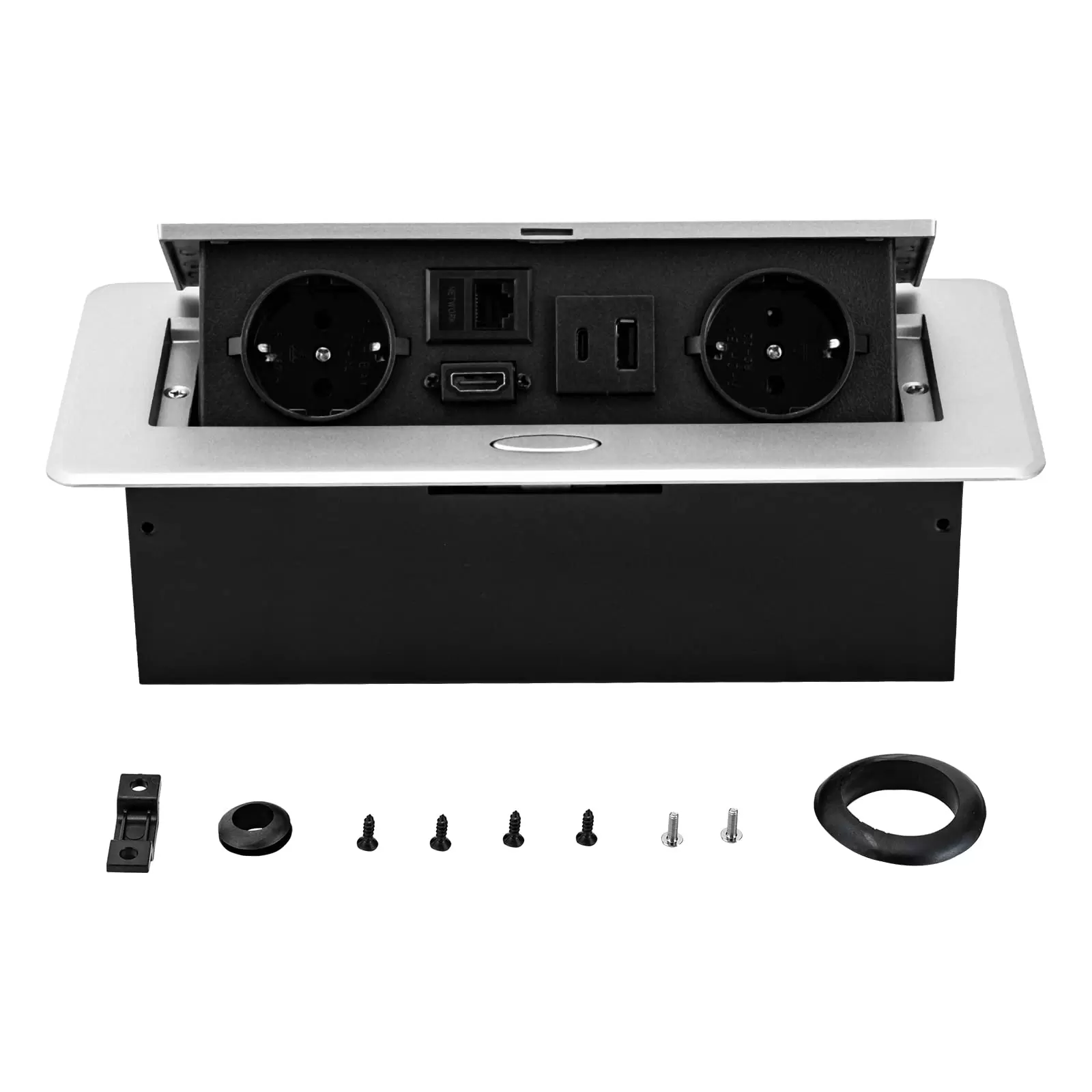

Package includes
1 x Lift-up Floor Box

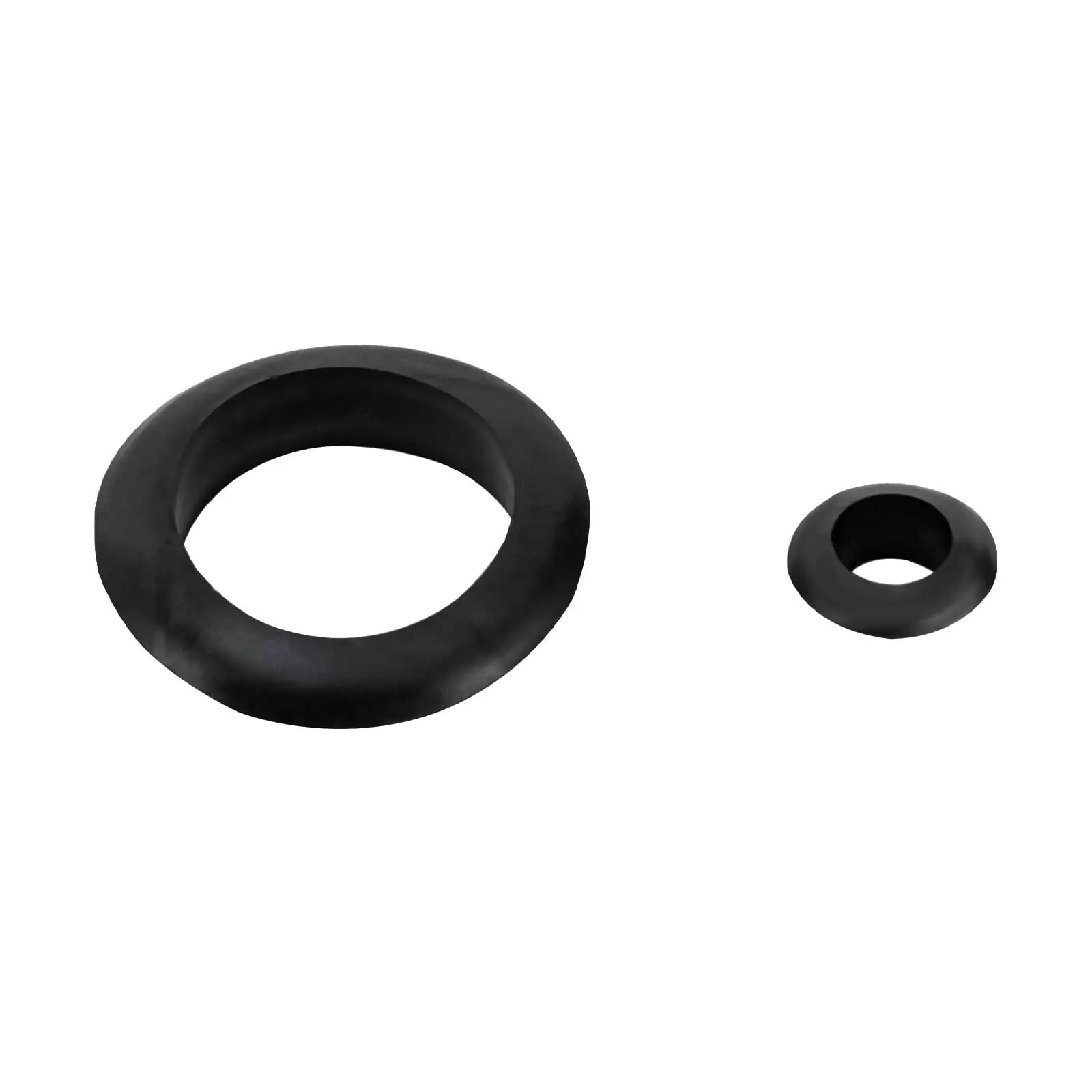

All assembly accessories
Notes
1. Please note that the double pop-up floor box must be installed by a qualified professional.
2. To avoid the risk of fire, electric shock, and/or death, turn off the power at the circuit breaker or fuse. Always confirm that the power is off before wiring.
3. This device must be installed and used in accordance with the appropriate electrical codes and regulations. Children under 18 are prohibited.
4. Please note that it is suitable for dry-finished floors with a thickness of 2.76 inches or more. The waterproof cover must be flush with the floor or 0.2-0.6 inches below the finished floor. The seal at the bottom of the panel must be securely attached to the finished surface during installation to prevent water and debris from entering. 5. Please allow slight color difference caused by shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
