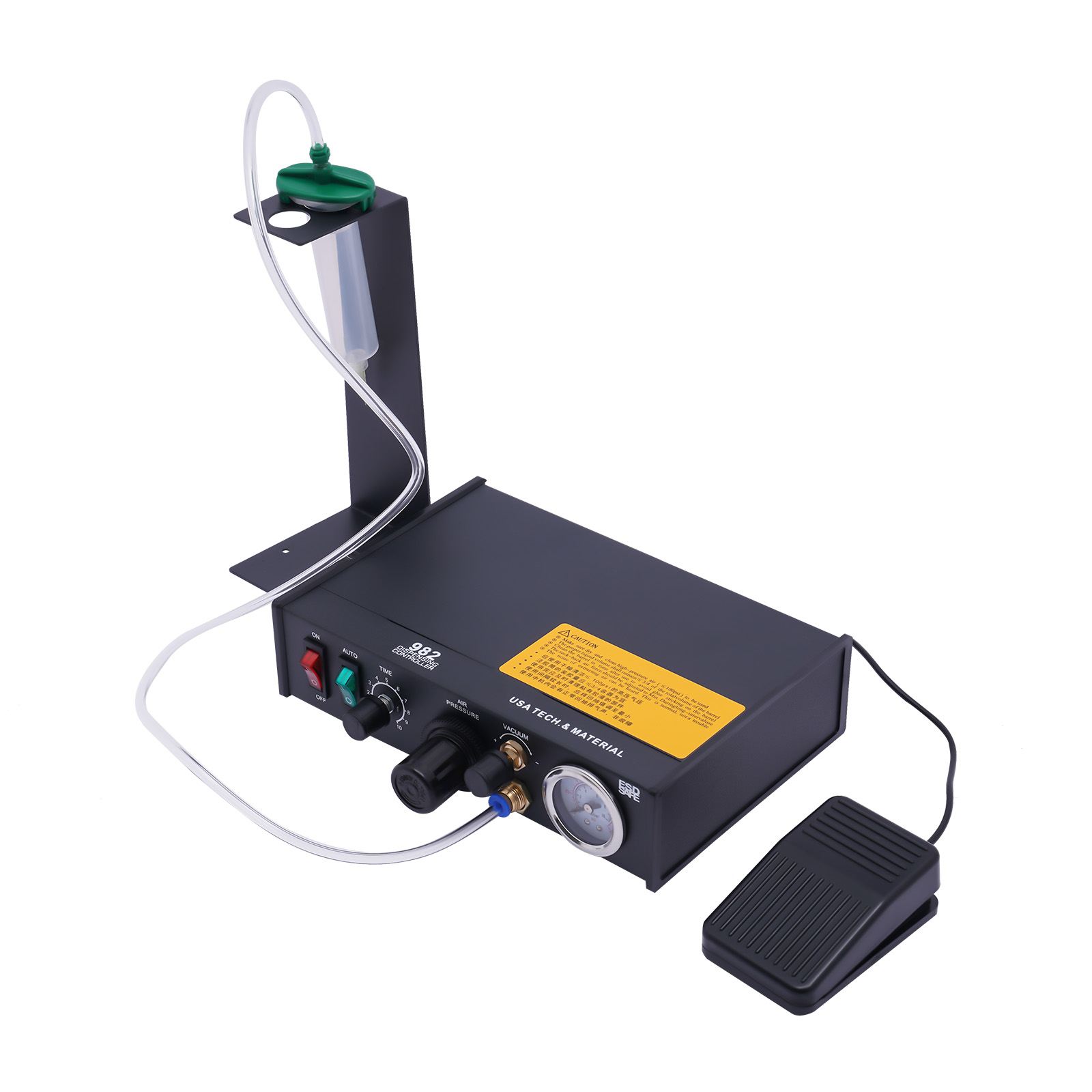

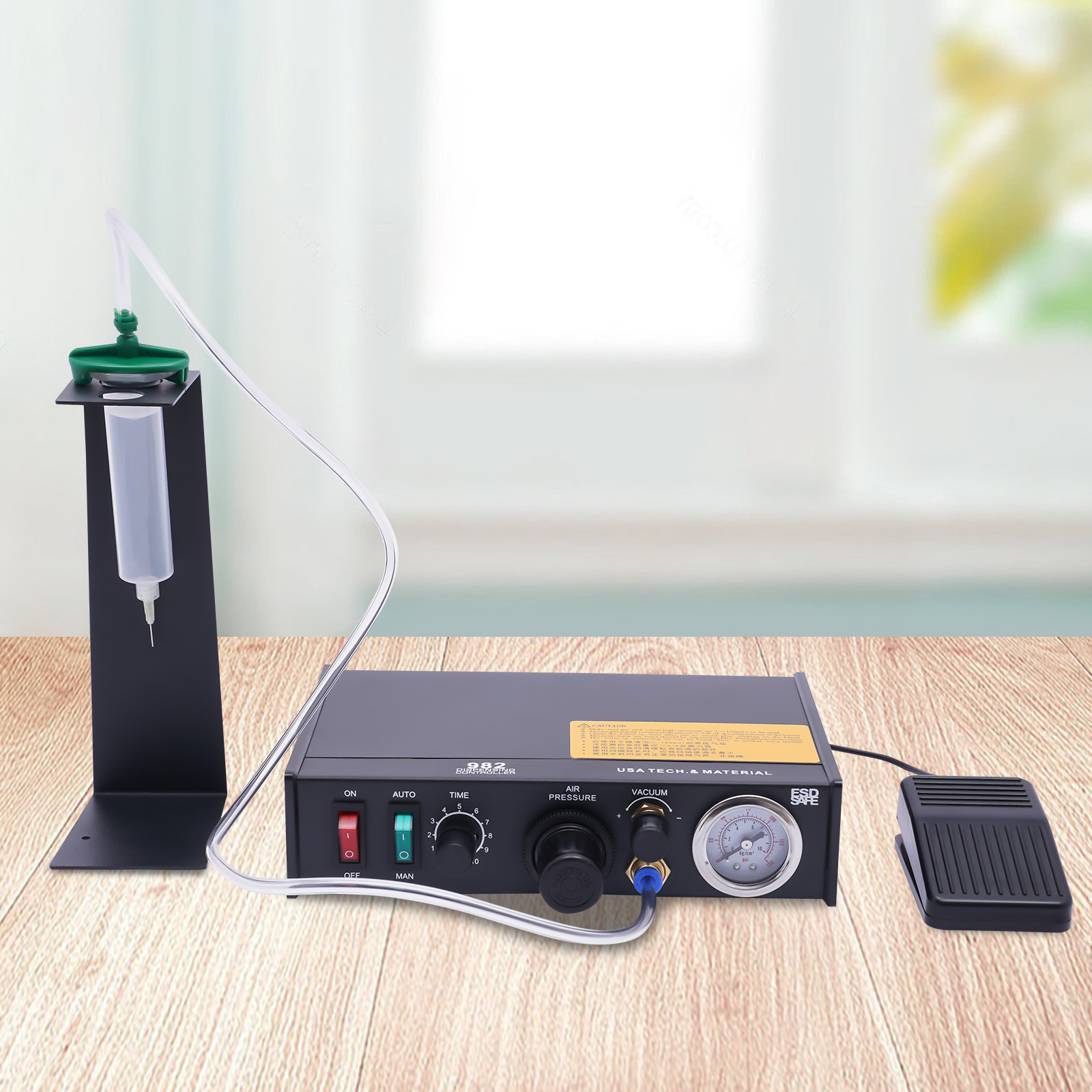

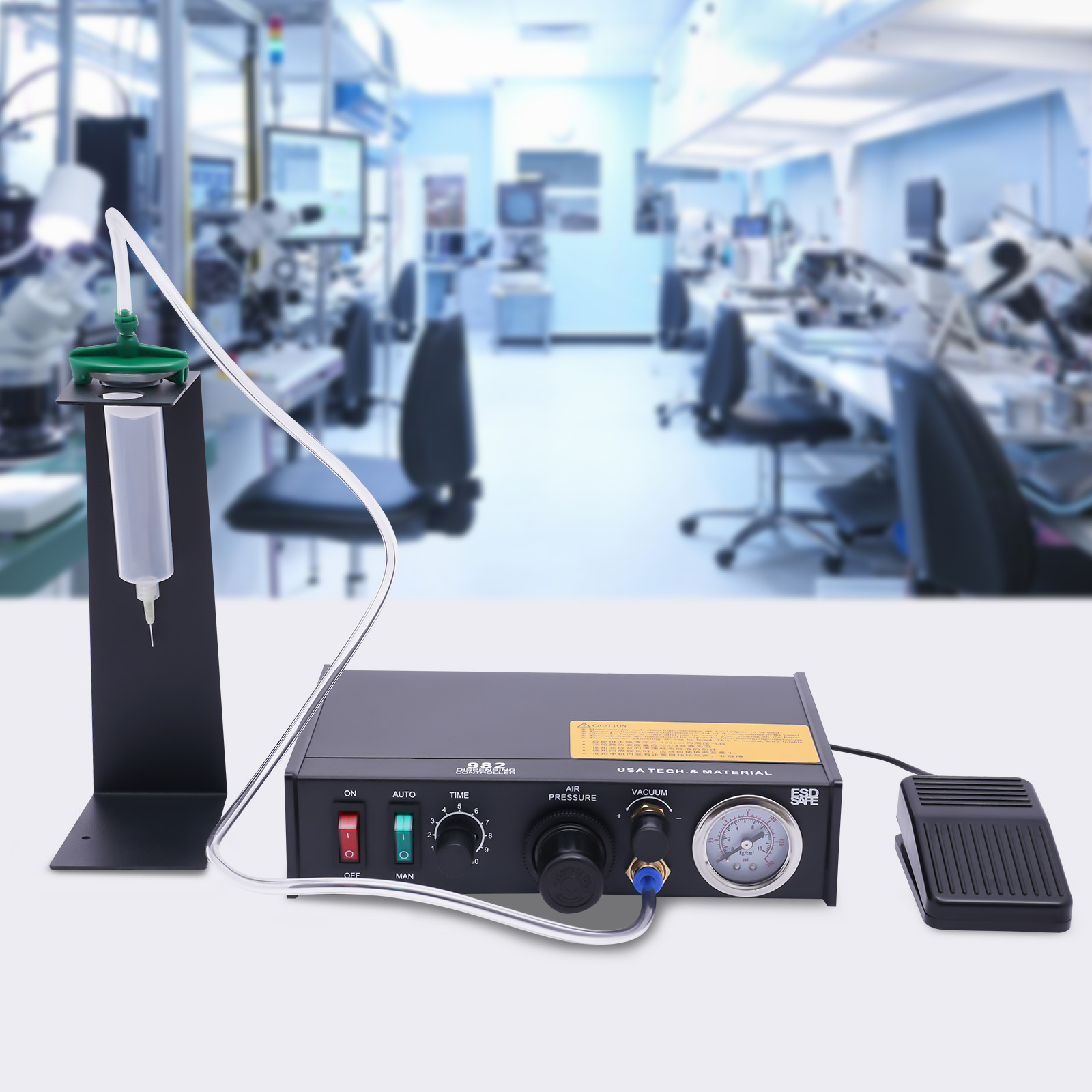

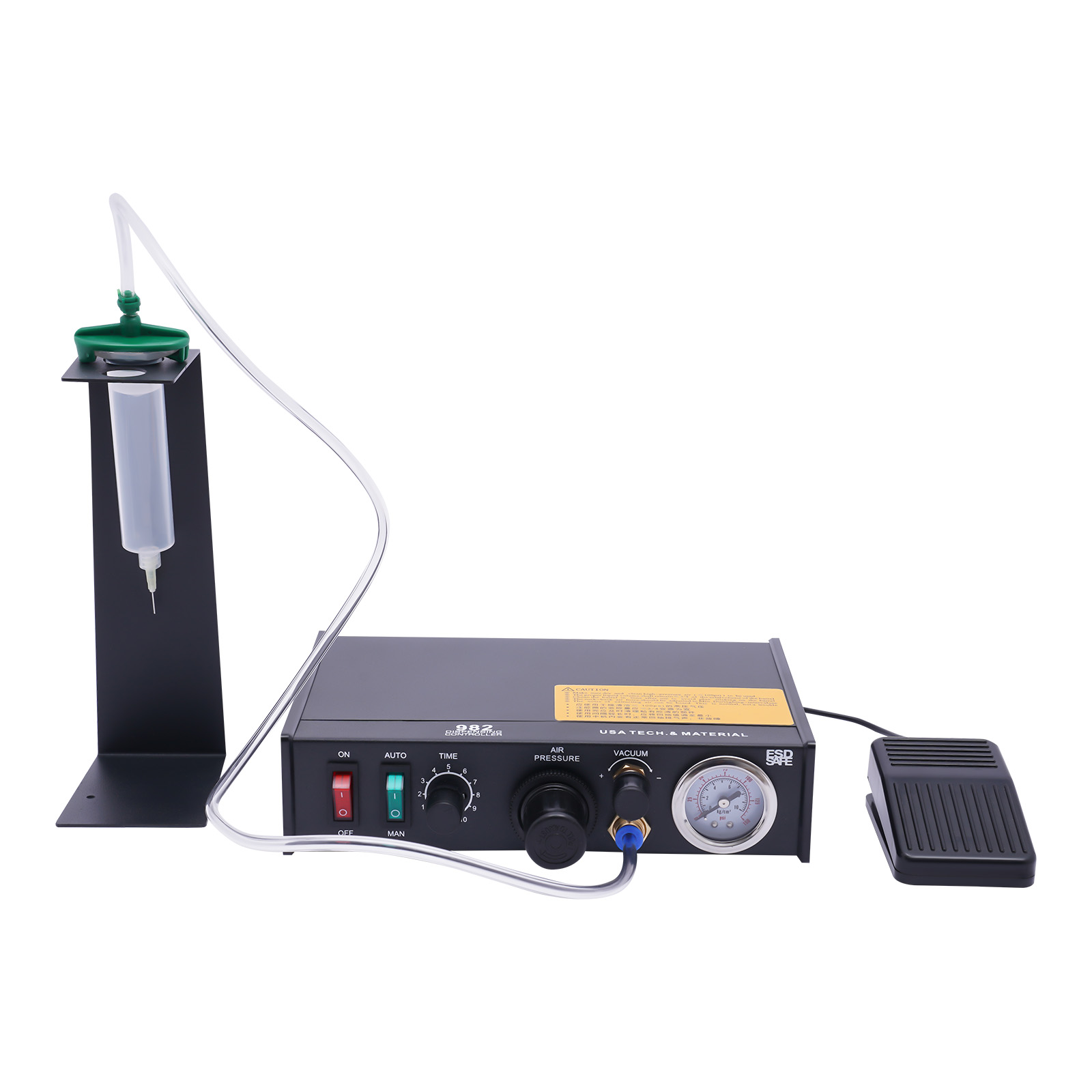

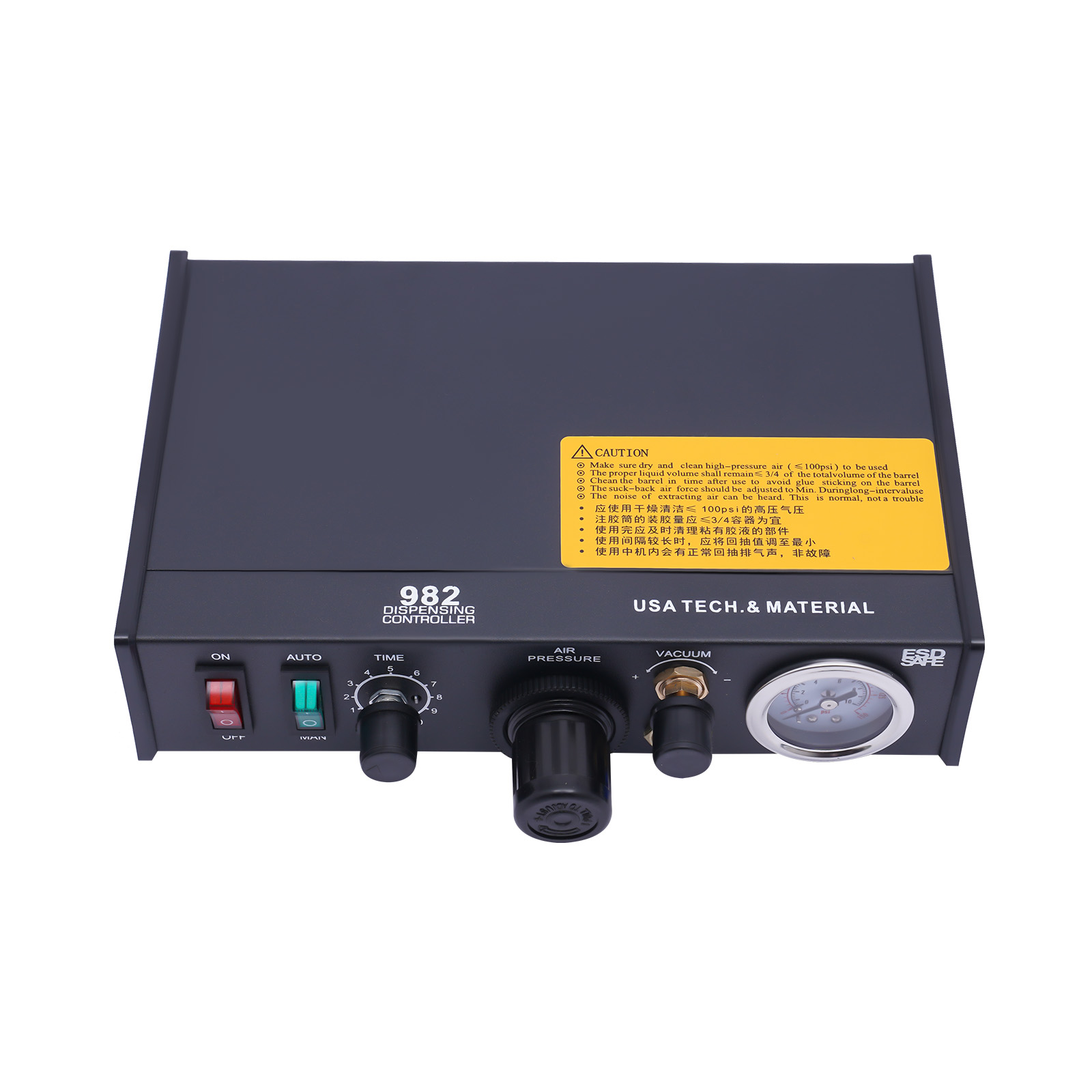

Pneumatic Dispensing Controller Glue Dispenser Solder Fluid Controller 982
Pneumatic Dispensing Controller Glue Dispenser Solder Fluid Controller 982
Pneumatic Dispensing Controller Glue Dispenser Solder Fluid Controller 982
Pneumatic Dispensing Controller Glue Dispenser Solder Fluid Controller 982
Pneumatic Dispensing Controller Glue Dispenser Solder Fluid Controller 982
Pneumatic Dispensing Controller Glue Dispenser Solder Fluid Controller 982
Pneumatic Dispensing Controller Glue Dispenser Solder Fluid Controller 982
Pneumatic Dispensing Controller Glue Dispenser Solder Fluid Controller 982
Pneumatic Dispensing Controller Glue Dispenser Solder Fluid Controller 982
Pneumatic Dispensing Controller Glue Dispenser Solder Fluid Controller 982
Pneumatic Dispensing Controller Glue Dispenser Solder Fluid Controller 982
Pneumatic Dispensing Controller Glue Dispenser Solder Fluid Controller 982
Pneumatic Dispensing Controller Glue Dispenser Solder Fluid Controller 982
Pneumatic Dispensing Controller Glue Dispenser Solder Fluid Controller 982
Pneumatic Dispensing Controller Glue Dispenser Solder Fluid Controller 982
Pneumatic Dispensing Controller Glue Dispenser Solder Fluid Controller 982
Pneumatic Dispensing Controller Glue Dispenser Solder Fluid Controller 982
Pneumatic Dispensing Controller Glue Dispenser Solder Fluid Controller 982
Pneumatic Dispensing Controller Glue Dispenser Solder Fluid Controller 982
Pneumatic Dispensing Controller Glue Dispenser Solder Fluid Controller 982
Pneumatic Dispensing Controller Glue Dispenser Solder Fluid Controller 982
Pneumatic Dispensing Controller Glue Dispenser Solder Fluid Controller 982
Pneumatic Dispensing Controller Glue Dispenser Solder Fluid Controller 982
Pneumatic Dispensing Controller Glue Dispenser Solder Fluid Controller 982
Pneumatic Dispensing Controller Glue Dispenser Solder Fluid Controller 982
Pneumatic Dispensing Controller Glue Dispenser Solder Fluid Controller 982
Pneumatic Dispensing Controller Glue Dispenser Solder Fluid Controller 982
Pneumatic Dispensing Controller Glue Dispenser Solder Fluid Controller 982

Pneumatic Dispensing Controller Glue Dispenser Solder Fluid Controller 982

(0 reviews)
Ask a question
959.88SEK
  • Brand: CNCEST
  • Product Code: JZON592OEUYJ8
  • Availability: In Stock
Quantity
- +
Estimated Delivery:
Free Fast Shipping:
On all orders
estimated delivery guarantee

Vacuum back suction

This semi-automatic glue dispensing machine is equipped with a vacuum back suction device, which can effectively prevent glue from dripping during use to achieve more precise glue dripping and ensure a clean and tidy working environment.

Quick start

This item adopts high quality electronic valve, which can instantly start the diaphragm valve and increase the working efficiency by more than 80%.

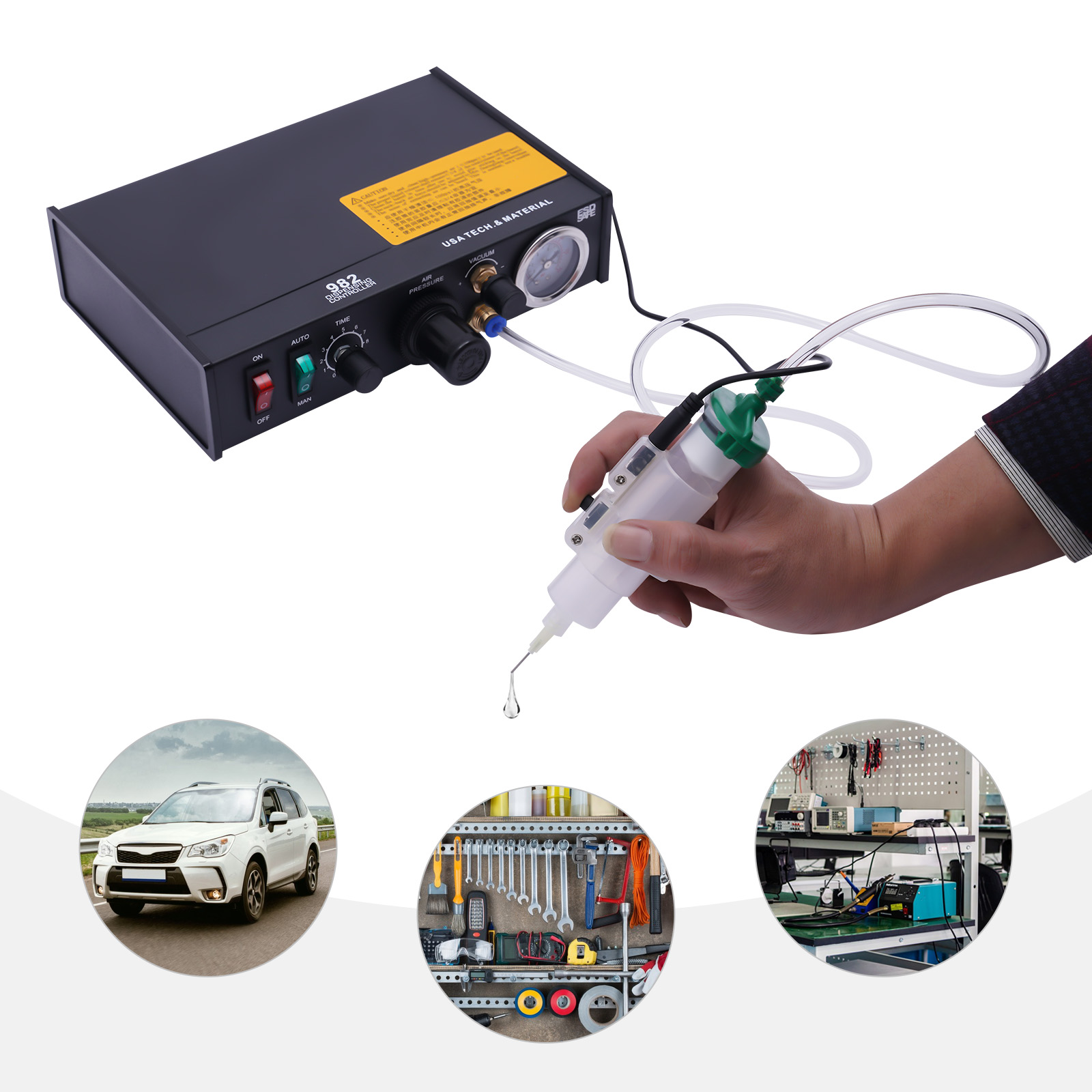

Precise drip

The minimum drip volume is 0.01 ml and the spit interval is 0.1 to 9.9 s. It can drip accurately and achieve a repeat accuracy of about 0.5%. It is also equipped with a single-hole manual control switch, allowing you to control it personally by hand for greater precision and punctuality.

Semi-automatic design

The machine can drip automatically and precisely control by single hole manual switch. If you want to have your hands free, you can place the switch in the automatic position, for a more efficient and higher quality working method.

Stable voltage change

It features a high-end copper coil transformer, which can stabilize the voltage change and increase the service life, and can be used in high-frequency and high-intensity work scenarios, which improves operational safety and at the same time is efficient and energetic. -saving.

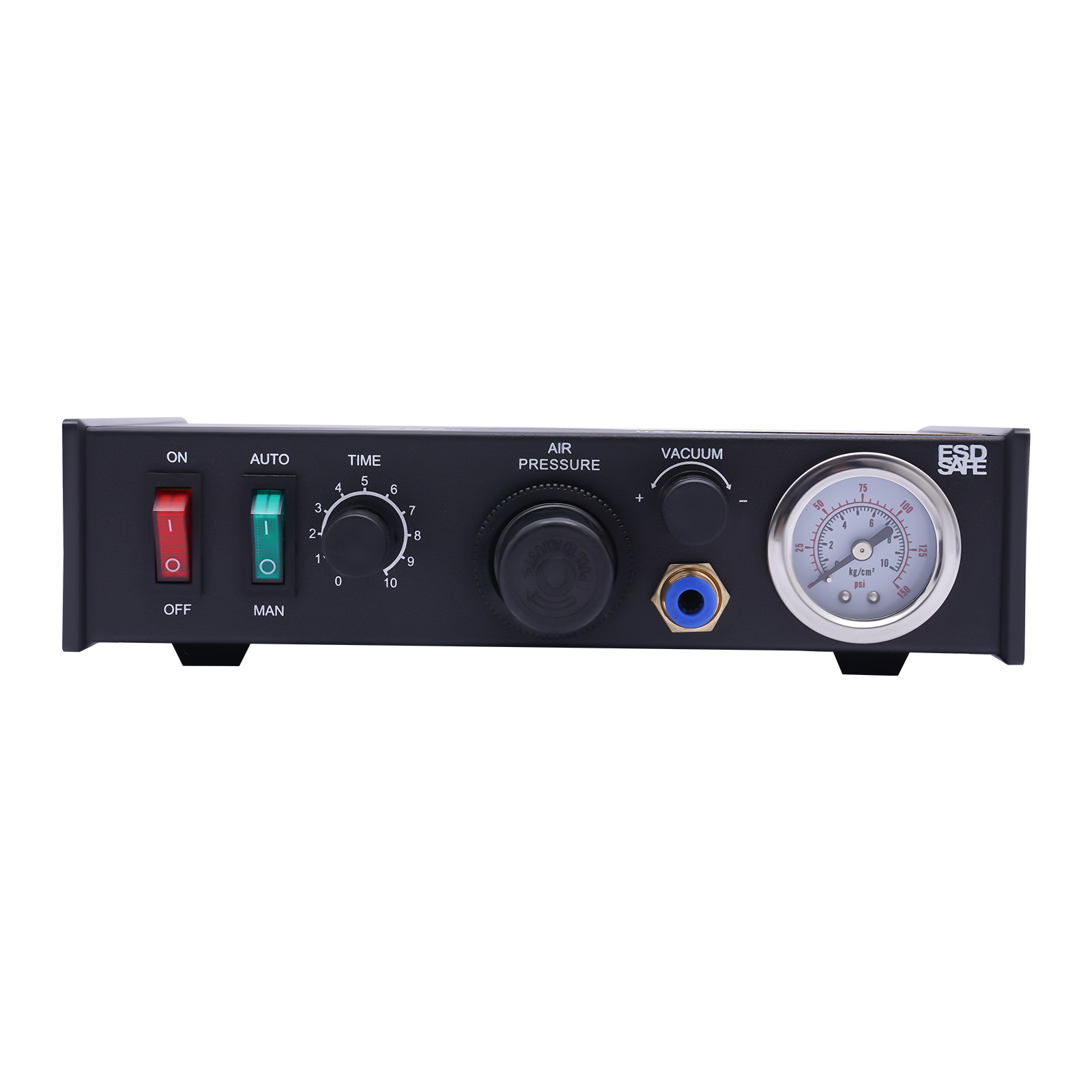

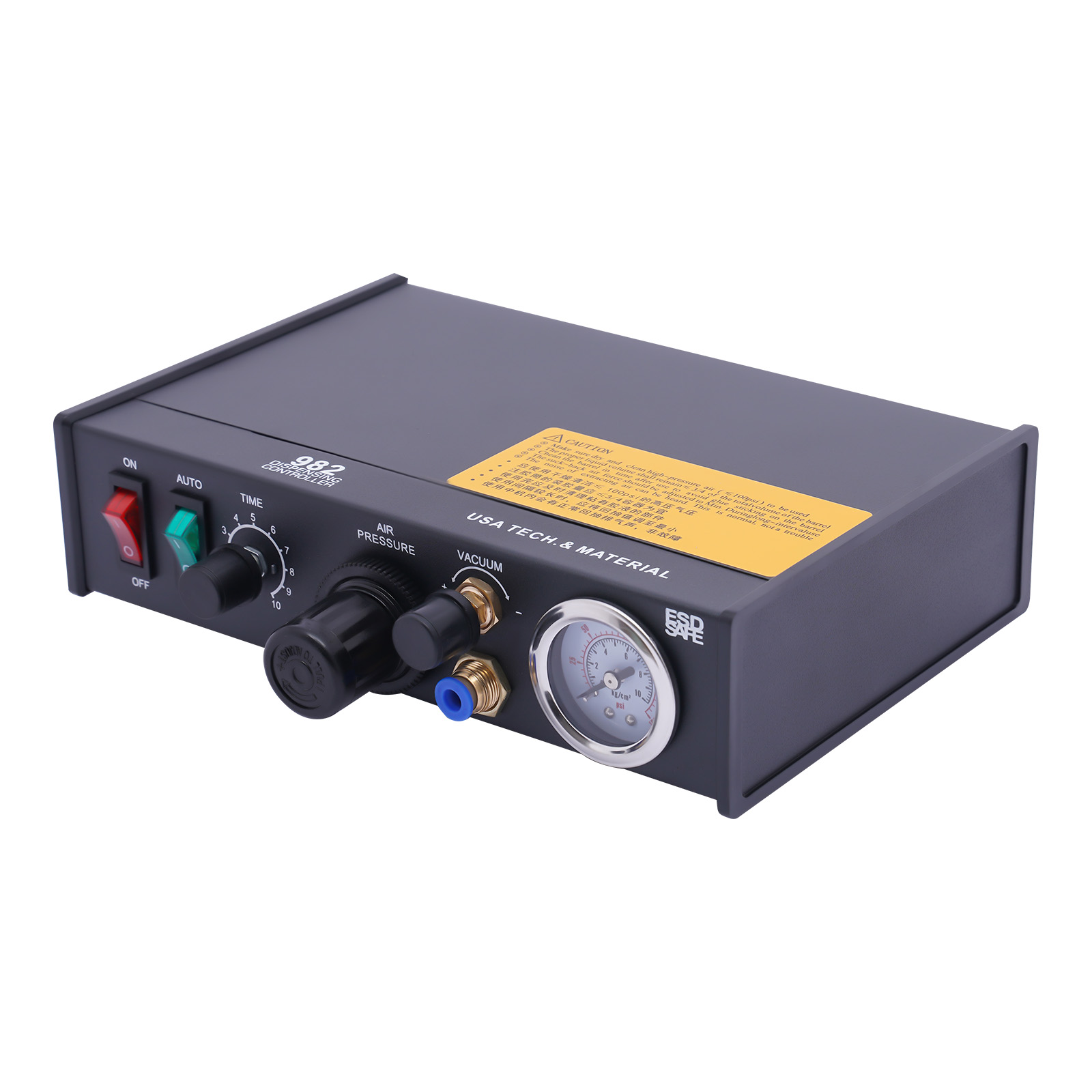

High precision air pressure gauge

The high-precision air pressure gauge can accurately monitor the air pressure input to the air pump and convert the air pressure accurately to ensure that the air tube does not burst.

Solid and durable

The product is made of metal, strong and stable, not easy to damage and corrode, but also uses the fourth generation chip design circuit board, which significantly improves the stability.

Anti-impregnation design

It is equipped with high-quality electronic valves, with a certain anti-impregnation function, to better ensure operational safety, and can also effectively extend the service life of the semi-automatic glue dispensing machine.

Non-slip feet

The bottom has non-slip feet so that the product is placed more stably and is not easy to fall or slip.

Rounded corners

The corners have been polished to be smooth and rounded, reducing the risk of being accidentally bumped at work.

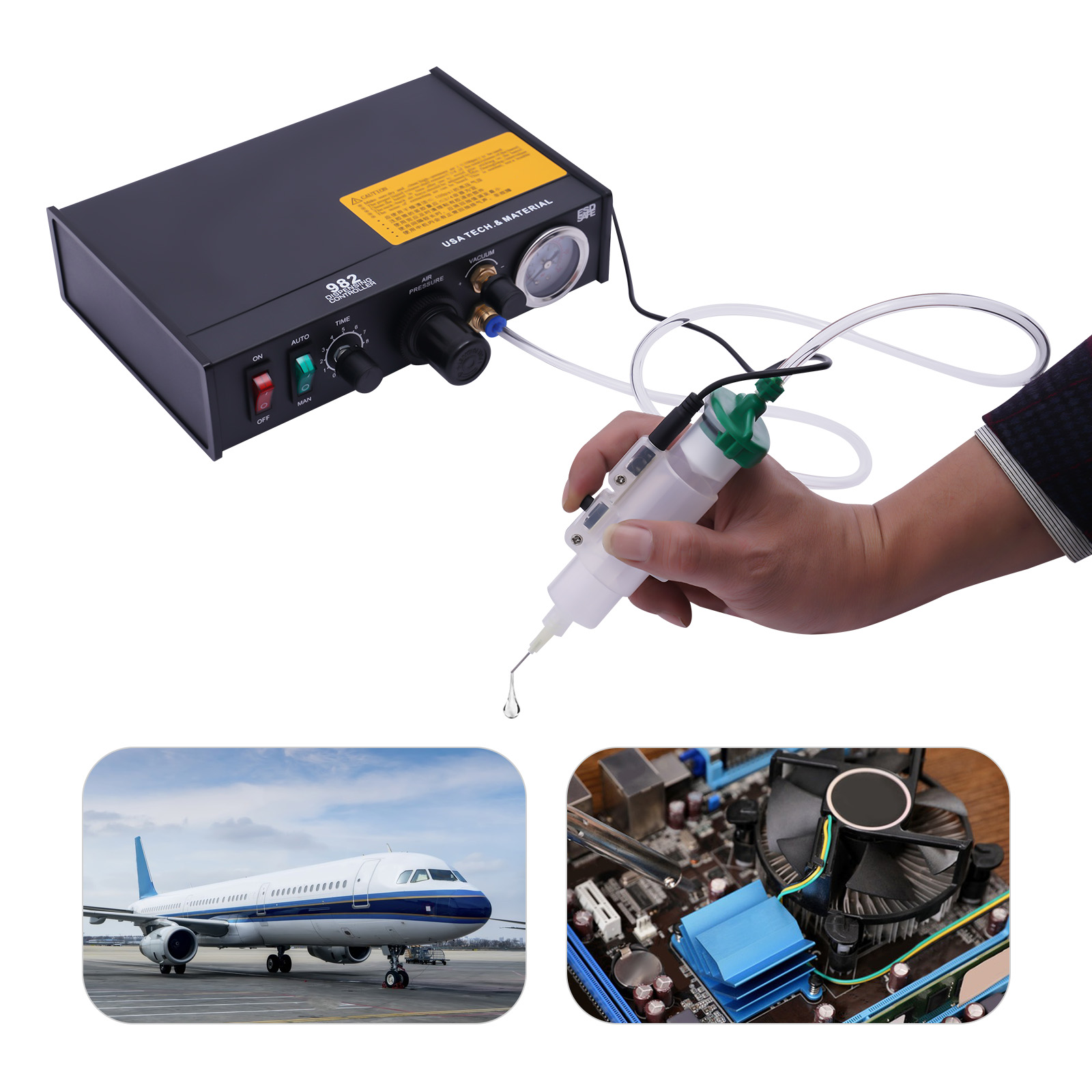

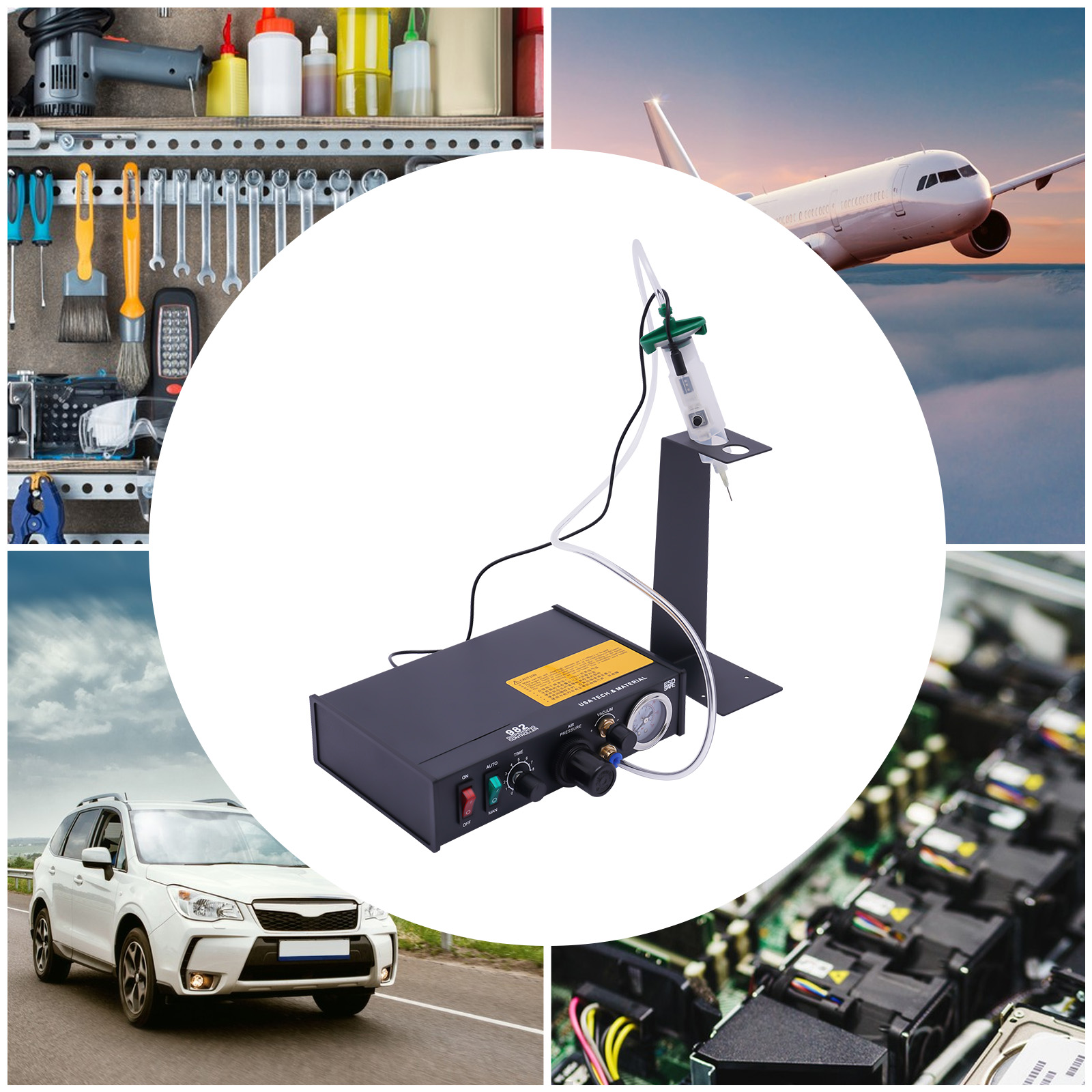

Application

It is suitable for most yellow glues, quick-drying glues, epoxy resins, etc. on the market, and is widely used to join various electronic components, machine production, instrumentation, jewelry and other objects.

Specifications
Color:  Negro
Model:  982
Material:  Metal
Spitting mode:  Manual / Semi-automatic
Minimum drip volume:  0,01 ml
Spitting time interval:  0,1-9,9 s
Automatic sync (can be configured):  0,01-30 s
Replay Accuracy:  ±0,5%
Internal voltage:  12-24CC
Inlet air pressure:  2.5-7 bar (35-100 psi)
Outlet air pressure:  0.1-5.5 bar (1-78 psi)
Power supply:  220 VCA, 50 Hz
Energy consumption:  20W
Plug specification:  European standard 220V

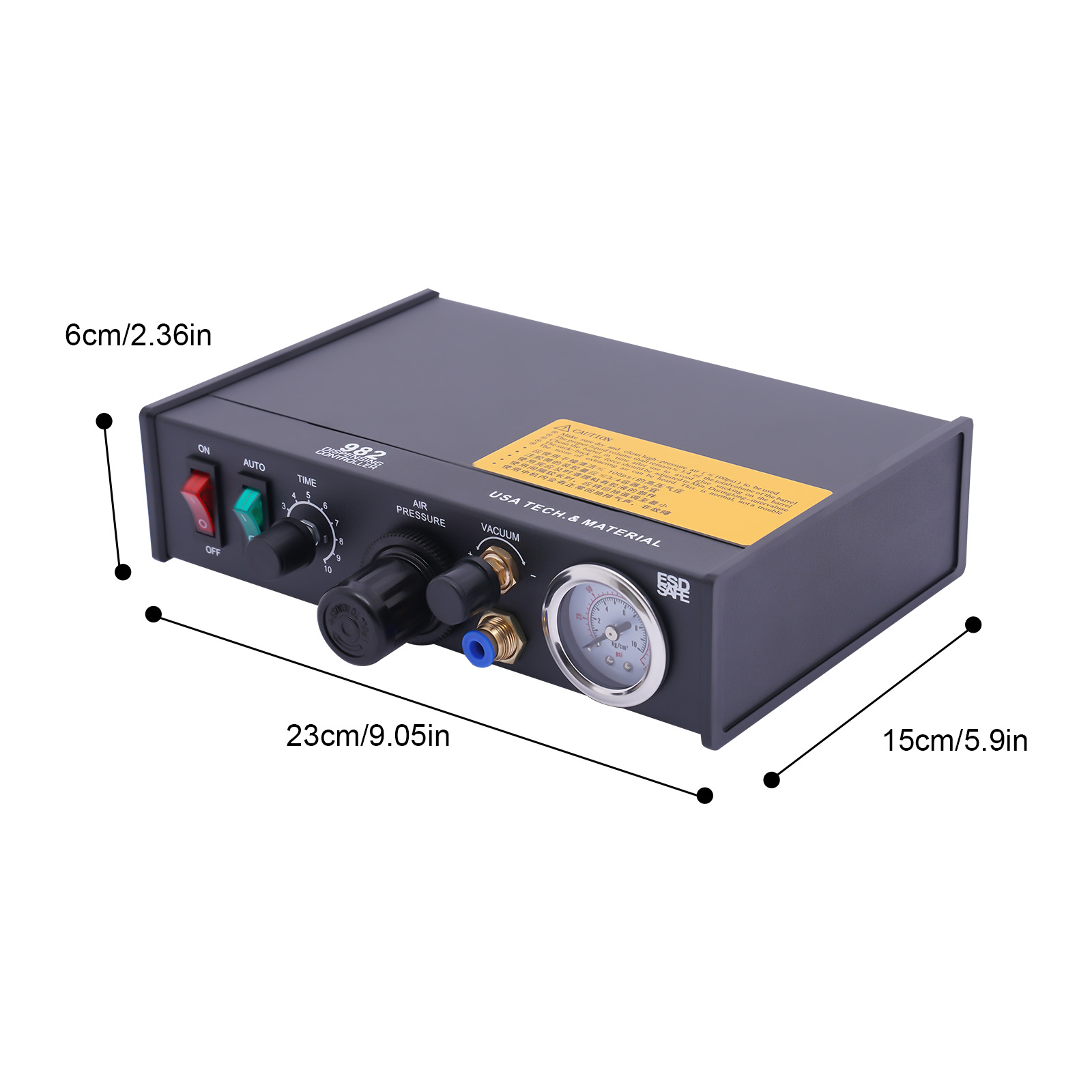

Product size:  23*15*6cm/9.05*5.9*2.36inch
Package size:  20*26*14cm/10*9*12.5inch
Gross weight:  2.1kg/4.63lbs
1 * Dispenser main unit
1 * Manually switch

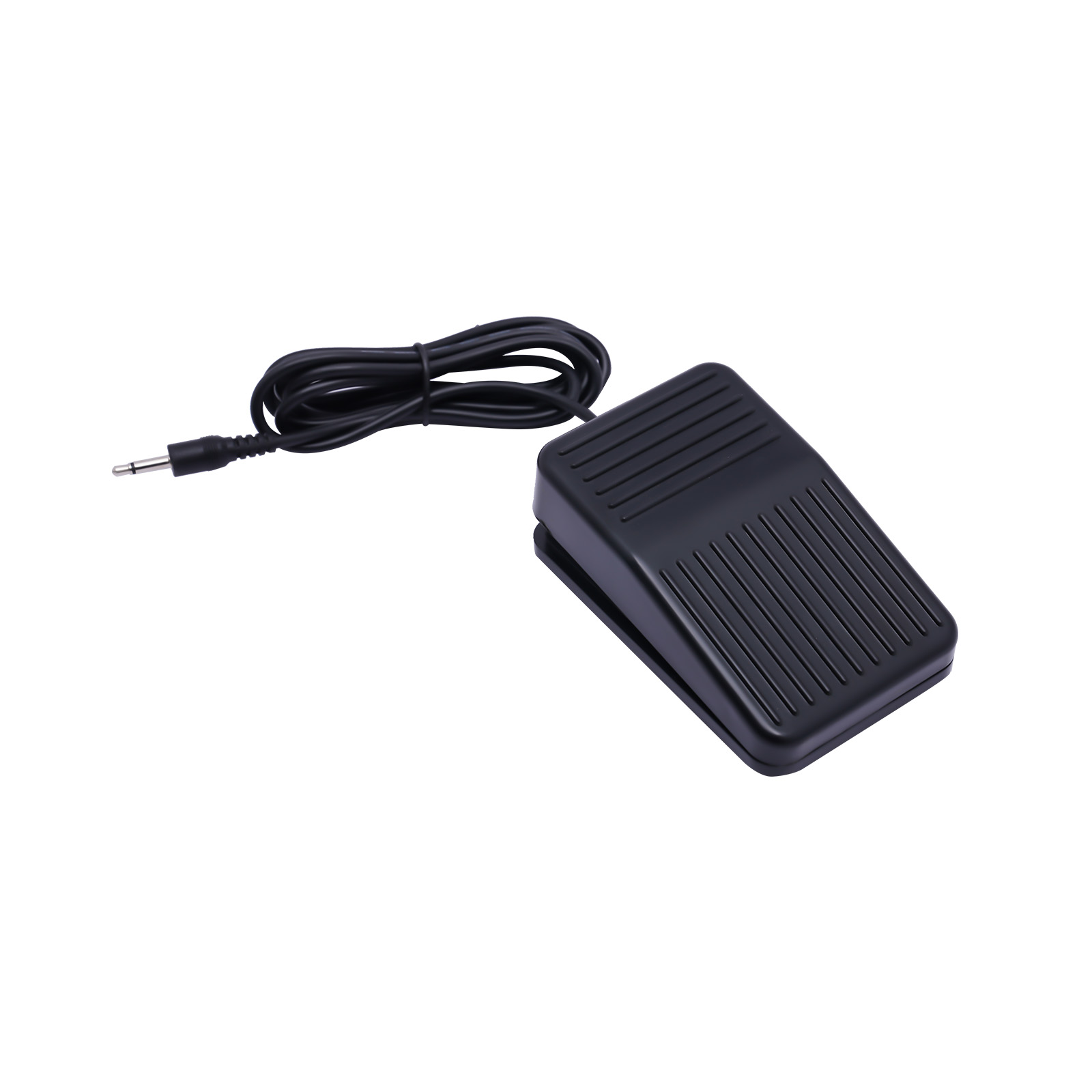

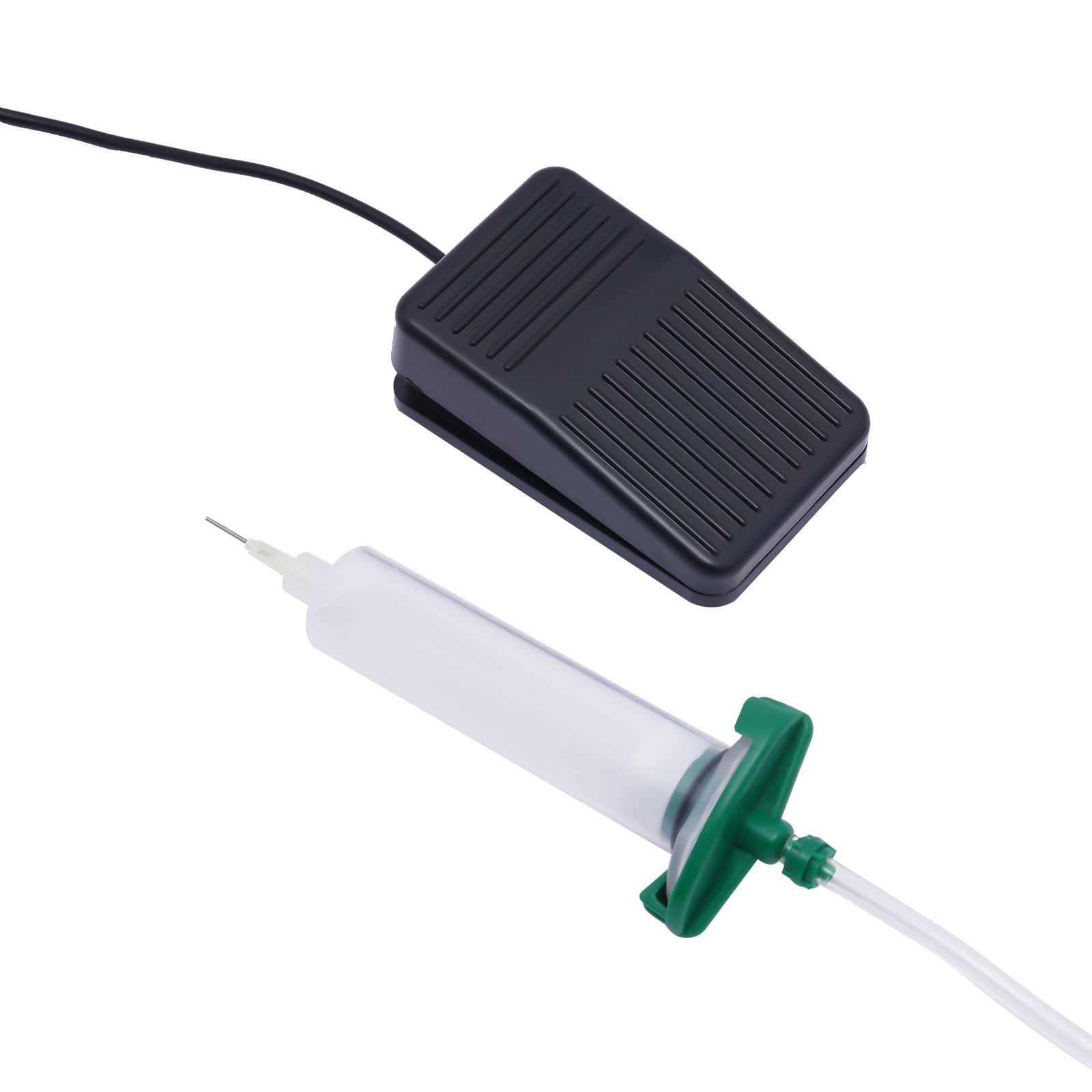

1 * Foot Switch
1 * Air tube
1 * Connecting tube
1 * Power Cable

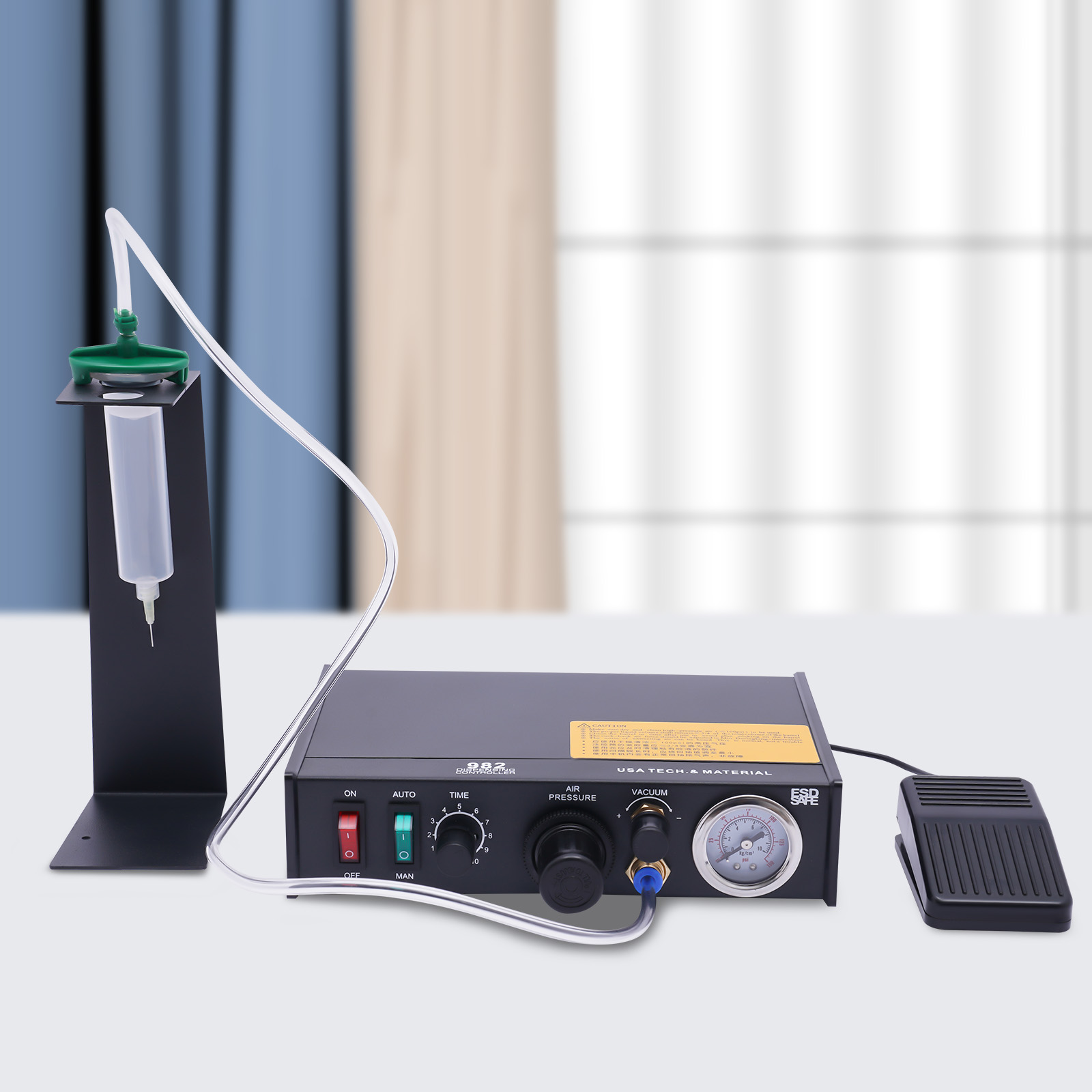

1 * Dispenser Holder

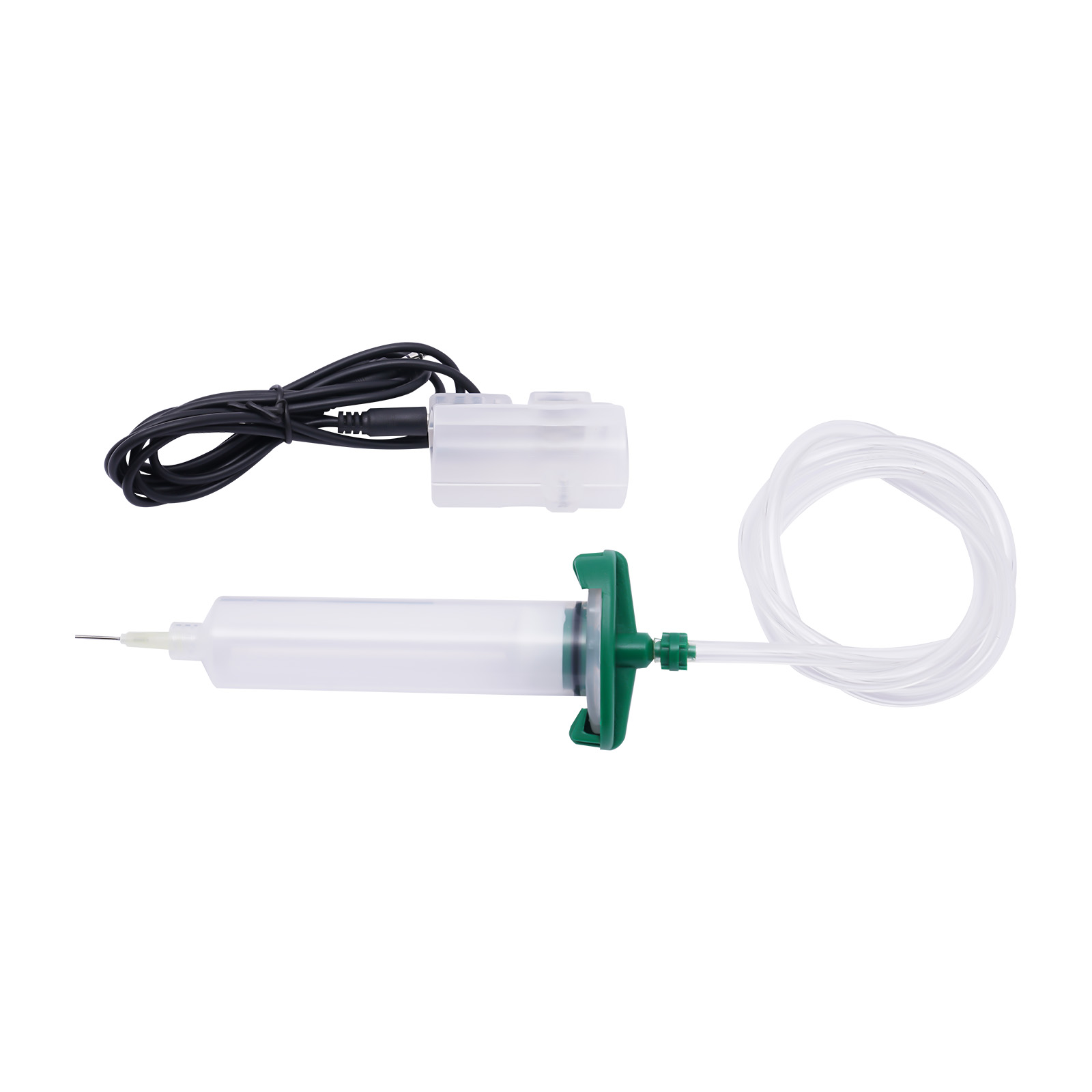

2 * 30cc liquid barrels.
6 * C Dispensing Needles
1 * Chinese and English manual

Specifications

Color Negro Model 982
Material Metal Spitting mode Manual / Semi-automatic
Minimum drip volume 0,01 ml Spitting time interval 0,1-9,9 s
Automatic sync (can be configured) 0,01-30 s Replay Accuracy ±0,5%
Internal voltage 12-24CC Inlet air pressure 2.5-7 bar (35-100 psi)
Outlet air pressure 0.1-5.5 bar (1-78 psi) Power supply 220 VCA, 50 Hz
Energy consumption 20W Plug specification European standard 220V
Product size 23*15*6cm/9.05*5.9*2.36inch Package size 20*26*14cm/10*9*12.5inch
Gross weight 2.1kg/4.63lbs

Product Tips

Grades

1.The high inlet pressure should not exceed 7 bar (100 psi) and the maximum working pressure of the glue dropper should not exceed 5.5 bar (78 psi). If the working air pressure is higher than 4 bar, please change to aluminum connectors. 2.If available, store all materials at a constant temperature (5°C) as directed to ensure that the concentration does not change significantly during use. 3. When the concentration of the material is too large (flow difficulties), it cannot be dripped, if you want to use it, according to the manufacturer's instructions, please dilute the use; Before working, the material must be thoroughly stirred evenly to ensure that the drip size is consistent. 4. In automatic state, the general setting of the air pressure in the machine at 1-2.7 bar (15-40 psi) is more appropriate. When working in the automatic state, the force of the vacuum tube pumping air must be adjusted to the appropriate position. Too much pumping will flush the piston and destroy normal operation. 5. Work in automatic state, according to the actual situation, timely removal of the material left in the needle nozzle, these gradually curing materials will block the mouth discharge and pumping back; after work, the barrel must be cleaned in time; Otherwise, it will be very difficult to disassemble. 6. Please allow slight color difference caused by shooting light and 1-3cm error due to manual measurement and make sure you do not mind before ordering.
