MS90S-2-1.5KW B5 230/400V High Speed Motor, Three-phase Asynchronous Motor For Machinery and Equipment, S1 Motor
MS90S-2-1.5KW B5 230/400V High Speed Motor, Three-phase Asynchronous Motor For Machinery and Equipment, S1 Motor
MS90S-2-1.5KW B5 230/400V High Speed Motor, Three-phase Asynchronous Motor For Machinery and Equipment, S1 Motor
MS90S-2-1.5KW B5 230/400V High Speed Motor, Three-phase Asynchronous Motor For Machinery and Equipment, S1 Motor
MS90S-2-1.5KW B5 230/400V High Speed Motor, Three-phase Asynchronous Motor For Machinery and Equipment, S1 Motor
MS90S-2-1.5KW B5 230/400V High Speed Motor, Three-phase Asynchronous Motor For Machinery and Equipment, S1 Motor
MS90S-2-1.5KW B5 230/400V High Speed Motor, Three-phase Asynchronous Motor For Machinery and Equipment, S1 Motor
MS90S-2-1.5KW B5 230/400V High Speed Motor, Three-phase Asynchronous Motor For Machinery and Equipment, S1 Motor
MS90S-2-1.5KW B5 230/400V High Speed Motor, Three-phase Asynchronous Motor For Machinery and Equipment, S1 Motor
MS90S-2-1.5KW B5 230/400V High Speed Motor, Three-phase Asynchronous Motor For Machinery and Equipment, S1 Motor
MS90S-2-1.5KW B5 230/400V High Speed Motor, Three-phase Asynchronous Motor For Machinery and Equipment, S1 Motor
MS90S-2-1.5KW B5 230/400V High Speed Motor, Three-phase Asynchronous Motor For Machinery and Equipment, S1 Motor
MS90S-2-1.5KW B5 230/400V High Speed Motor, Three-phase Asynchronous Motor For Machinery and Equipment, S1 Motor
MS90S-2-1.5KW B5 230/400V High Speed Motor, Three-phase Asynchronous Motor For Machinery and Equipment, S1 Motor

MS90S-2-1.5KW B5 230/400V High Speed Motor, Three-phase Asynchronous Motor For Machinery and Equipment, S1 Motor

(0 reviews)
Ask a question
2,415.47SEK
  • Brand: CNCEST
  • Product Code: JZ8VPZ-00110099
  • Availability: In Stock
Quantity
- +
Estimated Delivery:
Free Fast Shipping:
On all orders
estimated delivery guarantee
MS90S-2-1.5KW B5 230/400V High Speed Motor, Three-phase Asynchronous Motor For Machinery and Equipment, S1 Motor

MS90S-2-1.5KW B5 230/400V High Speed Motor, Three-phase Asynchronous Motor For Machinery and Equipment, S1 Motor

  • Description
  • Reviews (0)
  • Recommer
  • Delivery and Return

Sturdy and Durable

It is made of copper, aluminum and steel through the painting process, which is wear-resistant, corrosion-resistant, rust-resistant, oxidation-resistant and not easy to deform, ensuring excellent performance and long service life.

High Efficiency

The 1.5KW high power and the high precision rotor and bearing give this product a rated speed of 2850rpm and 81.3% efficiency, providing efficient, continuous, and stable running, saving you time and cost.

High Stability

Pure copper coils, precision bearings and back cooling holes ensure stable operation for a long time without heating, so you can use it with peace of mind.

Safety Guard

The product has insulation class F and protection class IP55 to ensure safety during use.

Wide Application

This product can be widely used for mechanical, industrial, mining equipment, machine tool equipment and other items (not included) to keep them powered up and make your work easier.

Easy to Maintain

Three-phase asynchronous motor reduces mechanical wear and tear, lowering maintenance costs and intervals and extending the life of the entire kit.

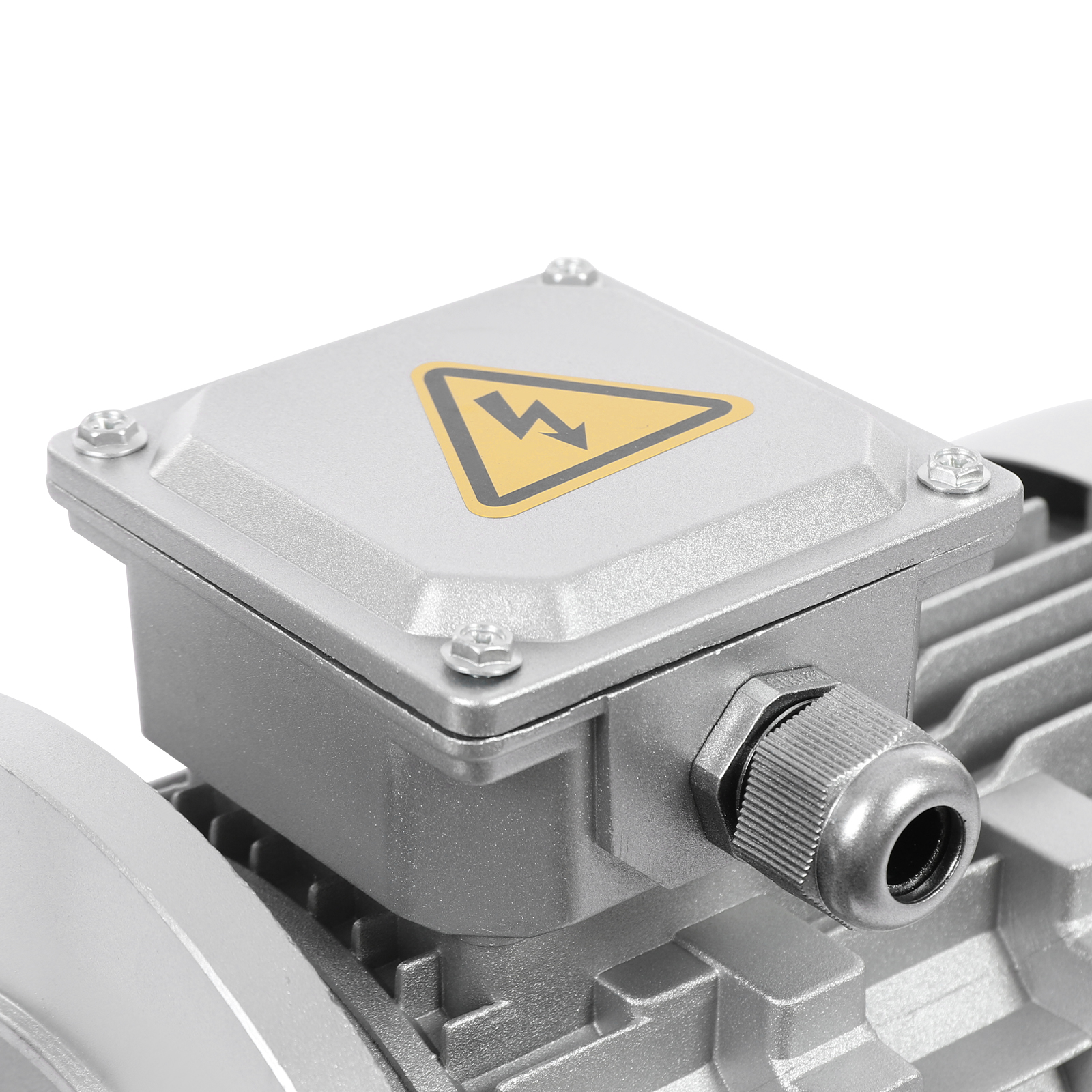

Premium Junction Box

The high-class capacitor junction box protects the wire and it has a long service life.

Smooth Edge

The rounded and smooth edges not only add to the aesthetics of the product but also improve the safety of use.

Application

The product is suitable for machinery, industry, mining equipment, machine tool equipment, electric power, textile industry and other mechanical equipment to provide power for them.

Specifications
Model:  MS90S-2
Color:  Silver
Material:  Copper, Aluminum, Steel
Process:  Painting
Motor Type:  Three-phase Asynchronous Motor
Mounting Type:  B5
Assembly Required:   No
Voltage:  230/400V
Power:  1.5KW
Current:   5.5/3.17A
Speed:  2850 RPM
IP Rating:  IP55
Insulation Class:   F
Noise:  76dB(A)
Efficiency:  81.3%
Applicable Environment Temperature:  -15≤0≤40℃/5≤32≤104℉
Altitude:  Not Exceeding 1000m/3280.84ft
Cooling Method:  ICO141
Duty:  S1(Continuous)
Gross Weight:  12.2kg/26.9lbs
Net Weight:  11.5kg/25.35lbs
Shaft Diameter:  24mm/0.94in

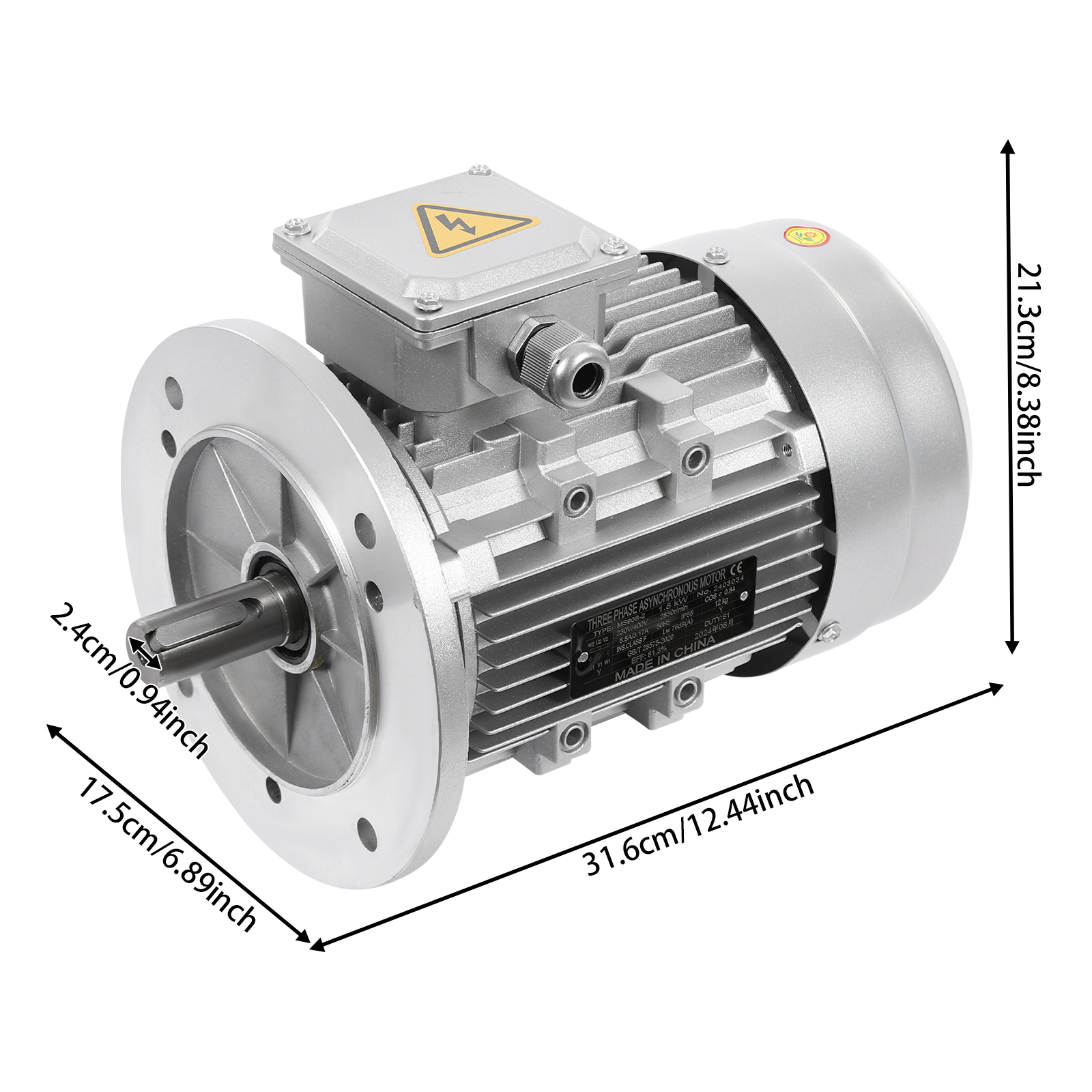

Product Size:  31.6*17.5*21.3cm/12.44*6.89*8.38in
Package Size:  38*28*22cm/14.96*11.02*8.66in
Package+Included
1* Electric Motor

Specifications

Model MS90S-2 Color Silver
Material Copper, Aluminum, Steel Process Painting
Motor Type Three-phase Asynchronous Motor Mounting Type B5
Assembly Required  No Voltage 230/400V
Power 1.5KW Current  5.5/3.17A
Speed 2850 RPM IP Rating IP55
Insulation Class  F Noise 76dB(A)
Efficiency 81.3% Applicable Environment Temperature -15≤0≤40℃/5≤32≤104℉
Altitude Not Exceeding 1000m/3280.84ft Cooling Method ICO141
Duty S1(Continuous) Gross Weight 12.2kg/26.9lbs
Net Weight 11.5kg/25.35lbs Shaft Diameter 24mm/0.94in
Product Size 31.6*17.5*21.3cm/12.44*6.89*8.38in Package Size 38*28*22cm/14.96*11.02*8.66in

Product+Tips

Notes

1.Please note that this product does not include any mechanical equipment, etc.
2.Installation and commissioning of the product needs to be carried out by a qualified electrician, this is for your safety purposes.
3.Please check the size carefully before ordering.
