MS6334-0.37KW B3 230/400V High Speed Motor, Three-phase Asynchronous Motor For Machinery and Equipment, S1 Motor
1,200.00SEK
- Brand: CNCEST
- Product Code: JZ8VPZ-001000EU
- Availability: In Stock
Estimated Delivery:
Free Fast Shipping:
On all orders

Specifications
Model | MS6334 | Color | Silver |
Material | Copper, Aluminum, Steel | Process | Painting |
Motor Type | Three-phase Asynchronous Motor | Mounting Type | B3 |
Assembly Required | No | Voltage | 230/400V |
Power | 0.37KW | Current | 1.84/1.06A |
Speed | 1330 RPM | IP Rating | IP55 |
Insulation Class | F | Noise | 76dB(A) |
Efficiency | 67% | Applicable Environment Temperature | -15≤0≤40℃/5≤32≤104℉ |
Altitude | Not Exceeding 1000m/3280.84ft | Cooling Method | ICO141 |
Duty | S1(Continuous) | Gross Weight | 5.5kg/12.13lbs |

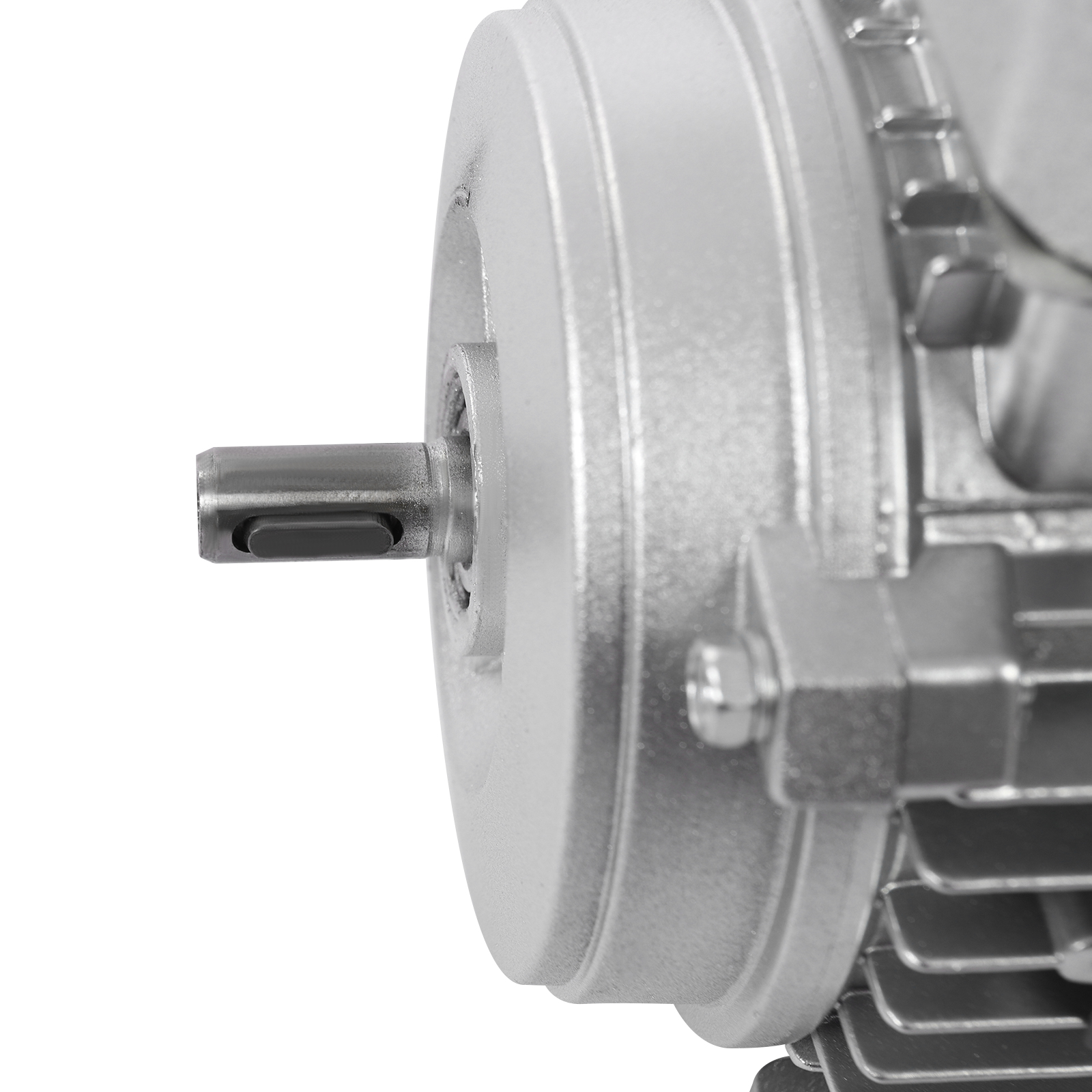

Net Weight | 5.1kg/11.24lbs | Shaft Diameter | 11mm/0.43in |

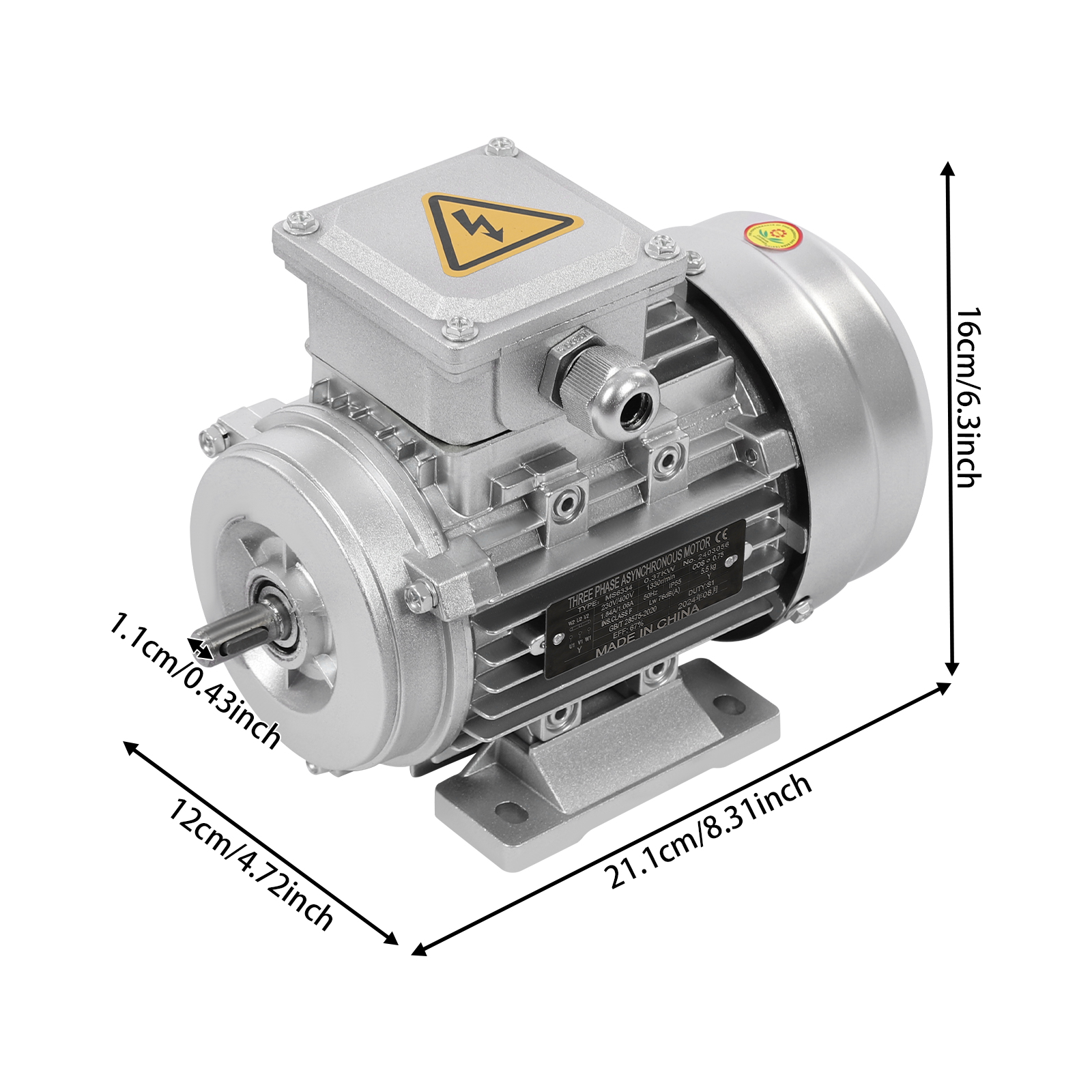

Product Size | 21.1*12*16cm/8.31*4.72*6.3in | Package Size | 27*16*21cm/10.63*6.3*8.27in |
Product Tips


Notes
1.Please note that this product does not include any mechanical equipment, etc.
2.Installation and commissioning of the product needs to be carried out by a qualified electrician, this is for your safety purposes.
3.Please check the size carefully before ordering.
