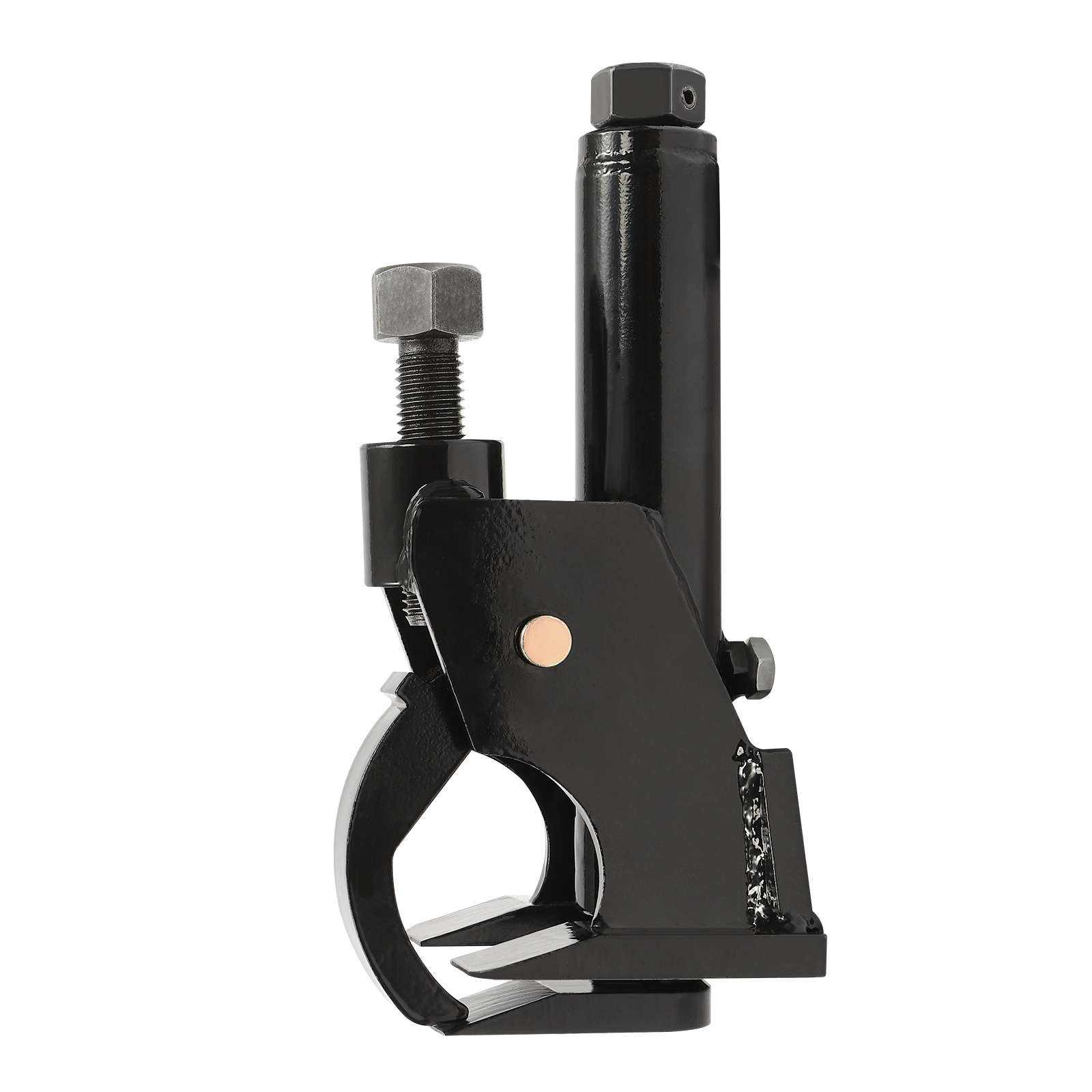

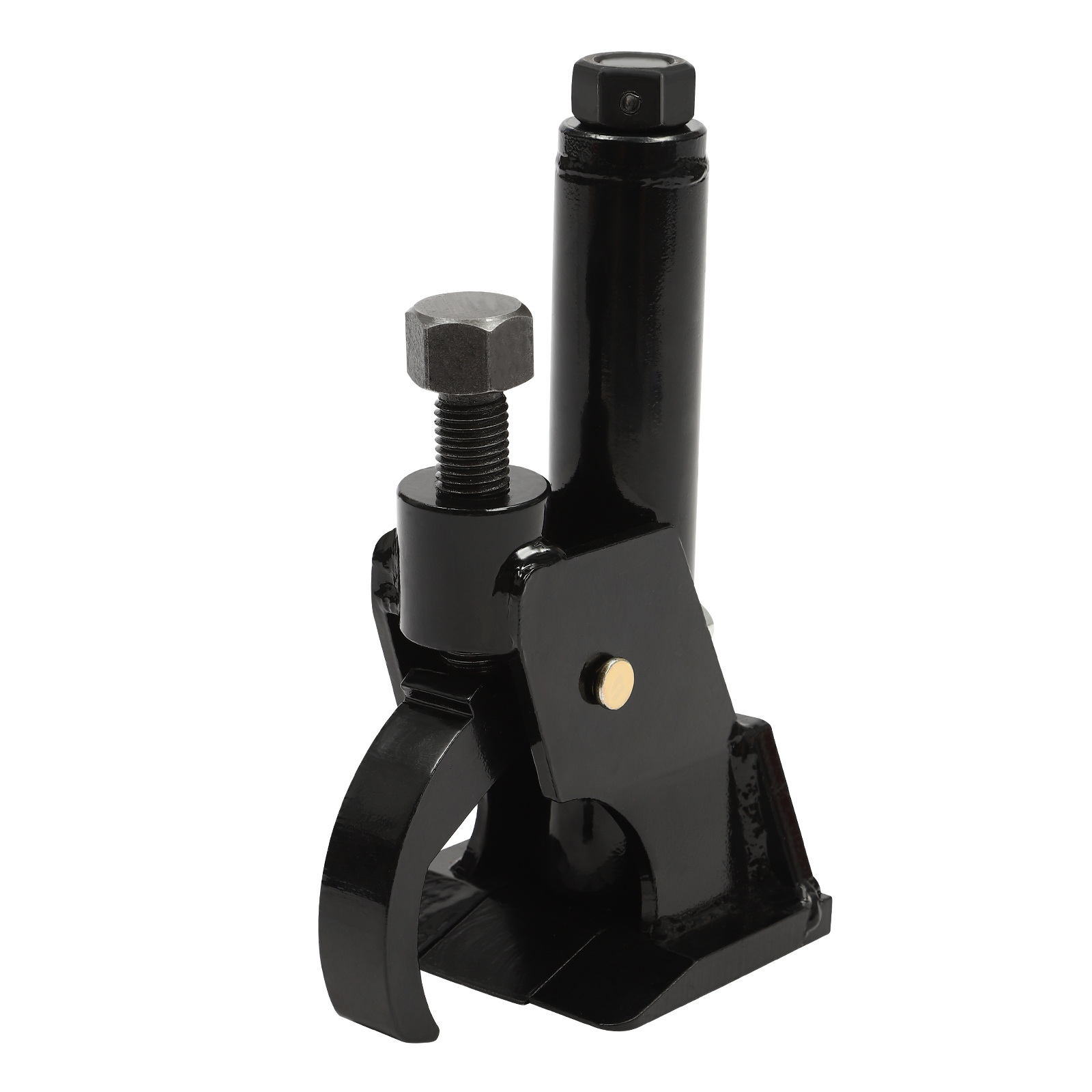

Manual Tire Bead Breaker Fit for 10-21 inches Tires Adjustable Tire Repair Kit for ATV Golf Cart Bus Tractors and More Black
- Brand: CNCEST
- Product Code: QCJLGM3EWDYJ8
- Availability: Out Of Stock

Specifications
Material | Iron | Process | Spraying |
Style | Modern | Color | Black |
Number of Items | 1 | Assembly Required | No |
Operation Mode | Manual | Applicable Tire Diamater | 25.4-53.34cm/10-21in |

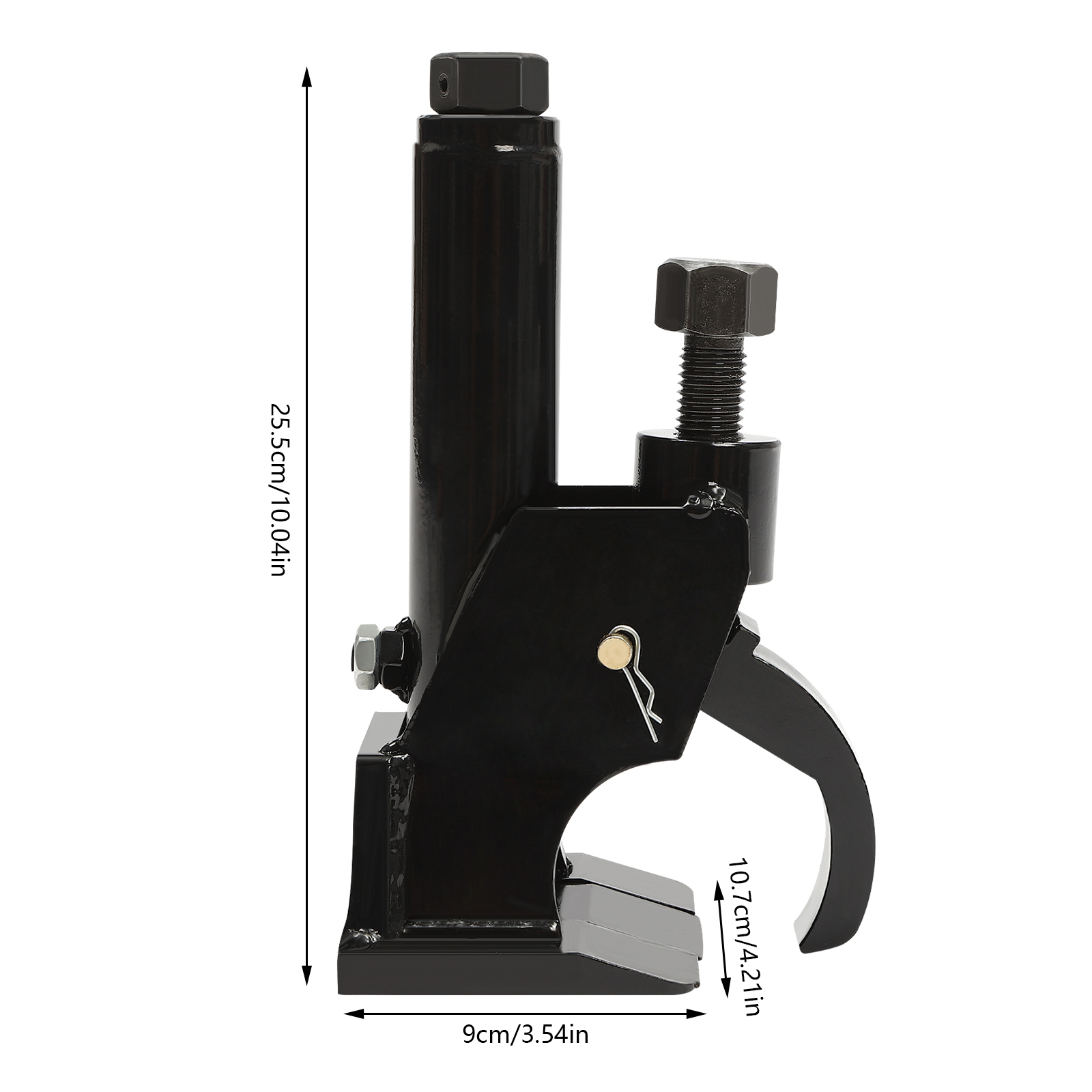

Package Size | 15*26*11cm/5.91*10.24*4.33in | Overall Product Size | 9*10.7*25.5cm/3.54*4.21*10.04in |
Gross Weight | 5.5kg/12.13 1bs |
Product Tips


How to Use

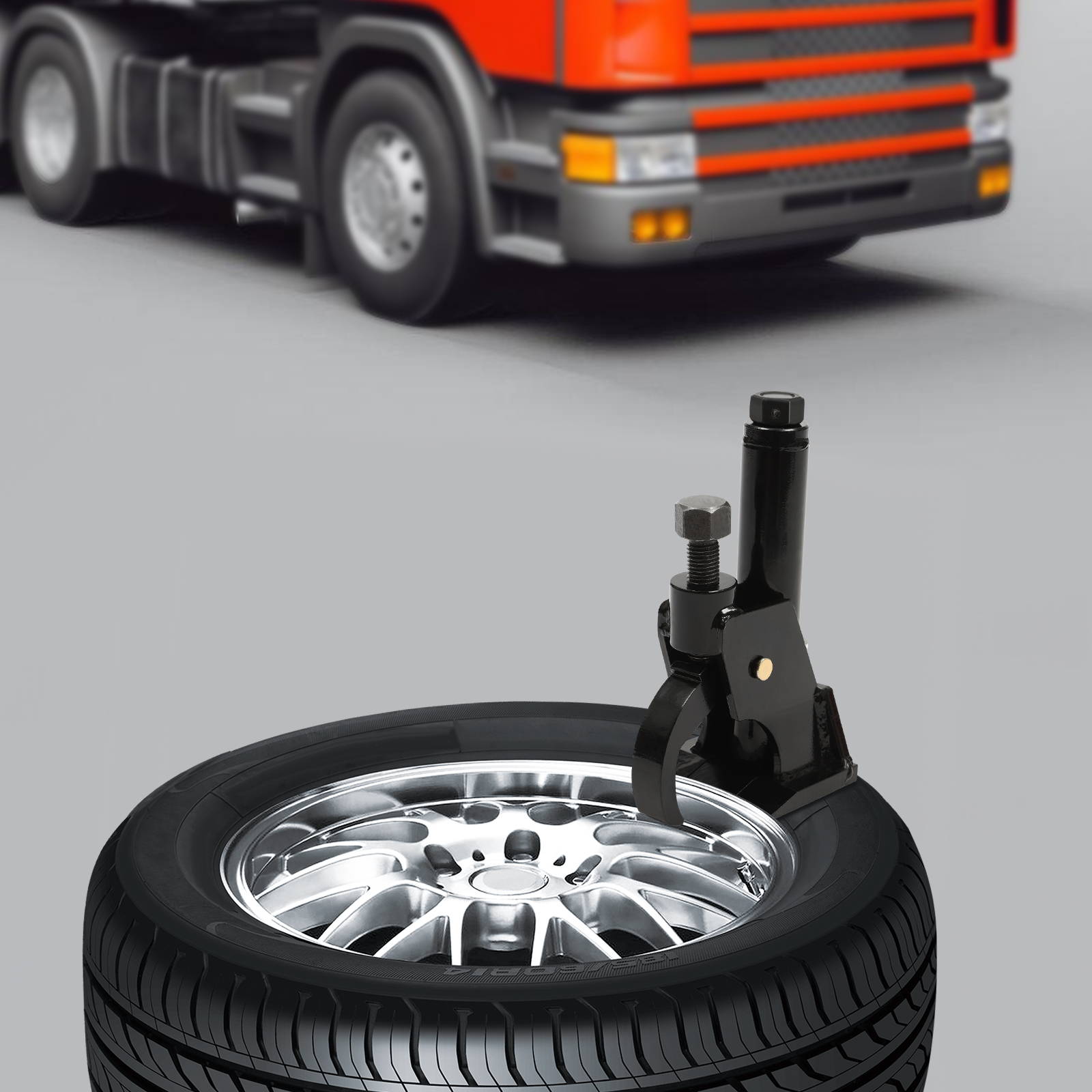

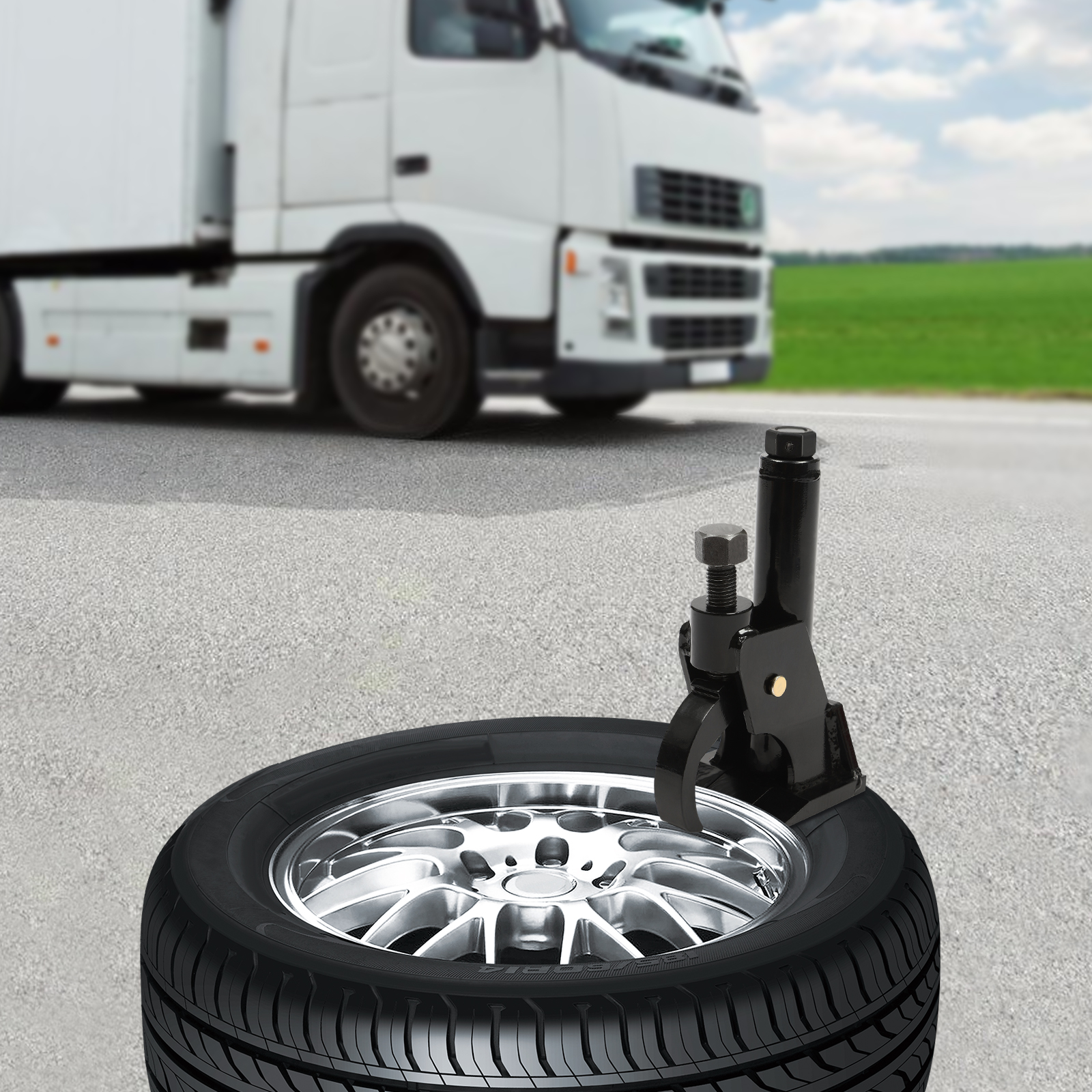

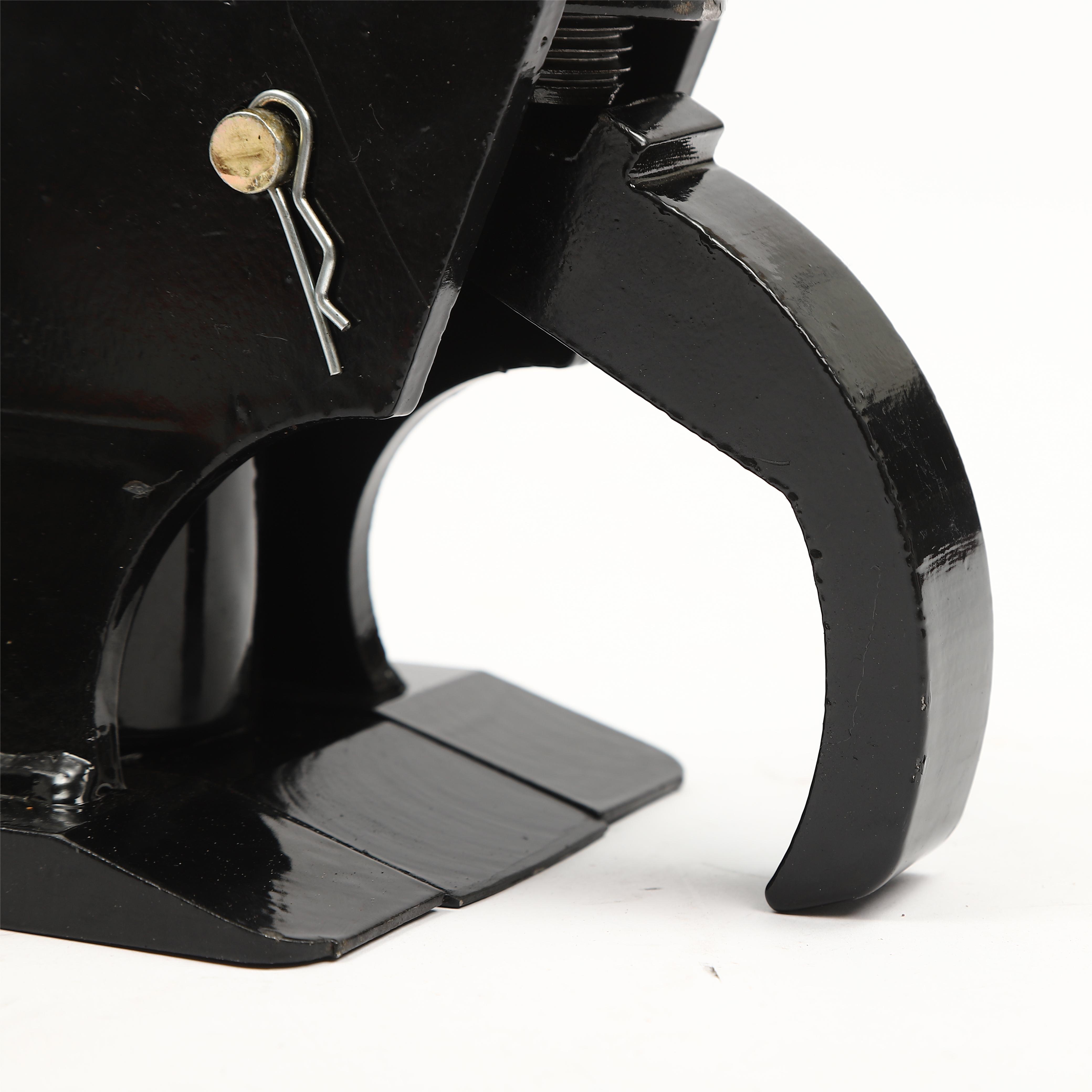

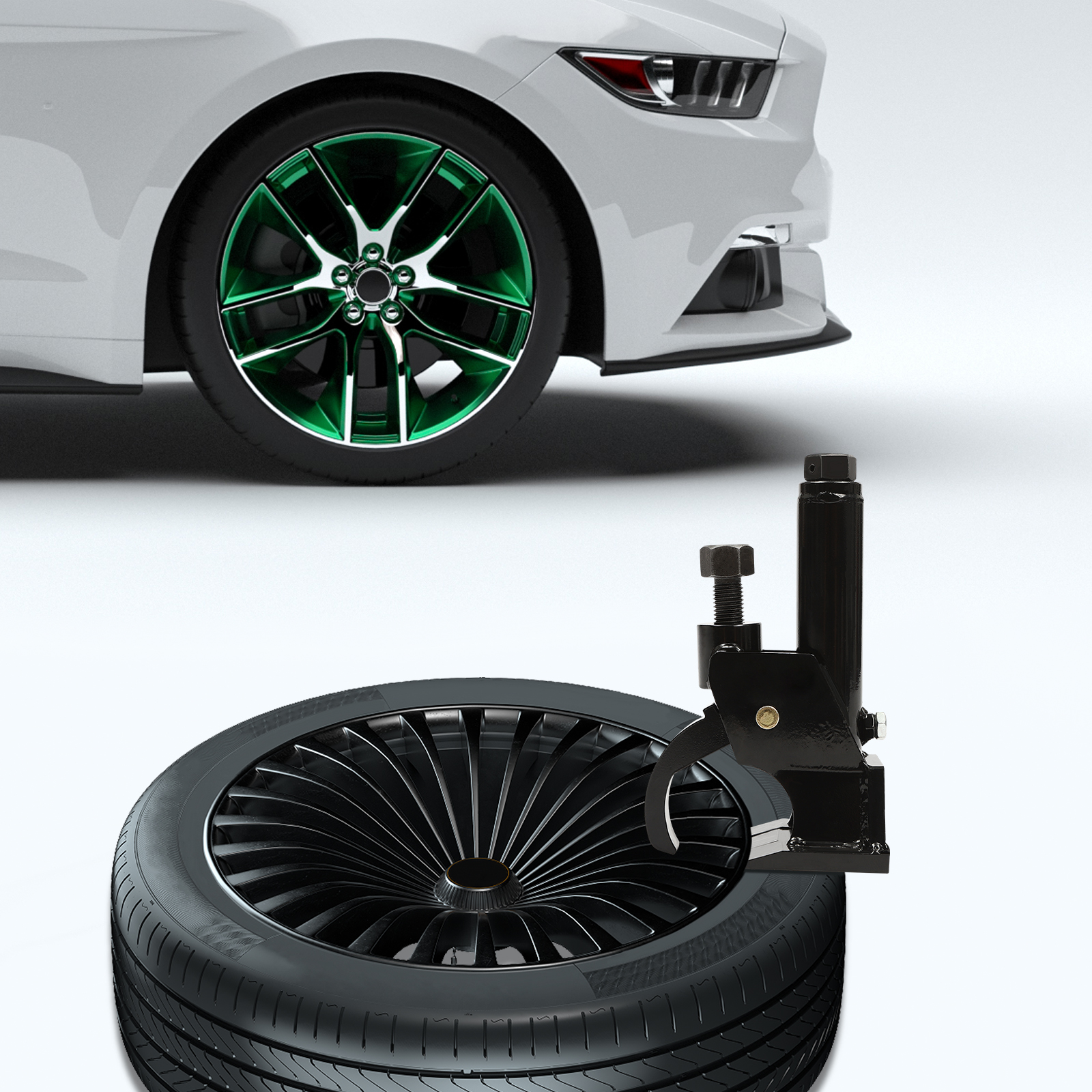

Step 1: Just place the bead breaker onto the rim, place paws and breaker foot between rim and tire bead. Sometimes the strike plate will need a tap to get into place.

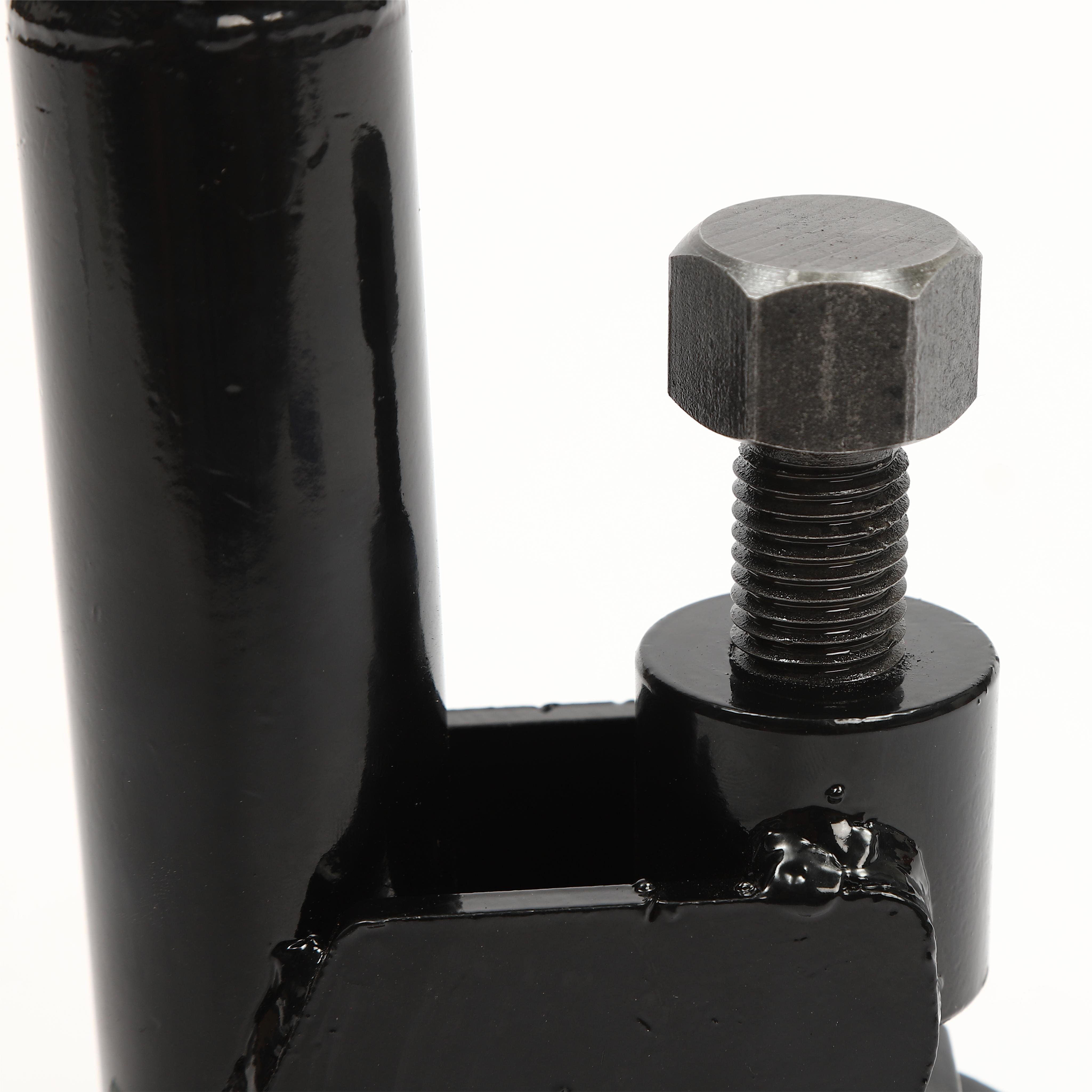

Step 2: Use an air ratchet or manual hand wrench(both are not included) on the set screw to tighten the hook to the inner rim. This will pull the feet in as well in a secure manner against the rim and bead.

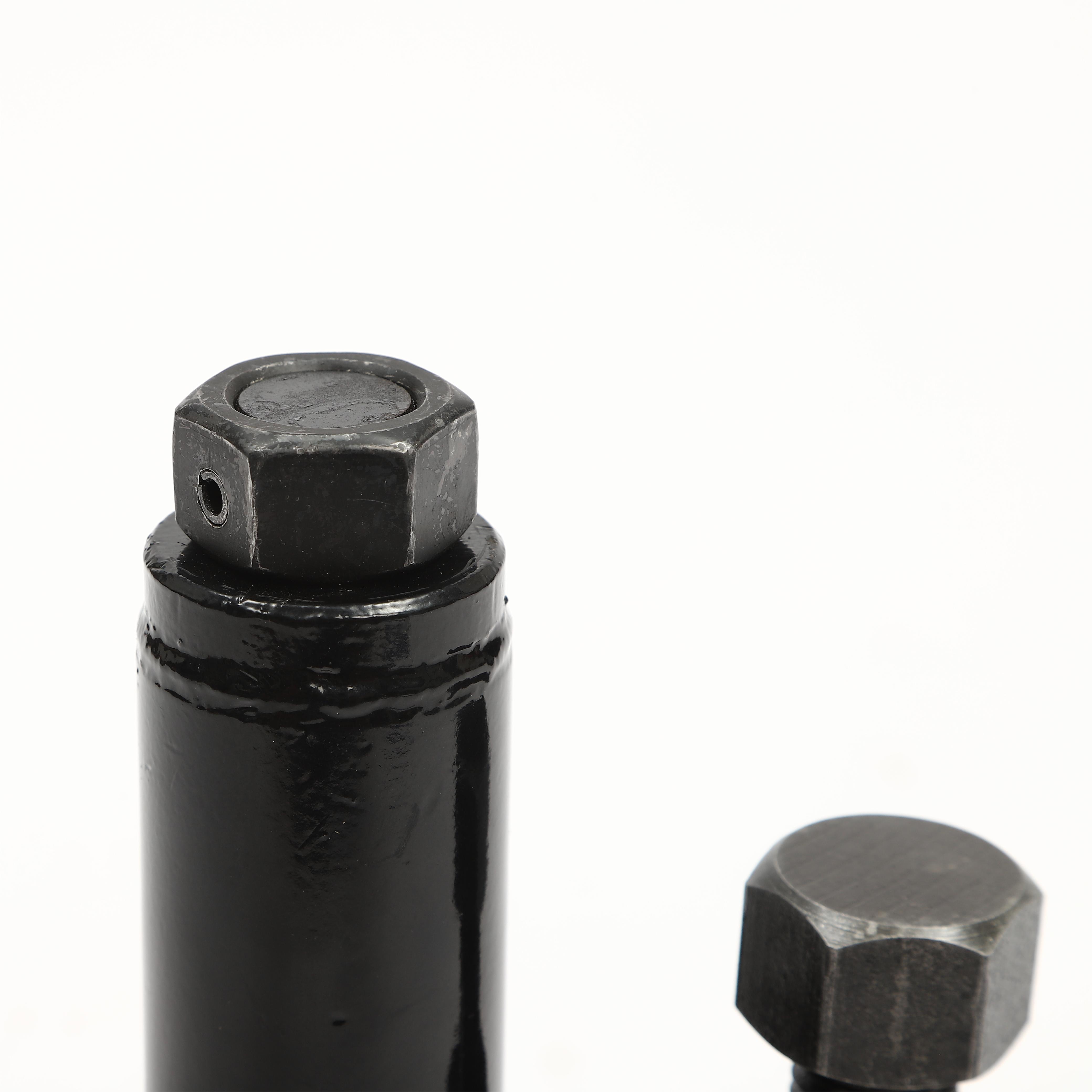

Step 3: Use an air ratchet or manual wrench(both are not included) to turn 1-1/4in the breaker nut to drive the center foot into the bead. The two outside feet will hold to the lip of the rim while you do this to break the bead.
Step 4: Once the bead is broken, retract the center foot. Loosen the set screw to release the hook from the rim.

Notes
1.It needs to work with adjustable wrenches, open-end wrenches, or air wrenches(wrenches are not included). Please do not use the impact wrench as it will damage the bead breaker.
2.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
