• Enjoy Riding: It transforms your bike into an electric bike for greater efficiency and convenience, allowing you to fully enjoy riding during daily commutes and short trips.
• Complete Kit: This kit contains a complete set of accessories needed to modify your bike without having to purchase them separately. The companion kit will give you more consistent and stable performance.
• User-Friendly Features: 5-speed speed adjustment according to different road conditions and individual needs. Meanwhile, while maintaining the riding speed, press the button for 2-3 seconds to enter the cruise function, making the riding process easier!

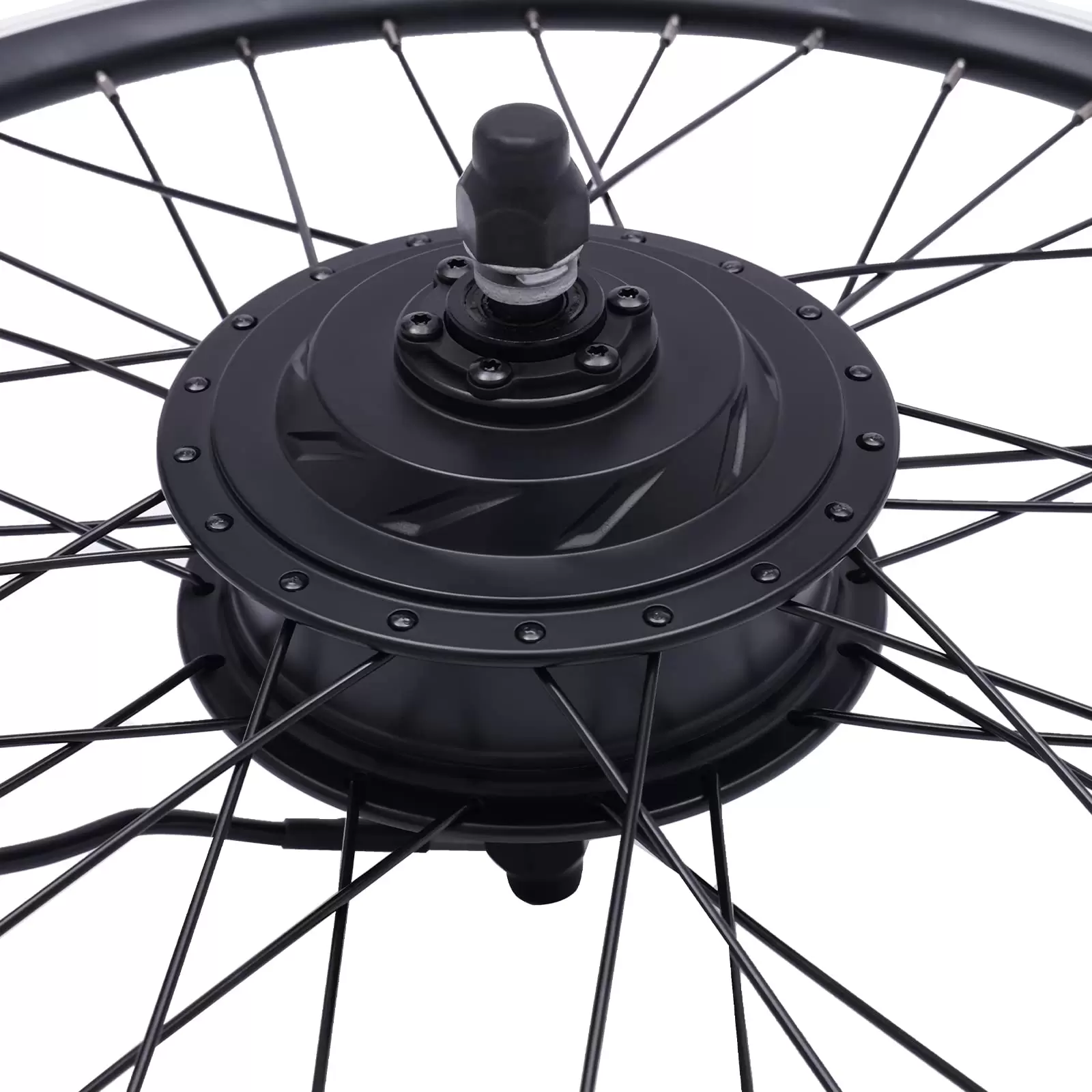

• Powerful Motor: With a 500W brushless gear motor, the maximum speed can reach 30-35km/h. Compared to a brushed motor, it can operate smoothly and with low noise without changing the brushes, making maintenance easier. Safety and reliability: When emergency braking, the brake lever can cut off the power supply to the motor, allowing the bike to stop in time and ensuring safe riding.

Dual-mode controller: The motor operates with both Hall effect and non-Hall effect. If a component fails, the controller switches to non-Hall effect mode and the motor continues to operate.

Sturdy and Durable: The aluminum alloy wheel frame is extremely durable, stable, rust-resistant and wear-resistant, with a long service life and a high load capacity of up to 264 LB.

Details

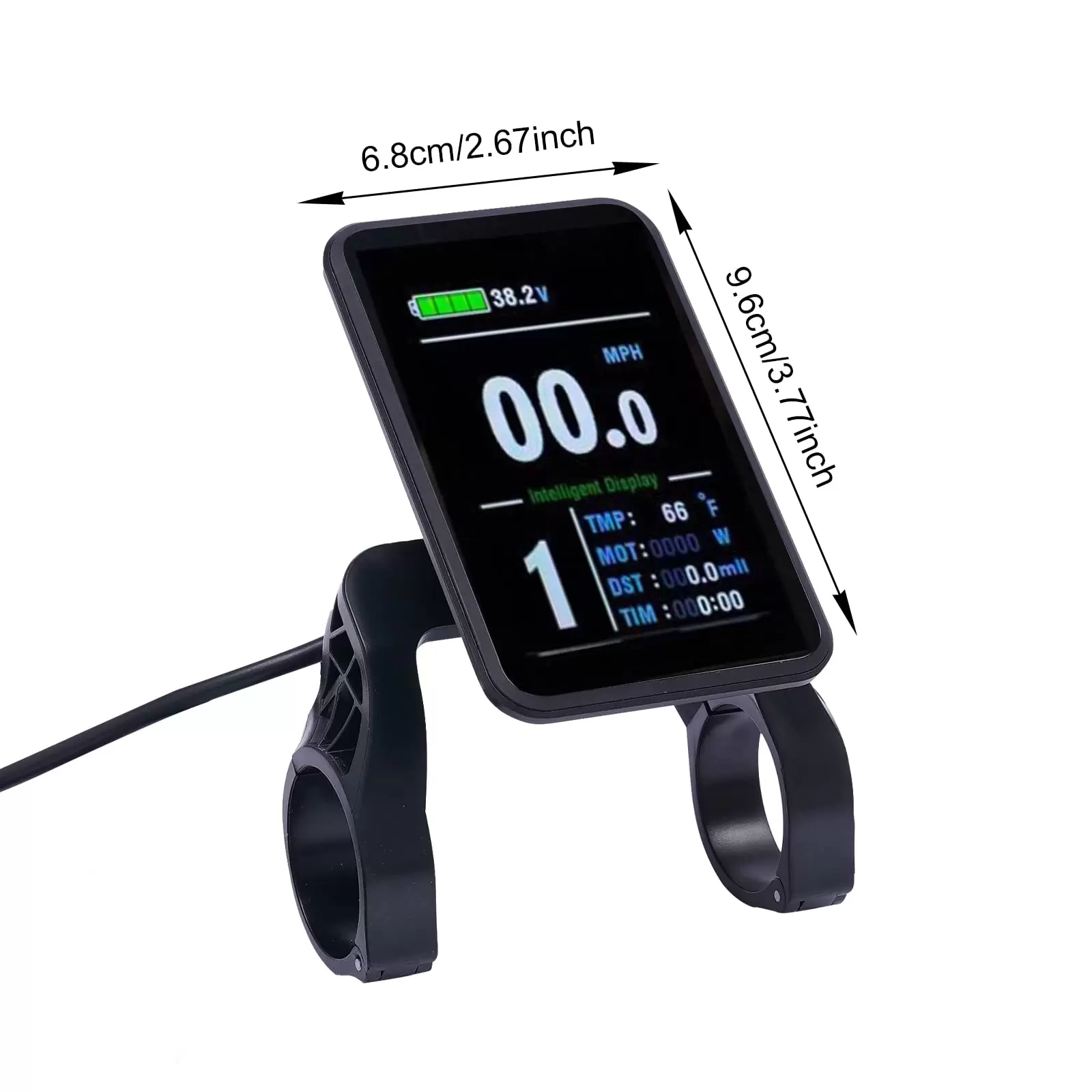

Practical Display: The screen displays real-time speed, maximum speed, average speed, total mileage, single mileage, battery charge indicator, auxiliary gear/speed evaluation, and cruise function, allowing you to charge in time and intuitively monitor its operating status.

Pedal Assist Sensor: The pedal assist sensor (PAS) can detect your pedaling rhythm and adjust the motor speed accordingly. It allows you to ride an electric bike without throttle response, making long rides easier and reducing wrist pain.

Waterproof Controller Bag: The waterproof controller bag can safely store the controller and allow riding in rainy weather.

Application

It is suitable for mounting and modifying 24-inch rear bicycle wheels. It is compatible with universal disc brakes and V-brakes.

Specifications

Material: Aluminum Alloy

Color: Black

Suspension Type: Rear

Features: Electric

Assembly Required: Yes

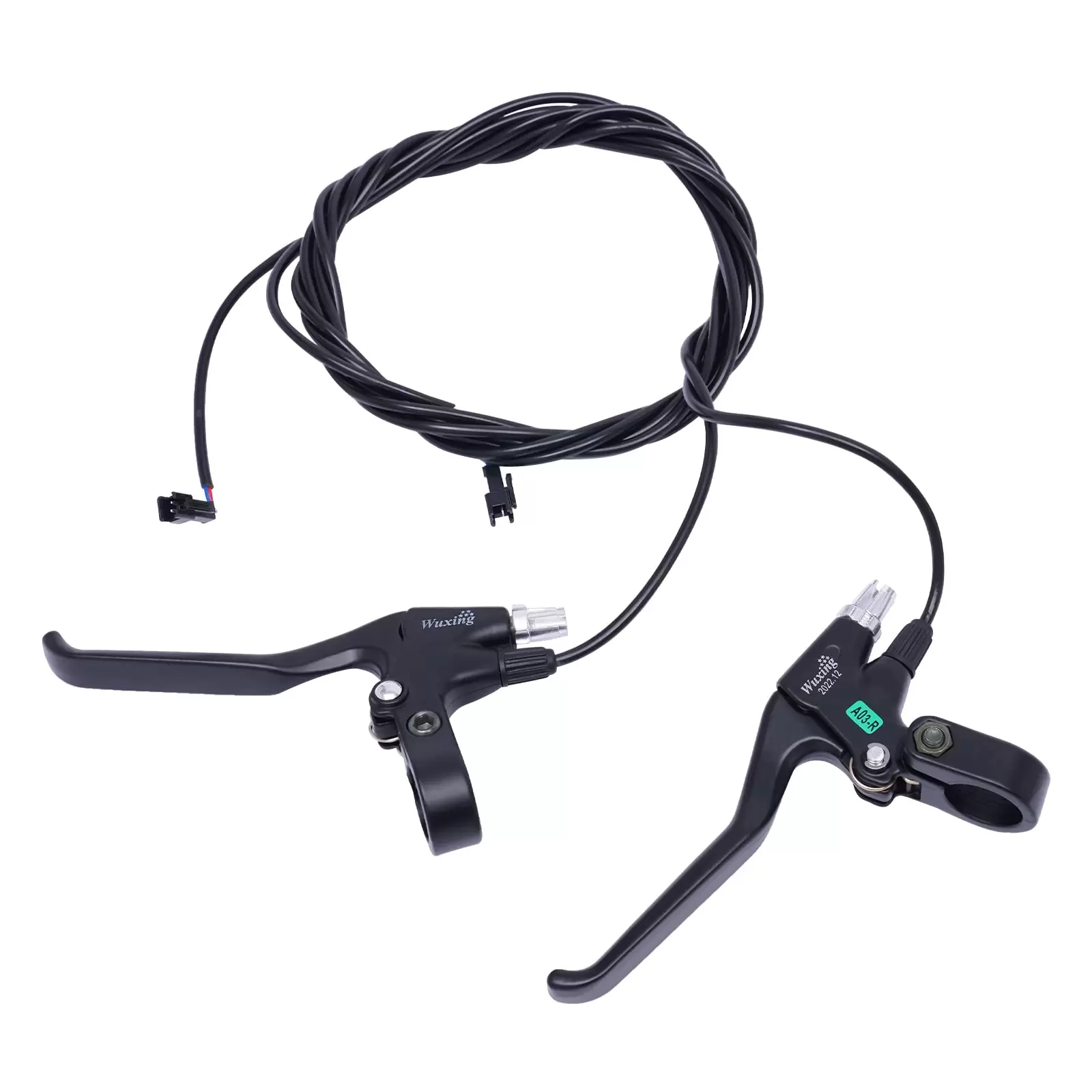

Brake Type: Power-off Brake Lever (for V-Brake, Disc Brake)

Motor Type: Brushless Gear Motor

Gear Adjustment: 5 Speeds

Recommended Battery: 36V 13Ah or higher (not included)

Output Voltage: 36V

Power: 500W

Minimum Fork Flat Distance: 100mm / 3.94in

Speed: 30-35km/h

Display Size: 6.8 * 9.6CM / 2.67 * 3.77in

Package Size: 55 * 55 * 22cm / 21.65 * 21.65 * 8.66in

Motor Wheel Diameter: 61CM / 24.22in 24 inches

Gross weight: 9 kg / 19.84 lb

Net weight: 8 kg / 17.63 lb

Load capacity: 120 kg / 264 lbs

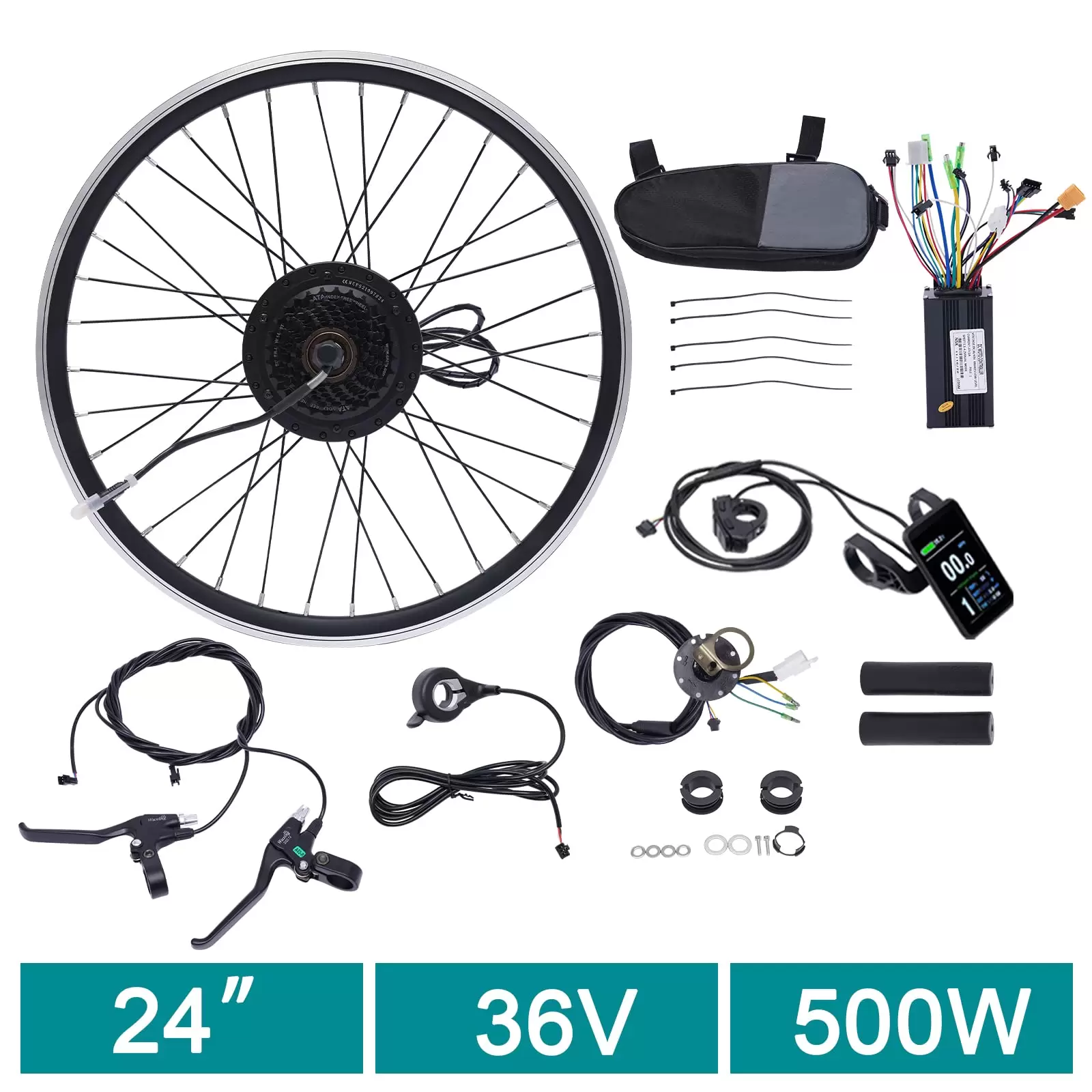

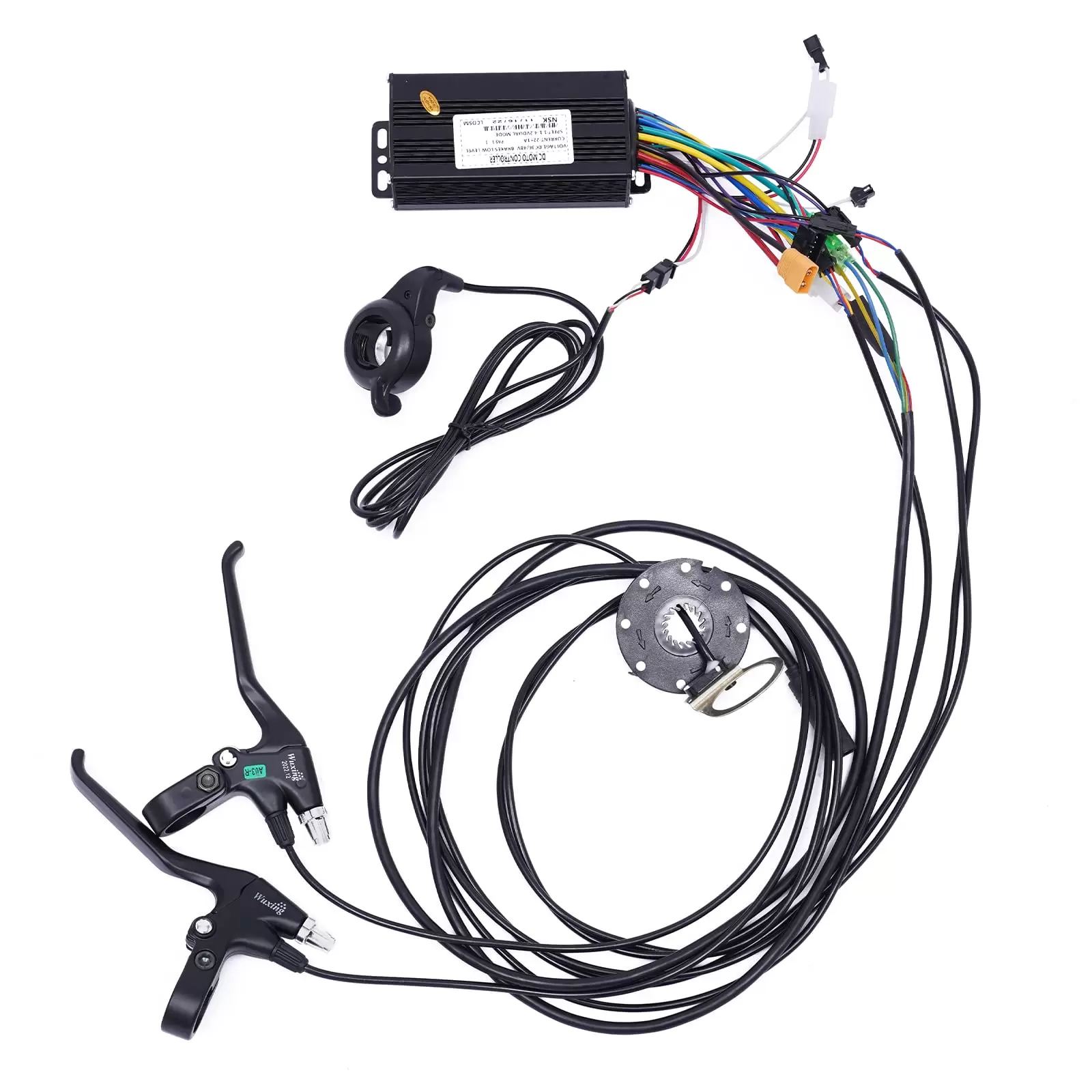

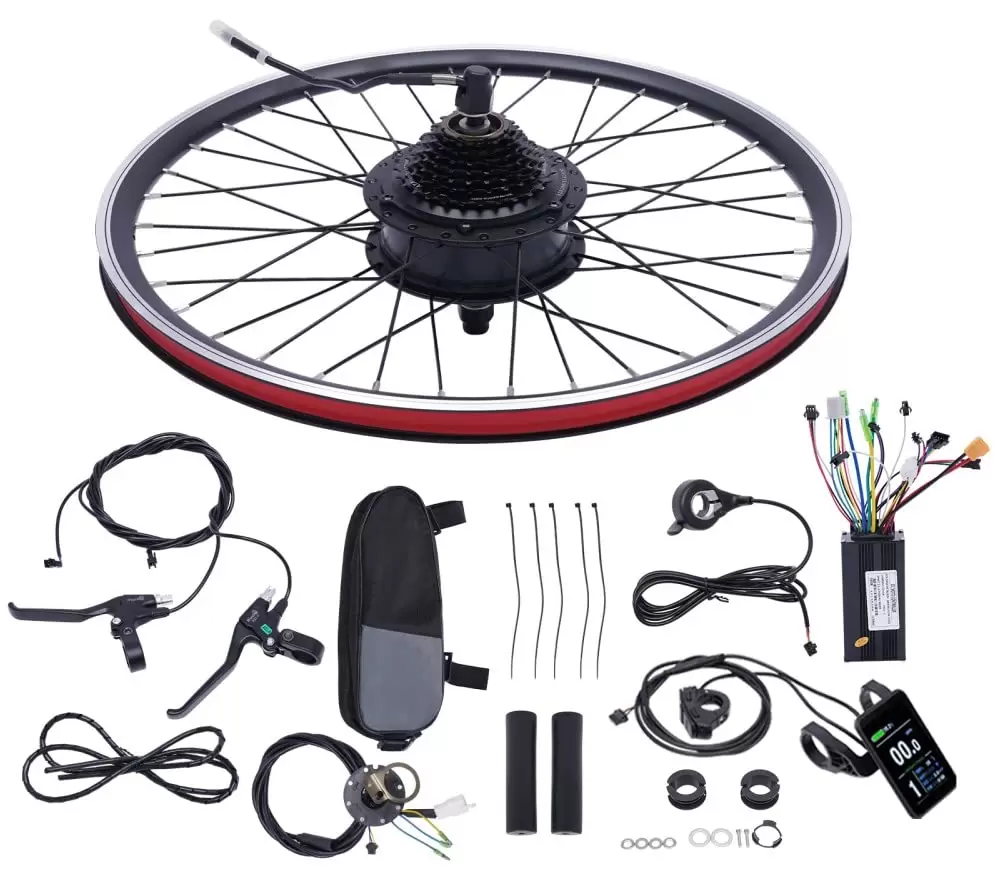

Package Includes:

1 * Motor Wheel

1 * Display

2 * Brake Levers

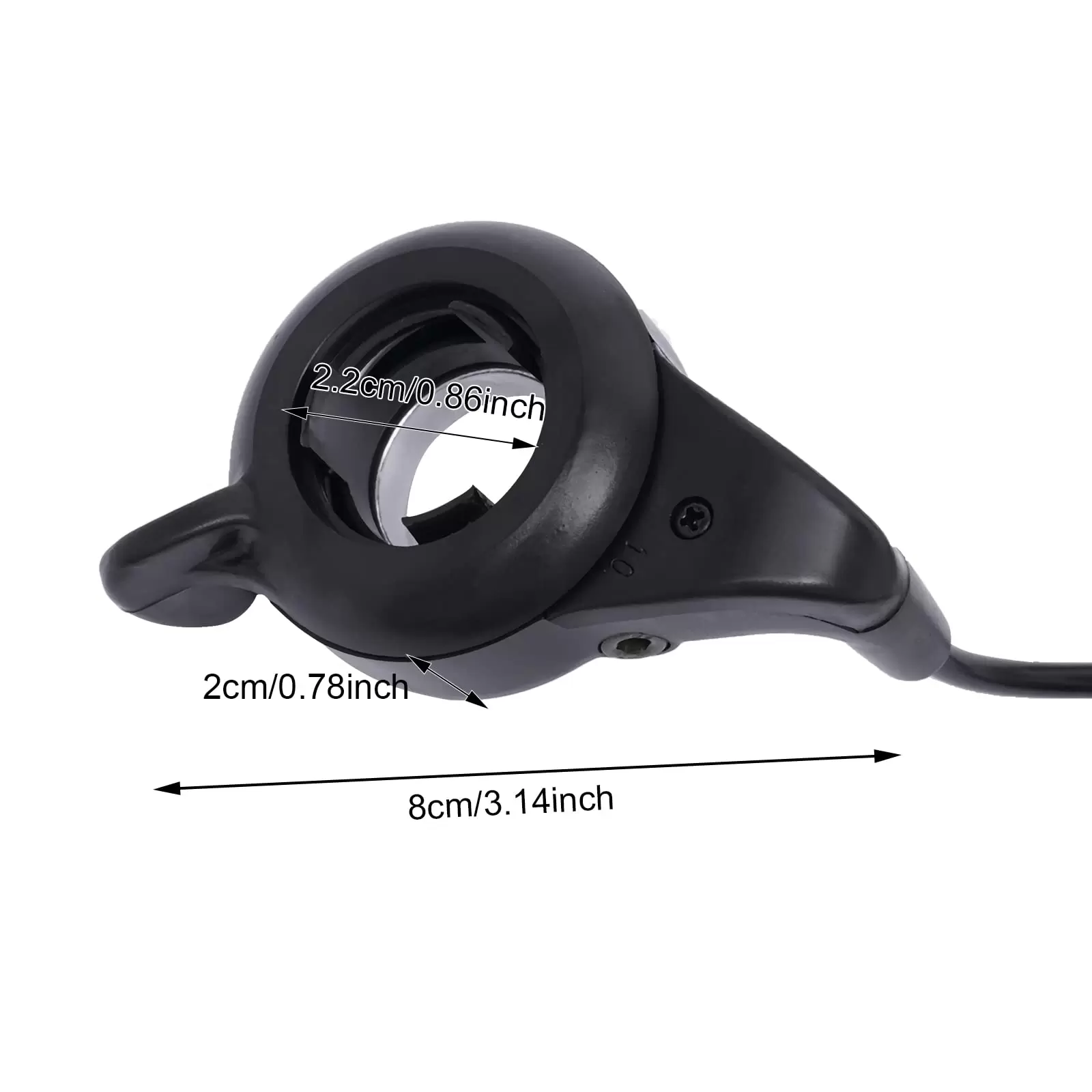

2 * Throttle Valves

1 * Sensor Pad

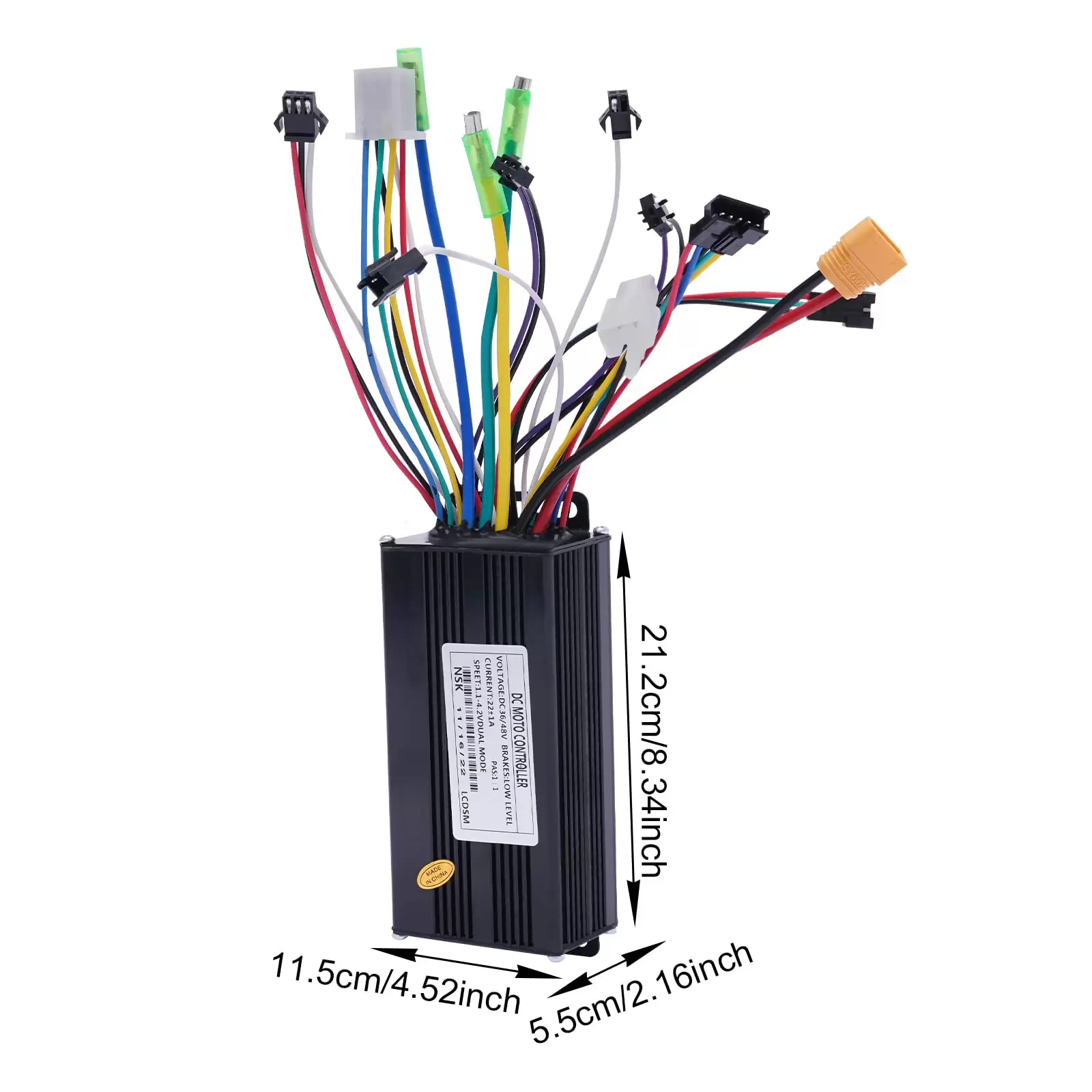

1 * Controller

1 * Thumb Knob Grip

1 * Controller Pack

All mounting hardware

Notes

1. When connecting the controller to the wire, make sure you connect the correct color to the controller. Otherwise, the controller may be damaged.

2. This kit does not include tires, batteries, and chargers, all of which must be purchased by the customer. Please check the product size and actual voltage before purchasing.

3. Suitable for the rear wheels of two-wheeled bicycles. It cannot be used on three-wheeled or multi-wheeled vehicles.

4. Please allow for slight color differences caused by light and a 1-3cm error due to manual measurement, and make sure you don't mind before ordering.
