(0 reviews)
Ask a question
1,463.88SEK
  • Brand: CNCEST
  • Product Code: JZ27ZH-000100
  • Availability: Out Of Stock
Quantity
- +
Estimated Delivery:
Free Fast Shipping:
On all orders
estimated delivery guarantee

Working Principle

This kind of heat exchanger is a very safe, reliable, efficient and cost-effective way to heat swimming pools or spas through any hydraulic system.

Healthy and Hygienic

The non-storage design ensures two separate channels for hot and cold fluids, greatly reducing the risk of contaminated water sources.

Flexible Installation

It can be installed vertically or horizontally according to your needs. The compact size of 5*19'' can effectively save installation space.

Safe to Use

It is safe to use because it does not catch fire, leak, burn during operation, which brings great reassurance to you.

Customer Service

We aim to provide quality products and services. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

Reverse Outlet & Inlet:

The inlet and outlet are reversed, both on opposite sides, which can optimize water flow dynamics and improve heat transfer efficiency.

High Efficiency:

Its 60kW power provides you with 55 GPM of pool water flow and 6.6 GPM of hot water flow and keeps the pool water and boiler water separate, efficiently transferring heat between the two organizations.

Fast Heating:

This product provides a heat output of 200K Btu/H based on a temperature difference of 140°F (60°C) between the incoming water and the hot water, providing immediate heating without waiting.

Energy Saving:

The ingenious bellows design ensures high-speed operation inside the unit, maximizing the use of solar or boiler energy and improving the overall thermal efficiency of the system. In addition, the purely physical operation, without the need to be connected to a power source, makes it a very reliable, efficient, and economical way of doing things.

Rugged and Durable:

It is made of SS 304 stainless steel, which is repeatedly polished and sanded to resist rust and provide a long service life, ideal for chlorinated or saltwater pools and spas.

Application:

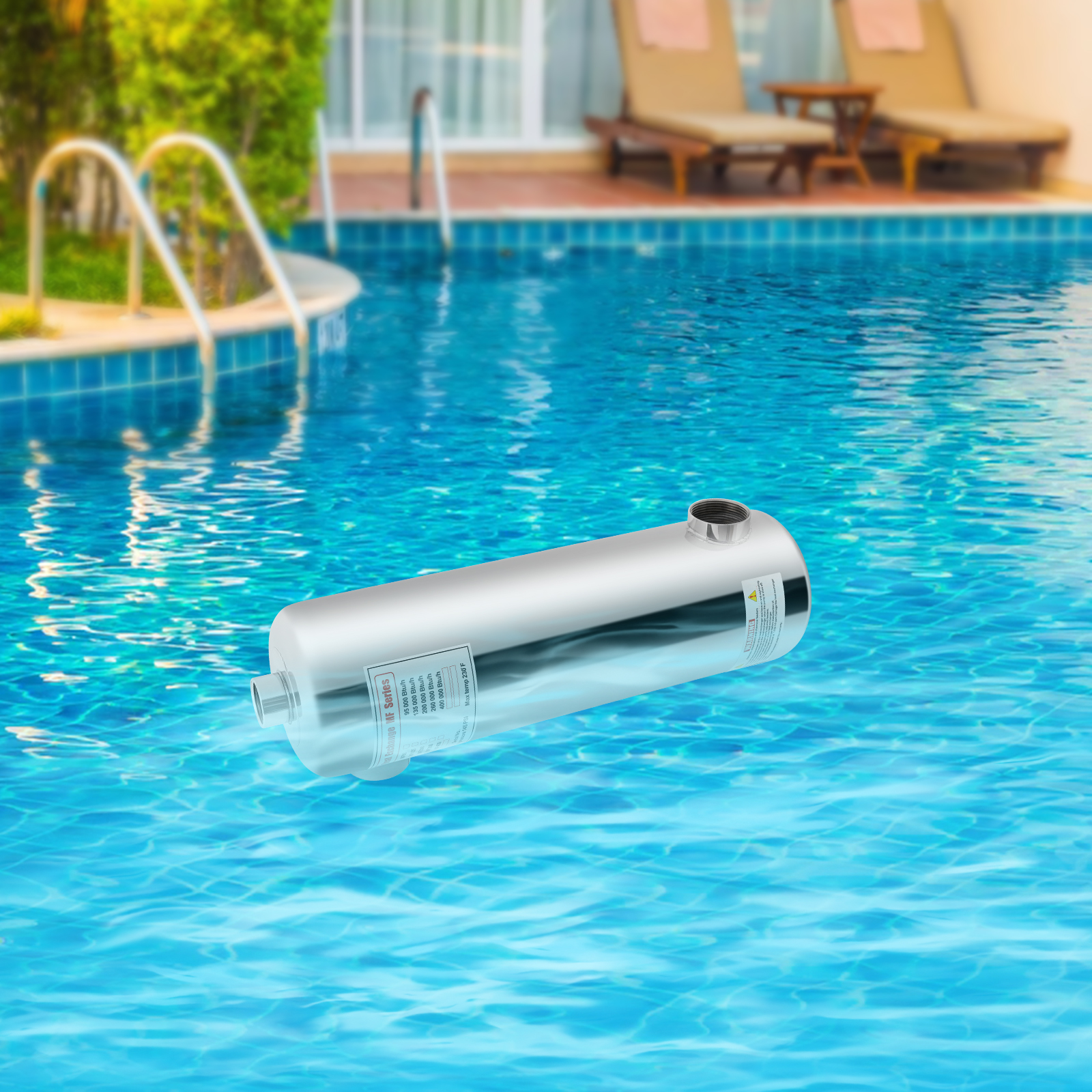

It is suitable for swimming pools, spas, hot tub tray heating, outdoor wood stoves, circulating heat, forced air heating, radiant floor heating, snow melting, solar hot water, and more. It can be used with any type of pool water, whether treated or salt water.

Specifications
Model:  MF-200
Color:  Silver
Mount Type:  Freestanding
Assembly Required:  Yes
Material:  SS304 Stainless Steel
Process:  Polishing
Power:  60 kW
Output:  200kBtu/h
Pool Water Circuit:  10bar
Hot Water Circuit:  5bar
Pressure Bearing:  2.5kg/ 5.51lbs
Pool Water Flow:  250L/55 Gallon /min
Hot Water Flow:  30L/6.6 Gallon /min
Max Pressure:  145 PSI
Max Temp:  110℃/230 °F
Applicable Pool Volume:  250m³

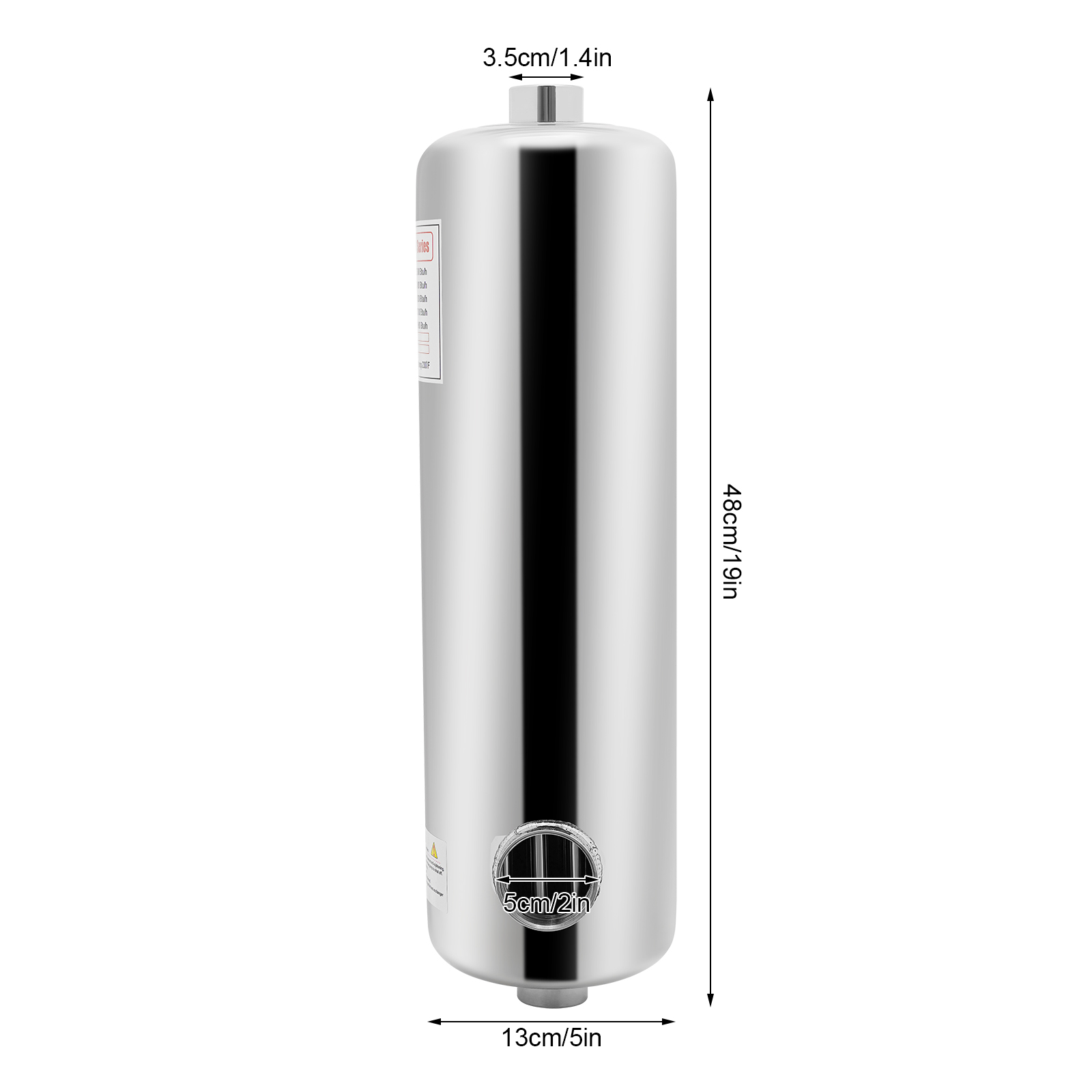

Product Size(D*H):  13*48cm/5*19in
Side Port Size:  5cm/2in
Top Port Size:  3.5cm/1.4in
Package Size:  49*17*17cm/19.29*6.69*6.69in
Gross Weight:  4.7kg/10.36lbs
1* Swimming Pool Heat Exchanger
1* Chinese and English Manual
All Accessories for Use

Specifications

Model MF-200 Color Silver
Mount Type Freestanding Assembly Required Yes
Material SS304 Stainless Steel Process Polishing
Power 60 kW Output 200kBtu/h
Pool Water Circuit 10bar Hot Water Circuit 5bar
Pressure Bearing 2.5kg/ 5.51lbs Pool Water Flow 250L/55 Gallon /min
Hot Water Flow 30L/6.6 Gallon /min Max Pressure 145 PSI
Max Temp 110℃/230 °F Applicable Pool Volume 250m³
Product Size(D*H) 13*48cm/5*19in Side Port Size 5cm/2in
Top Port Size 3.5cm/1.4in Package Size 49*17*17cm/19.29*6.69*6.69in
Gross Weight 4.7kg/10.36lbs

Product Tips

Notes

1.Please note that the recommended maximum chloride concentration in fresh/clean water below 140°F in the exchanger is 300 mg/L and should be reduced as the water temperature increases. Exceeding the recommended chloride concentration or direct use of the chlorinator may result in stainless steel pitting. Titanium pool heat exchangers are recommended for use in environments with high chloride concentrations or in salt water systems.
2.Please note that the heat exchanger is always installed in a counter flow pattern and should be installed downstream of the filter and pump equipment. It must be auxiliary to the boiler water and take the usual precautions to prevent air locks.
3.People must not be in the water while the heat exchanger is working.
4.Please do not put 2 heat exchangers into a swimming pool at the same time.
