Electric Planer Hand-Held Planer Pure Copper Motor Planer Electric Wood Planer With 1680W Pure Copper Motor For New Woodworkers DIY Design
- Brand: CNCEST
- Product Code: JZONVK-000100EU
- Availability: Out Of Stock

Specifications
Color | Black, Blue | Plug Type | EU Standard |
Material | Aluminum, Plastic, Nylon, Copper | Power Cord Length | 1.8m/5.91ft |
Planing Width | 82mm/ 3.23in | Planing Depth | 0-2mm/ 0-0.08in |
Accuracy | 0.1mm | Maximum No-loading Speed | 17500t/min |
Voltage | 220V | Power | 1680W |

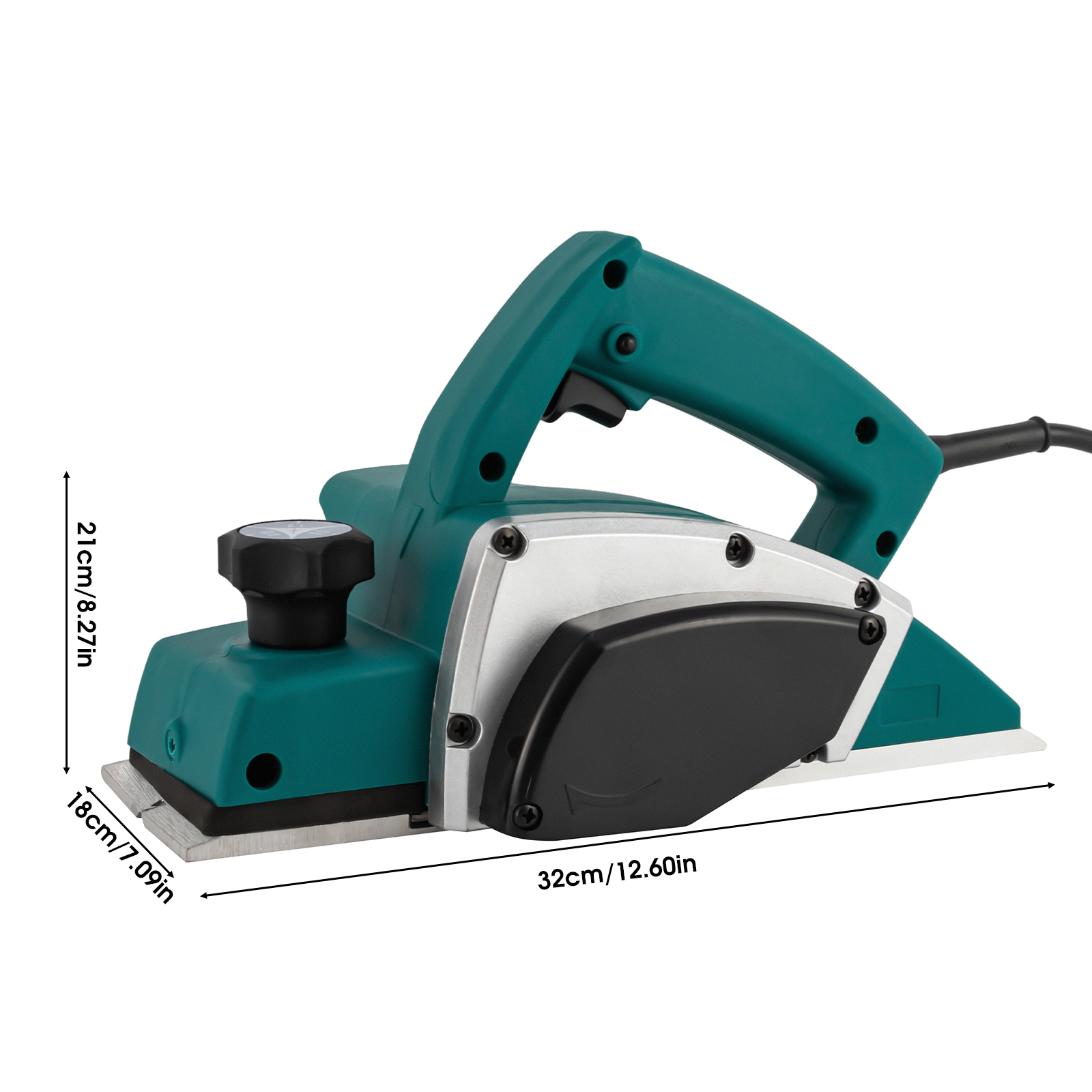

Gross Weight | 3.5kg/7.72lbs | Package Size | 32*18*21cm/12.6*7.08*8.27in |
Product Tips


Notes
1.Please read the manual carefully and pay attention to the safety precautions inside. Pay attention to electrical hazards during operation, take certain protective measures, and keep the product away from children.
2.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.

Planer Replacement Process
1. Use a wrench to unscrew the screws on the blade frame (turn counterclockwise).
2. Remove the press plate and blade.
3. Loosen the upper blade frame and replace the blade with a new one.
4. Align the blade with the butted-knife frame and tighten the screws of the fixed holder of the blade.
5. Put the blade back into the bade frame and fix it.
6. Cover the press plate and tighten the screws.
