• ✔️Exhaust volume: 600 L/min (21.1 cfm).
• ✔️Discharge pressure: 8 bar (115 psi).
• ✔️Main impeller: 340 mm. Tube interface: 32 mm.
• ✔️Faster and quieter inflation. Powerful cooling blade, good cooling performance.
• ✔️High efficiency, high precision, universal, low energy consumption. Strict support and correction to ensure the proper operation of the main engine.

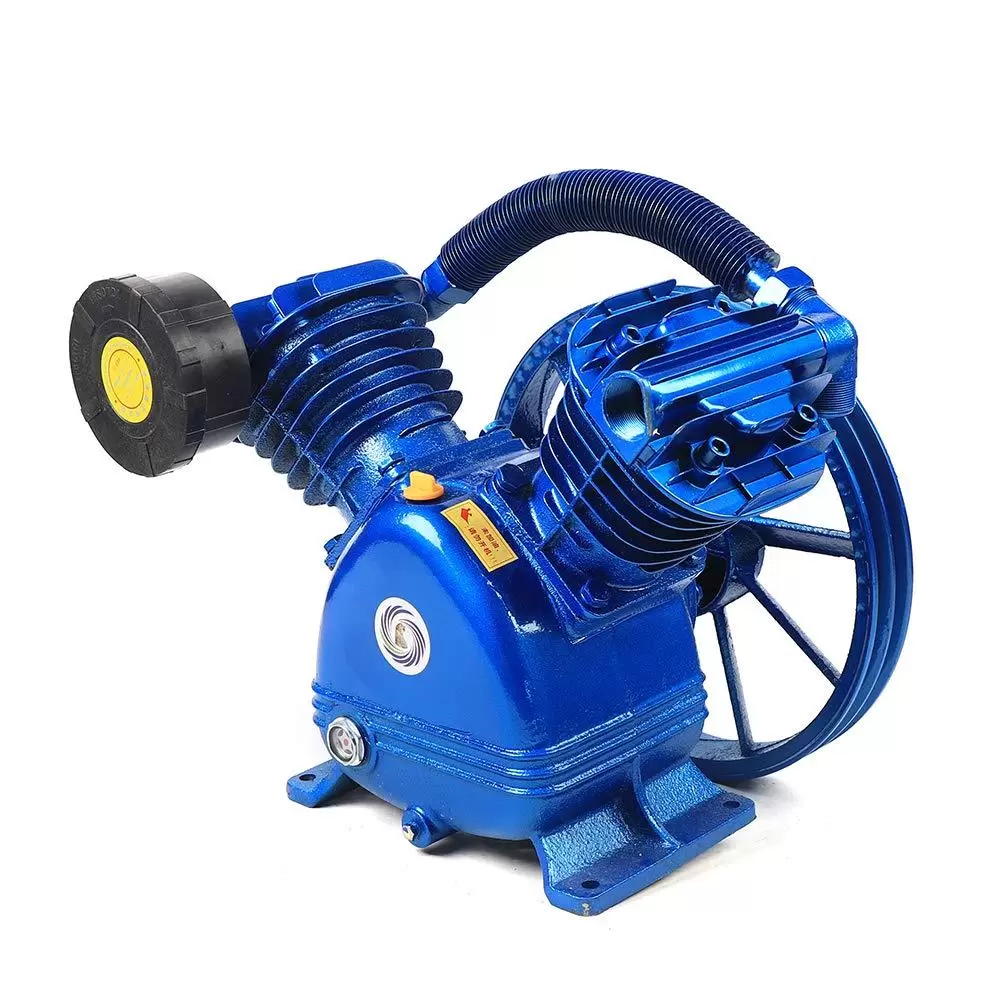

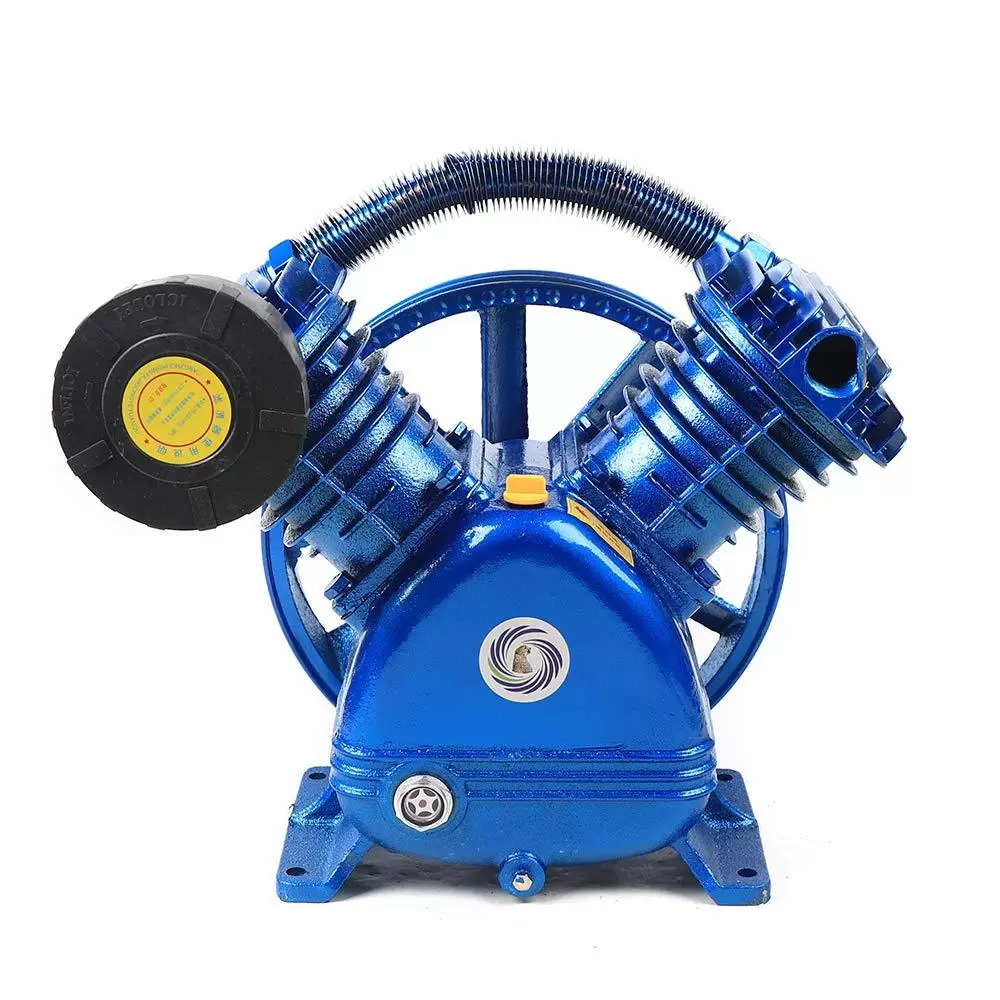

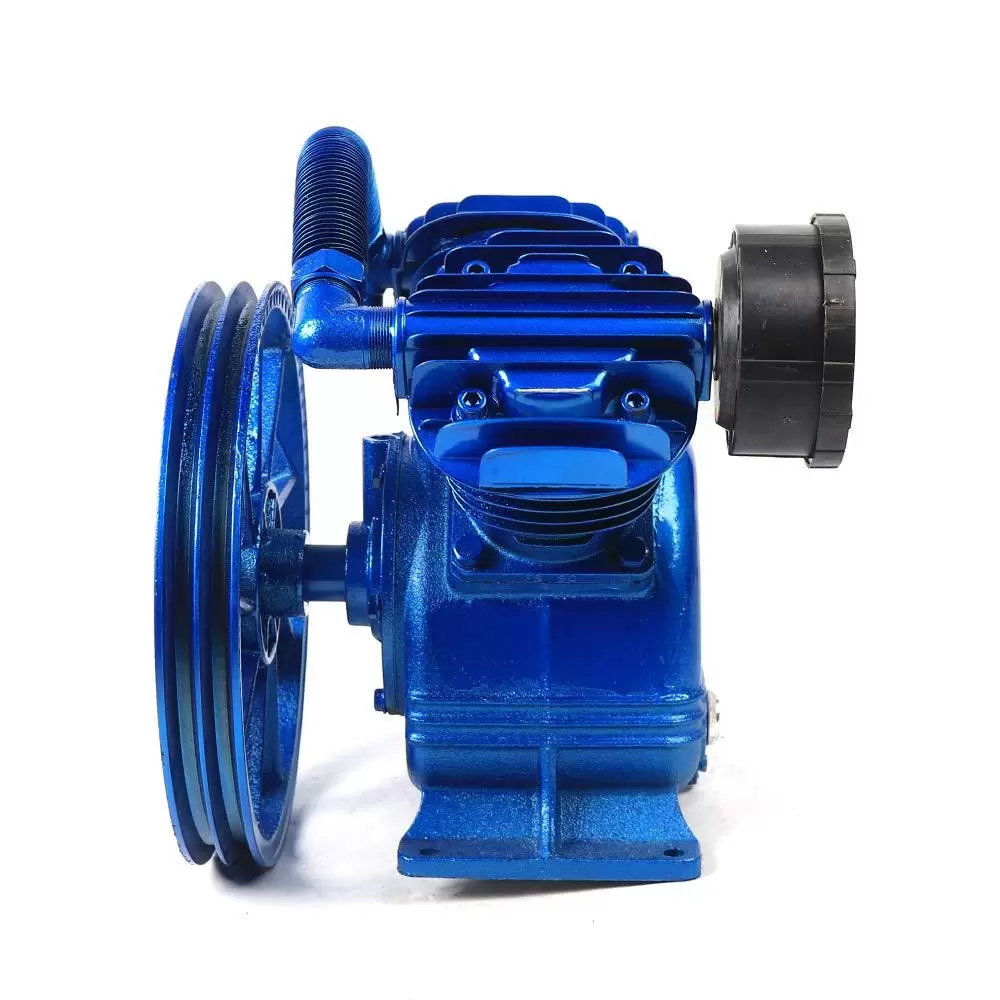

5.5 HP 21 cfm 115 psi - Type V - Twin Cylinder Air Compressor Head

Specifications:

Power: 4000 W, 5.5 HP

Cylinder: 90 mm x 2

Exhaust Volume: 600 L/min (21.1 cfm)

Discharge Pressure: 8 bar (115 psi)

Speed: 850 rpm

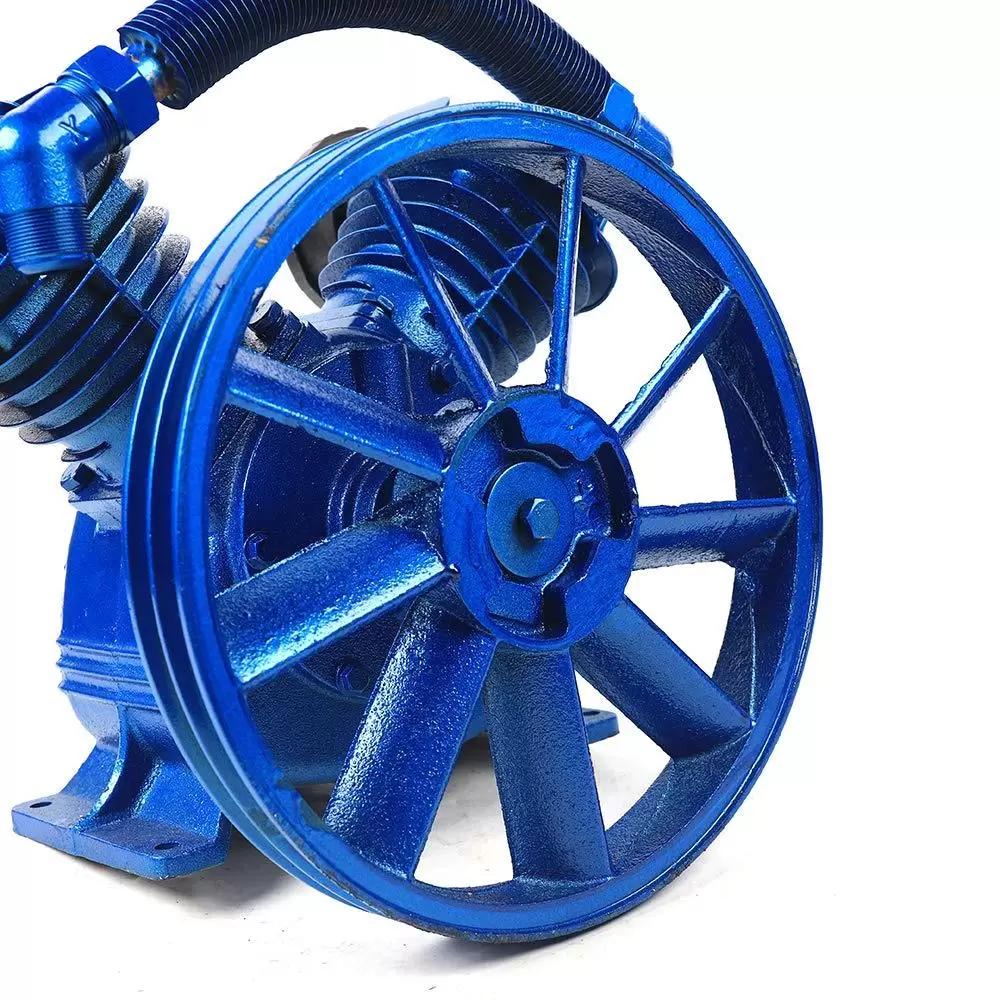

Main Impeller: 340 mm

Tube Interface: 32 mm

Features:

High-quality material, not easy to damage.

Special steel is used for hair extensions, with good strength and high temperature resistance.

Faster and quieter inflation.

Powerful cooling blade, good cooling performance.

Contents:

1 air compressor head.

Installation Instructions:

1. When installing the pump head, the motor pulley and the pulley must be aligned in a straight line. The more aligned, the less vibration.

2. Tighten the screws (including the base and pulley screws).

3. After tightening the screws, the belt must be tensioned. If the belt is loose, move the motor. Once the screws are tightened, reinstall the belt.

4. The new machine must be filled with engine oil before starting, and the engine oil should be added to the center of the red dot on the oil mirror.

5. The pump head rotates clockwise. If it reverses, adjust it in time.

6. Change the oil in the first half of a month, the second one and a half months, and the following two to three months.

7. Replace the air filter regularly. Under normal conditions, it should be replaced every two to three months, and within one month under low-temperature conditions.

8. The machine produces high temperatures during operation; be careful not to burn yourself.
