CNCEST Pipe Reel for Underfloor Heating, Underfloor Heating Pipe Winder, Pipe Reel Dispenser
CNCEST Pipe Reel for Underfloor Heating, Underfloor Heating Pipe Winder, Pipe Reel Dispenser
CNCEST Pipe Reel for Underfloor Heating, Underfloor Heating Pipe Winder, Pipe Reel Dispenser
CNCEST Pipe Reel for Underfloor Heating, Underfloor Heating Pipe Winder, Pipe Reel Dispenser
CNCEST Pipe Reel for Underfloor Heating, Underfloor Heating Pipe Winder, Pipe Reel Dispenser
CNCEST Pipe Reel for Underfloor Heating, Underfloor Heating Pipe Winder, Pipe Reel Dispenser
CNCEST Pipe Reel for Underfloor Heating, Underfloor Heating Pipe Winder, Pipe Reel Dispenser
CNCEST Pipe Reel for Underfloor Heating, Underfloor Heating Pipe Winder, Pipe Reel Dispenser
CNCEST Pipe Reel for Underfloor Heating, Underfloor Heating Pipe Winder, Pipe Reel Dispenser
CNCEST Pipe Reel for Underfloor Heating, Underfloor Heating Pipe Winder, Pipe Reel Dispenser
CNCEST Pipe Reel for Underfloor Heating, Underfloor Heating Pipe Winder, Pipe Reel Dispenser
CNCEST Pipe Reel for Underfloor Heating, Underfloor Heating Pipe Winder, Pipe Reel Dispenser
CNCEST Pipe Reel for Underfloor Heating, Underfloor Heating Pipe Winder, Pipe Reel Dispenser
CNCEST Pipe Reel for Underfloor Heating, Underfloor Heating Pipe Winder, Pipe Reel Dispenser
CNCEST Pipe Reel for Underfloor Heating, Underfloor Heating Pipe Winder, Pipe Reel Dispenser
CNCEST Pipe Reel for Underfloor Heating, Underfloor Heating Pipe Winder, Pipe Reel Dispenser

CNCEST Pipe Reel for Underfloor Heating, Underfloor Heating Pipe Winder, Pipe Reel Dispenser

(0 reviews)
Ask a question
959.88SEK
  • Brand: CNCEST
  • Product Code: JZ27LH-000300
  • Availability: Out Of Stock
Quantity
- +
Estimated Delivery:
Free Fast Shipping:
On all orders
estimated delivery guarantee

Durable

This product is mainly made of high-quality carbon steel by injection molding, which is not easy to rust or deform and has strong bearing capacity and long service life.

Adjustable design

The diameter of the bracket can be adjusted in three levels of 11.81 inches, 13.78 inches and 15.75 inches. Just pull out the latches gently, so you can use this product for heating pipes of different sizes.

Excellent load-bearing capacity

The 1.26 inch, 0.98 inch and 0.79 inch diameter pipes and the sturdy square base give this product a load capacity of 440.92 pounds. You can be sure that you can place a large roll of water pipes on it.

Effortless work

The product uses double roller thrust bearings with deceleration ability. You only need to gently pull one end of the tube to pull it out easily.

The rubber jacket

They can prevent your feet from piercing the insulation layer and ensure the quality of your work.

Press beam

You can assemble them and insert them into the pressing device to keep the heating pipe stable and firmly attached to the product.

Big size

With a width of 4.27 feet, the flat bracket can accommodate a large number of heating pipes without the need for frequent refilling, saving more effort and time.

Specifications
Material:  Carbon steel, rubber, canvas
Proceedings:  Injection molding
Color:  Rot
Assembly required:  And
Mounting type:  Floor fixing
Maximum total load capacity:  200kg/440.92lbs

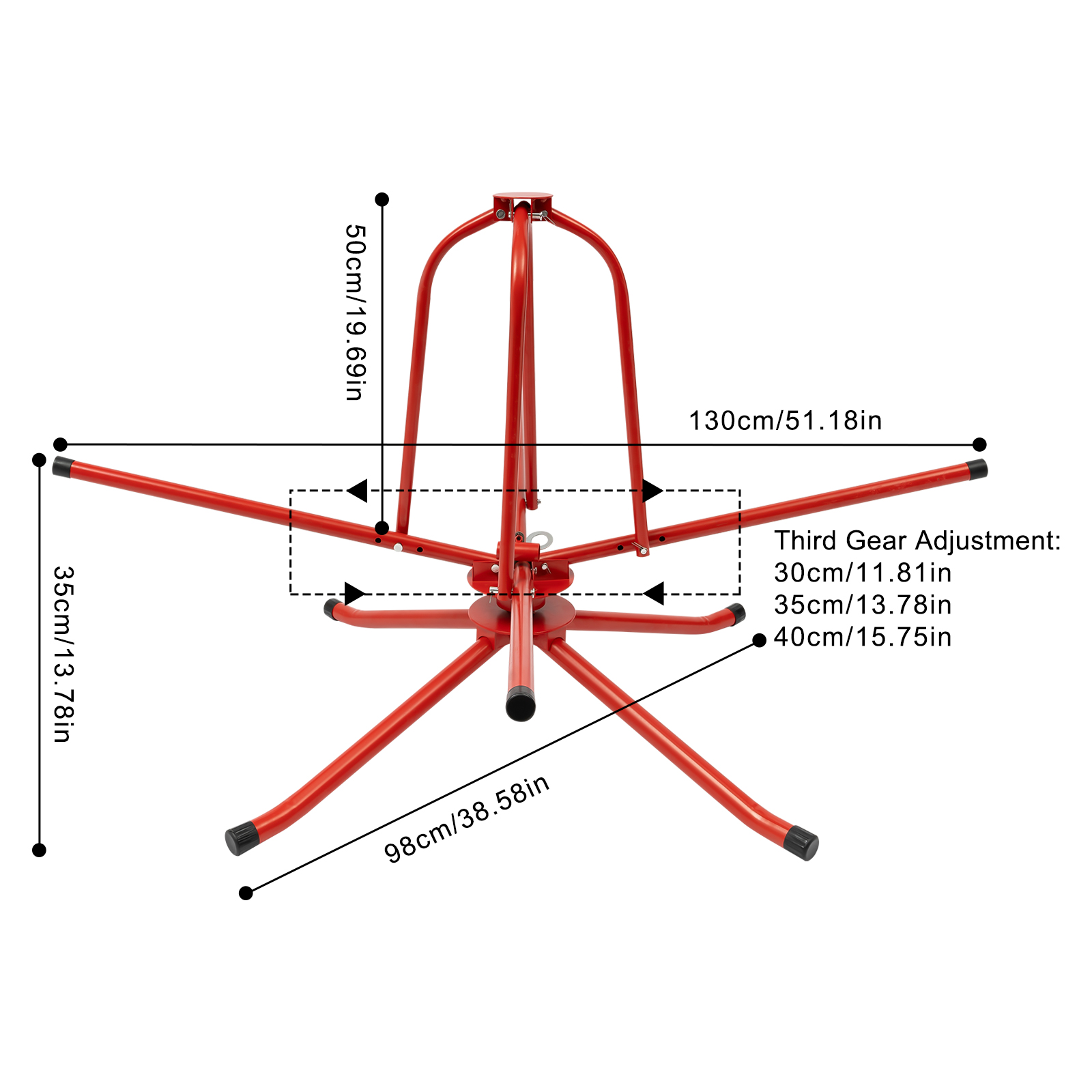

Width adjustment range:  30cm/11.81in, 35cm/13.78in, 40cm/15.75in
Diameter of the base tube:  3.2cm/1.26in, 2.5cm/0.98in, 2cm/0.79in
Height of upper bracket:  50cm/19.69in
Width of flat mount:  1.3m/4.27ft
Base size (W*H):  98*35cm/38.58*13.78in
Package size:  66*21*18cm/25.98*8.27*7.09in
Gross weight:  8.64kg/19.05lbs
Net weight:  8.3kg/18.3lbs

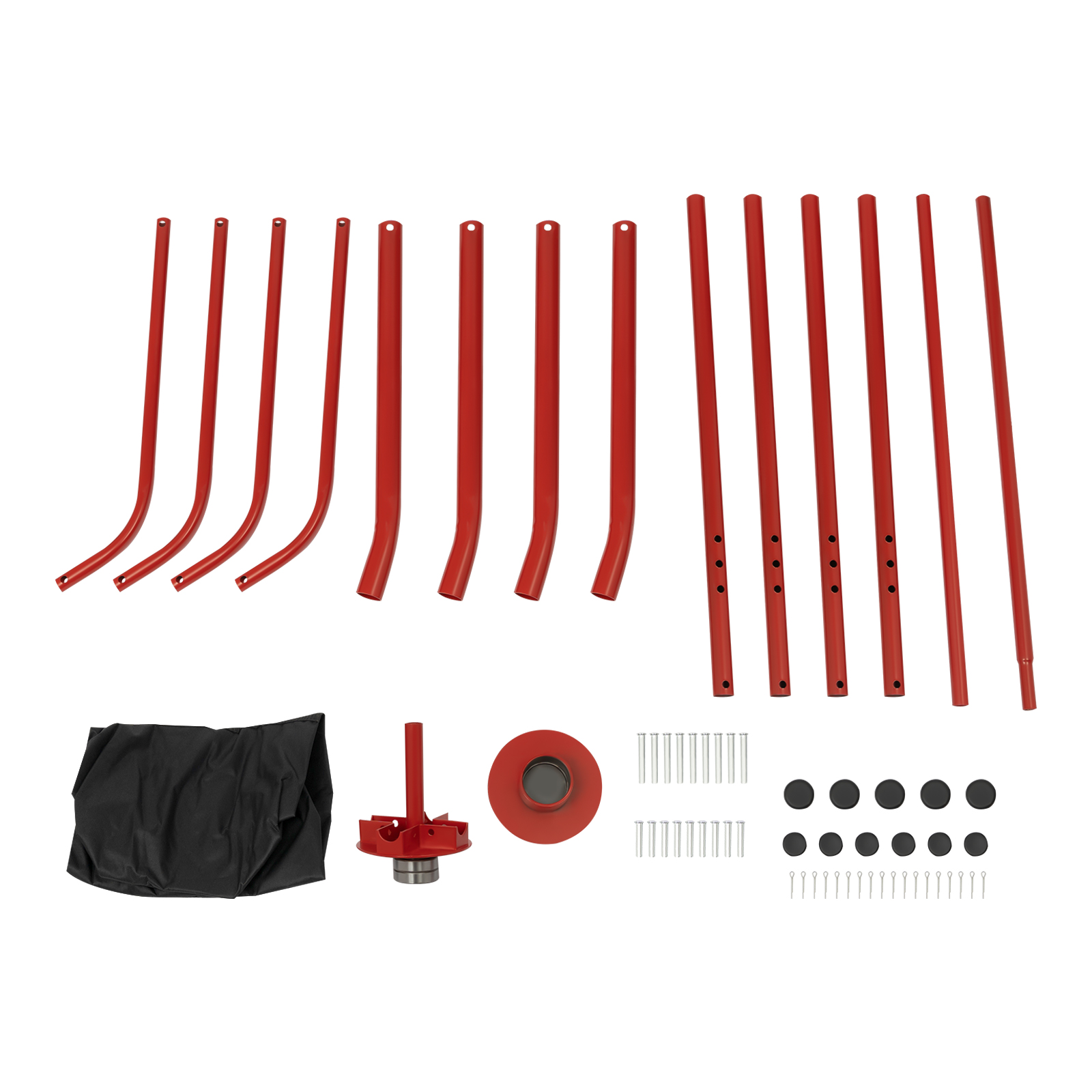

Package included
1 * Underfloor heating pipe winder
1 * Canvas bag
Other accessories for assembly

Specifications

Material Carbon steel, rubber, canvas Proceedings Injection molding
Color Rot Assembly required And
Mounting type Floor fixing Maximum total load capacity 200kg/440.92lbs
Width adjustment range 30cm/11.81in, 35cm/13.78in, 40cm/15.75in Diameter of the base tube 3.2cm/1.26in, 2.5cm/0.98in, 2cm/0.79in
Height of upper bracket 50cm/19.69in Width of flat mount 1.3m/4.27ft
Base size (W*H) 98*35cm/38.58*13.78in Package size 66*21*18cm/25.98*8.27*7.09in
Gross weight 8.64kg/19.05lbs Net weight 8.3kg/18.3lbs

Remarks

Please allow slight color difference due to shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
