Automatic Transfer Switch, 3P100A Automatic Transfer Switch, 3P Automatic Transfer Switch for Urban Residential Areas
Automatic Transfer Switch, 3P100A Automatic Transfer Switch, 3P Automatic Transfer Switch for Urban Residential Areas
Automatic Transfer Switch, 3P100A Automatic Transfer Switch, 3P Automatic Transfer Switch for Urban Residential Areas
Automatic Transfer Switch, 3P100A Automatic Transfer Switch, 3P Automatic Transfer Switch for Urban Residential Areas
Automatic Transfer Switch, 3P100A Automatic Transfer Switch, 3P Automatic Transfer Switch for Urban Residential Areas
Automatic Transfer Switch, 3P100A Automatic Transfer Switch, 3P Automatic Transfer Switch for Urban Residential Areas
Automatic Transfer Switch, 3P100A Automatic Transfer Switch, 3P Automatic Transfer Switch for Urban Residential Areas
Automatic Transfer Switch, 3P100A Automatic Transfer Switch, 3P Automatic Transfer Switch for Urban Residential Areas
Automatic Transfer Switch, 3P100A Automatic Transfer Switch, 3P Automatic Transfer Switch for Urban Residential Areas
Automatic Transfer Switch, 3P100A Automatic Transfer Switch, 3P Automatic Transfer Switch for Urban Residential Areas
Automatic Transfer Switch, 3P100A Automatic Transfer Switch, 3P Automatic Transfer Switch for Urban Residential Areas
Automatic Transfer Switch, 3P100A Automatic Transfer Switch, 3P Automatic Transfer Switch for Urban Residential Areas
Automatic Transfer Switch, 3P100A Automatic Transfer Switch, 3P Automatic Transfer Switch for Urban Residential Areas
Automatic Transfer Switch, 3P100A Automatic Transfer Switch, 3P Automatic Transfer Switch for Urban Residential Areas

Automatic Transfer Switch, 3P100A Automatic Transfer Switch, 3P Automatic Transfer Switch for Urban Residential Areas

(0 reviews)
Ask a question
575.88SEK
  • Brand: CNCEST
  • Product Code: YLLNOH-000700
  • Availability: In Stock
Quantity
- +
Estimated Delivery:
Free Fast Shipping:
On all orders
estimated delivery guarantee

Build to Last

Made of flame-retardant plastic shell, purple copper parts, and silver contacts, this product is impact-resistant, tear-resistant, and durable, ensuring your long-term use.

Powerful Function

When the main power supply fails or loses power, the electromagnetic magnetic drive ensures that this product can quickly and automatically switch the load from the failed power supply to the backup power supply, thereby ensuring the continuity of the power supply.

Thoughtful Design

It can be connected to signal lights for easy observation outside the cabinet. It can be directly installed into the distribution box for use.

Easy to Switch

It has two modes, manual and automatic, allowing you to switch freely.

Convenient to Carry

Its lightweight(1.46 lbs) allows you to easily carry this product wherever you need it, without spending too much time and effort.

Simple Cleaning

It has a smooth surface and a simple structure, so you only need to wipe the dust with a dry towel(not included) regularly.

Smooth Edge

The rounded and smooth edges not only add to the aesthetics of the product but also improve the safety of use.

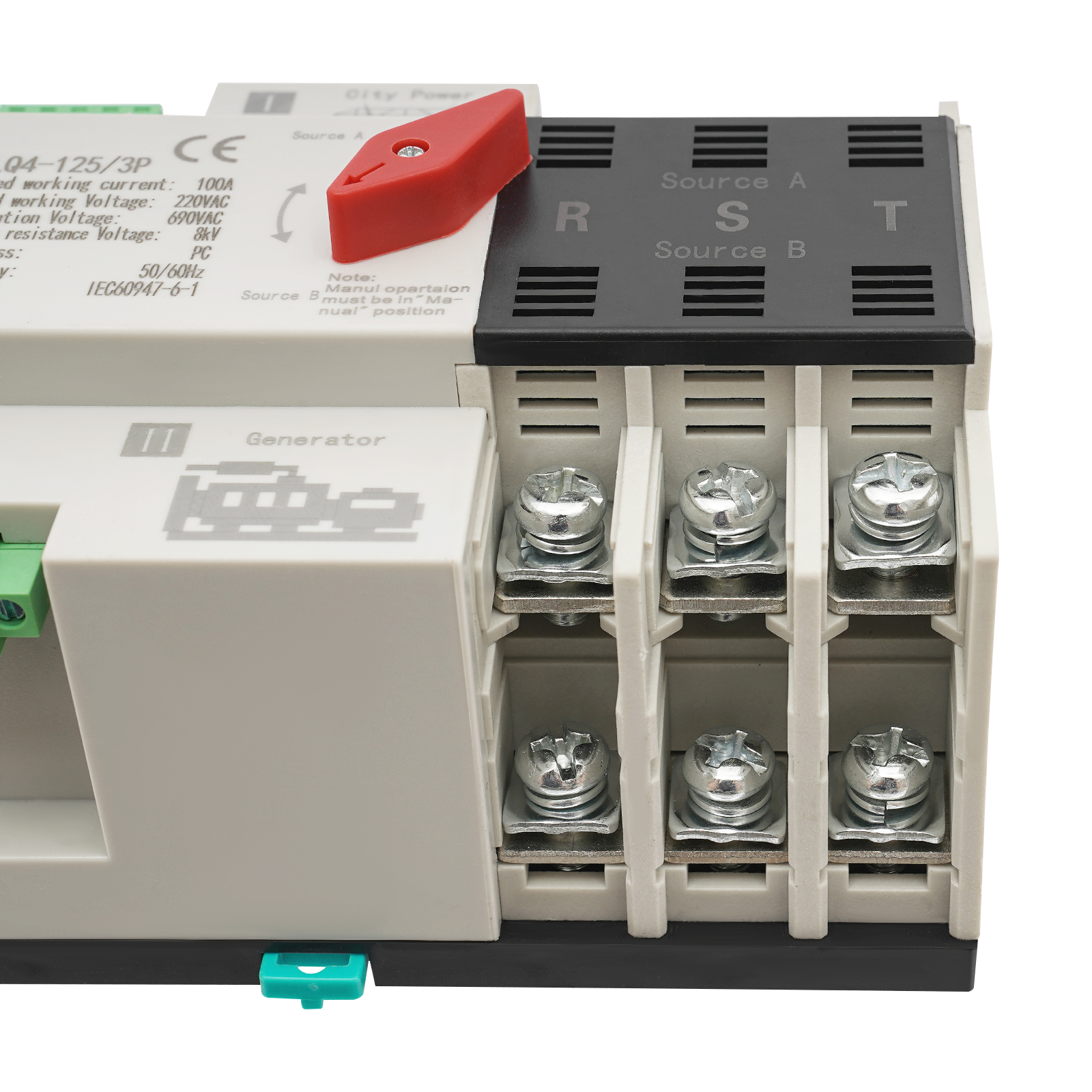

Silver Contact

This product uses silver contact to extend its service life.

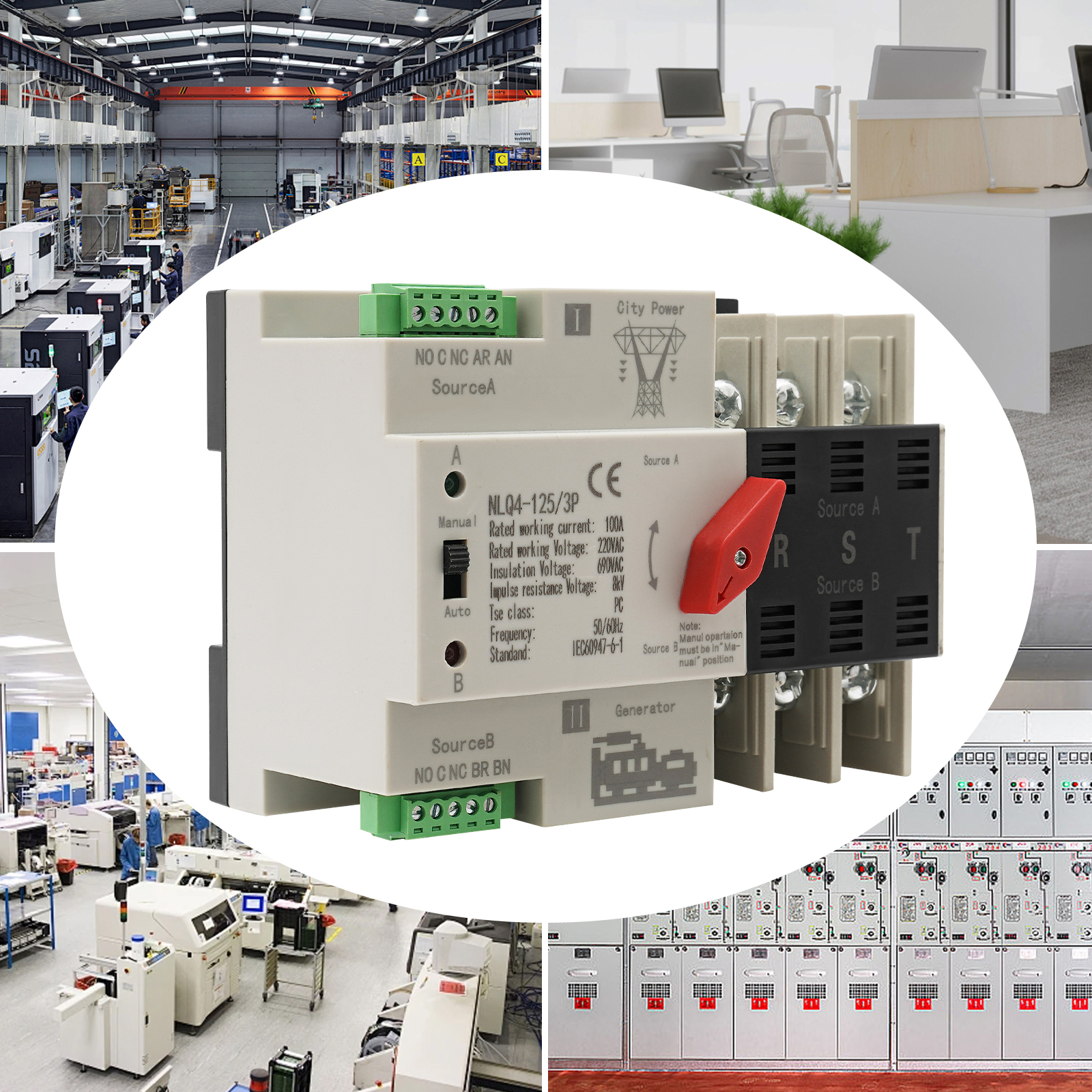

Application

It is suitable for urban residential areas, commercial buildings, shopping malls, school education, hospital buildings, residential households, etc.

Specifications
Model:  NLQ4-125/3P
Color:  White
Style:  Modern
Shapes:  Rectangular
Material:  Plastic, Purple Copper, Silver
Rated Working Current:  100A
Rated Working Voltage:  220V AC
Insulation Voltage:  690V AC
Frequency:  50/60Hz
Impulse Resistance Voltage:  8kV
Electrical Grade:  PC Grade
Switch Type:  Secondary Power Distribution
Conversion Time:  ≈ 30MS

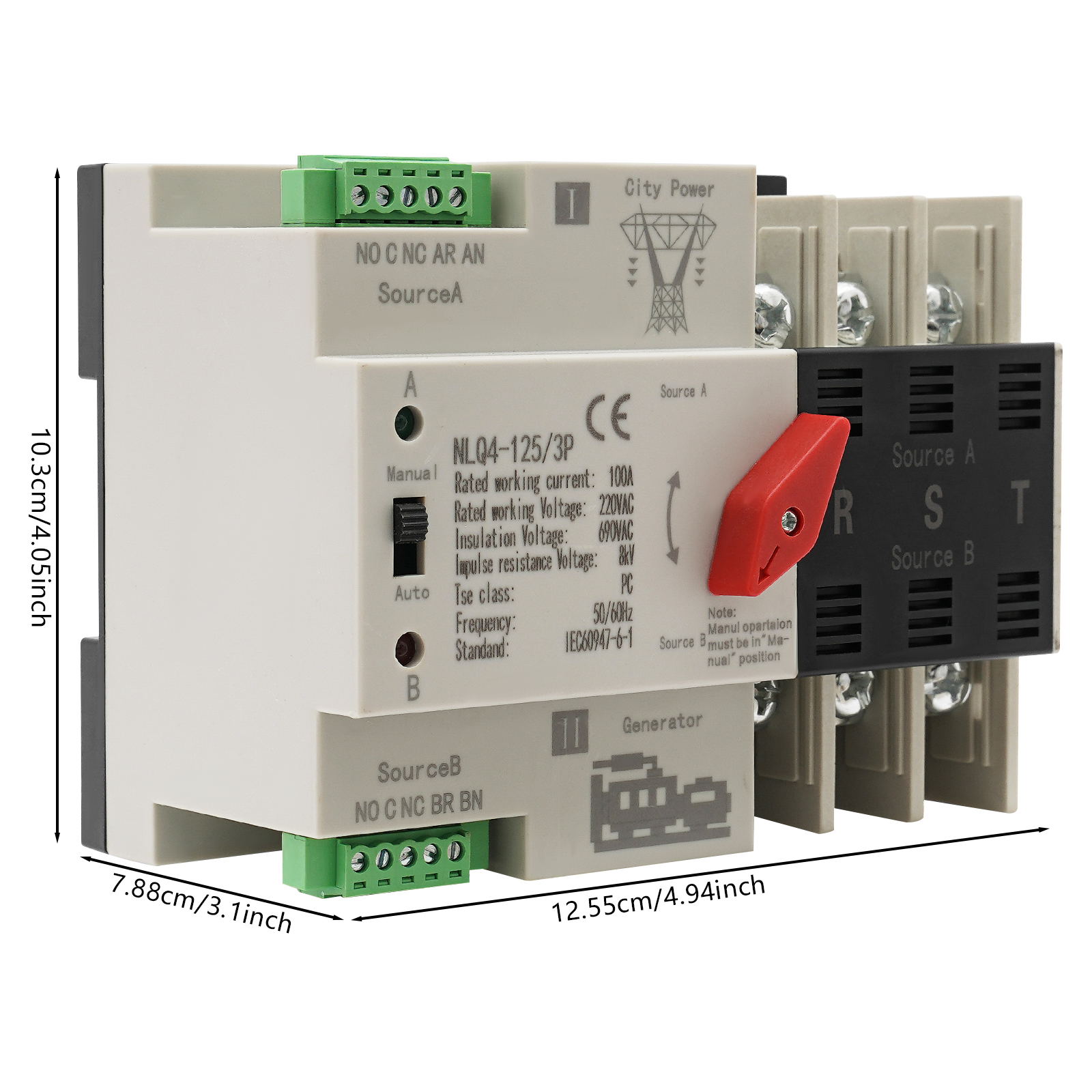

Product Size:  125.5*78.8*103mm/4.94*3.1*4.06in
Package Size:  15*11.1*8cm/5.91*4.37*3.15in
Gross Weight:  0.75kg/1.65lbs
Net Weight:  0.66kg/1.46lbs

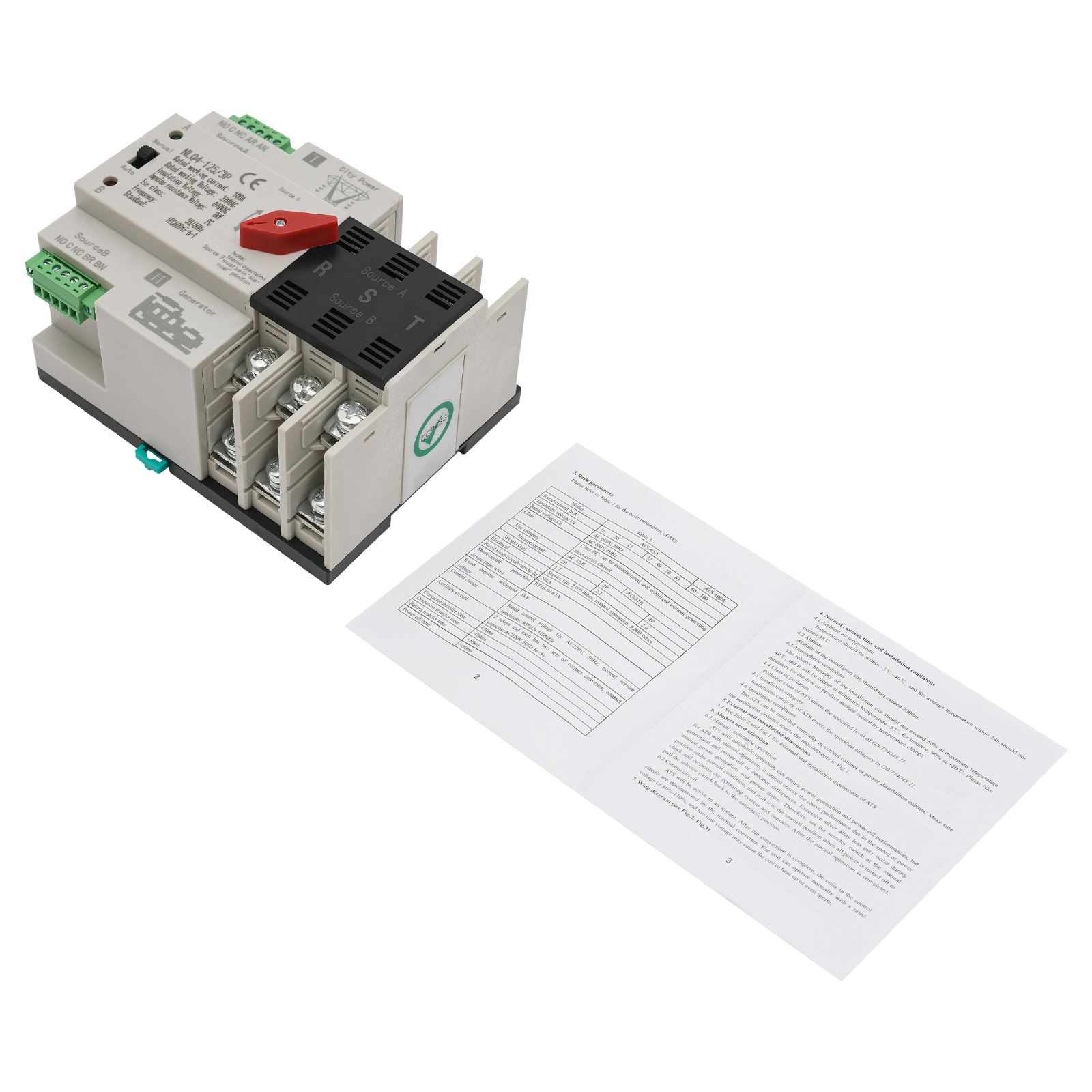

Package+Included
1* Automatic Transfer Switch
1* English Manual

Specifications

Model NLQ4-125/3P Color White
Style Modern Shapes Rectangular
Material Plastic, Purple Copper, Silver Rated Working Current 100A
Rated Working Voltage 220V AC Insulation Voltage 690V AC
Frequency 50/60Hz Impulse Resistance Voltage 8kV
Electrical Grade PC Grade Switch Type Secondary Power Distribution
Conversion Time ≈ 30MS Product Size 125.5*78.8*103mm/4.94*3.1*4.06in
Package Size 15*11.1*8cm/5.91*4.37*3.15in Gross Weight 0.75kg/1.65lbs
Net Weight 0.66kg/1.46lbs

Product+Tips

Notes

1.Please note that in automatic mode, forcing the power switch handle to rotate will damage the changeover switch. In manual mode the power should be switched manually by turning the handle.
2.When both the main power supply and the backup power supply are supplying power simultaneously, priority should be given to using the main power supply.
3.The maximum ambient temperature should not exceed 104℉, the minimum temperature should not be lower than 23℉, and the average temperature within 24 hours should not exceed 95℉.
