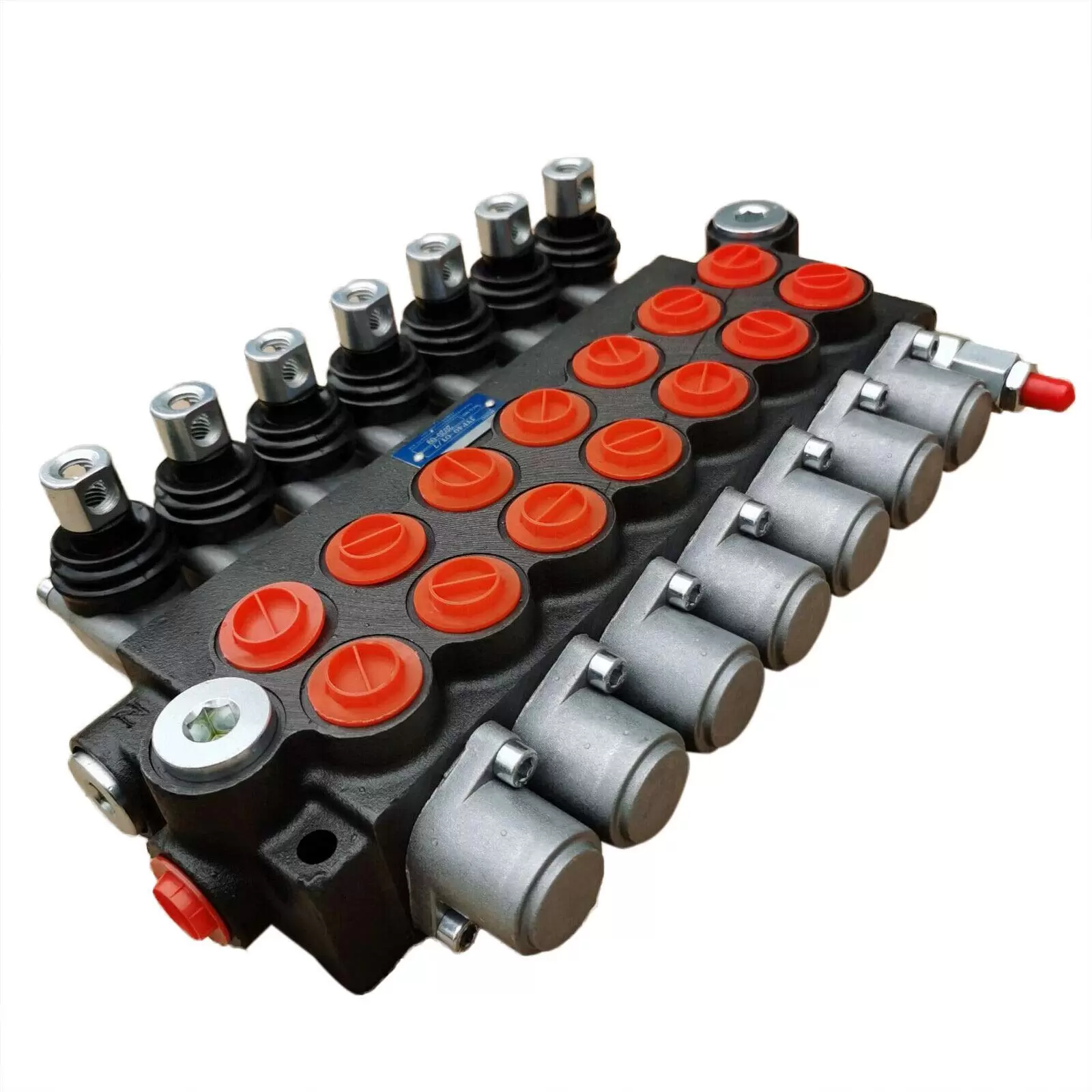

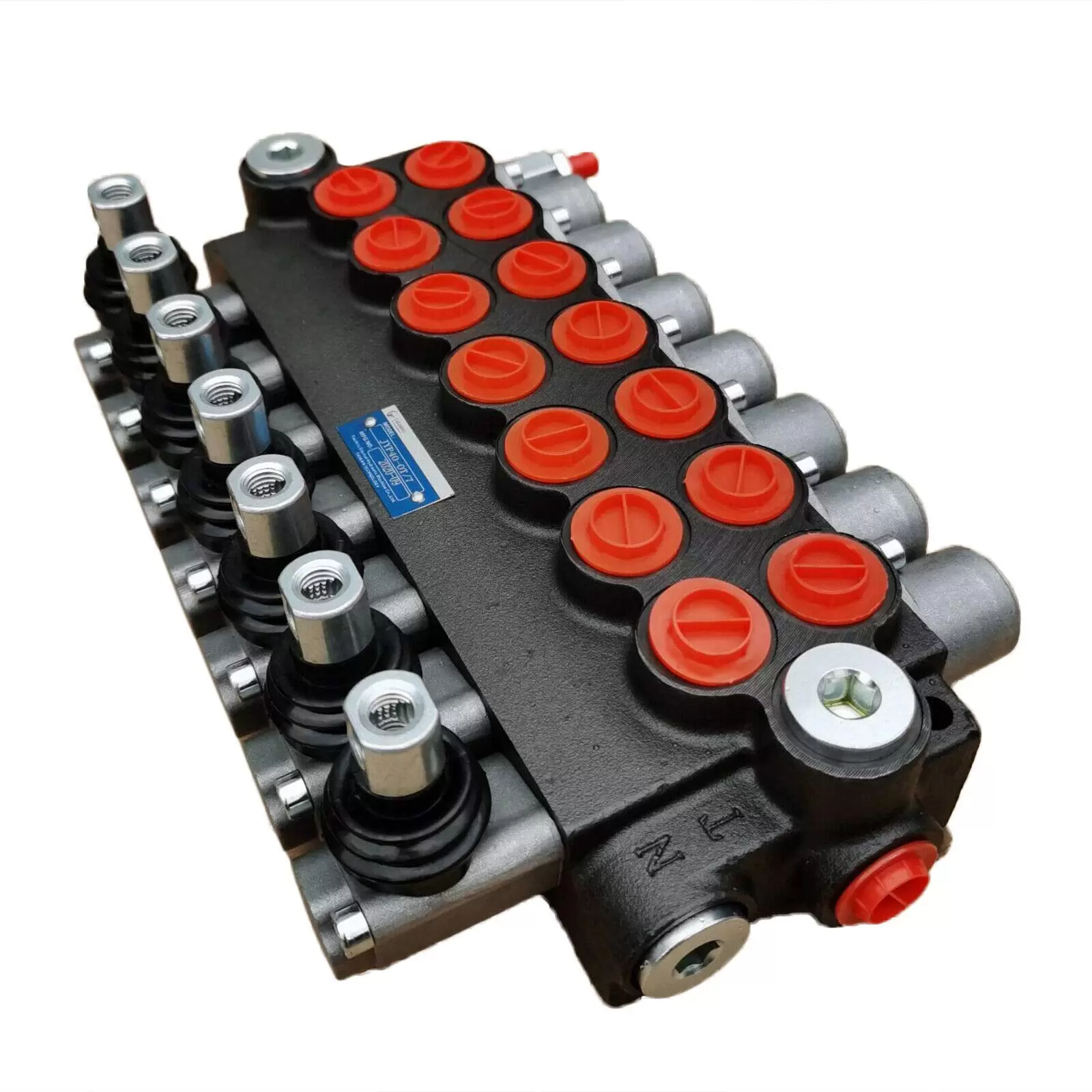

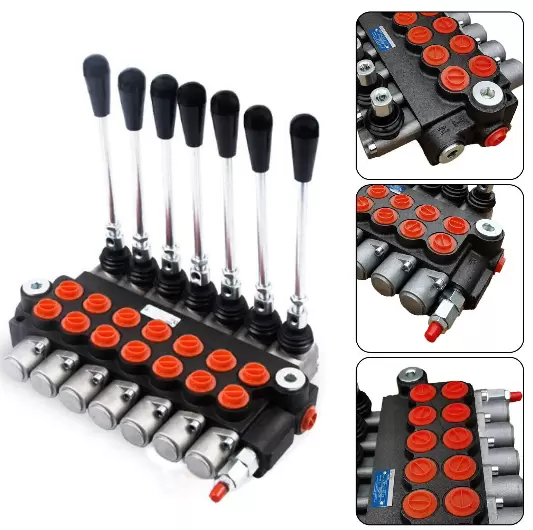

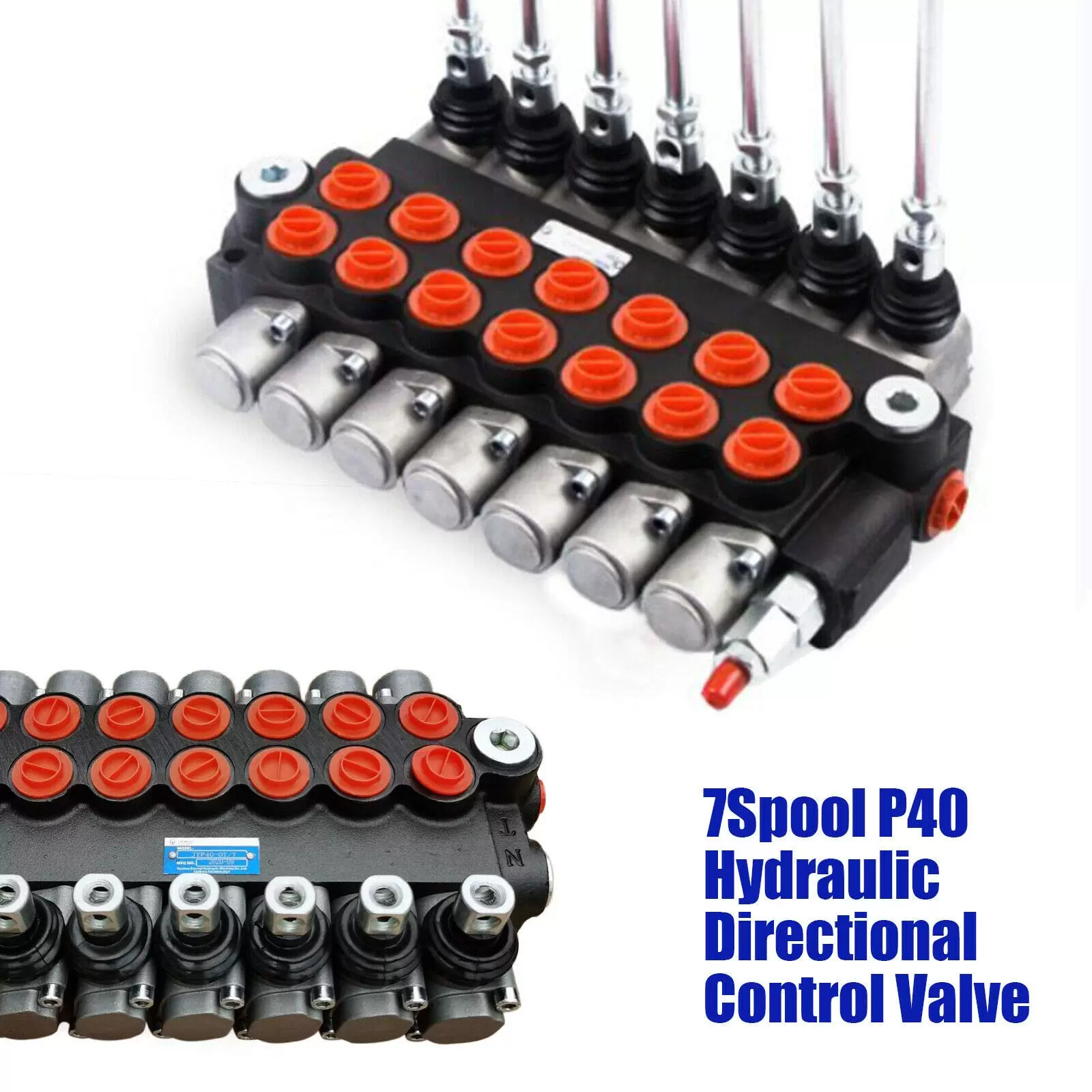

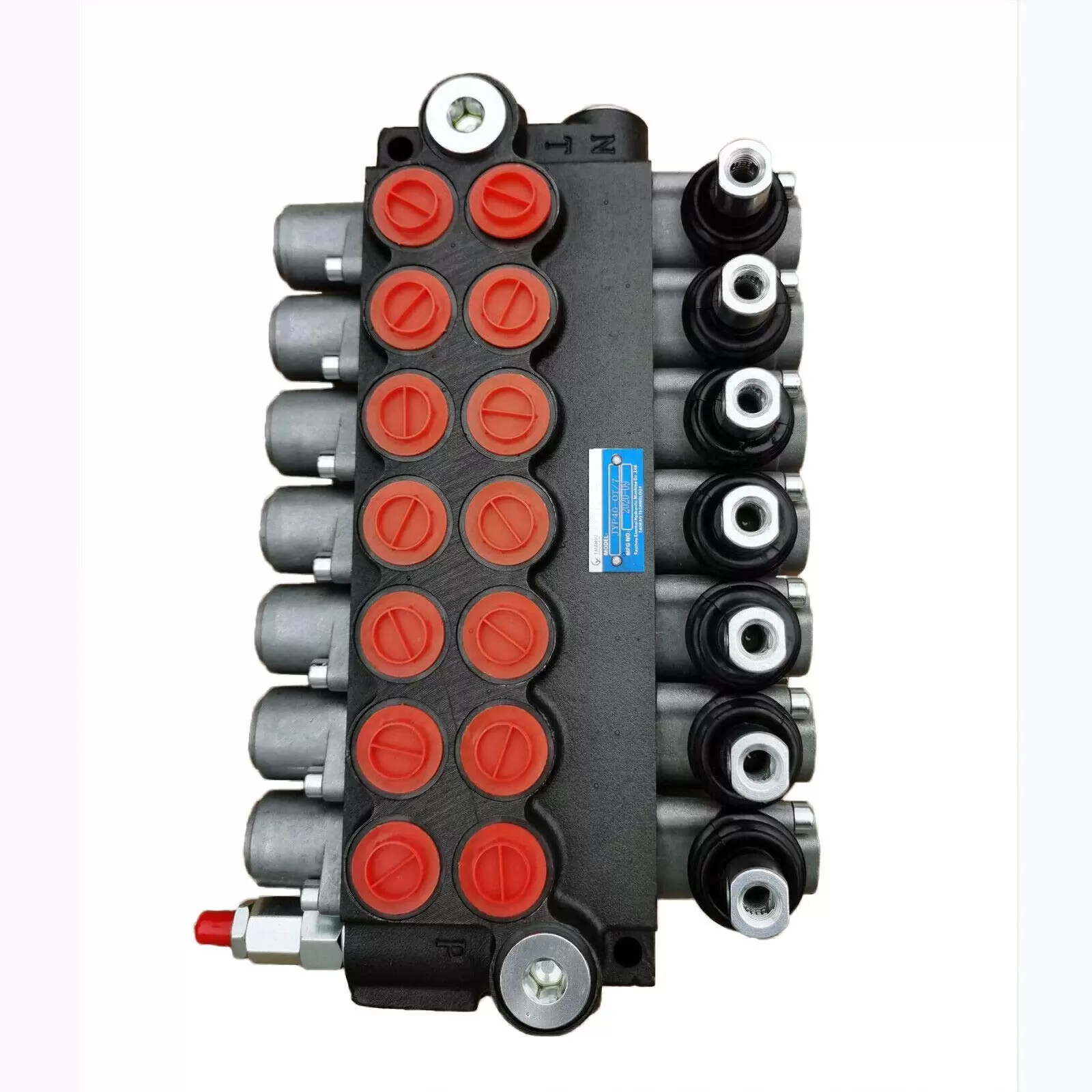

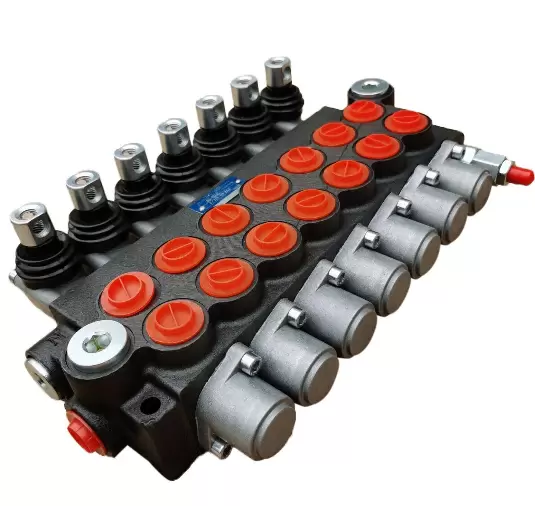

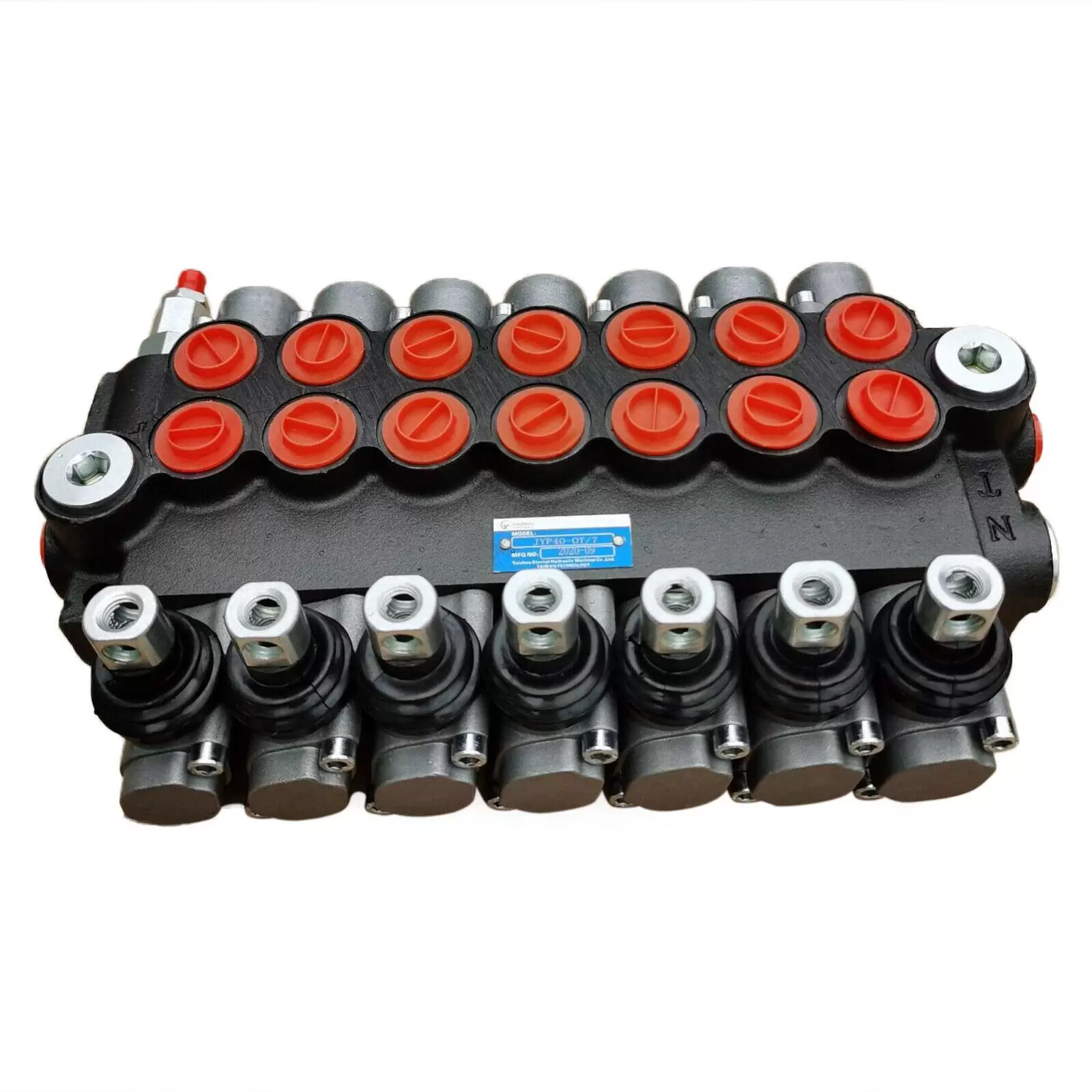

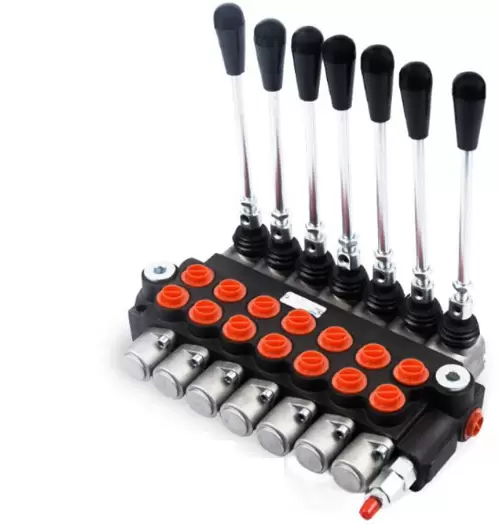

7 Spool 4300 PSI Double Acting Hydraulic Control Valve 11 GPM Adjustable Tractor Loader
- Brand: CNCEST
- Product Code: HG-WMTZXL-3603
- Availability: In Stock

- Maximum working pressure: P = 250 bar (3600 psi); 10 T = 150 bar (150 psi); A, B = 4300 psi (300 bar); Rated flow: 13 G/Min (60 L/Min). P40 series valves of medium high pressure monoblock construction are based on European technology.
- Relief valve: adjustable. Internal check valve: The check valve in the valve body is to ensure that the hydraulic oil is not returned. Inner pressure relief valve: The pressure relief valve in the valve body can adjust the working pressure of the hydraulic system.
- Central system: open; Connections A, B:G1/2; Port P, T, N: 1/2" Bspp. Oil circuit: parallel connection, performance beyond option
- Control type: manual control, pneumatic control, hydraulic and electric control optional.
- Construction of the valve. One-piece construction, 1-7 levers. Pool function: O, Y, Pa.
One-piece construction, 1 to 7 levers, cursor function: O, Y, PA. Available with manual control, pneumatic control, electric and pneumatic control, hydraulic and electric control, etc.
More details:
![]() |
![]() |
Features:
Maximum working pressure: P = 250 bar (3600 psi);
10 T = 150 bar (150 psi); TO,
B = 4300 psi (300 bar)
nominal flow: 13 g/min (60 l/min)
Relief valve: adjustable
Central system: open
Connexions A, B: G1/2
Port P, T, N: 1/2 " BSPP
Back pressure: ≤1MPA
Temperature: -20 - 80°C
Vice rang: 10-400 mm2/s
Filtration accuracy: ≤ 10 µm
Applications:
Small tractors
tractor loader
Protocol divider
Package including:
1 x hydraulic distributor 7P40
