• Highly versatile: This product is universal for 48V/60V/72V in many styles, making it highly adaptable.
• High-quality materials: This product features an aluminum case and pure copper coils, with high temperature resistance, low noise, anti-corrosion and anti-rust properties.
• Easy to store and transport: The motor's compact size (4.21*5.28 inches) and light weight make it easy to transport and store. You can easily put them in the trunk for extra power at any time.
• High efficiency: The product's high speed (6000 rpm) and high torque (5.4 N.m) save you time by effectively increasing work efficiency.
• Easy to install: The product's simple structure and the many assembly parts supplied in the package enable you to make fast, precise connections.

Brushless motor: Brushless motors are more efficient at converting electrical energy into mechanical energy, as there are no friction losses. And since brushless motors have permanent magnets on the rotor, it's easier to produce high torque than the coils of traditional brushed motors.

Reversible: The product can be operated either clockwise or counter-clockwise using the motor's reversing wire or the handle's reversing switch, to suit your different operating needs.

Details

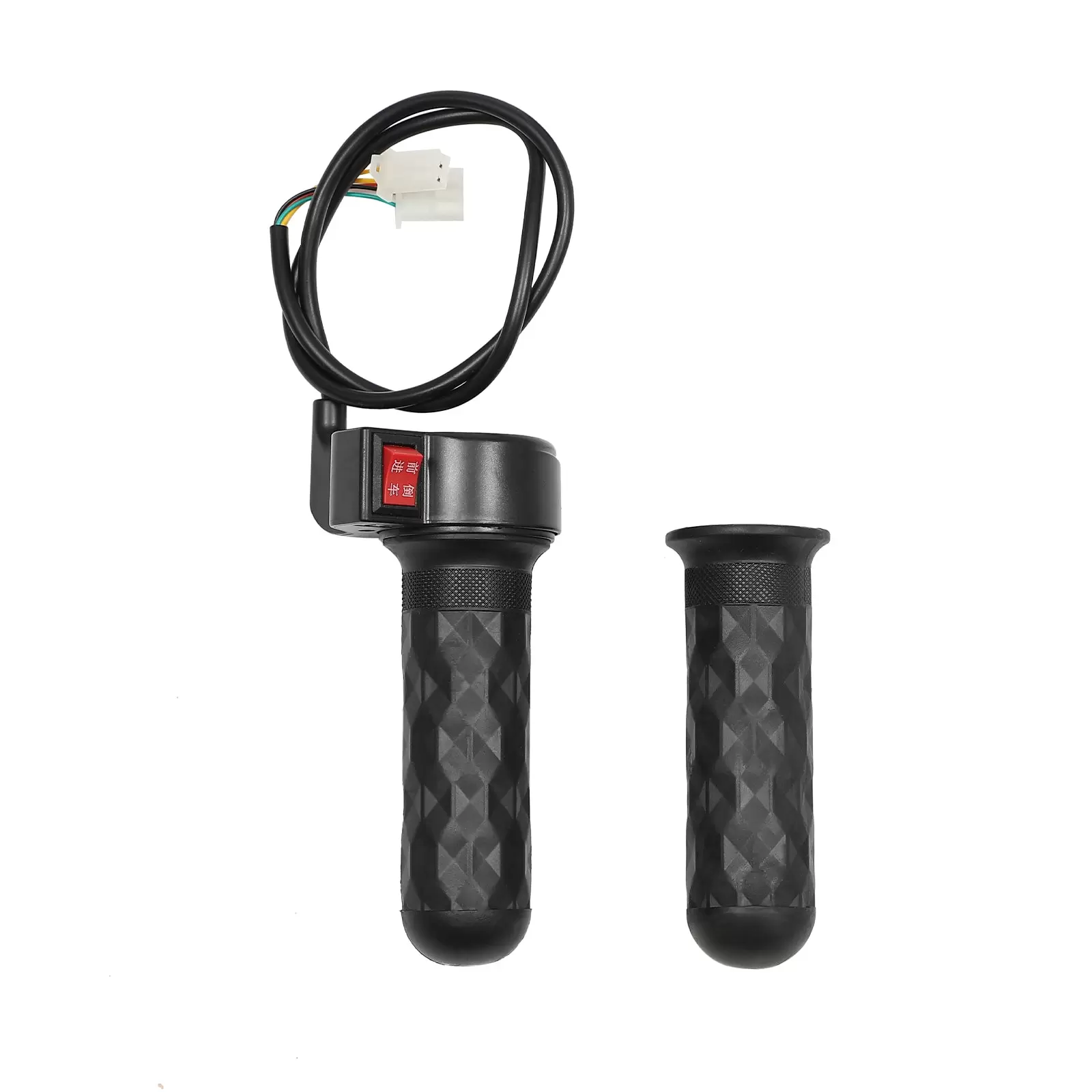

Non-slip handle: The diamond-shaped handle surface effectively improves friction, making the grip more comfortable and stable.

Feet: Feet located under the motor effectively improve motor stability, ensuring more stable and efficient product operation.

Application

This product is suitable for electric motorcycles, beach bikes, go-karts, modified bicycles, mechanical equipment, etc.

Specifications

Color: silver, black

Model: BM1109

Material: aluminum, pure copper Aluminum, pure copper

Assembly required: Yes

Brushless motor voltage: 48-72V

Load weight: Approx. 100-200kg/220.46-440.92lbs

No-load current: ≤8.8A

Rated current: ≤43A

No-load speed: 6000 rpm

Rated speed: 4900 rpm

Rated torque: 5.4 N.m

Motor efficiency：≥80％

Controller voltage: 48-72V

Power rating: 3KW

Degree of protection: IP33

Insulation class: E

Gross weight: 6.9kg/ 15.21 lbs

Net weight: 6.2kg/ 13.67 lbs

Leg spacing: 11.7cm/4.61in

Foot height: 5mm/0.2in

Interface length: 29mm/1.14in

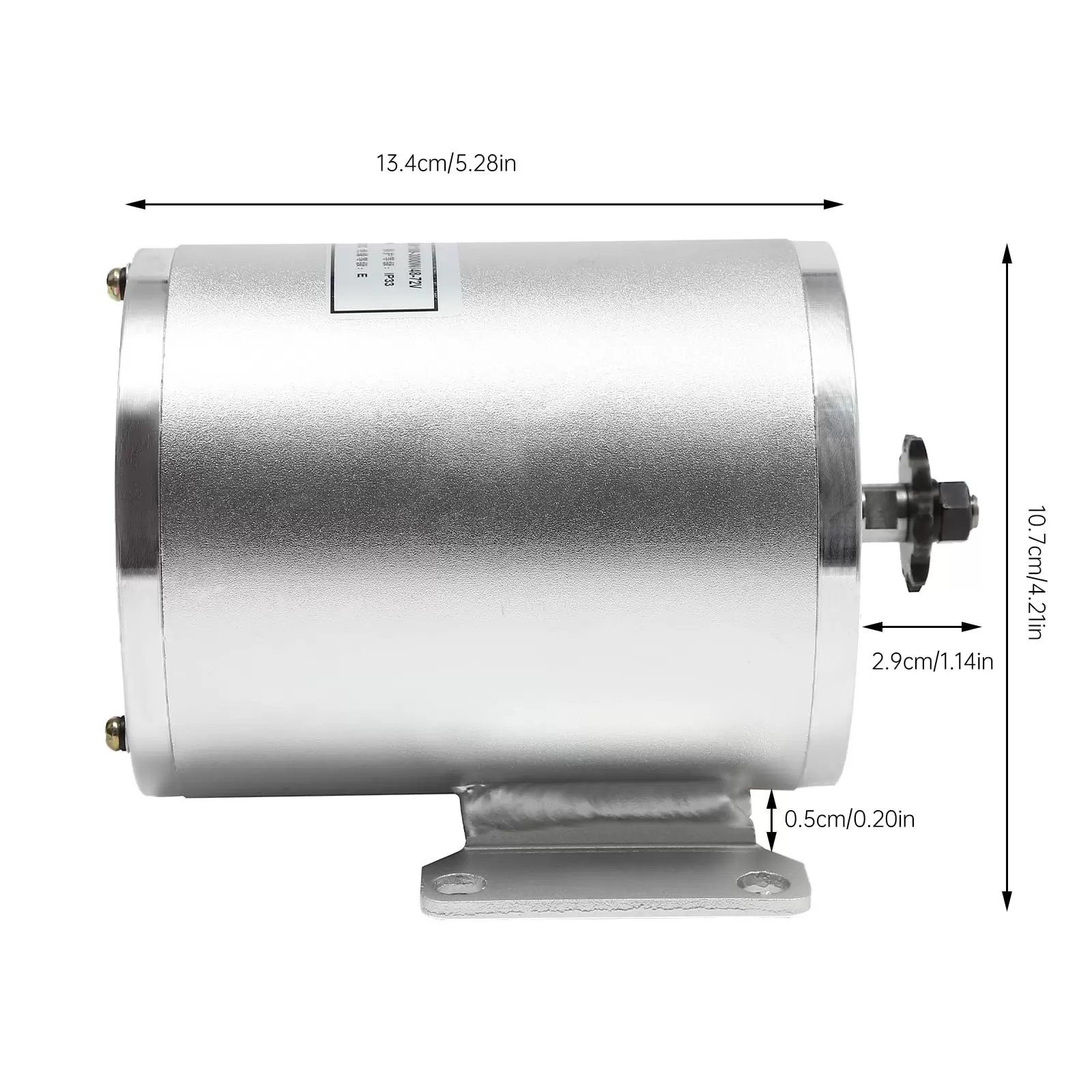

Motor size (φ*L): 10.7*13.4cm/4.21*5.28in

Package size: 34*23.5*17.5cm/13.39*9.25*6.89in

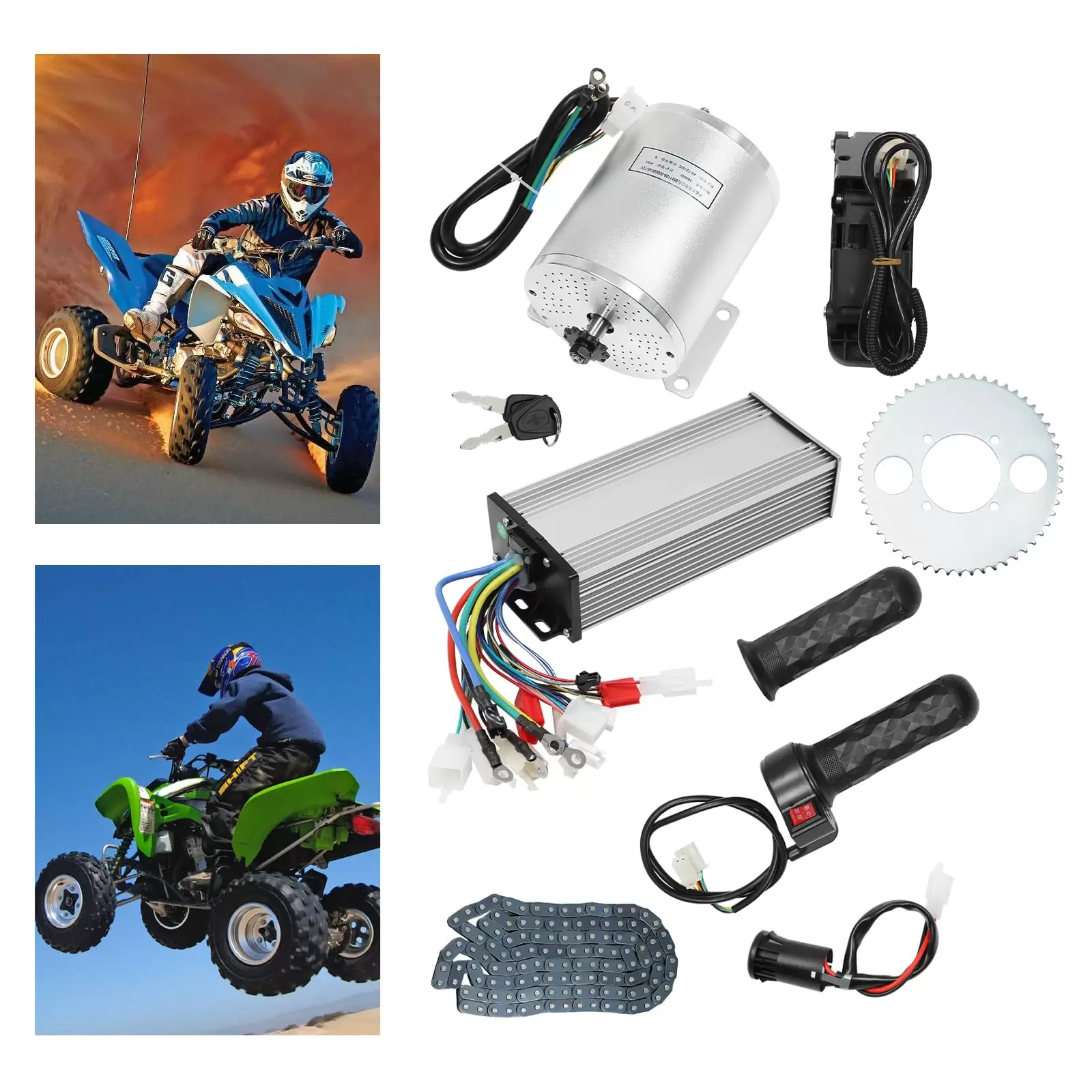

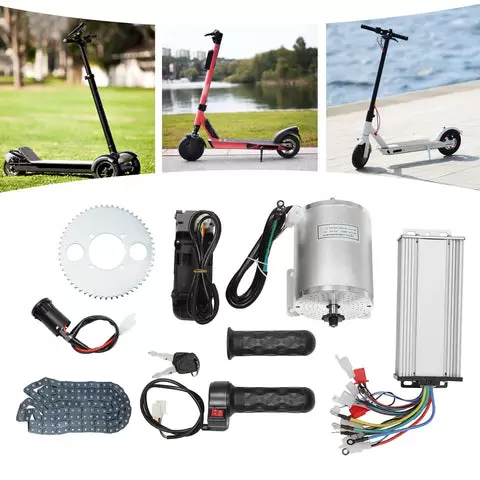

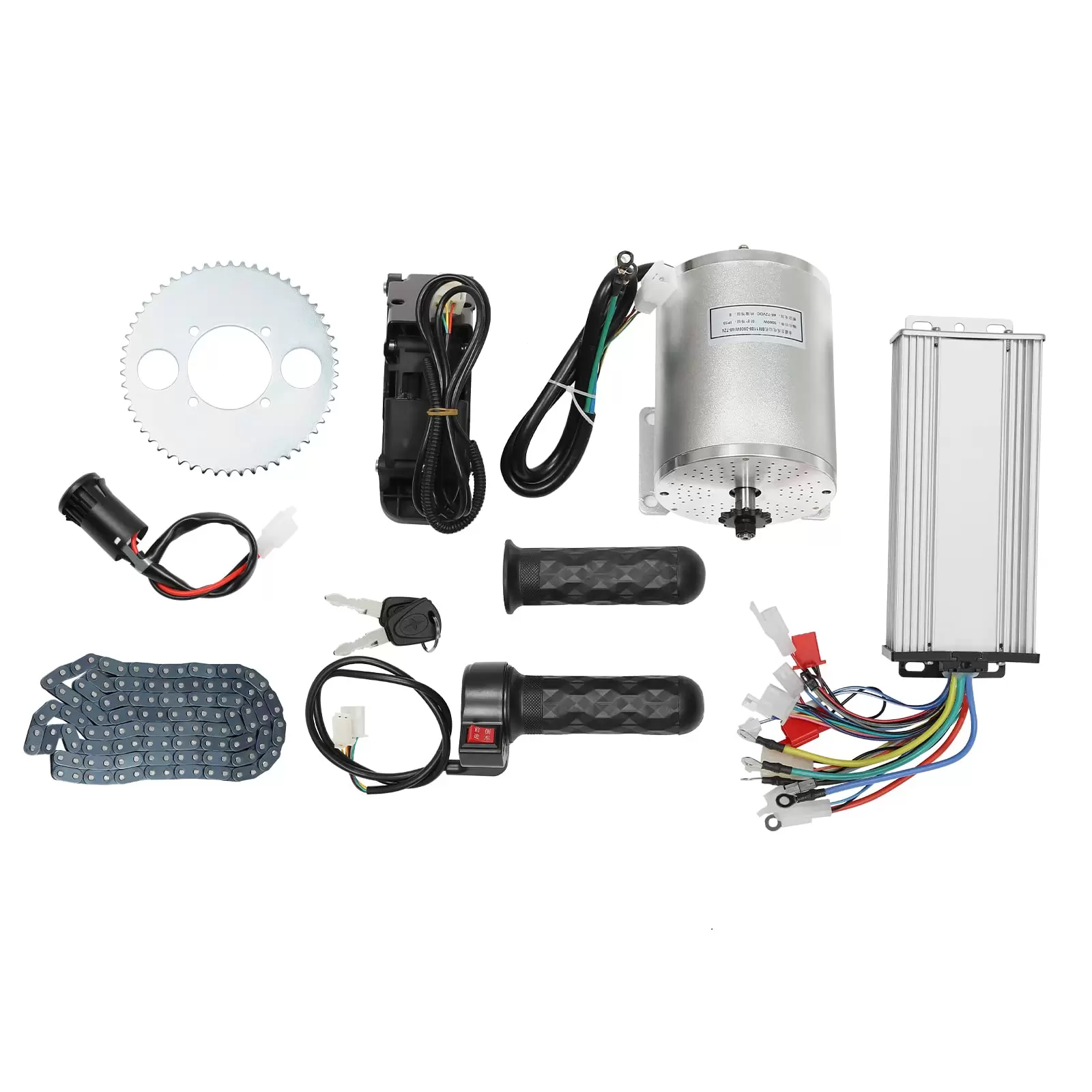

Package includes

1 * Motor

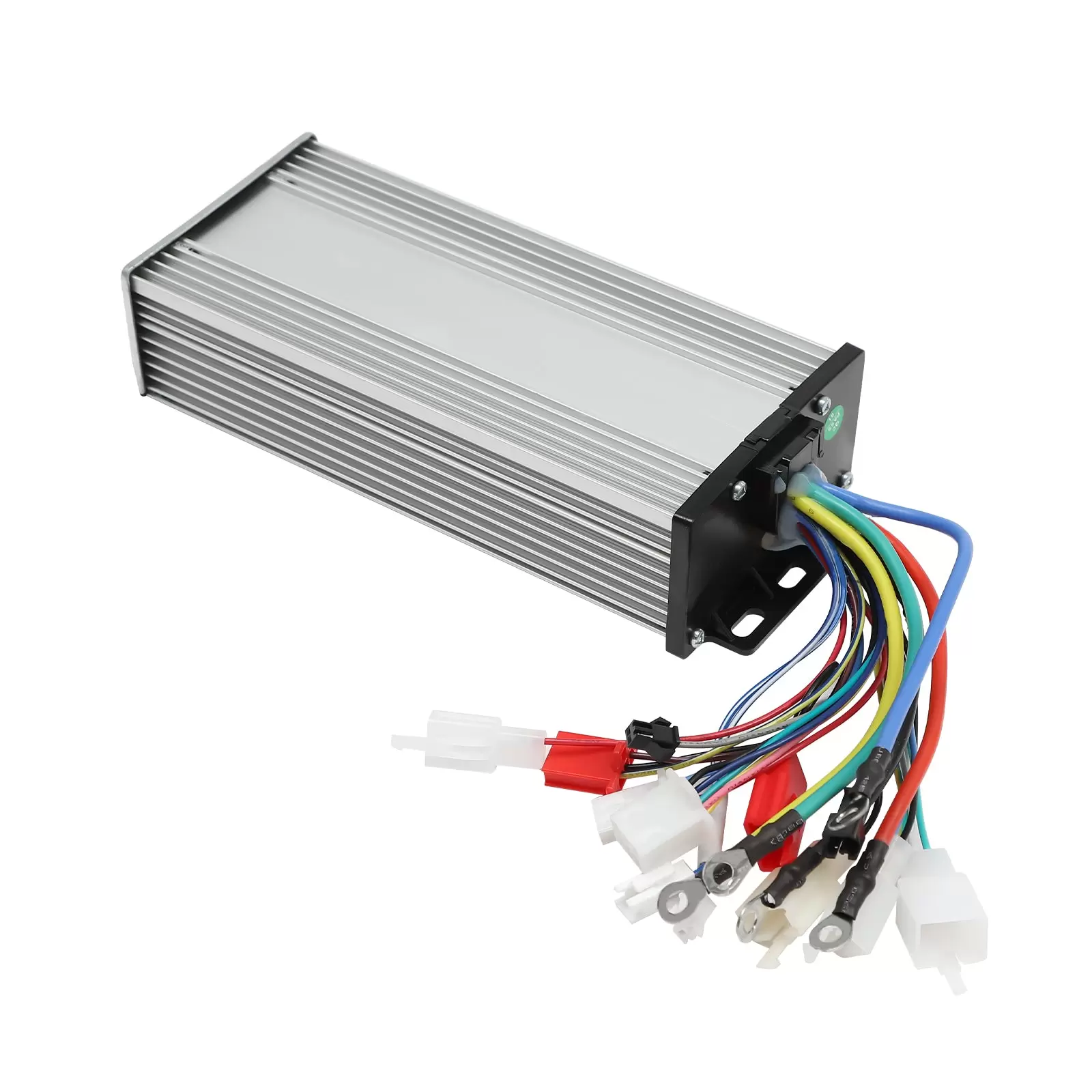

1 * Controller

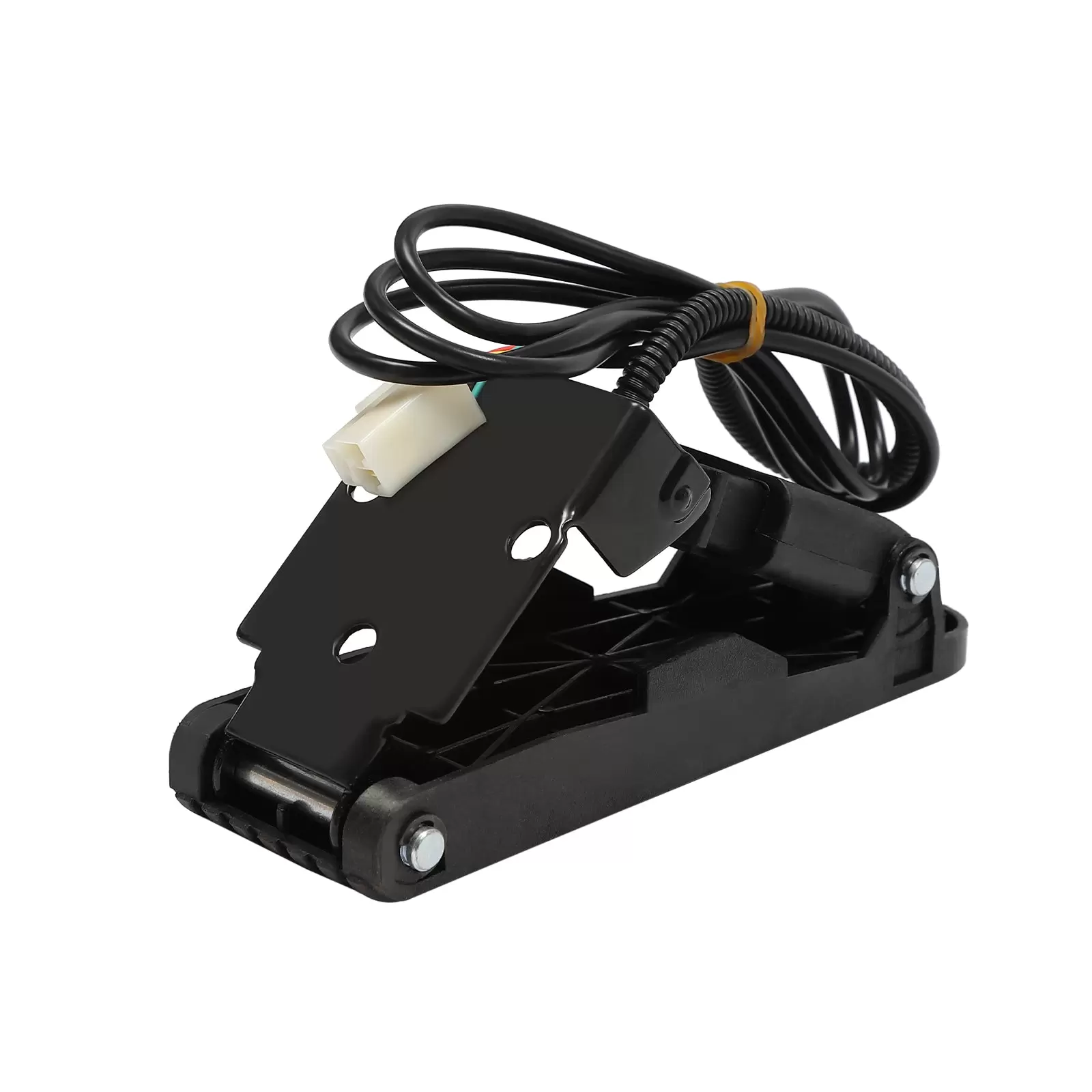

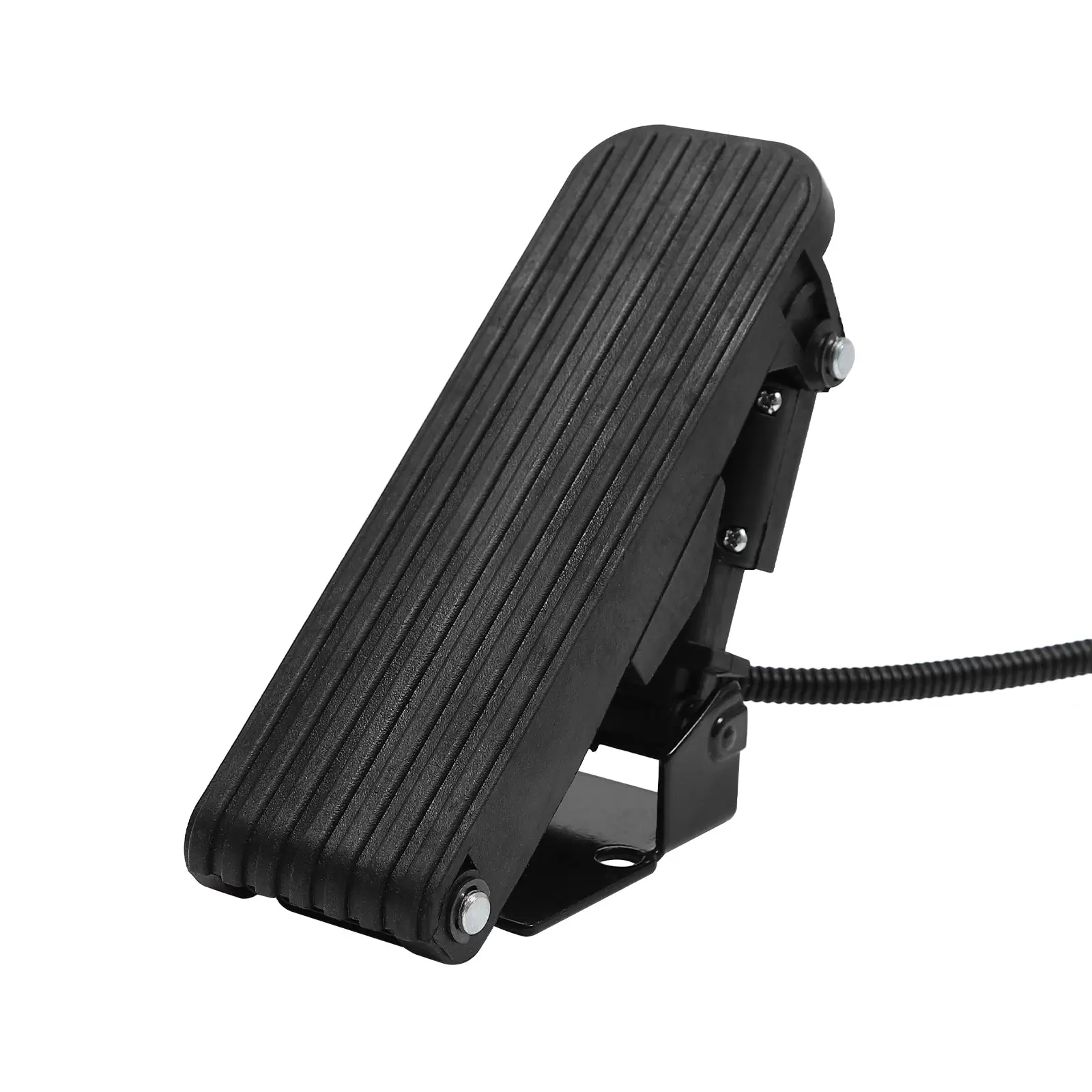

1 * Accelerator pedal

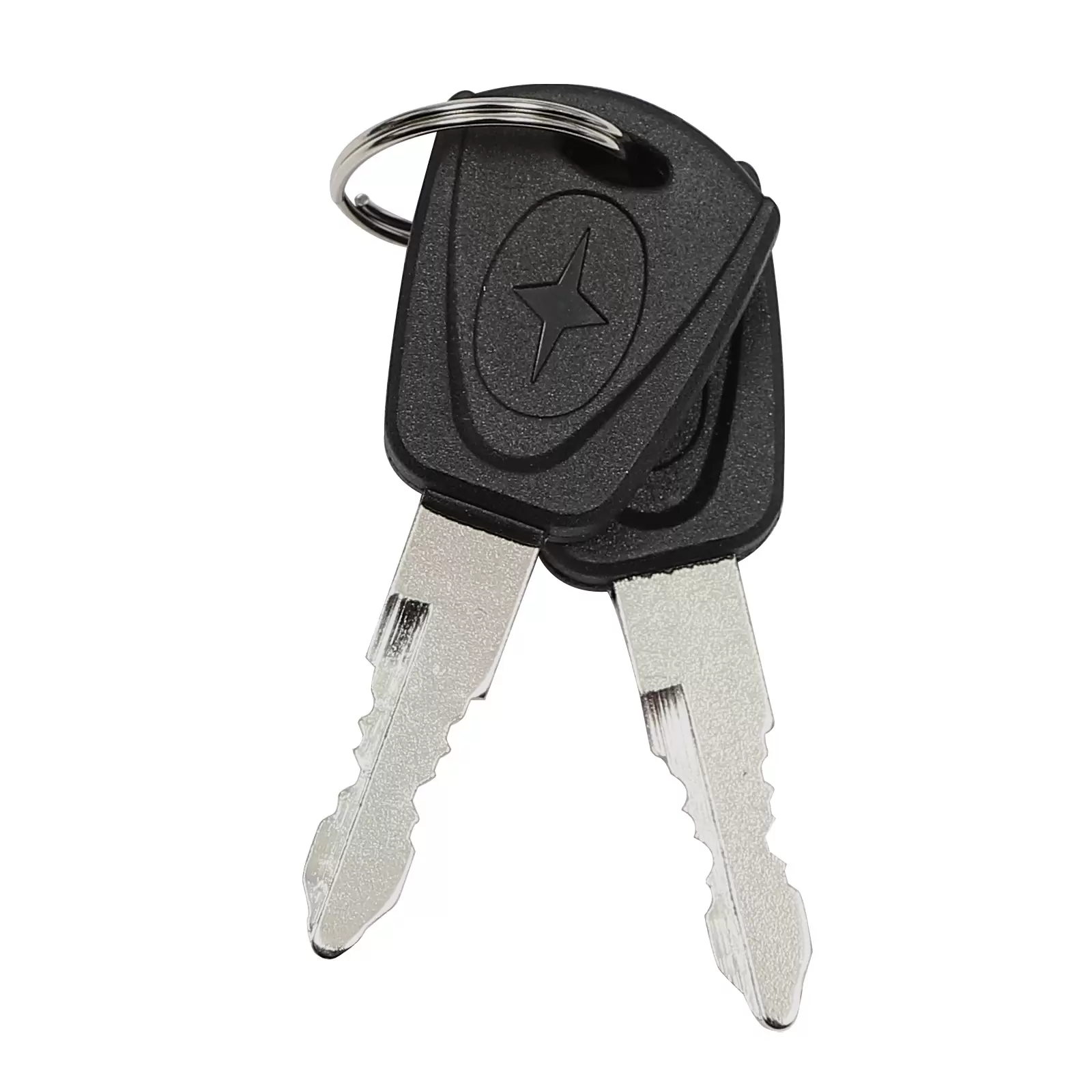

2 * Locking keys

1 pair * Handlebars

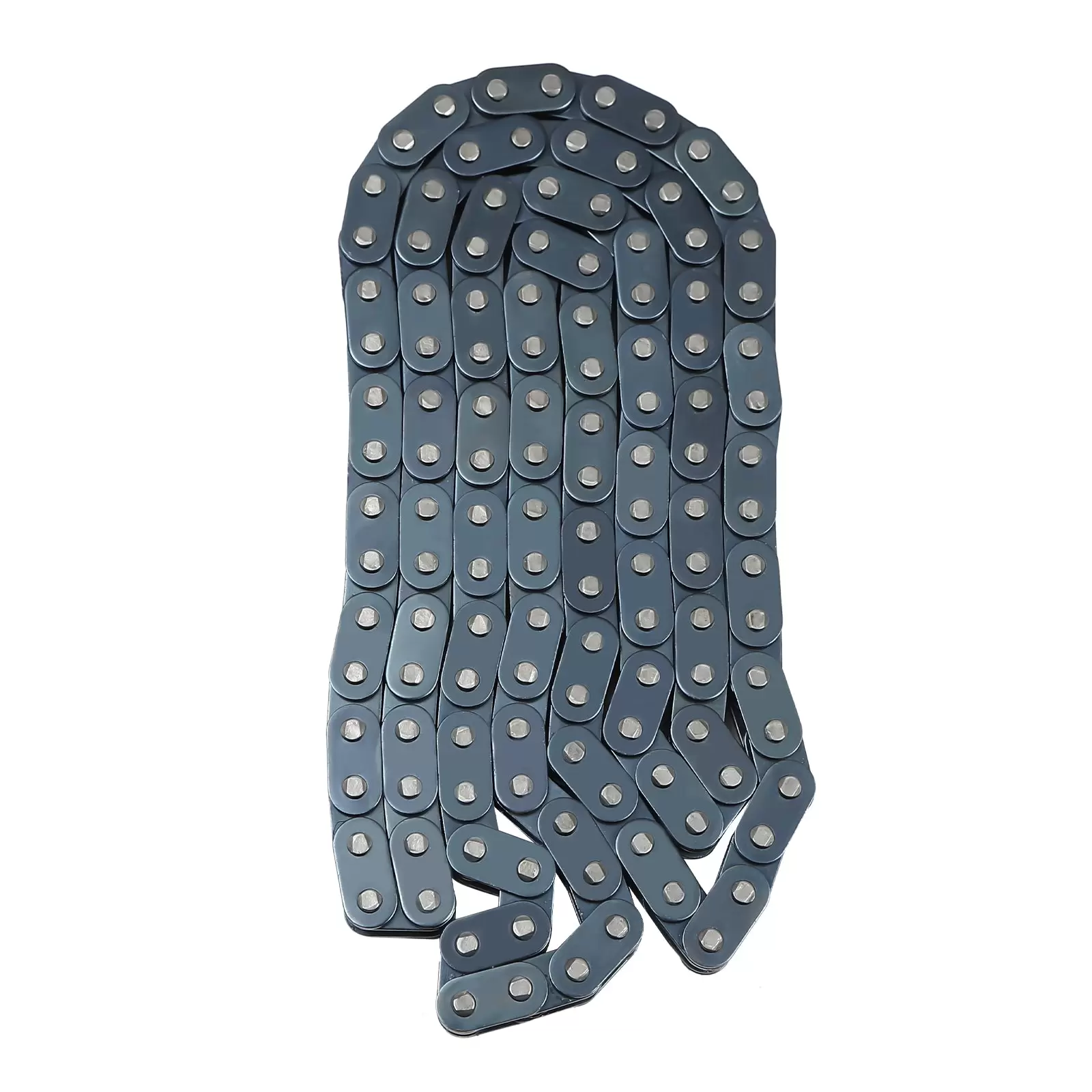

1 T8F chain set and T8F chain ring

All installation accessories

Notes

1) Motor speed depends on load weight and other conditions.

2) Do not let the motor run in reverse for a long time, as this is not good for motor life.

3) Please take into account the slight color difference due to light and the 1 to 3 cm error due to manual measurement, and make sure you don't mind before ordering.
