230/400V High Speed Motor, Three-phase Asynchronous Motor For Machinery and Equipment, S1 Motor
- Brand: CNCEST
- Product Code: JZ8VPZ-00080099
- Availability: In Stock

Specifications
Model | MS100L2-4 | Color | Silver |
Material | Copper, Aluminum, Steel | Process | Painting |
Motor Type | Three-phase Asynchronous Motor | Mounting Type | B3 |
Assembly Required | No | Voltage | 230/400V |
Power | 3KW | Current | 10.3/5.9A |
Speed | 1435 RPM | IP Rating | IP55 |
Insulation Class | F | Noise | 76dB(A) |
Efficiency | 85.5% | Applicable Environment Temperature | -15≤0≤40℃/5≤32≤104℉ |
Altitude | Not Exceeding 1000m/3280.84ft | Cooling Method | ICO141 |
Duty | S1(Continuous) | Gross Weight | 21.74kg/47.93lbs |
Net Weight | 21kg/46.29lbs | Shaft Diameter | 28mm/1.1in |

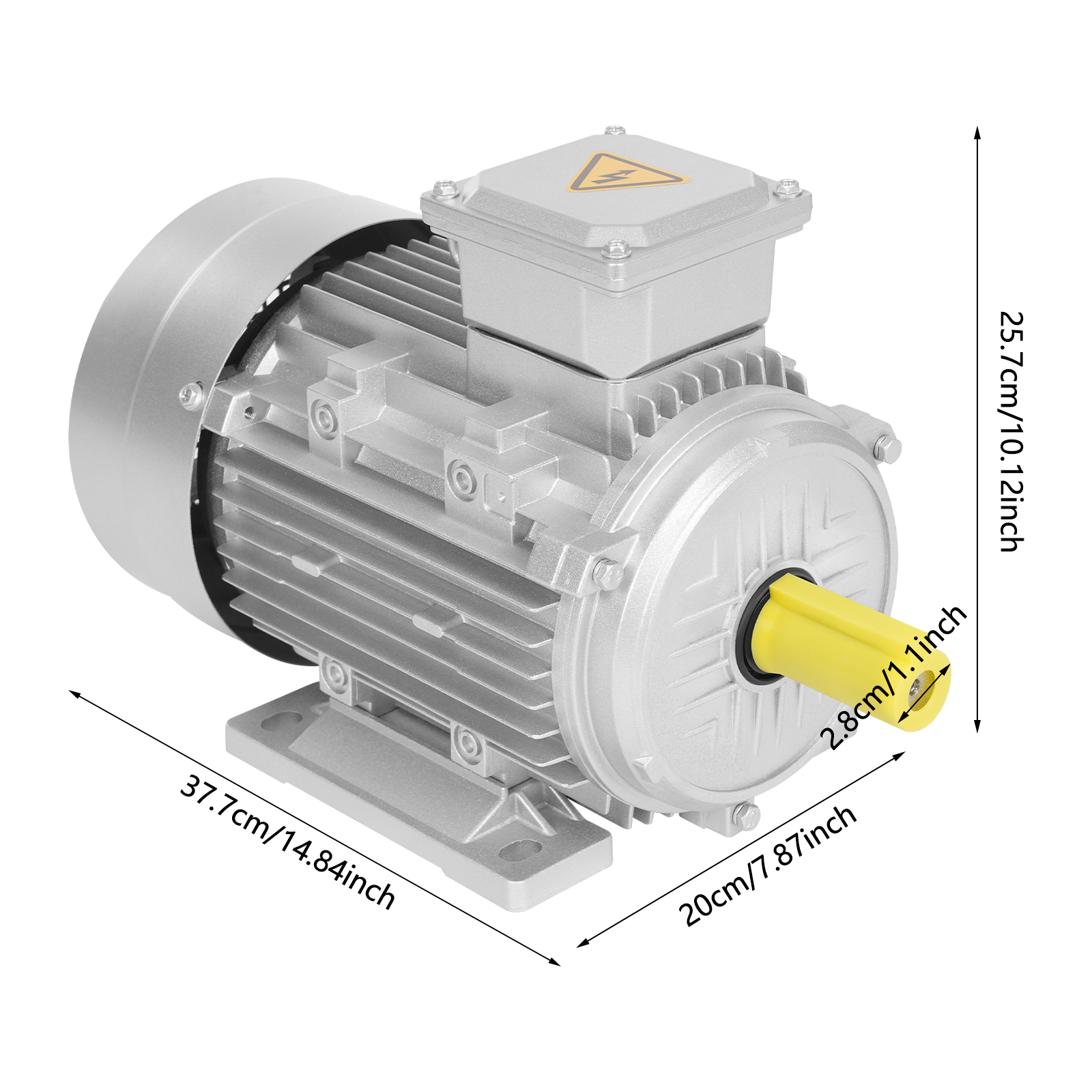

Product Size | 37.7*20*25.7cm/14.84*7.87*10.12in | Package Size | 43*27*33cm/16.93*10.63*12.99in |
Product+Tips


Notes
1.Please note that this product does not include any mechanical equipment, etc.
2.Installation and commissioning of the product needs to be carried out by a qualified electrician, this is for your safety purposes.
3.Please check the size carefully before ordering.
4.Motor speed will depend on your load weight and other conditions.
5.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
