2000W 60V high speed brushless DC motor conversion kit, electric bicycle DC motor kit

2000W 60V high speed brushless DC motor conversion kit, electric bicycle DC motor kit

(0 reviews)

Ask a question

3,000.00SEK

Brand: CNCEST
Product Code: YDFKAD-000300ND
Availability: In Stock

Estimated Delivery:

Free Fast Shipping:

On all orders

Description
Reviews (0)
Recommer
Delivery and Return

Sturdy and Durable

The product is made of Aluminum, Iron, Copper, and Rubber, and adopts sand spraying and plastics spraying processes, which give the product high durability, good appearance, and resistance to corrosion, rust, abrasion, and deformation.

High Efficient

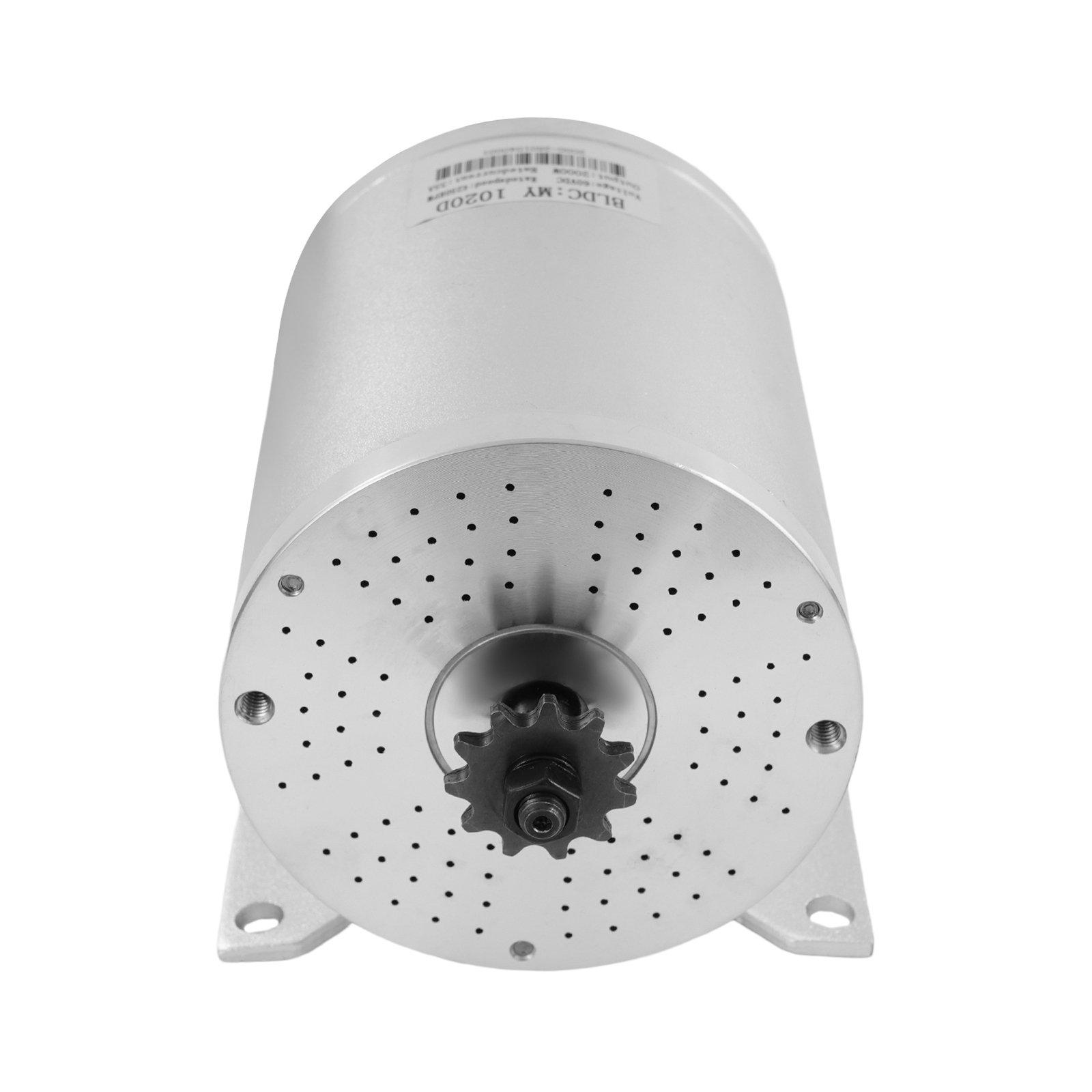

The product adopts a 2000W DC pure copper wire brushless motor with highly efficient performance. Its rated idle speed is 4250rpm, and the maximum speed can reach 5300rpm, providing strong and stable power for your e-bike.

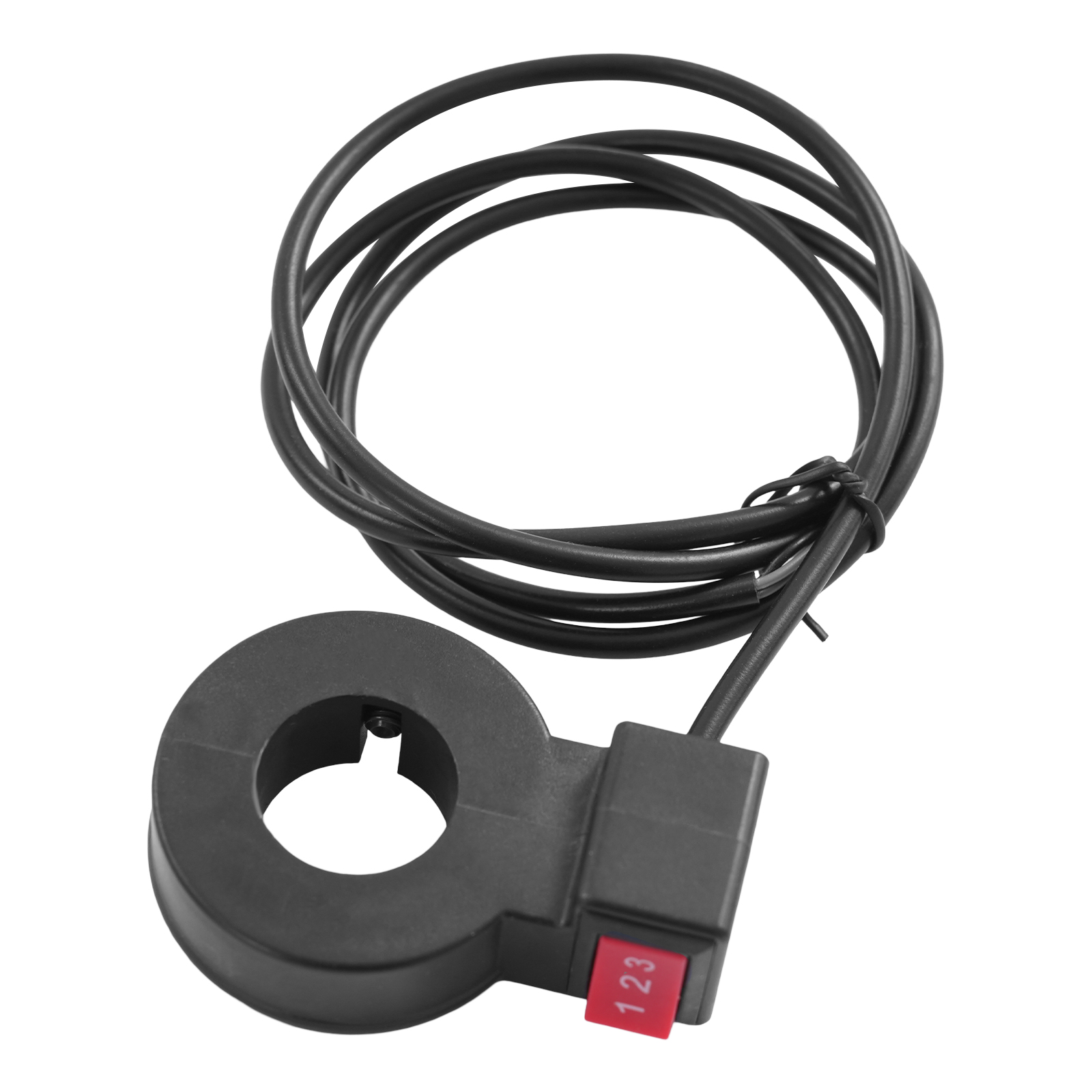

Flexible Driving

The product comes with brakes and multiple switches to control forward, reverse, and Hall element, and 3 adjustable speeds(50%, 70-80%, 100% Efficiency), allowing you to ride and drive safely and flexibly.

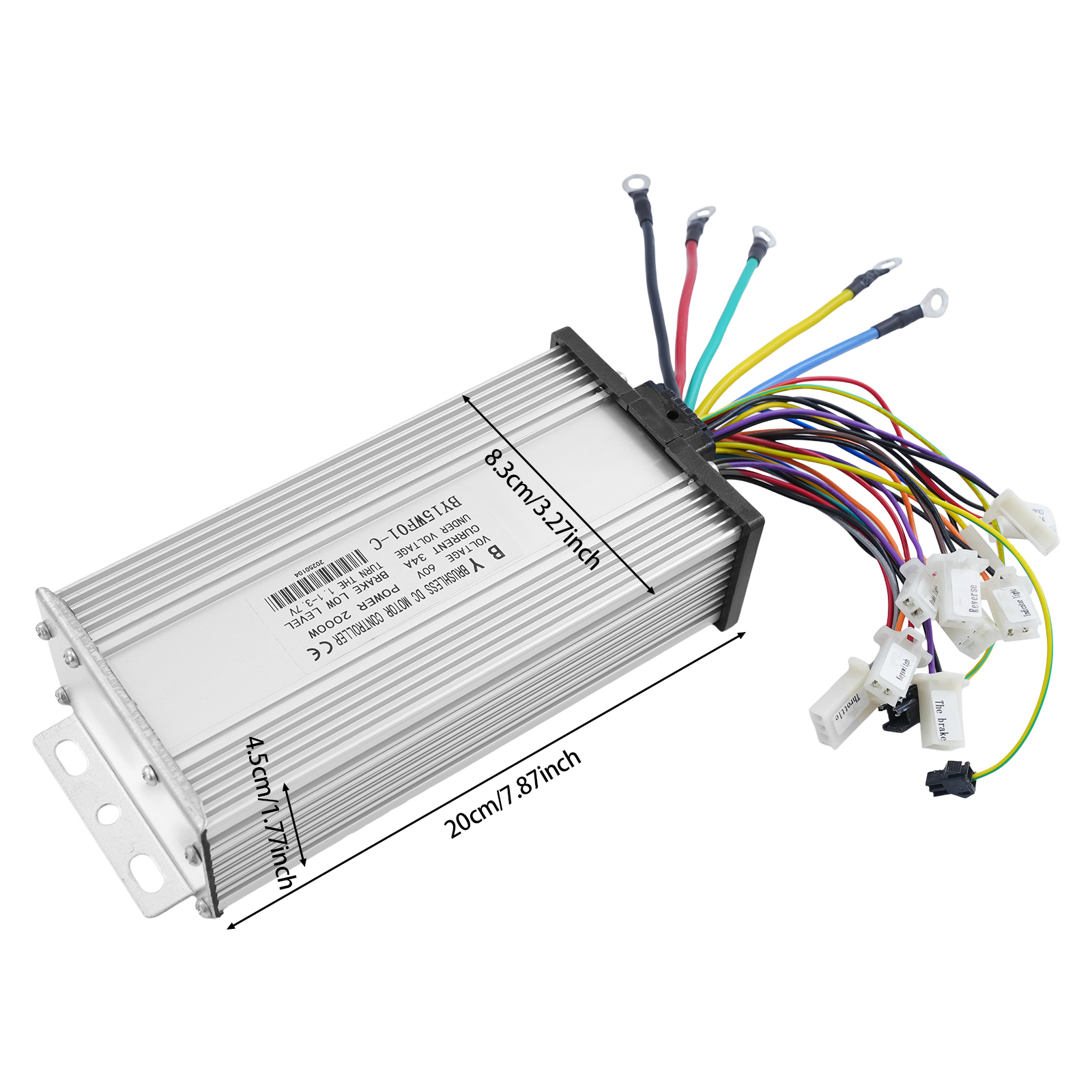

Multifunctional Controller

The controller comes with multiple functions such as a charging port, key switch, brake, brake light, indicator light, reverse, etc., which can upgrade your E-bike completely and provide more convenience for your riding. In addition, the labels on the controller allow you to quickly connect the components.

DIY Enjoyment

This set comes with the necessary accessories to upgrade your e-bike and enjoy the fun and fulfillment of DIY.

Key and Lock:

They add an extra layer of security to your vehicle, preventing others from misappropriating or stealing your vehicle without your permission.

Pre-drilled Holes:

The motor and controller support brackets come with mounting holes so you can easily attach them to your E-bike.

High Security:

The controller is equipped with an anti-theft alarm interface, which you can choose to access to further ensure the safety of your e-bike, motorcycle, and so on.

Quick Heat Dissipation:

The fine holes on the motor can speed up the heat dissipation, avoiding the damage caused by high temperatures.

Specifications

Color: Silver

Material: Aluminum, Iron, Copper, Rubber

Process: Sand Spraying, Plastics Spraying

Copper Type: Pure Copper Wire Brushless DC Motor

Speed Gear: Low Speed(50%), Middle Speed(70-80%), High Speed(100%)

Idle Rated Motor Speed: 4250rpm

Max. Motor Speed: 5300rpm

Motor Voltage: 60VDC

Motor Output: 2000W

Motor Rated Current: 35A

Controller Voltage: 60V

Controller Power: 2000W

Controller Current: 34A

Controller Under Voltage: 1.1-3.7V

Assembly Required: Yes

Motor Size(D*H): 11.1*16.3cm/4.37*6.42in

Motor Bracket Length: 11.7cm/4.61in

Controller Size: 20*8.3*4.5cm/7.87*3.27*1.77in

Package Size: 45*30*25cm/17.72*11.81*9.84in

Gross Weight: 4.8kg/10.58lbs

Net Weight: 4.56kg/10.05lbs

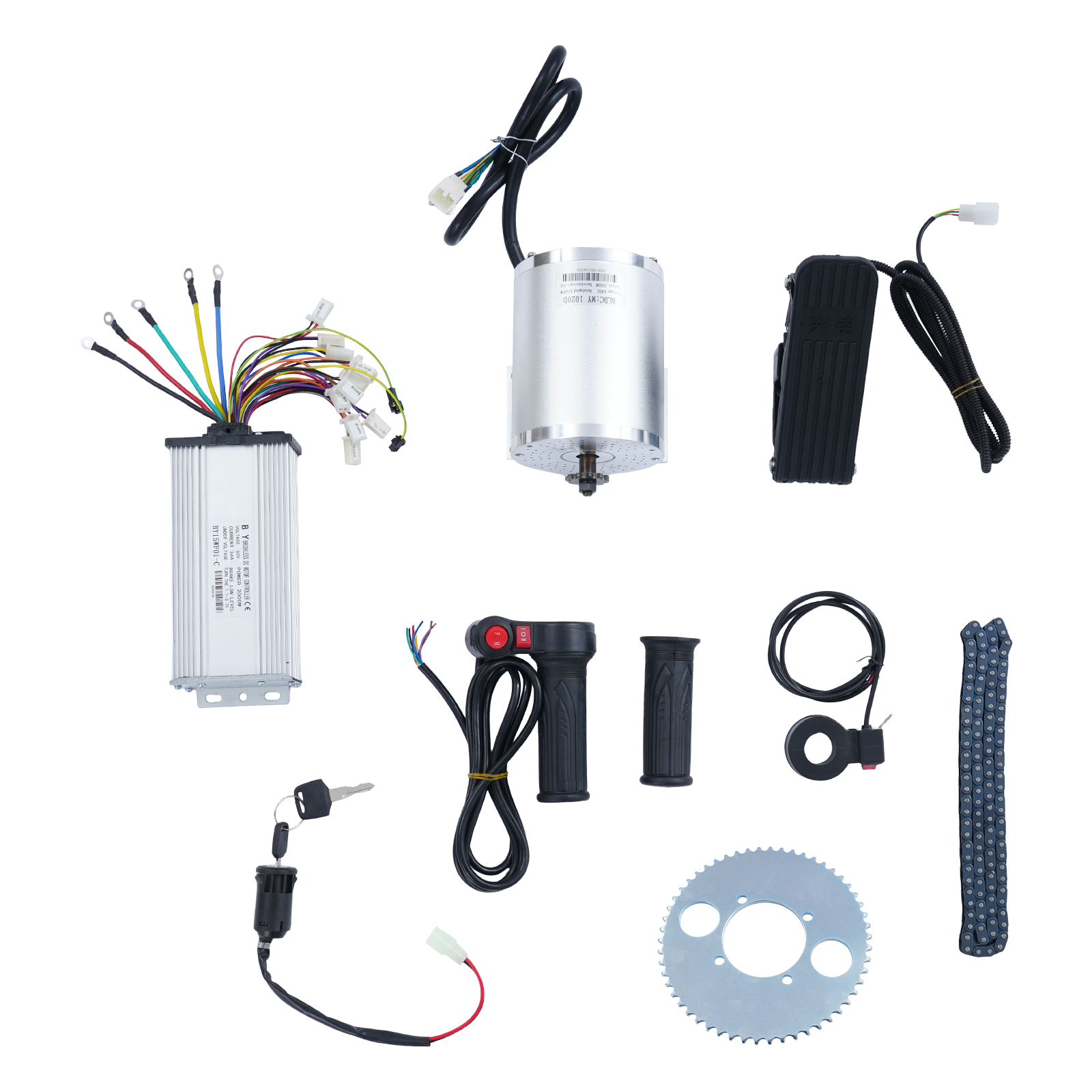

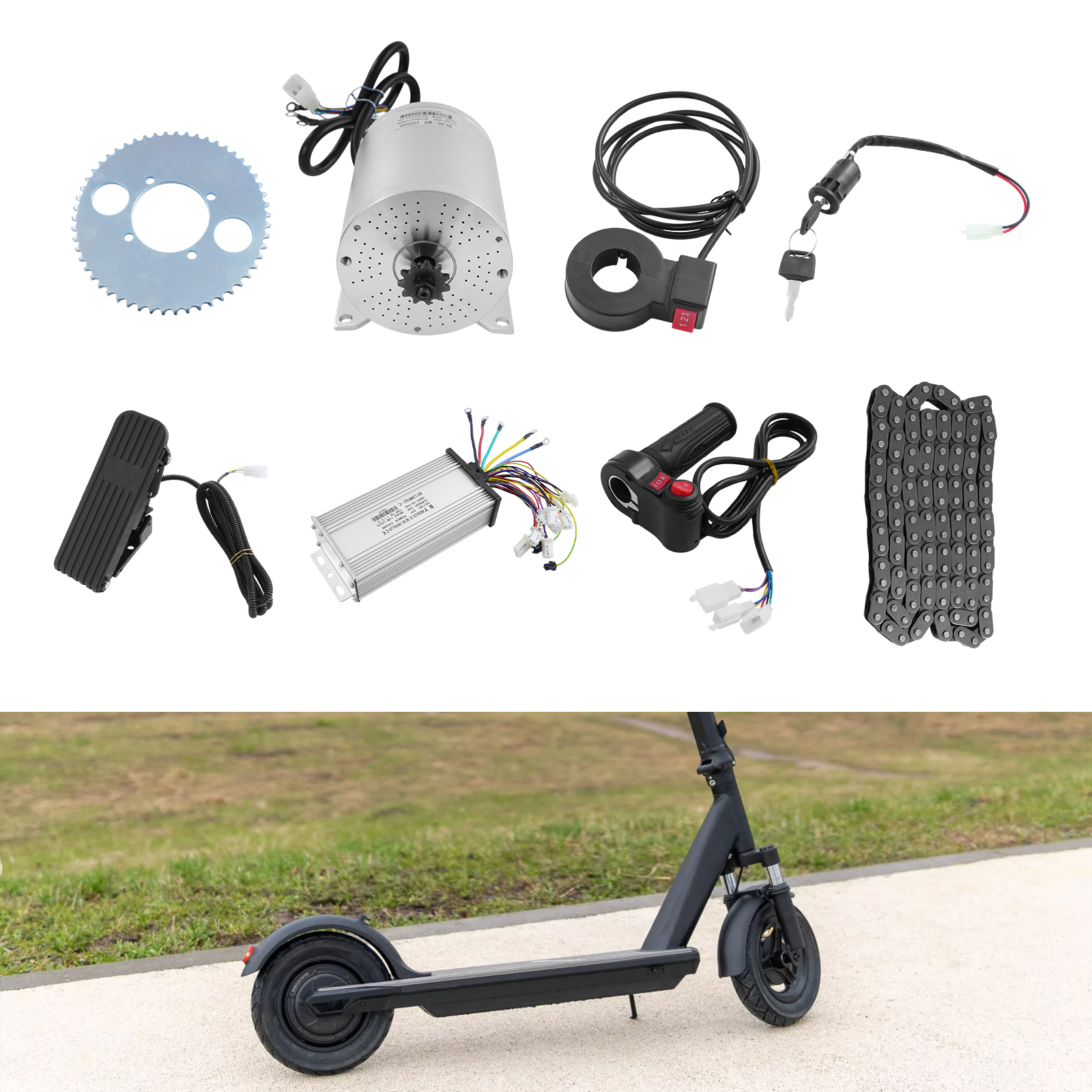

Package+Included

1* DC Motor

1* Controller

1* Foot Pedal

2* Handlebar Grips

1* Chain

Other Needed Accessories

Specifications

Color	Silver	Material	Aluminum, Iron, Copper, Rubber
Process	Sand Spraying, Plastics Spraying	Copper Type	Pure Copper Wire Brushless DC Motor
Speed Gear	Low Speed(50%), Middle Speed(70-80%), High Speed(100%)	Idle Rated Motor Speed	4250rpm
Max. Motor Speed	5300rpm	Motor Voltage	60VDC
Motor Output	2000W	Motor Rated Current	35A
Controller Voltage	60V	Controller Power	2000W
Controller Current	34A	Controller Under Voltage	1.1-3.7V
Assembly Required	Yes	Motor Size(D*H)	11.116.3cm/4.376.42in
Motor Bracket Length	11.7cm/4.61in	Controller Size	208.34.5cm/7.873.271.77in
Package Size	453025cm/17.7211.819.84in	Gross Weight	4.8kg/10.58lbs
Net Weight	4.56kg/10.05lbs

Product+Tips

Notes

1.Please check the size carefully before ordering.
2.To avoid short circuits, Please shut the power when connecting the cables and disassemble the controller.
3.Please note that the motor can be driven clockwise or counterclockwise through the motor reversing line or handle reversing switch. Clockwise is the correct direction for the motor.
4.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
