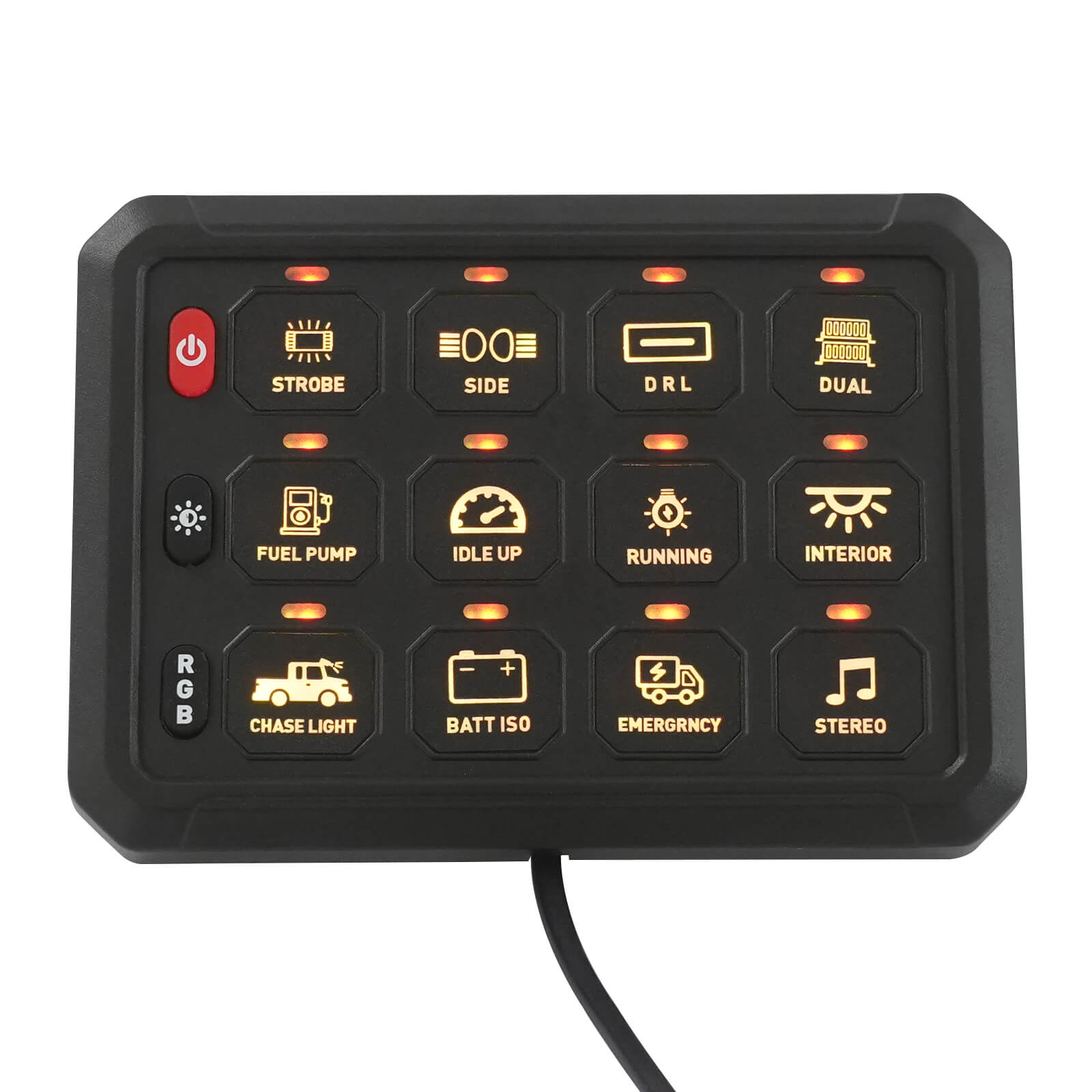

12 Gang Switch Panel with App Control, 12 Gang Switch Panel, Switch Panel with Adjustable Brightness and Light Colors
- Brand: CNCEST
- Product Code: YDFKUL-000600ND
- Availability: In Stock

Specifications
Color | Black | Style | Modern |
Installation Required | Yes | Material | Aluminum Alloy, Iron, Silicone |
Circuit Type | 12-Way | Input Voltage | DC12V-24V |
Max. Current | 80A | Power | 12V/960W, 24V/1920W |

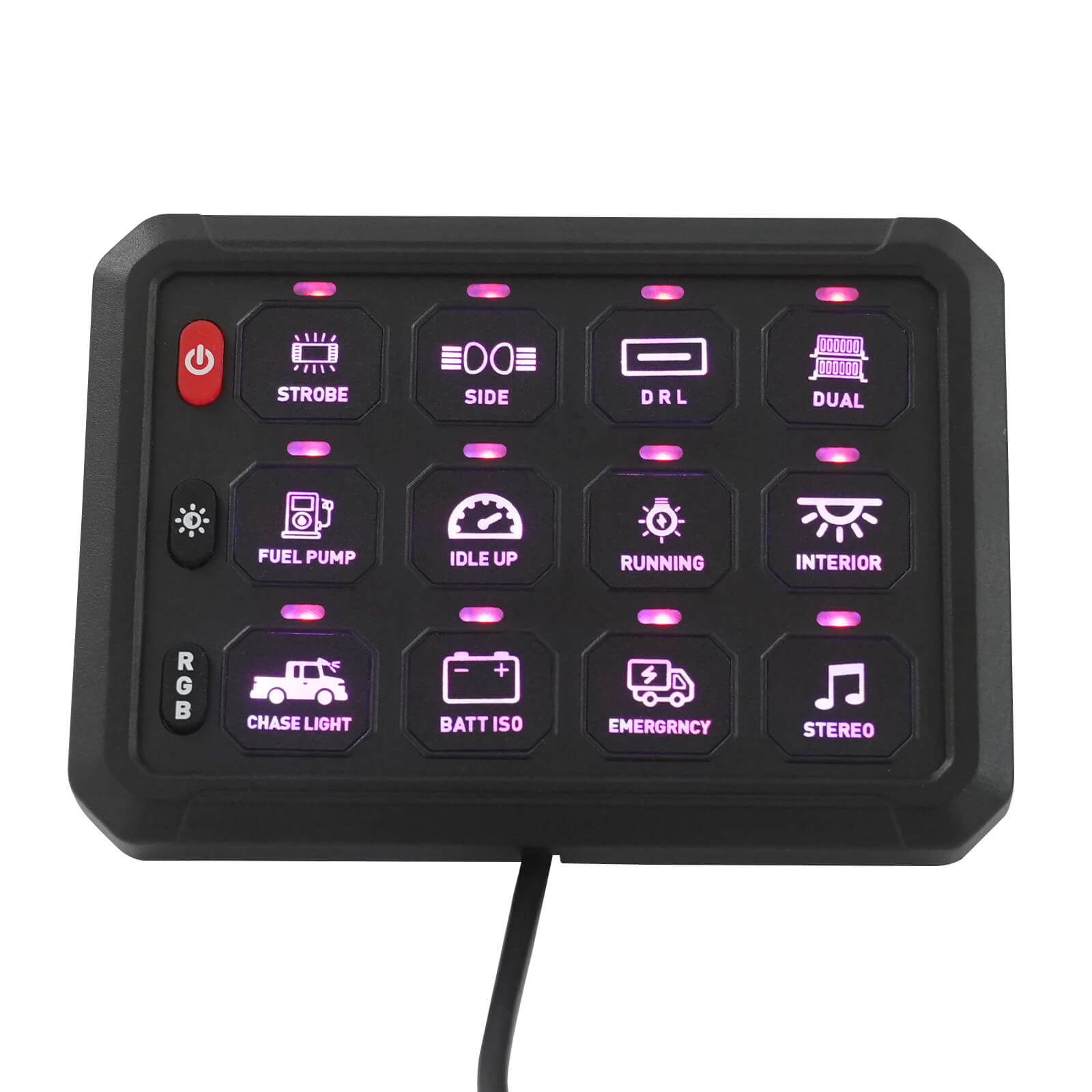

RGB Colors | 8 (Red, Orange, Yellow, Green, Cyan, Blue, Purple, White) | Brightness | 5 Levels(100%, 75%,50%, 25%, 10% ) |
Waterproof Rate | IP65 | Environment Temperature | -40℃~85℃/-40-185℉ |

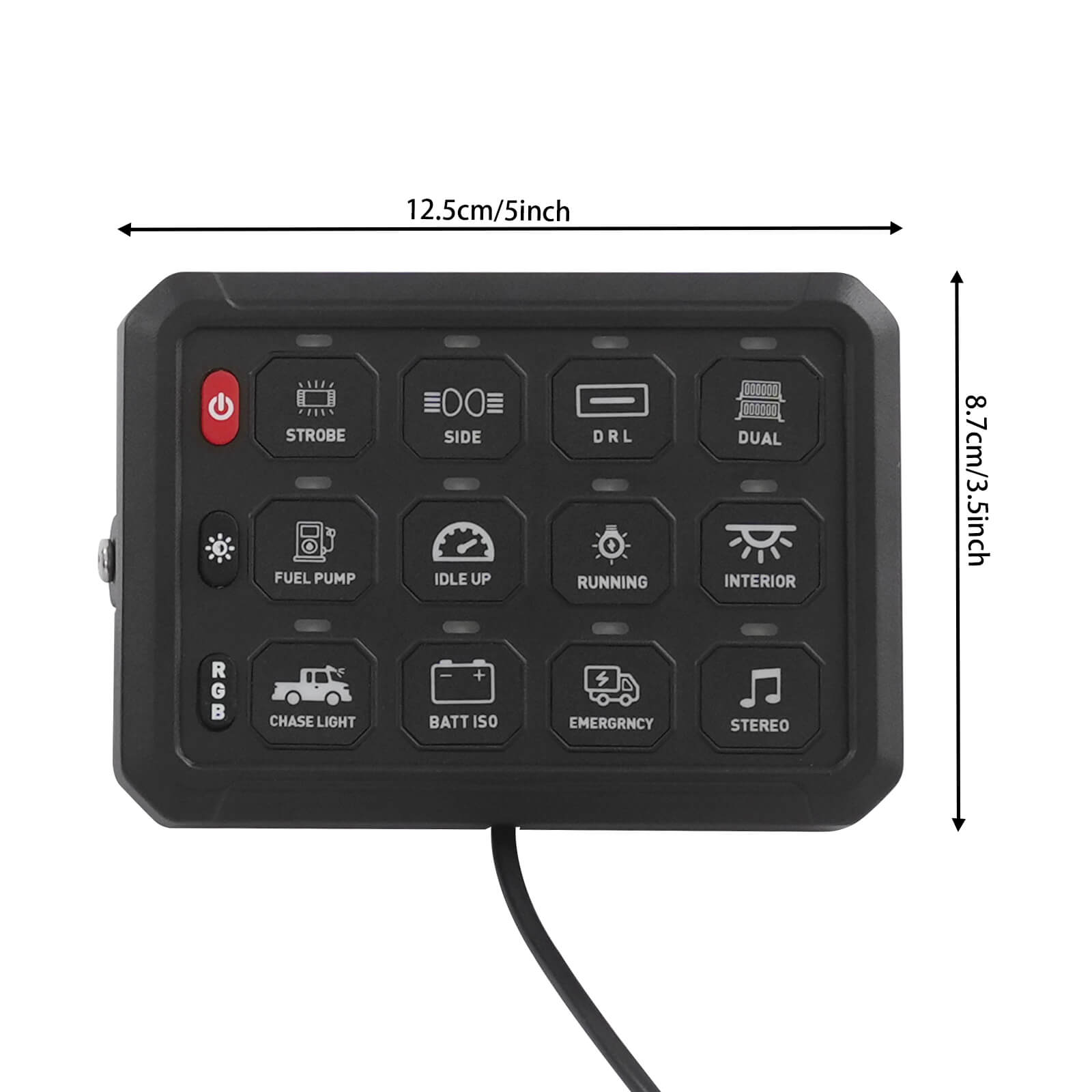

APP Control Distance | 9.14m/ 30 ft | Panel Size | 12.5*8.7cm/5*3.5 in |
Package Size | 30.5*21.5*8cm/12*8.46*3.15 in | Gross Weight | 2.2 kg/4.85 lbs |
Net Weight | 2.09 kg/4.61 lbs |
Product Tips


Notes
1.Please do not immerse the product in water.
2.Please strictly adhere to the operating voltage. Improper operating voltage may lead to product failure.
3.Please do not exceed the maximum usage current, or may cause product failure.
4.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.

Application

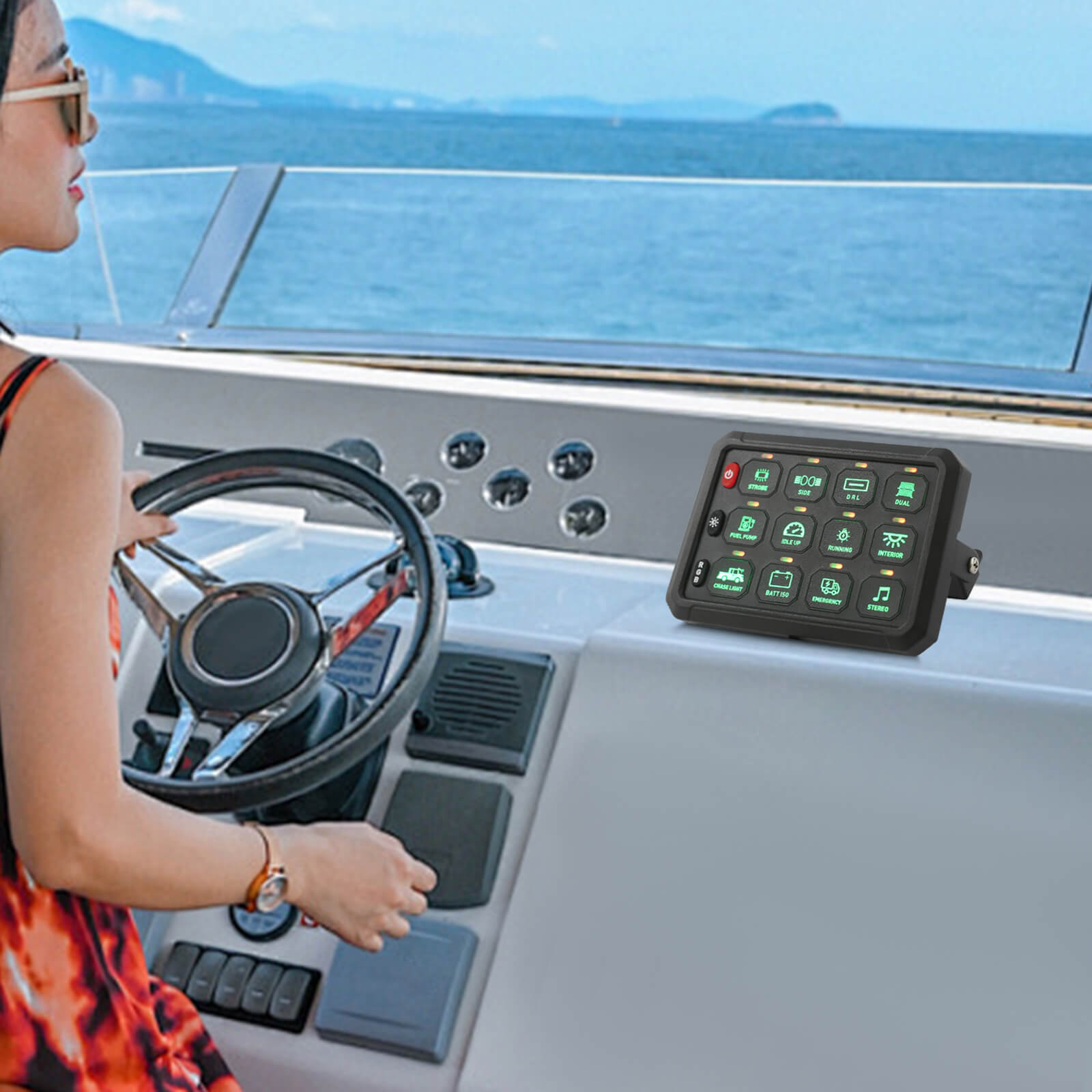

It allows you to easily control up to 12 different car functions or car electrical devices such as the LED fog light, DRL, horn, fan, and more. It is suitable for 12V-24V cars, trucks, off-road vehicles, boats, ATVs/UTVs, yachts, SUVs, RVs, all-terrain vehicles, jeeps, buses, heavy vehicles, etc.
