Description
Reviews (0)
Recommer
Delivery and Return

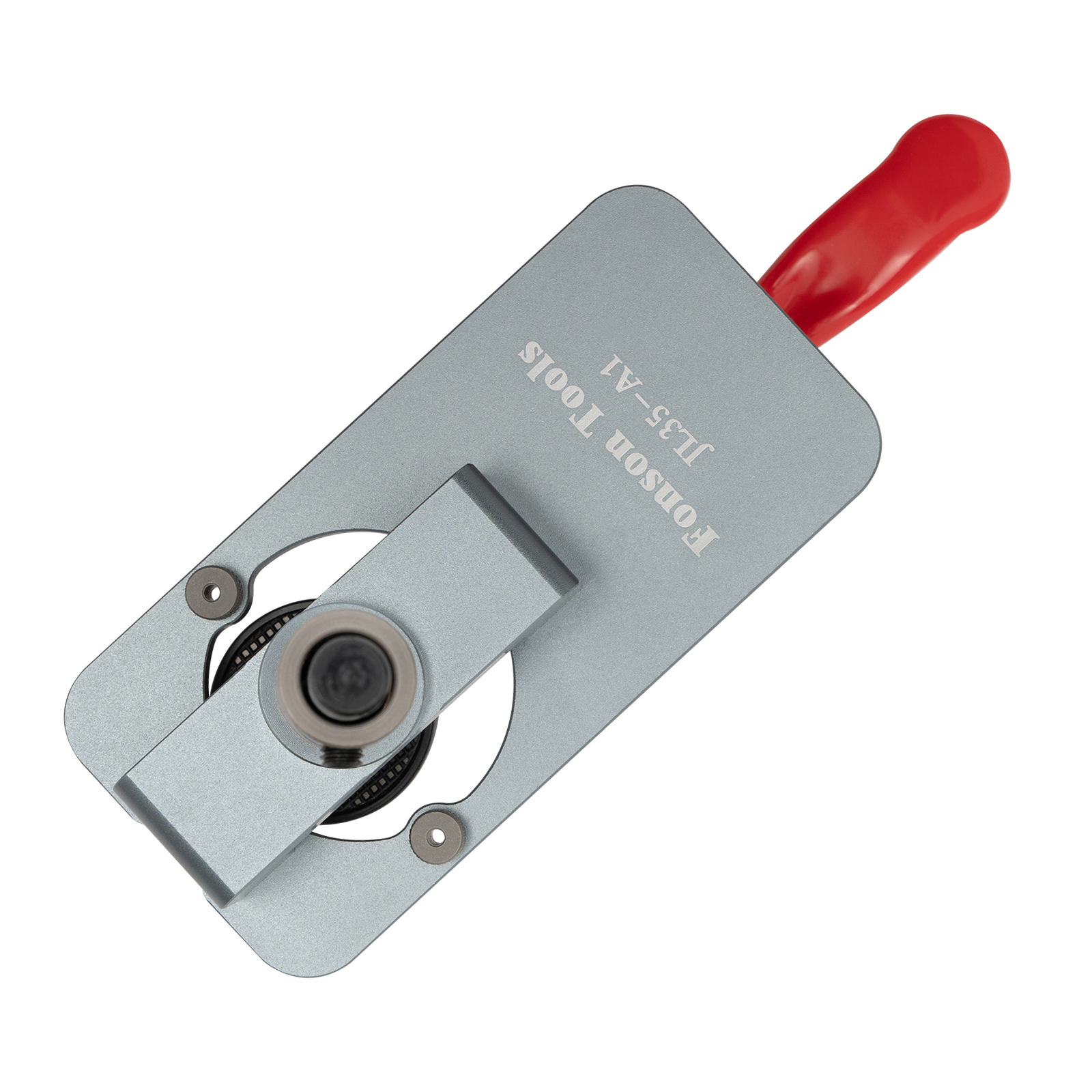

Sturdy and Durable

This product is made of aluminum alloy and adopts an anodizing process, making it wear-resistant and rust-resistant while also having a beautiful appearance.

High Efficiency

Adjustable pressure plates and accurate positioning are convenient for fast and multi-angle drilling. This tool effectively simplifies your drilling process and saves you time.

Adjustable Design

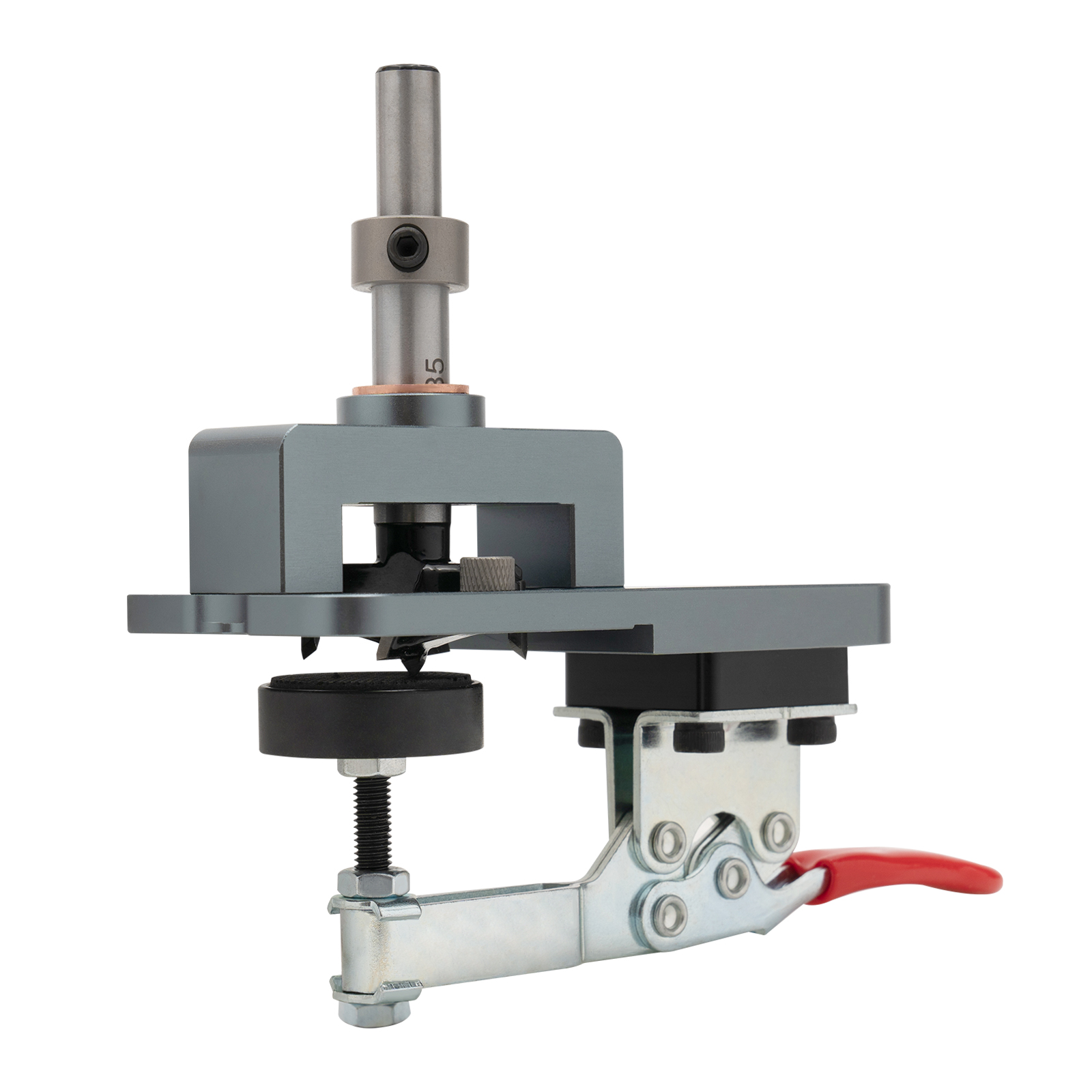

With a limit ring design, you can adjust the drilling depth(usually 12-13mm) to better suit your drilling needs.

Simple Installation and Operation

The complete installation accessories, quick fixing clip, and simple structure greatly reduce installation difficulty and save installation time.

Easy to Carry and Store

Compact size and lightweight(less than 1.32 pounds) allow you to easily carry and store this product.

Wide Compatibility

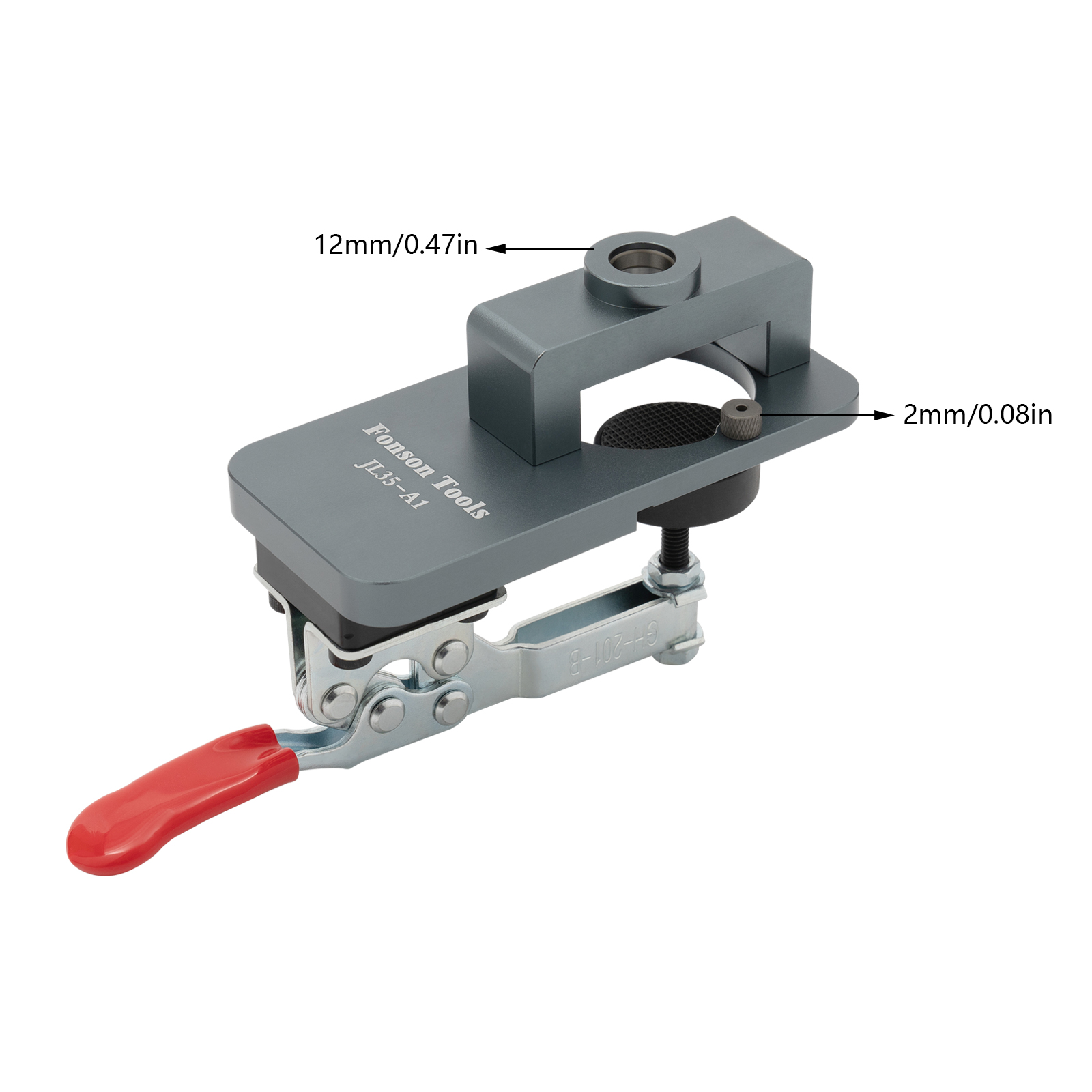

The distance from the 35mm hole to the edge is 5mm, making it suitable for most commonly used hinges.

Rubber Clamp Pad

It helps to fit tightly to the wood, making the hold more stable without slipping.

Round Edges

This design can better care for your skin without scratches while wearing it.

Specifications

Color: Silver

Model: JL35-A1

Material: Aluminum Alloy+ Rubber

Surface Treatment: Anodizing Treatment

Mounting Type: Door Mount

Assembly Required: Yes

Number of Items: 1

Number of Wrenches: 2

Gross Weight: 0.6kg/1.32lbs

Drilling Depth: 12-13mm/ 0.47-0.51in

The Thickness of the Fixed Board: 15-25mm/ 0.59-0.98in

Package Size: 19*11*6cm/7*4*2inch

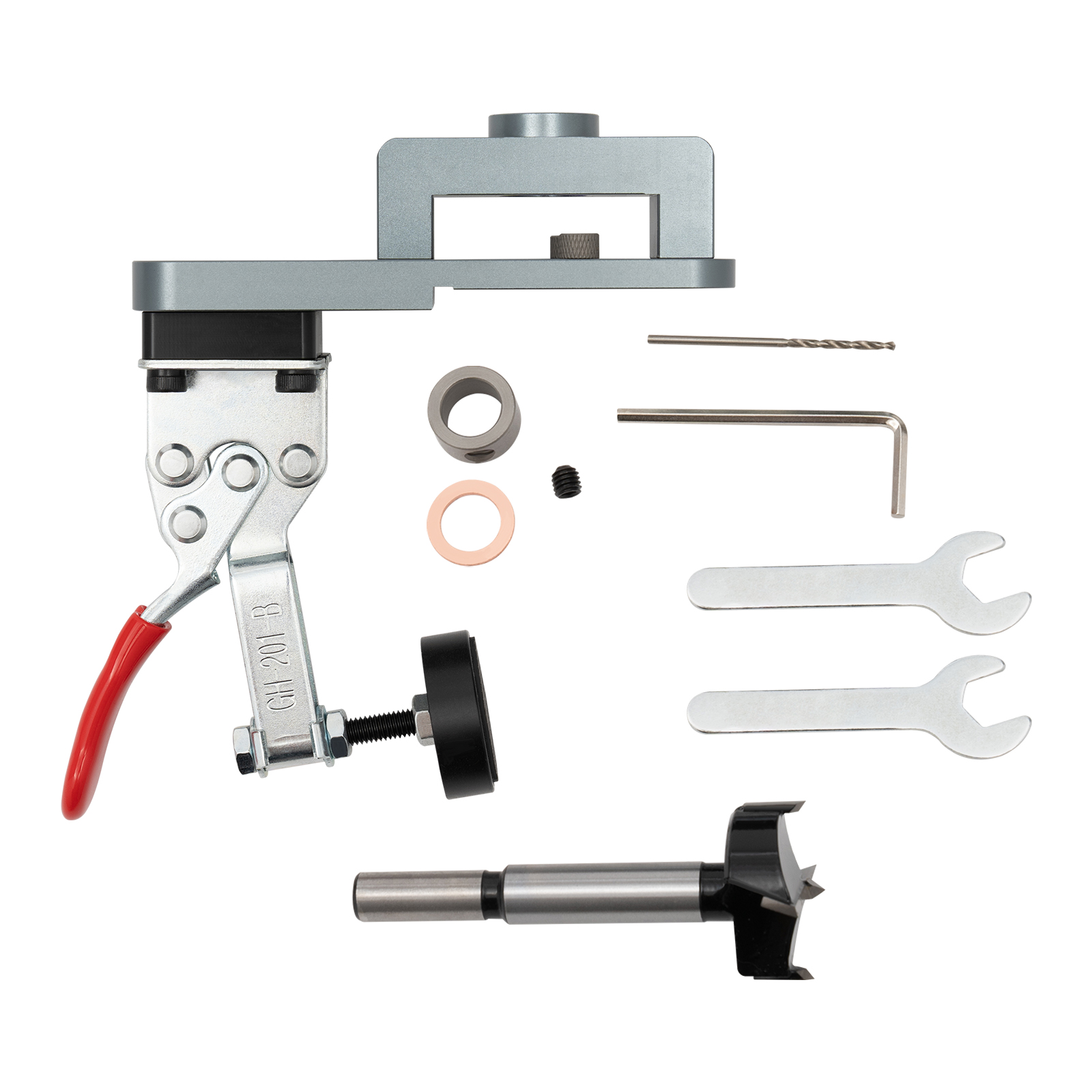

Package Included

1* Hinge Punch Positioner

1* 35mm Hole Opener (with Limit Ring)

1* 2mm Drill Bit

2* Wrenches

1* Allen Key

Easy to Carry and Store

Compact size and lightweight (less than 1.32 pounds) allow you to easily carry and store this product.

Specifications

Color	Silver	Model	JL35-A1
Material	Aluminum Alloy+ Rubber	Surface Treatment	Anodizing Treatment
Mounting Type	Door Mount	Assembly Required	Yes
Number of Items	1	Number of Wrenches	2
Gross Weight	0.6kg/1.32lbs	Drilling Depth	12-13mm/ 0.47-0.51in
The Thickness of the Fixed Board	15-25mm/ 0.59-0.98in	Package Size	19116cm/742inch

Product Tips

How to Install

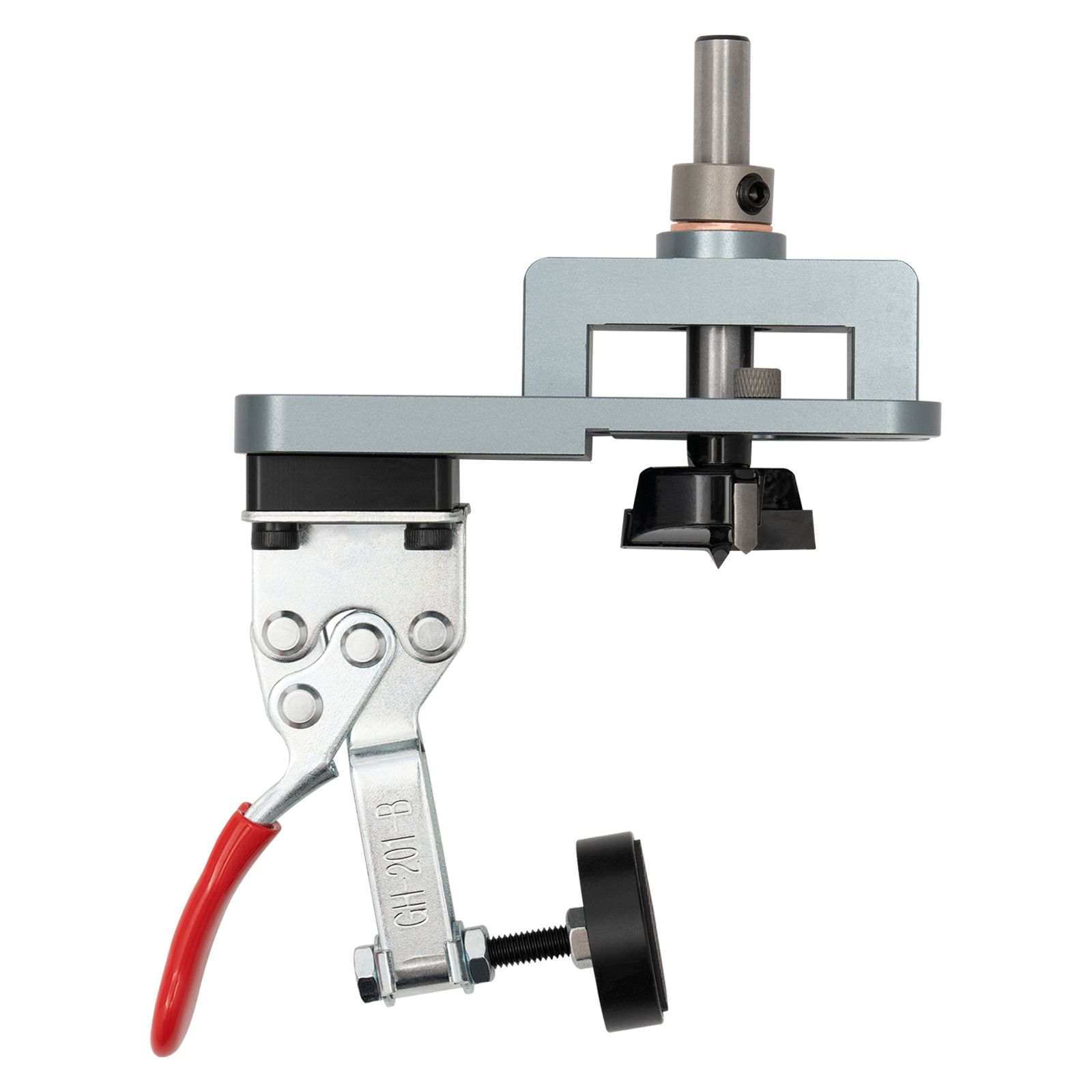

1. Install a 35mm hole opener, adjust the drilling depth (usually 12-13mm), and then lock the limit ring.

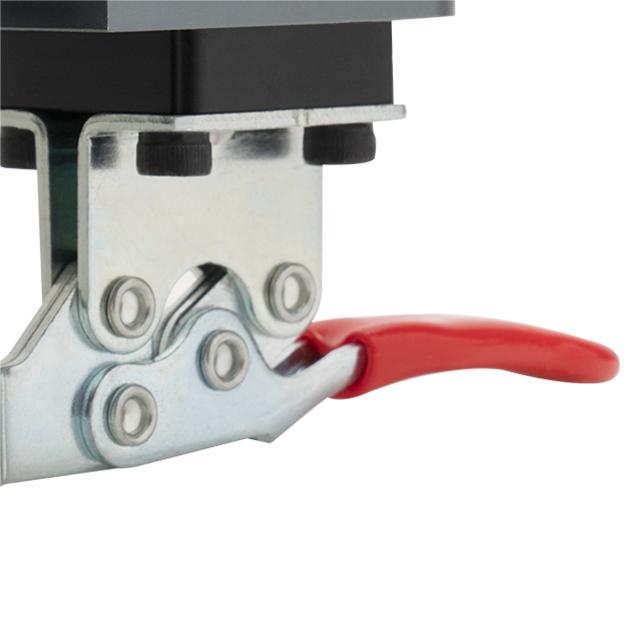

2. Adjust the fixing size of the black pressure clamp of the quick clamp (Note: This tool can adjust the size of the fixing plate to 15-25mm.).
3. Move the hole opener to the marking and punching position on the wooden board and lock the quick clamp.
4. Tighten the handle of the hole opener with an electric drill(not included), press the hole into a depth of 12-13mm at a constant speed, and then drill 2mm screw holes on the left and right sides.
5. Install a 25mm hinge.

Notes

1.Please strictly follow the operation steps described above for use.
2.Please allow the slight color difference caused by the shooting light and the 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
