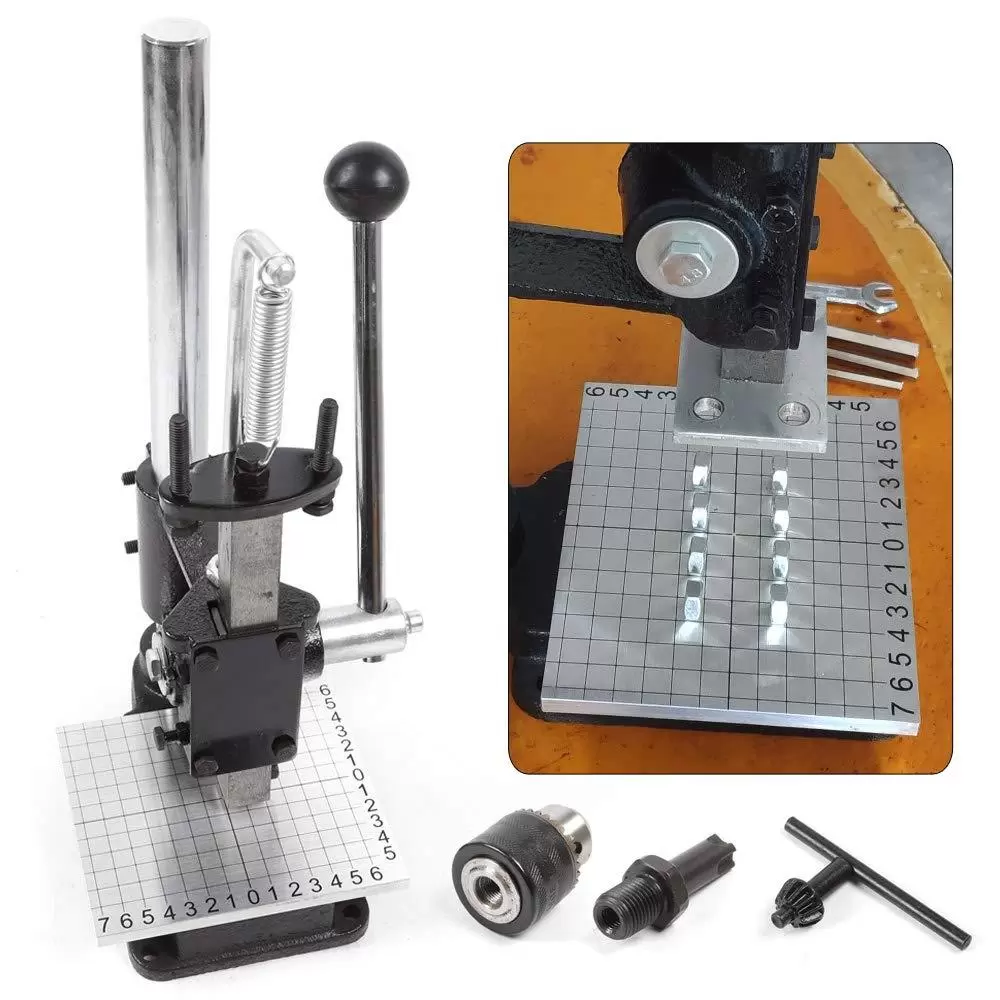

Leather Hole Punch Tool Hole Punch Machine, Eyelet Press Kit Punching, DIY Leather Punching Machine for Making Leather Bags
- Brand: CNCEST
- Product Code: BI-ZJGJ-583
- Availability: In Stock

Specifications
Color | Black | Style | Modern |
Material | Cast Iron | Process | Spray Paint |

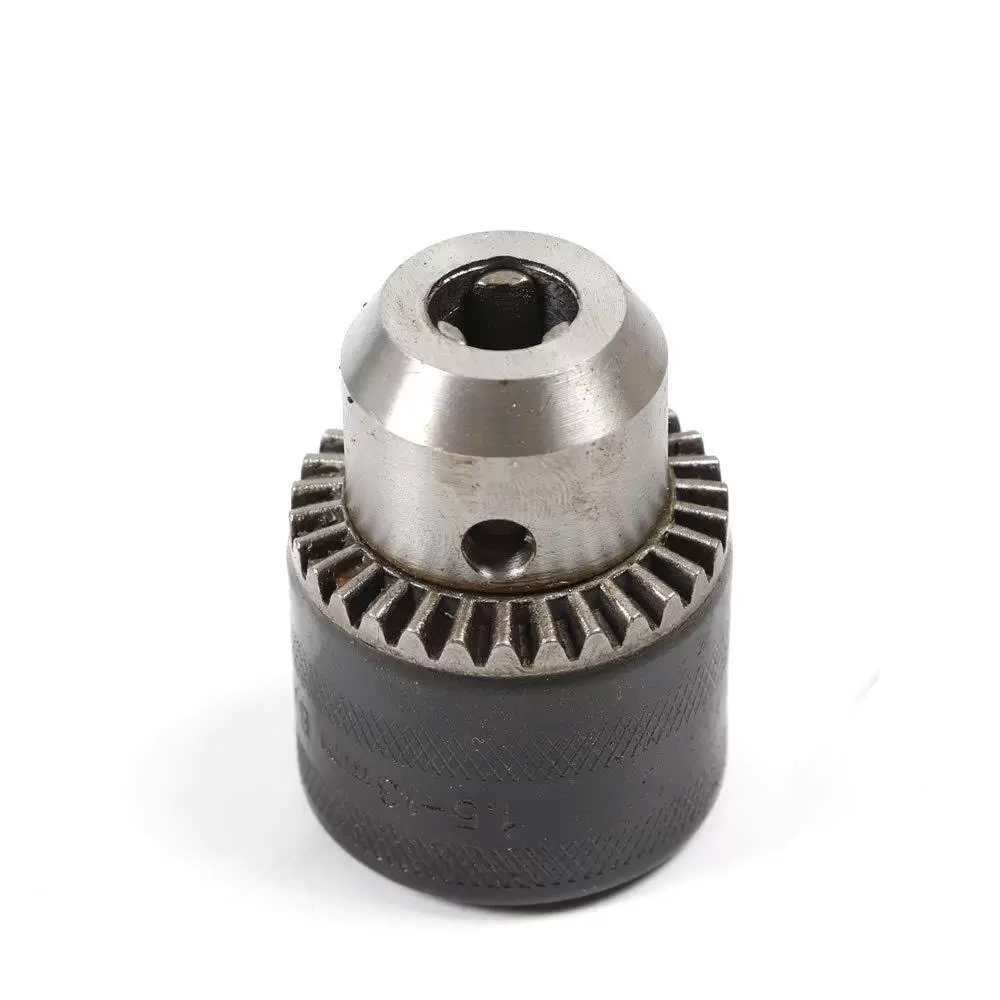

Assembly Required | Yes | Drill Chuck Clamping Range | 1.5-13mm/ 0.06-0.51 in |
Adjustable Height | 0-16cm/ 0-6.3 in | Pad Size | 13*15*1cm/ 5.12*5.91*0.39 in |
Machine Height | 35cm/ 13.78 in | Base Size | 15*12cm/ 5.91*4.72 in |
Panel Size | 13*11cm/ 5.12*4.33 in | Throat Depth | 88mm/ 3.46 in |
Rack Down Stroke | 50mm/ 1.97 in | Panel Hole Center Distance | 74mm/ 2.91 in |
Rack Diameter | 22mm/ 0.87 in | Mold Hole Diameter | 11mm/ 0.43 in (M12 Screw Thread) |
Feeding Hole Diameter | 27mm/ 1.06 in | Machine Pressure | ≤160kg/ 352.74 lbs |
Product Tips


Notes
1.Please note that this product does not include molds.
2.Please remember to maintain the machine with oil from time to time to avoid rust.
3.This product is not suitable for metal and other too-hard materials.
4.Please allow the slight color difference caused by the shooting light and the 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
