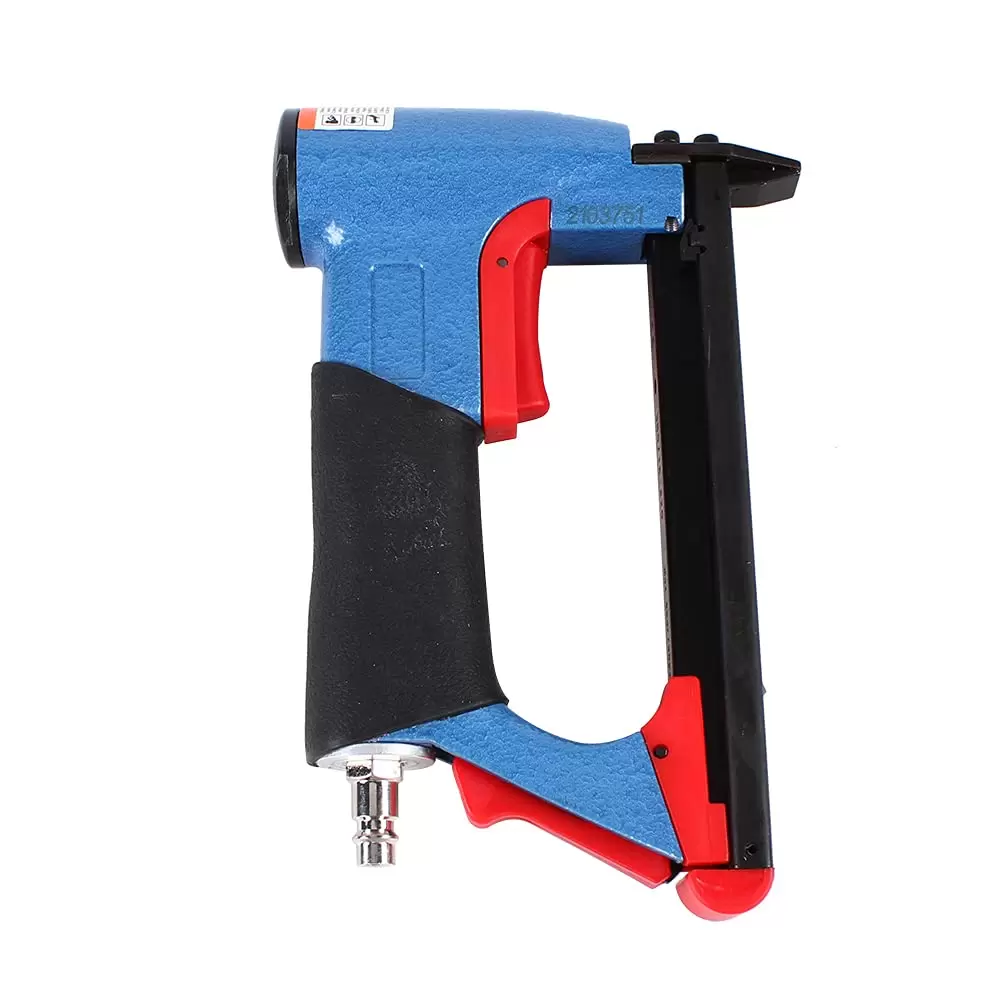

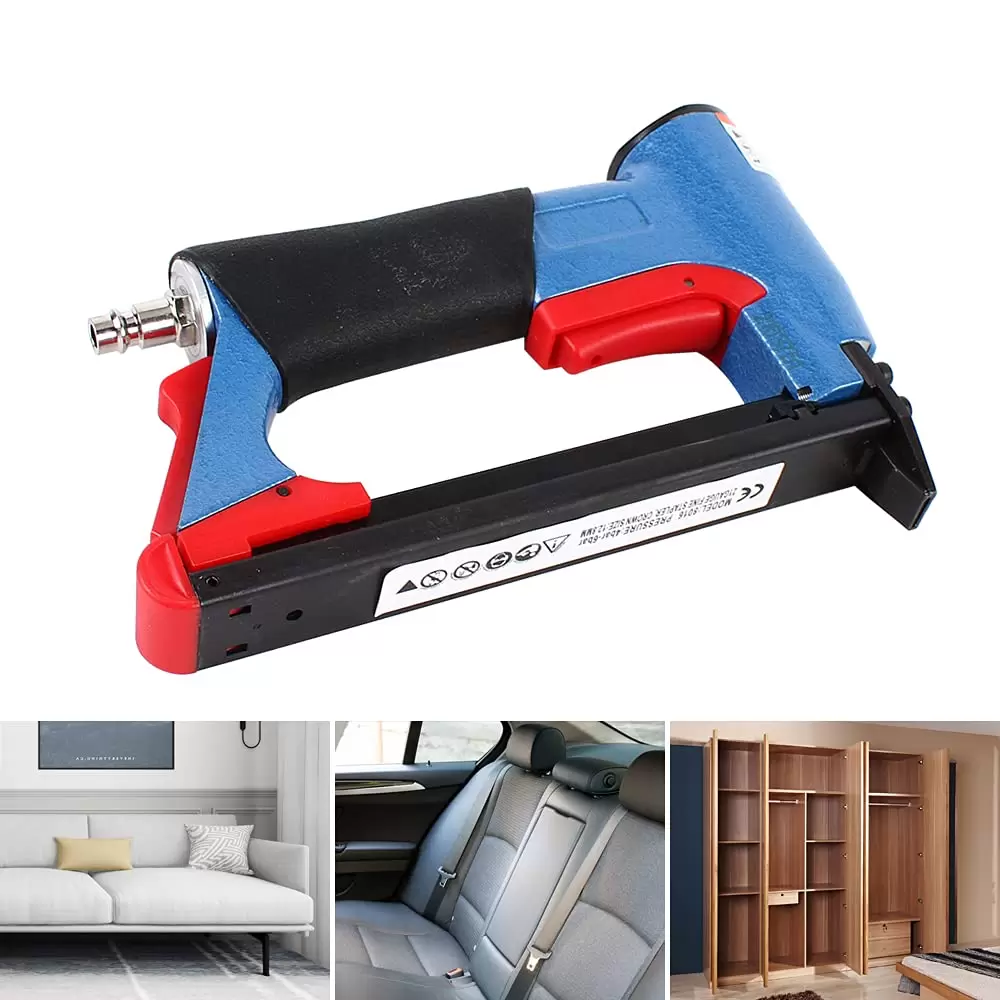

2 in 1 Air Stapler for 4-16mm Coded Nails - U Style - Ideal for Building Furniture, Doors and Windows
- Brand: CNCEST
- Product Code: HG-HSLT-6006
- Availability: In Stock

Specifications
Model | 8016 | Color | Blue, Black, Red |
Material | Aluminum, Iron, Rubber | Process | High-temperature Quenching, Nitriding Heat Treatment |
Power Source | Pneumatic | Exhaust Mode | Rear Exhaust |
Capacity | 125 PCS | Noise | 60dB(A) |
Safe Air Pressure | 4-6bar/58-87PSI | Normal Air Pressure | 4-8bar/58-116PSI |
Working Air Pressure | 4.8bar/70PSI | Applicable Nail Shoulder Width | 12.8mm/0.5in |
Applicable Nail Length | 4-16mm/0.16-0.63in | Inlet Size | 6mm/ 1/4in |
Air Consumption | 0.5CFM | Air Tube Inner Diameter | 6mm/ 1/4in |
Product Size | 15*4.5*20cm/5.91*1.77*7.87in | Package Size | 23.75*19.5*5.2cm/9.35*7.67*2.05inch |
Gross Weight | 1.2kg/2.64 lbs | Net Weight | 0.95kg/2.09 lbs |
Product Tips


Notes
1.Please check the size before purchasing.
2.Please read the instruction manual completely before installation and use, and pay particular attention to the safety instructions included.
3.Please use only clean and dry air. Please do not use flammable and explosive substances such as oxygen or high-pressure compressed air.
4.Please do not point this product at anyone, disconnect the air supply and remove the magazine before servicing.
5.For old or high-strength concrete floors, we recommend the use of concrete nails and steel nails, which are better suited and more powerful in penetrating the floor.
6.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement and make sure you do not mind before ordering.

How to Use
1.Connect the air compressor(not included) according to the correct connector size(air pressure 4 bar or more).
2.Press the work switch a few times without nailing.
3.Pull open the lower movable magazine and load nails (a whole row or half dozen).
4.Close the magazine and the nail-driving operation can be started.
