25W Gear Speed Motor AC Gear Motor with Controller 220V 60K Used In Packaging Machine Tools Transportation Equipment Textile Machinery
25W Gear Speed Motor AC Gear Motor with Controller 220V 60K Used In Packaging Machine Tools Transportation Equipment Textile Machinery
25W Gear Speed Motor AC Gear Motor with Controller 220V 60K Used In Packaging Machine Tools Transportation Equipment Textile Machinery
25W Gear Speed Motor AC Gear Motor with Controller 220V 60K Used In Packaging Machine Tools Transportation Equipment Textile Machinery
25W Gear Speed Motor AC Gear Motor with Controller 220V 60K Used In Packaging Machine Tools Transportation Equipment Textile Machinery
25W Gear Speed Motor AC Gear Motor with Controller 220V 60K Used In Packaging Machine Tools Transportation Equipment Textile Machinery
25W Gear Speed Motor AC Gear Motor with Controller 220V 60K Used In Packaging Machine Tools Transportation Equipment Textile Machinery
25W Gear Speed Motor AC Gear Motor with Controller 220V 60K Used In Packaging Machine Tools Transportation Equipment Textile Machinery
25W Gear Speed Motor AC Gear Motor with Controller 220V 60K Used In Packaging Machine Tools Transportation Equipment Textile Machinery
25W Gear Speed Motor AC Gear Motor with Controller 220V 60K Used In Packaging Machine Tools Transportation Equipment Textile Machinery

25W Gear Speed Motor AC Gear Motor with Controller 220V 60K Used In Packaging Machine Tools Transportation Equipment Textile Machinery

(0 reviews)
Ask a question
912.00SEK
  • Brand: CNCEST
  • Product Code: JZ8V7C4MN2WMT
  • Availability: In Stock
Quantity
- +
Estimated Delivery:
Free Fast Shipping:
On all orders
estimated delivery guarantee
25W Gear Speed Motor AC Gear Motor with Controller 220V 60K Used In Packaging Machine Tools Transportation Equipment Textile Machinery

25W Gear Speed Motor AC Gear Motor with Controller 220V 60K Used In Packaging Machine Tools Transportation Equipment Textile Machinery

  • Description
  • Reviews (0)
  • Recommer
  • Delivery and Return

Build to Last

High-quality cast aluminum, plastic spraying, integration, and heat treatment make the product heat-resistant, impact-resistant, wear-resistant, corrosion-resistant, and solid, so it has a long service life.

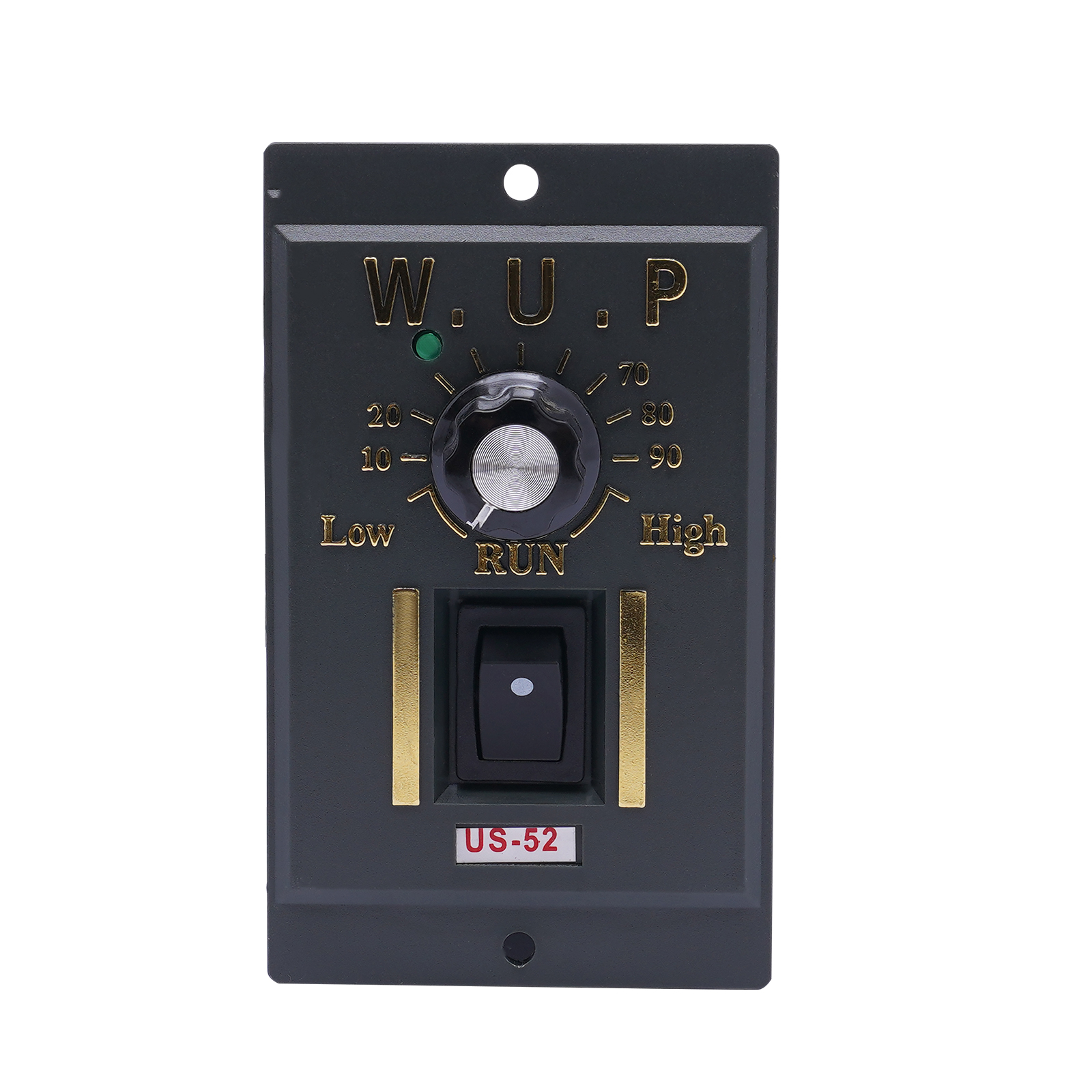

Adjustable Speed

With a speed adjustment knob with clear prompts, you can adjust different speeds (0-100%) according to different products to achieve the desired effect.

Safety Guard

The built-in cooling fan (>60W), cooling holes, stable pure copper coil, and slow start function that can effectively avoid current overshoot and protect the motor timely can ensure safety and prolong the motor's life.

Stable Operation

Ball bearings at both ends of the rotor can reduce friction and temperature during use, ensuring stable operation.

Convenient and Simple

Complete accessories, simple structure, convenient switch, knob, and detailed instructions allow you to complete the installation and start using it in a short time

High Efficiency

The 25W power with small vibration, 90-1350rpm rotational speed, 8Nm torque, 1:60 reduction ratio, reversing function that is flexible with normally open and closed control systems, and integrated reducer can effectively improve work efficiency.

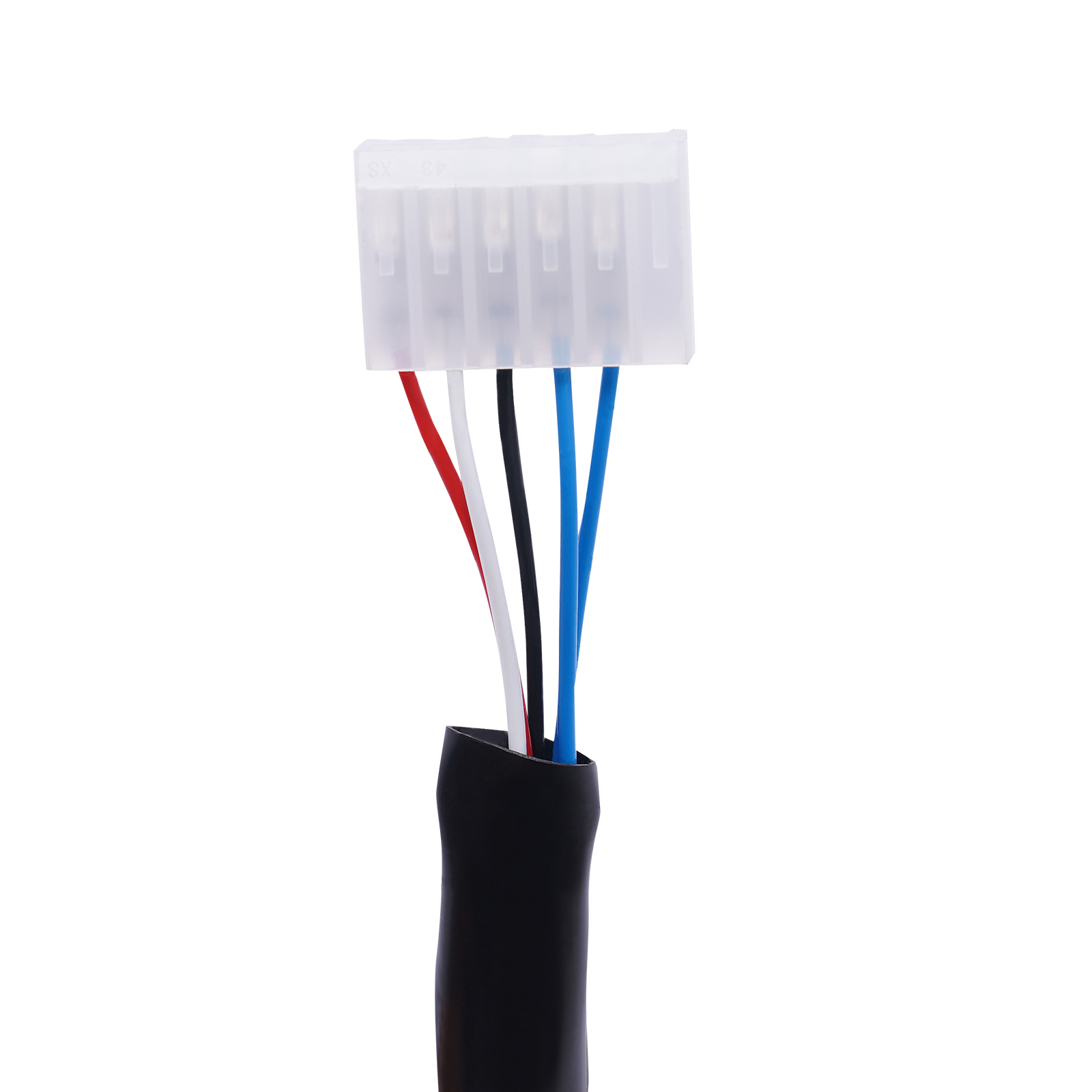

Long Connecting Cable

The 3.28ft cable allows you to have enough disposable length for easier use, and can also further protect your safety.

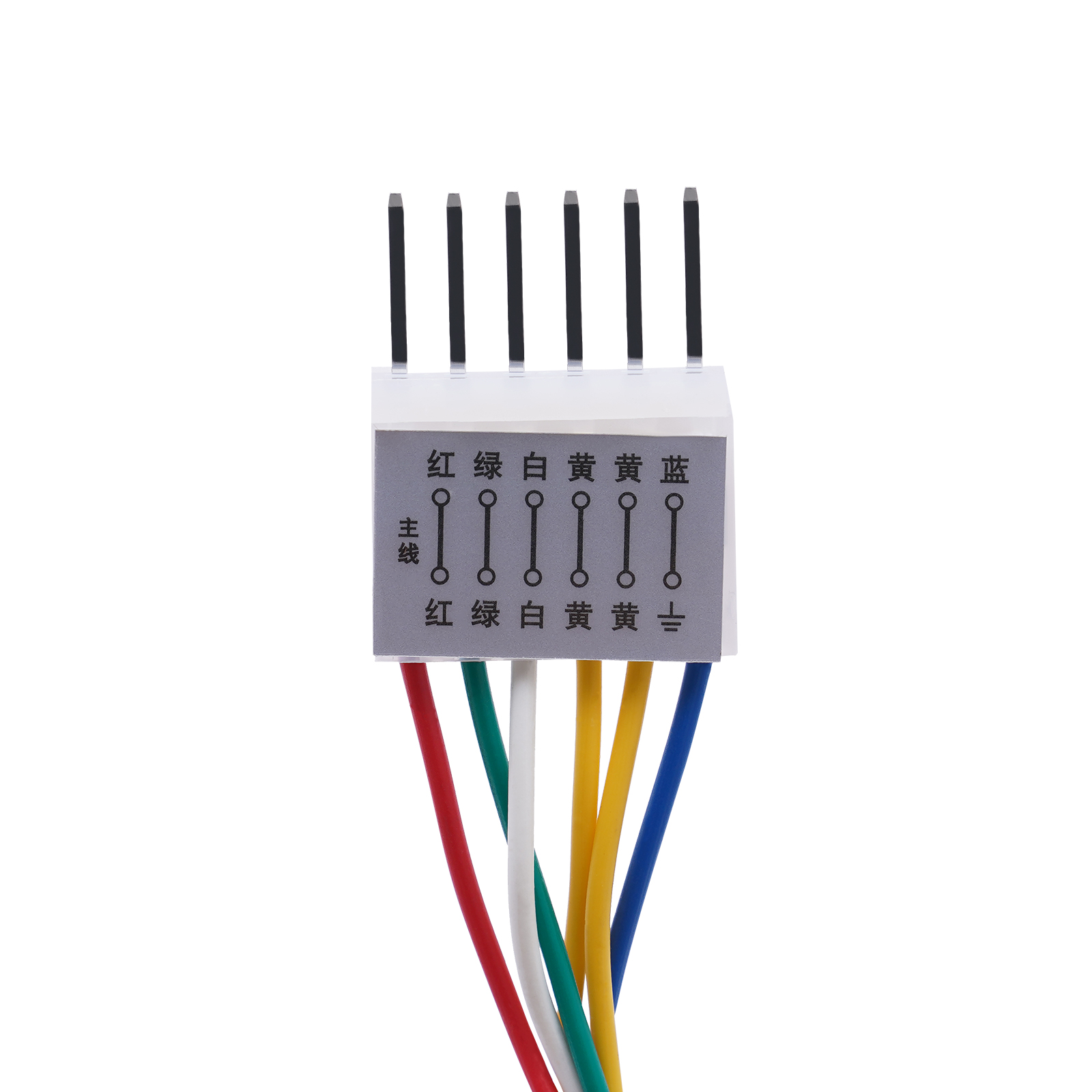

Multiple Power Cords

Different colors of power cords allow you to connect them easily and without confusion.

Solid Stand

This 6.3*3 inch stand with two outward extending feet can better maintain product stability and ensure smooth operation.

Specifications
Color:  Gray

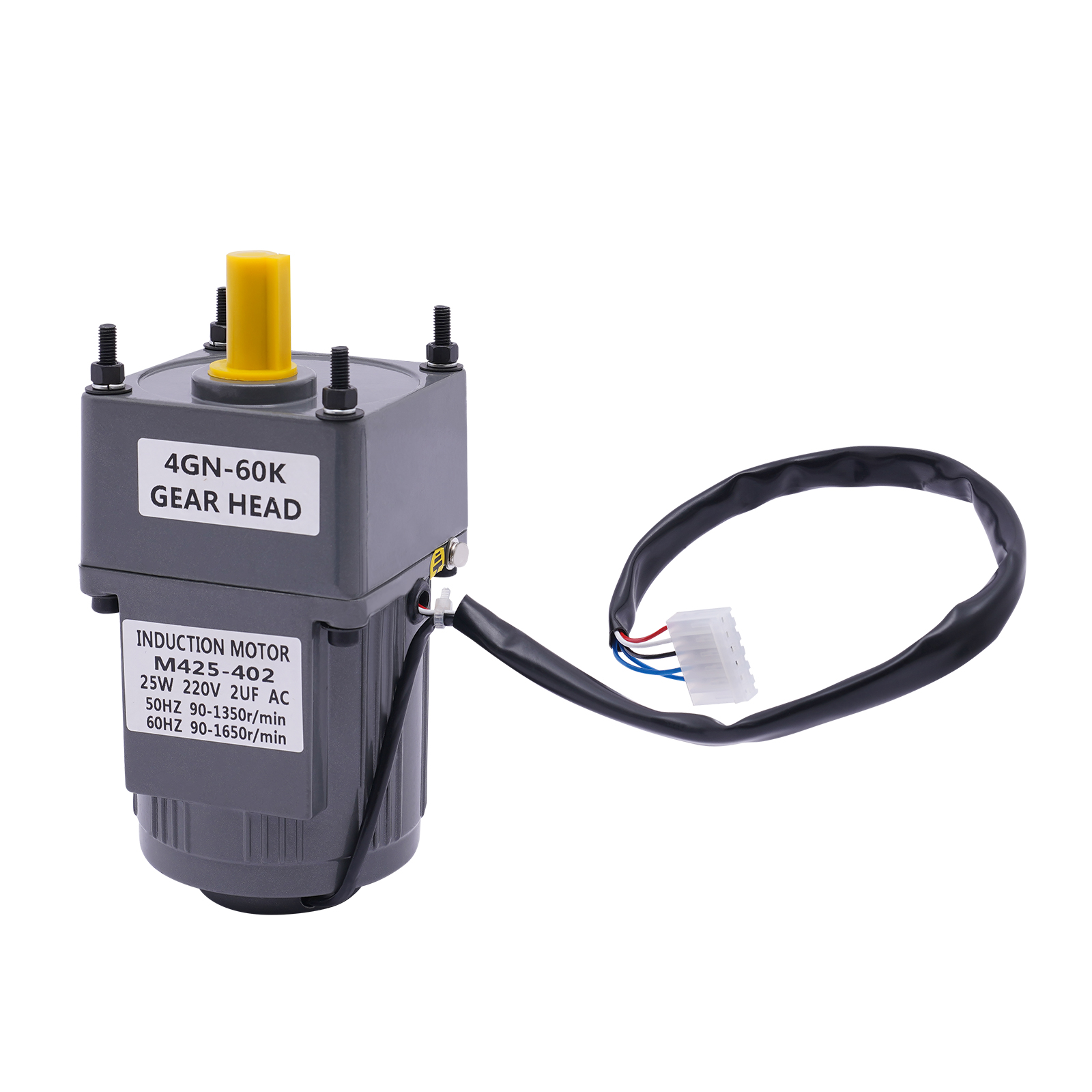

Name:  4GN-60K Gear Head
Model:  M425-402
Material:  Cast Aluminum
Processes:  Plastic Spraying, Integration, Heat Treatment Process
Type:  AC Gear Motor, Induction Motor
Shape:  Square, Round
Feature:  Portable
Power Phrase:  Single-phrase
Motor:  Pure Copper Motor
Noise:  About 50db
Built-in Fan:  ＞60W
Torque:  About 8N.m
Voltage:  AC 220V
Power:  25W
Capacitance:  2UF
Adjustable Speed:  0-100%
Assembly Required:  Yes
Suitable Screw:  M5 (Not Included)
Speed:  50Hz 90-1350r/min, 60Hz 90-1650r/min
Reduction Ratio:  1
Temperature:  -10-60℃/14-140℉
Connecting Line Length:  About 1m/3.28ft
Shaft Diameter:  10mm/0.39inch
Shaft Height:  27mm/1.06inch

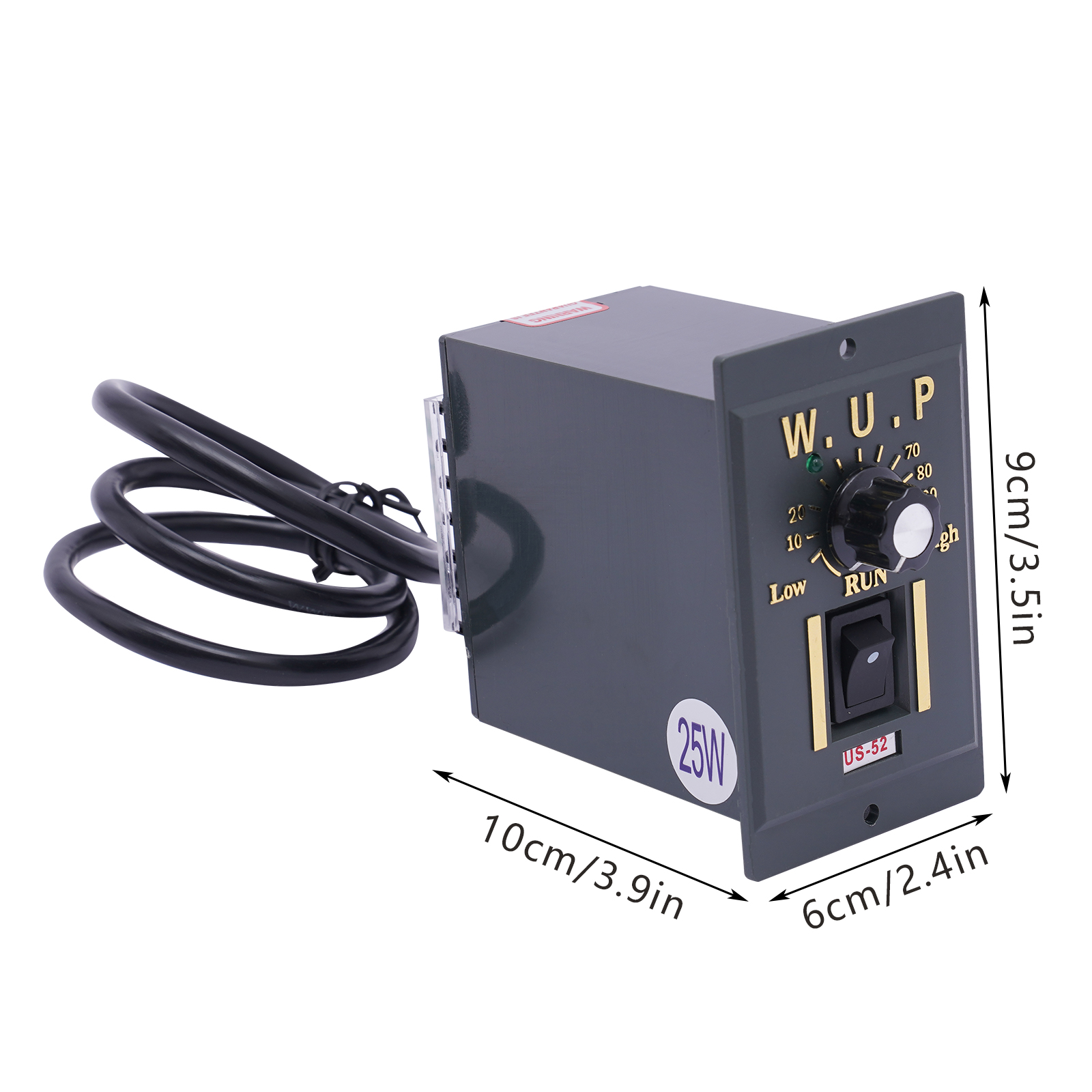

Speed Controller Size:  9*6*10cm/3.5*2.4*3.9inch

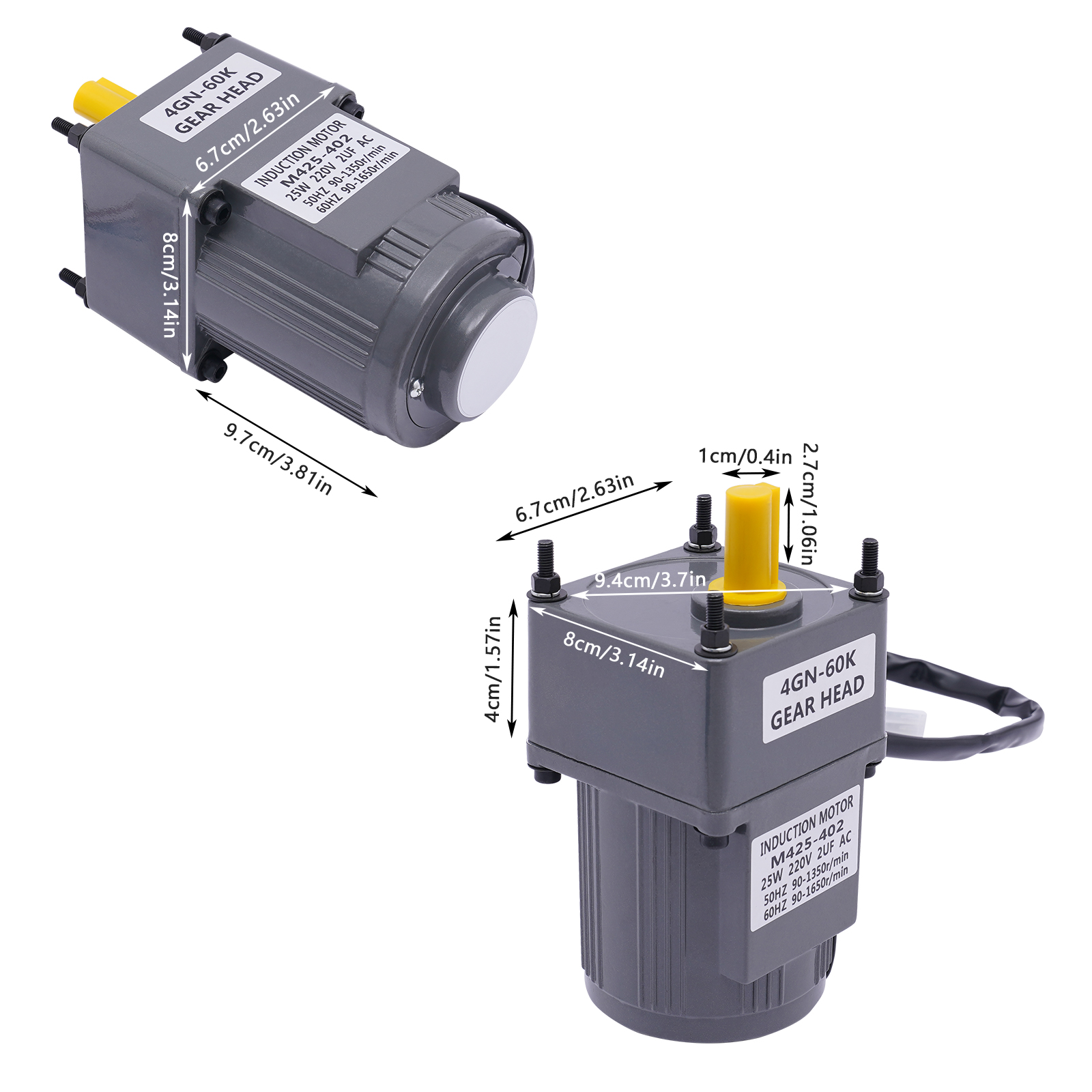

Motor Size:  6.7*8*9.7cm/2.6*3.2*3.8inch
Reducer Size:  6.7*8*4.6cm/2.6*3.2*1.8inch

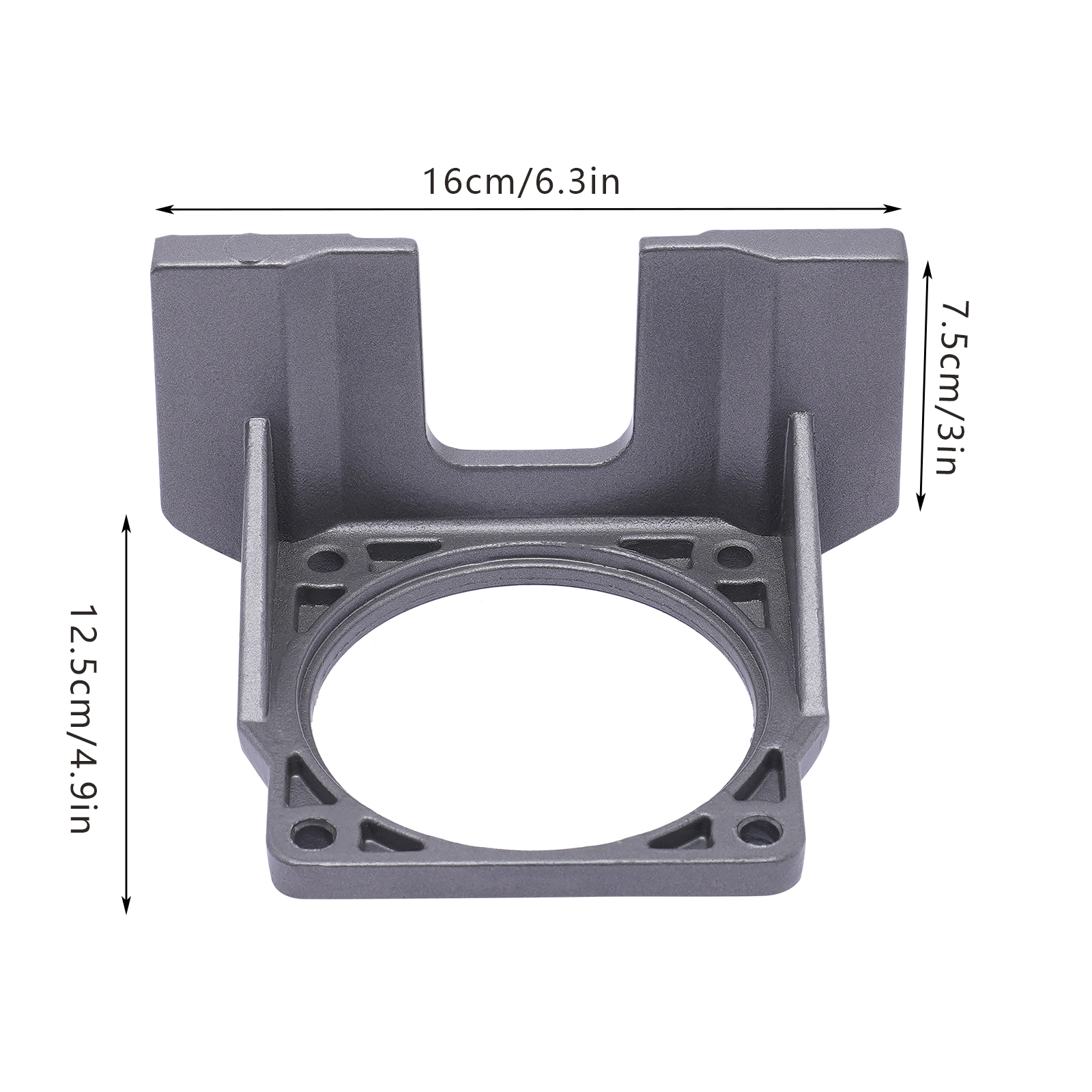

Stand Size:  16*7.5*12.5cm/6.3*3*4.9inch
Stand Top Length:  10.4cm/4.1inch
Package Size:  24*24*12.5cm/9.45*9.45*4.92inch
Net Weight:  2.5kg/5.51lbs
Gross Weight:  3kg/6.61lbs

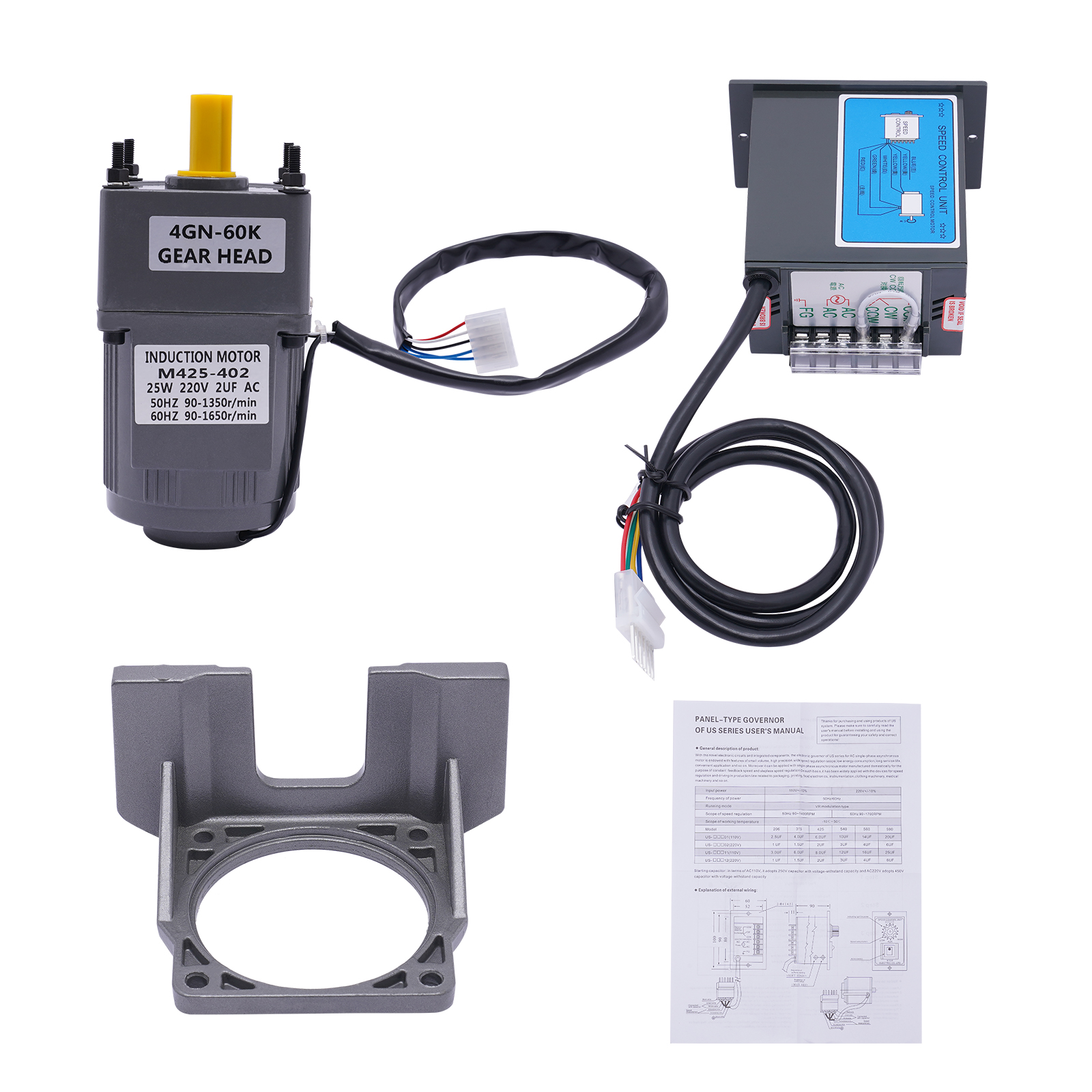

Package Included
1* Gear Motor
1* Speed Controller
1* English Manual
1* Stand

Specifications

Color Gray Name 4GN-60K Gear Head
Model M425-402 Material Cast Aluminum
Processes Plastic Spraying, Integration, Heat Treatment Process Type AC Gear Motor, Induction Motor
Shape Square, Round Feature Portable
Power Phrase Single-phrase Motor Pure Copper Motor
Noise About 50db Built-in Fan ＞60W
Torque About 8N.m Voltage AC 220V
Power 25W Capacitance 2UF
Adjustable Speed 0-100% Assembly Required Yes
Suitable Screw M5 (Not Included) Speed 50Hz 90-1350r/min, 60Hz 90-1650r/min
Reduction Ratio 1 Temperature -10-60℃/14-140℉
Connecting Line Length About 1m/3.28ft Shaft Diameter 10mm/0.39inch
Shaft Height 27mm/1.06inch Speed Controller Size 9*6*10cm/3.5*2.4*3.9inch
Motor Size 6.7*8*9.7cm/2.6*3.2*3.8inch Reducer Size 6.7*8*4.6cm/2.6*3.2*1.8inch
Stand Size 16*7.5*12.5cm/6.3*3*4.9inch Stand Top Length 10.4cm/4.1inch
Package Size 24*24*12.5cm/9.45*9.45*4.92inch Net Weight 2.5kg/5.51lbs
Gross Weight 3kg/6.61lbs

Product Tips

How to Install

1.Please remove the holster before installation.
2.Fix the reducer on the gear motor with four M5 screws(not included).
3.Install the keyway at the keyway opening.
4.Plug the speed controller and gear motor together (main wire to main wire).
5.Unscrew the two AC screws(not included) on the back of the speed controller.
6.Connect single-phase power to both AC ports (without distinguishing between zero and fire wires) and tighten the screws.
7.Turn the speed control knob to adjust the motor speed.
8.Install the stand on the motor.

Notes

1.Please strictly follow the instructions for use and installation, and pay attention to the safety precautions inside.
2.Please keep this product away from children, and do not knock on or beat this product.
3.Based on the industrial standard, to meet the different needs of customers, our motor does not include a power cord. You need to purchase a power cord to connect. M5 screws and plug are not included.
The speed reduction motor is composed of a motor and reducer, different speed ratios can achieve different speed regulation ranges, and they have different strengths.
