100x175mm Magnetic Tray Magnetic Chuck Permanent Magnetic Trays
100x175mm Magnetic Tray Magnetic Chuck Permanent Magnetic Trays
100x175mm Magnetic Tray Magnetic Chuck Permanent Magnetic Trays
100x175mm Magnetic Tray Magnetic Chuck Permanent Magnetic Trays
100x175mm Magnetic Tray Magnetic Chuck Permanent Magnetic Trays
100x175mm Magnetic Tray Magnetic Chuck Permanent Magnetic Trays
100x175mm Magnetic Tray Magnetic Chuck Permanent Magnetic Trays
100x175mm Magnetic Tray Magnetic Chuck Permanent Magnetic Trays
100x175mm Magnetic Tray Magnetic Chuck Permanent Magnetic Trays
100x175mm Magnetic Tray Magnetic Chuck Permanent Magnetic Trays
100x175mm Magnetic Tray Magnetic Chuck Permanent Magnetic Trays
100x175mm Magnetic Tray Magnetic Chuck Permanent Magnetic Trays
100x175mm Magnetic Tray Magnetic Chuck Permanent Magnetic Trays
100x175mm Magnetic Tray Magnetic Chuck Permanent Magnetic Trays
100x175mm Magnetic Tray Magnetic Chuck Permanent Magnetic Trays
100x175mm Magnetic Tray Magnetic Chuck Permanent Magnetic Trays
100x175mm Magnetic Tray Magnetic Chuck Permanent Magnetic Trays
100x175mm Magnetic Tray Magnetic Chuck Permanent Magnetic Trays
100x175mm Magnetic Tray Magnetic Chuck Permanent Magnetic Trays
100x175mm Magnetic Tray Magnetic Chuck Permanent Magnetic Trays
100x175mm Magnetic Tray Magnetic Chuck Permanent Magnetic Trays
100x175mm Magnetic Tray Magnetic Chuck Permanent Magnetic Trays

100x175mm Magnetic Tray Magnetic Chuck Permanent Magnetic Trays

(0 reviews)
Ask a question
1,548.00SEK
  • Brand: CNCEST
  • Product Code: OT-WMTZXL-936
  • Availability: In Stock
Quantity
- +
Estimated Delivery:
Free Fast Shipping:
On all orders
estimated delivery guarantee

Good Material

The material of the permanent magnetic chuck is iron and brass, you do not have to worry about the permanent magnetic chuck will be deformed in transit and they have a longer service life. In addition, the smooth surface of it not easy to accumulate dust.

High Durability

On the one hand, it is made of iron and brass giving it a strong hardness and wear resistance. On the other hand, its panel brass welding and treatment can prolong the corrosion of cutting fluid.

High Efficiency

This permanent magnetic chuck adopts an optimized magnetic circuit design so that there is almost little residual magnetism after machining so that the machined workpiece can be easily taken off with higher efficiency.

Strong Magnetic Force

This product uses high-performance magnets with strong magnetic force and less residual magnetism.

High Precision

This permanent magnetic chuck is made of professional material with parallel accuracy within 0.01mm/0.000394in and a magnetic pole pitch of 1.5+0.5mm/ 0.059+0.019in for high precision and remarkable processing effect. The accuracy of the disc surface does not change even when it is opened and closed.

Easy to Operate

The use of this permanent magnetic chuck only requires a wrench to control the shaft hole to complete its operation. Simple operation makes it easy for even beginners to master.

Convenient Magnetic Switch

When you switch ON/OFF, it also ensures that its magnetic surface accuracy remains unchanged, making it convenient for you to use.

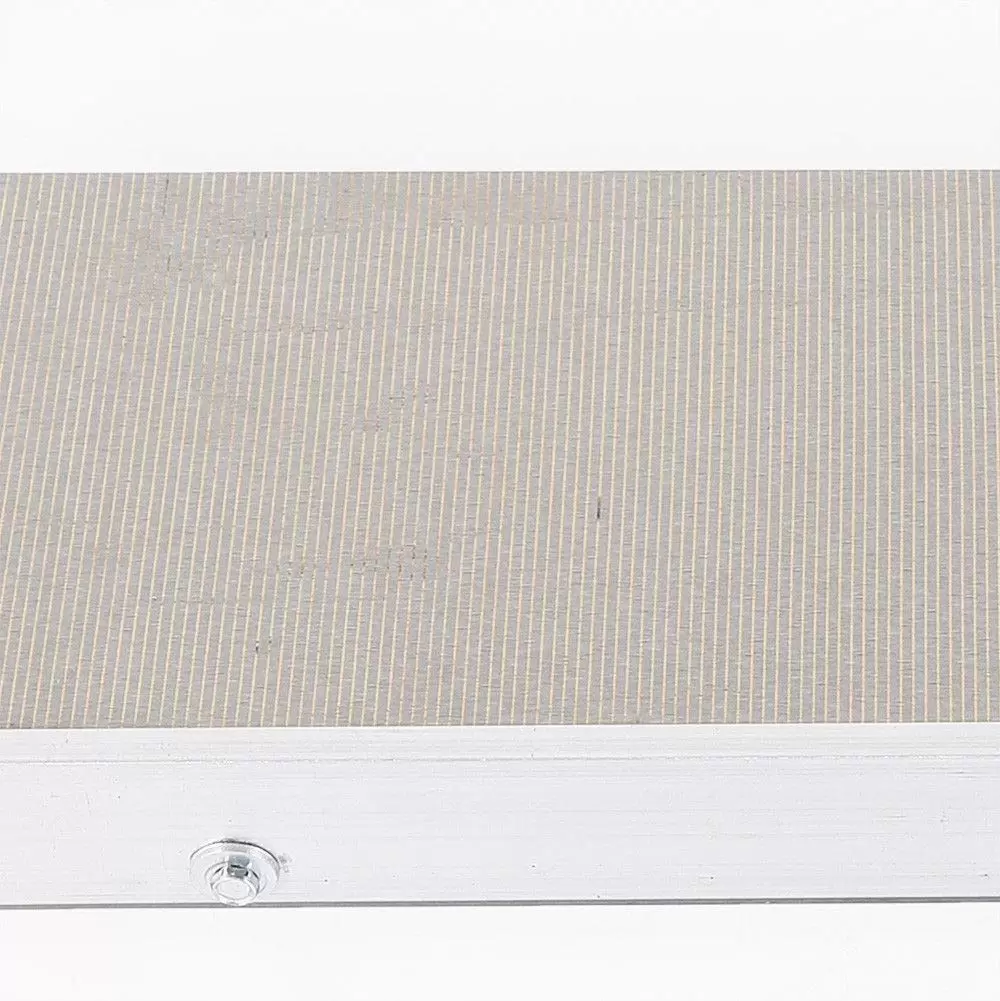

Brass Panel

The surface of this permanent magnetic sucker is made of superior brass, which makes the disk more resistant to high temperatures.

Application

This permanent magnetic chuck is suitable for grinding machines, EDMs, line cutting, tapping machines, bench drills, and other processing.

Specifications
Material:  Iron, Brass
Suction Force:  100N-120N
Product Size:  17.5*10*4.5cm/ 6.89*3.94*1.77in
Pole Pitch:  1.5+0.5mm/ 0.059+0.019in
Parallel Accuracy:  Within 0.01mm/ 0.000394in
Net Weight:  5.5kg/ 12.13lbs
Package Included

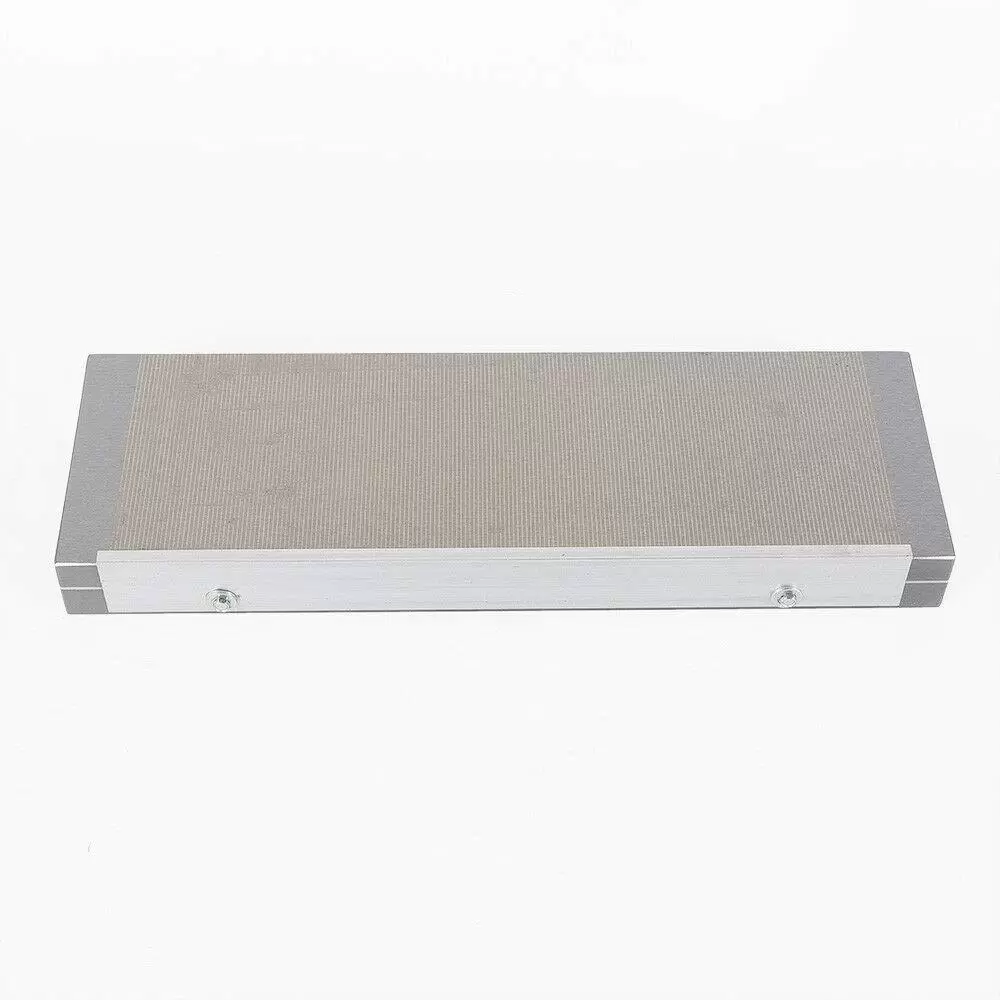

1* Permanent Magnetic Chuck

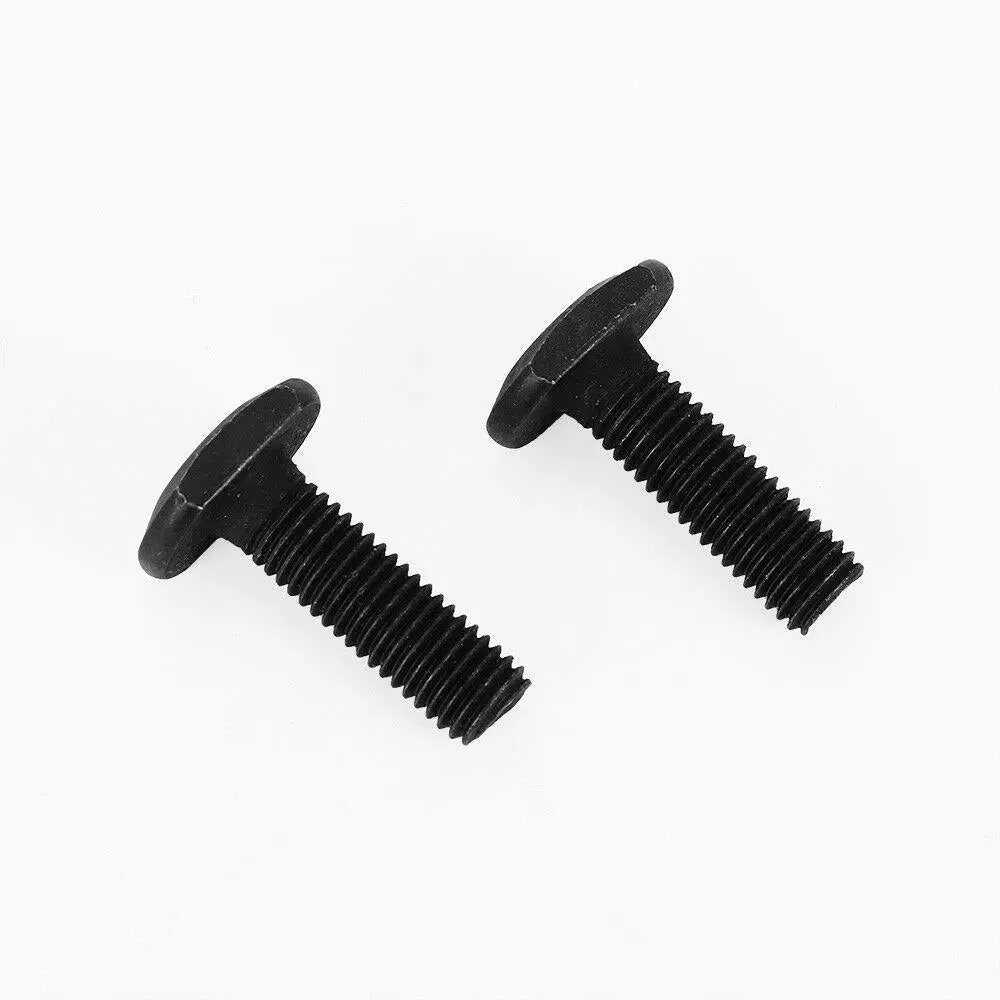

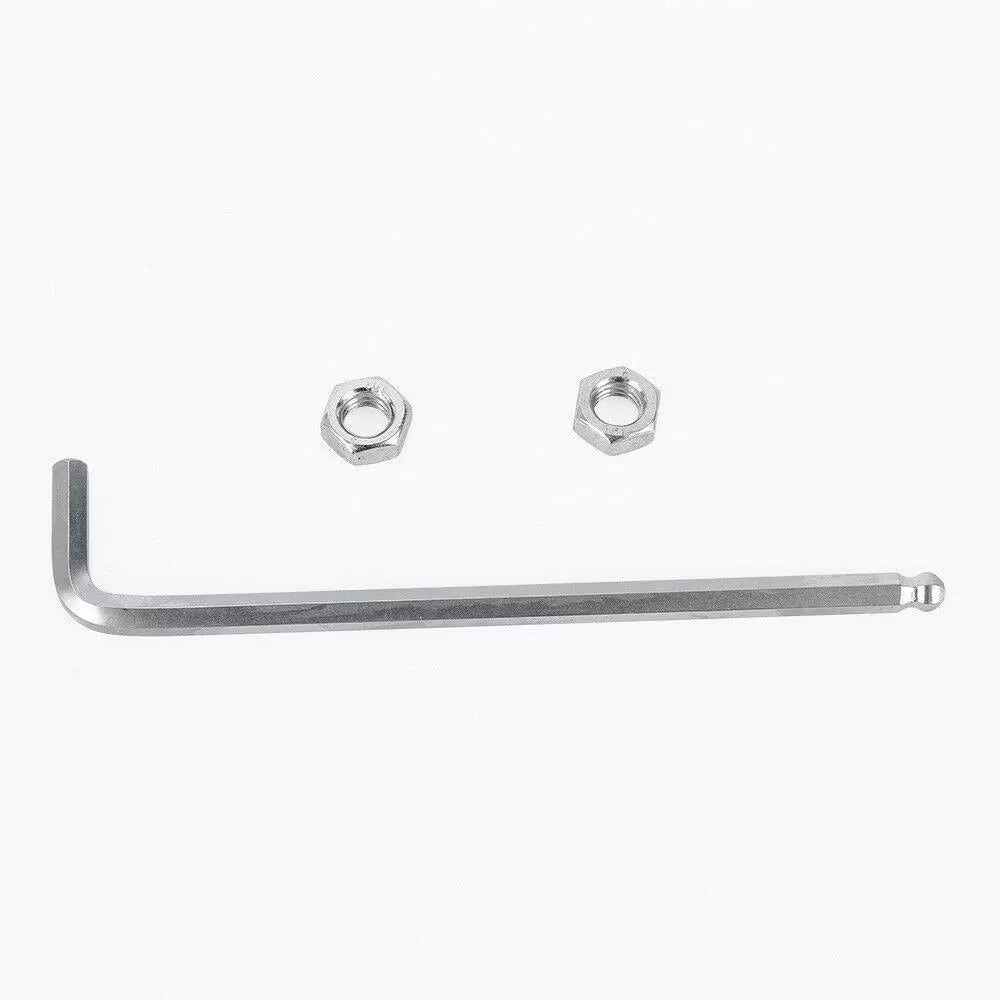

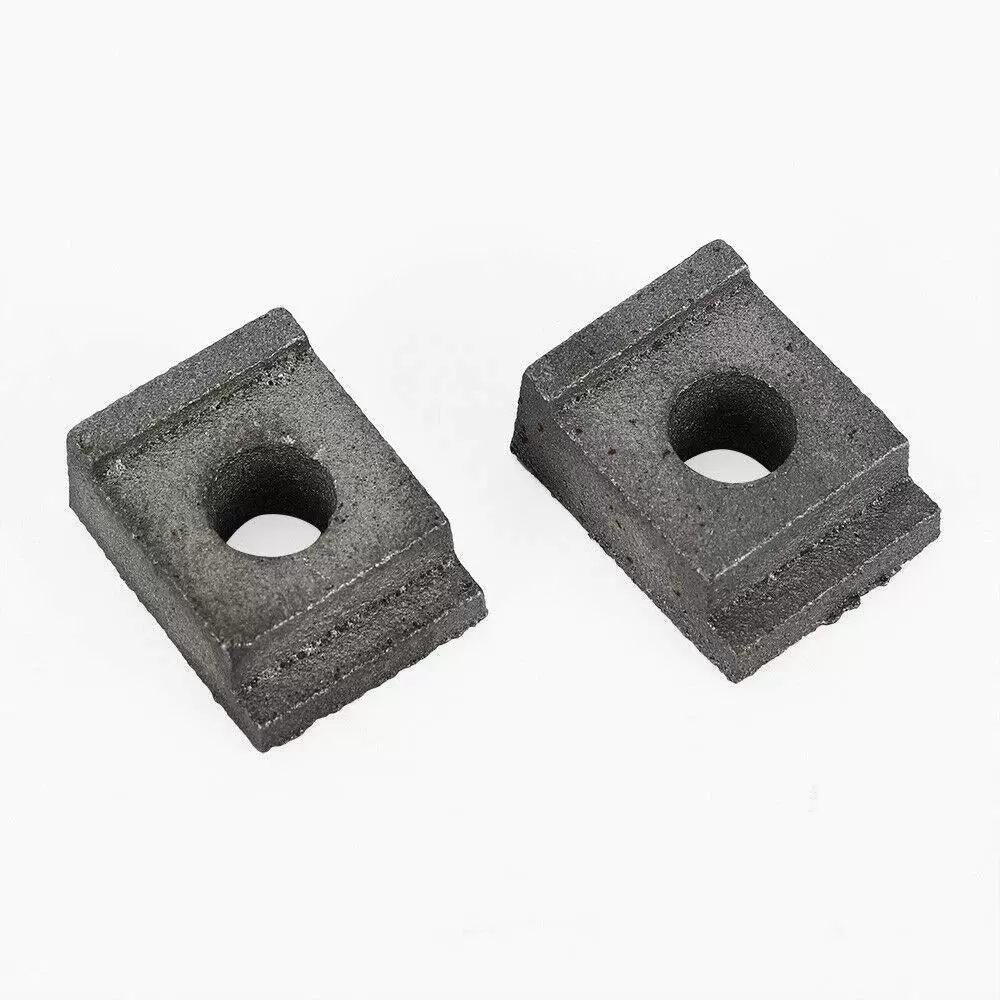

All Accessories for Assembly

Specifications

Material Iron, Brass Suction Force 100N-120N
Product Size 17.5*10*4.5cm/ 6.89*3.94*1.77in Pole Pitch 1.5+0.5mm/ 0.059+0.019in
Parallel Accuracy Within 0.01mm/ 0.000394in Net Weight 5.5kg/ 12.13lbs

Product Tips

Notes

1.Please remember that tungsten steel, hard alloy steel and other magnetic small workpieces are not suitable for a magnetic sucker.
2.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
