• The chuck body is made of high-quality hardened steel, and the wearing parts are specially designed after deterrence, which increases durability and longer service life.
• 4 jaw design, compact size, easy to use. Wide clamping range. Accurate precision, high efficiency and wear resistance.
• This rotating wooden chuck is connected by a high-precision short taper, and its alignment accuracy is less than or equal to 0.002" / 0.05mm.
• The premium 4-jaw liner is widely used. Mainly used for mini metal lathes. Each jaw is independently adjustable and reversible for high clamping force.
• This chuck is very adaptable and suitable for all types of multi-purpose lathes, CNC lathes, sanders, milling machines, drilling machines and machine tool accessories.

Easy to adjust thanks to the centering function. (Self-centered). With 4 individually and independently adjustable upturned jaws.

He is characterized by a light concentration capacity. Very solid and stable design
Compatible with: 4 times synchronous movement to fix 4 square cuts, also used for disc bar type.

Applicable machine tools and accessories: ordinary turning machines, economical CNC lathes, grinders, milling machines, drilling machines and indexing rotary table tools etc.

Product Description :
Manufacturer reference: not applicable.
This product must be fixed on the bar.

Description (80 mm) :
Easy to adjust thanks to the automatic centering function.
With 4 individually and independently adjustable reverse clamping jaws.
Maximum. Input torque: 40 Nm (80 mm)

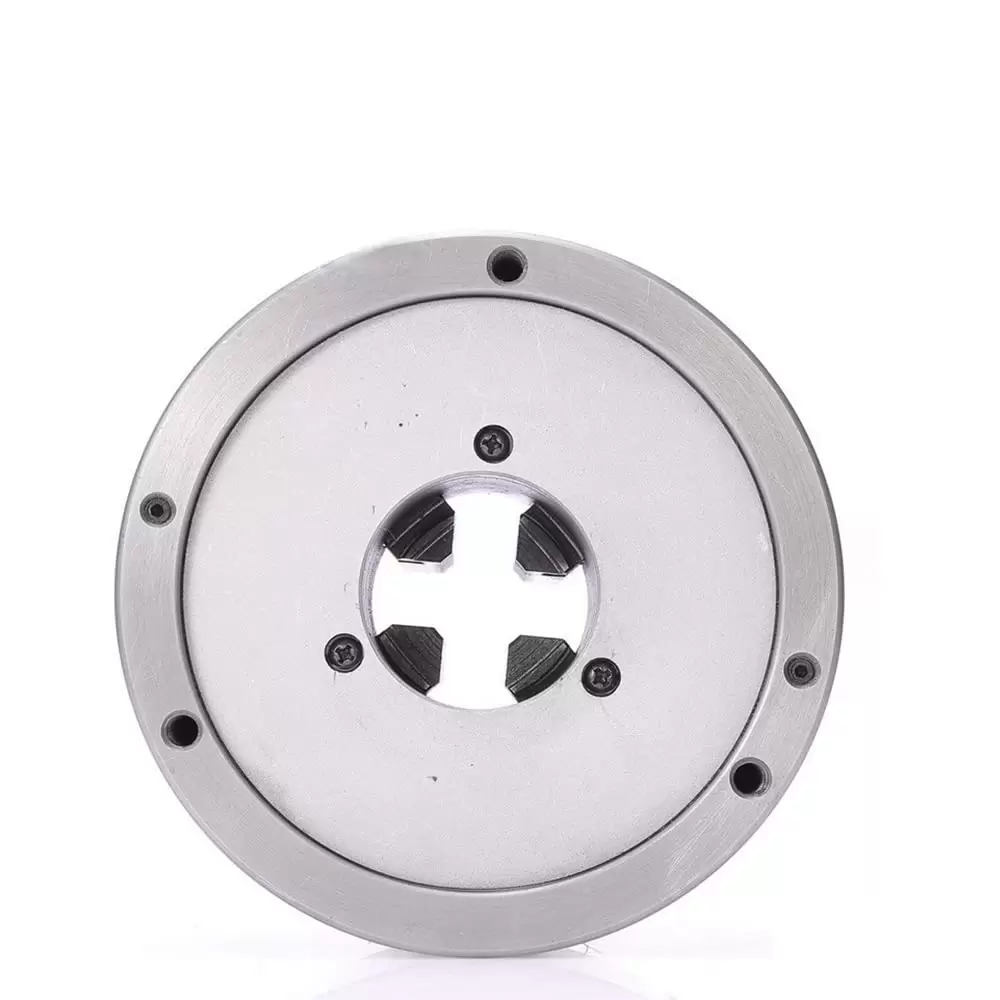

This product requires a flange to attach it to the lathe.
Very solid and stable design.
It is characterized by a low concentricity capacity.
Compatible with: 4 square section synchronous movement, also used for disc bar type.
Applicable tools and accessories: ordinary lathe, CNC lathe, grinder, milling machine, drilling machines and tool machine accessories, switching table, etc.

Features :
Material: steel
Diameter: 80mm
Maximum. Input torque: 40 Nm (80 mm)
Maximum rotation speed: 4800 rpm.
Positive jaw clamping range: 2-22mm
Anti-jaw clamping area: 22-63 mm.
Dimensions : 80 x 80 x 66 mm.
Weight: 2.2 kg
Dimensions :
80 mm : 80 x 80 x 66 mm 2,2 kg.
100 mm : 10 x 100 x 74,5 mm 3,5 kg.
125 mm : 125 x 125 x 84 mm, 5,4 kg.

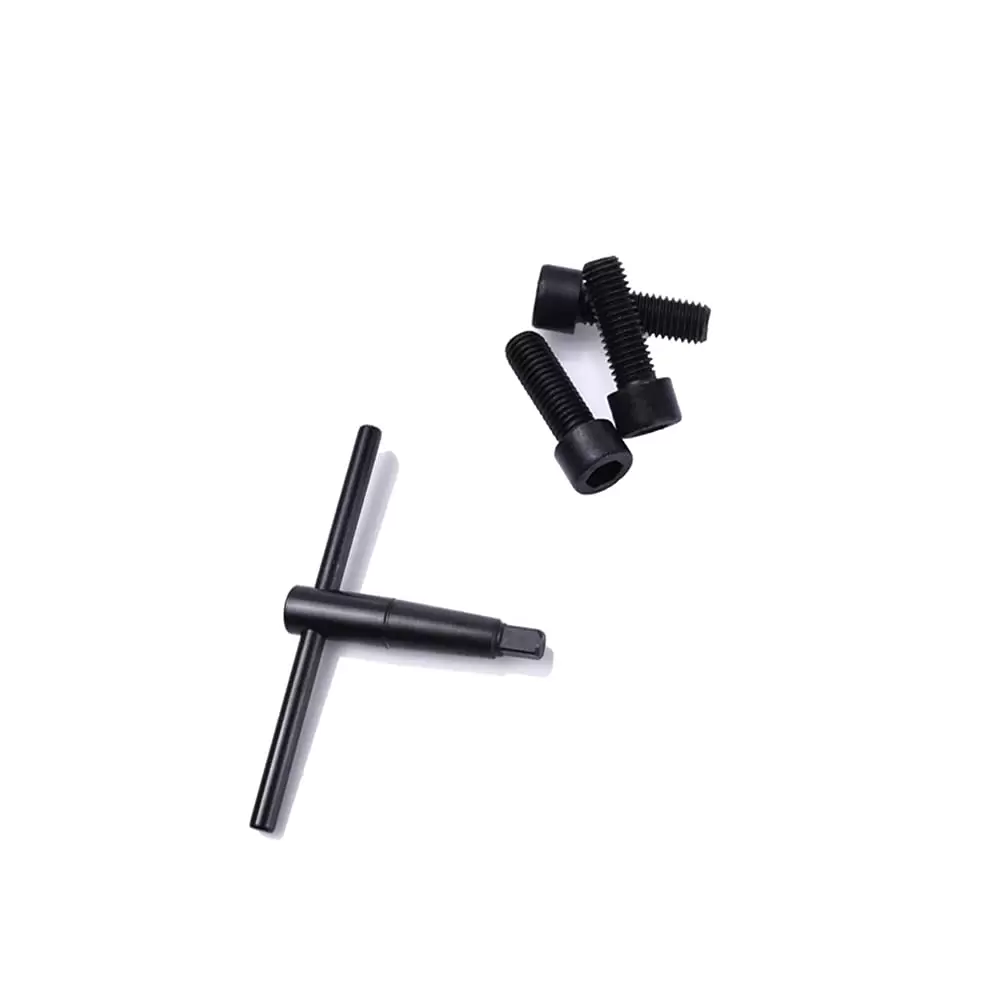

Content :
A pair of claws.
A pair of anti-claws.
1 adjustable wrench.
3 in total
