(0 reviews)
Ask a question
1,847.88SEK
  • Brand: CNCEST
  • Product Code: BI-WWHYYR-2246-1
  • Availability: In Stock
Quantity
- +
Estimated Delivery:
Free Fast Shipping:
On all orders
estimated delivery guarantee

Good Crimping Effect

The hydraulic clamp adopts a hexagonal confining pressure form, which can achieve a good crimping effect.

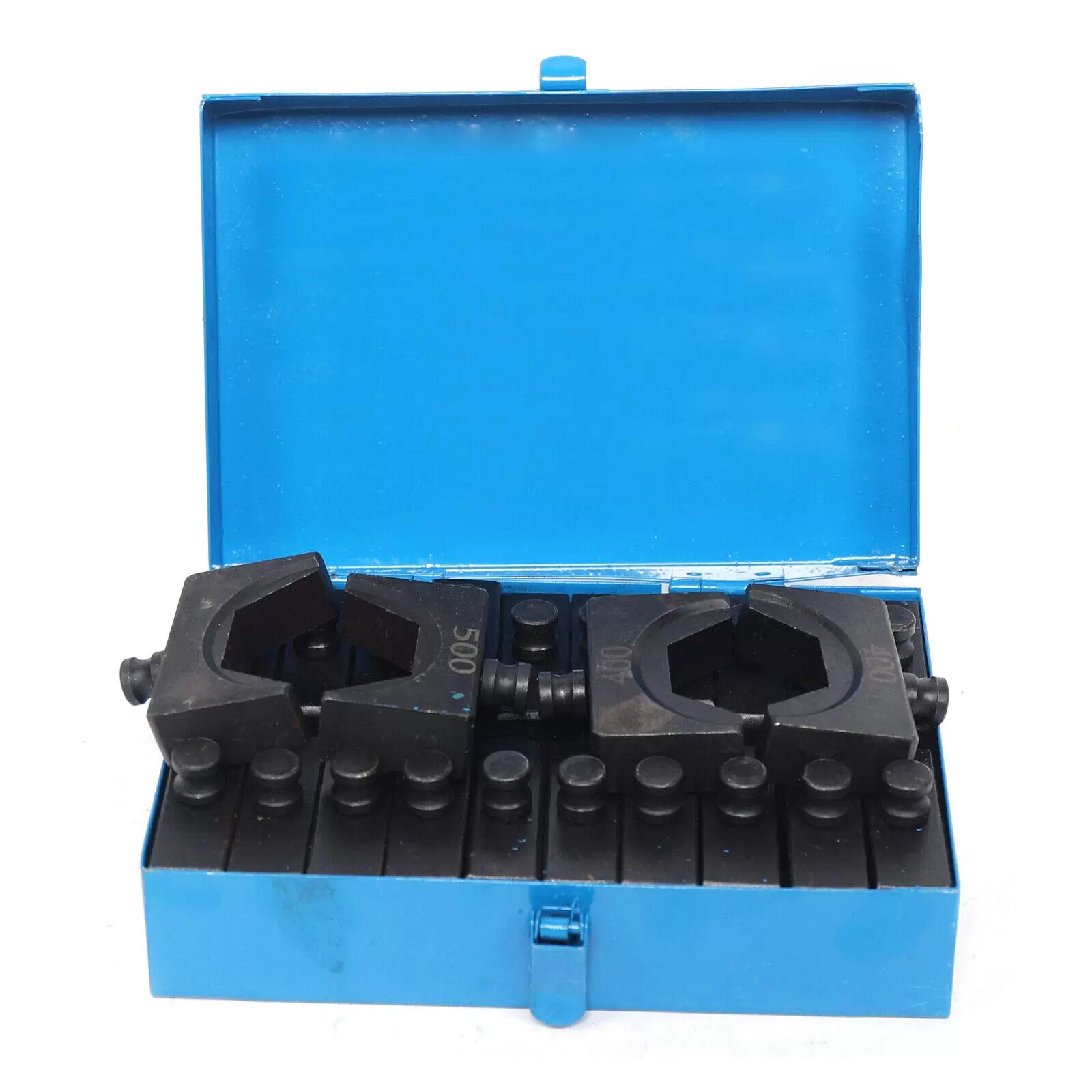

Multiple Dies

You can select the crimping die (16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400, 500mm²) reasonably according to the wire specification. And you can store them well in the iron box.

Easy to Carry&Store

The hydraulic pump&clamp feature a smaller size and greater working capacity, along with the handle design, making it portable, flexible, and easy to store.

Standard Connector

The ZG3/8 threaded connector allows for an easy and tight connection without leakage.

Anti-dust Cap

The dustproof cap can reduce pollution, thus extending the service life of the hydraulic clamp.

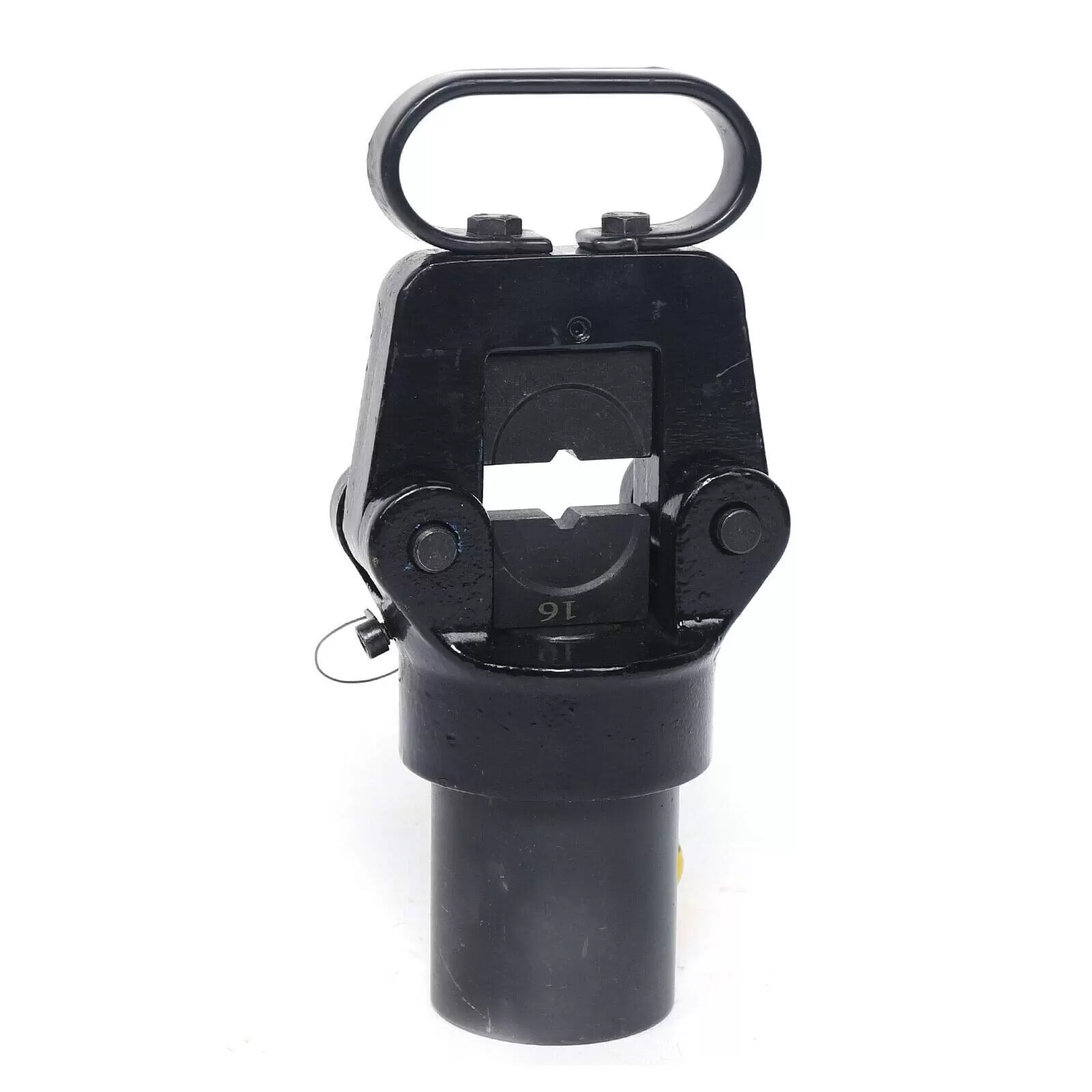

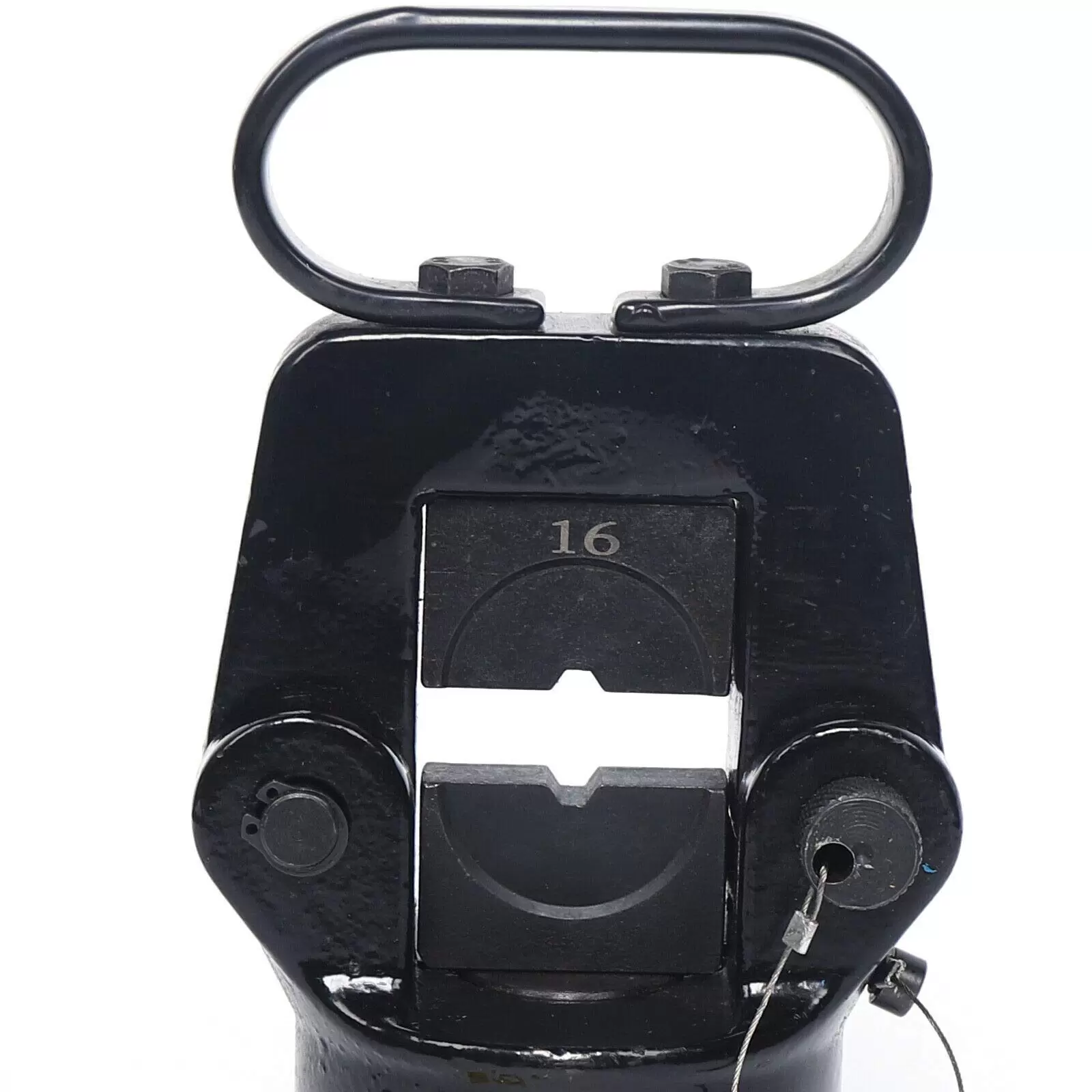

C-type Open Crimping Head

The C-type open crimping head is convenient for mold replacement and terminal placement&removal. And fixing nuts can make it more stable.

Build to Last

The hydraulic pump adopts steel tubes with paint spraying treatment, which is not easy to rust. Made of high-quality 45 steel with blackening heat treatment, this hydraulic clamp is high-strength and long-lasting.

High Stability

The support feet on both sides of the pump can make it more stable without shaking when using it.

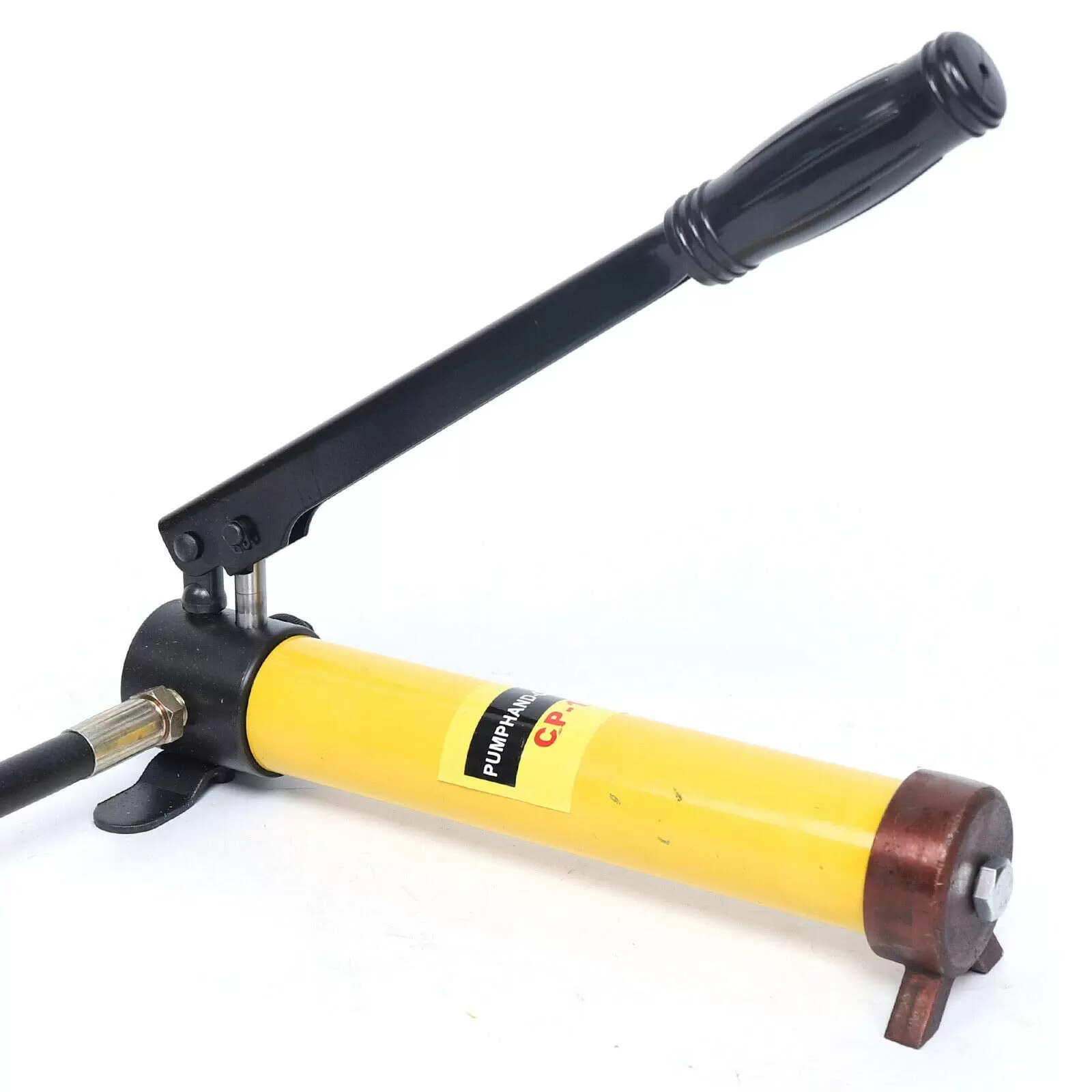

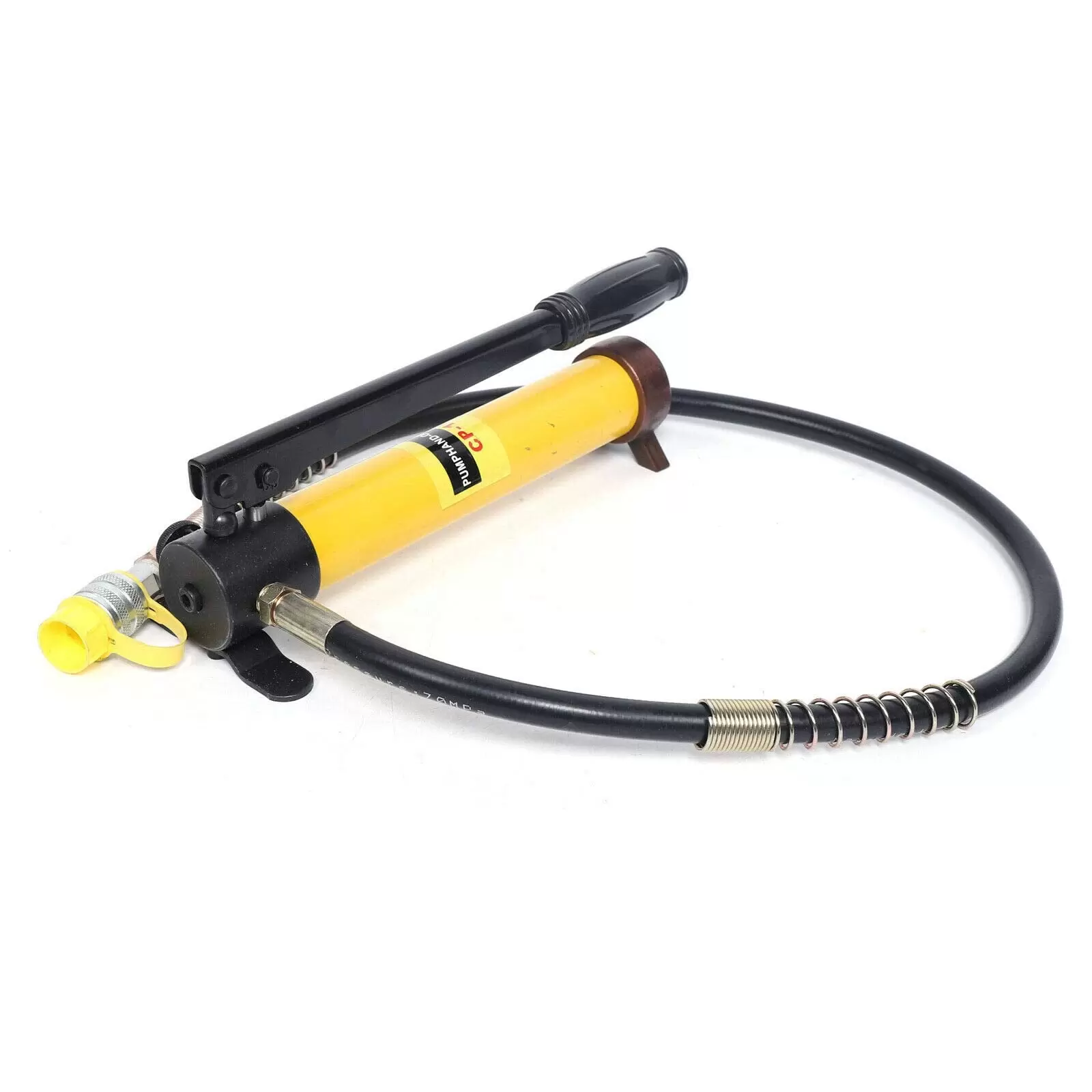

Powerful Manual Hydraulic Pump

The pump can be used with punching/cutting/bending machines, hydraulic puller, flange expander, split ram, hydraulic cylinder jacks, hydraulic punchers, and other separate hydraulic equipment. Moreover, it can be used with manual non-power crimping copper and aluminum nose, or with an electric pump to improve efficiency.

Application

It is often used in power, chemical, steel, bridges, and other industries. It is suitable for railway vehicle maintenance, mechanical installation, construction engineering support, etc. It is suitable for vertical and horizontal directions, but can not be tilted or inverted.

Specifications
Clamp Model:  FYQ-500
Pump Model:  CP-180
Color:  Black, Yellow
Material:  45 Steel, Steel Tube
Surface Treatment:  Paint Spraying, Heat Treatment, Blackening
Oil Return:  Single Hole
Dies:  16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400, 500mm²
Oil Capacity:  350-400CC/11.8-13.5oz
High Pressure:  700kg/cm², 70MPA
Connector:  ZG3/8 Thread
Output:  15T/33069lbs
Stroke:  22mm/0.86inch
Crimping Range:  16-500mm²
Hose Length:  1m/3.28ft
Pump Handle Length:  34cm/13.38inch
Pump Height:  11cm/4.33inch
Pump Length:  33cm/12.3inch
Package Size:  37.5*22.5*16cm/14.7*8.85*6.3inch
Net Weight:  About 15kg/33lbs

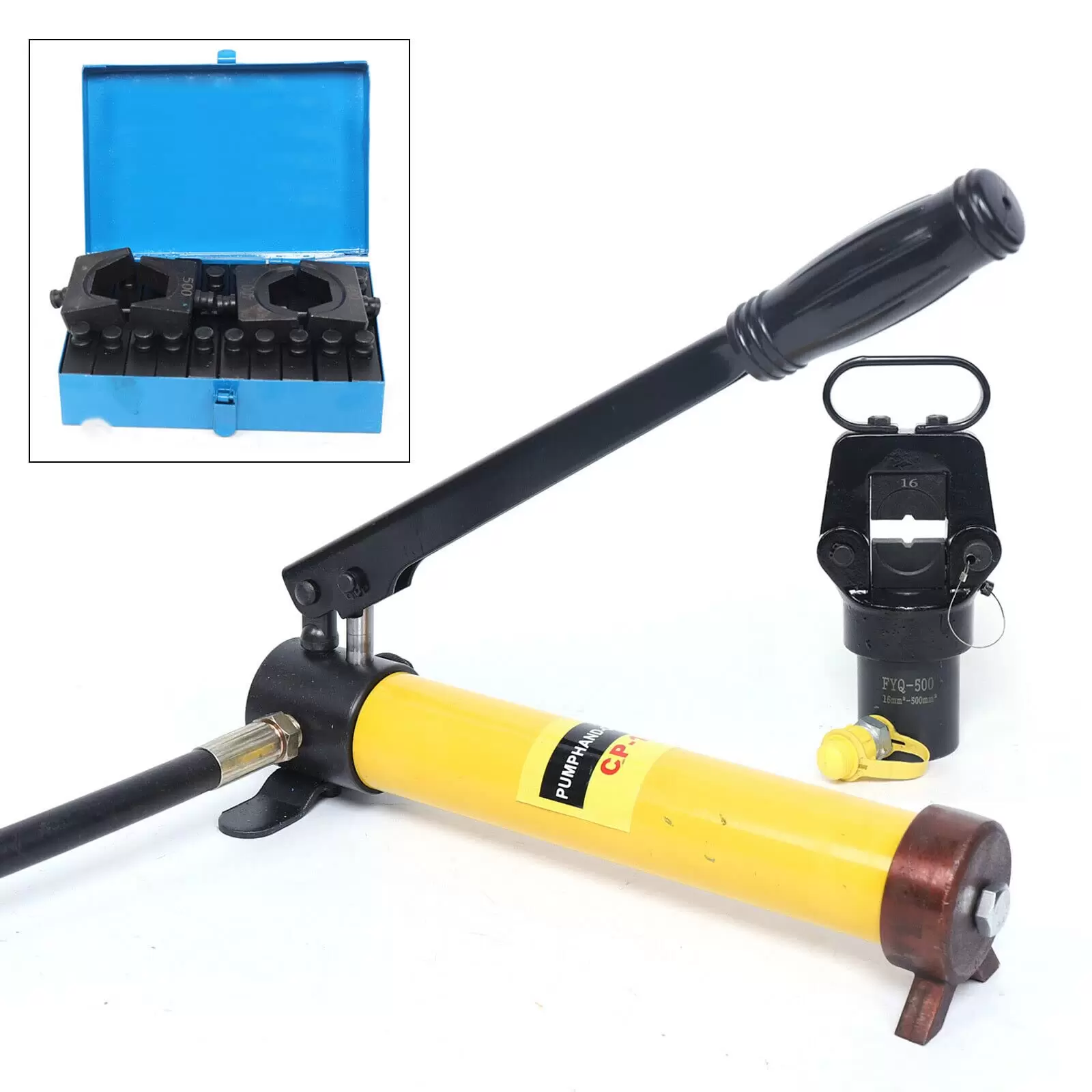

Package Included
1* Split Hydraulic Clamp
1* Hydraulic Pump
13* Dies

Specifications

Clamp Model FYQ-500 Pump Model CP-180
Color Black, Yellow Material 45 Steel, Steel Tube
Surface Treatment Paint Spraying, Heat Treatment, Blackening Oil Return Single Hole
Dies 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400, 500mm² Oil Capacity 350-400CC/11.8-13.5oz
High Pressure 700kg/cm², 70MPA Connector ZG3/8 Thread
Output 15T/33069lbs Stroke 22mm/0.86inch
Crimping Range 16-500mm² Hose Length 1m/3.28ft
Pump Handle Length 34cm/13.38inch Pump Height 11cm/4.33inch
Pump Length 33cm/12.3inch Package Size 37.5*22.5*16cm/14.7*8.85*6.3inch
Net Weight About 15kg/33lbs

Product Tips

Notes

1.To operate correctly, it needs to be connected to a solid flat lifting surface rather than a soft or rough surface.
2.The male connector on the clamp and the female connector on the pump must be tightly screwed, or the oil will leak.
3.It is not suitable for cars.
4.This pump has a spring return structure. After lifting, it can be removed fast, but the connected hose cannot be used to pull the cylinder.
5.This hydraulic pump is shipped with hydraulic oil.
6.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
