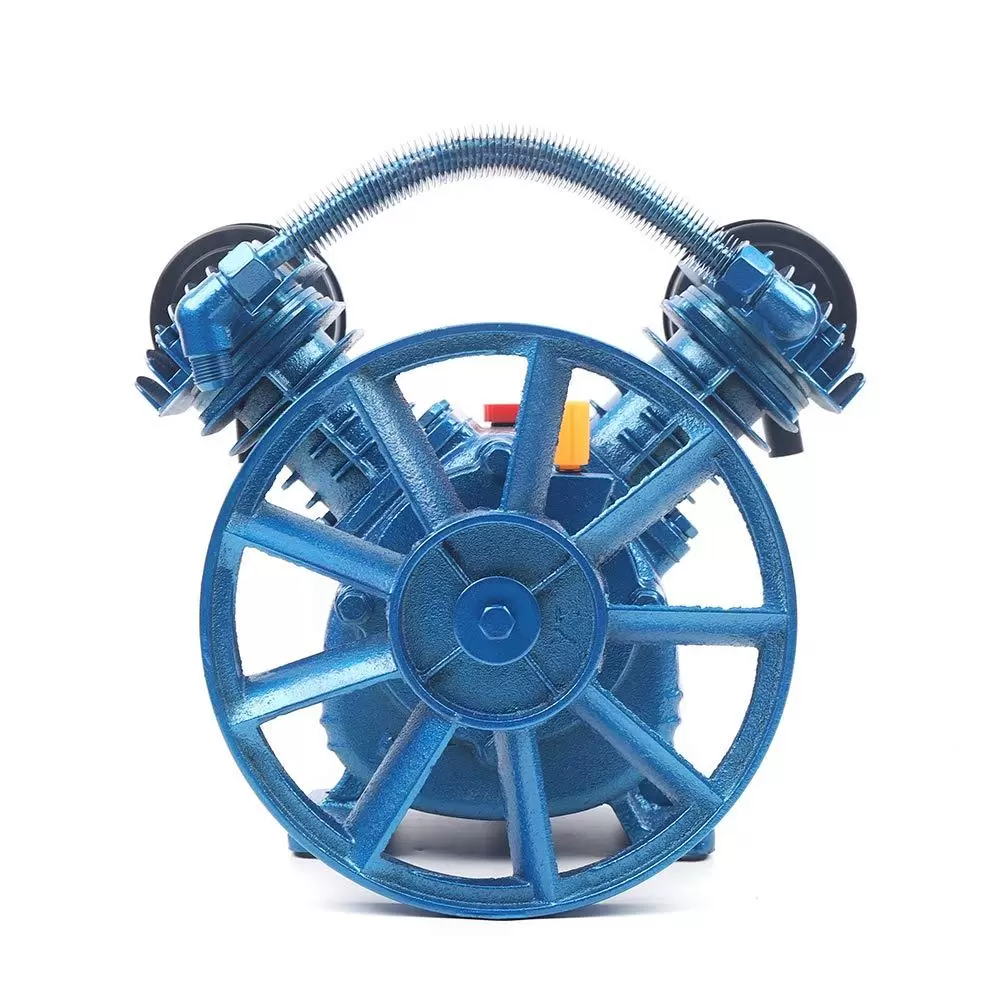

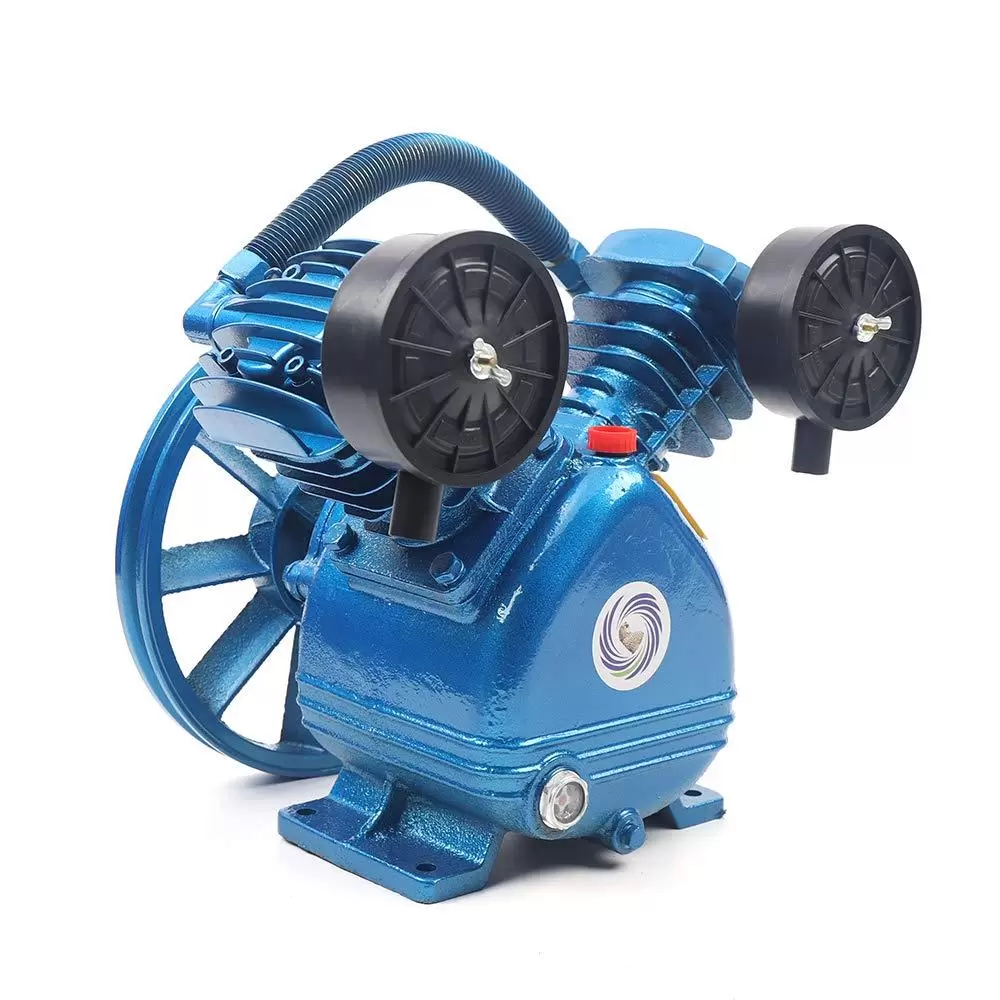

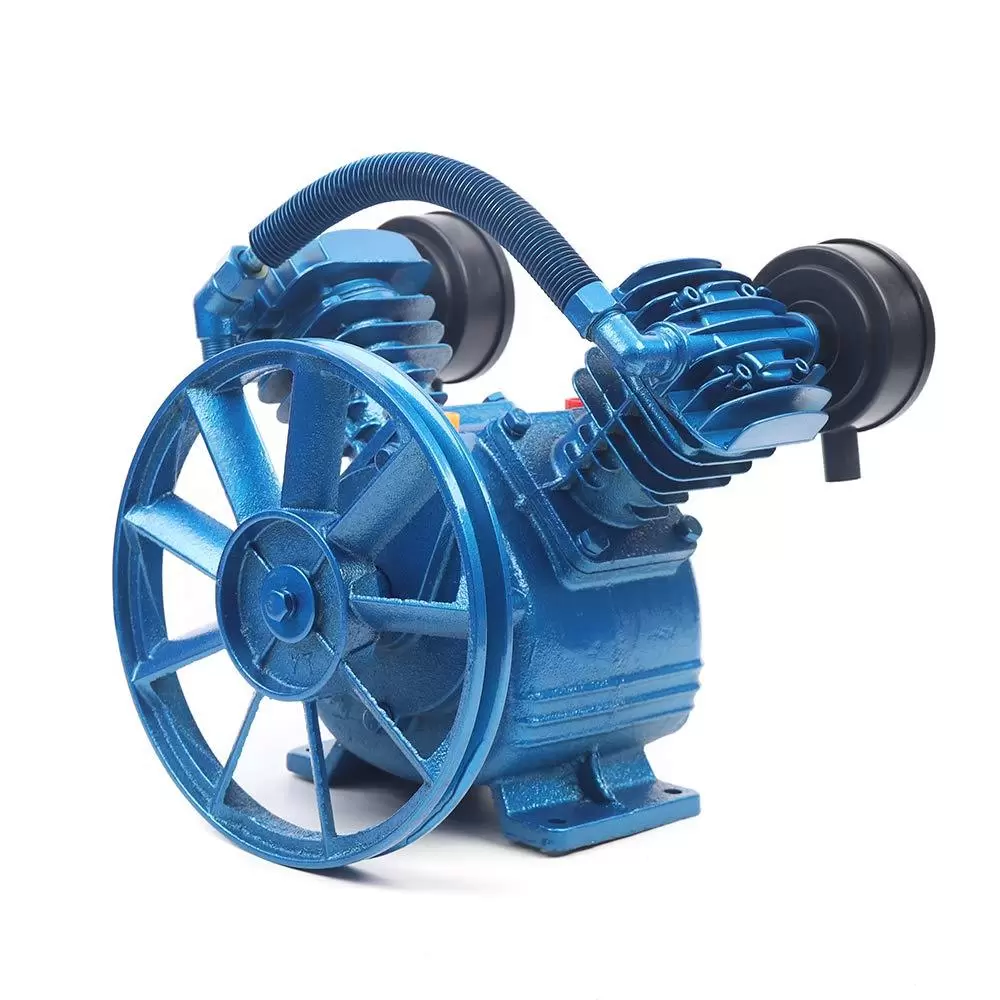

1500W 115PSI 2HP V-Style Doppelzylinder Air Compressor Pump 2 Piston Air Compressor Head Pump V Style Twin Cylinder Single Stage 2HP 115PSI
- Brand: CNCEST
- Product Code: HG-WMTZXL-3115
- Availability: In Stock

Specifications
l Modell | V-0.17/8 | l Exhaust volume | 170L/min |
l Exhaust pressure | 8bar/ 115PSI | l Pipe connection | 19mm |
l Matching power | 1.1-1.5kw | l Cylinder diameter | 51mm*2 |
l Speed | 1050rpm/min | Modell | V-0,17/8 |
PS | 2PS2 | Maximum pressure | 115PSI |
Pulley diameter | 250MM | Nozzle thread | American 3/4-16 (outer thread diameter |
Revolutions | 1000-1100 revolutions | Compression pump | Single stage |
Notes:


Notes:
1、When putting on the pump head, the motor pulley and pulley must be in a straight line. The more aligned, the less vibration.
2、Tighten the screws (including the base and pulley screws).
3、After attaching the screws, the belt needs to be tensioned. If the belt is loose, please move the motor. After the screws are tightened, reinstall the belt.
4、The new machine must be filled with engine oil before starting, and the engine oil must be added in the middle of the red dot of the oil level.
5、 The rotation direction of the pump head is clockwise. If it reverses, please adjust it in time.
6、Change the oil for the first half month, the second month and a half and the next two to three months.

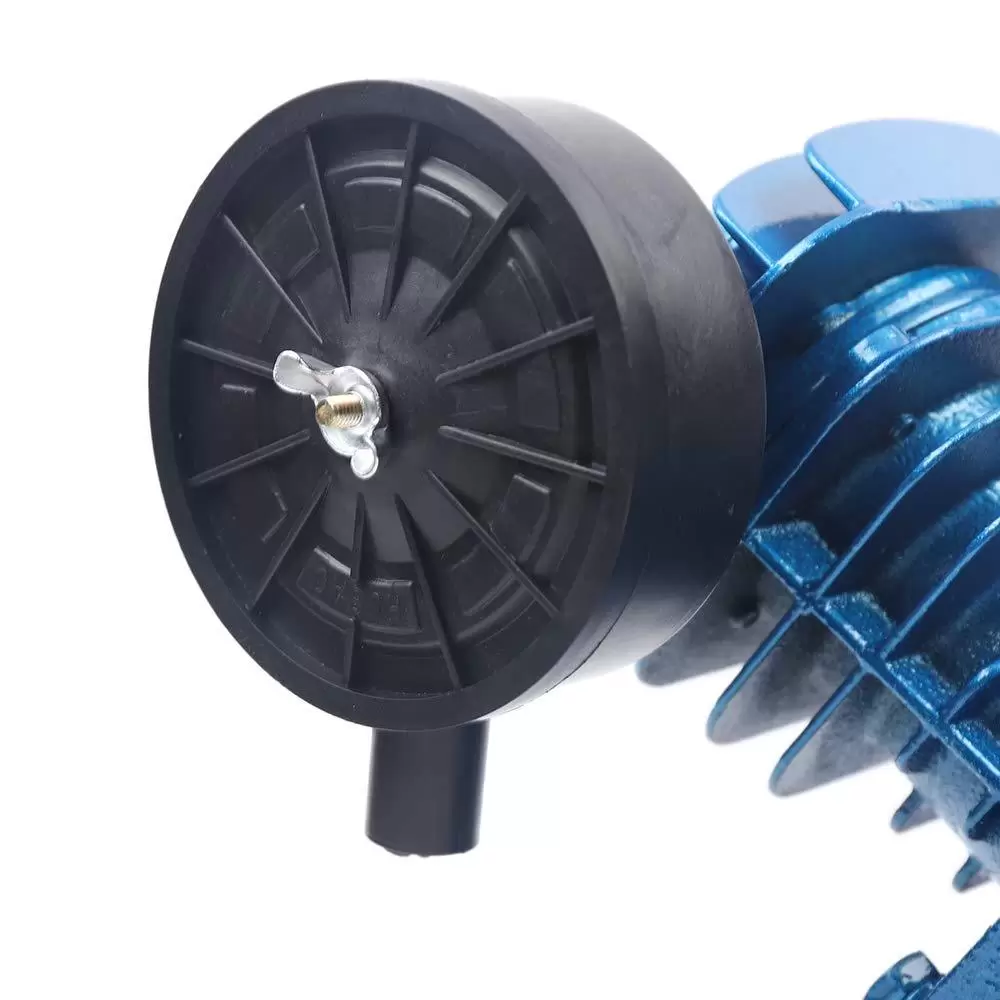

7、Replace the air filter regularly. Under normal conditions it needs to be replaced in two to three months, under poor environmental conditions it needs to be replaced in one month.
8、The operation of the machine produces a high temperature, be careful not to burn yourself!
